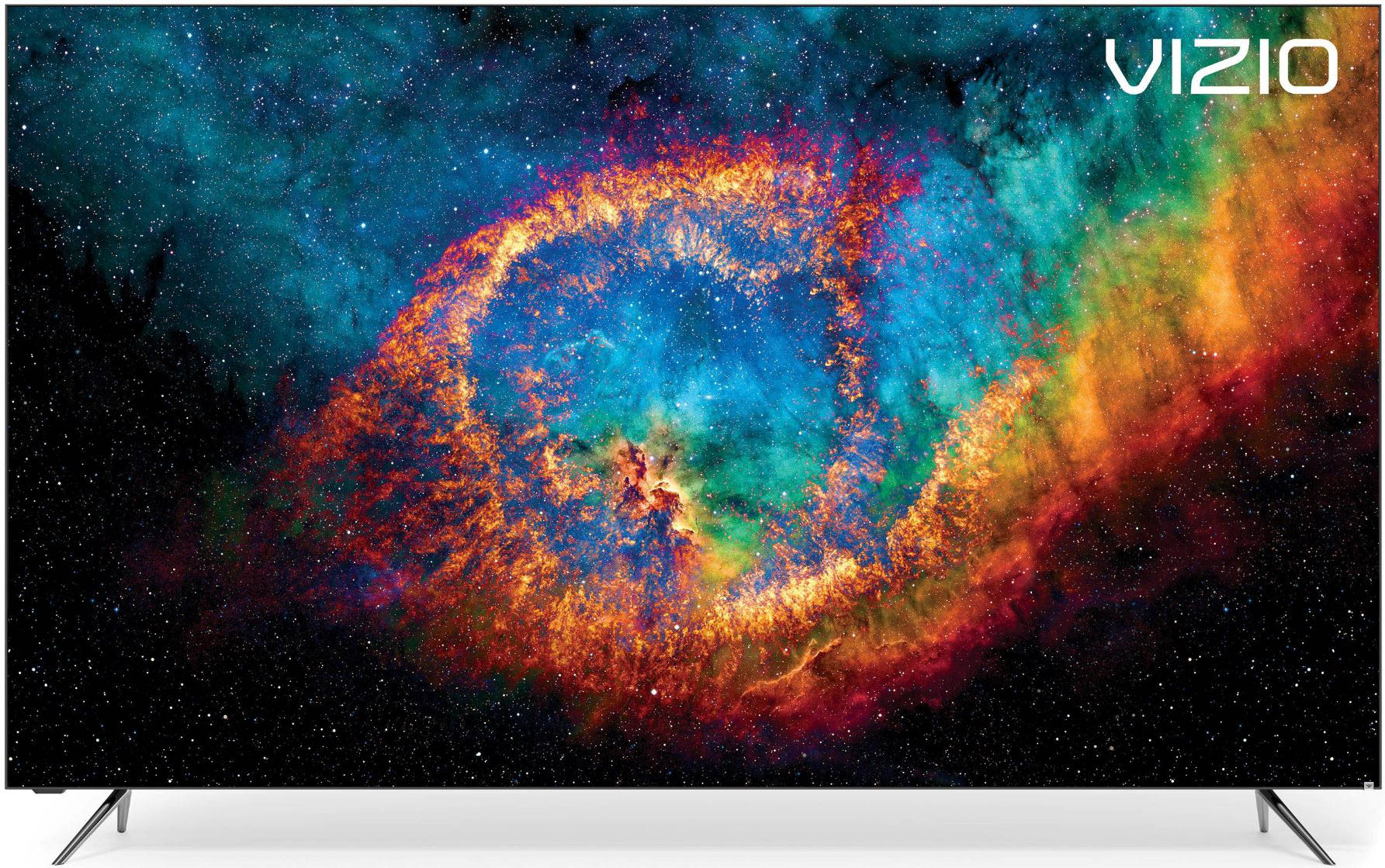

Vizio PX65-G1 was introduced in 2019. It has a QLED screen with 4K UHD (3840 x 2160) resolution and 100 Hz/120 Hz refresh rate. The TV is HDR compatible and can reach 3000 nits of peak brightness. It supports HDR10, Dolby Vision and HLG.

We give Vizio PX65-G1 TV 88 overall score out of 100. Our ranking system is based on the display specifications, video, audio and other features, connectivity and format support.

In this section we highlight pros and cons of Vizio PX65-G1.

QLED Technology

Vizio PX65-G1 is a Quantum dot LED (QLED) TV which has a LED backlight LCD display with additional semiconductor nanocrystal layer that produces different colors of light depending on the size of the particle. Quantum dots are able to emit precise colored light because particle sizes adjust at quantum-level velocities, resulting in accurate and efficient light emissions. This results in more accurate color reproduction and can even achieve a full coverage of BT.2020 color gamut. besides color Quantum dots also offer high brightness which results in high contrast ratio. This is especially important when displaying HDR content.

VA Panel

Vizio PX65-G1 has a vertical alignment (VA) panel which is most commonly used in LCD TVs as it provides deeper blacks compared to the IPS panel. However, it is still limited with the viewing angle compared to the IPS panel or OLED display.

Full-Array Local Dimming

The TV has Full-Array Local Dimming technology with multiple zones throughout the display. Individual zones of LEDs can light up independently which enhances black levels, shadow details and decreases level of light bleed in dark parts of the image. This gives higher contrast with increased picture quality which is very important for HDR reproduction. Higher number of zones gives better control over local dimming and less blooming around the bright objects and subtitles. This particular model has 384 zones.

HDR10

Vizio PX65-G1 supports HDR10 which was announced on August 27, 2015, by the Consumer Technology Association and uses the wide-gamut Rec. 2020 color space. It is not backward compatible with SDR. It sends static metadata via video stream to the TV which calibrates its screen brightness and color according to that. HDR10 is technically limited to a maximum of 10,000 nits of brightness and uses 10-bit color which corresponds to 1024 shades of the primary RGB colors.

Dolby Vision

This TV also supports Dolby Vision which is an update to HDR10 by adding dynamic metadata that can be used to more accurately adjust brightness levels up to 10,000 nits maximum brightness on a scene-by-scene or frame-by-frame basis and support up to 12-bit color depth (4096 shades of RGB) and 8K resolution.

In this section we present all the features and specifications available for Vizio PX65-G1.

BASICS
Brand	Vizio
Series	P Quantum X
Model	PX65-G1
Size	65"
Country	USA
Release Year	2019
Smart TV

DISPLAY
Display Type	QLED
Actual Size (Diagonal)	64.5"
Resolution	4K UHD (3840 x 2160)
Refresh Rate	100 Hz/120 Hz
Screen Design	Flat
Panel Type	VA
LED Type	Direct LED
Backlight Dimming	Full Array Local Dimming
Backlight Name	Full Array LED
Number of Local Dimming Zones	384
Color	Quantum Color Spectrum
Viewing Angle
Panel Bit Depth	10 bits
Color Depth	1.07 billion
Peak Brightness	3000 nits
Dynamic Contrast Ratio	50000000∶1

VIDEO
3D Capability
HDR10
HDR10+
Dolby Vision
Dolby Vision IQ
HLG
Advanced HDR by Technicolor®
IMAX Enhanced
High Dynamic Range	UltraBright3000
AMD Freesync™
NVidia G-Sync
4K HFR
2K HFR
VRR
HGIG Compatibility
Upscaling	Spatial Scaling Engine™
Frame Interploation Technique	Clear Action™
Frame Interpolation Frequency	960 Hz
Black Frame Insertion
Filmmaker Mode
Auto Low Latency Mode

AUDIO
Speaker Power Rating	2 x 10 W
Dolby Digital Plus
DTS StudioSound™	II
DTS TruSurround
DTS TruVolume™
WiSA Ready

CONNECTIVITY
Ethernet Input
Wi-Fi
Wi-Fi Frequency	2.4 GHz, 5 GHz
Wi-Fi Protocol	802.11a/b/g/n/ac
Bluetooth
Chromecast	Built-In
Google Home
Virtual Assistant	Google Assistant
Works with Alexa
HDMI Inputs	5
HDMI Version	2.0a
HDMI Audio Return Channel (ARC)
HDCP Version	2.2
HDMI-CEC
USB Inputs	1
USB 3.0 Ports
RF (Terrestrial / Cable ) Inputs	1
IF (Satellite) Inputs
Component Inputs	1
Composite Inputs	1
RCA Audio Outputs
3.5mm headphone Audio Output
Optical Audio Output
RS-232C Remote
DLNA

OTHER
SoC	V8 Octa-Core Processor
CPU Cores	4
Operating System	VIZIO SmartCast™
Voice Command
Mobile App	Vizio SmartCast Mobile™ app
Teletext
On-Screen Display Languages	English, Spanish, French

VIDEO FORMATS
3GPP
AV1
AVI
ASF
DivX
Flash Video
H.263
H.264
H.265
MKV
M2TS
MP4
MPEG-4
QuickTime
RealVideo
TS
VC-1
VP7
VP8
VP9
VOB
VRO
WebM
WMV
Xvid

AUDIO FORMATS
AAC
AC4
AIFF
ALAC
APE
aptX
eAAC+
EAC3
FLAC
HE-AAC
LPCM
M4A
MIDI
MP2
MP3
OGG
RealAudio
WMA
WAV

IMAGE FORMATS
BMP
GIF
JPEG
JPS
MPO
PNG

TUNER
Digital Tuner	1
SAT Tuner
Analog Tuner	NTSC-M
NEXTGEN TV (ATSC 3.0)
Digital Terrestrial TV System	ATSC
Digital Cable TV System	Clear QAM
Color system	NTSC / PAL / SECAM

GENERAL
Power Supply	AC 120 V, 60 Hz
Power Consumption (Typical)	251 W
Power Consumption (In Standby)	0.5 W
Dimension Without Stand (W x H x D)	56.96" x 32.72" x 2.72" (1446.8mm x 831.1mm x 69.1mm)
Dimension With Stand (W x H x D)	56.96" x 35.11" x 11.81" (1446.8mm x 891.8mm x 300.0mm)
Dimension of Package (W x H x D)	62.99" x 39.17" x 6.85" (1599.9mm x 994.9mm x 174.0mm)
VESA Wall Mount
VESA Hole Pitch (W x H)	400 mm x 400 mm
Weight Without Stand	54.06 lbs / 24.52 kg
Weight With Stand	54.90 lbs / 24.90 kg
Weight of Package (Gross)	72.69 lbs / 32.97 kg
Warranty	1 Year Parts & Labor

ACCESSORIES
Remote	XRT136

The 2019 P Quantum X series has a successor - 2020 P Quantum X series. Let us now display the changes that the successor brought.

UPGRADES	Vizio P65QX-H1	vs	Vizio PX65-G1
HDR10+		vs
AMD Freesync™		vs
4K HFR		vs
2K HFR		vs
VRR		vs
Auto Low Latency Mode		vs
Higher Speaker Power Rating	2 x 15 W	vs	2 x 10 W
HDMI Version	2.1	vs	2.0a
HDMI Audio Return Channel (ARC)	Enhanced	vs

DOWNGRADES	Vizio P65QX-H1	vs	Vizio PX65-G1
Lower Frame Interpolation Frequency	240 Hz	vs	960 Hz
Bluetooth		vs
Less HDMI Inputs	4	vs	5
Component Inputs		vs	1

For this comparison we chose 65" version of the successor - model P65QX-H1. For more detailed comparison between the two please visit Vizio PX65-G1 vs Vizio P65QX-H1 where you can also choose different size and country models to compare.
