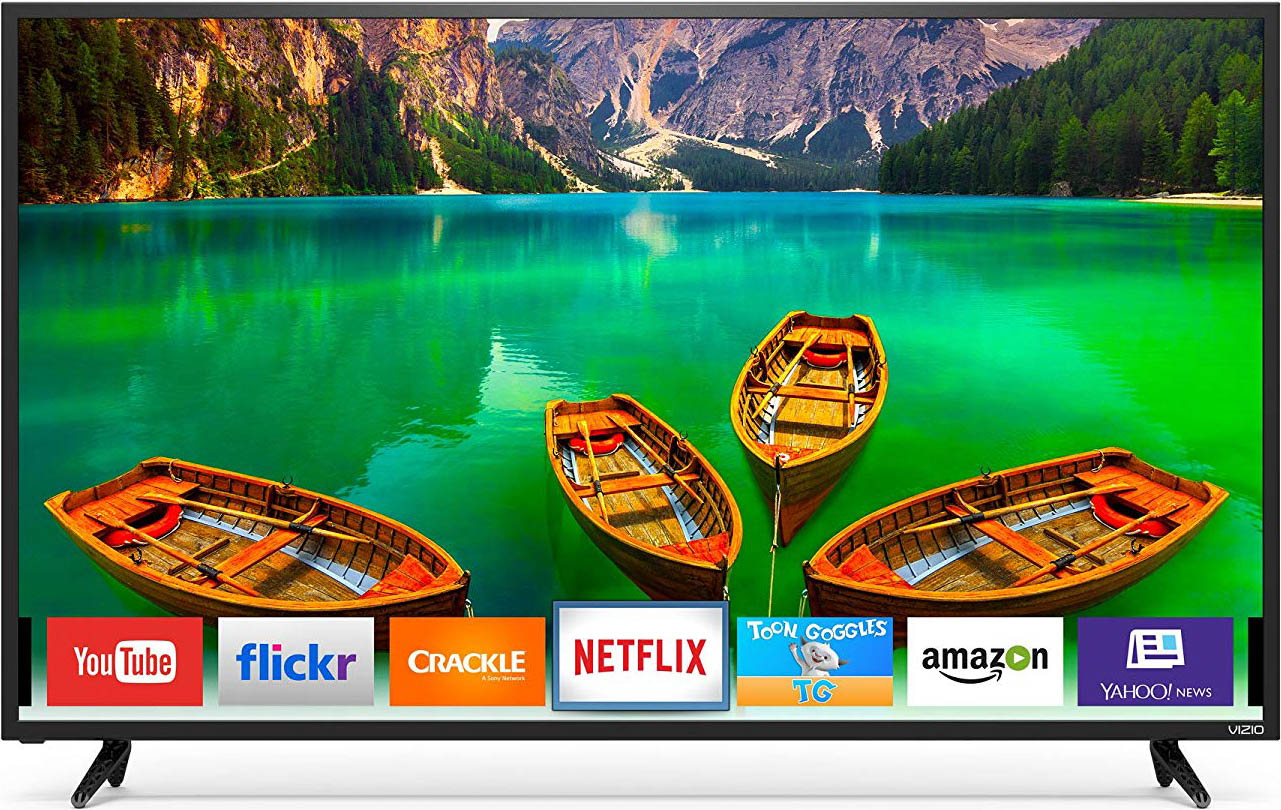

Vizio D43-E2 (USA version)
Highlights
- 4K UHD (3840 x 2160) LED Display
- Full Array Local Dimming
- Ethernet, Wi-Fi
Disclosure: We earn money from the affiliate links to products associated with content in this article.
Content
Overview
Vizio D43-E2 was introduced in 2017. It has a LED screen with 4K UHD (3840 x 2160) resolution and 100 Hz/120 Hz refresh rate. The TV is not HDR compatible.
We give Vizio D43-E2 TV 62 overall score out of 100. Our ranking system is based on the display specifications, video, audio and other features, connectivity and format support.
Pros and Cons
In this section we highlight pros and cons of Vizio D43-E2.
| PROS |
|---|
| High Resolution |
| High Refresh Rate: 100 Hz/120 Hz |
| Direct LED |
| Full Array Local Dimming |
| Color Depth |
| DTS TruSurround |
| Wi-Fi |
| CONS |
|---|
| Limited Viewing Angle |
| No HDR10 |
| No HDR10+ |
| No Dolby Vision |
| No HLG |
| No IMAX Enhanced |
| No AMD Freesync™ |
| No NVidia G-Sync |
| No 4K HFR |
| No 2K HFR |
| No VRR |
| No NEXTGEN TV (ATSC 3.0) |
Selected Features
VA Panel
Vizio D43-E2 has a vertical alignment (VA) panel which is most commonly used in LCD TVs as it provides deeper blacks compared to the IPS panel. However, it is still limited with the viewing angle compared to the IPS panel or OLED display.
Full-Array Local Dimming
The TV has Full-Array Local Dimming technology with multiple zones throughout the display. Individual zones of LEDs can light up independently which enhances black levels, shadow details and decreases level of light bleed in dark parts of the image. This gives higher contrast with increased picture quality which is very important for HDR reproduction. Higher number of zones gives better control over local dimming and less blooming around the bright objects and subtitles.
Specifications
In this section we present all the features and specifications available for Vizio D43-E2.
| BASICS | |
|---|---|
| Brand | Vizio |
| Series | D |
| Model | D43-E2 |
| Size | 43" |
| Country | USA |
| Release Year | 2017 |
| Smart TV | |
| DISPLAY | |
|---|---|
| Display Type | LED |
| Actual Size (Diagonal) | 42.5" |
| Resolution | 4K UHD (3840 x 2160) |
| Refresh Rate | 100 Hz/120 Hz |
| Screen Design | Flat |
| Panel Type | VA |
| LED Type | Direct LED |
| Backlight Dimming | Full Array Local Dimming |
| Backlight Name | Full Array LED |
| Color | |
| Viewing Angle | |
| Panel Bit Depth | 8 bits + FRC |
| Color Depth | 1.07 billion |
| Dynamic Contrast Ratio | 200000∶1 |
| VIDEO | |
|---|---|
| 3D Capability | |
| HDR10 | |
| HDR10+ | |
| Dolby Vision | |
| HLG | |
| Advanced HDR by Technicolor® | |
| IMAX Enhanced | |
| AMD Freesync™ | |
| NVidia G-Sync | |
| 4K HFR | |
| 2K HFR | |
| VRR | |
| HGIG Compatibility | |
| Frame Interploation Technique | Clear Action™ |
| Black Frame Insertion | |
| Filmmaker Mode | |
| Auto Low Latency Mode | |
| AUDIO | |
|---|---|
| Dolby Digital Plus | |
| DTS StudioSound™ | |
| DTS TruSurround | |
| DTS TruVolume™ | |
| WiSA Ready | |
| CONNECTIVITY | |
|---|---|
| Ethernet Input | |
| Wi-Fi | |
| Wi-Fi Frequency | 2.4 GHz |
| Wi-Fi Protocol | 802.11n |
| Bluetooth | |
| Chromecast | |
| Google Home | |
| Virtual Assistant | |
| Works with Alexa | |
| HDMI Inputs | 3 |
| HDMI Version | 2.0a |
| HDMI Audio Return Channel (ARC) | |
| HDCP Version | 2.2 |
| HDMI-CEC | |
| USB Inputs | 1 |
| USB 3.0 Ports | |
| RF (Terrestrial / Cable ) Inputs | 1 |
| IF (Satellite) Inputs | |
| Component Inputs | 1 |
| Composite Inputs | |
| RCA Audio Outputs | |
| 3.5mm headphone Audio Output | |
| Optical Audio Output | |
| RS-232C Remote | |
| OTHER | |
|---|---|
| SoC | Octa-Core Processor |
| CPU Cores | 4 |
| Operating System | VIZIO SmartCast™ |
| Voice Command | |
| Mobile App | Vizio SmartCast Mobile™ app |
| Teletext | |
| On-Screen Display Languages | English, Spanish, French |
| VIDEO FORMATS | |
|---|---|
| 3GPP | |
| AV1 | |
| AVI | |
| ASF | |
| DivX | |
| Flash Video | |
| H.263 | |
| H.264 | |
| H.265 | |
| MKV | |
| M2TS | |
| MP4 | |
| MPEG-4 | |
| QuickTime | |
| RealVideo | |
| TS | |
| VC-1 | |
| VP7 | |
| VP8 | |
| VP9 | |
| VOB | |
| VRO | |
| WebM | |
| WMV | |
| Xvid | |
| AUDIO FORMATS | |
|---|---|
| AAC | |
| AC4 | |
| AIFF | |
| ALAC | |
| APE | |
| aptX | |
| eAAC+ | |
| EAC3 | |
| FLAC | |
| HE-AAC | |
| LPCM | |
| M4A | |
| MIDI | |
| MP2 | |
| MP3 | |
| OGG | |
| RealAudio | |
| WMA | |
| WAV | |
| IMAGE FORMATS | |
|---|---|
| BMP | |
| GIF | |
| JPEG | |
| JPS | |
| MPO | |
| PNG | |
| TUNER | |
|---|---|
| Digital Tuner | 1 |
| SAT Tuner | |
| Analog Tuner | NTSC-M |
| NEXTGEN TV (ATSC 3.0) | |
| Digital Terrestrial TV System | ATSC |
| Digital Cable TV System | Clear QAM |
| Color system | NTSC / PAL / SECAM |
| GENERAL | |
|---|---|
| Power Supply | AC 120 V, 60 Hz |
| Power Consumption (Typical) | 60 W |
| Power Consumption (In Standby) | 0.5 W |
| Dimension Without Stand (W x H x D) | 38.39" x 22.38" x 3.39" |
| Dimension With Stand (W x H x D) | 38.39" x 24.54" x 8.23" |
| Dimension of Package (W x H x D) | 41.06" x 27.17" x 5.55" |
| VESA Wall Mount | |
| VESA Hole Pitch (W x H) | 200 mm x 200 mm |
| Weight Without Stand | 21.01 lbs |
| Weight With Stand | 21.38 lbs |
| Weight of Package (Gross) | 27.67 lbs |
| Warranty | 1 Year Parts & Labor |
| ACCESSORIES | |
|---|---|
| Remote | XRT122 |
Successor
The 2017 D series has a successor - 2018 D series. Let us now display the changes that the successor brought.
| UPGRADES | Vizio D43-F1 | vs | Vizio D43-E2 |
|---|---|---|---|
| HDR10 | vs | ||
| HLG | vs | ||
| Dolby Digital Plus | vs | ||
| DTS StudioSound™ | II | vs | |
| Higher Wi-Fi Frequency | 2.4 GHz, 5 GHz | vs | 2.4 GHz |
| Chromecast | Built-In | vs | |
| Virtual Assistant | Google Assistant | vs | |
| Works with Alexa | vs | ||
| Composite Inputs | 1 | vs | |
| Voice Command | vs |
| DOWNGRADES | Vizio D43-F1 | vs | Vizio D43-E2 |
|---|---|---|---|
| DTS TruSurround | vs | ||
| DTS TruVolume™ | vs |
For this comparison we chose 43" version of the successor - model D43-F1. For more detailed comparison between the two please visit Vizio D43-E2 vs Vizio D43-F1 where you can also choose different size and country models to compare.
