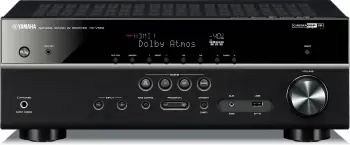

Yamaha RX-V583

    Highlights

    • 7.2 Channels
    • 7.1 Channel Processing
    • 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
    • Dolby Atmos, DTS:X
    • HDR10, Dolby Vision
    • 4K/60Hz Passthrough, 4K/60Hz Upscaling
    • Wi-Fi, Bluetooth, Ethernet

    Disclosure: We earn money from the affiliate links to products associated with content in this article.

    1. Overview

    Yamaha RX-V583 was introduced in 2017. It is equipped with 7 channel amplifier with 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 7.1 maximum channel processing. It supports Dolby Atmos and DTS:X, passes 4K/60Hz and upscales up to 4K 60p 4:4:4 video signal.

    We evaluated the a/v receiver and gave 80 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

    Amplifier
    71
    Audio Features
    84
    Video Features
    95
    Connectivity
    81
    Zones
    55
    Radio
    92
    OVERALL
    80

    For more details about the ranking please go to    Evaluation section.

    2. Pros and Cons

    In this section we present pros and cons of Yamaha RX-V583.

    PROs

    •   Dolby Atmos
    •   DTS:X
    •   DSD via HDMI
    •   Auto Speaker Calibration System with Mic.
    •   HDR10
    •   Dolby Vision
    •   eARC
    •   New HDCP Version
    •   Wi-Fi
    •   Bluetooth
    •   USB Input
    •   Composite Video Inputs
    •   Ethernet
    •   Analog Tuner
    •   Spotify
    •   Tidal

    CONs

    •   Low Power Output - 80 W
    •   No Front Wide Channel Support
    •   No Dolby Atmos Height Virtualization
    •   No IMAX Enhanced
    •   No Auro 3D with Auro-Matic Upmixer
    •   No HDR10+
    •   No 8K Passthrough
    •   Does not Work with Amazon Alexa
    •   4 HDMI Inputs
    •   1 HDMI Outputs
    •   0 8K Input
    •   No Phono Input
    •   No RCA Pre-Outs
    •   No Zones
    •   No Digital Radio
    •   No Pandora
    •   Bluetooth 2․1 + EDR

    And here are some specifications which fall into average criteria and are neither in PROs nor in CONs category:

    AVERAGE

    •   7.2 Channels
    •   7.1 Channel Processing
    •   RCA Line Inputs

    3. Yamaha 2017 Lineup

    In 2017 Yamaha released 13 new receivers. Here is the lineup:

    Yamaha 2017 Lineup
    ModelChannelsPowerMax. Ch. Proc.Pre OutsImmersive AudioZones Price
    RX-A3070 Image cannot be found 9.2150 W11.211.2Dolby Atmos
    DTS:X
    4
    RX-A2070 Image cannot be found 9.2140 W9.27.2-chDolby Atmos
    DTS:X
    4
    RX-A1070 Image cannot be found 7.2110 W7.17.2Dolby Atmos
    DTS:X
    2
    RX-A870 Image cannot be found 7.2100 W7.17.2Dolby Atmos
    DTS:X
    2
    RX-A770 Image cannot be found 7.295 W7.1Dolby Atmos
    DTS:X
    2
    RX-A670 Image cannot be found 7.280 W7.1Dolby Atmos
    DTS:X
    1
    RX-V3083 Image cannot be found 9.2150 W11.211.2Dolby Atmos
    DTS:X
    4
    RX-V2083 Image cannot be found 9.2140 W9.27.2Dolby Atmos
    DTS:X
    4
    RX-V1083 Image cannot be found 7.2110 W7.17.2Dolby Atmos
    DTS:X
    2
    RX-V683 Image cannot be found 7.290 W7.1Dolby Atmos
    DTS:X
    2
    RX-V583 Image cannot be found 7.280 W7.1Dolby Atmos
    DTS:X
    1
    RX-V483 Image cannot be found 5.180 W5.11
    RX-V383 Image cannot be found 5.170 W5.11

    You can view their side-by-side comparison here: Yamaha RX-A3070 vs RX-A2070 vs RX-A1070 vs RX-A870 vs RX-A770 vs RX-A670.

    4. Amplifier

    7 channel Amplifier

    Yamaha RX-V583 features 7 channel power amplifier. It is rated at 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven).

      AMPLIFIER
      Channels7.2
      Power Output80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      Front Wide Channel Support
      THX™ Certification
      Continuous 6 Ω Rated
      Certified 4 Ω Performance
      Bi-amp Capability

      5. Speaker Configurations

      Yamaha RX-V583's 7 channel amplifier can be assigned for different speaker configurations.

      • Dolby Atmos Configurations: The following speaker configurations are supported for Dolby Atmos:
      • 5.2.2 with internal amplifier.
      • DTS:X Configurations: The speaker configurations for DTS:X are the same as for Dolby Atmos:
      • 5.2.2 with internal amplifier.
      • Configurations without height channels: There are also other speaker configurations available which do not include height channels:
      • 5.2, 7.2 with internal amplifier.
      • 2-ch Bi-Amp: Yamaha RX-V583 allows you to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.

      6. Immersive Audio Formats

      Dolby Atmos

      Yamaha RX-V583 supports Dolby Atmos with Surround Upmixer.

      • Surround Upmixer: If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.

      DTS:X

      Yamaha RX-V583 supports DTS:X with Neural:X.

      • Neural:X is an advanced upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.
      • DTS Dialog Control: This function adjusts the dialog levels during playback of the DTS:X stream. It allows you to separately increase the dialog levels in contrast with the background sound and hear dialog easily even under noisy circumstances.
      DECODING
      Dolby Atmos
      Dolby Atmos Height Virtualization
      Dolby Atmos Music
      Dolby TrueHD
      Dolby Digital Plus
      Dolby Surround Upmixer
      Dolby Pro Logic
      Dolby Digital EX
      DTS:X
      DTS Neural:X
      DTS Virtual:X
      DTS Neo Neo:6
      DTS-HD Master Audio
      DTS-HD High Resolution Audio
      DTS 96/24
      DTS Express
      DTS-ES Discrete 6.1, Matrix 6.1
      IMAX Enhanced
      Auro 3D with Auro-Matic Upmixer

      7. HDMI

      Yamaha RX-V583 features 4 HDMI inputs. It has 1 output.

      • 4K/60Hz Passthrough: All inputs pass up to 4K/60p 4:4:4 video signal.
      • 4K Upscaling: Yamaha RX-V583 can upscale up to 4K 60p 4:4:4 from HDMI sources.
      • BT.2020 Color Space: BT.2020 or Rec. 2020 is a color standard which delivers a wider color gamut compared to Rec. 709. It covers approximately 75% of the total visual spectrum while the Rec. 709 covers only 35%.
      • HDCP 2.3 Copy Protection: All inputs and outputs are HDCP 2.3 compliant which is a requirement for 4K/HDR copy-protected content transmission.
      • 3D Ready: Yamaha RX-V583 is able to pass 3D video through HDMI.

      HDR (High Dynamic Range)

      Yamaha RX-V583 supports HDR (high dynamic range) video formats such as HDR10, Dolby Vision and Hybrid Log-Gamma via HDMI ports. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.


      Enhanced Audio Return Channel (eARC)

      Audio Return Channel (ARC) feature allows the compatible TV to send audio signal to the a/v receiver through the same HDMI cable which is used to send audio and video signals to the TV. So one HDMI cable is used to transfer audio signal in both directions. New Enhanced ARC will support uncompressed audio formats such as Dolby Atmos, DTS:X, Dolby TrueHD and DTS HD Master Audio whereas the previous ARC could support only Dolby Digital, Dolby Digital Plus, DTS, DTS HD, and PCM.



      VIDEO FEATURES
      HDR10
      HDR10+
      Dynamic HDR
      BT.2020 color space
      Dolby Vision
      HLG (Hybrid Log Gamma)
      HDBaseT Compatible
      Enhanced Audio Return Channel (eARC) via firmware update
      HDCP Version2.3
      QMS (Quick Media Switching)
      ALLM (Auto Low Latency Mode)
      VRR (Variable Refresh Rate)
      QFT (Quick Frame transport)
      3-D Ready
      Video Signal Passthroughup to 4K/60p 4:4:4
      Video Signal Upscaling up to 4K 60p 4:4:4

      8. Room Calibration

      Yamaha RX-V583 comes with YPAO room correction system and includes the calibration microphone.

      • YPAO: The Yamaha Parametric room Acoustic Optimizer (YPAO) function detects speaker connections, measures the distances from them to your listening position(s), and then automatically optimizes the speaker settings, such as volume balance and acoustic parameters, to suit your room.

      9. Inputs and Outputs

      Audio

      • Analog Line Inputs: There are 4 line inputs for analog audio connection.
      • Digital Inputs: 1 optical input and 2 coaxial inputs are available for digital audio connection.
      • Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.

      Video

      • HDMI:
      • Inputs: 4   Outputs: 1
        8K Inputs: 0
      • Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
      • Inputs: 3   Outputs: 1

      Front A/V Inputs

      • USB, mini-jack Audio
      Image cannot be found
      Image cannot be found
      TERMINALS
      HDMI Inputs4
      HDMI Outputs1
      8K Inputs
      USB InputUSB memory, Portable Audio Player
      USB DC Out Port
      Optical Inputs1
      Optical Outputs
      Coaxial Inputs2
      RCA Line Inputs4 (1 front)
      RCA Line Outputs
      XLR Line Inputs
      Phono Input
      Multi-Channel Input
      RCA Pre-Outs0.2
      XLR Pre-outs
      Composite Video Inputs3
      Composite Video Outputs1
      S-Video Inputs
      S-Video Outputs
      Component Video Inputs
      Component Video Outputs

      10. Replaced by RX-V585

      In 2018 Yamaha RX-V583 was replaced by Yamaha RX-V585. Let us now have a look at some important differences between Yamaha RX-V583 and its successor.

      UPGRADES Yamaha RX-V585 vs Yamaha RX-V583
      Higher DAC Specs 384 kHz/32 Bit vs 192 kHz/24 Bit
      Higher Resolution Music Playback via USB up to 192 kHz/32 Bit vs up to 192 kHz
      Works with Amazon Alexa vs
      AirPlay AirPlay 2 via firmware update vs AirPlay
      Higher DSD Sampling Rate via USB 11.2 MHz, 5.6 MHz, 2.8 MHz vs 5.6 MHz, 2.8 MHz
      Wi-Fi Standard IEEE 802.11 a/b/g/n/ac vs IEEE 802.11 b/g/n
      Wi-Fi Terminal Frequency 2.4 GHz, 5 GHz vs 2.4 GHz
      Newer Bluetooth Version 4․2 vs 2․1 + EDR
      DOWNGRADES Yamaha RX-V585 vs Yamaha RX-V583
      DTS Express vs

      For more detailed comparison between the models please visit Yamaha RX-V583 vs RX-V585.

      11. Evaluation

      We evaluate Yamaha RX-V583 and give score of 80 out of 100. We also give separate scores for 6 different categories according to the available features and specifications some of which are listed below. These evaluations are relative and may change each time a new receiver is added to the database.


      OVERALL
      80

      Amplifier

      GOOD
      71

      We give Yamaha RX-V583 a score of 71 for Amplifier features.

      •   7.2 Channels
      •   Low Power Output - 80 W

      Audio Features

      GOOD
      84

      We give Yamaha RX-V583 a score of 84 for Audio Features features.

      •   7.2 Channels
      •   No Front Wide Channel Support
      •   7.1 Channel Processing
      •   Dolby Atmos
      •   No Dolby Atmos Height Virtualization
      •   DTS:X
      •   No IMAX Enhanced
      •   No Auro 3D with Auro-Matic Upmixer
      •   DSD via HDMI

      Video Features

      EXCELLENT
      95

      We give Yamaha RX-V583 a score of 95 for Video Features features.

      •   HDR10
      •   No HDR10+
      •   Dolby Vision
      •   No 8K Passthrough

      Connectivity

      GOOD
      81

      We give Yamaha RX-V583 a score of 81 for Connectivity features.

      •   eARC
      •   New HDCP Version
      •   Wi-Fi
      •   Bluetooth
      •   Does not Work with Amazon Alexa
      •   4 HDMI Inputs
      •   1 HDMI Outputs
      •   0 8K Input
      •   USB Input
      •   RCA Line Inputs
      •   No Phono Input
      •   No RCA Pre-Outs
      •   Composite Video Inputs
      •   Ethernet
      •   Bluetooth 2․1 + EDR

      Zones

      AVERAGE
      55

      We give Yamaha RX-V583 a score of 55 for Zones features.

      •   No Zones

      Radio

      EXCELLENT
      92

      We give Yamaha RX-V583 a score of 92 for Radio features.

      •   Analog Tuner
      •   No Pandora
      •   Spotify
      •   Tidal

      12. Specifications

      GENERAL
      BrandYamaha
      ModelRX-V583
      TypeA/V Receiver
      CountryChina
      Release Year2017
      SuccessorYamaha RX-V585
      AMPLIFIER
      Channels7.2
      Power Output80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      Front Wide Channel Support
      THX™ Certification
      Continuous 6 Ω Rated
      Certified 4 Ω Performance
      Bi-amp Capability
      AUDIO FEATURES
      Surround:AI™
      DACBurr-Brown
      DAC Specs192 kHz/24 Bit
      Maximum Channel Processing7.1
      Air Studios Monitor Certification
      Dolby Atmos
      Dolby Atmos Height Virtualization
      Dolby Atmos Music
      Dolby TrueHD
      Dolby Digital Plus
      Dolby Surround Upmixer
      Dolby Pro Logic
      Dolby Digital EX
      DTS:X
      DTS Neural:X
      DTS Virtual:X
      DTS Neo Neo:6
      DTS-HD Master Audio
      DTS-HD High Resolution Audio
      DTS 96/24
      DTS Express
      DTS-ES Discrete 6.1, Matrix 6.1
      IMAX Enhanced
      Auro 3D with Auro-Matic Upmixer
      PCM 2-ch/Multi-ch Input
      Network Audio FormatsMP3, WMA, MPEG-4 AAC, Apple Lossless, WAV, FLAC, AIFF, DSD
      Music Playback via USBMP3, WMA, AAC, Apple Lossless, WAV, FLAC, AIFF, DSD
      High Resolution Music Playback via USB and/or Network up to 192 kHz
      High Resolution Audio Formats via USBApple Lossless, WAV, FLAC, AIFF, DSD
      Gapless Playback
      DSD via HDMI 2-ch/Multi-ch Input
      DSD via USB 2-ch Input
      DSD to PCM Converter
      USB DAC
      DTS Dialogue Control
      Dialog Level Adjustment
      Dialog normalization
      Dialogue Lift
      Compressed Music Enhancer including enhancer for Bluetooth®
      High-resolution Music Enhancer
      Adaptive DRC (Dynamic Range Control)
      Initial Volume & Maximum Volume Setting
      Audyssey Dynamic EQ
      Audyssey Dynamic Volume
      Audyssey LFC
      Audyssey Sub EQ HT
      Audyssey DSX
      Direct Mode
      Straight Decoding Mode
      CINEMA DSP 3D
      DSP Programs17
      SILENT CINEMA / Virtual CINEMA DSP Virtual CINEMA FRONT
      Virtual Speakers including surround back
      Independent Subwoofer Outputs
      CALIBRATION
      Auto Speaker Calibration System with Mic. YPAO sound optimization
      YPAO Volume
      VIDEO FEATURES
      HDR10
      HDR10+
      Dynamic HDR
      BT.2020 color space
      Dolby Vision
      HLG (Hybrid Log Gamma)
      HDBaseT Compatible
      Enhanced Audio Return Channel (eARC) via firmware update
      HDCP Version2.3
      QMS (Quick Media Switching)
      ALLM (Auto Low Latency Mode)
      VRR (Variable Refresh Rate)
      QFT (Quick Frame transport)
      3-D Ready
      Video Signal Passthroughup to 4K/60p 4:4:4
      Video Signal Upscaling up to 4K 60p 4:4:4
      Analog To HDMI Upconversion
      Component Video Upscaling
      Analog to Analog Video conversion
      isf Certified Calibration Control
      CONNECTIVITY
      Wi-Fi with Wireless Direct
      Bluetooth SBC, AAC
      Works with Amazon Alexa
      Chromecast Built-In
      Works with SonoS
      DTS Play-Fi
      MHL Input
      DLNA 1.5
      MusicCast
      AirPlay AirPlay
      Apple Product Connection iPod, iPhone and iPad
      Remote App (iPhone® / iPad® / Android™ phone / tablet)
      InstaPrevue Input Source Prevue
      TERMINALS
      HDMI Inputs4
      HDMI Outputs1
      8K Inputs
      USB InputUSB memory, Portable Audio Player
      USB DC Out Port
      Optical Inputs1
      Optical Outputs
      Coaxial Inputs2
      RCA Line Inputs4 (1 front)
      RCA Line Outputs
      XLR Line Inputs
      Phono Input
      Multi-Channel Input
      RCA Pre-Outs0.2
      XLR Pre-outs
      Composite Video Inputs3
      Composite Video Outputs1
      S-Video Inputs
      S-Video Outputs
      Component Video Inputs
      Component Video Outputs
      Ethernet
      Ethernet Switch
      PC In
      Front A/V InputsUSB, mini-jack Audio
      Speaker A/B
      Headphone Out6.3 mm (1/4")
      Detachable Power Cord
      dockport
      ZONES
      Number of Zones1
      Zone B Video Output
      RS-232C Interface
      +12V Trigger Output
      Remote (IR) Input/Output0 / 0
      Party Mode
      MISCELLANEOUS
      On-Screen Display color OSD
      SCENESCENE (4 sets)
      Web Control
      PreAmp Mode
      RADIO
      Analog Tuner FM/AM
      Presets40
      Digital Radio
      Internet Radio
      Pandora
      Spotify
      Tidal
      Deezer
      Napster
      CONSTRUCTION
      A.R.T. Wedge
      Speaker Terminals7
      Large Speaker Terminals7
      Color-Coded Speaker Terminals
      Gold plated RCA terminals
      POWER
      Power SupplyAC 220 V, 50 Hz
      Power Consumption260 W
      Standby Power0.1 W
      ECO Mode / Hybrid Standby Function
      Auto Power Standby
      PHYSICAL
      Dimensions (W x H x D)435 mm x 161 mm x 327 mm (with antenna: 435 mm x 225.5 mm x 327 mm)
      17-1/8" x 6-3/8" x 12-7/8" (with antenna up: 17-1/8" x 8-7/8" x 12-7/8")
      Weight8.1 kg (17.9 lbs)
      SPECIFICATIONS
      Power Output (6 Ω, 20 Hz - 20 kHz, 2 channel driven)80 W (0.09% THD)
      Power Output (6 Ω, 1 kHz, 1 channel driven, FTC)115 W (0.9% THD)
      Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA or IEC)135 W (10% THD)
      Dynamic Power per Channel (2 Ω, Front)190 W
      Dynamic Power per Channel (4 Ω, Front)170 W
      Dynamic Power per Channel (6 Ω, Front)140 W
      Damping Factor100 (Front, 20 Hz - 20 kHz, 8 Ω)
      Input Sensitivity and Impedance (Line)200 mV/47 kΩ
      Maximum Input Sensitivity (Line)2.3 V (1 kHz, 0.5% THD)
      Rated Preout Level and Impedance1.0 V/1.2 kΩ (Subwoofer)
      Rated Headphone Jack Output Level and Impedance100 mV/470 Ω (1 kHz, 50 mV, 8 Ω)
      S/N Ratio (Line, IHF-A)110 dB
      Frequency Response (Analog In)+0/-3 dB (AV 2 etc. to Front, 10 Hz to 100 kHz)
      Residual noise (IHF-A Network)150 µV (Speaker Out)
      Channel Separation at 1 kHz/10 kHz (LINE)70 dB/50 dB
      DSD Sampling Rates via HDMI2.8 MHz
      DSD Sampling Rates via USB5.6 MHz, 2.8 MHz
      Video Input Sensitivity/Output Level and Impedance 1 Vp-p/75 Ω (Composite)
      Video Maximum Input1.5 Vp-p
      Video S/N Ratio50 dB
      Ethernet Standard10BASE-T/100BASE-TX
      Wi-Fi StandardIEEE 802.11 b/g/n
      Wi-Fi Terminal Frequency2.4 GHz
      Bluetooth Version2․1 + EDR
      Bluetooth Frequency2.4 GHz
      USB TerminalUSB2.0 5 V, 1 A
      FM Frequency87.50 MHz - 108.00 MHz
      FM 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)Mono: 3 µV (20.8 dBf)
      FM S/N RatioMono/Stereo: 65 dB/64 dB
      FM Harmonic Distortion (IHF, 1 kHz)Mono/Stereo: 0.5%/0.6%
      AM Frequency531 kHz - 1611 kHz
      Warranty2 Years

      * - 480i/576i and 480p/576p only
      ** - 480i/576i only
      *** - no 1080p/24 upconversion
      **** - 1080p signal is not converted

      Discussion

      Amazon Affiliate Disclosure
      ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
