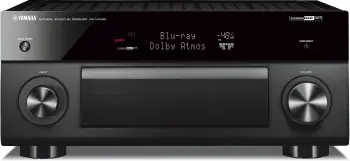

Yamaha RX-V3083

    93
    Image cannot be found

    Highlights

    • 9.2 Channels
    • 11.2 Channel Processing
    • 150 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
    • Dolby Atmos, DTS:X
    • HDR10, Dolby Vision
    • 4K/60Hz Passthrough, 4K/60Hz Upscaling
    • Wi-Fi, Bluetooth, Ethernet
    • Phono Input

    Disclosure: We earn money from the affiliate links to products associated with content in this article.

    1. Overview

    Yamaha RX-V3083 was introduced in 2017. It is equipped with 9 channel amplifier with 150 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 11.2 maximum channel processing. It supports Dolby Atmos and DTS:X, passes 4K/60Hz and upscales up to 4K 60p 4:4:4 video signal.

    We evaluated the a/v receiver and gave 93 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

    Amplifier
    96
    Audio Features
    88
    Video Features
    95
    Connectivity
    90
    Zones
    96
    Radio
    85
    OVERALL
    93

    For more details about the ranking please go to    Evaluation section.

    2. Pros and Cons

    In this section we present pros and cons of Yamaha RX-V3083.

    PROs

    •   High Power Output - 150 W
    •   11.2 Channel Processing
    •   Dolby Atmos
    •   DTS:X
    •   DSD via HDMI
    •   Auto Speaker Calibration System with Mic.
    •   HDR10
    •   Dolby Vision
    •   eARC
    •   New HDCP Version
    •   Analog To HDMI Upconversion
    •   Wi-Fi
    •   Bluetooth
    •   8 HDMI Inputs
    •   USB Input
    •   Many RCA Line Inputs
    •   XLR Line Inputs
    •   Phono Input
    •   RCA Pre-Outs
    •   Composite Video Inputs
    •   Component Video Inputs
    •   Ethernet
    •   4 Zones
    •   Analog Tuner
    •   Digital Radio
    •   Spotify
    •   Tidal

    CONs

    •   No Front Wide Channel Support
    •   No Dolby Atmos Height Virtualization
    •   No IMAX Enhanced
    •   No Auro 3D with Auro-Matic Upmixer
    •   No HDR10+
    •   No 8K Passthrough
    •   Does not Work with Amazon Alexa
    •   0 8K Input
    •   No Pandora
    •   Bluetooth 2․1 + EDR

    And here are some specifications which fall into average criteria and are neither in PROs nor in CONs category:

    AVERAGE

    •   9.2 Channels
    •   3 HDMI Outputs

    3. Yamaha 2017 Lineup

    In 2017 Yamaha released 13 new receivers. Here is the lineup:

    Yamaha 2017 Lineup
    ModelChannelsPowerMax. Ch. Proc.Pre OutsImmersive AudioZones Price
    RX-A3070 Image cannot be found 9.2150 W11.211.2Dolby Atmos
    DTS:X
    4
    RX-A2070 Image cannot be found 9.2140 W9.27.2-chDolby Atmos
    DTS:X
    4
    RX-A1070 Image cannot be found 7.2110 W7.17.2Dolby Atmos
    DTS:X
    2
    RX-A870 Image cannot be found 7.2100 W7.17.2Dolby Atmos
    DTS:X
    2
    RX-A770 Image cannot be found 7.295 W7.1Dolby Atmos
    DTS:X
    2
    RX-A670 Image cannot be found 7.280 W7.1Dolby Atmos
    DTS:X
    1
    RX-V3083 Image cannot be found 9.2150 W11.211.2Dolby Atmos
    DTS:X
    4
    RX-V2083 Image cannot be found 9.2140 W9.27.2Dolby Atmos
    DTS:X
    4
    RX-V1083 Image cannot be found 7.2110 W7.17.2Dolby Atmos
    DTS:X
    2
    RX-V683 Image cannot be found 7.290 W7.1Dolby Atmos
    DTS:X
    2
    RX-V583 Image cannot be found 7.280 W7.1Dolby Atmos
    DTS:X
    1
    RX-V483 Image cannot be found 5.180 W5.11
    RX-V383 Image cannot be found 5.170 W5.11

    You can view their side-by-side comparison here: Yamaha RX-A3070 vs RX-A2070 vs RX-A1070 vs RX-A870 vs RX-A770 vs RX-A670.

    4. Amplifier

    9 channel Amplifier

    Yamaha RX-V3083 features 9 channel power amplifier. It is rated at 150 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.

      AMPLIFIER
      Channels9.2
      Power Output150 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      Front Wide Channel Support
      THX™ Certification
      Continuous 6 Ω Rated
      Certified 4 Ω Performance
      Bi-amp Capability

      5. Speaker Configurations

      Yamaha RX-V3083's 9 channel amplifier can be assigned for different speaker configurations.

      • Dolby Atmos Configurations: The following speaker configurations are supported for Dolby Atmos:
      • 5.2.2, 5.2.4, 7.2.2 with internal amplifier.
      • 7.2.4 with addition of external 2 channel amplifier.
      • DTS:X Configurations: The speaker configurations for DTS:X are the same as for Dolby Atmos:
      • 5.2.2, 5.2.4, 7.2.2 with internal amplifier.
      • 7.2.4 with addition of external 2 channel amplifier.
      • Configurations without height channels: There are also other speaker configurations available which do not include height channels:
      • 5.2, 7.2 with internal amplifier.
      • 2-ch Bi-Amp: Yamaha RX-V3083 allows you to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.

      6. Immersive Audio Formats

      Dolby Atmos

      Yamaha RX-V3083 supports Dolby Atmos with Surround Upmixer.

      • Surround Upmixer: If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.

      DTS:X

      Yamaha RX-V3083 supports DTS:X with Neural:X.

      • Neural:X is an advanced upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.
      • DTS Dialog Control: This function adjusts the dialog levels during playback of the DTS:X stream. It allows you to separately increase the dialog levels in contrast with the background sound and hear dialog easily even under noisy circumstances.
      DECODING
      Dolby Atmos
      Dolby Atmos Height Virtualization
      Dolby Atmos Music
      Dolby TrueHD
      Dolby Digital Plus
      Dolby Surround Upmixer
      Dolby Pro Logic
      Dolby Digital EX
      DTS:X
      DTS Neural:X
      DTS Virtual:X
      DTS Neo Neo:6
      DTS-HD Master Audio
      DTS-HD High Resolution Audio
      DTS 96/24
      DTS Express
      DTS-ES Discrete 6.1, Matrix 6.1
      IMAX Enhanced
      Auro 3D with Auro-Matic Upmixer

      7. HDMI

      Yamaha RX-V3083 features 8 HDMI inputs. It has 2 outputs: 1 for MAIN and 1 for Sub/Zone2/ZONE4.

      • 4K/60Hz Passthrough: All inputs pass up to 4K/60p 4:4:4 video signal.
      • 4K Upscaling: Yamaha RX-V3083 can upscale up to 4K 60p 4:4:4 from HDMI and analog sources.
      • Analog To HDMI Upconversion: The a/v receiver supports video upconversion, so you can connect your analog Component and Composite video sources and Yamaha RX-V3083 will output them via HDMI. This means that you will need only one HDMI cable to connect to your TV.
      • BT.2020 Color Space: BT.2020 or Rec. 2020 is a color standard which delivers a wider color gamut compared to Rec. 709. It covers approximately 75% of the total visual spectrum while the Rec. 709 covers only 35%.
      • HDCP 2.2 Copy Protection: All inputs and outputs are HDCP 2.2 compliant which is a requirement for 4K/HDR copy-protected content transmission.
      • 3D Ready: Yamaha RX-V3083 is able to pass 3D video through HDMI.

      HDR (High Dynamic Range)

      Yamaha RX-V3083 supports HDR (high dynamic range) video formats such as HDR10, Dolby Vision and Hybrid Log-Gamma via HDMI ports. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.


      Enhanced Audio Return Channel (eARC)

      Audio Return Channel (ARC) feature allows the compatible TV to send audio signal to the a/v receiver through the same HDMI cable which is used to send audio and video signals to the TV. So one HDMI cable is used to transfer audio signal in both directions. New Enhanced ARC will support uncompressed audio formats such as Dolby Atmos, DTS:X, Dolby TrueHD and DTS HD Master Audio whereas the previous ARC could support only Dolby Digital, Dolby Digital Plus, DTS, DTS HD, and PCM.



      VIDEO FEATURES
      HDR10
      HDR10+
      Dynamic HDR
      BT.2020 color space
      Dolby Vision
      HLG (Hybrid Log Gamma)
      HDBaseT Compatible
      Enhanced Audio Return Channel (eARC) via firmware update
      HDCP Version2.2
      QMS (Quick Media Switching)
      ALLM (Auto Low Latency Mode)
      VRR (Variable Refresh Rate)
      QFT (Quick Frame transport)
      3-D Ready
      Video Signal Passthroughup to 4K/60p 4:4:4
      Video Signal Upscaling up to 4K 60p 4:4:4

      8. Room Calibration

      Yamaha RX-V3083 comes with YPAO with R.S.C., Multipoint, 3D, 64-Bit High Precision EQ Calculation and Angle measurement room correction system and includes the calibration microphone.

      • YPAO: The Yamaha Parametric room Acoustic Optimizer (YPAO) function detects speaker connections, measures the distances from them to your listening position(s), and then automatically optimizes the speaker settings, such as volume balance and acoustic parameters, to suit your room.

      9. Multi-zone Playback

      Yamaha RX-V3083 offers multi-zone playback which allows you to play different input sources in 4 different rooms.


      Zone 2

      • Powered Zone 2: You can use the unit's 2 amplifier channels by connecting Zone 2 speakers directly to the speaker terminals. The remaining 7 channels will be left for main zone amplification.
      • HDMI Output: Yamaha RX-V3083 offers HDMI output for Zone 2. This means that it can send two different HDMI signals to two displays.

      Zone 3

      • Powered Zone 3: You can use the unit's 2 amplifier channels by connecting Zone 3 speakers directly to the speaker terminals. The remaining 7 channels will be left for main zone amplification.

      Zone 4

      • HDMI Output: Yamaha RX-V3083 offers HDMI output for Zone 4. This means that it can send two different HDMI signals to two displays.

      Zone B

      • HDMI Output: Yamaha RX-V3083 offers HDMI output for Zone B. This means that it can send two different HDMI signals to two displays.
      ZONES
      Number of Zones4
      Powered ZonesZone 2 / 3
      Zone 2 OutsHDMI, RCA Preout
      Zone 3 OutsRCA Preout
      Zone 4 OutsHDMI
      Zone B Video Output HDMI
      Zone GUI
      RS-232C Interface
      +12V Trigger Output2
      Remote (IR) Input/Output1 / 1
      Party Mode

      10. Inputs and Outputs

      Audio

      • Phono Input: There is an MM phono input with built-in phono stage for connecting the moving magnet cartridge output of the turntable directly to the a/v receiver.
      • Analog Pre-Outs: Yamaha RX-V3083 has 11.2 preamplifier outputs which allow you to connect the a/v receiver to the external power amplifier. You may want to use a high quality external amplifier for certain channels, usually for front L/R and center, and use the a/v receiver to power the rest. Also, Yamaha RX-V3083 has 11 channel processing but has only 9 channel amplifier, so it needs the external amplifier connected to the analog pre-outs in order to reach the maximum speaker configuration.
      • XLR Inputs: There is one pair of XLR inputs on this a/v receiver. If your CD player, Blu-Ray player or other source have XLR outputs you can connect them to the Yamaha RX-V3083's XLR Inputs for higher quality balanced connection.
      • Analog Line Inputs: There are 8 line inputs for analog audio connection.
      • Digital Inputs: 3 optical inputs and 3 coaxial inputs are available for digital audio connection.
      • Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.

      Video

      • HDMI:
      • Inputs: 8 (1 front)   Outputs: 2 (1 for MAIN, 1 for Sub/Zone2/ZONE4)
        8K Inputs: 0
      • Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
      • Inputs: 4   Outputs: 0
      • Component Video: Component video connection gives you the higher quality video compared to the composite video connection. So in case your old DVD player and other equipment do not have an HDMI output but have Component video output use this connection over the composite one. Yamaha RX-V3083 supports up to 1080i resolution on Component video connectors.
      • Inputs: 2   Outputs: 0

      Front A/V Inputs

      • HDMI, USB, Analog Audio
      Image cannot be found
      Image cannot be found
      TERMINALS
      HDMI Inputs8 (1 front)
      HDMI Outputs2 (1 for MAIN, 1 for Sub/Zone2/ZONE4)
      8K Inputs
      USB InputUSB memory, portable audio player
      USB DC Out Port
      Optical Inputs3
      Optical Outputs
      Coaxial Inputs3
      RCA Line Inputs8 (1 front)
      RCA Line Outputs
      XLR Line Inputs1
      Phono Input
      Multi-Channel Input
      RCA Pre-Outs11.2 (barter to Zone 2 and Zone 3)
      XLR Pre-outs
      Composite Video Inputs4
      Composite Video Outputs
      S-Video Inputs
      S-Video Outputs
      Component Video Inputs2
      Component Video Outputs

      11. Replaced by RX-V3085

      In 2018 Yamaha RX-V3083 was replaced by Yamaha RX-V3085. Let us now have a look at some important differences between Yamaha RX-V3083 and its successor.

      UPGRADES Yamaha RX-V3085 vs Yamaha RX-V3083
      Surround:AI™ vs
      Higher DAC Specs 384 kHz/32 Bit vs 192 kHz/32 Bit
      Higher Resolution Music Playback via USB up to 384 kHz/32 Bit vs up to 192 kHz
      Newer HDCP Version 2.3 vs 2.2
      Works with Amazon Alexa vs
      AirPlay AirPlay 2 via firmware update vs AirPlay
      More HDMI Outputs 3 (2 for MAIN, 1 for ZONE2) vs 2 (1 for MAIN, 1 for Sub/Zone2/ZONE4)
      XLR Pre-outs Front L/R vs
      Higher DSD Sampling Rate via USB 11.2 MHz, 5.6 MHz, 2.8 MHz vs 5.6 MHz, 2.8 MHz
      Wi-Fi Standard IEEE 802.11 a/b/g/n/ac vs IEEE 802.11 b/g/n
      Wi-Fi Terminal Frequency 2.4 GHz, 5 GHz vs 2.4 GHz
      Newer Bluetooth Version 4․2 vs 2․1 + EDR
      DOWNGRADES Yamaha RX-V3085 vs Yamaha RX-V3083
      Less HDMI Inputs 7 vs 8 (1 front)
      Front A/V Inputs USB, Analog Audio vs HDMI, USB, Analog Audio
      Less Scenes SCENE PLUS (8 sets) vs SCENE PLUS (12 sets)

      For more detailed comparison between the models please visit Yamaha RX-V3083 vs RX-V3085.

      12. Evaluation

      We evaluate Yamaha RX-V3083 and give score of 93 out of 100. We also give separate scores for 6 different categories according to the available features and specifications some of which are listed below. These evaluations are relative and may change each time a new receiver is added to the database.


      OVERALL
      93

      Amplifier

      EXCELLENT
      96

      We give Yamaha RX-V3083 a score of 96 for Amplifier features.

      •   9.2 Channels
      •   High Power Output - 150 W

      Audio Features

      EXCELLENT
      88

      We give Yamaha RX-V3083 a score of 88 for Audio Features features.

      •   9.2 Channels
      •   No Front Wide Channel Support
      •   11.2 Channel Processing
      •   Dolby Atmos
      •   No Dolby Atmos Height Virtualization
      •   DTS:X
      •   No IMAX Enhanced
      •   No Auro 3D with Auro-Matic Upmixer
      •   DSD via HDMI

      Video Features

      EXCELLENT
      95

      We give Yamaha RX-V3083 a score of 95 for Video Features features.

      •   HDR10
      •   No HDR10+
      •   Dolby Vision
      •   No 8K Passthrough
      •   Analog To HDMI Upconversion

      Connectivity

      EXCELLENT
      90

      We give Yamaha RX-V3083 a score of 90 for Connectivity features.

      •   eARC
      •   New HDCP Version
      •   Wi-Fi
      •   Bluetooth
      •   Does not Work with Amazon Alexa
      •   8 HDMI Inputs
      •   3 HDMI Outputs
      •   0 8K Input
      •   USB Input
      •   Many RCA Line Inputs
      •   XLR Line Inputs
      •   Phono Input
      •   RCA Pre-Outs
      •   Composite Video Inputs
      •   Component Video Inputs
      •   Ethernet
      •   Bluetooth 2․1 + EDR

      Zones

      EXCELLENT
      96

      We give Yamaha RX-V3083 a score of 96 for Zones features.

      •   4 Zones

      Radio

      EXCELLENT
      85

      We give Yamaha RX-V3083 a score of 85 for Radio features.

      •   Analog Tuner
      •   No Pandora
      •   Spotify
      •   Tidal

      13. Specifications

      GENERAL
      BrandYamaha
      ModelRX-V3083
      TypeA/V Receiver
      CountryAustralia
      Release Year2017
      SuccessorYamaha RX-V3085
      AMPLIFIER
      Channels9.2
      Power Output150 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      Front Wide Channel Support
      THX™ Certification
      Continuous 6 Ω Rated
      Certified 4 Ω Performance
      Bi-amp Capability
      AUDIO FEATURES
      Surround:AI™
      DACESS SABRE PRO Premier DAC™ES9026PRO (for main 7 channels)
      DAC Specs192 kHz/32 Bit
      Maximum Channel Processing11.2
      Air Studios Monitor Certification
      Dolby Atmos
      Dolby Atmos Height Virtualization
      Dolby Atmos Music
      Dolby TrueHD
      Dolby Digital Plus
      Dolby Surround Upmixer
      Dolby Pro Logic
      Dolby Digital EX
      DTS:X
      DTS Neural:X
      DTS Virtual:X
      DTS Neo Neo:6
      DTS-HD Master Audio
      DTS-HD High Resolution Audio
      DTS 96/24
      DTS Express
      DTS-ES Discrete 6.1, Matrix 6.1
      IMAX Enhanced
      Auro 3D with Auro-Matic Upmixer
      PCM 2-ch/Multi-ch Input
      Network Audio FormatsMP3, WMA, MPEG-4 AAC, Apple Lossless, WAV, FLAC, AIFF, DSD
      Music Playback via USBMP3, WMA, AAC, Apple Lossless, WAV, FLAC, AIFF, DSD
      High Resolution Music Playback via USB and/or Network up to 192 kHz
      High Resolution Audio Formats via USBApple Lossless, WAV, FLAC, AIFF, DSD
      Gapless Playback
      DSD via HDMI 2-ch/Multi-ch Input
      DSD via USB 2-ch Input
      DSD to PCM Converter
      USB DAC
      DTS Dialogue Control
      Dialog Level Adjustment
      Dialog normalization
      Dialogue Lift no presence speakers required
      Compressed Music Enhancer including enhancer for Bluetooth®
      High-resolution Music Enhancer up to 96/24
      Adaptive DRC (Dynamic Range Control)
      Initial Volume & Maximum Volume Setting
      Audyssey Dynamic EQ
      Audyssey Dynamic Volume
      Audyssey LFC
      Audyssey Sub EQ HT
      Audyssey DSX
      Straight Decoding Mode
      Pure Direct Mode with Video On mode
      CINEMA DSP HD3
      DSP Programs24
      SILENT CINEMA / Virtual CINEMA DSP Virtual CINEMA FRONT
      Virtual Speakers including surround back
      Independent Subwoofer Outputs
      CALIBRATION
      Auto Speaker Calibration System with Mic. YPAO sound optimization with R.S.C., Multipoint, 3D, 64-Bit High Precision EQ Calculation and Angle measurement
      YPAO Volume
      PEQ for SUBDown to 15.6 Hz
      VIDEO FEATURES
      HDR10
      HDR10+
      Dynamic HDR
      BT.2020 color space
      Dolby Vision
      HLG (Hybrid Log Gamma)
      HDBaseT Compatible
      Enhanced Audio Return Channel (eARC) via firmware update
      HDCP Version2.2
      QMS (Quick Media Switching)
      ALLM (Auto Low Latency Mode)
      VRR (Variable Refresh Rate)
      QFT (Quick Frame transport)
      3-D Ready
      Video Signal Passthroughup to 4K/60p 4:4:4
      Video Signal Upscaling up to 4K 60p 4:4:4
      Analog To HDMI Upconversion Component****, Composite
      Component Video Upscaling
      Analog to Analog Video conversion
      Component Video Maximum Resolution1080i
      isf Certified Calibration Control
      CONNECTIVITY
      Wi-Fi with Wireless Direct
      Bluetooth SBC, AAC
      Works with Amazon Alexa
      Chromecast Built-In
      Works with SonoS
      DTS Play-Fi
      MHL Input
      DLNA 1.5
      MusicCast
      AirPlay AirPlay
      Apple Product Connection iPod, iPhone and iPad
      Remote App (iPhone® / iPad® / Android™ phone / tablet)
      InstaPrevue Input Source Prevue
      TERMINALS
      HDMI Inputs8 (1 front)
      HDMI Outputs2 (1 for MAIN, 1 for Sub/Zone2/ZONE4)
      8K Inputs
      USB InputUSB memory, portable audio player
      USB DC Out Port
      Optical Inputs3
      Optical Outputs
      Coaxial Inputs3
      RCA Line Inputs8 (1 front)
      RCA Line Outputs
      XLR Line Inputs1
      Phono Input
      Multi-Channel Input
      RCA Pre-Outs11.2 (barter to Zone 2 and Zone 3)
      XLR Pre-outs
      Composite Video Inputs4
      Composite Video Outputs
      S-Video Inputs
      S-Video Outputs
      Component Video Inputs2
      Component Video Outputs
      Ethernet
      Ethernet Switch
      PC In
      Front A/V InputsHDMI, USB, Analog Audio
      Speaker A/B
      Headphone Out6.3 mm (1/4")
      Detachable Power Cord
      dockport
      ZONES
      Number of Zones4
      Powered ZonesZone 2 / 3
      Zone 2 OutsHDMI, RCA Preout
      Zone 3 OutsRCA Preout
      Zone 4 OutsHDMI
      Zone B Video Output HDMI
      Zone GUI
      RS-232C Interface
      +12V Trigger Output2
      Remote (IR) Input/Output1 / 1
      Party Mode
      MISCELLANEOUS
      On-Screen DisplayGraphical User Interface
      SCENESCENE PLUS (12 sets)
      Web Control
      PreAmp Mode
      Remote Controller[] (Preset)
      RADIO
      Analog Tuner FM
      Presets40
      Digital Radio DAB/DAB+
      Internet Radio
      Pandora
      Spotify
      Tidal
      Deezer
      Napster
      SiriusXM
      CONSTRUCTION
      A.R.T. Wedge
      Speaker Terminals11
      Large Speaker Terminals11
      Color-Coded Speaker Terminals
      Gold plated RCA terminals
      POWER
      Power SupplyAC 240 V, 50 Hz
      Power Consumption490 W
      Standby Power0.1 W
      ECO Mode / Hybrid Standby Function
      Auto Power Standby
      PHYSICAL
      Dimensions (W x H x D)435 mm x 192 mm x 474 mm (with antenna: 435 mm x 247 mm x 474 mm)
      17-1/8" x 7-1/2" x 18-5/8" (with antenna up: 17-1/8" x 9-3/4" x 18-5/8")
      Weight18.1 kg (39.9 lbs)
      SPECIFICATIONS
      Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)150 W (0.06% THD)
      Power Output (8 Ω, 1 kHz, 2 channel Driven, FTC)165 W (0.9% THD)
      Rated Power Output (8 Ω, 1 kHz, 1 channel Driven)185 W (0.9% THD)
      Maximum Effective Output Power (8 Ω, 1 kHz, 1 channel Driven, JEITA)230 W (10% THD)
      Power Output (6 Ω, 20 Hz - 20 kHz, 2 channel driven)165 W (0.06% THD)
      Power Output (6 Ω, 1 kHz, 1 channel driven, FTC)200 W (0.9% THD)
      Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA or IEC)230 W (10% THD)
      Dynamic Power per Channel (2 Ω, Front)410 W
      Dynamic Power per Channel (4 Ω, Front)295 W
      Dynamic Power per Channel (6 Ω, Front)220 W
      Dynamic Power per Channel (8 Ω, Front)175 W
      THD0.04% (AUDIO 2 etc. to Speaker Out, 20 Hz - 20 kHz, 75 W, 8 Ω)
      THD (Phono)0.04% (Phono to PRE OUT, 1 kHz, 1 V)
      Damping Factor150 (Front, 1 kHz, 8 Ω)
      Input Sensitivity and Impedance (Line)200 mV/47 kΩ (1 kHz, 0.5%, 100 W/8 Ω)
      Input Sensitivity and Impedance (Phono MM)3.5 mV/47 kΩ (1 kHz, 0.5%, 100 W/8 Ω)
      Maximum Input Sensitivity (Line)2.4 V (1 kHz, 0.5% THD)
      Maximum Input Sensitivity (Phono)45 mV (1 kHz, 0.5% THD)
      Rated Preout Level and Impedance1.0 V/470 Ω
      Maximum Preout Level and Impedance2.0 V
      S/N Ratio (Line, IHF-A)110 dB
      S/N Ratio (Phono MM, IHF-A)95 dB
      Phono RIAA Deviation0±0.5 dB (20 Hz - 20 kHz)
      Frequency Response (Analog In)+0/-3 dB (AUDIO etc., 10 Hz to 100 kHz)
      Residual noise (IHF-A Network)150 µV (Speaker Out)
      Channel Separation at 1 kHz/10 kHz (LINE)75 dB/60 dB
      Channel Separation at 1 kHz/10 kHz (Phono)75 dB/60 dB
      DSD Sampling Rates via HDMI2.8 MHz
      DSD Sampling Rates via USB5.6 MHz, 2.8 MHz
      Video Input Sensitivity/Output Level and Impedance 1 Vp-p/75 Ω (Component Y)
      0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
      1 Vp-p/75 Ω (Composite)
      Video Maximum Input1.5 Vp-p
      Ethernet Standard10BASE-T/100BASE-TX
      Wi-Fi StandardIEEE 802.11 b/g/n
      Wi-Fi Terminal Frequency2.4 GHz
      Bluetooth Version2․1 + EDR
      Bluetooth Frequency2.4 GHz
      USB TerminalUSB2.0 5 V, 1 A
      FM Frequency87.50 MHz - 108.00 MHz
      FM 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)Mono: 3 µV (20.8 dBf)
      FM S/N RatioMono/Stereo: 69 dB/68 dB
      FM Harmonic Distortion (IHF, 1 kHz)Mono/Stereo: 0.5%/0.6%
      DAB Freq174 MHz - 240 MHz (Band III)
      DAB audio formatsMPEG 1 Layer II/MPEG-4 HE-AAC v2
      Warranty2 Years

      * - 480i/576i and 480p/576p only
      ** - 480i/576i only
      *** - no 1080p/24 upconversion
      **** - 1080p signal is not converted

      Discussion

      Amazon Affiliate Disclosure
      ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
