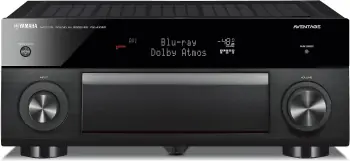

Yamaha Aventage RX-A1060

    Highlights

    • 7.2 Channels
    • 7.1 Channel Processing
    • 110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
    • Dolby Atmos, DTS:X
    • HDR10, Dolby Vision
    • 4K/60Hz Passthrough, 4K/60Hz Upscaling
    • Wi-Fi, Bluetooth, Ethernet
    • Phono Input
    Image cannot be found
    Image cannot be found

    Disclosure: We earn money from the affiliate links to products associated with content in this article.

    Overview

    Yamaha Aventage RX-A1060 was introduced in 2016. It is equipped with 7 channel amplifier with 110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 7.1 maximum channel processing. It supports Dolby Atmos and DTS:X, passes 4K/60Hz and upscales up to 4K 60p 4:4:4 video signal.

    We evaluated the a/v receiver and gave 90 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

    Amplifier
    91
    Audio Features
    85
    Video Features
    95
    Connectivity
    89
    Zones
    86
    Radio
    92
    OVERALL
    90

    For more details about the ranking please scroll down to an    Evaluation section.


    Here is a history of the series, where you can view and compare the main specifications of the receivers.

    Evolution of the series
    Model Year Chann. Power Dolby Atmos DTS:X HDR10 HDR10+ Dolby Vision Pass. Price
    RX-A4A Image cannot be found 2021 7.2 110 W 8K
    RX-A1080 Image cannot be found 2018 7.2 110 W 4K
    RX-A1070 Image cannot be found 2017 7.2 110 W 4K
    RX-A1060 Image cannot be found 2016 7.2 110 W 4K
    RX-A1050 Image cannot be found 2015 7.2 110 W 4K
    RX-A1040 Image cannot be found 2014 7.2 110 W 4K
    RX-A1030 Image cannot be found 2013 7.2 110 W 4K
    RX-A1020 Image cannot be found 2012 7.2 110 W 4K
    RX-A1010 Image cannot be found 2011 7.2 110 W 1080p
    RX-A1000 Image cannot be found 2010 7.2 105 W 1080p

    You can view their side-by-side comparison here: Yamaha RX-A4A vs RX-A1080 vs RX-A1070 vs RX-A1060 vs RX-A1050 vs RX-A1040.

    Pros and Cons

    In this section we present pros and cons of Yamaha Aventage RX-A1060.

    PROs

    •   High Power Output - 110 W
    •   Dolby Atmos
    •   DTS:X
    •   DSD via HDMI
    •   Auto Speaker Calibration System with Mic.
    •   HDR10
    •   Dolby Vision
    •   New HDCP Version
    •   Analog To HDMI Upconversion
    •   Wi-Fi
    •   Bluetooth
    •   Works with Amazon Alexa
    •   8 HDMI Inputs
    •   USB Input
    •   Many RCA Line Inputs
    •   Phono Input
    •   RCA Pre-Outs
    •   Composite Video Inputs
    •   Component Video Inputs
    •   Ethernet
    •   Analog Tuner
    •   Pandora
    •   Spotify

    CONs

    •   No Front Wide Channel Support
    •   No Dolby Atmos Height Virtualization
    •   No IMAX Enhanced
    •   No Auro 3D with Auro-Matic Upmixer
    •   No HDR10+
    •   No eARC
    •   No 8K Passthrough
    •   0 8K Input
    •   No Digital Radio
    •   No Tidal
    •   Bluetooth 2․1 + EDR

    And here are some specifications which fall into average criteria and are neither in PROs nor in CONs category:

    AVERAGE

    •   7.2 Channels
    •   7.1 Channel Processing
    •   3 HDMI Outputs
    •   2 Zones

    Yamaha 2016 Lineup

    In 2016 Yamaha released 6 new receivers. Here is the lineup:

    Yamaha 2016 Lineup
    ModelChannelsPowerMax. Ch. Proc.Pre OutsRoom Corr.HDRZones Price
    RX-A3060 Image cannot be found 9.2150 W11.211.2 YPAO sound optimization (R.S.C. with 3D, 64-bit precision EQ calculation, Multipoint and Angle measurement)HDR10
    Dolby Vision
    4
    RX-A2060 Image cannot be found 9.2140 W9.27.2 YPAO sound optimization (R.S.C. with 3D, Multipoint and Angle measurement)HDR10
    Dolby Vision
    4
    RX-A1060 Image cannot be found 7.2110 W7.17.2 YPAO sound optimization (R.S.C. with Multipoint measurement)HDR10
    Dolby Vision
    2
    RX-A860 Image cannot be found 7.2100 W7.17.2 YPAO sound optimization (R.S.C. with Multipoint measurement)HDR10
    Dolby Vision
    2
    RX-A760 Image cannot be found 7.290 W7.1 YPAO sound optimization (R.S.C.)HDR10
    Dolby Vision
    2
    RX-A660 Image cannot be found 7.280 W7.1 YPAO sound optimizationHDR101

    You can view their side-by-side comparison here: Yamaha RX-A3060 vs RX-A2060 vs RX-A1060 vs RX-A860 vs RX-A760 vs RX-A660.

    Predecessor

    Here we are comparing Yamaha Aventage RX-A1060 to its predecessor RX-A1050 and displaying the major changes.

    UPGRADES Yamaha Aventage RX-A1060 vs Yamaha RX-A1050
    DTS Dialog Control vs
    PEQ for SUB Down to 15.6 Hz vs Down to 31 Hz
    BT.2020 color space vs
    Dolby Vision vs
    HLG vs
    Napster vs
    Higher FM S/N Ratio Mono/Stereo: 69 dB/68 dB vs Mono/Stereo: 65 dB/64 dB
    DOWNGRADES Yamaha Aventage RX-A1060 vs Yamaha RX-A1050
    Dolby Pro Logic vs PLIIx
    Dolby Digital EX vs
    Lower Maximum Input Sensitivity (Phono) 45 mV (1 kHz, 0.5% THD) vs 60 mV

    For more detailed comparison between the models please visit Yamaha Aventage RX-A1060 vs RX-A1050.

    Successor

    In 2017 Yamaha Aventage RX-A1060 was replaced by Yamaha RX-A1070. Let us now have a look at some important differences between Yamaha Aventage RX-A1060 and its successor.

    UPGRADES Yamaha RX-A1070 vs Yamaha Aventage RX-A1060
    CINEMA DSP HD3 vs 3D
    DSP Programs 24 vs 23
    More Advanced Auto Speaker Calibration System YPAO sound optimization with R.S.C., Multipoint, 3D, 64-Bit High Precision EQ Calculation and Angle measurement vs YPAO sound optimization (R.S.C. with Multipoint measurement)
    Enhanced Audio Return Channel (eARC) via firmware update vs
    Newer HDCP Version 2.3 vs 2.2
    Tidal vs
    Deezer vs
    DOWNGRADES Yamaha RX-A1070 vs Yamaha Aventage RX-A1060
    Component Video Maximum Resolution 1080i vs 1080p
    Less Composite Video Inputs 4 vs 5 (1 front)
    Less Composite Video Outputs vs 1
    Less Component Video Inputs 2 vs 3
    Less Component Video Outputs vs 1
    Front A/V Inputs HDMI, USB, Analog Audio vs HDMI, USB, Analog Audio, Composite Video
    Zone 2 Outs HDMI, RCA Preout vs HDMI, Component, Composite, RCA Preout

    For more detailed comparison between the models please visit Yamaha Aventage RX-A1060 vs RX-A1070.

    Audio Section

    7 channel Amplifier

    Yamaha Aventage RX-A1060 features 7 channel power amplifier. It is rated at 110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.

      AMPLIFIER
      Channels7.2
      Power Output110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      Front Wide Channel Support
      THX™ Certification
      Continuous 6 Ω Rated
      Certified 4 Ω Performance
      Bi-amp Capability

      Speaker Configurations

      Yamaha Aventage RX-A1060's 7 channel amplifier can be assigned for different speaker configurations.

      • Dolby Atmos Configurations: The following speaker configurations are supported for Dolby Atmos:
      • 5.2.2 with internal amplifier.
      • DTS:X Configurations: The speaker configurations for DTS:X are the same as for Dolby Atmos:
      • 5.2.2 with internal amplifier.
      • Configurations without height channels: There are also other speaker configurations available which do not include height channels:
      • 5.2, 7.2 with internal amplifier.
      • 2-ch Bi-Amp: Yamaha Aventage RX-A1060 allows you to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.
      Yamaha Aventage RX-A1060

      Dolby Atmos

      Yamaha Aventage RX-A1060 supports Dolby Atmos. It is a cinematic audio format in which sounds exist as individual entities, called audio objects. In Dolby Atmos, any sound can exist as an independent audio object, free of channel restrictions. They can be precisely placed and moved anywhere in your room, including overhead, to flow above and around you in three-dimensional space. Through the use of audio objects, overhead sound, and all the richness, clarity, and power of Dolby sound, Dolby Atmos turns your room into an amazing place for entertainment. The format supports up to 128 simultaneous independent audio objects in a mix for rich, realistic, and breathtaking sound. It recreates the director's original concept through descriptive metadata to provide customized playback for home theater and delivers sounds above you through overhead speakers, special upward-firing Dolby Atmos speakers, or a Dolby Atmos enabled sound bar.

      • Dolby Surround Upmixer: If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.

      DTS:X

      Yamaha Aventage RX-A1060 supports DTS:X. A technique used in DTS:X is similar to the one used in Dolby Atmos. Instead of a fixed number of channels, DTS:X defines object locations from the listener in polar coordinates. An a/v receiver then dynamically renders sound according to the current speaker configuration. The speaker layout employed by DTS:X is the sum of Dolby Atmos and Auro-3D. It has standard 7.1 channel base layer, a 5 channel height layer above the base layer on the front and side walls, and 3 rows of speakers on the ceiling.

      • DTS Neural:X: DTS Neural:X is an advanced upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.
      • DTS Dialog Control: This function adjusts the dialog levels during playback of the DTS:X stream. It allows you to separately increase the dialog levels in contrast with the background sound and hear dialog easily even under noisy circumstances.
      DECODING
      Dolby Atmos up to 5.1.2
      Dolby Atmos Height Virtualization
      Dolby Atmos Music
      Dolby TrueHD
      Dolby Digital Plus
      Dolby Surround Upmixer
      Dolby Pro Logic
      Dolby Digital EX
      DTS:X up to 5.1.2
      DTS Neural:X
      DTS Virtual:X
      DTS Neo Neo:6
      DTS-HD Master Audio
      DTS-HD High Resolution Audio
      DTS 96/24
      DTS Express
      DTS-ES Discrete 6.1, Matrix 6.1
      IMAX Enhanced
      Auro 3D with Auro-Matic Upmixer

      Sound Processing

      • Adaptive DRC: Yamaha Aventage RX-A1060 features Adaptive DRC (Dynamic Range Control) which automatically adjusts the dynamic range of the sound according to the volume level. This ensures that you hear clear dialog and vocals, and all sound effects at comfortable levels. There is no need to adjust the volume level as you listen; everything from whispers to big explosions will be heard clearly and comfortably at the same volume setting. It also tones down loud TV commercials, and is ideal for low-volume, late-night listening, when you do not want to disturb others.

      Room Calibration

      Yamaha Aventage RX-A1060 comes with YPAO (R.S.C. with Multipoint measurement) room correction system and includes the calibration microphone.

      • YPAO: The Yamaha Parametric room Acoustic Optimizer (YPAO) function detects speaker connections, measures the distances from them to your listening position(s), and then automatically optimizes the speaker settings, such as volume balance and acoustic parameters, to suit your room.

      Video Section

      HDMI

      Yamaha Aventage RX-A1060 features 8 HDMI inputs. It has 2 outputs: 1 for MAIN and 1 for Sub/Zone2.

      • 4K/60Hz Passthrough: All inputs pass up to 4K/60p 4:4:4 video signal.
      • 4K Upscaling: Yamaha Aventage RX-A1060 can upscale up to 4K 60p 4:4:4 from HDMI and analog sources.
      • Analog To HDMI Upconversion: The a/v receiver supports video upconversion, so you can connect your analog Component and Composite video sources and Yamaha Aventage RX-A1060 will output them via HDMI. This means that you will need only one HDMI cable to connect to your TV.
      • BT.2020 Color Space: BT.2020 or Rec. 2020 is a color standard which delivers a wider color gamut compared to Rec. 709. It covers approximately 75% of the total visual spectrum while the Rec. 709 covers only 35%.
      • HDCP 2.2 Copy Protection: All inputs and outputs are HDCP 2.2 compliant which is a requirement for 4K/HDR copy-protected content transmission.
      • 3D Ready: Yamaha Aventage RX-A1060 is able to pass 3D video through HDMI.

      HDR (High Dynamic Range)

      Yamaha Aventage RX-A1060 supports HDR (high dynamic range) video formats such as HDR10, Dolby Vision and Hybrid Log-Gamma. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.

      • HDR10: HDR10 uses the wide-gamut Rec. 2020 color space. It sends static metadata via video stream to the TV which calibrates its screen brightness and color according to that. HDR10 supports 10-bit color which corresponds to 1024 shades of the primary RGB colors. It is technically limited to a maximum of 10,000 nits peak brightness, however common HDR10 contents are mastered with peak brightness from 1,000 to 4,000 nits.
      • Dolby Vision: Dolby Vision is a set of technologies developed by Dolby Laboratories for high dynamic range (HDR) video. It covers content creation, distribution, and playback. Like HDR10+, it includes dynamic metadata that are used to adjust and optimize each frame of the HDR video to the consumer display's capabilities in a way specified by the content creator. Dolby Vision allows for a maximum resolution of 8K up to 12-bit color depth, maximum peak brightness of 10,000 nits and a color gamut up to Rec. 2020. It uses Dolby's proprietary dynamic metadata defined in SMPTE ST 2094-10.
      • Hybrid Log-Gamma (HLG): The Hybrid Log-Gamma (HLG) is a transfer function developed mainly for HDR live video feed and over-the-air broadcasts. It is an HDR format that uses BT.2020 color primaries and a bitdepth of 10-bit. It is backward compatible with the transfer function of SDR and is designed to be better-suited for television broadcasting, where the metadata required for other HDR formats is not backward compatible with non-HDR displays. HLG defines a non-linear optical-electro transfer function, in which the lower half of the signal values use a gamma curve and the upper half of the signal values use a logarithmic curve.
      Yamaha Aventage RX-A1060
      VIDEO FEATURES
      HDR10
      HDR10+
      Dynamic HDR
      BT.2020 color space
      Dolby Vision
      HLG (Hybrid Log Gamma)
      HDBaseT Compatible
      Enhanced Audio Return Channel (eARC)
      HDCP Version2.2
      QMS (Quick Media Switching)
      ALLM (Auto Low Latency Mode)
      VRR (Variable Refresh Rate)
      QFT (Quick Frame transport)
      3-D Ready
      Video Signal Passthroughup to 4K/60p 4:4:4
      Video Signal Upscaling up to 4K 60p 4:4:4

      Multi-zone Playback

      Yamaha Aventage RX-A1060 offers multi-zone playback which allows you to play different input sources in 2 different rooms.


      Zone 2

      • Powered Zone 2: You can use the unit's 2 amplifier channels by connecting Zone 2 speakers directly to the speaker terminals. The remaining 5 channels will be left for main zone amplification.
      • HDMI Output: Yamaha Aventage RX-A1060 offers HDMI output for Zone 2. This means that it can send two different HDMI signals to two displays.
      • Composite Video Output: Yamaha Aventage RX-A1060 has analog Composite Video output for Zone 2. This means that it can send a different video signal to the TV.
      • Component Video Output: Yamaha Aventage RX-A1060 has analog Component Video output for Zone 2, so you can send a different video signal to the TV. Component video connection provides the higher image quality than the composite and S-Video connections.

      Zone B

      • HDMI Output: Yamaha Aventage RX-A1060 offers HDMI output for Zone B. This means that it can send two different HDMI signals to two displays.
      ZONES
      Number of Zones2
      Powered ZonesZone 2
      Zone 2 OutsHDMI, Component, Composite, RCA Preout
      Zone B Video Output HDMI
      Zone GUI
      RS-232C Interface
      +12V Trigger Output2
      Remote (IR) Input/Output1 / 1
      Party Mode
      >

      Inputs and Outputs

      Audio

      • Phono Input: There is an MM phono input with built-in phono stage for connecting the moving magnet cartridge output of the turntable directly to the a/v receiver.
      • Analog Pre-Outs: Yamaha Aventage RX-A1060 has 7.2 preamplifier outputs which allow you to connect the a/v receiver to the external power amplifier. You may want to use a high quality external amplifier for certain channels, usually for front L/R and center, and use the a/v receiver to power the rest.
      • Analog Line Inputs: There are 8 line inputs for analog audio connection.
      • Digital Inputs: 3 optical inputs and 3 coaxial inputs are available for digital audio connection.
      • Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.

      Video

      • HDMI:
      • Inputs: 8 (1 front)   Outputs: 2 (1 for MAIN, 1 for Sub/Zone2)
        8K Inputs: 0
      • Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
      • Inputs: 5   Outputs: 1
      • Component Video: Component video connection gives you the higher quality video compared to the composite video connection. So in case your old DVD player and other equipment do not have an HDMI output but have Component video output use this connection over the composite one. Yamaha Aventage RX-A1060 supports up to 1080p resolution on Component video connectors.
      • Inputs: 3   Outputs: 1

      Front A/V Inputs

      • HDMI, USB, Analog Audio, Composite Video
      Image cannot be found
      Image cannot be found
      TERMINALS
      HDMI Inputs8 (1 front)
      HDMI Outputs2 (1 for MAIN, 1 for Sub/Zone2)
      8K Inputs
      USB InputUSB memory, portable audio player
      USB DC Out Port
      Optical Inputs3
      Optical Outputs
      Coaxial Inputs3
      RCA Line Inputs8 (1 front)
      RCA Line Outputs
      XLR Line Inputs
      Phono Input
      Multi-Channel Input
      RCA Pre-Outs7.2
      XLR Pre-outs
      Composite Video Inputs5 (1 front)
      Composite Video Outputs1
      S-Video Inputs
      S-Video Outputs
      Component Video Inputs3
      Component Video Outputs1

      Yamaha Aventage RX-A1060 Evaluation

      We evaluate Yamaha Aventage RX-A1060 and give score of 90 out of 100. We also give separate scores for 6 different categories according to the available features and specifications some of which are listed below. These evaluations are relative and may change each time a new receiver is added to the database.


      OVERALL
      90

      Amplifier

      EXCELLENT
      91

      We give Yamaha Aventage RX-A1060 a score of 91 for Amplifier features.

      •   7.2 Channels
      •   High Power Output - 110 W

      Audio Features

      EXCELLENT
      85

      We give Yamaha Aventage RX-A1060 a score of 85 for Audio Features features.

      •   7.2 Channels
      •   No Front Wide Channel Support
      •   7.1 Channel Processing
      •   Dolby Atmos
      •   No Dolby Atmos Height Virtualization
      •   DTS:X
      •   No IMAX Enhanced
      •   No Auro 3D with Auro-Matic Upmixer
      •   DSD via HDMI

      Video Features

      EXCELLENT
      95

      We give Yamaha Aventage RX-A1060 a score of 95 for Video Features features.

      •   HDR10
      •   No HDR10+
      •   Dolby Vision
      •   No 8K Passthrough
      •   Analog To HDMI Upconversion

      Connectivity

      EXCELLENT
      89

      We give Yamaha Aventage RX-A1060 a score of 89 for Connectivity features.

      •   No eARC
      •   New HDCP Version
      •   Wi-Fi
      •   Bluetooth
      •   Works with Amazon Alexa
      •   8 HDMI Inputs
      •   3 HDMI Outputs
      •   0 8K Input
      •   USB Input
      •   Many RCA Line Inputs
      •   Phono Input
      •   RCA Pre-Outs
      •   Composite Video Inputs
      •   Component Video Inputs
      •   Ethernet
      •   Bluetooth 2․1 + EDR

      Zones

      EXCELLENT
      86

      We give Yamaha Aventage RX-A1060 a score of 86 for Zones features.

      •   2 Zones

      Radio

      EXCELLENT
      92

      We give Yamaha Aventage RX-A1060 a score of 92 for Radio features.

      •   Analog Tuner
      •   Pandora
      •   Spotify
      •   No Tidal


      For a full specification list please go to the specifications page:

      Amazon Affiliate Disclosure

      ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
