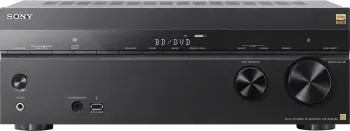

Sony STR-ZA810ES (USA version)

Sony STR-ZA810ES was introduced in 2017. It is equipped with 7 channel amplifier and is capable of 7ch + Phantom 2ch maximum channel processing.

We evaluated the Receiver and gave 50 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

Amplifier score is based on power ratings, minimum impedance load, power supply, transformer type, total harmonic distortion, damping factor, signal to noise ratio and other small details. Audio score depends on the number of channels, front wide channel support, maximum channel processing, support of audio formats, DAC specifications, room calibration algorithm... Video score is based on HDR, Dolby Vision and video signal passthrough and upscaling, analog to HDMI upconversion. Connectivity score is defined from all wired and wireless inputs and outputs, internet and bluetooth connections, HEOS, SONOS and others. Multizone score depends on the number of zones with their outputs. Radio score is evaluated form digital radio support and analog tuner with its frequency range, signal to noise ratio, harmonic distortion...

In this section we present pros and cons of Sony STR-ZA810ES.

Amplifier

Sony STR-ZA810ES has 7 channel amplifier and delivers 70 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven).

Video Features

The Receiver has 4K passthrough up to 60p and 4K upscaling up to 60p. It can bypass HDR10, Dolby Vision.

HDR10

High-dynamic-range (HDR) video has greater dynamic range than standard-dynamic-range (SDR) video with brigter whites and deeper blacks. HDR10 was announced on August 27, 2015, by the Consumer Technology Association and uses the wide-gamut Rec. 2020 color space. It sends static metadata via video stream to the TV which calibrates its screen brightness and color according to that. HDR10 supports up to 1000 nits of brightness and 10-bit color which corresponds to 1024 shades of the primary RGB colors.

Dolby Vision

Dolby Vision is an update to HDR10 by adding dynamic metadata that can be used to more accurately adjust brightness levels up to 10,000 nits maximum brightness on a scene-by-scene or frame-by-frame basis and supports up to 12-bit color depth (4096 shades of RGB) and 8K resolution.

Dolby Atmos and Dolby Surround upmixer

Sony STR-ZA810ES supports Dolby Atmos with its Dolby Surround upmixer. It can be configured upto 5.1.2 channels using internal amplifiers.

Dolby Atmos is the first cinematic audio format in which sounds exist as individual entities, called audio objects. In Dolby Atmos, any sound - the helicopter, a car screeching around a corner, a melodic bird call - can exist as an independent audio object, free of channel restrictions. They can be precisely placed and moved anywhere in your room, including overhead, to flow above and around you in three-dimensional space. Through the use of audio objects, overhead sound, and all the richness, clarity, and power of Dolby sound, Dolby Atmos turns your room into an amazing place for entertainment. You'll feel like you're inside the action, in ways you've never experienced before.

Dolby Atmos for the home represents every sound in the original cinema mix as an audio object. Extensions to the Dolby Audio™ codecs, along with an advanced scalable algorithm, allow Dolby Atmos to be delivered via Blu-ray Disc and streaming media. A spatially-coded substream is added to Dolby TrueHD or Dolby Digital Plus. A Dolby Atmos audio/video receiver (AVR) adapts the cinema experience to your home theater from seven speakers to as many as 34 in 24.1.10 configuration, recreating the original artistic concept. The format supports up to 128 simultaneous independent audio objects in a mix for rich, realistic, and breathtaking sound. It recreates the director's original concept through descriptive metadata to provide customized playback for home theater and delivers sounds above you through overhead speakers, special upward-firing Dolby Atmos speakers, or a Dolby Atmos enabled sound bar.

If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.

DTS:X and Neural:X upmixer

Sony STR-ZA810ES supports DTS:X with its Neural:X upmixer. It can be configured upto 5.1.2 channels using internal amplifiers.

A technique used in DTS:X is similar to the one used in Dolby Atmos. Instead of a fixed number of channels, DTS:X defines object locations from the listener in polar coordinates. An a/v receiver then dynamically renders sound according to the current speaker configuration. The speaker layout employed by DTS:X is the sum of Dolby Atmos and Auro-3D. It has standard 7.1 channel base layer, a 5 channel height layer above the base layer on the front and side walls, and 3 rows of speakers on the ceiling.

DTS Neural:X is a new upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.

Digital Legato Linear

Sony STR-ZA810ES features Digital Legato Linear (D.L.L.) to play audio signals with high-quality sound. The D.L.L. function is a technology developed by Sony that allows low-quality digital and analog audio signals to be played with high-quality sound. This function is available for Linear PCM signals, as well as lossy compression audio formats and analog audio signals. It works when [2ch Stereo], [Direct], [A.F.D.] or [Multi Stereo] is selected.

Room Correction

Sony STR-ZA810ES comes with D.C.A.C. EX room correction system and includes the calibration microphone.

Connectivity

Sony STR-ZA810ES can be connected to internet using ethernet cable or built-in wi-fi adapter. It can also connect to bluetooth devices via built-in bluetooth adapter. The Receiver supports AirPlay. It has 6 HDMI inputs and HDCP 2.2 (6 in / 2 out) copy protection.

Front panel has USB input.

Here we list all the available features and specifications of Sony STR-ZA810ES.

BASICS
Brand	Sony
Model	STR-ZA810ES
Type	A/V Receiver
Country	USA
Release Year	2017

AMPLIFIER
Channels	7.2
Front Wide Channel Support	✖
THX™ Certification	✖
Continuous 6 Ω Rated	✔
Certified 4 Ω Performance	✖
Bi-amp Capability	✔

AUDIO
Maximum Channel Processing	7ch + Phantom 2ch
Air Studios Monitor Certification	✖
Dolby Atmos	✔ up to 5.1.2 plus 2 phantom rear surround channels
Dolby Atmos Height Virtualization	✖
Dolby TrueHD	✔
Dolby Digital Plus	✔
Dolby Surround Upmixer	✔
Dolby Pro Logic	✖
Dolby Digital EX	✖
DTS:X	✔ up to 5.1.2 plus 2 phantom rear surround channels
DTS Neural:X	✔
DTS Virtual:X	✖
DTS Neo	✖
DTS-HD Master Audio	✔
DTS-HD High Resolution Audio	✔
DTS 96/24	✔
DTS Express	✖
DTS-ES	✔ Discrete 6.1, Matrix 6.1
IMAX Enhanced	✖
Auro 3D with Auro-Matic Upmixer	✖
PCM	✔ 2-ch/Multi-ch Input
Music Playback via USB	WAV, FLAC, AIFF, DSD, MP3, WMA, LPCM, Dolby Digital, Apple Lossless, OGG, APE
High Resolution Music Playback via USB and/or Network	✔ up to 192 kHz
High Resolution Audio Formats via USB	WAV, FLAC, AIFF, DSD
DSD via HDMI	✔ 2-ch/Multi-ch Input
DSD via USB	✔ 2-ch Input
DSD to PCM Converter	✖
USB DAC	✖
DTS Dialogue Control	✖
Dialogue Lift	✔ Center Speaker Lift Up
Digital Legato Linear	✔
In-Ceiling Speaker Mode	✔
OP Processing	✔
Sound Optimizer	✔
Tone Control	✔ All Channels
Audyssey Dynamic EQ	✖
Audyssey Dynamic Volume	✖
Audyssey LFC	✖
Audyssey Sub EQ HT	✖
Audyssey DSX	✖
Direct Mode	✔
Pure Direct Mode	✔

CALIBRATION
Auto Speaker Calibration System with Mic.	✔ D.C.A.C. EX
Calibration Microphone	Stereo
EQ for D.C.A.C.	31 band EQ
Speaker Relocation	✔
Automatic Phase Matching	✔
Automatic Phase Matching	✔

VIDEO
HDR10	✔
HDR10+	✖
Dynamic HDR	✖
BT.2020 color space	✔
Dolby Vision	✔
Hybrid Log Gamma (HLG)	✔
Quick Media Switching (QMS)	✖
Auto Low Latency Mode (ALLM)	✖
Variable Refresh Rate (VRR)	✖
Quick Frame Transport (QFT)	✖
3-D Ready	✔
Video Signal Passthrough	up to 4K/60p (YCbCr4:4:4)
Video Signal Upscaling	✔ up to 4K/60p
isf Certified Calibration Control	✖

CONNECTIVITY
MHL Input	✖
DLNA 1.5	✖
FireConnect	✖
FlareConnect	✖
Music Connect	✖
Remote Monitoring with ihiji	✖
Chromecast Built-In	✔
DTS Play-Fi	✖
Works with Amazon Alexa	✖
Works with SONOS	✖
AirPlay	✔ AirPlay
Apple Product Connection	✔ iPod, iPhone and iPad
InstaPrevue Input Source Prevue	✖
Ethernet	✔
Ethernet Switch	✖
Wi-Fi	✔
Bluetooth	✔ SBC, AAC, LDAC
HDBaseT Compatible	✖
Enhanced Audio Return Channel (eARC)	✔
HDCP Version	2.2 (6 in / 2 out)
HDMI Inputs	6
HDMI Outputs	2 (1 Main, 1 Sub/Zone2)
USB Input	1 (Front)
USB DC Out Port	✖
Analog Audio Line Inputs	4
Analog Audio Line Outputs	✖
Phono Input	✖
Optical Inputs	1
Optical Outputs	✖
Coaxial Inputs/Outputs	1 / No
Composite Video Inputs	2
Composite Video Outputs	1
S-Video Inputs	✖
S-Video Outputs	✖
Component Video Inputs	✖
Component Video Outputs	✖
PC In	✖
Multi-Channel Input	✖
Analog Pre-Outs	0.2
XLR Inputs	✖
XLR Pre-outs	✖
Front A/V Inputs	USB
Speaker A/B	✔
Headphone Out	✔ 6.3 mm

ZONES
Zones	2
Powered Zones	✔ 2
Zone 2 Outs	HDMI, RCA Pre/Line Out
RS-232 Interface	✔
+12V Trigger Output	0
Remote (IR) Input/Output	1 / 1

MISC
On-Screen Display	✔ Graphical User Interface
GUI Languages	3
Remote Controller	RMT-AA320U
Detachable Power Cord	✔

RADIO
Analog Tuner	✔ FM only
Presets	30 (30/-)
Digital Radio	✖
Pandora	✖
Spotify	✔
Tidal	✖
Deezer	✖
Napster	✖
SiriusXM Internet Radio	✖

CONSTRUCTION
Speaker Terminals	9
Large Speaker Terminals	9
Color-Coded Speaker Terminals	✖
Gold plated RCA terminals	✖

POWER
Power Supply	AC 120 V, 60 Hz
Power Consumption	240 W
Standby Power	0.5 W

GENERAL
Dimensions (W x H x D)	430 mm x 156 mm x 331 mm 17" x 6-1/4" x 13-1/8"
Weight	9.1 kg (20 lbs. 1 oz.)
Warranty	5 Years

SPECS
Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)	70 W (0.09% THD)
Power Output (8 Ω, 1 kHz, 2 channel Driven, FTC)	100 W (0.9% THD)
Power Output (6 Ω, 20 Hz - 20 kHz, 2 channel driven)	90 W (0.09% THD)
Power Output (6 Ω, 1 kHz, 2 channel driven, FTC)	110 W (0.9% THD)
Power Output (6 Ω, 1 kHz, 1 channel driven, FTC)	140 W (0.9% THD)
Input Sensitivity and Impedance (Line)	500 mV/50 kΩ
Rated Preout Level and Impedance	2 V/1 kΩ (Zone2 and Subwoofer)
S/N Ratio (Line, IHF-A)	105 dB (20 kHz LPF, 500 mV)
S/N Ratio (digital)	100 dB (20 kHz LPF)
Frequency Response (Analog In)	10 Hz - 100 kHz/±3 dB
DSD Sampling Rates via HDMI	2.8 MHz
DSD Sampling Rates via USB	2.8 MHz, 5.6 MHz
Video Input Sensitivity/Output Level and Impedance	1 Vp-p/75 Ω (Composite)
Ethernet Standard	100BASE-TX
Wi-Fi Standard	IEEE 802.11 a/b/g/n
Wi-Fi Terminal Frequency	5 GHz, 2.4 GHz
Bluetooth Version	4.1
Bluetooth Frequency	2.4 GHz
USB Terminal	Type A, Ver. 2.0, 5 V, 1 A
FM Frequency	87.5 MHz - 108.0 MHz

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted
