Sony STR-DN1070 (USA and Canadian versions)

•   Overview
•   Pros and Cons
•   Audio Section
•   Video Section
•   Multi-zone Playback
•   Inputs and Outputs
•   Specifications
•   Successor

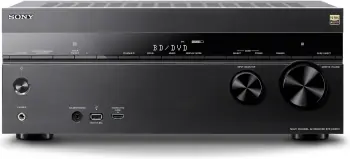

Sony STR-DN1070 was introduced in 2016. It is equipped with 7 channel amplifier with 100 W (6 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 7.1 maximum channel processing. It passes 4K/60Hz video signal.

We evaluated the a/v receiver and gave 74 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

In this section we present pros and cons of Sony STR-DN1070.

7 channel Amplifier

Sony STR-DN1070 features 7 channel power amplifier. It is rated at 100 W (6 Ω, 20 Hz - 20 kHz, 2 channel driven).

Speaker Configurations

Sony STR-DN1070's 7 channel amplifier can be assigned for different speaker configurations.

• Configurations: Available configurations are:
5.2, 7.2 with internal amplifier.
• 2-ch Bi-Amp: Sony STR-DN1070 allows you to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.

Sound Processing

• Digital Legato Linear: Sony STR-DN1070 features Digital Legato Linear (D.L.L.) to play audio signals with high-quality sound. The D.L.L. function is a technology developed by Sony that allows low-quality digital and analog audio signals to be played with high-quality sound. This function is available for Linear PCM signals, as well as lossy compression audio formats and analog audio signals. It works when [2ch Stereo], [Direct], [A.F.D.] or [Multi Stereo] is selected.

Room Calibration

Sony STR-DN1070 comes with Advanced D.C.A.C. room correction system and includes the calibration microphone.

HDMI

Sony STR-DN1070 features 6 HDMI inputs. It has 2 outputs: 1 Main and 1 Sub/Zone2.

• 4K/60Hz Passthrough: All inputs pass up to 4K/60p (YCbCr4:4:4) video signal.
• BT.2020 Color Space: BT.2020 or Rec. 2020 is a color standard which delivers a wider color gamut compared to Rec. 709. It covers approximately 75% of the total visual spectrum while the Rec. 709 covers only 35%.
• HDCP 2.2 Copy Protection: All inputs and outputs are HDCP 2.2 compliant which is a requirement for 4K/HDR copy-protected content transmission.
• 3D Ready: Sony STR-DN1070 is able to pass 3D video through HDMI.

andh3>HDR (High Dynamic Range)

Sony STR-DN1070 supports HDR (high dynamic range) video formats such as HDR10. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.

• HDR10: HDR10 uses the wide-gamut Rec. 2020 color space. It sends static metadata via video stream to the TV which calibrates its screen brightness and color according to that. HDR10 supports 10-bit color which corresponds to 1024 shades of the primary RGB colors. It is technically limited to a maximum of 10,000 nits peak brightness, however common HDR10 contents are mastered with peak brightness from 1,000 to 4,000 nits.

Sony STR-DN1070 offers multi-zone playback which allows you to play different input sources in 3 different rooms.

Zone 2

• Powered Zone 2: You can use the unit's 2 amplifier channels by connecting Zone 2 speakers directly to the speaker terminals. The remaining 5 channels will be left for main zone amplification.
• HDMI Output: Sony STR-DN1070 offers HDMI output for Zone 2. This means that it can send two different HDMI signals to two displays.
• Audio Pre/Line Output: If you have a dedicated amplifier for Zone 2 you can connect it to the a/v receiver via pre/line outs and use "pre out" option to control volume from the a/v receiver or use "line out" option - send fixed signal and then control volume on the Zone 2 amplifier.

Zone 3

• Powered Zone 3: You can use the unit's 2 amplifier channels by connecting Zone 3 speakers directly to the speaker terminals. The remaining 5 channels will be left for main zone amplification.

Audio

• Analog Line Inputs: There are 4 line inputs for analog audio connection.
• Digital Inputs and Outputs: 0 optical input, 1 optical output and 1 coaxial input are available for digital audio connection.
• Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.

Video

• HDMI:
Inputs: 6 (1 front)   Outputs: 2 (1 Main, 1 Sub/Zone2)
8K Inputs: 0
• Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
Inputs: 2   Outputs: 1

Here we list all the available features and specifications of Sony STR-DN1070.

BASICS
Brand	Sony
Model	STR-DN1070
Type	A/V Receiver
Country	USA and Canada
Release Year	2016

AMPLIFIER
Channels	7.2
Front Wide Channel Support
THX™ Certification
Continuous 6 Ω Rated
Certified 4 Ω Performance
Bi-amp Capability

AUDIO
Maximum Channel Processing	7.1
Air Studios Monitor Certification
Dolby Atmos
Dolby Atmos Height Virtualization
Dolby Atmos Music
Dolby TrueHD
Dolby Digital Plus
Dolby Surround Upmixer
Dolby Pro Logic	PLIIx
Dolby Digital EX
Surround EX
DTS:X
DTS Neural:X
DTS Virtual:X
DTS Neo	Neo:6
DTS-HD Master Audio
DTS-HD High Resolution Audio
DTS 96/24
DTS Express
DTS-ES	Discrete 6.1, Matrix 6.1
IMAX Enhanced
Auro 3D with Auro-Matic Upmixer
PCM	2-ch/Multi-ch Input
Music Playback via USB	WAV, FLAC, AIFF, DSD, MP3, WMA, LPCM, Dolby Digital, Apple Lossless
High Resolution Music Playback via USB and/or Network	up to 192 kHz
High Resolution Audio Formats via USB	WAV, FLAC, AIFF, DSD
DSD via HDMI	2-ch/Multi-ch Input
DSD via USB	2-ch Input
DSD to PCM Converter
USB DAC
DTS Dialog Control
Dialogue Lift	Center Speaker Lift Up
Digital Legato Linear
In-Ceiling Speaker Mode
OP Processing
Sound Optimizer
Tone Control	All Channels
High-resolution Music Enhancer	DSEE HX
Audyssey Dynamic EQ
Audyssey Dynamic Volume
Audyssey LFC
Audyssey Sub EQ HT
Audyssey DSX
Direct Mode
Pure Direct Mode

CALIBRATION
Auto Speaker Calibration System with Mic.	Advanced D.C.A.C.
Calibration Microphone	Mono
Speaker Relocation
Automatic Phase Matching

VIDEO
Enhanced ARC
HDCP Version	2.2
HDR10
HDR10+
Dynamic HDR
Dolby Vision
HLG (Hybrid Log Gamma)
BT.2020 color space
QMS (Quick Media Switching)
ALLM (Auto Low Latency Mode)
VRR (Variable Refresh Rate)
QFT (Quick Frame transport)
3-D Ready
Video Signal Passthrough	up to 4K/60p (YCbCr4:4:4)
Video Signal Upscaling
Analog To HDMI Upconversion
isf Certified Calibration Control

CONNECTIVITY
MHL Input
DLNA 1.5
FireConnect
FlareConnect
Music Connect
Remote Monitoring with ihiji
Chromecast Built-In
DTS Play-Fi
Works with Amazon Alexa
Works with SONOS
AirPlay	AirPlay
Apple Product Connection	iPod, iPhone and iPad
InstaPrevue Input Source Prevue
Ethernet
Ethernet Switch
Wi-Fi
Bluetooth	SBC, AAC, LDAC
HDBaseT Compatible
HDMI Inputs	6 (1 front)
HDMI Outputs	2 (1 Main, 1 Sub/Zone2)
8K Inputs
USB Input	1 (Front)
USB DC Out Port
RCA Line Input	4
RCA Line Output
XLR Line Inputs
Phono Input
Optical Inputs	1
Optical Outputs
Coaxial Inputs	1
Composite Video Input	2
Composite Video Output	1
S-Video Input
S-Video Output
Component Video Input
Component Video Output
PC In
Multi-Channel Input
RCA Pre-Outs	0.2
XLR Pre-outs
Front A/V Inputs	HDMI, USB
Speaker A/B
Headphone Out	6.3 mm (1/4")

ZONES
Zones	3
Powered Zones	2 and 3
Zone 2 Outs	HDMI, RCA Pre/Line Out
Zone 3 Outs
RS-232C Interface
+12V Trigger Output	0
Remote (IR) Input/Output	1 / 1

MISC
On-Screen Display	Graphical User Interface
GUI Languages	3
Detachable Power Cord

RADIO
Analog Tuner	FM with RDS
Presets	30 (30/-)
Digital Radio
Pandora
Spotify
Tidal
Deezer
Napster
SiriusXM Internet Radio

CONSTRUCTION
Speaker Terminals	9
Large Speaker Terminals	9
Color-Coded Speaker Terminals
Gold plated RCA terminals

POWER
Power Supply	AC 120 V, 60 Hz
Power Consumption	240 W
Standby Power	0.4 W

GENERAL
Dimensions (W x H x D)	430 mm x 172 mm x 329.4 mm 17" x 6-7/8" x 13"
Weight	10.5 kg (23 lbs. 3 oz.)
Warranty	2 Years

SPECS
Power Output (6 Ω, 20 Hz - 20 kHz, 2	100 W (0.09% THD)
Power Output (6 Ω, 1 kHz, 2	120 W (0.9% THD)
Power Output (6 Ω, 1 kHz, 1 channel driven, FTC)	165 W (0.9% THD)
Input Sensitivity and Impedance (Line)	500 mV/50 kΩ
Rated Preout Level and Impedance	2 V/1 kΩ (Zone2 and Subwoofer)
S/N Ratio (Line, IHF-A)	105 dB (500 mV)
S/N Ratio (digital)	100 dB (20 kHz LPF)
Frequency Response (Analog In)	10 Hz - 100 kHz/+0.5 dB, -2 dB
DSD Sampling Rates via HDMI	2.8 MHz
DSD Sampling Rates via USB	2.8 MHz, 5.6 MHz
Video Input Sensitivity/Output Level and Impedance	1 Vp-p/75 Ω (Composite)
Ethernet Standard	100BASE-TX
Wi-Fi Standard	IEEE 802.11 a/b/g/n
Wi-Fi Terminal Frequency	5 GHz, 2.4 GHz
Bluetooth Version	4․1
Bluetooth Frequency	2.4 GHz
USB Terminal	Type A, Ver. 2.0, 5 V, 1 A
FM Frequency	87.5 MHz - 108.0 MHz

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted

In 2017 Sony STR-DN1070 was replaced by STR-DN1080. Let us now have a look at some important changes that the successor brought.

UPGRADES	Sony STR-DN1080	vs	Sony STR-DN1070
More Channel Processing	7ch + Phantom 2ch	vs	7.1
Dolby Atmos	up to 5.1.2 plus 2 phantom rear surround channels	vs
Dolby Surround Upmixer		vs
DTS:X	up to 5.1.2 plus 2 phantom rear surround channels	vs
DTS Neural:X		vs
Music Playback via USB	WAV, FLAC, AIFF, DSD, MP3, WMA, LPCM, Dolby Digital, Apple Lossless, OGG, APE	vs	WAV, FLAC, AIFF, DSD, MP3, WMA, LPCM, Dolby Digital, Apple Lossless
Calibration Microphone	Stereo	vs	Mono
Speaker Relocation		vs
Enhanced Audio Return Channel (eARC)		vs
Dolby Vision		vs
HLG		vs

DOWNGRADES	Sony STR-DN1080	vs	Sony STR-DN1070
Dolby Pro Logic		vs	PLIIx
DTS Neo		vs	Neo:6
Front A/V Inputs	USB	vs	HDMI, USB
Less Zones	2	vs	3
Less Powered Zones	2	vs	2 and 3
Analog Tuner	FM	vs	FM with RDS

For more detailed comparison between the models please visit Sony STR-DN1070 vs Sony STR-DN1080.
