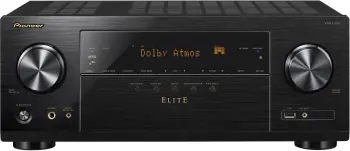

Pioneer Elite VSX-LX101 (North American version)
- 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
- Dolby Atmos, DTS:X capable
- HDR10, Dolby Vision, 4K Upscaling, 4K Passthrough
- AirPlay, Chromecast
- Ethernet, Wi-Fi, Bluetooth
- USB and Phono inputs
Disclosure: We earn money from the affiliate links to products associated with content in this article.
Pioneer Elite VSX-LX101 Overview
Pioneer Elite VSX-LX101 was introduced in 2017. It is equipped with 7 channel amplifier and is capable of 7.1 maximum channel processing.
We evaluated the Receiver and gave 48 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.
Amplifier score is based on power ratings, minimum impedance load, power supply, transformer type, total harmonic distortion, damping factor, signal to noise ratio and other small details. Audio score depends on the number of channels, front wide channel support, maximum channel processing, support of audio formats, DAC specifications, room calibration algorithm... Video score is based on HDR, Dolby Vision and video signal passthrough and upscaling, analog to HDMI upconversion. Connectivity score is defined from all wired and wireless inputs and outputs, internet and bluetooth connections, HEOS, SONOS and others. Multizone score depends on the number of zones with their outputs. Radio score is evaluated form digital radio support and analog tuner with its frequency range, signal to noise ratio, harmonic distortion...
Pros and Cons
In this section we present pros and cons of Pioneer Elite VSX-LX101.
|DSD via HDMI||👍|
|DSD via USB||👍|
|4K or 8K Video Passthrough||👍|
|4K or 8K Signal Upscaling||👍|
|New HDCP Version||👍|
|Composite Video Inputs||👍|
|New Bluetooth Version||👍|
|No Front Wide Channel Support||👎|
|No Dolby Atmos Height Virtualization||👎|
|No DTS Virtual:X||👎|
|No IMAX Enhanced||👎|
|No Auro 3D with Auro-Matic Upmixer||👎|
|No Audyssey Dynamic EQ||👎|
|No Audyssey Dynamic Volume||👎|
|No Audyssey LFC||👎|
|No Audyssey Sub EQ HT||👎|
|No Dynamic HDR||👎|
|No Auto Low Latency Mode Pass-through||👎|
|No MHL Input||👎|
|No DLNA 1.5||👎|
|No DTS Play-Fi||👎|
|Does not Work with Amazon Alexa||👎|
|Does Not Work with SONOS||👎|
|Few HDMI Outputs||👎|
|No Component Video Inputs||👎|
|No Multi-Channel Input||👎|
|No Analog Pre-Outs||👎|
|No SiriusXM Internet Radio||👎|
Major Changes from its predecessor
Here we are comparing Pioneer Elite VSX-LX101 to its predecessor VSX-45 and displaying the major changes.
|UPGRADES||Pioneer Elite VSX-LX101||Pioneer Elite VSX-45|
|More Channel Processing||7.1||5.1|
|Dolby Surround Upmixer||✔||✖|
|BT.2020 color space||✔||✖|
|More Analog Audio Line Inputs||4 (1 front)||2|
|Bigger Power Supply||460 W||450 W|
|Higher DSD Sampling Rate via USB||5.6 MHz, 2.8 MHz||2.8 MHz|
|Wi-Fi Standard||IEEE 802.11 a/b/g/n||IEEE 802.11 b/g/n|
|Newer Bluetooth Version||4.1 + LE||2.1 + EDR|
|DOWNGRADES||Pioneer Elite VSX-LX101||Pioneer Elite VSX-45|
|Sound Retriever||✔ Advanced||✔ Advanced (Multi-Channel / Auto with ARC)|
|Sound Retriever AIR||✖||✔|
|Analog To HDMI Upconversion||✔ Composite||✔ Composite|
|MHL Input||✖||✔ 1 Rear (Version 2.0)|
|DLNA 1.5||✖||✔ (DMR)|
|Less Composite Video Outputs||✖||1|
For more detailed comparison between the models please visit Pioneer Elite VSX-LX101 vs Pioneer Elite VSX-45.
Pioneer Elite VSX-LX101 has 7 channel amplifier and delivers 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven).
The Receiver has 4K passthrough up to 60p and 4K upscaling up to 60p. It can bypass HDR10, Dolby Vision.
High-dynamic-range (HDR) video has greater dynamic range than standard-dynamic-range (SDR) video with brigter whites and deeper blacks. HDR10 was announced on August 27, 2015, by the Consumer Technology Association and uses the wide-gamut Rec. 2020 color space. It sends static metadata via video stream to the TV which calibrates its screen brightness and color according to that. HDR10 supports up to 1000 nits of brightness and 10-bit color which corresponds to 1024 shades of the primary RGB colors.
Dolby Vision is an update to HDR10 by adding dynamic metadata that can be used to more accurately adjust brightness levels up to 10,000 nits maximum brightness on a scene-by-scene or frame-by-frame basis and supports up to 12-bit color depth (4096 shades of RGB) and 8K resolution.
Dolby Atmos and Dolby Surround upmixer
Pioneer Elite VSX-LX101 supports Dolby Atmos with its Dolby Surround upmixer. It can be configured upto 5.1.2 channels using internal amplifiers.
Dolby Atmos is the first cinematic audio format in which sounds exist as individual entities, called audio objects. In Dolby Atmos, any sound - the helicopter, a car screeching around a corner, a melodic bird call - can exist as an independent audio object, free of channel restrictions. They can be precisely placed and moved anywhere in your room, including overhead, to flow above and around you in three-dimensional space. Through the use of audio objects, overhead sound, and all the richness, clarity, and power of Dolby sound, Dolby Atmos turns your room into an amazing place for entertainment. You'll feel like you're inside the action, in ways you've never experienced before.
Dolby Atmos for the home represents every sound in the original cinema mix as an audio object. Extensions to the Dolby Audio™ codecs, along with an advanced scalable algorithm, allow Dolby Atmos to be delivered via Blu-ray Disc and streaming media. A spatially-coded substream is added to Dolby TrueHD or Dolby Digital Plus. A Dolby Atmos audio/video receiver (AVR) adapts the cinema experience to your home theater from seven speakers to as many as 34 in 24.1.10 configuration, recreating the original artistic concept. The format supports up to 128 simultaneous independent audio objects in a mix for rich, realistic, and breathtaking sound. It recreates the director's original concept through descriptive metadata to provide customized playback for home theater and delivers sounds above you through overhead speakers, special upward-firing Dolby Atmos speakers, or a Dolby Atmos enabled sound bar.
If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.
DTS:X and Neural:X upmixer
Pioneer Elite VSX-LX101 supports DTS:X with its Neural:X upmixer. It can be configured upto 5.1.2 channels using internal amplifiers.
A technique used in DTS:X is similar to the one used in Dolby Atmos. Instead of a fixed number of channels, DTS:X defines object locations from the listener in polar coordinates. An a/v receiver then dynamically renders sound according to the current speaker configuration. The speaker layout employed by DTS:X is the sum of Dolby Atmos and Auro-3D. It has standard 7.1 channel base layer, a 5 channel height layer above the base layer on the front and side walls, and 3 rows of speakers on the ceiling.
DTS Neural:X is a new upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.
Advanced Sound Retriever
Compressed music enhancement in Pioneer Elite VSX-LX101 is done by Pioneer’s Advanced Sound Retriever. Hear the detail, warmth and clarity, the way the artist intended it, from all of your highly compressed MP3 and WMA files stored on USB, Smartphone and portable media players. By restoring data that tend to get lost in the digital compression process, Pioneers Advanced Sound Retriever Technology enhances audio reproduction all the way upto 20 Khz frequencies.
Pioneer Elite VSX-LX101 comes with MCACC room correction system and includes the calibration microphone.
Pioneer Elite VSX-LX101 can be connected to internet using ethernet cable or built-in wi-fi adapter. It can also connect to bluetooth devices via built-in bluetooth adapter. The Receiver supports AirPlay. It has 6 HDMI inputs and HDCP 2.2 copy protection. There is a phono input with built-in phono stage for connecting the cartridge output of the turntable directly to the Receiver.
Front panel has USB and Mini-Jack inputs.
Here we list all the available features and specifications of Pioneer Elite VSX-LX101.
|Front Wide Channel Support||✖|
|Amplifier Design||Discrete Direct Energy|
|Continuous 6 Ω Rated||✔|
|Certified 4 Ω Performance||✖|
|Digital Signal Processing (DSP) Engine||Cirrus Logic (Quad Core) x 1|
|Maximum Channel Processing||7.1|
|Air Studios Monitor Certification||✖|
|Dolby Atmos Height Virtualization||✖|
|Dolby Digital Plus||✔|
|Dolby Surround Upmixer||✔|
|Dolby Pro Logic||✖|
|Dolby Digital EX||✖|
|DTS Neo||✔ Neo:6|
|DTS-HD Master Audio||✔|
|DTS-HD High Resolution Audio||✔|
|DTS-ES||✔ Discrete 6.1, Matrix 6.1|
|Auro 3D with Auro-Matic Upmixer||✖|
|PCM||✔ 2-ch/Multi-ch Input|
|Music Playback via USB||MP3, WMA, AAC, Apple Lossless, WAV, FLAC, AIFF, DSD, Dolby TrueHD|
|High Resolution Music Playback via USB and/or Network||✔ 64, 88.2, 96, 176.4, 192 kHz/24 bit|
|High Resolution Audio Formats via USB||Apple Lossless, WAV, FLAC, AIFF, AAC, DSD, Dolby TrueHD|
|Multi-Channel Music File Playback via USB||✔ up to 192 kHz/24 bit|
|DSD via HDMI||✔ 2-ch/Multi-ch Input|
|DSD via USB||✔ 2-ch Input|
|DSD to PCM Converter||✖|
|Sound Retriever||✔ Advanced|
|Sound Retriever AIR||✖|
|Digital Noise Reduction||✖|
|Tone Control||✔ All Channels|
|Compressed Music Enhancer||✔ Advanced Sound Retriever|
|High-resolution Music Enhancer||✖|
|Audyssey Dynamic EQ||✖|
|Audyssey Dynamic Volume||✖|
|Audyssey Sub EQ HT||✖|
|Pure Direct Mode||✔|
|Advanced Surround||11 + 1|
|Front Stage Surround Advance||✔|
|Independent Dual Subwoofer Output||✖|
|Auto Speaker Calibration System with Mic.||✔ MCACC|
|Full Band Phase Control||✖|
|Standing Wave Control||✖|
|Distance Adjustment||0.1 feet|
|Auto Subwoofer Crossover||✔|
|BT.2020 color space||✔|
|Hybrid Log Gamma (HLG)||✖|
|Quick Media Switching (QMS)||✖|
|Auto Low Latency Mode (ALLM)||✖|
|Variable Refresh Rate (VRR)||✖|
|Quick Frame Transport (QFT)||✖|
|Video Signal Passthrough||up to 4K/60p (YCbCr 4:4:4)|
|Video Signal Upscaling||✔ up to 4K/60p (YCbCr 4:4:4)|
|Analog To HDMI Upconversion||✔ Composite|
|Video Parameter Adjustments||✖|
|isf Certified Calibration Control||✖|
|Works with Amazon Alexa||✖|
|Works with SONOS||✖|
|Apple Product Connection||✔ Made for iPhone, iPod and iPad (Airplay only)|
|Remote App||✔ iControlAV5 (for iOS and Android)|
|InstaPrevue Input Source Prevue||✖|
|Bluetooth||✔ SBC, AAC|
|Enhanced Audio Return Channel (eARC)||✖|
|USB Input||1 Front|
|USB DC Out Port||✖|
|Analog Audio Line Inputs||4 (1 front)|
|Analog Audio Line Outputs||✖|
|Coaxial Inputs/Outputs||1 / No|
|Composite Video Inputs||2|
|Composite Video Outputs||✖|
|Component Video Inputs||✖|
|Component Video Outputs||✖|
|Front A/V Inputs||USB, Mini-Jack|
|Headphone Out||✔ 6.3 mm|
|+12V Trigger Output||✖|
|Remote (IR) Input/Output||0 / 0|
|On-Screen Display||Icon-based Graphical User Interface (GUI)|
|Versatile Speaker Configuration||Surround Back/Front Height/Top/Front Bi-Amp|
|Detachable Power Cord||✔|
|Analog Tuner||✔ FM/AM|
|Internet Radio||✔ TuneIn|
|SiriusXM Internet Radio||✖|
|Solid Aluminum Front||✖|
|Large Speaker Terminals||7|
|Color-Coded Speaker Terminals||✖|
|Transparent High-Grade Speaker Terminals||✖|
|Ceramic Speaker Terminals||✖|
|3D Space Frame Construction||✖|
|Gold plated RCA terminals||✖|
|Power Supply||AC 120 V, 60 Hz|
|Low Leakage Flux Power Transformer||✖|
|Power Consumption||460 W|
|No Sound Power||55 W|
|Standby Power||0.1 W|
|Auto Power off||✔|
|Dimensions (W x H x D)||435 mm x 173 mm x 370.5 mm|
17-1/8" x 6-13/16" x 14-9/16"
|Weight||9 kg (19.8 lbs)|
|Warranty||3 Years Parts & Labor|
|Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)||80 W (0.08% THD)|
|Power Output (6 Ω, 1 kHz, 1 channel driven, FTC)||140|
|Dynamic Power per Channel (3 Ω, Front)||160 W|
|Dynamic Power per Channel (4 Ω, Front)||125 W|
|Dynamic Power per Channel (8 Ω, Front)||85 W|
|THD||0.08% (20 Hz - 20 kHz, half power)|
|Input Sensitivity and Impedance (Line)||200 mV/47 kΩ (Unbalanced)|
|Input Sensitivity and Impedance (Phono MM)||3.5 mV/47 kΩ|
|Rated Headphone Jack Output Level and Impedance||330 Ω|
|Rated Headphone Power Output||85 mW (32 Ω, 1 kHz, 10% THD)|
|Phono Overload||70 mV (MM, 1 kHz, 0.5%)|
|S/N Ratio (Line, IHF-A)||106 dB|
|S/N Ratio (Phono MM, IHF-A)||80 dB|
|DSD Sampling Rates via HDMI||2.8 MHz|
|DSD Sampling Rates via USB||5.6 MHz, 2.8 MHz|
|Video Input Sensitivity/Output Level and Impedance||1 Vp-p/75 Ω (Composite)|
|Wi-Fi Standard||IEEE 802.11 a/b/g/n|
|Wi-Fi Terminal Frequency||5 GHz, 2.4 GHz|
|Bluetooth Version||4.1 + LE|
|Bluetooth Frequency||2.4 GHz|
|USB Terminal||USB2.0 (Type A) 5 V, 1 A|
|FM Frequency||87.5 MHz - 107.9 MHz|
|AM Frequency||530 kHz - 1710 kHz|
* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted
In 2017 Pioneer Elite VSX-LX101 was replaced by VSX-LX102. Let us now have a look at some important changes that the successor brought.
|UPGRADES||Pioneer Elite VSX-LX102||Pioneer Elite VSX-LX101|
|Certified 4 Ω Performance||✔||✖|
|Analog To HDMI Upconversion||✔ Component**, Composite||✔ Composite|
|Bigger Power Supply||480 W||460 W|
|DOWNGRADES||Pioneer Elite VSX-LX102||Pioneer Elite VSX-LX101|
|Video Signal Upscaling||✔ 1080p to 4K||✔ up to 4K/60p (YCbCr 4:4:4)|
|Less HDMI Inputs||4||6|
|Less Analog Audio Line Inputs||3 (1 front)||4 (1 front)|
For more detailed comparison between the models please visit Pioneer Elite VSX-LX102 vs Pioneer Elite VSX-LX101.
