Pioneer VSX-934 Review and Specs

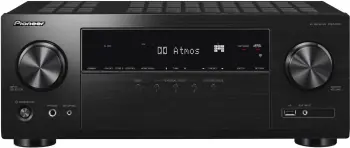

Pioneer VSX-934 (Australian and Asian versions)

SCORE:
57

Highlights

  • 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
  • Dolby Atmos, DTS:X capable
  • HDR10, Dolby Vision, 4K Upscaling, 4K Passthrough
  • AirPlay 2, DTS Play-Fi
  • Ethernet, Wi-Fi, Bluetooth
  • USB and Phono inputs

Disclosure: We earn money from the affiliate links to products associated with content in this article.

Pioneer VSX-934 Overview

Pioneer VSX-934 was introduced in 2019. It is equipped with 7 channel amplifier and is capable of 7.1 maximum channel processing.

We evaluated the Receiver and gave 57 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

AMPLIFIER
62
VIDEO FEATURES
71
AUDIO FEATURES
56
CONNECTIVITY
46
MULTIZONE
45
MISCELLANEOUS
28
RADIO
69
OVERALL
57

Amplifier score is based on power ratings, minimum impedance load, power supply, transformer type, total harmonic distortion, damping factor, signal to noise ratio and other small details. Audio score depends on the number of channels, front wide channel support, maximum channel processing, support of audio formats, DAC specifications, room calibration algorithm... Video score is based on HDR, Dolby Vision and video signal passthrough and upscaling, analog to HDMI upconversion. Connectivity score is defined from all wired and wireless inputs and outputs, internet and bluetooth connections, HEOS, SONOS and others. Multizone score depends on the number of zones with their outputs. Radio score is evaluated form digital radio support and analog tuner with its frequency range, signal to noise ratio, harmonic distortion...

Pros and Cons

In this section we present pros and cons of Pioneer VSX-934.

PROS
Dolby Atmos πŸ‘
Dolby Atmos Height Virtualization πŸ‘
DTS:X πŸ‘
DTS Neural:X πŸ‘
DTS Virtual:X πŸ‘
DSD via HDMI πŸ‘
DSD via USB πŸ‘
HDR10 πŸ‘
Dolby Vision πŸ‘
4K or 8K Video Passthrough πŸ‘
4K or 8K Signal Upscaling πŸ‘
FlareConnect πŸ‘
DTS Play-Fi πŸ‘
Apple Siri πŸ‘
Works with SONOS πŸ‘
Ethernet πŸ‘
Wi-Fi πŸ‘
Bluetooth πŸ‘
New HDCP Version πŸ‘
USB Input πŸ‘
Phono Input πŸ‘
Zones πŸ‘
Analog Tuner πŸ‘
Internet Radio πŸ‘
Spotify πŸ‘
Tidal πŸ‘
Deezer πŸ‘
New Bluetooth Version πŸ‘
CONS
No Front Wide Channel Support πŸ‘Ž
No IMAX Enhanced πŸ‘Ž
No Auro 3D with Auro-Matic Upmixer πŸ‘Ž
No Audyssey Dynamic EQ πŸ‘Ž
No Audyssey Dynamic Volume πŸ‘Ž
No Audyssey LFC πŸ‘Ž
No Audyssey Sub EQ HT πŸ‘Ž
No HDR10+ πŸ‘Ž
No Dynamic HDR πŸ‘Ž
No Auto Low Latency Mode Pass-through πŸ‘Ž
No VRR πŸ‘Ž
No QFT πŸ‘Ž
No MHL Input πŸ‘Ž
No DLNA 1.5 πŸ‘Ž
No FireConnect πŸ‘Ž
No Chromecast Built-In πŸ‘Ž
Does not Work with Amazon Alexa πŸ‘Ž
No Google assistant πŸ‘Ž
No eARC πŸ‘Ž
No Composite Video Inputs πŸ‘Ž
No Component Video Inputs πŸ‘Ž
No Multi-Channel Input πŸ‘Ž
No Analog Pre-Outs πŸ‘Ž
No Pandora πŸ‘Ž
No Napster πŸ‘Ž
No SiriusXM Internet Radio πŸ‘Ž

Major Changes from its predecessor

Here we are comparing Pioneer VSX-934 to its predecessor VSX-933 and displaying the major changes.

UPGRADES Pioneer VSX-934 Pioneer VSX-933
Dolby Atmos Height Virtualization βœ” βœ–
DTS Virtual:X βœ” βœ–
AirPlay βœ” AirPlay 2 βœ” AirPlay
More HDMI Outputs 2 (1 MAIN, 1 SUB/ZONE 2) 1

DOWNGRADES Pioneer VSX-934 Pioneer VSX-933
Analog To HDMI Upconversion βœ– βœ” Component**, Composite
Chromecast Built-In βœ– βœ”
Less Analog Audio Line Inputs 4 5 (1 front)
Less Composite Video Inputs βœ– 2
Less Component Video Inputs βœ– 1

For more detailed comparison between the models please visit Pioneer VSX-934 vs Pioneer VSX-933.

Selected Features

Amplifier

Pioneer VSX-934 has 7 channel amplifier and delivers 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and also has a stable performance at 4 Ω load.


Video Features

The Receiver has 4K passthrough up to 60p and 4K upscaling. It can bypass HDR10, Dolby Vision.


HDR10

High-dynamic-range (HDR) video has greater dynamic range than standard-dynamic-range (SDR) video with brigter whites and deeper blacks. HDR10 was announced on August 27, 2015, by the Consumer Technology Association and uses the wide-gamut Rec. 2020 color space. It sends static metadata via video stream to the TV which calibrates its screen brightness and color according to that. HDR10 supports up to 1000 nits of brightness and 10-bit color which corresponds to 1024 shades of the primary RGB colors.


Dolby Vision

Dolby Vision is an update to HDR10 by adding dynamic metadata that can be used to more accurately adjust brightness levels up to 10,000 nits maximum brightness on a scene-by-scene or frame-by-frame basis and supports up to 12-bit color depth (4096 shades of RGB) and 8K resolution.


Dolby Atmos and Dolby Surround upmixer

Pioneer VSX-934 supports Dolby Atmos with its Dolby Surround upmixer. It can be configured upto 5.1.2 channels using internal amplifiers.

Dolby Atmos is the first cinematic audio format in which sounds exist as individual entities, called audio objects. In Dolby Atmos, any sound - the helicopter, a car screeching around a corner, a melodic bird call - can exist as an independent audio object, free of channel restrictions. They can be precisely placed and moved anywhere in your room, including overhead, to flow above and around you in three-dimensional space. Through the use of audio objects, overhead sound, and all the richness, clarity, and power of Dolby sound, Dolby Atmos turns your room into an amazing place for entertainment. You'll feel like you're inside the action, in ways you've never experienced before.

Dolby Atmos for the home represents every sound in the original cinema mix as an audio object. Extensions to the Dolby Audioβ„’ codecs, along with an advanced scalable algorithm, allow Dolby Atmos to be delivered via Blu-ray Disc and streaming media. A spatially-coded substream is added to Dolby TrueHD or Dolby Digital Plus. A Dolby Atmos audio/video receiver (AVR) adapts the cinema experience to your home theater from seven speakers to as many as 34 in 24.1.10 configuration, recreating the original artistic concept. The format supports up to 128 simultaneous independent audio objects in a mix for rich, realistic, and breathtaking sound. It recreates the director's original concept through descriptive metadata to provide customized playback for home theater and delivers sounds above you through overhead speakers, special upward-firing Dolby Atmos speakers, or a Dolby Atmos enabled sound bar.

If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.


DTS:X and Neural:X upmixer

Pioneer VSX-934 supports DTS:X with its Neural:X upmixer. It can be configured upto 5.1.2 channels using internal amplifiers.

A technique used in DTS:X is similar to the one used in Dolby Atmos. Instead of a fixed number of channels, DTS:X defines object locations from the listener in polar coordinates. An a/v receiver then dynamically renders sound according to the current speaker configuration. The speaker layout employed by DTS:X is the sum of Dolby Atmos and Auro-3D. It has standard 7.1 channel base layer, a 5 channel height layer above the base layer on the front and side walls, and 3 rows of speakers on the ceiling.

DTS Neural:X is a new upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.


Advanced Sound Retriever

Compressed music enhancement in Pioneer VSX-934 is done by Pioneer’s Advanced Sound Retriever. Hear the detail, warmth and clarity, the way the artist intended it, from all of your highly compressed MP3 and WMA files stored on USB, Smartphone and portable media players. By restoring data that tend to get lost in the digital compression process, Pioneers Advanced Sound Retriever Technology enhances audio reproduction all the way upto 20 Khz frequencies.


Room Correction

Pioneer VSX-934 comes with MCACC room correction system and includes the calibration microphone.


Connectivity

Pioneer VSX-934 can be connected to internet using ethernet cable or built-in wi-fi adapter. It can also connect to bluetooth devices via built-in bluetooth adapter. The Receiver works with SONOS and supports AirPlay 2. It has 6 HDMI inputs and HDCP 2.2 copy protection. There is a phono input with built-in phono stage for connecting the cartridge output of the turntable directly to the Receiver.

Front panel has USB and Mini-Jack inputs.

Image cannot be found Image cannot be found

Detailed Specifications

Here we list all the available features and specifications of Pioneer VSX-934.

BASICS
BrandPioneer
ModelVSX-934
TypeA/V Receiver
CountryAustralia and Asia
Release Year2019
AMPLIFIER
Channels7.2
Front Wide Channel Supportβœ–
Amplifier DesignDirect Energy
THXβ„’ Certificationβœ–
Continuous 6 Ω Ratedβœ”
Certified 4 Ω Performanceβœ”
Bi-amp Capabilityβœ”
AUDIO
Digital Signal Processing (DSP) EngineDigital Quad-Core 32-bit DSP (Cirrus Logic)
DACAKM AK4458
Maximum Channel Processing7.1
Air Studios Monitor Certificationβœ–
Dolby Atmosβœ”
Dolby Atmos Height Virtualizationβœ”
Dolby TrueHDβœ”
Dolby Digital Plusβœ”
Dolby Surround Upmixerβœ”
Dolby Pro Logicβœ–
Dolby Digital EXβœ–
Surround EXβœ–
DTS:Xβœ”
DTS Neural:Xβœ”
DTS Virtual:Xβœ”
DTS Neoβœ–
DTS-HD Master Audioβœ”
DTS-HD High Resolution Audioβœ”
DTS 96/24βœ”
DTS Expressβœ”
DTS-ESβœ” Discrete 6.1, Matrix 6.1
IMAX Enhancedβœ–
Auro 3D with Auro-Matic Upmixerβœ–
PCMβœ” 2-ch/Multi-ch Input
Music Playback via USBMP3, WMA, AAC, Apple Lossless, WAV, FLAC, AIFF, DSD
High Resolution Music Playback via USB and/or Networkβœ” 64, 88.2, 96, 176.4, 192 kHz/24 bit
High Resolution Audio Formats via USBApple Lossless, WAV, FLAC, AIFF, AAC, DSD
Multi-Channel Music File Playback via USBβœ” up to 192 kHz/24 bit
Gapless Playbackβœ”
DSD via HDMIβœ” 2-ch/Multi-ch Input
DSD via USBβœ” 2-ch Input
DSD to PCM Converterβœ–
USB DACβœ–
Jitter Reductionβœ–
Dialog Enhancementβœ”
Dialogue Liftβœ–
Sound Retrieverβœ” Advanced
Sound Retriever AIRβœ–
Digital Noise Reductionβœ–
Tone Controlβœ” All Channels
Compressed Music Enhancerβœ” Advanced Sound Retriever
High-resolution Music Enhancerβœ–
Audyssey Dynamic EQβœ–
Audyssey Dynamic Volumeβœ–
Audyssey LFCβœ–
Audyssey Sub EQ HTβœ–
Audyssey DSXβœ–
Direct Modeβœ”
Pure Direct Modeβœ”
Auto Surroundβœ”
Optimum Surroundβœ–
Advanced Surround10 + 1
Wide Surroundβœ–
Front Stage Surround Advanceβœ”
Headphone Surroundβœ–
Virtual Speakersβœ–
Virtual Depthβœ–
CALIBRATION
Auto Speaker Calibration System with Mic.βœ” MCACC
Manual MCACCβœ”
MCACC Memory1
Reflex Optimizerβœ”
Phase Controlβœ”
Full Band Phase Controlβœ–
Standing Wave Controlβœ–
EQ Bands9-Band
Symmetric EQβœ”
Distance Adjustment0.1 feet
Precision Distanceβœ–
Polarity Checkβœ–
Auto Subwoofer Crossoverβœ”
VIDEO
HDR10βœ”
HDR10+βœ–
Dynamic HDRβœ–
BT.2020 color spaceβœ”
Dolby Visionβœ”
Hybrid Log Gamma (HLG)βœ”
Quick Media Switching (QMS)βœ–
Auto Low Latency Mode (ALLM)βœ–
Variable Refresh Rate (VRR)βœ–
Quick Frame Transport (QFT)βœ–
3-D Readyβœ”
Video Signal Passthroughup to 4K/60p (YCbCr 4:4:4)
Video Signal Upscalingβœ” 1080p to 4K
Analog To HDMI Upconversionβœ–
Stream Smootherβœ–
Pure Cinemaβœ–
Video Parameter Adjustmentsβœ–
Super Resolutionβœ”
isf Certified Calibration Controlβœ–
CONNECTIVITY
MHL Inputβœ–
DLNA 1.5βœ–
FireConnectβœ–
FlareConnectβœ”
Chromecast Built-Inβœ–
DTS Play-Fiβœ”
Works with Amazon Alexaβœ–
Google assistantβœ–
Apple Siriβœ”
Works with SONOSβœ”
AirPlayβœ” AirPlay 2
Apple Product Connectionβœ” Made for iPhone, iPod and iPad (Airplay only)
InstaPrevue Input Source Prevueβœ–
Ethernetβœ”
Ethernet Switchβœ–
Wi-Fiβœ”
Bluetoothβœ” SBC, AAC
HDBaseT Compatibleβœ–
Enhanced Audio Return Channel (eARC)βœ–
HDCP Version2.2
HDMI Inputs6
HDMI Outputs2 (1 MAIN, 1 SUB/ZONE 2)
USB Input2 (1 Front)
USB DC Out Portβœ–
Analog Audio Line Inputs4
Analog Audio Line Outputsβœ–
Phono Inputβœ”
Optical Inputs1
Optical Outputsβœ–
Coaxial Inputs/Outputs1 / No
Composite Video Inputsβœ–
Composite Video Outputsβœ–
S-Video Inputsβœ–
S-Video Outputsβœ–
Component Video Inputsβœ–
Component Video Outputsβœ–
PC Inβœ–
Multi-Channel Inputβœ–
Analog Pre-Outs0.2
XLR Inputsβœ–
XLR Pre-outsβœ–
Front A/V InputsUSB, Mini-Jack
Speaker A/Bβœ–
Headphone Outβœ” 6.3 mm
ZONES
Zones2
Powered Zones2
Zone 2 OutsHDMI
RS-232 Interfaceβœ–
+12V Trigger Outputβœ–
Remote (IR) Input/Output0 / 0
MISC
On-Screen Displayβœ” User-Friendly GUI with System Setup Menu
GUI Languages9
AVNavigatorβœ–
IP Controlβœ–
PreAmp Modeβœ–
Versatile Speaker ConfigurationSpeaker 9ch Out (FRONT, CENTER,SURROUND, SURROUND BACK/HEIGHT/Bi-AMP, ZONE 2)
FL Dimmerβœ”
Remote Controllerβœ”
Detachable Power Cordβœ–
adapterportβœ–
RADIO
Analog Tunerβœ” FM/AM with RDS
Presets40
Digital Radioβœ–
Internet Radioβœ” TuneIn
Pandoraβœ–
Spotifyβœ”
Tidalβœ”
Deezerβœ”
Napsterβœ–
SiriusXM Internet Radioβœ–
CONSTRUCTION
Front PanelBrushed
Solid Aluminum Frontβœ–
Speaker Terminals9
Large Speaker Terminals9
Color-Coded Speaker Terminalsβœ–
Transparent High-Grade Speaker Terminalsβœ–
Ceramic Speaker Terminalsβœ–
3D Space Frame Constructionβœ–
Gold plated RCA terminalsβœ–
POWER
Power SupplyAC 220-240 V, 50/60 Hz
Low Leakage Flux Power Transformerβœ–
Transformer Stabilizerβœ–
Power Consumption450 W
No Sound Power55 W
Standby Power0.15 W
GENERAL
Dimensions (W x H x D)435 mm x 173 mm x 370.5 mm
17-1/8" x 6-13/16" x 14-9/16"
Dimensions of Package (W x H x D)536 mm x 265 mm x 458 mm
21-1/8" x 10-7/16" x 18-1/16"
Weight9.6 kg (21.2 lbs)
Warranty1 Year Parts & Labor
SPECS
Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA or IEC)160 W (10% THD)
Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)135 W (1% THD)
Dynamic Power per Channel (3 Ω, Front)160 W
Dynamic Power per Channel (4 Ω, Front)125 W
Dynamic Power per Channel (8 Ω, Front)85 W
THD0.08% (20 Hz - 20 kHz, half power)
Input Sensitivity and Impedance (Line)200 mV/47 kΩ
Input Sensitivity and Impedance (Phono MM)3.5 mV/47 kΩ
Rated Headphone Jack Output Level and Impedance8 Ω - 600 Ω
Rated Headphone Power Output80 mW (32 Ω, 1 kHz, 10% THD)
Phono Overload70 mV (MM, 1 kHz 0.5%)
S/N Ratio (Line, IHF-A)106 dB
S/N Ratio (Phono MM, IHF-A)80 dB
Frequency Response (Analog In)10 Hz - 100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
DSD Sampling Rates via HDMI2.8 MHz
DSD Sampling Rates via USB5.6 MHz, 2.8 MHz
Ethernet Standard10BASE-T/100BASE-TX
Wi-Fi StandardIEEE 802.11 a/b/g/n
Wi-Fi Terminal Frequency5 GHz, 2.4 GHz
Bluetooth Version4.1 + LE
Bluetooth Frequency2.4 GHz
USB TerminalVer. 2.0, 5 V, 500 mA
Extension Terminalβœ–
FM Frequency87.5 MHz - 108.0 MHz
FM 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)Mono: 1.0 Β΅V (11.2 dBf)
AM Frequency522/530 kHz - 1611/1710 kHz

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted
