Overview

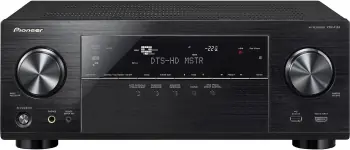

Pioneer VSX-1124-K was introduced in 2014. It is equipped with 7 channel amplifier with 90 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 7.1 maximum channel processing. It passes 4K/60Hz and upscales up to 4K/60p (Marvell Qdeo) video signal.
We evaluated the a/v receiver and gave 76 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.
In 2015 Pioneer VSX-1124-K was replaced by Pioneer VSX-1130-K. Let us now have a look at some important differences between Pioneer VSX-1124-K and its successor.
UPGRADES
Pioneer VSX-1130-K
vs
Pioneer VSX-1124-K
Higher Power Output
100 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
vs
90 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
Dolby Atmos
vs
More Tone Control Channels
All Channels
vs
Front L/R Channels
More Advanced Auto Speaker Calibration System
MCACC Pro
vs
Advanced MCACC
Analog To HDMI Upconversion
Component, Composite
vs
Super Resolution
vs
Wi-Fi
vs
via optional AS-WL300 adapter (sold separately)
Bluetooth
vs
via optional AS-BT100 or AS-BT200 adapters (sold separately)
Pioneer VSX-1124-K features 7 channel power amplifier with Discrete Direct Energy design. It is rated at 90 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven).
AMPLIFIER
Channels
7.2
Power Output
90 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
Front Wide Channel Support
Amplifier Design
Discrete Direct Energy
THX™ Certification
Continuous 6 Ω Rated
Certified 4 Ω Performance
Bi-amp Capability
Front Channel
Speaker Configurations
Pioneer VSX-1124-K's 7 channel amplifier can be assigned for different speaker configurations.
Configurations: Available configurations are:
5.2, 7.2 with internal amplifier.
Front Wide Channel support: Pioneer VSX-1124-K supports front wide channels. With the presence of two front wide speakers you can enhance the front surround stage. The following speaker configurations are available for front wide channels - 7.2.
2-ch Bi-Amp: Pioneer VSX-1124-K allows you to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.
Pioneer VSX-1124-K
DECODING
Dolby Atmos
Dolby Atmos Height Virtualization
Dolby Atmos Music
Dolby TrueHD
with Loudness Management
Dolby Digital Plus
Dolby Surround Upmixer
Dolby Pro Logic
PLIIz
Dolby Digital EX
Surround EX
DTS:X
DTS Neural:X
DTS Virtual:X
DTS Neo
Neo:X
DTS-HD Master Audio
DTS-HD High Resolution Audio
DTS 96/24
DTS Express
DTS-ES
Discrete 6.1, Matrix 6.1
IMAX Enhanced
Auro 3D with Auro-Matic Upmixer
Sound Processing
Advanced Sound Retriever: Compressed music enhancement in Pioneer VSX-1124-K is done by Pioneer’s Advanced Sound Retriever. Hear the detail, warmth and clarity, the way the artist intended it, from all of your highly compressed MP3 and WMA files stored on USB, Smartphone and portable media players. By restoring data that tend to get lost in the digital compression process, Pioneers Advanced Sound Retriever Technology enhances audio reproduction all the way upto 20 Khz frequencies.
Room Calibration
Pioneer VSX-1124-K comes with Advanced MCACC room correction system and includes the calibration microphone.
MCACC: Pioneer’s exclusive Multi-Channel Acoustic Calibration System (MCACC) delivers an easy-to-use, automatic sound adjustment system to precision-tune your Pioneer and Pioneer Elite receivers with minimal effort. Every MCACC system comes with a microphone to measure and analyze reverb characteristics. The equalizer optimally adjusts sound parameters to fit the size and shape of your home environment while maintaining the integrity of high-resolution playback without any degradation to the quality of your music.
Video Section
HDMI
Pioneer VSX-1124-K features 7 HDMI inputs. It has 2 outputs: 1 for MAIN and 1 for MAIN/HDZONE.
4K/60Hz Passthrough: All inputs pass up to 4K/60p (4:4:4 24-bit) 4K/60p (4:2:2 36-bit) 4K/24p (4:4:4 36-bit) video signal.
4K Upscaling: Pioneer VSX-1124-K can upscale up to 4K/60p (Marvell Qdeo) from HDMI sources.
3D Ready: Pioneer VSX-1124-K is able to pass 3D video through HDMI.
Pioneer VSX-1124-K
VIDEO FEATURES
HDR10
HDR10+
Dynamic HDR
BT.2020 color space
Dolby Vision
HLG (Hybrid Log Gamma)
HDBaseT Compatible
Enhanced Audio Return Channel (eARC)
QMS (Quick Media Switching)
ALLM (Auto Low Latency Mode)
VRR (Variable Refresh Rate)
QFT (Quick Frame transport)
3-D Ready
Video Signal Passthrough
up to 4K/60p (4:4:4 24-bit) 4K/60p (4:2:2 36-bit) 4K/24p (4:4:4 36-bit)
Video Signal Upscaling
up to 4K/60p (Marvell Qdeo)
Multi-zone Playback
Pioneer VSX-1124-K offers multi-zone playback which allows you to play different input sources in 3 different rooms.
Zone 2
Powered Zone 2: You can use the unit's 2 amplifier channels by connecting Zone 2 speakers directly to the speaker terminals. The remaining 5 channels will be left for main zone amplification.
Audio Pre/Line Output: If you have a dedicated amplifier for Zone 2 you can connect it to the a/v receiver via pre/line outs and use "pre out" option to control volume from the a/v receiver or use "line out" option - send fixed signal and then control volume on the Zone 2 amplifier.
Zone 3
ZONES
Number of Zones
3
Powered Zones
2 and HDZone
Zone 2 Outs
RCA Pre/Line Out
Zone 3 Outs
HDMI
RS-232C Interface
+12V Trigger Output
Remote (IR) Input/Output
1 / 1
Check out the receivers which are frequently compared to Pioneer VSX-1124-K.
Analog Pre-Outs: Pioneer VSX-1124-K has 2.2 preamplifier outputs which allow you to connect the a/v receiver to the external power amplifier. You may want to use a high quality external amplifier for certain channels, usually for front L/R and center, and use the a/v receiver to power the rest.
Analog Line Inputs: There are 3 line inputs for analog audio connection.
Digital Inputs: 1 optical input and 1 coaxial input are available for digital audio connection.
Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.
Video
HDMI:
Inputs: 7 (1 front) Outputs: 2 (1 for MAIN, 1 for MAIN/HDZONE) 8K Inputs: 0
Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
Inputs: 2 Outputs: 1
Component Video: Component video connection gives you the higher quality video compared to the composite video connection. So in case your old DVD player and other equipment do not have an HDMI output but have Component video output use this connection over the composite one. Pioneer VSX-1124-K supports up to 1080p (1125p) resolution on Component video connectors.
Inputs: 1 Outputs: 0
Front A/V Inputs
HDMI, USB
TERMINALS
HDMI Inputs
7 (1 front)
HDMI Outputs
2 (1 for MAIN, 1 for MAIN/HDZONE)
8K Inputs
USB Input
1 Front
USB DC Out Port
1 Rear for AS-WL300 (5 V, 0.6 A)
Optical Inputs
1
Optical Outputs
Coaxial Inputs
1
RCA Line Inputs
3
RCA Line Outputs
XLR Line Inputs
Phono Input
Multi-Channel Input
RCA Pre-Outs
2.2
XLR Pre-outs
Composite Video Inputs
2
Composite Video Outputs
1
S-Video Inputs
S-Video Outputs
Component Video Inputs
1
Component Video Outputs
Pioneer VSX-1124-K Evaluation
We evaluate Pioneer VSX-1124-K and give score of 76 out of 100. We also give separate scores for 6 different categories according to the available features and specifications some of which are listed below. These evaluations are relative and may change each time a new receiver is added to the database.
OVERALL
76
Amplifier
GOOD
75
We give Pioneer VSX-1124-K a score of 75 for Amplifier features.
7.2 Channels
Power Output - 90 W
Audio Features
GOOD
75
We give Pioneer VSX-1124-K a score of 75 for Audio Features features.
7.2 Channels
Front Wide Channel Support
7.1 Channel Processing
No Dolby Atmos
No Dolby Atmos Height Virtualization
No DTS:X
No IMAX Enhanced
No Auro 3D with Auro-Matic Upmixer
DSD via HDMI
Video Features
GOOD
73
We give Pioneer VSX-1124-K a score of 73 for Video Features features.
No HDR10
No HDR10+
No Dolby Vision
No 8K Passthrough
Connectivity
GOOD
75
We give Pioneer VSX-1124-K a score of 75 for Connectivity features.
No eARC
Wi-Fi
Bluetooth
Does not Work with Amazon Alexa
7 HDMI Inputs
3 HDMI Outputs
0 8K Input
USB Input
Few RCA Line Inputs
No Phono Input
RCA Pre-Outs
Composite Video Inputs
Component Video Inputs
Ethernet
Zones
EXCELLENT
88
We give Pioneer VSX-1124-K a score of 88 for Zones features.
3 Zones
Radio
EXCELLENT
85
We give Pioneer VSX-1124-K a score of 85 for Radio features.
Analog Tuner
Pandora
Spotify
No Tidal
For a full specification list please go to the specifications page:
