Pioneer VSX-1022-K Review and Specs
image not found

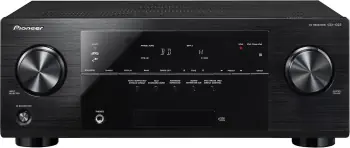

Pioneer VSX-1022-K (USA version)

SCORE:
67

Highlights

  • 7.1 channels
  • 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
  • 1080p Upscaling, 1080p Passthrough
  • AirPlay, DLNA
  • Ethernet, Bluetooth
  • USB input

Disclosure: We earn money from the affiliate links to products associated with content in this article.

Pioneer VSX-1022-K Overview

Pioneer VSX-1022-K was introduced in 2012. It is equipped with 7 channel amplifier and is capable of 7.1 maximum channel processing.

We evaluated the Receiver and gave 67 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

AMPLIFIER
70
VIDEO FEATURES
59
AUDIO FEATURES
70
CONNECTIVITY
72
MULTIZONE
55
MISCELLANEOUS
63
RADIO
79
OVERALL
67

Amplifier score is based on power ratings, minimum impedance load, power supply, transformer type, total harmonic distortion, damping factor, signal to noise ratio and other small details. Audio score depends on the number of channels, front wide channel support, maximum channel processing, support of audio formats, DAC specifications, room calibration algorithm... Video score is based on HDR, Dolby Vision and video signal passthrough and upscaling, analog to HDMI upconversion. Connectivity score is defined from all wired and wireless inputs and outputs, internet and bluetooth connections, HEOS, SONOS and others. Multizone score depends on the number of zones with their outputs. Radio score is evaluated form digital radio support and analog tuner with its frequency range, signal to noise ratio, harmonic distortion...

Pros and Cons

In this section we present pros and cons of Pioneer VSX-1022-K.

PROS
Dolby TrueHD πŸ‘
Dolby Digital Plus πŸ‘
Dolby Pro Logic πŸ‘
Dolby Digital EX πŸ‘
DTS Neo πŸ‘
DTS-HD Master Audio πŸ‘
DTS 96/24 πŸ‘
DTS Express πŸ‘
DTS-ES πŸ‘
High Resolution Music Playback via USB and/or Network πŸ‘
DSD via HDMI πŸ‘
DTS Dialog Control πŸ‘
Sound Retriever πŸ‘
Sound Retriever AIR πŸ‘
Compressed Music Enhancer πŸ‘
Auto Speaker Calibration System with Mic. πŸ‘
HDR10 πŸ‘
3-D Ready πŸ‘
Analog To HDMI Upconversion πŸ‘
DLNA 1.5 πŸ‘
Ethernet πŸ‘
Bluetooth πŸ‘
New HDCP Version πŸ‘
USB Input πŸ‘
Composite Video Inputs πŸ‘
Composite Video Outputs πŸ‘
Component Video Inputs πŸ‘
Zones πŸ‘
Analog Tuner πŸ‘
Pandora πŸ‘
CONS
No Front Wide Channel Support πŸ‘Ž
Not Certified 4 Ω Performance πŸ‘Ž
No Bi-amp Capability πŸ‘Ž
No Dolby Atmos πŸ‘Ž
No Dolby Atmos Height Virtualization πŸ‘Ž
No Dolby Surround Upmixer πŸ‘Ž
No DTS:X πŸ‘Ž
No DTS Neural:X πŸ‘Ž
No DTS Virtual:X πŸ‘Ž
No DTS-HD High Resolution Audio πŸ‘Ž
No IMAX Enhanced πŸ‘Ž
No Auro 3D with Auro-Matic Upmixer πŸ‘Ž
No Gapless Playback πŸ‘Ž
No High-resolution Music Enhancer πŸ‘Ž
No HDR10+ πŸ‘Ž
No BT.2020 color space πŸ‘Ž
No Dolby Vision πŸ‘Ž
No Hybrid Log Gamma (HLG) πŸ‘Ž
No 4K or 8K Video Passthrough πŸ‘Ž
No 4K or 8K Video Upscaling πŸ‘Ž
No Chromecast Built-In πŸ‘Ž
Does not Work with Amazon Alexa πŸ‘Ž
Does Not Work with SONOS πŸ‘Ž
No Wi-Fi πŸ‘Ž
No eARC πŸ‘Ž
Few HDMI Outputs πŸ‘Ž
Few Analog Audio Line Inputs πŸ‘Ž
No Phono Input πŸ‘Ž
No Multi-Channel Input πŸ‘Ž
No Analog Pre-Outs πŸ‘Ž
No Spotify πŸ‘Ž
No Tidal πŸ‘Ž
No Deezer πŸ‘Ž
No Napster πŸ‘Ž
No SiriusXM Internet Radio πŸ‘Ž

Selected Features

Amplifier

Pioneer VSX-1022-K has 7 channel amplifier and delivers 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven).


Video Features

The Receiver has 1080p passthrough and 1080p upscaling.


Advanced Sound Retriever

Compressed music enhancement in Pioneer VSX-1022-K is done by Pioneer’s Advanced Sound Retriever. Hear the detail, warmth and clarity, the way the artist intended it, from all of your highly compressed MP3 and WMA files stored on USB, Smartphone and portable media players. By restoring data that tend to get lost in the digital compression process, Pioneers Advanced Sound Retriever Technology enhances audio reproduction all the way upto 20 Khz frequencies.


Room Correction

Pioneer VSX-1022-K comes with[y] MCACC Auto room correction system and includes the calibration microphone.


Connectivity

Pioneer VSX-1022-K can be connected to internet using ethernet cable. It can also connect to bluetooth devices[y] via optional AS-BT100 or AS-BT200 adapters (sold separately). The Receiver supports[y] AirPlay. It has 6 HDMI inputs and HDCP 2.2 copy protection.

Front panel has USB and Composite Video inputs.

Image cannot be found Image cannot be found

Detailed Specifications

Here we list all the available features and specifications of Pioneer VSX-1022-K.

BASICS
BrandPioneer
ModelVSX-1022-K
TypeA/V Receiver
CountryUSA
Release Year2012
AMPLIFIER
Channels7.1
Front Wide Channel Supportβœ–
Amplifier DesignDirect Energy
THXβ„’ Certificationβœ–
Continuous 6 Ω Ratedβœ”
Certified 4 Ω Performanceβœ–
Bi-amp Capabilityβœ–
AUDIO
Digital Signal Processing (DSP) EngineTexas Instruments Aureus
Maximum Channel Processing7.1
Air Studios Monitor Certificationβœ–
Dolby Atmosβœ–
Dolby Atmos Height Virtualizationβœ–
Dolby TrueHDβœ”
Dolby Digital Plusβœ”
Dolby Surround Upmixerβœ–
Dolby Pro Logicβœ” PLIIz
Dolby Digital EXβœ”
Surround EXβœ–
DTS:Xβœ–
DTS Neural:Xβœ–
DTS Virtual:Xβœ–
DTS Neoβœ” Neo:6
DTS-HD Master Audioβœ”
DTS-HD High Resolution Audioβœ–
DTS 96/24βœ”
DTS Expressβœ”
DTS-ESβœ”
IMAX Enhancedβœ–
Auro 3D with Auro-Matic Upmixerβœ–
PCMβœ” 2-ch/Multi-ch Input
Music Playback via USBWAV, MP3, WMA, AAC, FLAC
High Resolution Music Playback via USB and/or Networkβœ” 88.2, 96, 176.4, 192 kHz/24 bit
High Resolution Audio Formats via USBWAV/FLAC
Multi-Channel Music File Playback via USBβœ–
Gapless Playbackβœ–
DSD via HDMIβœ” 2-ch Input
DSD to PCM Converterβœ–
USB DACβœ–
Jitter Reductionβœ–
Auto Level Control2 Channel
Dialog Enhancementβœ–
Dialogue Liftβœ–
Sound Retrieverβœ” Advanced (2-Channel)
Sound Retriever AIRβœ”
Digital Noise Reductionβœ–
Tone Controlβœ” Front L/R Channels
Compressed Music Enhancerβœ” Advanced Sound Retriever
High-resolution Music Enhancerβœ–
Digital Filter Slow Modeβœ–
Audyssey Dynamic EQβœ–
Audyssey Dynamic Volumeβœ–
Audyssey LFCβœ–
Audyssey Sub EQ HTβœ–
Audyssey DSXβœ–
Direct Modeβœ”
Pure Direct Modeβœ”
Auto Surroundβœ”
Optimum Surroundβœ–
Advanced Surround9+1 Mode DSP
Wide Surroundβœ–
Front Stage Surround Advanceβœ”
Headphone Surroundβœ”
Virtual Speakersβœ–
Virtual Depthβœ–
Independent Dual Subwoofer Outputβœ–
CALIBRATION
Auto Speaker Calibration System with Mic.βœ” MCACC Auto
Manual MCACCβœ–
MCACC Memory1
Phase Controlβœ”
Full Band Phase Controlβœ–
Standing Wave Controlβœ–
EQ Bands5-Band
Symmetric EQβœ”
X-Curveβœ–
Distance Adjustment0.1 Feet
Precision Distanceβœ–
Polarity Checkβœ–
Auto Subwoofer Crossoverβœ–
PC Displayβœ–
VIDEO
HDR10βœ–
HDR10+βœ–
Dynamic HDRβœ–
BT.2020 color spaceβœ–
Dolby Visionβœ–
Hybrid Log Gamma (HLG)βœ–
Quick Media Switching (QMS)βœ–
Auto Low Latency Mode Pass-throughβœ–
Variable Refresh Rate (VRR)βœ–
Quick Frame Transport (QFT)βœ–
3-D Readyβœ”
Video Signal Passthroughup to 1080p
Video Signal Upscalingβœ” up to 1080p (Anchor Bay)
Analog To HDMI Upconversionβœ” Component****, Composite
Component Video Upscalingβœ–
Analog to Analog Video conversionβœ–
Stream Smootherβœ–
Pure Cinemaβœ”
Video Parameter Adjustmentsβœ–
Triple HD Noise Reductionβœ–
Super Resolutionβœ–
isf Certified Calibration Controlβœ–
CONNECTIVITY
MHL Inputβœ–
DLNA 1.5βœ”
FireConnectβœ–
FlareConnectβœ–
Chromecast Built-Inβœ–
DTS Play-Fiβœ–
Works with Amazon Alexaβœ–
Works with SONOSβœ–
AirPlayβœ” AirPlay
Apple Product Connectionβœ” iPod, iPhone and iPad via front USB
Remote Appβœ–
InstaPrevue Input Source Prevueβœ–
Ethernetβœ”
Ethernet Switchβœ–
Wi-Fiβœ–
Bluetoothβœ” via optional AS-BT100 or AS-BT200 adapters (sold separately)
HDBaseT Compatibleβœ–
Enhanced ARCβœ–
HDCP Version2.2
HDMI Input6
HDMI Output1
USB Input1 Front
USB DC Out Portβœ–
Analog Audio Line Input3
Analog Audio Line Outputβœ–
Phono Inputβœ–
Optical In1
Optical Outβœ–
Coaxial In/Out1 / βœ–
Composite Video Input3 (1 front)
Composite Video Output1
S-Video Inputβœ–
S-Video Outputβœ–
Component Video Input1
Component Video Outputβœ–
PC Inβœ–
Multi-Channel Inputβœ–
Analog Pre-Outs0.1
XLR Inputsβœ–
XLR Pre-outsβœ–
Front A/V InputsUSB, Composite Video
Speaker A/Bβœ”
Headphone Outβœ” 6.3 mm
ZONES
Zones1
RS-232βœ–
+12V Trigger Outputβœ–
Remote (IR) Input/Output0 / 0
MISC
On-Screen DisplayNetwork GUI / Set-Up Text - HDMI Only
AVNavigatorβœ–
IP Control for CIβœ–
PreAmp Modeβœ–
Versatile Speaker ConfigurationSurround Back/ Front Height / B-Speaker
FL Dimmerβœ”
Function Renameβœ–
Remote ControllerLearning Remote Control
Detachable Power Cordβœ–
adapterportβœ”
RADIO
Analog Tunerβœ” FM/AM
Presets30
Digital Radioβœ–
Internet Radioβœ” vTuner
Pandoraβœ”
Spotifyβœ–
Tidalβœ–
Deezerβœ–
Napsterβœ–
SiriusXM Internet Radioβœ–
CONSTRUCTION
Front PanelBrushed
Solid Aluminum Frontβœ–
Speaker Terminals9
Large Speaker Terminals7
Color-Coded Speaker Terminalsβœ–
Ceramic Speaker Terminalsβœ–
3D Space Frame Constructionβœ–
Gold plated RCA terminalsβœ–
POWER
Power SupplyAC 120 V, 60 Hz
Low Leakage Flux Power Transformerβœ–
Transformer Stabilizerβœ–
Power Consumption520 W
Standby Power0.4 W
GENERAL
Auto Power Standbyβœ”
Dimensions (W x H x D)435 mm x 168 mm x 342.5 mm
17-3/16" x 6-5/8" x 13-1/2"
Weight9.3 kg (20 lb 9 oz)
Warranty1 Year
SPECS
Power Output (8 Ω, 20 Hz - 20 kHz, 280 W (0.08% THD)
Power Output (6 Ω, 1 kHz, 1 channel driven, FTC)140 W (1% THD)
Input Sensitivity and Impedance (Line)200 mV/47 kΩ (Line)
S/N Ratio (Line, IHF-A)98 dB
S/N Ratio (Line, EIA, at 1 W (1 kHz))79 dB
DSD Sampling Rates via HDMI2.8 MHz
Video Input Sensitivity/Output Level and Impedance1 Vp-p/75 Ω (Composite)
Ethernet Standard10BASE-T/100BASE-TX
HDMI TerminalType A (19-pin)
HDMI Output Type5 V, 100 mA
USB TerminalUSB2.0 (Type A) 5 V, 2.1 A
adapterport Terminal5 V, 100 mA
Extension Terminalβœ–
FM Frequency87.5 MHz - 108 MHz
AM Frequency530 kHz - 1700 kHz

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted

Successor

In 2013 Pioneer VSX-1022-K was replaced by VSX-1023-K. Let us now have a look at some important changes that the successor brought.


UPGRADES Pioneer VSX-1023-K Pioneer VSX-1022-K
Gapless Playback βœ” βœ–
Video Signal Passthrough up to 4K/30p up to 1080p
MHL Input βœ” 1 Front (Version 2.0) βœ–
More Component Video Outputs 1 βœ–
More Zones 2 1
Spotify βœ” βœ–

DOWNGRADES Pioneer VSX-1023-K Pioneer VSX-1022-K
Video Signal Upscaling βœ– βœ” up to 1080p (Anchor Bay)
Analog To HDMI Upconversion βœ– βœ” Component****, Composite

For more detailed comparison between the models please visit Pioneer VSX-1023-K vs Pioneer VSX-1022-K.
