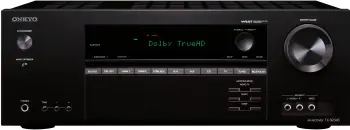

Onkyo TX-SR343 Review and Specs

Onkyo TX-SR343 (USA version)

SCORE:
22

Highlights

  • 65 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
  • 4K Passthrough
  • Bluetooth

Disclosure: We earn money from the affiliate links to products associated with content in this article.

Onkyo TX-SR343 Overview

Onkyo TX-SR343 was introduced in 2015. It is equipped with 5 channel amplifier and is capable of 5.1 maximum channel processing.

We evaluated the Receiver and gave 22 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

AMPLIFIER
34
VIDEO FEATURES
14
AUDIO FEATURES
18
CONNECTIVITY
20
MULTIZONE
20
MISCELLANEOUS
13
RADIO
21
OVERALL
22

Amplifier score is based on power ratings, minimum impedance load, power supply, transformer type, total harmonic distortion, damping factor, signal to noise ratio and other small details. Audio score depends on the number of channels, front wide channel support, maximum channel processing, support of audio formats, DAC specifications, room calibration algorithm... Video score is based on HDR, Dolby Vision and video signal passthrough and upscaling, analog to HDMI upconversion. Connectivity score is defined from all wired and wireless inputs and outputs, internet and bluetooth connections, HEOS, SONOS and others. Multizone score depends on the number of zones with their outputs. Radio score is evaluated form digital radio support and analog tuner with its frequency range, signal to noise ratio, harmonic distortion...

Pros and Cons

In this section we present pros and cons of Onkyo TX-SR343.

PROS
DSD via HDMI πŸ‘
4K or 8K Video Passthrough πŸ‘
Bluetooth πŸ‘
New HDCP Version πŸ‘
Many Analog Audio Line Inputs πŸ‘
Composite Video Inputs πŸ‘
Component Video Inputs πŸ‘
Zones πŸ‘
Analog Tuner πŸ‘
CONS
Few Channel Processing πŸ‘Ž
No Dolby Atmos πŸ‘Ž
No Dolby Atmos Height Virtualization πŸ‘Ž
No DTS:X πŸ‘Ž
No DTS Neural:X πŸ‘Ž
No DTS Virtual:X πŸ‘Ž
No IMAX Enhanced πŸ‘Ž
No Auro 3D with Auro-Matic Upmixer πŸ‘Ž
No DTS Dialog Control πŸ‘Ž
No Audyssey Dynamic EQ πŸ‘Ž
No Audyssey Dynamic Volume πŸ‘Ž
No Audyssey LFC πŸ‘Ž
No Audyssey Sub EQ HT πŸ‘Ž
No HDR10 πŸ‘Ž
No HDR10+ πŸ‘Ž
No Dynamic HDR πŸ‘Ž
No Dolby Vision πŸ‘Ž
No Auto Low Latency Mode Pass-through πŸ‘Ž
No VRR πŸ‘Ž
No QFT πŸ‘Ž
No 4K or 8K Video Upscaling πŸ‘Ž
No MHL Input πŸ‘Ž
No DLNA 1.5 πŸ‘Ž
No FireConnect πŸ‘Ž
No FlareConnect πŸ‘Ž
No Chromecast Built-In πŸ‘Ž
No DTS Play-Fi πŸ‘Ž
Does not Work with Amazon Alexa πŸ‘Ž
Does Not Work with SONOS πŸ‘Ž
No Ethernet πŸ‘Ž
No Wi-Fi πŸ‘Ž
No eARC πŸ‘Ž
Few HDMI Inputs πŸ‘Ž
Few HDMI Outputs πŸ‘Ž
No USB Input πŸ‘Ž
No Phono Input πŸ‘Ž
No Multi-Channel Input πŸ‘Ž
No Analog Pre-Outs πŸ‘Ž
No Internet Radio πŸ‘Ž
No Pandora πŸ‘Ž
No Spotify πŸ‘Ž
No Tidal πŸ‘Ž
No Deezer πŸ‘Ž
No Napster πŸ‘Ž
No SiriusXM Internet Radio πŸ‘Ž
No Toroidal Transformer πŸ‘Ž
Old Bluetooth Version πŸ‘Ž

Major Changes from its predecessor

Here we are comparing Onkyo TX-SR343 to its predecessor TX-SR333 and displaying the major changes.

UPGRADES Onkyo TX-SR343 Onkyo TX-SR333
Phase-Matching Bass Boost βœ” for Deep Bass and Clear Mid-Range βœ–
Analog To HDMI Upconversion βœ” Component**, Composite βœ–
More Optical Inputs 2 1
More Component Video Inputs 2 1
Bigger Power Supply 3.8 A 3.2 A

DOWNGRADES Onkyo TX-SR343 Onkyo TX-SR333
AirPlay βœ– βœ” AirPlay via optional Onkyo RI Dock DS-A5 (sold separately)
Less HDMI Inputs 4 6
USB Input βœ– 1 (Rear)
Less Analog Audio Line Outputs βœ– 1
Less Coaxial Inputs/Outputs 1 / No 2 / No
Less Composite Video Inputs 3 (1 front) 4 (1 front)
Less Composite Video Outputs βœ– 1
Less Component Video Outputs βœ– 1
Less Zones 1 2

For more detailed comparison between the models please visit Onkyo TX-SR343 vs Onkyo TX-SR333.

Selected Features

Amplifier

Onkyo TX-SR343 has 5 channel amplifier and delivers 65 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven).


Video Features

The Receiver has 4K passthrough up to 60p.


WRAT

Onkyo TX-SR343 features Onkyo’s Wide Range Amp Technology (WRAT) circuit layout that prevents phase shifting by pushing the roll-off point higher than the listening-level frequency. Amplifying sound without phase shift creates an uncommonly well-focused and realistic audio image. If phase shift occurs and signal timing is not accurate, then neither is the resulting audio image.


Advanced Music Optimizer

Compressed music enhancement in Onkyo TX-SR343 is done by Onkyo’s Advanced Music Optimizer. While MP3 or AAC files may sound fine through the headphones of your portable digital player, the limitations of these files can be exposed when played back through a quality home entertainment system. This is because a significant amount of high-frequency bit information is lost during the file-compression process. To counter this, Onkyo has designed the Advanced Music Optimizer to compensate for lost bit information and improve the quality of compressed audio signals. This results in a clearer and more expansive sound. Also included in this technology is a loudness correction feature that further improves the audio character of compressed files.


Phase-Matching Bass Boost

Onkyo TX-SR343 features Phase-Matching Bass Boost. The negative effects of phase-shift or the timing difference between sound waves of different frequencies can sometimes be heard in audio players when corners are cut in order to increase bass response. While most audio systems have some form of low-frequency enhancement system, often a bigger bass sound comes at the expense of mid-range clarity, and results in a smeared or muddy sound. Onkyo’s Phase-Matching Bass Boost technology avoids this problem by improving the phase timing to preserve the natural clarity of the mid-range allowing vocals and strings to shine while maintaining a smooth, powerful bass response at all volume levels.


Room Correction

Onkyo TX-SR343 does not come with room correction system.


Connectivity

Onkyo TX-SR343 can also connect to bluetooth devices via built-in bluetooth adapter. It has 4 HDMI inputs and HDCP 2.2 copy protection.

Front panel has Composite Video and RCA Audio inputs.

Image cannot be found Image cannot be found

Detailed Specifications

Here we list all the available features and specifications of Onkyo TX-SR343.

BASICS
BrandOnkyo
ModelTX-SR343
TypeA/V Receiver
CountryUSA
Release Year2015
AMPLIFIER
Channels5.1
WRAT (Wide Range Amplifier Technology)βœ”
VLSC (Vector Linear Shaping Circuitry)βœ–
Optimum Gain Volume Circuitryβœ–
THXβ„’ Certificationβœ–
Continuous 6 Ω Ratedβœ”
Certified 4 Ω Performanceβœ–
Discrete Output Stage Circuitryβœ”
3-Stage Inverted Darlington Circuitryβœ–
PUSH-PULL Designβœ–
Independent Block Construction (Amp/Preprocessor)βœ–
Bi-amp Capabilityβœ–
BTL (Bridged Transless or Bridging)βœ–
AUDIO
Digital Signal Processing (DSP) EngineAdvanced 32-bit DSP Chip
DACBurr-Brown
Maximum Channel Processing5.1
Air Studios Monitor Certificationβœ–
Dolby Atmosβœ–
Dolby Atmos Height Virtualizationβœ–
Dolby TrueHDβœ”
Dolby Digital Plusβœ”
Dolby Surround Upmixerβœ–
Dolby Pro Logicβœ” PLII
Dolby Digital EXβœ–
Surround EXβœ–
DTS:Xβœ–
DTS Neural:Xβœ–
DTS Virtual:Xβœ–
DTS Neoβœ” Neo:6
DTS-HD Master Audioβœ”
DTS-HD High Resolution Audioβœ”
DTS 96/24βœ”
DTS Expressβœ”
DTS-ESβœ”
IMAX Enhancedβœ–
Auro 3D with Auro-Matic Upmixerβœ–
PCMβœ” 2-ch/Multi-ch Input
Multi-Channel Music File Playback via USBβœ–
DSD via HDMIβœ” 2-ch/Multi-ch Input
DSD to PCM Converterβœ–
USB DACβœ–
Jitter Reductionβœ” PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio
DTS Dialogue Controlβœ–
Dialog Enhancementβœ–
Dialog Level Adjustmentβœ–
Dialog Normalizationβœ–
Dialogue Liftβœ–
Tone Controlβœ” Front L/R Channels
Compressed Music Enhancerβœ” Advanced Music Optimizer (bluetooth included)
High-resolution Music Enhancerβœ–
THX Processing Modeβœ–
Audyssey Dynamic EQβœ–
Audyssey Dynamic Volumeβœ–
Audyssey LFCβœ–
Audyssey Sub EQ HTβœ–
Audyssey DSXβœ–
Phase-Matching Bass Boostβœ” for Deep Bass and Clear Mid-Range
Direct Modeβœ”
Pure Audio Modeβœ–
Pure Direct Analog Path Modeβœ–
Virtual Speakersβœ” T-D (Theater-Dimensional)
Independent Dual Subwoofer Outputβœ–
CALIBRATION
Auto Speaker Calibration System with Mic.βœ–
VIDEO
HDR10βœ–
HDR10+βœ–
Dynamic HDRβœ–
BT.2020 color spaceβœ–
Dolby Visionβœ–
Hybrid Log Gamma (HLG)βœ–
Quick Media Switching (QMS)βœ–
Auto Low Latency Mode (ALLM)βœ–
Variable Refresh Rate (VRR)βœ–
Quick Frame Transport (QFT)βœ–
3-D Readyβœ”
Video Signal Passthroughup to 4K/60p (RGB/YCbCr4:4:4/YCbCr4:2:2, 24 bit)
Video Signal Upscalingβœ–
Analog To HDMI Upconversionβœ” Component**, Composite
Component Video Upscalingβœ–
Analog to Analog Video conversionβœ–
Component Video Maximum Resolution480i/576i
isf Certified Calibration Controlβœ–
CONNECTIVITY
MHL Inputβœ–
DLNA 1.5βœ–
FireConnectβœ–
FlareConnectβœ–
Chromecast Built-Inβœ–
DTS Play-Fiβœ–
Works with Amazon Alexaβœ–
Works with SONOSβœ–
AirPlayβœ–
Apple Product Connectionβœ” iPod, iPhone via RI Dock
Remote Appβœ–
InstaPrevue Input Source Prevueβœ–
Ethernetβœ–
Ethernet Switchβœ–
Wi-Fiβœ–
Bluetoothβœ”
HDBaseT Compatibleβœ–
Enhanced Audio Return Channel (eARC)βœ–
HDCP Version2.2
HDMI Inputs4
HDMI Outputs1
USB Inputβœ–
USB DC Out Portβœ” 5 V, 1 A
Analog Audio Line Inputs7 (1 front)
Analog Audio Line Outputsβœ–
Phono Inputβœ–
Optical Inputs2
Optical Outputsβœ–
Coaxial Inputs/Outputs1 / No
Composite Video Inputs3 (1 front)
Composite Video Outputsβœ–
S-Video Inputsβœ–
S-Video Outputsβœ–
Component Video Inputs2
Component Video Outputsβœ–
PC Inβœ–
Multi-Channel Inputβœ–
Analog Pre-Outs0.1
XLR Inputsβœ–
XLR Pre-outsβœ–
Front A/V InputsComposite Video, RCA Audio
Speaker A/Bβœ–
Headphone Outβœ” 6.3 mm
ZONES
Zones1
Whole House Modeβœ–
RS-232 Interfaceβœ–
+12V Trigger Output0
Remote (IR) Input/Output0 / 0
MISC
On-Screen Displayβœ” Graphical Overlaid On-Screen Display (OSD) via HDMI with Quick Set-Up
Detachable Power Cordβœ–
uportβœ–
ONKYO-RI System Controlβœ”
RIHD (Remote Interactive Over HDMI)βœ”
Pre-Pro/Learning Remoteβœ” / No
On Screen Remote Programmingβœ–
Bi-directional Remote Setup via GUIβœ–
Smart Grid-Readyβœ”
RADIO
Analog Tunerβœ” FM/AM
Presets40
Digital Radioβœ–
Internet Radioβœ–
Pandoraβœ–
Spotifyβœ–
Tidalβœ–
Deezerβœ–
Napsterβœ–
SiriusXM Internet Radioβœ–
CONSTRUCTION
Solid Aluminum Frontβœ–
Speaker Terminals5
Large Speaker Terminals2
Color-Coded Speaker Terminalsβœ–
Transparent High-Grade Speaker Terminalsβœ–
18mm Pitch High Grade Pre-outsβœ–
19mm-Pitch Audio Inputsβœ–
Gold plated RCA terminalsβœ–
POWER
Power SupplyAC 120 V, 60 Hz
Independent Power Supply2
H.C.P.S. (High Current Power Supply)βœ” Massive High Power Transformer
Toroidal Transformerβœ–
Power Consumption3.8 A
No Sound Power45 W
Standby Power0.15 W
GENERAL
Dimensions (W x H x D)435 mm x 160 mm x 328 mm
17-1/8" x 6-5/16" x 12-15/16"
Weight7.8 kg (17.2 lbs)
Warranty2 Years
SPECS
Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)65 W (0.7% THD)
Power Output (6 Ω, 1 kHz, 1 channel driven, FTC)110 W (0.9% THD)
Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA or IEC)120 W
Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)100 W (1% THD)
Dynamic Power per Channel (3 Ω, Front)160 W
Dynamic Power per Channel (4 Ω, Front)125 W
Dynamic Power per Channel (8 Ω, Front)85 W
THD0.08% (20 Hz - 20 kHz, half power)
Damping Factor40 (Front, 1 kHz, 8 Ω)
Input Sensitivity and Impedance (Line)200 mV/47 kΩ (LINE, 1 kHz 100 W/8 Ω)
S/N Ratio (Line, IHF-A)100 dB
Frequency Response (Analog In)10 Hz - 100 kHz/+1 dB, -3 dB (Direct mode)
Video Input Sensitivity/Output Level and Impedance 1 Vp-p/75 Ω (Component Y)
0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
1 Vp-p/75 Ω (Composite)
Ethernet Standardβœ–
Bluetooth Version2.1 + EDR
Bluetooth Frequency2.4 GHz
FM Frequency87.5 MHz - 107.9 MHz
AM Frequency522/530 kHz - 1611/1710 kHz

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted

Successor

In 2016 Onkyo TX-SR343 was replaced by TX-SR353. Let us now have a look at some important changes that the successor brought.


UPGRADES Onkyo TX-SR353 Onkyo TX-SR343
More Advanced Auto Speaker Calibration System βœ” AccuEQ βœ–
HDR10 βœ” βœ–
BT.2020 color space βœ” βœ–
USB Input 1 (Front) βœ–
More Composite Video Outputs 1 βœ–

DOWNGRADES Onkyo TX-SR353 Onkyo TX-SR343
DSD via HDMI βœ” 2-ch βœ” 2-ch/Multi-ch Input
Phase-Matching Bass Boost βœ– βœ” for Deep Bass and Clear Mid-Range
Analog To HDMI Upconversion βœ– βœ” Component**, Composite
Less Analog Audio Line Inputs 3 7 (1 front)
Less Optical Inputs 1 2
Less Composite Video Inputs 2 3 (1 front)
Less Component Video Inputs βœ– 2
Independent Power Supply βœ– 2
H.C.P.S. (High Current Power Supply) βœ– βœ” Massive High Power Transformer

For more detailed comparison between the models please visit Onkyo TX-SR353 vs Onkyo TX-SR343.
