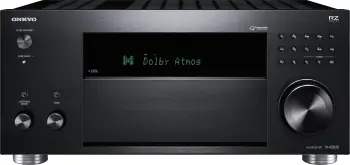

Onkyo TX-RZ830

    Highlights

    • 9.2 Channels
    • 11.1 Channel Processing
    • 120 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
    • THX™Select™ Certified
    • Dolby Atmos, DTS:X
    • HDR10, Dolby Vision
    • 4K/60Hz Passthrough
    • Wi-Fi, Bluetooth, Ethernet
    • Phono Input

    Disclosure: We earn money from the affiliate links to products associated with content in this article.

    1. Overview

    Onkyo TX-RZ830 was introduced in 2018. It is equipped with 9 channel amplifier with 120 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 11.1 maximum channel processing. It supports Dolby Atmos and DTS:X, passes 4K/60Hz video signal.

    We evaluated the a/v receiver and gave 91 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

    Amplifier
    91
    Audio Features
    89
    Video Features
    94
    Connectivity
    88
    Zones
    91
    Radio
    90
    OVERALL
    91

    For more details about the ranking please go to    Evaluation section.


    Here is a history of the series, where you can view and compare the main specifications of the receivers.

    Evolution of the series
    Model Year Chann. Power Dolby Atmos DTS:X HDR10 HDR10+ Dolby Vision Pass. Price
    TX-RZ840 Image cannot be found 2019 9.2 120 W 4K
    TX-RZ830 Image cannot be found 2018 9.2 120 W 4K
    TX-RZ820 Image cannot be found 2017 7.2 130 W 4K
    TX-RZ810 Image cannot be found 2016 7.2 130 W 4K
    TX-RZ800 Image cannot be found 2015 7.2 135 W 4K
    TX-NR838 Image cannot be found 2014 7.2 130 W 4K
    TX-NR828 Image cannot be found 2013 7.2 130 W 4K
    TX-NR818 Image cannot be found 2012 7.2 135 W 1080p
    TX-NR809 Image cannot be found 2011 7.2 135 W 1080p

    You can view their side-by-side comparison here: Onkyo TX-RZ840 vs TX-RZ830 vs TX-RZ820 vs TX-RZ810 vs TX-RZ800 vs TX-NR838.

    2. Pros and Cons

    In this section we present pros and cons of Onkyo TX-RZ830.

    PROs

    •   High Power Output - 120 W
    •   THX™ Certification
    •   11.1 Channel Processing
    •   Dolby Atmos
    •   DTS:X
    •   DSD via HDMI
    •   Auto Speaker Calibration System with Mic.
    •   HDR10
    •   Dolby Vision
    •   New HDCP Version
    •   Analog To HDMI Upconversion
    •   Wi-Fi
    •   Bluetooth
    •   Chromecast Built-In
    •   7 HDMI Inputs
    •   USB Input
    •   Many RCA Line Inputs
    •   Phono Input
    •   RCA Pre-Outs
    •   Composite Video Inputs
    •   Component Video Inputs
    •   Ethernet
    •   3 Zones
    •   Analog Tuner
    •   Spotify
    •   Tidal

    CONs

    •   No Front Wide Channel Support
    •   No Dolby Atmos Height Virtualization
    •   No IMAX Enhanced
    •   No Auro 3D with Auro-Matic Upmixer
    •   No HDR10+
    •   No eARC
    •   No 8K Passthrough
    •   Does not Work with Amazon Alexa
    •   0 8K Input
    •   No Digital Radio
    •   No Pandora

    And here are some specifications which fall into average criteria and are neither in PROs nor in CONs category:

    AVERAGE

    •   9.2 Channels
    •   3 HDMI Outputs
    •   Bluetooth 4․1 + LE

    3. Onkyo 2018 Lineup

    In 2018 Onkyo released 7 new receivers. Here is the lineup:

    Onkyo 2018 Lineup
    ModelChannelsPowerMax. Ch. Proc.Pre OutsImmersive AudioZones Price
    TX-RZ830 Image cannot be found 9.2120 W11.111.2Dolby Atmos
    DTS:X
    3
    TX-RZ730 Image cannot be found 9.2100 W11.111.2Dolby Atmos
    DTS:X
    3
    TX-RZ630 Image cannot be found 9.290 W9.1Dolby Atmos
    DTS:X
    3
    TX-NR787 Image cannot be found 9.2100 W9.1Dolby Atmos
    DTS:X
    3
    TX-NR686 Image cannot be found 7.2100 W7.1Dolby Atmos
    DTS:X
    2
    TX-NR585 Image cannot be found 7.280 W7.12
    TX-SR383 Image cannot be found 7.280 W7.1Dolby Atmos
    DTS:X
    2

    You can view their side-by-side comparison here: Onkyo TX-RZ830 vs TX-RZ730 vs TX-RZ630 vs TX-NR787 vs TX-NR686 vs TX-NR585.

    4. Changes from the TX-RZ820

    Onkyo TX-RZ830 has replaced TX-RZ820. Here we present differences between these two models.

    UPGRADES Onkyo TX-RZ830 vs Onkyo TX-RZ820
    More Channels 9.2 vs 7.2
    More Channel Processing 11.1 vs 7.1
    More Tone Control Channels All Channels vs Front L/R Channels
    More Advanced Auto Speaker Calibration System AccuEQ Advance with AccuReflex™ vs AccuEQ with AccuReflex™
    Works with SONOS requires firmware update & Sonos Connect vs
    AirPlay AirPlay 2 after firmware update vs AirPlay
    More RCA Pre-Outs 11.2 vs 7.2
    More Powered Zones 2 and 3 vs 2 (and Zone 2 A/B)
    Bigger Power Supply 870 W vs 710 W
    DOWNGRADES Onkyo TX-RZ830 vs Onkyo TX-RZ820
    Lower Power Output 120 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) vs 130 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
    VLSC (Vector Linear Shaping Circuitry) Front L/R Channels vs All Channels
    Lower Dynamic Power per Channel, 3 Ω, Front) 250 W vs 300 W
    Lower Dynamic Power per Channel, 4 Ω, Front) 220 W vs 250 W
    Lower Dynamic Power per Channel, 8 Ω, Front) 130 W vs 150 W

    For more detailed comparison between the models please visit Onkyo TX-RZ830 vs TX-RZ820.

    5. Amplifier

    9 channel Amplifier

    Onkyo TX-RZ830 features 9 channel power amplifier. It is rated at 120 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.

    • Dynamic Audio Amplification: Onkyo TX-RZ830 features Dynamic Audio Amplification which is Onkyo’s amplification philosophy that focuses on capturing the energy and dynamism contained in the audio signal and reproducing it without loss. Audio signals are not static like a test tone, but rather a countless collection of constantly moving waves. While static measurements such as S/N ratio and Total Harmonic Distortion are important, Onkyo believes that excellent dynamic and transient response is the key to emotionally involving sound. Dynamism - the “life” in music - is achieved when the amp can respond to changes in the signal instantaneously, so notes start and stop naturally and the nuances in attack, decay, sustain, and release are voiced with conviction. Onkyo home theater receivers represent the culmination of almost 70 years’ experience in amplifier design. The unique elements of their amplification system comprise high-current, low-impedance architecture to accurately control large speaker cones while enabling instantaneous response to dynamic changes, and discrete wide-range amplifier circuit topology to eliminate phase shift for clear and accurate audio imaging.

    THX Select™ (previously known as Select2) certified

    Onkyo TX-RZ830 is THX™ Select™ (previously known as Select2) certified. This means that it is made for medium sized rooms, up to 2,000 cubic feet in size, with a 10-12 foot viewing distance from the screen.

    AMPLIFIER
    Channels9.2
    Power Output120 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
    Front Wide Channel Support
    Dynamic Audio Amplification
    Non-Phase Shift Amplifier
    VLSC (Vector Linear Shaping Circuitry) Front L/R Channels
    THX™ Certification Select™ (previously known as Select2)
    Continuous 6 Ω Rated
    Certified 4 Ω Performance
    Discrete Output Stage Circuitry
    Independent Block Construction (Amp/Preprocessor)
    Bi-amp Capability
    BTL (Bridged Transless or Bridging)

    6. Speaker Configurations

    Onkyo TX-RZ830's 9 channel amplifier can be assigned for different speaker configurations.

    • Dolby Atmos Configurations: The following speaker configurations are supported for Dolby Atmos:
    • 5.2.2, 5.2.4, 7.2.2 with internal amplifier.
    • 7.2.4 with addition of external 2 channel amplifier.
    • DTS:X Configurations: The speaker configurations for DTS:X are the same as for Dolby Atmos:
    • 5.2.2, 5.2.4, 7.2.2 with internal amplifier.
    • 7.2.4 with addition of external 2 channel amplifier.
    • Configurations without height channels: There are also other speaker configurations available which do not include height channels:
    • 5.2, 7.2 with internal amplifier.
    • 2-ch Bi-Amp: Onkyo TX-RZ830 allows you to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.

    7. Immersive Audio Formats

    Dolby Atmos

    Onkyo TX-RZ830 supports Dolby Atmos with Surround Upmixer.

    • Surround Upmixer: If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.

    DTS:X

    Onkyo TX-RZ830 supports DTS:X with Neural:X.

    • Neural:X is an advanced upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.
    • DTS Dialog Control: This function adjusts the dialog levels during playback of the DTS:X stream. It allows you to separately increase the dialog levels in contrast with the background sound and hear dialog easily even under noisy circumstances.
    DECODING
    Dolby Atmos
    Dolby Atmos Height Virtualization
    Dolby Atmos Music
    Dolby TrueHD
    Dolby Digital Plus
    Dolby Surround Upmixer
    Dolby Pro Logic
    Dolby Digital EX
    THX Listening Modes
    DTS:X
    DTS Neural:X
    DTS Virtual:X
    DTS Neo
    DTS-HD Master Audio
    DTS-HD High Resolution Audio
    DTS 96/24
    DTS Express
    DTS-ES
    IMAX Enhanced
    Auro 3D with Auro-Matic Upmixer

    8. HDMI

    Onkyo TX-RZ830 features 7 HDMI inputs. It has 2 outputs: 1 Main and 1 Sub/Zone2.

    • 4K/60Hz Passthrough: All inputs pass up to 4K/60p (RGB/YCbCr4:4:4) video signal.
    • Analog To HDMI Upconversion: The a/v receiver supports video upconversion, so you can connect your analog Component and Composite video sources and Onkyo TX-RZ830 will output them via HDMI. This means that you will need only one HDMI cable to connect to your TV.
    • BT.2020 Color Space: BT.2020 or Rec. 2020 is a color standard which delivers a wider color gamut compared to Rec. 709. It covers approximately 75% of the total visual spectrum while the Rec. 709 covers only 35%.
    • HDCP 2.2 Copy Protection: All inputs and outputs are HDCP 2.2 compliant which is a requirement for 4K/HDR copy-protected content transmission.
    • 3D Ready: Onkyo TX-RZ830 is able to pass 3D video through HDMI.

    HDR (High Dynamic Range)

    Onkyo TX-RZ830 supports HDR (high dynamic range) video formats such as HDR10, Dolby Vision and Hybrid Log-Gamma via HDMI ports. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.



    VIDEO FEATURES
    HDR10
    HDR10+
    Dynamic HDR
    BT.2020 color space
    Dolby Vision
    HLG (Hybrid Log Gamma)
    HDBaseT Compatible
    Enhanced Audio Return Channel (eARC)
    HDCP Version2.2
    QMS (Quick Media Switching)
    ALLM (Auto Low Latency Mode)
    VRR (Variable Refresh Rate)
    QFT (Quick Frame transport)
    3-D Ready
    Video Signal Passthroughup to 4K/60p (RGB/YCbCr4:4:4)
    Video Signal Upscaling

    9. Room Calibration

    Onkyo TX-RZ830 comes with AccuEQ Advance with AccuReflex™ room correction system and includes the calibration microphone.

    • AccuEQ: First, AccuEQ detects the presence of speakers and evaluates the impedance of each. Next, it pinpoints their distance relative to the main listening position using the mic and sets suitable sound-pressure levels. Then it selects the optimal crossover frequency so that deeper bass rolls smoothly off to the subwoofer. Finally, AccuEQ performs frequency response equalization based on room-acoustic and speaker data collected via microphone. The sound-field is now tailored around the listening position, resulting in a more immersive and realistic in-film experience.

    10. Multi-zone Playback

    Onkyo TX-RZ830 offers multi-zone playback which allows you to play different input sources in 3 different rooms.


    Zone 2

    • Powered Zone 2: You can use the unit's 2 amplifier channels by connecting Zone 2 speakers directly to the speaker terminals. The remaining 7 channels will be left for main zone amplification.
    • HDMI Output: Onkyo TX-RZ830 offers HDMI output for Zone 2. This means that it can send two different HDMI signals to two displays.
    • Audio Pre/Line Output: If you have a dedicated amplifier for Zone 2 you can connect it to the a/v receiver via pre/line outs and use "pre out" option to control volume from the a/v receiver or use "line out" option - send fixed signal and then control volume on the Zone 2 amplifier.

    Zone 3

    • Powered Zone 3: You can use the unit's 2 amplifier channels by connecting Zone 3 speakers directly to the speaker terminals. The remaining 7 channels will be left for main zone amplification.
    • Audio Pre/Line Output: If you have a dedicated amplifier for Zone 2 you can connect it to the a/v receiver via pre/line outs and use "pre out" option to control volume from the a/v receiver or use "line out" option - send fixed signal and then control volume on the Zone 3 amplifier.
    ZONES
    Number of Zones3
    Powered Zones 2 and 3
    Zone 2 OutsHDMI, RCA Pre/Line Out
    Zone 3 OutsRCA Pre/Line Out
    Whole House Mode
    RS-232C Interface
    +12V Trigger Output1 (MAIN, 100 mA)
    Remote (IR) Input/Output1 / 0

    11. Inputs and Outputs

    Audio

    • Phono Input: There is an MM phono input with built-in phono stage for connecting the moving magnet cartridge output of the turntable directly to the a/v receiver.
    • Analog Pre-Outs: Onkyo TX-RZ830 has 11.2 preamplifier outputs which allow you to connect the a/v receiver to the external power amplifier. You may want to use a high quality external amplifier for certain channels, usually for front L/R and center, and use the a/v receiver to power the rest. Also, Onkyo TX-RZ830 has 11 channel processing but has only 9 channel amplifier, so it needs the external amplifier connected to the analog pre-outs in order to reach the maximum speaker configuration.
    • Analog Line Inputs: There are 6 line inputs for analog audio connection.
    • Digital Inputs: 2 optical inputs and 1 coaxial input are available for digital audio connection.
    • Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.

    Video

    • HDMI:
    • Inputs: 7 (1 front)   Outputs: 2 (1 Main, 1 Sub/Zone2)
      8K Inputs: 0
    • Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
    • Inputs: 2   Outputs: 0
    • Component Video: Component video connection gives you the higher quality video compared to the composite video connection. So in case your old DVD player and other equipment do not have an HDMI output but have Component video output use this connection over the composite one. Onkyo TX-RZ830 supports up to 480i/576i resolution on Component video connectors.
    • Inputs: 2   Outputs: 0

    Front A/V Inputs

    • HDMI
    Image cannot be found
    Image cannot be found
    TERMINALS
    HDMI Inputs7 (1 front)
    HDMI Outputs2 (1 Main, 1 Sub/Zone2)
    8K Inputs
    USB Input1 (Rear)
    USB DC Out Port
    Optical Inputs2
    Optical Outputs
    Coaxial Inputs1
    RCA Line Inputs6
    RCA Line Outputs
    XLR Line Inputs
    Phono Input
    Multi-Channel Input
    RCA Pre-Outs11.2
    XLR Pre-outs
    Composite Video Inputs2
    Composite Video Outputs
    S-Video Inputs
    S-Video Outputs
    Component Video Inputs2
    Component Video Outputs

    12. Replaced by TX-RZ840

    In 2019 Onkyo TX-RZ830 was replaced by Onkyo TX-RZ840. Let us now have a look at some important differences between Onkyo TX-RZ830 and its successor.

    UPGRADES Onkyo TX-RZ840 vs Onkyo TX-RZ830
    Dolby Atmos Height Virtualization vs
    IMAX Enhanced vs
    Newer HDCP Version 2.3 vs 2.2
    Video Signal Upscaling 1080p to 4K vs
    Newer Bluetooth Version 4․2 vs 4․1 + LE
    DOWNGRADES Onkyo TX-RZ840 vs Onkyo TX-RZ830
    Less Optical Inputs 1 vs 2
    Less Component Video Inputs 1 vs 2
    Less Speaker Terminals 9 vs 11
    Less Large Speaker Terminals 9 vs 11

    For more detailed comparison between the models please visit Onkyo TX-RZ830 vs TX-RZ840.

    13. Evaluation

    We evaluate Onkyo TX-RZ830 and give score of 91 out of 100. We also give separate scores for 6 different categories according to the available features and specifications some of which are listed below. These evaluations are relative and may change each time a new receiver is added to the database.


    OVERALL
    91

    Amplifier

    EXCELLENT
    91

    We give Onkyo TX-RZ830 a score of 91 for Amplifier features.

    •   9.2 Channels
    •   High Power Output - 120 W
    •   THX™ Certification

    Audio Features

    EXCELLENT
    89

    We give Onkyo TX-RZ830 a score of 89 for Audio Features features.

    •   9.2 Channels
    •   No Front Wide Channel Support
    •   11.1 Channel Processing
    •   Dolby Atmos
    •   No Dolby Atmos Height Virtualization
    •   DTS:X
    •   No IMAX Enhanced
    •   No Auro 3D with Auro-Matic Upmixer
    •   DSD via HDMI

    Video Features

    EXCELLENT
    94

    We give Onkyo TX-RZ830 a score of 94 for Video Features features.

    •   HDR10
    •   No HDR10+
    •   Dolby Vision
    •   No 8K Passthrough
    •   Analog To HDMI Upconversion

    Connectivity

    EXCELLENT
    88

    We give Onkyo TX-RZ830 a score of 88 for Connectivity features.

    •   No eARC
    •   New HDCP Version
    •   Wi-Fi
    •   Bluetooth
    •   Does not Work with Amazon Alexa
    •   Chromecast Built-In
    •   7 HDMI Inputs
    •   3 HDMI Outputs
    •   0 8K Input
    •   USB Input
    •   Many RCA Line Inputs
    •   Phono Input
    •   RCA Pre-Outs
    •   Composite Video Inputs
    •   Component Video Inputs
    •   Ethernet
    •   Bluetooth 4․1 + LE

    Zones

    EXCELLENT
    91

    We give Onkyo TX-RZ830 a score of 91 for Zones features.

    •   3 Zones

    Radio

    EXCELLENT
    90

    We give Onkyo TX-RZ830 a score of 90 for Radio features.

    •   Analog Tuner
    •   No Pandora
    •   Spotify
    •   Tidal

    14. Specifications

    GENERAL
    BrandOnkyo
    ModelTX-RZ830
    TypeA/V Receiver
    CountryEurope
    Release Year2018
    PredecessorOnkyo TX-RZ820
    SuccessorOnkyo TX-RZ840
    AMPLIFIER
    Channels9.2
    Power Output120 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
    Front Wide Channel Support
    Dynamic Audio Amplification
    Non-Phase Shift Amplifier
    VLSC (Vector Linear Shaping Circuitry) Front L/R Channels
    THX™ Certification Select™ (previously known as Select2)
    Continuous 6 Ω Rated
    Certified 4 Ω Performance
    Discrete Output Stage Circuitry
    Independent Block Construction (Amp/Preprocessor)
    Bi-amp Capability
    BTL (Bridged Transless or Bridging)
    AUDIO FEATURES
    Digital Signal Processing (DSP) Engine32-bit Digital Signal Processing Engines
    DACAKM AK4458
    DAC Specs384 kHz/32 Bit
    Maximum Channel Processing11.1
    Air Studios Monitor Certification
    Dolby Atmos
    Dolby Atmos Height Virtualization
    Dolby Atmos Music
    Dolby TrueHD
    Dolby Digital Plus
    Dolby Surround Upmixer
    Dolby Pro Logic
    Dolby Digital EX
    THX Listening Modes
    DTS:X
    DTS Neural:X
    DTS Virtual:X
    DTS Neo
    DTS-HD Master Audio
    DTS-HD High Resolution Audio
    DTS 96/24
    DTS Express
    DTS-ES
    IMAX Enhanced
    Auro 3D with Auro-Matic Upmixer
    PCM 2-ch/Multi-ch Input
    Network Audio FormatsFLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, MPEG-4 AAC, LPCM
    Music Playback via USBFLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, AAC, Dolby TrueHD
    High Resolution Music Playback via USB and/or Network up to 192 kHz
    High Resolution Audio Formats via USBFLAC, WAV, Apple Lossless, DSD, AIFF, AAC, Dolby TrueHD
    Gapless Playback
    DSD via HDMI 2-ch/Multi-ch Input
    DSD via USB 2-ch Input
    DSD to PCM Converter
    USB DAC
    Jitter Reduction PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio
    DTS Dialogue Control
    Dialog Enhancement
    Dialog normalization
    Dialogue Lift
    Tone Control All Channels
    Compressed Music Enhancer Advanced Music Optimizer (bluetooth included)
    High-resolution Music Enhancer
    THX Processing Mode
    Audyssey Dynamic EQ
    Audyssey Dynamic Volume
    Audyssey LFC
    Audyssey Sub EQ HT
    Audyssey DSX
    Direct Mode
    Pure Audio Mode
    Pure Direct Analog Path Mode
    Virtual Speakers T-D (Theater-Dimensional)
    CALIBRATION
    Auto Speaker Calibration System with Mic. AccuEQ Advance with AccuReflex™
    VIDEO FEATURES
    HDR10
    HDR10+
    Dynamic HDR
    BT.2020 color space
    Dolby Vision
    HLG (Hybrid Log Gamma)
    HDBaseT Compatible
    Enhanced Audio Return Channel (eARC)
    HDCP Version2.2
    QMS (Quick Media Switching)
    ALLM (Auto Low Latency Mode)
    VRR (Variable Refresh Rate)
    QFT (Quick Frame transport)
    3-D Ready
    Video Signal Passthroughup to 4K/60p (RGB/YCbCr4:4:4)
    Video Signal Upscaling
    Analog To HDMI Upconversion Component**, Composite
    Component Video Upscaling
    Analog to Analog Video conversion
    Component Video Maximum Resolution480i/576i
    isf Certified Calibration Control
    CONNECTIVITY
    Wi-Fi
    Bluetooth SBC, AAC
    Works with Amazon Alexa
    Chromecast Built-In
    Works with SonoS requires firmware update & Sonos Connect
    DTS Play-Fi via Onkyo Music Control app
    MHL Input
    AirPlay AirPlay 2 after firmware update
    Apple Product Connection iPod, iPhone and iPad
    Remote AppOnkyo Onkyo Controller and Music Control apps
    InstaPrevue Input Source Prevue
    TERMINALS
    HDMI Inputs7 (1 front)
    HDMI Outputs2 (1 Main, 1 Sub/Zone2)
    8K Inputs
    USB Input1 (Rear)
    USB DC Out Port
    Optical Inputs2
    Optical Outputs
    Coaxial Inputs1
    RCA Line Inputs6
    RCA Line Outputs
    XLR Line Inputs
    Phono Input
    Multi-Channel Input
    RCA Pre-Outs11.2
    XLR Pre-outs
    Composite Video Inputs2
    Composite Video Outputs
    S-Video Inputs
    S-Video Outputs
    Component Video Inputs2
    Component Video Outputs
    Ethernet
    Ethernet Switch
    PC In
    Front A/V InputsHDMI
    Speaker A/B
    Headphone Out6.3 mm (1/4")
    Detachable Power Cord
    uport
    ZONES
    Number of Zones3
    Powered Zones 2 and 3
    Zone 2 OutsHDMI, RCA Pre/Line Out
    Zone 3 OutsRCA Pre/Line Out
    Whole House Mode
    RS-232C Interface
    +12V Trigger Output1 (MAIN, 100 mA)
    Remote (IR) Input/Output1 / 0
    MISCELLANEOUS
    On-Screen Display Graphical User Interface with Overlaid On-Screen Display (OSD) via HDMI
    GUI Languages9
    ONKYO-RI System Control
    RIHD (Remote Interactive Over HDMI)
    Smart Grid-Ready
    RADIO
    Analog Tuner FM/AM with RDS
    Presets40
    Digital Radio
    Internet Radio TuneIn
    Pandora
    Spotify
    Tidal
    Deezer
    Napster
    SiriusXM
    CONSTRUCTION
    Solid Aluminum Front
    Speaker Terminals11
    Large Speaker Terminals11
    Color-Coded Speaker Terminals
    Transparent High-Grade Speaker Terminals
    Gold plated RCA terminals
    POWER
    Power SupplyAC 220-240 V, 50/60 Hz
    H.C.P.S. (High Current Power Supply) Customized Transformer
    Toroidal Transformer
    Power Consumption870 W
    Standby Power0.15 W
    ECO Mode / Hybrid Standby Function
    PHYSICAL
    Dimensions (W x H x D)435 mm x 201.5 mm x 398 mm
    17-1/8" x 7-15/16" x 15-11/16"
    Weight14 kg (30.9 lbs)
    SPECIFICATIONS
    Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)180 W (1% THD)
    Dynamic Power per Channel (3 Ω, Front)250 W
    Dynamic Power per Channel (4 Ω, Front)220 W
    Dynamic Power per Channel (8 Ω, Front)130 W
    THD0.08% (20 Hz - 20 kHz, Half power)
    Input Sensitivity and Impedance (Line)200 mV/47 kΩ
    Input Sensitivity and Impedance (Phono MM)3.5 mV/47 kΩ
    Rated Preout Level and Impedance1 V/470 Ω
    Rated Headphone Power Output85 mW (32 Ω, 1 kHz, 10% THD)
    Phono Overload70 mV (MM, 1 kHz 0.5%)
    S/N Ratio (Line, IHF-A)106 dB
    S/N Ratio (Phono MM, IHF-A)80 dB
    Frequency Response (Analog In)5 Hz - 100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
    DSD Sampling Rates via HDMI2.8 MHz
    DSD Sampling Rates via USB2.8 MHz, 5.6 MHz, 11.2 MHz
    Video Input Sensitivity/Output Level and Impedance 1 Vp-p/75 Ω (Component Y)
    0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
    1 Vp-p/75 Ω (Composite)
    Ethernet Standard10BASE-T/100BASE-TX
    Wi-Fi StandardIEEE 802.11 a/b/g/n
    Wi-Fi Terminal Frequency5 GHz, 2.4 GHz
    Bluetooth Version4․1 + LE
    Bluetooth Frequency2.4 GHz
    USB TerminalVer. 2.0, 5 V, 1 A
    FM Frequency87.5 MHz - 108.0 MHz
    FM 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)Mono: 1.56 µV (15.0 dBf)
    AM Frequency522/530 kHz - 1611/1710 kHz
    Warranty3 Years

    * - 480i/576i and 480p/576p only
    ** - 480i/576i only
    *** - no 1080p/24 upconversion
    **** - 1080p signal is not converted

    Discussion

    Amazon Affiliate Disclosure
    ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
