Onkyo TX-RZ800 Review and Specs

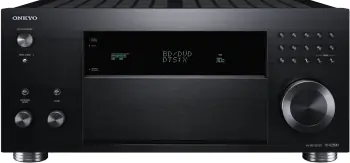

Onkyo TX-RZ800 (USA version)

SCORE:
58

Highlights

  • 135 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
  • THX Select™2 Plus certified
  • Dolby Atmos, DTS:X capable
  • HDR10, 4K Passthrough
  • AirPlay, DLNA
  • Ethernet, Wi-Fi, Bluetooth
  • USB and Phono inputs

Disclosure: We earn money from the affiliate links to products associated with content in this article.

Onkyo TX-RZ800 Overview

Onkyo TX-RZ800 was introduced in 2015. It is equipped with 7 channel amplifier and is capable of 7.1 maximum channel processing.

We evaluated the Receiver and gave 58 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

AMPLIFIER
79
VIDEO FEATURES
35
AUDIO FEATURES
52
CONNECTIVITY
56
MULTIZONE
62
MISCELLANEOUS
48
RADIO
76
OVERALL
58

Amplifier score is based on power ratings, minimum impedance load, power supply, transformer type, total harmonic distortion, damping factor, signal to noise ratio and other small details. Audio score depends on the number of channels, front wide channel support, maximum channel processing, support of audio formats, DAC specifications, room calibration algorithm... Video score is based on HDR, Dolby Vision and video signal passthrough and upscaling, analog to HDMI upconversion. Connectivity score is defined from all wired and wireless inputs and outputs, internet and bluetooth connections, HEOS, SONOS and others. Multizone score depends on the number of zones with their outputs. Radio score is evaluated form digital radio support and analog tuner with its frequency range, signal to noise ratio, harmonic distortion...

Pros and Cons

In this section we present pros and cons of Onkyo TX-RZ800.

PROS
Dolby Atmos 👍
DTS:X 👍
DTS Neural:X 👍
DSD via HDMI 👍
DSD via USB 👍
DTS Dialog Control 👍
HDR10 👍
4K or 8K Video Passthrough 👍
DLNA 1.5 👍
Ethernet 👍
Wi-Fi 👍
Bluetooth 👍
New HDCP Version 👍
Many HDMI Inputs 👍
USB Input 👍
Many Analog Audio Line Inputs 👍
Phono Input 👍
Composite Video Inputs 👍
Component Video Inputs 👍
Analog Pre-Outs 👍
Zones 👍
Analog Tuner 👍
Internet Radio 👍
Pandora 👍
Spotify 👍
Deezer 👍
SiriusXM Internet Radio 👍
CONS
No Front Wide Channel Support 👎
No Dolby Atmos Height Virtualization 👎
No DTS Virtual:X 👎
No IMAX Enhanced 👎
No Auro 3D with Auro-Matic Upmixer 👎
No Audyssey Dynamic EQ 👎
No Audyssey Dynamic Volume 👎
No Audyssey LFC 👎
No Audyssey Sub EQ HT 👎
No HDR10+ 👎
No Dynamic HDR 👎
No Dolby Vision 👎
No Auto Low Latency Mode Pass-through 👎
No VRR 👎
No QFT 👎
No 4K or 8K Video Upscaling 👎
No MHL Input 👎
No FireConnect 👎
No FlareConnect 👎
No Chromecast Built-In 👎
No DTS Play-Fi 👎
Does not Work with Amazon Alexa 👎
Does Not Work with SONOS 👎
No eARC 👎
No Multi-Channel Input 👎
No Tidal 👎
No Napster 👎
No Toroidal Transformer 👎
Old Bluetooth Version 👎

Major Changes from its predecessor

Here we are comparing Onkyo TX-RZ800 to its predecessor TX-NR838 and displaying the major changes.

UPGRADES Onkyo TX-RZ800 Onkyo TX-NR838
Independent Block Construction (Amp/Preprocessor)
Dolby Surround Upmixer
DTS:X
DTS Neural:X
DTS Dialog Control
More Advanced Auto Speaker Calibration System Advanced AccuEQ AccuEQ
HDR10
BT.2020 color space
AirPlay AirPlay AirPlay via optional Onkyo RI Dock DS-A5 (sold separately)
More HDMI Inputs 8 (1 front) 7 (1 front)
More Analog Audio Line Inputs 8 7 (1 front)
More Analog Audio Line Outputs 1
More Optical Inputs 3 2
More Component Video Inputs 2 1
Deezer
Higher DSD Sampling Rate via USB 2.8 MHz 2.8 MHz

DOWNGRADES Onkyo TX-RZ800 Onkyo TX-NR838
Front Wide Channel Support
Video Signal Upscaling up to 4K/30p (Marvell Qdeo)
MHL Input Front HDMI
Less Coaxial Inputs/Outputs 2 / No 3 / No
Less Composite Video Inputs 3 4 (1 front)
Smaller Power Supply 7.8 A 8.1 A

For more detailed comparison between the models please visit Onkyo TX-RZ800 vs Onkyo TX-NR838.

Selected Features

Amplifier

Onkyo TX-RZ800 has 7 channel amplifier and delivers 135 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and also has a stable performance at 4 Ω load.


Video Features

The Receiver has 4K passthrough up to 60p. It can bypass HDR10.


HDR10

High-dynamic-range (HDR) video has greater dynamic range than standard-dynamic-range (SDR) video with brigter whites and deeper blacks. HDR10 was announced on August 27, 2015, by the Consumer Technology Association and uses the wide-gamut Rec. 2020 color space. It sends static metadata via video stream to the TV which calibrates its screen brightness and color according to that. HDR10 supports up to 1000 nits of brightness and 10-bit color which corresponds to 1024 shades of the primary RGB colors.


Dolby Atmos and Dolby Surround upmixer

Onkyo TX-RZ800 supports Dolby Atmos with its Dolby Surround upmixer. It can be configured upto 5.1.2 channels using internal amplifiers.

Dolby Atmos is the first cinematic audio format in which sounds exist as individual entities, called audio objects. In Dolby Atmos, any sound - the helicopter, a car screeching around a corner, a melodic bird call - can exist as an independent audio object, free of channel restrictions. They can be precisely placed and moved anywhere in your room, including overhead, to flow above and around you in three-dimensional space. Through the use of audio objects, overhead sound, and all the richness, clarity, and power of Dolby sound, Dolby Atmos turns your room into an amazing place for entertainment. You'll feel like you're inside the action, in ways you've never experienced before.

Dolby Atmos for the home represents every sound in the original cinema mix as an audio object. Extensions to the Dolby Audio™ codecs, along with an advanced scalable algorithm, allow Dolby Atmos to be delivered via Blu-ray Disc and streaming media. A spatially-coded substream is added to Dolby TrueHD or Dolby Digital Plus. A Dolby Atmos audio/video receiver (AVR) adapts the cinema experience to your home theater from seven speakers to as many as 34 in 24.1.10 configuration, recreating the original artistic concept. The format supports up to 128 simultaneous independent audio objects in a mix for rich, realistic, and breathtaking sound. It recreates the director's original concept through descriptive metadata to provide customized playback for home theater and delivers sounds above you through overhead speakers, special upward-firing Dolby Atmos speakers, or a Dolby Atmos enabled sound bar.

If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.


DTS:X and Neural:X upmixer

Onkyo TX-RZ800 supports DTS:X with its Neural:X upmixer. It can be configured upto 5.1.2 channels using internal amplifiers.

A technique used in DTS:X is similar to the one used in Dolby Atmos. Instead of a fixed number of channels, DTS:X defines object locations from the listener in polar coordinates. An a/v receiver then dynamically renders sound according to the current speaker configuration. The speaker layout employed by DTS:X is the sum of Dolby Atmos and Auro-3D. It has standard 7.1 channel base layer, a 5 channel height layer above the base layer on the front and side walls, and 3 rows of speakers on the ceiling.

DTS Neural:X is a new upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.


WRAT

Onkyo TX-RZ800 features Onkyo’s Wide Range Amp Technology (WRAT) circuit layout that prevents phase shifting by pushing the roll-off point higher than the listening-level frequency. Amplifying sound without phase shift creates an uncommonly well-focused and realistic audio image. If phase shift occurs and signal timing is not accurate, then neither is the resulting audio image.


THX™ Certification

Onkyo TX-RZ800 is THX™ certified which offers optimal performance, superior quality and seamless integration. THX works with partners from the ground up, so that certified products deliver professional quality audio-visual experiences right out of the box. They only certify the very best products with uncompromised quality, performance and consistency. They ensure that THX certified devices play well with lower performing devices and components. THX listening modes make the receiver to have one speaker set up for movies, music and games. They are tested for power output, bass management, signal-to-noise ratio and feature RE-EQ, timbre matching, boundary gain compensation and THX Loudness Plus. The current model has Select™2 Plus class performance. This means that it is ideally suited for a room where the screen-to-seat viewing distance is approximately 3 to 4 meters, and the room size is approximately 56 cubic meters.


Advanced Music Optimizer

Compressed music enhancement in Onkyo TX-RZ800 is done by Onkyo’s Advanced Music Optimizer. While MP3 or AAC files may sound fine through the headphones of your portable digital player, the limitations of these files can be exposed when played back through a quality home entertainment system. This is because a significant amount of high-frequency bit information is lost during the file-compression process. To counter this, Onkyo has designed the Advanced Music Optimizer to compensate for lost bit information and improve the quality of compressed audio signals. This results in a clearer and more expansive sound. Also included in this technology is a loudness correction feature that further improves the audio character of compressed files.


Phase-Matching Bass Boost

Onkyo TX-RZ800 features Phase-Matching Bass Boost. The negative effects of phase-shift or the timing difference between sound waves of different frequencies can sometimes be heard in audio players when corners are cut in order to increase bass response. While most audio systems have some form of low-frequency enhancement system, often a bigger bass sound comes at the expense of mid-range clarity, and results in a smeared or muddy sound. Onkyo’s Phase-Matching Bass Boost technology avoids this problem by improving the phase timing to preserve the natural clarity of the mid-range allowing vocals and strings to shine while maintaining a smooth, powerful bass response at all volume levels.


Room Correction

Onkyo TX-RZ800 comes with Advanced AccuEQ room correction system and includes the calibration microphone.


Connectivity

Onkyo TX-RZ800 can be connected to internet using ethernet cable or built-in wi-fi adapter. It can also connect to bluetooth devices via built-in bluetooth adapter. The Receiver supports AirPlay. It has 8 HDMI inputs and HDCP 2.2 (5 in / 2 out) copy protection. There is a phono input with built-in phono stage for connecting the cartridge output of the turntable directly to the Receiver. There are 7.2 channel analog pre-outs for external amplification.

Front panel has HDMI input.

Image cannot be found Image cannot be found

Detailed Specifications

Here we list all the available features and specifications of Onkyo TX-RZ800.

BASICS
BrandOnkyo
ModelTX-RZ800
TypeA/V Receiver
CountryUSA
Release Year2015
AMPLIFIER
Channels7.2
Front Wide Channel Support
WRAT (Wide Range Amplifier Technology)
VLSC (Vector Linear Shaping Circuitry) All Channels
Optimum Gain Volume Circuitry
THX™ Certification Select™2 Plus
Continuous 6 Ω Rated
Certified 4 Ω Performance
Discrete Output Stage Circuitry
3-Stage Inverted Darlington Circuitry All Channels
PUSH-PULL Design
Independent Block Construction (Amp/Preprocessor)
Bi-amp Capability
BTL (Bridged Transless or Bridging)
AUDIO
Digital Signal Processing (DSP) Engine32-bit Digital Signal Processing Engines
DACAsahi Kasei AK4458
Maximum Channel Processing7.1
Air Studios Monitor Certification
Dolby Atmos
Dolby Atmos Height Virtualization
Dolby TrueHD
Dolby Digital Plus
Dolby Surround Upmixer
Dolby Pro Logic
Surround EX also known as Dolby Digital Surround EX
DTS:X
DTS Neural:X
DTS Virtual:X
DTS Neo
DTS-HD Master Audio
DTS-HD High Resolution Audio
DTS 96/24
DTS Express
DTS-ES
IMAX Enhanced
Auro 3D with Auro-Matic Upmixer
PCM 2-ch/Multi-ch Input
Music Playback via USBFLAC, WAV, Apple Lossless, WMA, WMA Lossless, Ogg, MP3, DSD, AAC, LPCM, Dolby TrueHD
High Resolution Music Playback via USB and/or Network up to 96 kHz
High Resolution Audio Formats via USBFLAC, WAV, WMA Lossless, Apple Lossless, DSD, AAC
Multi-Channel Music File Playback via USB
Gapless Playback
DSD via HDMI 2-ch/Multi-ch Input
DSD via USB 2-ch Input
DSD to PCM Converter
USB DAC
Jitter Reduction PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio
DTS Dialogue Control
Dialog Enhancement
Dialog Level Adjustment DTS:X only
Dialog Normalization
Dialogue Lift
Tone Control
Compressed Music Enhancer Advanced Music Optimizer (bluetooth included)
High-resolution Music Enhancer
THX Processing Mode
Audyssey Dynamic EQ
Audyssey Dynamic Volume
Audyssey LFC
Audyssey Sub EQ HT
Audyssey DSX
Phase-Matching Bass Boost for Deep Bass and Clear Mid-Range
Direct Mode
Pure Audio Mode
Pure Direct Analog Path Mode
Virtual Speakers T-D (Theater-Dimensional)
Independent Dual Subwoofer Output
CALIBRATION
Auto Speaker Calibration System with Mic. Advanced AccuEQ
VIDEO
HDR10
HDR10+
Dynamic HDR
BT.2020 color space
Dolby Vision
Hybrid Log Gamma (HLG)
Quick Media Switching (QMS)
Auto Low Latency Mode (ALLM)
Variable Refresh Rate (VRR)
Quick Frame Transport (QFT)
3-D Ready
Video Signal Passthroughup to 4K/60p (RGB/YCbCr4:4:4/YCbCr4:2:2, 24 bit)
Video Signal Upscaling
Analog To HDMI Upconversion Component**, Composite
Component Video Upscaling
Analog to Analog Video conversion
Component Video Maximum Resolution1080i
isf Certified Calibration Control
CONNECTIVITY
MHL Input
DLNA 1.5
FireConnect
FlareConnect
Chromecast Built-In
DTS Play-Fi
Works with Amazon Alexa
Works with SONOS
AirPlay AirPlay
Apple Product Connection iPod, iPhone and iPad
Remote AppOnkyo Remote App for iPod touch/iPhone and Android-Powered Devices
InstaPrevue Input Source Prevue
Ethernet
Ethernet Switch
Wi-Fi
Bluetooth
HDBaseT Compatible
Enhanced Audio Return Channel (eARC)
HDCP Version2.2 (5 in / 2 out)
HDMI Inputs8 (1 front)
HDMI Outputs2 (1 Main, 1 Sub/Zone2)
USB Input1 (Rear)
USB DC Out Port
Analog Audio Line Inputs8
Analog Audio Line Outputs1
Phono Input
Optical Inputs3
Optical Outputs
Coaxial Inputs/Outputs2 / No
Composite Video Inputs3
Composite Video Outputs1
S-Video Inputs
S-Video Outputs
Component Video Inputs2
Component Video Outputs1
PC In
Multi-Channel Input
Analog Pre-Outs7.2
XLR Inputs
XLR Pre-outs
Front A/V InputsHDMI
Speaker A/B
Headphone Out 6.3 mm
ZONES
Zones3
Powered Zones 2
Zone 2 OutsHDMI, RCA Pre/Line Out
Zone 3 OutsRCA Line Out
Whole House Mode
RS-232 Interface
+12V Trigger Output1 (MAIN, 100 mA)
Remote (IR) Input/Output1 / 0
MISC
On-Screen Display Graphical Overlaid On-Screen Display (OSD) via HDMI
Detachable Power Cord
uport
ONKYO-RI System Control
RIHD (Remote Interactive Over HDMI)
Pre-Pro/Learning Remote / No
On Screen Remote Programming
Smart Grid-Ready
RADIO
Analog Tuner FM/AM
Presets40
Digital Radio
Internet Radio TuneIn
Pandora
Spotify
Tidal
Deezer
Napster
SiriusXM Internet Radio
CONSTRUCTION
Solid Aluminum Front
Speaker Terminals11
Large Speaker Terminals11
Color-Coded Speaker Terminals
Transparent High-Grade Speaker Terminals
18mm Pitch High Grade Pre-outs
19mm-Pitch Audio Inputs
Gold plated RCA terminals
POWER
Power SupplyAC 120 V, 60 Hz
Independent Power Supply2
H.C.P.S. (High Current Power Supply) Massive High Power Transformer
Toroidal Transformer
Power Consumption7.8 A
No Sound Power90 W
Standby Power0.15 W
GENERAL
ECO Mode / Hybrid Standby Function
Dimensions (W x H x D)435 mm x 201 mm x 433.5 mm
17-1/8" x 7-15/16" x 17-1/16"
Weight17.0 kg (37.5 lbs)
Warranty2 Years
SPECS
Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)135 W (0.08% THD)
Power Output (6 Ω, 1 kHz, 1 channel driven, FTC)185 W (0.9% THD)
Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA or IEC)215 W
Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)185 W (1% THD)
Dynamic Power per Channel (3 Ω, Front)300 W
Dynamic Power per Channel (4 Ω, Front)250 W
Dynamic Power per Channel (8 Ω, Front)150 W
THD0.08% (20 Hz - 20 kHz, Half power)
Damping Factor40 (Front, 1 kHz, 8 Ω)
Input Sensitivity and Impedance (Line)200 mV/47 kΩ (1 kHz, 100 W/8 Ω)
Input Sensitivity and Impedance (Phono MM)3.5 mV/47 kΩ
Rated Preout Level and Impedance1 V/470 Ω
Phono Overload70 mV (MM, 1 kHz 0.5% Direct)
S/N Ratio (Line, IHF-A)106 dB
S/N Ratio (Phono MM, IHF-A)80 dB
Frequency Response (Analog In)10 Hz - 100 kHz/+1 dB, -3 dB (Direct)
DSD Sampling Rates via HDMI2.8 MHz, 5.6 MHz
DSD Sampling Rates via USB2.8 MHz
Video Input Sensitivity/Output Level and Impedance 1 Vp-p/75 Ω (Component Y)
0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
1 Vp-p/75 Ω (Composite)
Video Frequency Response5 Hz - 100 MHz/+0 dB, -3 dB (Component)
Ethernet Standard10BASE-T/100BASE-TX
Wi-Fi StandardIEEE 802.11 b/g/n
Wi-Fi Terminal Frequency2.4 GHz
Bluetooth Version2.1 + EDR
Bluetooth Frequency2.4 GHz
USB TerminalVer. 1.1, 5 V, 1 A
FM Frequency87.5 MHz - 107.9 MHz
AM Frequency522/530 kHz - 1611/1710 kHz

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted

Successor

In 2016 Onkyo TX-RZ800 was replaced by TX-RZ810. Let us now have a look at some important changes that the successor brought.


UPGRADES Onkyo TX-RZ810 Onkyo TX-RZ800
Higher Resolution Music Playback via USB up to 192 kHz up to 96 kHz
Dolby Vision
Video Signal Upscaling 1080p to 4K
FireConnect
FlareConnect
Chromecast Built-In
DTS Play-Fi
Tidal
Higher DSD Sampling Rate via USB 2.8 MHz, 5.6 MHz, 11.2 MHz 2.8 MHz
Wi-Fi Standard IEEE 802.11 a/b/g/n IEEE 802.11 b/g/n
Newer Bluetooth Version 4.1 + LE 2.1 + EDR

DOWNGRADES Onkyo TX-RZ810 Onkyo TX-RZ800
Independent Block Construction (Amp/Preprocessor)
Less Analog Audio Line Inputs 6 8
Less Analog Audio Line Outputs 1
Less Optical Inputs 2 3
Less Coaxial Inputs/Outputs 1 / No 2 / No
Less Composite Video Inputs 2 3
Less Composite Video Outputs 1
Less Component Video Outputs 1
SiriusXM Internet Radio

For more detailed comparison between the models please visit Onkyo TX-RZ810 vs Onkyo TX-RZ800.

Amazon Affiliate Disclosure

ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
