Onkyo TX-NR838 Review and Specs
image not found

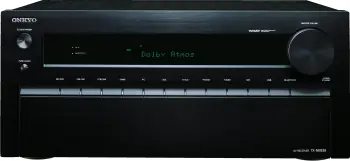

Onkyo TX-NR838 (Others version)

SCORE:
86

Highlights

  • 7.2 channels
  • 130 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
  • THX Selectβ„’2 Plus certified
  • Dolby Atmos capable
  • 4K Upscaling, 4K Passthrough
  • AirPlay via optional Onkyo RI Dock DS-A5 (sold separately), DLNA
  • Ethernet, Wi-Fi, Bluetooth
  • USB and Phono inputs

Disclosure: We earn money from the affiliate links to products associated with content in this article.

Onkyo TX-NR838 Overview

Onkyo TX-NR838 was introduced in 2014. It is equipped with 7 channel amplifier and is capable of 7.1 maximum channel processing.

We evaluated the Receiver and gave 86 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

AMPLIFIER
94
VIDEO FEATURES
77
AUDIO FEATURES
84
CONNECTIVITY
87
MULTIZONE
88
MISCELLANEOUS
78
RADIO
88
OVERALL
86

Amplifier score is based on power ratings, minimum impedance load, power supply, transformer type, total harmonic distortion, damping factor, signal to noise ratio and other small details. Audio score depends on the number of channels, front wide channel support, maximum channel processing, support of audio formats, DAC specifications, room calibration algorithm... Video score is based on HDR, Dolby Vision and video signal passthrough and upscaling, analog to HDMI upconversion. Connectivity score is defined from all wired and wireless inputs and outputs, internet and bluetooth connections, HEOS, SONOS and others. Multizone score depends on the number of zones with their outputs. Radio score is evaluated form digital radio support and analog tuner with its frequency range, signal to noise ratio, harmonic distortion...

Pros and Cons

In this section we present pros and cons of Onkyo TX-NR838.

PROS
Front Wide Channel Support πŸ‘
THXβ„’ Certification πŸ‘
Certified 4 Ω Performance πŸ‘
Bi-amp Capability πŸ‘
Dolby Atmos πŸ‘
Dolby TrueHD πŸ‘
Dolby Digital Plus πŸ‘
Dolby Pro Logic πŸ‘
Surround EX πŸ‘
DTS Neo πŸ‘
DTS-HD Master Audio πŸ‘
DTS-HD High Resolution Audio πŸ‘
DTS 96/24 πŸ‘
DTS Express πŸ‘
DTS-ES πŸ‘
High Resolution Music Playback via USB and/or Network πŸ‘
Gapless Playback πŸ‘
DSD via HDMI πŸ‘
DSD via USB πŸ‘
Dialog Normalization πŸ‘
Compressed Music Enhancer πŸ‘
THX Processing Mode πŸ‘
Phase-Matching Bass Boost πŸ‘
Auto Speaker Calibration System with Mic. πŸ‘
3-D Ready πŸ‘
4K or 8K Video Passthrough πŸ‘
4K or 8K Signal Upscaling πŸ‘
Analog To HDMI Upconversion πŸ‘
MHL Input πŸ‘
DLNA 1.5 πŸ‘
Ethernet πŸ‘
Wi-Fi πŸ‘
Bluetooth πŸ‘
New HDCP Version πŸ‘
Many HDMI Inputs πŸ‘
USB Input πŸ‘
Many Analog Audio Line Inputs πŸ‘
Phono Input πŸ‘
Composite Video Inputs πŸ‘
Composite Video Outputs πŸ‘
Component Video Inputs πŸ‘
Component Video Outputs πŸ‘
Analog Pre-Outs πŸ‘
Zones πŸ‘
Detachable Power Cord πŸ‘
Analog Tuner πŸ‘
Pandora πŸ‘
Spotify πŸ‘
Independent Power Supply πŸ‘
H.C.P.S. (High Current Power Supply) πŸ‘
CONS
No Dolby Atmos Height Virtualization πŸ‘Ž
No Dolby Surround Upmixer πŸ‘Ž
No DTS:X πŸ‘Ž
No DTS Neural:X πŸ‘Ž
No DTS Virtual:X πŸ‘Ž
No IMAX Enhanced πŸ‘Ž
No Auro 3D with Auro-Matic Upmixer πŸ‘Ž
No DTS Dialog Control πŸ‘Ž
No High-resolution Music Enhancer πŸ‘Ž
No HDR10 πŸ‘Ž
No HDR10+ πŸ‘Ž
No BT.2020 color space πŸ‘Ž
No Dolby Vision πŸ‘Ž
No Hybrid Log Gamma (HLG) πŸ‘Ž
No Chromecast Built-In πŸ‘Ž
Does not Work with Amazon Alexa πŸ‘Ž
Does Not Work with SONOS πŸ‘Ž
No eARC πŸ‘Ž
No Multi-Channel Input πŸ‘Ž
No Tidal πŸ‘Ž
No Deezer πŸ‘Ž
No Napster πŸ‘Ž
No SiriusXM Internet Radio πŸ‘Ž
Old Bluetooth Version πŸ‘Ž

Major Changes from its predecessor

Here we are comparing Onkyo TX-NR838 to its predecessor TX-NR828 and displaying the major changes.

UPGRADES Onkyo TX-NR838 Onkyo TX-NR828
Dolby Atmos βœ” up to with firmware update βœ–
Gapless Playback βœ” βœ–
Video Signal Passthrough up to 4K/60p (YCbCr 4:2:0) up to 4K/30p
More HDMI Outputs 2 (1 Main, 1 Sub/Zone2) 2 (simultaneous)

DOWNGRADES Onkyo TX-NR838 Onkyo TX-NR828
High Resolution Music Playback via USB βœ” up to 96 kHz βœ” up to 192 kHz
Audyssey Dynamic EQ βœ– βœ”
Audyssey Dynamic Volume βœ– βœ”
Audyssey DSX βœ– βœ”
Less HDMI Inputs 7 (1 front) 8 (1 front)
Less Composite Video Inputs 4 (1 front) 5 (1 front)
Less Component Video Inputs 1 2

For more detailed comparison between the models please visit Onkyo TX-NR838 vs Onkyo TX-NR828.

Selected Features

Amplifier

Onkyo TX-NR838 has 7 channel amplifier and delivers 130 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and also has a stable performance at 4 Ω load. This receiver even supports front wide channels which is found only in a very few high-end receivers these days.


Video Features

The Receiver has 4K passthrough up to 60p and 4K upscaling up to 30p.


Dolby Atmos and Dolby Surround upmixer

Onkyo TX-NR838 supports Dolby Atmos. It can be configured upto 5.1.2 channels using internal amplifiers.

Dolby Atmos is the first cinematic audio format in which sounds exist as individual entities, called audio objects. In Dolby Atmos, any sound - the helicopter, a car screeching around a corner, a melodic bird call - can exist as an independent audio object, free of channel restrictions. They can be precisely placed and moved anywhere in your room, including overhead, to flow above and around you in three-dimensional space. Through the use of audio objects, overhead sound, and all the richness, clarity, and power of Dolby sound, Dolby Atmos turns your room into an amazing place for entertainment. You'll feel like you're inside the action, in ways you've never experienced before.

Dolby Atmos for the home represents every sound in the original cinema mix as an audio object. Extensions to the Dolby Audioβ„’ codecs, along with an advanced scalable algorithm, allow Dolby Atmos to be delivered via Blu-ray Disc and streaming media. A spatially-coded substream is added to Dolby TrueHD or Dolby Digital Plus. A Dolby Atmos audio/video receiver (AVR) adapts the cinema experience to your home theater from seven speakers to as many as 34 in 24.1.10 configuration, recreating the original artistic concept. The format supports up to 128 simultaneous independent audio objects in a mix for rich, realistic, and breathtaking sound. It recreates the director's original concept through descriptive metadata to provide customized playback for home theater and delivers sounds above you through overhead speakers, special upward-firing Dolby Atmos speakers, or a Dolby Atmos enabled sound bar.

If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.


WRAT

Onkyo TX-NR838 features Onkyo’s Wide Range Amp Technology (WRAT) circuit layout that prevents phase shifting by pushing the roll-off point higher than the listening-level frequency. Amplifying sound without phase shift creates an uncommonly well-focused and realistic audio image. If phase shift occurs and signal timing is not accurate, then neither is the resulting audio image.


THXβ„’ Certification

Onkyo TX-NR838 is THXβ„’ certified which offers optimal performance, superior quality and seamless integration. THX works with partners from the ground up, so that certified products deliver professional quality audio-visual experiences right out of the box. They only certify the very best products with uncompromised quality, performance and consistency. They ensure that THX certified devices play well with lower performing devices and components. THX listening modes make the receiver to have one speaker set up for movies, music and games. They are tested for power output, bass management, signal-to-noise ratio and feature RE-EQ, timbre matching, boundary gain compensation and THX Loudness Plus. The current model has[y] Selectβ„’2 Plus class performance. This means that it is ideally suited for a room where the screen-to-seat viewing distance is approximately 3 to 4 meters, and the room size is approximately 56 cubic meters.


Advanced Music Optimizer

Compressed music enhancement in Onkyo TX-NR838 is done by Onkyo’s Advanced Music Optimizer. While MP3 or AAC files may sound fine through the headphones of your portable digital player, the limitations of these files can be exposed when played back through a quality home entertainment system. This is because a significant amount of high-frequency bit information is lost during the file-compression process. To counter this, Onkyo has designed the Advanced Music Optimizer to compensate for lost bit information and improve the quality of compressed audio signals. This results in a clearer and more expansive sound. Also included in this technology is a loudness correction feature that further improves the audio character of compressed files.


Phase-Matching Bass Boost

Onkyo TX-NR838 features Phase-Matching Bass Boost. The negative effects of phase-shift or the timing difference between sound waves of different frequencies can sometimes be heard in audio players when corners are cut in order to increase bass response. While most audio systems have some form of low-frequency enhancement system, often a bigger bass sound comes at the expense of mid-range clarity, and results in a smeared or muddy sound. Onkyo’s Phase-Matching Bass Boost technology avoids this problem by improving the phase timing to preserve the natural clarity of the mid-range allowing vocals and strings to shine while maintaining a smooth, powerful bass response at all volume levels.


Room Correction

Onkyo TX-NR838 comes with[y] AccuEQ room correction system and includes the calibration microphone.


Connectivity

Onkyo TX-NR838 can be connected to internet using ethernet cable or built-in wi-fi adapter. It can also connect to bluetooth devices via built-in bluetooth adapter. The Receiver supports[y] AirPlay via optional Onkyo RI Dock DS-A5 (sold separately). It has 7 HDMI inputs and HDCP 2.2 copy protection. There is a phono input with built-in phono stage for connecting the cartridge output of the turntable directly to the Receiver. There are 7.2 channel analog pre-outs for external amplification.

Front panel has HDMI/MHL, USB, Composite Video and RCA Audio inputs.

Image cannot be found Image cannot be found

Detailed Specifications

Here we list all the available features and specifications of Onkyo TX-NR838.

BASICS
BrandOnkyo
ModelTX-NR838
TypeA/V Receiver
CountryOthers
Release Year2014
AMPLIFIER
Channels7.2
Front Wide Channel Supportβœ”
WRAT (Wide Range Amplifier Technology)βœ”
VLSC (Vector Linear Shaping Circuitry)βœ–
Optimum Gain Volume Circuitryβœ”
THXβ„’ Certificationβœ” Selectβ„’2 Plus
Continuous 6 Ω Ratedβœ”
Certified 4 Ω Performanceβœ”
Discrete Output Stage Circuitryβœ”
3-Stage Inverted Darlington Circuitryβœ” All Channels
PUSH-PULL Designβœ”
Independent Block Construction (Amp/Preprocessor)βœ–
Bi-amp Capabilityβœ”
BTL (Bridged Transless or Bridging)βœ–
AUDIO
Digital Signal Processing (DSP) EngineDual 32-bit DSP for Powerful Advanced Processing
DACBurr-Brown
Maximum Channel Processing7.1
Air Studios Monitor Certificationβœ–
Dolby Atmosβœ” up to with firmware update
Dolby Atmos Height Virtualizationβœ–
Dolby TrueHDβœ”
Dolby Digital Plusβœ”
Dolby Surround Upmixerβœ–
Dolby Pro Logicβœ” PLIIz
Surround EXβœ” also known as Dolby Digital Surround EX
DTS:Xβœ–
DTS Neural:Xβœ–
DTS Virtual:Xβœ–
DTS Neoβœ” Neo:6
DTS-HD Master Audioβœ”
DTS-HD High Resolution Audioβœ”
DTS 96/24βœ”
DTS Expressβœ”
DTS-ESβœ” Discrete 6.1, Matrix 6.1
IMAX Enhancedβœ–
Auro 3D with Auro-Matic Upmixerβœ–
PCMβœ” 2-ch/Multi-ch Input
Music Playback via USBFLAC, WAV, Apple Lossless, WMA, WMA Lossless, Ogg, MP3, DSD, AAC, LPCM, Dolby TruHD
High Resolution Music Playback via USB and/or Networkβœ” up to 96 kHz
High Resolution Audio Formats via USBFLAC, WAV, WMA Lossless, Apple Lossless, DSD, AAC
Multi-Channel Music File Playback via USBβœ–
Gapless Playbackβœ”
DSD via HDMIβœ” 2-ch/Multi-ch Input
DSD via USBβœ” 2-ch Input
DSD to PCM Converterβœ–
USB DACβœ–
Jitter Reductionβœ” PLL (Phase Locked Loop) Jitter-Cleaning Circuit Techβœ– logy for S/PDIF Audio
DTS Dialog Controlβœ–
Dialog Enhancementβœ–
Dialog Level Adjustmentβœ–
Dialog Normalizationβœ”
Dialogue Liftβœ–
Tone Controlβœ” Front L/R Channels
Compressed Music Enhancerβœ” Advanced Music Optimizer (bluetooth included)
High-resolution Music Enhancerβœ–
THX Processing Modeβœ”
Audyssey Dynamic EQβœ–
Audyssey Dynamic Volumeβœ–
Audyssey LFCβœ–
Audyssey Sub EQ HTβœ–
Audyssey DSXβœ–
Phase-Matching Bass Boostβœ” for Deep Bass and Clear Mid-Range
Direct Modeβœ”
Pure Audio Modeβœ”
Pure Direct Analog Path Modeβœ”
Virtual Speakersβœ” T-D (Theater-Dimensional)
Independent Dual Subwoofer Outputβœ–
CALIBRATION
Auto Speaker Calibration System with Mic.βœ” AccuEQ
VIDEO
HDR10βœ–
HDR10+βœ–
Dynamic HDRβœ–
BT.2020 color spaceβœ–
Dolby Visionβœ–
Hybrid Log Gamma (HLG)βœ–
Quick Media Switching (QMS)βœ–
Auto Low Latency Mode Pass-throughβœ–
Variable Refresh Rate (VRR)βœ–
Quick Frame Transport (QFT)βœ–
3-D Readyβœ”
Video Signal Passthroughup to 4K/60p (YCbCr 4:2:0)
Video Signal Upscalingβœ” up to 4K/30p (Marvell Qdeo)
Analog To HDMI Upconversionβœ” Component**, Composite
Component Video Upscalingβœ–
Analog to Analog Video conversionβœ–
Component Video Maximum Resolution1080i
isf Certified Calibration Controlβœ–
CONNECTIVITY
MHL Inputβœ” Front HDMI
DLNA 1.5βœ”
FireConnectβœ–
FlareConnectβœ–
Chromecast Built-Inβœ–
DTS Play-Fiβœ–
Works with Amazon Alexaβœ–
Works with SONOSβœ–
AirPlayβœ” AirPlay via optional Onkyo RI Dock DS-A5 (sold separately)
Apple Product Connectionβœ” iPod and iPhone via optional Onkyo RI Dock DS-A5 (sold separately)
Remote AppOnkyo Remote App for iPod touch/iPhone and Android-Powered Devices
InstaPrevue Input Source Prevueβœ”
Ethernetβœ”
Ethernet Switchβœ–
Wi-Fiβœ”
Bluetoothβœ”
HDBaseT Compatibleβœ–
Enhanced ARCβœ–
HDCP Version2.2
HDMI Input7 (1 front)
HDMI Output2 (1 Main, 1 Sub/Zone2)
USB Input1 (Front)
USB DC Out Portβœ–
Analog Audio Line Input7 (1 front)
Analog Audio Line Outputβœ–
Phono Inputβœ”
Optical In2
Optical Outβœ–
Coaxial In/Out3 / βœ–
Composite Video Input4 (1 front)
Composite Video Output1
S-Video Inputβœ–
S-Video Outputβœ–
Component Video Input1
Component Video Output1
PC Inβœ–
Multi-Channel Inputβœ–
Analog Pre-Outs7.2
XLR Inputsβœ–
XLR Pre-outsβœ–
Front A/V InputsHDMI/MHL, USB, Composite Video, RCA Audio
Speaker A/Bβœ–
Headphone Outβœ” 6.3 mm
ZONES
Zones3
Powered Zonesβœ” 2
Zone 2HDMI, RCA Pre/Line Out
Zone 3 OutsRCA Pre/Line Out
Whole House Modeβœ”
RS-232βœ”
+12V Trigger Output1 (Zone2)
Remote (IR) Input/Output1 / 0
MISC
On-Screen Displayβœ” Advanced "Home" GUI
Detachable Power Cordβœ”
uportβœ–
ONKYO-RI System Controlβœ”
RIHD (Remote Interactive Over HDMI)βœ”
Pre-Pro/Learning Remoteβœ– / βœ”
On Screen Remote Programmingβœ”
Bi-directional Remote Setup via GUIβœ–
Activity Based Remoteβœ–
Smart Grid-Readyβœ”
RADIO
Analog Tunerβœ” FM/AM with RDS
Presets40
Digital Radioβœ–
Internet Radioβœ” TuneIn
Pandoraβœ”
Spotifyβœ”
Tidalβœ–
Deezerβœ–
Napsterβœ–
SiriusXM Internet Radioβœ–
CONSTRUCTION
Solid Aluminum Frontβœ”
Speaker Terminals11
Large Speaker Terminals11
Color-Coded Speaker Terminalsβœ”
Transparent High-Grade Speaker Terminalsβœ–
18mm Pitch High Grade Pre-outsβœ–
19mm-Pitch Audio Inputsβœ–
Gold plated RCA terminalsβœ–
POWER
Power SupplyAC 220-240 V, 50/60 Hz
Independent Power Supply2
H.C.P.S. (High Current Power Supply)βœ” Massive High Power Transformer
Toroidal Transformerβœ–
Power Consumption720 W
No Sound Power90 W
Standby Power0.2 W
Capacitor Bank15,000 Β΅F
GENERAL
ECO Mode / Hybrid Standby Functionβœ”
Dimensions (W x H x D)435 mm x 198.5 mm x 400 mm
17-1/8" x 7-13/16" x 15-3/4"
Weight15.5 kg (34.2 lbs)
Warranty2 Years
SPECS
Power Output (8 Ω, 20 Hz - 20 kHz, 2130 W (0.08% THD)
Power Output (6 Ω, 20 Hz - 20 kHz, 1 channel driven, JEITA)145 W (0.08% THD)
Power Output (6 Ω, 1 kHz, 2160 W (0.7% THD)
Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA)215 W
Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)180 W (1% THD)
Dynamic Power per Channel (3 Ω, Front)300 W
Dynamic Power per Channel (4 Ω, Front)250 W
Dynamic Power per Channel (8 Ω, Front)150 W
THD0.08% (20 Hz - 20 kHz, Half power)
Damping Factor60 (Front, 1 kHz, 8 Ω)
Input Sensitivity and Impedance (Line)200 mV/47 kΩ (Line)
Input Sensitivity and Impedance (Phono MM)2.5 mV/47 kΩ
Rated Preout Level and Impedance200 mV/470 Ω
Maximum Preout Level and Impedance4.6 V/470 Ω
Phono Overload70 mV (MM, 1kHz, 0.5% Direct)
S/N Ratio (Line, IHF-A)106 dB
S/N Ratio (Phono MM, IHF-A)80 dB
Frequency Response (Analog In)5 Hz - 100 kHz/+1 dB, -3 dB (Direct Mode)
DSD Sampling Rates via HDMI2.8 MHz, 5.6 MHz
DSD Sampling Rates via USB2.8 MHz
Video Input Sensitivity/Output Level and Impedance1 Vp-p/75 Ω (Component Y)
0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
1 Vp-p/75 Ω (Composite)
Video Frequency Response5 Hz - 100 MHz/+0 dB, -3 dB (Component)
Ethernet Standard10BASE-T/100BASE-TX
Wi-Fi StandardIEEE 802.11 b/g/n
Wi-Fi Terminal Frequency2.4 GHz
Bluetooth Version2.1 + EDR
Bluetooth Frequency2.4 GHz
FM Frequency87.5 MHz - 108.0 MHz
AM Frequency522/530 kHz - 1611/1710 kHz

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted

Successor

In 2015 Onkyo TX-NR838 was replaced by TX-RZ800. Let us now have a look at some important changes that the successor brought.


UPGRADES Onkyo TX-RZ800 Onkyo TX-NR838
Independent Block Construction (Amp/Preprocessor) βœ” βœ–
Dolby Surround Upmixer βœ” βœ–
DTS:X βœ” βœ–
DTS Neural:X βœ” βœ–
DTS Dialog Control βœ” βœ–
More Advanced Auto Speaker Calibration System βœ” Advanced AccuEQ βœ” AccuEQ
HDR10 βœ” βœ–
BT.2020 color space βœ” βœ–
AirPlay βœ” AirPlay βœ” AirPlay via optional Onkyo RI Dock DS-A5 (sold separately)
More HDMI Inputs 8 (1 front) 7 (1 front)
More Analog Audio Line Inputs 8 7 (1 front)
More Analog Audio Line Outputs 1 βœ–
More Optical Inputs 3 2
More Component Video Inputs 2 1
Deezer βœ” βœ–
Higher DSD Sampling Rate via USB 2.8 MHz 2.8 MHz

DOWNGRADES Onkyo TX-RZ800 Onkyo TX-NR838
Front Wide Channel Support βœ– βœ”
Video Signal Upscaling βœ– βœ” up to 4K/30p (Marvell Qdeo)
MHL Input βœ– βœ” Front HDMI
Less Coaxial Inputs/Outputs 2 / βœ– 3 / βœ–
Less Composite Video Inputs 3 4 (1 front)
Pandora βœ– βœ”

For more detailed comparison between the models please visit Onkyo TX-RZ800 vs Onkyo TX-NR838.

Amazon Affiliate Disclosure

ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
