Onkyo TX-NR787 Review and Specs

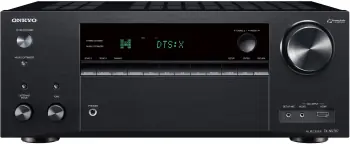

Onkyo TX-NR787 (North American version)

SCORE:
60

Highlights

  • 100 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
  • THX Select™ certified
  • Dolby Atmos, DTS:X capable
  • HDR10, Dolby Vision, 4K Passthrough
  • AirPlay 2, Chromecast, DTS Play-Fi
  • Ethernet, Wi-Fi, Bluetooth
  • USB and Phono inputs

Disclosure: We earn money from the affiliate links to products associated with content in this article.

Onkyo TX-NR787 Overview

Onkyo TX-NR787 was introduced in 2018. It is equipped with 9 channel amplifier and is capable of 9.1 maximum channel processing.

We evaluated the Receiver and gave 60 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

AMPLIFIER
68
VIDEO FEATURES
59
AUDIO FEATURES
58
CONNECTIVITY
51
MULTIZONE
62
MISCELLANEOUS
33
RADIO
74
OVERALL
60

Amplifier score is based on power ratings, minimum impedance load, power supply, transformer type, total harmonic distortion, damping factor, signal to noise ratio and other small details. Audio score depends on the number of channels, front wide channel support, maximum channel processing, support of audio formats, DAC specifications, room calibration algorithm... Video score is based on HDR, Dolby Vision and video signal passthrough and upscaling, analog to HDMI upconversion. Connectivity score is defined from all wired and wireless inputs and outputs, internet and bluetooth connections, HEOS, SONOS and others. Multizone score depends on the number of zones with their outputs. Radio score is evaluated form digital radio support and analog tuner with its frequency range, signal to noise ratio, harmonic distortion...

Pros and Cons

In this section we present pros and cons of Onkyo TX-NR787.

PROS
Many Channel Processing 👍
Dolby Atmos 👍
DTS:X 👍
DTS Neural:X 👍
DSD via HDMI 👍
DSD via USB 👍
DTS Dialog Control 👍
HDR10 👍
Dolby Vision 👍
4K or 8K Video Passthrough 👍
FlareConnect 👍
Chromecast Built-In 👍
DTS Play-Fi 👍
Works with SONOS 👍
Ethernet 👍
Wi-Fi 👍
Bluetooth 👍
New HDCP Version 👍
Many HDMI Inputs 👍
USB Input 👍
Many Analog Audio Line Inputs 👍
Phono Input 👍
Composite Video Inputs 👍
Component Video Inputs 👍
Zones 👍
Analog Tuner 👍
Internet Radio 👍
Pandora 👍
Spotify 👍
Tidal 👍
Deezer 👍
New Bluetooth Version 👍
CONS
No Front Wide Channel Support 👎
No Dolby Atmos Height Virtualization 👎
No DTS Virtual:X 👎
No IMAX Enhanced 👎
No Auro 3D with Auro-Matic Upmixer 👎
No Audyssey Dynamic EQ 👎
No Audyssey Dynamic Volume 👎
No Audyssey LFC 👎
No Audyssey Sub EQ HT 👎
No HDR10+ 👎
No Dynamic HDR 👎
No Auto Low Latency Mode Pass-through 👎
No VRR 👎
No QFT 👎
No 4K or 8K Video Upscaling 👎
No MHL Input 👎
No FireConnect 👎
Does not Work with Amazon Alexa 👎
No eARC 👎
No Multi-Channel Input 👎
No Analog Pre-Outs 👎
No Napster 👎
No SiriusXM Internet Radio 👎
No Toroidal Transformer 👎

Major Changes from its predecessor

Here we are comparing Onkyo TX-NR787 to its predecessor TX-NR777 and displaying the major changes.

UPGRADES Onkyo TX-NR787 Onkyo TX-NR777
More Channels 9.2 7.2
More Channel Processing 9.1 7.1
More Advanced Auto Speaker Calibration System AccuEQ Advance with AccuReflex™ AccuEQ with AccuReflex™
Works with SONOS requires firmware update & Sonos Connect
AirPlay AirPlay 2 after firmware update AirPlay
More Zones 3 2
Bigger Power Supply 750 W 600 W

DOWNGRADES Onkyo TX-NR787 Onkyo TX-NR777
FireConnect

For more detailed comparison between the models please visit Onkyo TX-NR787 vs Onkyo TX-NR777.

Selected Features

Amplifier

Onkyo TX-NR787 has 9 channel amplifier and delivers 100 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and also has a stable performance at 4 Ω load.


Video Features

The Receiver has 4K passthrough up to 60p. It can bypass HDR10, Dolby Vision.


HDR10

High-dynamic-range (HDR) video has greater dynamic range than standard-dynamic-range (SDR) video with brigter whites and deeper blacks. HDR10 was announced on August 27, 2015, by the Consumer Technology Association and uses the wide-gamut Rec. 2020 color space. It sends static metadata via video stream to the TV which calibrates its screen brightness and color according to that. HDR10 supports up to 1000 nits of brightness and 10-bit color which corresponds to 1024 shades of the primary RGB colors.


Dolby Vision

Dolby Vision is an update to HDR10 by adding dynamic metadata that can be used to more accurately adjust brightness levels up to 10,000 nits maximum brightness on a scene-by-scene or frame-by-frame basis and supports up to 12-bit color depth (4096 shades of RGB) and 8K resolution.


Dolby Atmos and Dolby Surround upmixer

Onkyo TX-NR787 supports Dolby Atmos with its Dolby Surround upmixer. It can be configured upto 7.1.2 or 5.1.4 channels using internal amplifiers.

Dolby Atmos is the first cinematic audio format in which sounds exist as individual entities, called audio objects. In Dolby Atmos, any sound - the helicopter, a car screeching around a corner, a melodic bird call - can exist as an independent audio object, free of channel restrictions. They can be precisely placed and moved anywhere in your room, including overhead, to flow above and around you in three-dimensional space. Through the use of audio objects, overhead sound, and all the richness, clarity, and power of Dolby sound, Dolby Atmos turns your room into an amazing place for entertainment. You'll feel like you're inside the action, in ways you've never experienced before.

Dolby Atmos for the home represents every sound in the original cinema mix as an audio object. Extensions to the Dolby Audio™ codecs, along with an advanced scalable algorithm, allow Dolby Atmos to be delivered via Blu-ray Disc and streaming media. A spatially-coded substream is added to Dolby TrueHD or Dolby Digital Plus. A Dolby Atmos audio/video receiver (AVR) adapts the cinema experience to your home theater from seven speakers to as many as 34 in 24.1.10 configuration, recreating the original artistic concept. The format supports up to 128 simultaneous independent audio objects in a mix for rich, realistic, and breathtaking sound. It recreates the director's original concept through descriptive metadata to provide customized playback for home theater and delivers sounds above you through overhead speakers, special upward-firing Dolby Atmos speakers, or a Dolby Atmos enabled sound bar.

If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.


DTS:X and Neural:X upmixer

Onkyo TX-NR787 supports DTS:X with its Neural:X upmixer. It can be configured upto 7.1.2 or 5.1.4 channels using internal amplifiers.

A technique used in DTS:X is similar to the one used in Dolby Atmos. Instead of a fixed number of channels, DTS:X defines object locations from the listener in polar coordinates. An a/v receiver then dynamically renders sound according to the current speaker configuration. The speaker layout employed by DTS:X is the sum of Dolby Atmos and Auro-3D. It has standard 7.1 channel base layer, a 5 channel height layer above the base layer on the front and side walls, and 3 rows of speakers on the ceiling.

DTS Neural:X is a new upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.


Dynamic Audio Amplification

Onkyo TX-NR787 features Dynamic Audio Amplification which is Onkyo’s amplification philosophy that focuses on capturing the energy and dynamism contained in the audio signal and reproducing it without loss. Audio signals are not static like a test tone, but rather a countless collection of constantly moving waves. While static measurements such as S/N ratio and Total Harmonic Distortion are important, Onkyo believes that excellent dynamic and transient response is the key to emotionally involving sound. Dynamism - the “life” in music - is achieved when the amp can respond to changes in the signal instantaneously, so notes start and stop naturally and the nuances in attack, decay, sustain, and release are voiced with conviction. Onkyo home theater receivers represent the culmination of almost 70 years’ experience in amplifier design. The unique elements of their amplification system comprise high-current, low-impedance architecture to accurately control large speaker cones while enabling instantaneous response to dynamic changes, and discrete wide-range amplifier circuit topology to eliminate phase shift for clear and accurate audio imaging.


THX™ Certification

Onkyo TX-NR787 is THX™ certified which offers optimal performance, superior quality and seamless integration. THX works with partners from the ground up, so that certified products deliver professional quality audio-visual experiences right out of the box. They only certify the very best products with uncompromised quality, performance and consistency. They ensure that THX certified devices play well with lower performing devices and components. THX listening modes make the receiver to have one speaker set up for movies, music and games. They are tested for power output, bass management, signal-to-noise ratio and feature RE-EQ, timbre matching, boundary gain compensation and THX Loudness Plus. The current model has Select™ (previously known as Select2) class performance. This means that it is for medium sized rooms, up to 2,000 cubic feet in size, with a 10-12 foot viewing distance from the screen.


Advanced Music Optimizer

Compressed music enhancement in Onkyo TX-NR787 is done by Onkyo’s Advanced Music Optimizer. While MP3 or AAC files may sound fine through the headphones of your portable digital player, the limitations of these files can be exposed when played back through a quality home entertainment system. This is because a significant amount of high-frequency bit information is lost during the file-compression process. To counter this, Onkyo has designed the Advanced Music Optimizer to compensate for lost bit information and improve the quality of compressed audio signals. This results in a clearer and more expansive sound. Also included in this technology is a loudness correction feature that further improves the audio character of compressed files.


Phase-Matching Bass Boost

Onkyo TX-NR787 features Phase-Matching Bass Boost. The negative effects of phase-shift or the timing difference between sound waves of different frequencies can sometimes be heard in audio players when corners are cut in order to increase bass response. While most audio systems have some form of low-frequency enhancement system, often a bigger bass sound comes at the expense of mid-range clarity, and results in a smeared or muddy sound. Onkyo’s Phase-Matching Bass Boost technology avoids this problem by improving the phase timing to preserve the natural clarity of the mid-range allowing vocals and strings to shine while maintaining a smooth, powerful bass response at all volume levels.


Room Correction

Onkyo TX-NR787 comes with AccuEQ Advance with AccuReflex™ room correction system and includes the calibration microphone.


Connectivity

Onkyo TX-NR787 can be connected to internet using ethernet cable or built-in wi-fi adapter. It can also connect to bluetooth devices via built-in bluetooth adapter. The Receiver works with SONOS and supports AirPlay 2 after firmware update. It has 7 HDMI inputs and HDCP 2.2 copy protection. There is a phono input with built-in phono stage for connecting the cartridge output of the turntable directly to the Receiver.

Front panel has HDMI and Mini-Jack inputs.

Image cannot be found Image cannot be found

Detailed Specifications

Here we list all the available features and specifications of Onkyo TX-NR787.

BASICS
BrandOnkyo
ModelTX-NR787
TypeA/V Receiver
CountryNorth America
Release Year2018
AMPLIFIER
Channels9.2
Front Wide Channel Support
Amplifier DesignLinear Class A/B
Dynamic Audio Amplification
Non-Phase Shift Amplifier
VLSC (Vector Linear Shaping Circuitry) Front L/R channels
Optimum Gain Volume Circuitry
THX™ Certification Select™ (previously known as Select2)
Continuous 6 Ω Rated
Certified 4 Ω Performance
Discrete Output Stage Circuitry
Independent Block Construction (Amp/Preprocessor)
Bi-amp Capability
BTL (Bridged Transless or Bridging)
AUDIO
Digital Signal Processing (DSP) Engine32-bit Digital Signal Processing Engines
DACAKM AK4458
Maximum Channel Processing9.1
Air Studios Monitor Certification
Dolby Atmos
Dolby Atmos Height Virtualization
Dolby TrueHD
Dolby Digital Plus
Dolby Surround Upmixer
Dolby Pro Logic
Dolby Digital EX
THX Listening Modes
DTS:X
DTS Neural:X
DTS Virtual:X
DTS Neo
DTS-HD Master Audio
DTS-HD High Resolution Audio
DTS 96/24
DTS Express
DTS-ES
IMAX Enhanced
Auro 3D with Auro-Matic Upmixer
PCM 2-ch/Multi-ch Input
Music Playback via USBFLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, AAC, Dolby TrueHD
High Resolution Music Playback via USB and/or Network up to 192 kHz
High Resolution Audio Formats via USBFLAC, WAV, Apple Lossless, DSD, AIFF, AAC, Dolby TrueHD
Multi-Channel Music File Playback via USB
Gapless Playback
DSD via HDMI 2-ch/Multi-ch Input
DSD via USB 2-ch Input
DSD to PCM Converter
USB DAC
Jitter Reduction PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio
DTS Dialogue Control
Dialog Enhancement
Dialog Normalization
Dialogue Lift
Tone Control All Channels
Compressed Music Enhancer Advanced Music Optimizer (bluetooth included)
High-resolution Music Enhancer
THX Processing Mode
Audyssey Dynamic EQ
Audyssey Dynamic Volume
Audyssey LFC
Audyssey Sub EQ HT
Audyssey DSX
Phase-Matching Bass Boost
Direct Mode
Pure Audio Mode
Pure Direct Analog Path Mode
Virtual Speakers T-D (Theater-Dimensional)
CALIBRATION
Auto Speaker Calibration System with Mic. AccuEQ Advance with AccuReflex™
VIDEO
HDR10
HDR10+
Dynamic HDR
BT.2020 color space
Dolby Vision
Hybrid Log Gamma (HLG)
Quick Media Switching (QMS)
Auto Low Latency Mode (ALLM)
Variable Refresh Rate (VRR)
Quick Frame Transport (QFT)
3-D Ready
Video Signal Passthroughup to 4K/60p (RGB/YCbCr4:4:4)
Video Signal Upscaling
Analog To HDMI Upconversion Component**, Composite
Component Video Upscaling
Analog to Analog Video conversion
Component Video Maximum Resolution480i/576i
isf Certified Calibration Control
CONNECTIVITY
MHL Input
FireConnect
FlareConnect
Chromecast Built-In
DTS Play-Fi
Works with Amazon Alexa
Works with SONOS requires firmware update & Sonos Connect
AirPlay AirPlay 2 after firmware update
Apple Product Connection iPod, iPhone and iPad
Remote AppOnkyo Remote App for iPod touch/iPhone and Android-Powered Devices
InstaPrevue Input Source Prevue
Ethernet
Ethernet Switch
Wi-Fi
Bluetooth SBC, AAC
HDBaseT Compatible
Enhanced Audio Return Channel (eARC)
HDCP Version2.2
HDMI Inputs7 (1 front)
HDMI Outputs2 (simultaneous)
USB Input1 (Rear)
USB DC Out Port
Analog Audio Line Inputs7 (1 Front)
Analog Audio Line Outputs
Phono Input
Optical Inputs2
Optical Outputs
Coaxial Inputs/Outputs1 / No
Composite Video Inputs2
Composite Video Outputs
S-Video Inputs
S-Video Outputs
Component Video Inputs2
Component Video Outputs
PC In
Multi-Channel Input
Analog Pre-Outs0.2
XLR Inputs
XLR Pre-outs
Front A/V InputsHDMI, Mini-Jack
Speaker A/B
Headphone Out 6.3 mm
ZONES
Zones3
Powered Zones 2 and 3
Zone 2 OutsRCA Line Out
Zone 3 Outs
Whole House Mode
RS-232 Interface
+12V Trigger Output1 (MAIN, 100 mA)
Remote (IR) Input/Output1 / 0
MISC
On-Screen Display Graphical User Interface with Overlaid On-Screen Display (OSD) via HDMI
GUI Languages7
Detachable Power Cord
uport
ONKYO-RI System Control
RIHD (Remote Interactive Over HDMI)
Smart Grid-Ready
RADIO
Analog Tuner FM/AM
Presets40
Digital Radio
Internet Radio TuneIn
Pandora
Spotify
Tidal
Deezer
Napster
SiriusXM Internet Radio
CONSTRUCTION
Solid Aluminum Front
Speaker Terminals9
Large Speaker Terminals9
Color-Coded Speaker Terminals
Transparent High-Grade Speaker Terminals
18mm Pitch High Grade Pre-outs
19mm-Pitch Audio Inputs
Gold plated RCA terminals
POWER
Power SupplyAC 120 V, 60 Hz
Independent Power Supply
H.C.P.S. (High Current Power Supply) Customized Transformer
Toroidal Transformer
Power Consumption750 W
No Sound Power65 W
Standby Power0.15 W
GENERAL
ECO Mode / Hybrid Standby Function
Dimensions (W x H x D)435 mm x 173.5 mm x 379.5 mm
17-1/8" x 6-13/16" x 14-15/16"
Weight10.8 kg (23.8 lbs)
Warranty2 Years
SPECS
Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)100 W (0.08% THD)
Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA or IEC)220 W (10% THD)
Dynamic Power per Channel (3 Ω, Front)250 W
Dynamic Power per Channel (4 Ω, Front)220 W
Dynamic Power per Channel (8 Ω, Front)130 W
THD0.08% (20 Hz - 20 kHz, Half power)
Input Sensitivity and Impedance (Line)200 mV/47 kΩ (1 kHz, 100 W/8 Ω)
Input Sensitivity and Impedance (Phono MM)3.5 mV/47 kΩ
Rated Headphone Power Output85 mW (32 Ω, 1 kHz, 10% THD)
Phono Overload70 mV (MM, 1 kHz 0.5%)
S/N Ratio (Line, IHF-A)106 dB
S/N Ratio (Phono MM, IHF-A)80 dB
Frequency Response (Analog In)10 Hz - 100 kHz/+1 dB, -3 dB (Direct)
DSD Sampling Rates via HDMI2.8 MHz
DSD Sampling Rates via USB2.8 MHz, 5.6 MHz
Video Input Sensitivity/Output Level and Impedance 1 Vp-p/75 Ω (Component Y)
0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
1 Vp-p/75 Ω (Composite)
Ethernet Standard10BASE-T/100BASE-TX
Wi-Fi StandardIEEE 802.11 a/b/g/n
Wi-Fi Terminal Frequency5 GHz, 2.4 GHz
Bluetooth Version4.1 + LE
Bluetooth Frequency2.4 GHz
USB TerminalVer. 2.0, 5 V, 1 A
FM Frequency87.5 MHz - 107.9 MHz
FM 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)Mono: 1.56 µV (15.0 dBf)
AM Frequency530 kHz - 1710 kHz

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted

Successor

In 2019 Onkyo TX-NR787 was replaced by TX-NR797. Let us now have a look at some important changes that the successor brought.


UPGRADES Onkyo TX-NR797 Onkyo TX-NR787
Dolby Atmos Height Virtualization
DTS Virtual:X via future firmware update
IMAX Enhanced via future firmware update
Video Signal Upscaling 1080p to 4K
Newer HDCP Version 2.3 (via future firmware update) 2.2
More HDMI Outputs 2 (1 Main, 1 Sub/Zone2) 2 (simultaneous)
Higher DSD Sampling Rate via USB 2.8 MHz, 5.6 MHz, 11.2 MHz 2.8 MHz, 5.6 MHz
Newer Bluetooth Version 4.2 4.1 + LE

DOWNGRADES Onkyo TX-NR797 Onkyo TX-NR787
Less Optical Inputs 1 2
Less Component Video Inputs 1 2

For more detailed comparison between the models please visit Onkyo TX-NR797 vs Onkyo TX-NR787.

Amazon Affiliate Disclosure

ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
