Onkyo TX-NR525 Review and Specs
image not found

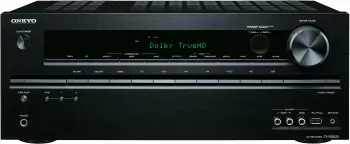

Onkyo TX-NR525 (USA version)

SCORE:
70

Highlights

  • 5.2 channels
  • 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
  • 4K Passthrough
  • DLNA
  • Ethernet, Wi-Fi, Bluetooth
  • USB input

Disclosure: We earn money from the affiliate links to products associated with content in this article.

Onkyo TX-NR525 Overview

Onkyo TX-NR525 was introduced in 2013. It is equipped with 5 channel amplifier and is capable of 5.1 maximum channel processing.

We evaluated the Receiver and gave 70 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

AMPLIFIER
73
VIDEO FEATURES
61
AUDIO FEATURES
72
CONNECTIVITY
75
MULTIZONE
64
MISCELLANEOUS
56
RADIO
90
OVERALL
70

Amplifier score is based on power ratings, minimum impedance load, power supply, transformer type, total harmonic distortion, damping factor, signal to noise ratio and other small details. Audio score depends on the number of channels, front wide channel support, maximum channel processing, support of audio formats, DAC specifications, room calibration algorithm... Video score is based on HDR, Dolby Vision and video signal passthrough and upscaling, analog to HDMI upconversion. Connectivity score is defined from all wired and wireless inputs and outputs, internet and bluetooth connections, HEOS, SONOS and others. Multizone score depends on the number of zones with their outputs. Radio score is evaluated form digital radio support and analog tuner with its frequency range, signal to noise ratio, harmonic distortion...

Pros and Cons

In this section we present pros and cons of Onkyo TX-NR525.

PROS
Dolby TrueHD πŸ‘
Dolby Digital Plus πŸ‘
Dolby Pro Logic πŸ‘
DTS Neo πŸ‘
DTS-HD Master Audio πŸ‘
DTS-HD High Resolution Audio πŸ‘
DTS 96/24 πŸ‘
DTS Express πŸ‘
High Resolution Music Playback via USB and/or Network πŸ‘
DSD via HDMI πŸ‘
DSD via USB πŸ‘
Compressed Music Enhancer πŸ‘
Audyssey Dynamic EQ πŸ‘
Audyssey Dynamic Volume πŸ‘
Phase-Matching Bass Boost πŸ‘
Auto Speaker Calibration System with Mic. πŸ‘
3-D Ready πŸ‘
4K or 8K Video Passthrough πŸ‘
DLNA 1.5 πŸ‘
Ethernet πŸ‘
Wi-Fi πŸ‘
Bluetooth πŸ‘
New HDCP Version πŸ‘
USB Input πŸ‘
Many Analog Audio Line Inputs πŸ‘
Composite Video Inputs πŸ‘
Composite Video Outputs πŸ‘
Component Video Inputs πŸ‘
Component Video Outputs πŸ‘
Zones πŸ‘
Analog Tuner πŸ‘
Pandora πŸ‘
Spotify πŸ‘
SiriusXM Internet Radio πŸ‘
H.C.P.S. (High Current Power Supply) πŸ‘
CONS
Not Certified 4 Ω Performance πŸ‘Ž
No Bi-amp Capability πŸ‘Ž
Few Channel Processing πŸ‘Ž
No Dolby Atmos πŸ‘Ž
No Dolby Atmos Height Virtualization πŸ‘Ž
No Dolby Surround Upmixer πŸ‘Ž
No DTS:X πŸ‘Ž
No DTS Neural:X πŸ‘Ž
No DTS Virtual:X πŸ‘Ž
No IMAX Enhanced πŸ‘Ž
No Auro 3D with Auro-Matic Upmixer πŸ‘Ž
No Gapless Playback πŸ‘Ž
No DTS Dialog Control πŸ‘Ž
No High-resolution Music Enhancer πŸ‘Ž
No Audyssey App Support πŸ‘Ž
No HDR10 πŸ‘Ž
No HDR10+ πŸ‘Ž
No BT.2020 color space πŸ‘Ž
No Dolby Vision πŸ‘Ž
No Hybrid Log Gamma (HLG) πŸ‘Ž
No 4K or 8K Video Upscaling πŸ‘Ž
No Chromecast Built-In πŸ‘Ž
Does not Work with Amazon Alexa πŸ‘Ž
Does Not Work with SONOS πŸ‘Ž
No eARC πŸ‘Ž
Few HDMI Outputs πŸ‘Ž
No Phono Input πŸ‘Ž
No Multi-Channel Input πŸ‘Ž
No Analog Pre-Outs πŸ‘Ž
No Tidal πŸ‘Ž
No Deezer πŸ‘Ž
No Napster πŸ‘Ž

Major Changes from its predecessor

Here we are comparing Onkyo TX-NR525 to its predecessor TX-NR515 and displaying the major changes.

UPGRADES Onkyo TX-NR525 Onkyo TX-NR515
DSD via USB βœ” 2-ch Input βœ–
Phase-Matching Bass Boost βœ” βœ–
More Advanced Auto Speaker Calibration System βœ” Audyssey MultEQ βœ” Audyssey 2EQ
Video Signal Passthrough up to 4K/30p up to 1080p
Bluetooth βœ” via Front USB (optional UBT-1 adapter sold separately) βœ–
More Analog Audio Line Inputs 6 (1 front) 5
More Component Video Inputs 2 1

DOWNGRADES Onkyo TX-NR525 Onkyo TX-NR515
Less Channels 5.2 7.2
Bi-amp capability βœ– βœ”
Less Channel Processing 5.1 7.1
Video Signal Upscaling βœ– βœ” up to 4K/30p (Marvell Qdeo)
Analog To HDMI Upconversion βœ– βœ” Component**, Composite
MHL Input βœ– βœ” Front HDMI
Less HDMI Inputs 6 8 (1 front)
Less HDMI Outputs 1 2 (simultaneous)
Less Optical Inputs 1 2
Smaller Power Supply 4.2 A 5 A

For more detailed comparison between the models please visit Onkyo TX-NR525 vs Onkyo TX-NR515.

Selected Features

Amplifier

Onkyo TX-NR525 has 5 channel amplifier and delivers 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven).


Video Features

The Receiver has 4K passthrough up to 30p.


WRAT

Onkyo TX-NR525 features Onkyo’s Wide Range Amp Technology (WRAT) circuit layout that prevents phase shifting by pushing the roll-off point higher than the listening-level frequency. Amplifying sound without phase shift creates an uncommonly well-focused and realistic audio image. If phase shift occurs and signal timing is not accurate, then neither is the resulting audio image.


Advanced Music Optimizer

Compressed music enhancement in Onkyo TX-NR525 is done by Onkyo’s Advanced Music Optimizer. While MP3 or AAC files may sound fine through the headphones of your portable digital player, the limitations of these files can be exposed when played back through a quality home entertainment system. This is because a significant amount of high-frequency bit information is lost during the file-compression process. To counter this, Onkyo has designed the Advanced Music Optimizer to compensate for lost bit information and improve the quality of compressed audio signals. This results in a clearer and more expansive sound. Also included in this technology is a loudness correction feature that further improves the audio character of compressed files.


Audyssey

Onkyo TX-NR525 comes with Audyssey Dynamic EQ and Audyssey Dynamic Volume.

Audyssey Dynamic EQ selects the best possible frequency response and surround volume levels moment-by-moment. This ensures that the bass response, tonal balance and surround impression remain constant despite changes in volume. This is the first technology that carefully combines information from incoming source levels with actual output sound levels in the room, a pre-requisite for delivering a dynamic volume solution.

Your Listening experience can be greatly diminished when there are significant shifts in volume between television programs, commercials and within the program material itself. When this happens you must constantly adjust the volume to maintain your desired listening level. Audyssey Dynamic Volume monitors the volume of program material moment-by-moment and automatically adjusts it, maintaining the desired listening level for all content while optimizing the dynamic range to preserve impact.


Phase-Matching Bass Boost

Onkyo TX-NR525 features Phase-Matching Bass Boost. The negative effects of phase-shift or the timing difference between sound waves of different frequencies can sometimes be heard in audio players when corners are cut in order to increase bass response. While most audio systems have some form of low-frequency enhancement system, often a bigger bass sound comes at the expense of mid-range clarity, and results in a smeared or muddy sound. Onkyo’s Phase-Matching Bass Boost technology avoids this problem by improving the phase timing to preserve the natural clarity of the mid-range allowing vocals and strings to shine while maintaining a smooth, powerful bass response at all volume levels.


Room Correction

Onkyo TX-NR525 comes with[y] Audyssey MultEQ room correction system and includes the calibration microphone.

Audyssey is an acoustic measurement technology which automatically restores the acoustic distortion caused by the acoustic behaviour of a room with only a push on a button. Audyssey equalization provides an clear, accurate, natural sound with voices and dialog that become focused and intelligible, restoring the musical balance. Musical instruments and sound effects become precisely localized and the surround soundstage is made seamless and enveloping.


Connectivity

Onkyo TX-NR525 can be connected to internet using ethernet cable or wirelessly[y] via Front USB (optional UWF-1 sold separately). It can also connect to bluetooth devices[y] via Front USB (optional UBT-1 adapter sold separately) . It has 6 HDMI inputs and HDCP 2.2 copy protection.

Front panel has L/R Audio, Composite and USB inputs.

Image cannot be found Image cannot be found

Detailed Specifications

Here we list all the available features and specifications of Onkyo TX-NR525.

BASICS
BrandOnkyo
ModelTX-NR525
TypeA/V Receiver
CountryUSA
Release Year2013
AMPLIFIER
Channels5.2
WRAT (Wide Range Amplifier Technology)βœ”
VLSC (Vector Linear Shaping Circuitry)βœ–
Optimum Gain Volume Circuitryβœ”
THXβ„’ Certificationβœ–
Continuous 6 Ω Ratedβœ”
Certified 4 Ω Performanceβœ–
Discrete Output Stage Circuitryβœ”
3-Stage Inverted Darlington Circuitryβœ–
PUSH-PULL Designβœ–
Independent Block Construction (Amp/Preprocessor)βœ–
Bi-amp Capabilityβœ–
BTL (Bridged Transless or Bridging)βœ–
AUDIO
Digital Signal Processing (DSP) EngineAdvanced 32-Bit Processing DSP Chip
DACBurr-Brown
Maximum Channel Processing5.1
Air Studios Monitor Certificationβœ–
Dolby Atmosβœ–
Dolby Atmos Height Virtualizationβœ–
Dolby TrueHDβœ”
Dolby Digital Plusβœ”
Dolby Surround Upmixerβœ–
Dolby Pro Logicβœ” PLII
Dolby Digital EXβœ–
Surround EXβœ–
DTS:Xβœ–
DTS Neural:Xβœ–
DTS Virtual:Xβœ–
DTS Neoβœ” Neo:6
DTS-HD Master Audioβœ”
DTS-HD High Resolution Audioβœ”
DTS 96/24βœ”
DTS Expressβœ”
DTS-ESβœ–
IMAX Enhancedβœ–
Auro 3D with Auro-Matic Upmixerβœ–
PCMβœ” 2-ch/Multi-ch Input
Music Playback via USBFLAC, WAV, Apple Lossless, WMA, WMA Lossless, Ogg, MP3, DSD, AAC, LPCM, Dolby TruHD
High Resolution Music Playback via USB and/or Networkβœ” up to 192 kHz
High Resolution Audio Formats via USBFLAC, WAV, WMA Lossless, Apple Lossless, DSD, AAC, LPCM
Multi-Channel Music File Playback via USBβœ–
Gapless Playbackβœ–
DSD via HDMIβœ” 2-ch/Multi-ch Input
DSD via USBβœ” 2-ch Input
DSD to PCM Converterβœ–
USB DACβœ–
Jitter Reductionβœ” PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio
DTS Dialog Controlβœ–
Dialog Enhancementβœ–
Dialog Level Adjustmentβœ–
Dialog Normalizationβœ–
Dialogue Liftβœ–
Tone Controlβœ” Front L/R Channels
Compressed Music Enhancerβœ” Advanced Music Optimizer
High-resolution Music Enhancerβœ–
THX Processing Modeβœ–
Audyssey Dynamic EQβœ”
Audyssey Dynamic Volumeβœ”
Audyssey LFCβœ–
Audyssey Sub EQ HTβœ–
Audyssey DSXβœ–
Phase-Matching Bass Boostβœ”
Direct Modeβœ”
Pure Audio Modeβœ–
Pure Direct Analog Path Modeβœ–
Virtual Speakersβœ” T-D (Theater-Dimensional)
Independent Dual Subwoofer Outputβœ–
CALIBRATION
Auto Speaker Calibration System with Mic.βœ” Audyssey MultEQ
Audyssey App Supportβœ–
VIDEO
HDR10βœ–
HDR10+βœ–
BT.2020 color spaceβœ–
Dolby Visionβœ–
Hybrid Log Gamma (HLG)βœ–
Quick Media Switching (QMS)βœ–
Auto Low Latency Mode Pass-throughβœ–
Variable Refresh Rate (VRR)βœ–
Quick Frame Transport (QFT)βœ–
3-D Readyβœ”
Video Signal Passthroughup to 4K/30p
Video Signal Upscalingβœ–
Analog To HDMI Upconversionβœ–
Component Video Upscalingβœ–
Analog to Analog Video conversionβœ–
isf Certified Calibration Controlβœ–
CONNECTIVITY
MHL Inputβœ–
DLNA 1.5βœ”
FireConnectβœ–
FlareConnectβœ–
Chromecast Built-Inβœ–
DTS Play-Fiβœ–
Works with Amazon Alexaβœ–
Works with SONOSβœ–
AirPlayβœ–
Apple Product Connectionβœ” iPod and iPhone via front USB
Remote Appβœ” iPod touch/iPhone and Android-Powered Devices
InstaPrevue Input Source Prevueβœ”
Ethernetβœ”
Ethernet Switchβœ–
Wi-Fiβœ” via Front USB (optional UWF-1 sold separately)
Bluetoothβœ” via Front USB (optional UBT-1 adapter sold separately)
HDBaseT Compatibleβœ–
Enhanced ARCβœ–
HDCP Version2.2
HDMI Input6
HDMI Output1
USB Input1 Front (for iPod/iPhone) and 1 Rear
USB DC Out Portβœ–
Analog Audio Line Input6 (1 front)
Analog Audio Line Outputβœ–
Phono Inputβœ–
Optical In1
Optical Outβœ–
Coaxial In/Out2 / βœ–
Composite Video Input5 (1 front)
Composite Video Output1
S-Video Inputβœ–
S-Video Outputβœ–
Component Video Input2
Component Video Output1
PC Inβœ–
Multi-Channel Inputβœ–
Analog Pre-Outs0.2
XLR Inputsβœ–
XLR Pre-outsβœ–
Front A/V InputsL/R Audio, Composite, USB
Speaker A/Bβœ–
Headphone Outβœ” 6.3 mm
ZONES
Zones2
Powered Zonesβœ–
Zone 2RCA Line Out
Whole House Modeβœ–
RS-232βœ–
+12V Trigger Output0
Remote (IR) Input/Output0 / 0
MISC
On-Screen Displayβœ”
Detachable Power Cordβœ–
uportβœ–
ONKYO-RI System Controlβœ”
RIHD (Remote Interactive Over HDMI)βœ”
Pre-Pro/Learning Remoteβœ– / βœ”
On Screen Remote Programmingβœ–
Bi-directional Remote Setup via GUIβœ–
Activity Based Remoteβœ–
Smart Grid-Readyβœ”
RADIO
Analog Tunerβœ” FM/AM
Presets40
Digital Radioβœ–
Internet Radioβœ” TuneIn
Pandoraβœ”
Spotifyβœ”
Tidalβœ–
Deezerβœ–
Napsterβœ–
SiriusXM Internet Radioβœ”
CONSTRUCTION
Solid Aluminum Frontβœ–
Speaker Terminals5
Large Speaker Terminals5
Color-Coded Speaker Terminalsβœ”
Transparent High-Grade Speaker Terminalsβœ–
18mm Pitch High Grade Pre-outsβœ–
19mm-Pitch Audio Inputsβœ–
Gold plated RCA terminalsβœ–
POWER
Power SupplyAC 120 V, 60 Hz
Independent Power Supplyβœ–
H.C.P.S. (High Current Power Supply)βœ” Massive High Power Transformer
Toroidal Transformerβœ–
Power Consumption4.2 A
No Sound Power60 W
Standby Power0.15 W
GENERAL
ECO Mode / Hybrid Standby Functionβœ”
Dimensions (W x H x D)435 mm x 173.5 mm x 328 mm
17-1/8" x 6-13/16" x 12-15/16"
Weight8.5 kg (18.7 lbs)
Warranty2 Years
SPECS
Power Output (8 Ω, 20 Hz - 20 kHz, 280 W (0.7% THD)
Power Output (6 Ω, 1 kHz, 2100 W (0.7% THD)
Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA)160 W
Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)130 W (1% THD)
Dynamic Power per Channel (3 Ω, Front)180 W
Dynamic Power per Channel (4 Ω, Front)160 W
Dynamic Power per Channel (8 Ω, Front)100 W
THD0.7% (20 Hz - 20 kHz, Half power)
Damping Factor60 (Front, 1 kHz, 8 Ω)
Input Sensitivity and Impedance (Line)200 mV/47 kΩ (Line)
Rated Lineout Level and Impedance200 mV/2.2 kΩ
Maximum Lineout Level and Impedance2 V/2.2 kΩ
S/N Ratio (Line, IHF-A)100 dB
Frequency Response (Analog In)5 Hz - 100 kHz/+1 dB, -3 dB (DSP bypass)
DSD Sampling Rates via HDMI2.8 MHz
DSD Sampling Rates via USB2.8 MHz
Video Input Sensitivity/Output Level and Impedance1 Vp-p/75 Ω (Component Y)
0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
1 Vp-p/75 Ω (Composite)
Video Frequency Response5 Hz - 100 MHz/+0 dB, -3 dB (Component)
Ethernet Standard100BASE-TX
FM Frequency87.5 MHz - 107.9 MHz
AM Frequency522/530 kHz - 1611/1710 kHz

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted

Successor

In 2014 Onkyo TX-NR525 was replaced by TX-NR535. Let us now have a look at some important changes that the successor brought.


UPGRADES Onkyo TX-NR535 Onkyo TX-NR525
Gapless Playback βœ” βœ–
Video Signal Passthrough up to 4K/60p (YCbCr 4:2:0) up to 4K/30p
AirPlay βœ” AirPlay via optional Onkyo RI Dock DS-A5 (sold separately) βœ–
Wi-Fi βœ” βœ” via Front USB (optional UWF-1 sold separately)
Bluetooth βœ” βœ” via Front USB (optional UBT-1 adapter sold separately)
More Analog Audio Line Inputs 7 (1 front) 6 (1 front)
More Analog Audio Line Outputs 1 βœ–
Independent Power Supply 2 βœ–

DOWNGRADES Onkyo TX-NR535 Onkyo TX-NR525
High Resolution Music Playback via USB βœ” up to 96 kHz βœ” up to 192 kHz
Audyssey Dynamic EQ βœ– βœ”
Audyssey Dynamic Volume βœ– βœ”
Phase-Matching Bass Boost βœ– βœ”
USB Input 1 (Front) 1 Front (for iPod/iPhone) and 1 Rear
Less Composite Video Inputs 4 (1 front) 5 (1 front)
Less Component Video Inputs 1 2
Smaller Power Supply 3.2 A 4.2 A

For more detailed comparison between the models please visit Onkyo TX-NR535 vs Onkyo TX-NR525.

Amazon Affiliate Disclosure

ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
