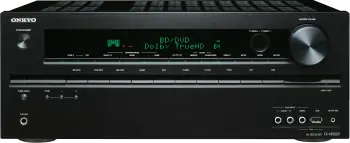

Onkyo TX-NR509

Onkyo TX-NR509 was introduced in 2011. It is equipped with 5 channel amplifier with 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 5.1 maximum channel processing. It passes 1080/60p video signal.

We evaluated the a/v receiver and gave 67 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

For more details about the ranking please go to    Evaluation section.

Here is a history of the series, where you can view and compare the main specifications of the receivers.

You can view their side-by-side comparison here: Onkyo TX-NR5100 vs TX-NR595 vs TX-NR585 vs TX-NR575E vs TX-NR555 vs TX-NR545.

In this section we present pros and cons of Onkyo TX-NR509.

In 2011 Onkyo released 8 new receivers. Here is the lineup:

You can view their side-by-side comparison here: Onkyo TX-NR5009 vs TX-NR3009 vs TX-NR1009 vs TX-NR809 vs TX-NR709 vs TX-NR609.

Onkyo TX-NR509's 5 channel amplifier can be assigned for different speaker configurations.

• Configurations: Available configurations are:
5.1 with internal amplifier.

Onkyo TX-NR509 features 4 HDMI inputs. It has 1 output.

• 1080/60p Passthrough: All inputs pass up to 1080p video signal.
• 3D Ready: Onkyo TX-NR509 is able to pass 3D video through HDMI.

VIDEO FEATURES
HDR10
HDR10+
Dynamic HDR
BT.2020 color space
Dolby Vision
HLG (Hybrid Log Gamma)
HDBaseT Compatible
Enhanced Audio Return Channel (eARC)
QMS (Quick Media Switching)
ALLM (Auto Low Latency Mode)
VRR (Variable Refresh Rate)
QFT (Quick Frame transport)
3-D Ready
Video Signal Passthrough	up to 1080p
Video Signal Upscaling

Onkyo TX-NR509 comes with Audyssey 2EQ room correction system and includes the calibration microphone.

• Audyssey Room Calibration: Audyssey is an acoustic measurement technology which automatically restores the acoustic distortion caused by the acoustic behaviour of a room with only a push on a button. Audyssey equalization provides an clear, accurate, natural sound with voices and dialog that become focused and intelligible, restoring the musical balance. Musical instruments and sound effects become precisely localized and the surround soundstage is made seamless and enveloping.

Onkyo TX-NR509 offers multi-zone playback which allows you to play different input sources in 2 different rooms.

Zone 2

• Audio Line Output: If you have a dedicated integrated amplifier for Zone 2 you can connect it to the a/v receiver via line outs by sending fixed signal and then control volume on the Zone 2 amplifier.

Audio

• Analog Pre-Outs: Onkyo TX-NR509 has 2.1 preamplifier outputs which allow you to connect the a/v receiver to the external power amplifier. You may want to use a high quality external amplifier for certain channels, usually for front L/R and center, and use the a/v receiver to power the rest.
• Analog Line Inputs and Outputs: There are 6 line inputs and 1 line output for analog audio connection.
• Digital Inputs: 2 optical inputs and 2 coaxial inputs are available for digital audio connection.
• Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.

Video

• HDMI:
Inputs: 4   Outputs: 1
8K Inputs: 0
• Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
Inputs: 5   Outputs: 2
• Component Video: Component video connection gives you the higher quality video compared to the composite video connection. So in case your old DVD player and other equipment do not have an HDMI output but have Component video output use this connection over the composite one.
Inputs: 2   Outputs: 1

Front A/V Inputs

• USB, Composite Video, RCA Audio

In 2012 Onkyo TX-NR509 was replaced by Onkyo TX-NR515. Let us now have a look at some important differences between Onkyo TX-NR509 and its successor.

UPGRADES	Onkyo TX-NR515	vs	Onkyo TX-NR509
More Channels	7.2	vs	5.1
WRAT (Wide Range Amplifier Technology)		vs
Bi-amp capability		vs
More Channel Processing	7.1	vs	5.1
Dolby Pro Logic	PLIIz	vs	PLIIx
Higher Resolution Music Playback via USB	up to 192 kHz	vs	up to 96 kHz
Video Signal Upscaling	up to 4K/30p (Marvell Qdeo)	vs
Analog To HDMI Upconversion	Component**, Composite	vs
MHL Input	Front HDMI	vs
InstaPrevue Input Source Prevue		vs
More HDMI Inputs	8 (1 front)	vs	4
More HDMI Outputs	2 (simultaneous)	vs	1
USB Input	1 Front (for iPod/iPhone) and 1 Rear	vs	1 Front
Front A/V Inputs	HDMI/MHL, USB, Composite Video	vs	USB, Composite Video, RCA Audio
More Powered Zones	2	vs
On-Screen Display	Advanced "Home" GUI	vs	Basic Overlay
On Screen Remote Programming		vs
More Speaker Terminals	9	vs	5
More Large Speaker Terminals	7	vs	5
Bigger Power Supply	480 W	vs	370 W
Higher Power Output (6 Ω, 1 kHz, 2 channel driven, FTC)	125 W (0.1% THD)	vs	110 W (0.9% THD)

DOWNGRADES	Onkyo TX-NR515	vs	Onkyo TX-NR509
Less RCA Line Inputs	5	vs	6 (1 front)
Less RCA Line Outputs		vs	1
Less RCA Pre-Outs	0.2	vs	2.1 (Surround Back and Sub)
Less Composite Video Outputs	1	vs	2
Less Component Video Inputs	1	vs	2
uport		vs
Digital Radio		vs	DAB/DAB+ Radio via optional UP-DT1 Tuner (sold separately)
Napster		vs

For more detailed comparison between the models please visit Onkyo TX-NR509 vs TX-NR515.

GENERAL
Brand	Onkyo
Model	TX-NR509
Type	A/V Receiver
Country	Europe and Australia
Release Year	2011
Successor	Onkyo TX-NR515

AMPLIFIER
Channels	5.1
Power Output	80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
WRAT (Wide Range Amplifier Technology)
VLSC (Vector Linear Shaping Circuitry)
Optimum Gain Volume Circuitry
THX™ Certification
Continuous 6 Ω Rated
Certified 4 Ω Performance
Discrete Output Stage Circuitry
3-Stage Inverted Darlington Circuitry
PUSH-PULL Design
Independent Block Construction (Amp/Preprocessor)
Bi-amp Capability
BTL (Bridged Transless or Bridging)

AUDIO FEATURES
Digital Processing Crossover Network
Digital Signal Processing (DSP) Engine	Advanced 32-Bit Processing DSP Chip
DAC	Burr-Brown
DAC Specs	192 kHz/24 Bit
Maximum Channel Processing	5.1
Air Studios Monitor Certification
Dolby Atmos
Dolby Atmos Height Virtualization
Dolby Atmos Music
Dolby TrueHD
Dolby Digital Plus
Dolby Surround Upmixer
Dolby Pro Logic	PLIIx
Dolby Digital EX
Surround EX
DTS:X
DTS Neural:X
DTS Virtual:X
DTS Neo	Neo:6
DTS-HD Master Audio
DTS-HD High Resolution Audio
DTS 96/24
DTS Express
DTS-ES	Discrete 6.1, Matrix 6.1
IMAX Enhanced
Auro 3D with Auro-Matic Upmixer
PCM	2-ch/Multi-ch Input
Music Playback via USB	FLAC, WAV, WMA, WMA Lossless, Ogg, MP3, LPCM, AAC
High Resolution Music Playback via USB and/or Network	up to 96 kHz
High Resolution Audio Formats via USB	FLAC, WAV, WMA Lossless, LPCM, AAC
Gapless Playback
DSD via HDMI	2-ch/Multi-ch Input
DSD via USB
DSD to PCM Converter
USB DAC
Jitter Reduction	PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio
DTS Dialogue Control
Dialog Enhancement
Dialog Level Adjustment
Dialog normalization
Dialogue Lift
Tone Control	Front L/R Channels
Compressed Music Enhancer	Advanced Music Optimizer
High-resolution Music Enhancer
THX Processing Mode
Audyssey Dynamic EQ
Audyssey Dynamic Volume
Audyssey LFC
Audyssey Sub EQ HT
Audyssey DSX
Phase-Matching Bass Boost
Direct Mode
Pure Audio Mode
Pure Direct Analog Path Mode
Virtual Speakers	T-D (Theater-Dimensional)
Independent Subwoofer Outputs

CALIBRATION
Auto Speaker Calibration System with Mic.	Audyssey 2EQ
Audyssey App Support

VIDEO FEATURES
HDR10
HDR10+
Dynamic HDR
BT.2020 color space
Dolby Vision
HLG (Hybrid Log Gamma)
HDBaseT Compatible
Enhanced Audio Return Channel (eARC)
QMS (Quick Media Switching)
ALLM (Auto Low Latency Mode)
VRR (Variable Refresh Rate)
QFT (Quick Frame transport)
3-D Ready
Video Signal Passthrough	up to 1080p
Video Signal Upscaling
Analog To HDMI Upconversion
Component Video Upscaling
Analog to Analog Video conversion
isf Certified Calibration Control

CONNECTIVITY
Wi-Fi	via Front USB (optional UWF-1 sold separately)
Bluetooth
Works with Amazon Alexa
Chromecast Built-In
Works with SonoS
DTS Play-Fi
MHL Input
DLNA 1.5
AirPlay
Apple Product Connection	iPod and iPhone via USB or optional UP-A1 Dock (sold separately)
Remote App	iPod touch/iPhone
InstaPrevue Input Source Prevue

TERMINALS
HDMI Inputs	4
HDMI Outputs	1
8K Inputs
USB Input	1 Front
USB DC Out Port
Optical Inputs	2
Optical Outputs
Coaxial Inputs	2
RCA Line Inputs	6 (1 front)
RCA Line Outputs	1
XLR Line Inputs
Phono Input
Multi-Channel Input
RCA Pre-Outs	2.1 (Surround Back and Sub)
XLR Pre-outs
Composite Video Inputs	5 (1 front)
Composite Video Outputs	2
S-Video Inputs
S-Video Outputs
Component Video Inputs	2
Component Video Outputs	1
Ethernet
Ethernet Switch
PC In
Front A/V Inputs	USB, Composite Video, RCA Audio
Speaker A/B
Headphone Out	6.3 mm (1/4")
Detachable Power Cord
uport

ZONES
Number of Zones	2
Powered Zones
Zone 2 Outs	RCA Line Out
Whole House Mode
RS-232C Interface
+12V Trigger Output
Remote (IR) Input/Output

MISCELLANEOUS
On-Screen Display	Basic Overlay
ONKYO-RI System Control
RIHD (Remote Interactive Over HDMI)
Pre-Pro/Learning Remote	/
On Screen Remote Programming
Bi-directional Remote Setup via GUI
Activity Based Remote
Smart Grid-Ready

RADIO
Analog Tuner	FM/AM with RDS
Presets	40
Digital Radio	DAB/DAB+ Radio via optional UP-DT1 Tuner (sold separately)
Internet Radio	vTuner
Pandora
Spotify
Tidal
Deezer
Napster
SiriusXM

CONSTRUCTION
Solid Aluminum Front
Speaker Terminals	5
Large Speaker Terminals	5
Color-Coded Speaker Terminals
Transparent High-Grade Speaker Terminals
Gold plated RCA terminals

POWER
Power Supply	AC 230 V, 50 Hz
Independent Power Supply
H.C.P.S. (High Current Power Supply)	Massive High Power Transformer
Toroidal Transformer
Power Consumption	370 W
No Sound Power	45 W (230 V)/50 W (240 V)
Standby Power	0.3 W

PHYSICAL
Dimensions (W x H x D)	435 mm x 173.5 mm x 328 mm 17-1/8" x 6-13/16" x 12-15/16"
Weight	9.2 kg (20.3 lbs)

SPECIFICATIONS
Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)	80 W (0.7% THD)
Power Output (6 Ω, 1 kHz, 2 channel driven, FTC)	110 W (0.9% THD)
Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA or IEC)	160 W
Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)	130 W (1% THD)
Dynamic Power per Channel (3 Ω, Front)	180 W
Dynamic Power per Channel (4 Ω, Front)	160 W
Dynamic Power per Channel (8 Ω, Front)	100 W
THD	0.08% (20 Hz - 20 kHz, Half power)
Damping Factor	60 (Front, 1 kHz, 8 Ω)
Input Sensitivity and Impedance (Line)	200 mV/47 kΩ (Line)
Rated Lineout Level and Impedance	200 mV/2.2 kΩ (REC OUT)
Maximum Lineout Level and Impedance	2 V/2.2 kΩ (REC OUT)
S/N Ratio (Line, IHF-A)	100 dB
Frequency Response (Analog In)	20 Hz - 50 kHz/+1 dB, -3 dB (DSP bypass)
DSD Sampling Rates via HDMI	2.8 MHz
Video Input Sensitivity/Output Level and Impedance	1 Vp-p/75 Ω (Component Y) 0.7 Vp-p/75 Ω (Component PB/CB, PR/CR) 1 Vp-p/75 Ω (Composite)
Video Frequency Response	5 Hz - 100 MHz/+0 dB, -3 dB (Component)
Ethernet Standard	100BASE-TX
FM Frequency	87.5 MHz - 108.0 MHz
AM Frequency	522/530 kHz - 1611/1710 kHz
Warranty	2 Years

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted
