Onkyo TX-NR5010 Review and Specs
image not found

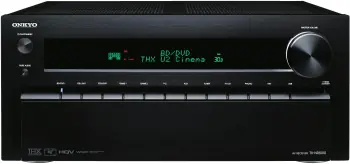

Onkyo TX-NR5010 (USA version)

SCORE:
86

Highlights

  • 9.2 channels
  • 145 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
  • THX Ultra2 Plus certified
  • 4K Upscaling, 1080p Passthrough
  • DLNA
  • Ethernet, Wi-Fi, Bluetooth
  • USB and Phono inputs

Disclosure: We earn money from the affiliate links to products associated with content in this article.

Onkyo TX-NR5010 Overview

Onkyo TX-NR5010 was introduced in 2012 and represented a flagship model of the manufacturer. It is equipped with 9 channel amplifier and is capable of 11.1 maximum channel processing.

We evaluated the Receiver and gave 86 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

AMPLIFIER
98
VIDEO FEATURES
71
AUDIO FEATURES
84
CONNECTIVITY
88
MULTIZONE
92
MISCELLANEOUS
81
RADIO
90
OVERALL
86

Amplifier score is based on power ratings, minimum impedance load, power supply, transformer type, total harmonic distortion, damping factor, signal to noise ratio and other small details. Audio score depends on the number of channels, front wide channel support, maximum channel processing, support of audio formats, DAC specifications, room calibration algorithm... Video score is based on HDR, Dolby Vision and video signal passthrough and upscaling, analog to HDMI upconversion. Connectivity score is defined from all wired and wireless inputs and outputs, internet and bluetooth connections, HEOS, SONOS and others. Multizone score depends on the number of zones with their outputs. Radio score is evaluated form digital radio support and analog tuner with its frequency range, signal to noise ratio, harmonic distortion...

Pros and Cons

In this section we present pros and cons of Onkyo TX-NR5010.

PROS
Front Wide Channel Support πŸ‘
THXβ„’ Certification πŸ‘
Certified 4 Ω Performance πŸ‘
Independent Block Construction (Amp/Preprocessor) πŸ‘
Bi-amp Capability πŸ‘
Many Channel Processing πŸ‘
Dolby TrueHD πŸ‘
Dolby Digital Plus πŸ‘
Dolby Pro Logic πŸ‘
Dolby Digital EX πŸ‘
Surround EX πŸ‘
DTS Neo πŸ‘
DTS-HD Master Audio πŸ‘
DTS-HD High Resolution Audio πŸ‘
DTS 96/24 πŸ‘
DTS Express πŸ‘
DTS-ES πŸ‘
High Resolution Music Playback via USB and/or Network πŸ‘
DSD via HDMI πŸ‘
DSD via USB πŸ‘
Dialog Normalization πŸ‘
Dialogue Lift πŸ‘
Compressed Music Enhancer πŸ‘
THX Processing Mode πŸ‘
Audyssey Dynamic EQ πŸ‘
Audyssey Dynamic Volume πŸ‘
Audyssey DSX πŸ‘
Auto Speaker Calibration System with Mic. πŸ‘
3-D Ready πŸ‘
4K or 8K Signal Upscaling πŸ‘
Analog To HDMI Upconversion πŸ‘
Component Video Upscaling πŸ‘
Analog to Analog Video conversion πŸ‘
MHL Input πŸ‘
DLNA 1.5 πŸ‘
Ethernet πŸ‘
Wi-Fi πŸ‘
Bluetooth πŸ‘
New HDCP Version πŸ‘
Many HDMI Inputs πŸ‘
USB Input πŸ‘
Many Analog Audio Line Inputs πŸ‘
Phono Input πŸ‘
Composite Video Inputs πŸ‘
Composite Video Outputs πŸ‘
Component Video Inputs πŸ‘
Component Video Outputs πŸ‘
Analog Pre-Outs πŸ‘
Zones πŸ‘
Detachable Power Cord πŸ‘
Analog Tuner πŸ‘
Pandora πŸ‘
Spotify πŸ‘
SiriusXM Internet Radio πŸ‘
Independent Power Supply πŸ‘
H.C.P.S. (High Current Power Supply) πŸ‘
Toroidal Transformer πŸ‘
CONS
No Dolby Atmos πŸ‘Ž
No Dolby Atmos Height Virtualization πŸ‘Ž
No Dolby Surround Upmixer πŸ‘Ž
No DTS:X πŸ‘Ž
No DTS Neural:X πŸ‘Ž
No DTS Virtual:X πŸ‘Ž
No IMAX Enhanced πŸ‘Ž
No Auro 3D with Auro-Matic Upmixer πŸ‘Ž
No Gapless Playback πŸ‘Ž
No DTS Dialog Control πŸ‘Ž
No High-resolution Music Enhancer πŸ‘Ž
No Audyssey App Support πŸ‘Ž
No HDR10 πŸ‘Ž
No HDR10+ πŸ‘Ž
No BT.2020 color space πŸ‘Ž
No Dolby Vision πŸ‘Ž
No Hybrid Log Gamma (HLG) πŸ‘Ž
No 4K or 8K Video Passthrough πŸ‘Ž
No Chromecast Built-In πŸ‘Ž
Does not Work with Amazon Alexa πŸ‘Ž
Does Not Work with SONOS πŸ‘Ž
No eARC πŸ‘Ž
No Multi-Channel Input πŸ‘Ž
No Tidal πŸ‘Ž
No Deezer πŸ‘Ž
No Napster πŸ‘Ž

Major Changes from its predecessor

Here we are comparing Onkyo TX-NR5010 to its predecessor TX-NR5009 and displaying the major changes.

UPGRADES Onkyo TX-NR5010 Onkyo TX-NR5009
More Channel Processing 11.1 9.1
Higher Resolution Music Playback via USB βœ” up to 192 kHz βœ” up to 96 kHz
DSD via USB βœ” 2-ch Input βœ–
MHL Input βœ” Front HDMI βœ–
Bluetooth βœ” via Front USB (optional UBT-1 adapter sold separately) βœ–
More HDMI Inputs 9 (1 front) 8 (1 front)
More HDMI Outputs 2 (1 Main, 1 Sub/Zone2) 2 (simultaneous)
More Analog Pre-Outs 11.4 9.2

DOWNGRADES Onkyo TX-NR5010 Onkyo TX-NR5009
Analog to Analog Video conversion βœ” Composite, PC βœ” Composite, S-Video, PC to Component
Less Analog Audio Line Outputs βœ– 1
Less Composite Video Outputs 1 2
Less Component Video Inputs 2 3
Multi-Channel Input βœ– βœ” 7.1
Digital Radio βœ– βœ” HD Radio via optional UP-HT1 Tuner (sold separately)
Napster βœ– βœ”
Smaller Power Supply 12.4 A 12.8 A

For more detailed comparison between the models please visit Onkyo TX-NR5010 vs Onkyo TX-NR5009.

Selected Features

Amplifier

Onkyo TX-NR5010 has 9 channel amplifier and delivers 145 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and also has a stable performance at 4 Ω load. This receiver even supports front wide channels which is found only in a very few high-end receivers these days.


Video Features

The Receiver has 1080p passthrough and 4K upscaling up to 30p.


Toroidal Transformer

Onkyo TX-NR5010 has a toroidal transformer which in general costs several times more than a regular C-core transformer and radiates less electromagnetic noise outside its donut shaped core.


WRAT

Onkyo TX-NR5010 features Onkyo’s Wide Range Amp Technology (WRAT) circuit layout that prevents phase shifting by pushing the roll-off point higher than the listening-level frequency. Amplifying sound without phase shift creates an uncommonly well-focused and realistic audio image. If phase shift occurs and signal timing is not accurate, then neither is the resulting audio image.


3-Stage Inverted Darlington Circuitry

Onkyo TX-NR5010 features 3-Stage Inverted Darlington Circuitry. Standard amplifiers employ a negative feedback (NFB) design that counters distortion by feeding back the opposite phase of the output signal into the input stage. Unfortunately, NFB is easily affected by inverse electromotive forces from the speakers, leading to an increase in circuit noise. Three-Stage Inverted Darlington Circuitry is a core Onkyo technology incorporating a low-NFB design that makes the sound more natural. Sensitive to oscillations, this circuitry requires very advanced control technology in order to be incorporated into the amplifier.


THXβ„’ Certification

Onkyo TX-NR5010 is THXβ„’ certified which offers optimal performance, superior quality and seamless integration. THX works with partners from the ground up, so that certified products deliver professional quality audio-visual experiences right out of the box. They only certify the very best products with uncompromised quality, performance and consistency. They ensure that THX certified devices play well with lower performing devices and components. THX listening modes make the receiver to have one speaker set up for movies, music and games. They are tested for power output, bass management, signal-to-noise ratio and feature RE-EQ, timbre matching, boundary gain compensation and THX Loudness Plus. The current model has[y] Ultra2 Plus class performance. This means that it brings the cinematic experience to larg home theaters, 3,000 cubic feet (85 cubic meters) in size, with a viewing distance of 12 feet (4 meters) or greater from the screen.


Advanced Music Optimizer

Compressed music enhancement in Onkyo TX-NR5010 is done by Onkyo’s Advanced Music Optimizer. While MP3 or AAC files may sound fine through the headphones of your portable digital player, the limitations of these files can be exposed when played back through a quality home entertainment system. This is because a significant amount of high-frequency bit information is lost during the file-compression process. To counter this, Onkyo has designed the Advanced Music Optimizer to compensate for lost bit information and improve the quality of compressed audio signals. This results in a clearer and more expansive sound. Also included in this technology is a loudness correction feature that further improves the audio character of compressed files.


Audyssey

Onkyo TX-NR5010 comes with Audyssey Dynamic EQ, Audyssey Dynamic Volume and Audyssey DSX.

Audyssey Dynamic EQ selects the best possible frequency response and surround volume levels moment-by-moment. This ensures that the bass response, tonal balance and surround impression remain constant despite changes in volume. This is the first technology that carefully combines information from incoming source levels with actual output sound levels in the room, a pre-requisite for delivering a dynamic volume solution.

Your Listening experience can be greatly diminished when there are significant shifts in volume between television programs, commercials and within the program material itself. When this happens you must constantly adjust the volume to maintain your desired listening level. Audyssey Dynamic Volume monitors the volume of program material moment-by-moment and automatically adjusts it, maintaining the desired listening level for all content while optimizing the dynamic range to preserve impact.

Audyssey DSX allows you to augment a standard five-channel home theater with either two Front Wide or two Front High speakers. The Wide channels create an expansive soundstage and bring out convincing directional effects. Alternatively, Height channels can add a vertical dimension to movie and game soundtracks.


Room Correction

Onkyo TX-NR5010 comes with[y] Audyssey MultEQ XT32 room correction system and includes the calibration microphone.

Audyssey is an acoustic measurement technology which automatically restores the acoustic distortion caused by the acoustic behaviour of a room with only a push on a button. Audyssey equalization provides an clear, accurate, natural sound with voices and dialog that become focused and intelligible, restoring the musical balance. Musical instruments and sound effects become precisely localized and the surround soundstage is made seamless and enveloping.


Connectivity

Onkyo TX-NR5010 can be connected to internet using ethernet cable or wirelessly[y] via Front USB (optional UWF-1 sold separately). It can also connect to bluetooth devices[y] via Front USB (optional UBT-1 adapter sold separately) . It has 9 HDMI inputs and HDCP 2.2 copy protection. There is a phono input with built-in phono stage for connecting the cartridge output of the turntable directly to the Receiver. There are 11.4 channel analog pre-outs for external amplification.

Front panel has HDMI/MHL, USB, Composite Video, RCA Audio and Optical inputs.

Image cannot be found Image cannot be found

Detailed Specifications

Here we list all the available features and specifications of Onkyo TX-NR5010.

BASICS
BrandOnkyo
ModelTX-NR5010
TypeA/V Receiver
CountryUSA
Release Year2012
AMPLIFIER
Channels9.2
Front Wide Channel Supportβœ”
WRAT (Wide Range Amplifier Technology)βœ”
VLSC (Vector Linear Shaping Circuitry)βœ” All Channels
Optimum Gain Volume Circuitryβœ” Linear
THXβ„’ Certificationβœ” Ultra2 Plus
Continuous 6 Ω Ratedβœ”
Certified 4 Ω Performanceβœ”
Discrete Output Stage Circuitryβœ”
3-Stage Inverted Darlington Circuitryβœ”
PUSH-PULL Designβœ”
Independent Block Construction (Amp/Preprocessor)βœ”
Bi-amp Capabilityβœ”
BTL (Bridged Transless or Bridging)βœ–
AUDIO
Digital Processing Crossover Networkβœ”
Digital Signal Processing (DSP) EngineAdvanced 32-Bit Processing DSP Chip
DACBurr-Brown
Maximum Channel Processing11.1
Air Studios Monitor Certificationβœ–
Dolby Atmosβœ–
Dolby Atmos Height Virtualizationβœ–
Dolby TrueHDβœ”
Dolby Digital Plusβœ”
Dolby Surround Upmixerβœ–
Dolby Pro Logicβœ” PLIIz
Dolby Digital EXβœ”
Surround EXβœ” also known as Dolby Digital Surround EX
DTS:Xβœ–
DTS Neural:Xβœ–
DTS Virtual:Xβœ–
DTS Neoβœ” Neo:X
DTS-HD Master Audioβœ”
DTS-HD High Resolution Audioβœ”
DTS 96/24βœ”
DTS Expressβœ”
DTS-ESβœ” Discrete 6.1, Matrix 6.1
IMAX Enhancedβœ–
Auro 3D with Auro-Matic Upmixerβœ–
PCMβœ” 2-ch/Multi-ch Input
Music Playback via USBFLAC, WAV, Apple Lossless, WMA, WMA Lossless, Ogg, MP3, DSD, Dolby TruHD, LPCM, AAC
High Resolution Music Playback via USB and/or Networkβœ” up to 192 kHz
High Resolution Audio Formats via USBFLAC, WAV, Apple Lossless, DSD, WMA Lossless, LPCM, AAC, Dolby TrueHD
Multi-Channel Music File Playback via USBβœ–
Gapless Playbackβœ–
DSD via HDMIβœ” 2-ch/Multi-ch Input
DSD via USBβœ” 2-ch Input
DSD to PCM Converterβœ–
USB DACβœ–
Jitter Reductionβœ” PLL (Phase Locked Loop) Jitter-Cleaning Circuit Techβœ– logy
DTS Dialog Controlβœ–
Dialog Enhancementβœ–
Dialog Level Adjustmentβœ–
Dialog Normalizationβœ”
Dialogue Liftβœ” Screen Centered Dialog
Tone Controlβœ” All Channels
Compressed Music Enhancerβœ” Advanced Music Optimizer
High-resolution Music Enhancerβœ–
THX Processing Modeβœ”
Audyssey Dynamic EQβœ”
Audyssey Dynamic Volumeβœ”
Audyssey LFCβœ–
Audyssey Sub EQ HTβœ–
Audyssey DSXβœ”
Phase-Matching Bass Boostβœ–
Direct Modeβœ”
Pure Audio Modeβœ”
Pure Direct Analog Path Modeβœ–
Virtual Speakersβœ” T-D (Theater-Dimensional)
Independent Dual Subwoofer Outputβœ–
CALIBRATION
Auto Speaker Calibration System with Mic.βœ” Audyssey MultEQ XT32
Audyssey App Supportβœ–
VIDEO
HDR10βœ–
HDR10+βœ–
Dynamic HDRβœ–
BT.2020 color spaceβœ–
Dolby Visionβœ–
Hybrid Log Gamma (HLG)βœ–
Quick Media Switching (QMS)βœ–
Auto Low Latency Mode Pass-throughβœ–
Variable Refresh Rate (VRR)βœ–
Quick Frame Transport (QFT)βœ–
3-D Readyβœ”
Video Signal Passthroughup to 1080p
Video Signal Upscalingβœ” up to 4K/30p (Marvell Qdeo)
Analog To HDMI Upconversionβœ” Component, Composite, PC
Component Video Upscalingβœ” *
Analog to Analog Video conversionβœ” Composite, PC
Component Video Maximum Resolution1080p
isf Certified Calibration Controlβœ”
CONNECTIVITY
MHL Inputβœ” Front HDMI
DLNA 1.5βœ”
FireConnectβœ–
FlareConnectβœ–
Chromecast Built-Inβœ–
DTS Play-Fiβœ–
Works with Amazon Alexaβœ–
Works with SONOSβœ–
AirPlayβœ–
Apple Product Connectionβœ” iPod and iPhone via front USB
Remote Appβœ” iPod touch/iPhone and Android-Powered Devices
InstaPrevue Input Source Prevueβœ”
Ethernetβœ”
Ethernet Switchβœ–
Wi-Fiβœ” via Front USB (optional UWF-1 sold separately)
Bluetoothβœ” via Front USB (optional UBT-1 adapter sold separately)
HDBaseT Compatibleβœ–
Enhanced ARCβœ–
HDCP Version2.2
HDMI Input9 (1 front)
HDMI Output2 (1 Main, 1 Sub/Zone2)
USB Input1 Front (for iPod/iPhone) and 1 Rear
USB DC Out Portβœ–
Analog Audio Line Input7 (1 front)
Analog Audio Line Outputβœ–
Phono Inputβœ”
Optical In4 (1 front)
Optical Outβœ–
Coaxial In/Out3 / βœ–
Composite Video Input5 (1 front)
Composite Video Output1
S-Video Inputβœ–
S-Video Outputβœ–
Component Video Input2
Component Video Output1
PC Inβœ”
Multi-Channel Inputβœ–
Analog Pre-Outs11.4
XLR Inputsβœ–
XLR Pre-outsβœ–
Front A/V InputsHDMI/MHL, USB, Composite Video, RCA Audio, Optical
Speaker A/Bβœ–
Headphone Outβœ” 6.3 mm
ZONES
Zones3
Powered Zonesβœ” 2 and 3
Zone 2HDMI, Composite Video, RCA Line Out
Zone 3 OutsRCA Line Out
Whole House Modeβœ”
RS-232βœ”
+12V Trigger Output2 (Zone2, Zone 3)
Remote (IR) Input/Output1 / 1
MISC
On-Screen Displayβœ” Advanced "Home" GUI
Detachable Power Cordβœ”
uportβœ–
ONKYO-RI System Controlβœ”
RIHD (Remote Interactive Over HDMI)βœ”
Pre-Pro/Learning Remoteβœ” / βœ”
On Screen Remote Programmingβœ”
Bi-directional Remote Setup via GUIβœ”
Activity Based Remoteβœ”
Smart Grid-Readyβœ–
RADIO
Analog Tunerβœ” FM/AM
Presets40
Digital Radioβœ–
Internet Radioβœ” vTuner
Pandoraβœ”
Spotifyβœ”
Tidalβœ–
Deezerβœ–
Napsterβœ–
SiriusXM Internet Radioβœ”
CONSTRUCTION
Solid Aluminum Frontβœ”
Speaker Terminals11
Large Speaker Terminals11
Color-Coded Speaker Terminalsβœ”
Transparent High-Grade Speaker Terminalsβœ”
18mm Pitch High Grade Pre-outsβœ–
19mm-Pitch Audio Inputsβœ” TV/CD and Phono
Gold plated RCA terminalsβœ–
POWER
Power SupplyAC 120 V, 60 Hz
Independent Power Supply4
H.C.P.S. (High Current Power Supply)βœ” Massive High Power Toroidal Transformer
Toroidal Transformerβœ”
Power Consumption12.4 A
No Sound Power130 W
Standby Power0.10 W
GENERAL
ECO Mode / Hybrid Standby Functionβœ”
Dimensions (W x H x D)435 mm x 198.5 mm x 463.5 mm
17-1/8" x 7-13/16" x 18-1/4"
Weight25.0 kg (55.1 lbs)
Warranty2 Years
SPECS
Power Output (8 Ω, 20 Hz - 20 kHz, 2145 W (0.05% THD)
Power Output (6 Ω, 1 kHz, 2175 W (0.1% THD)
Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA)280 W
Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)220 W (1% THD)
Dynamic Power per Channel (3 Ω, Front)400 W
Dynamic Power per Channel (4 Ω, Front)300 W
Dynamic Power per Channel (8 Ω, Front)180 W
THD0.05% (20 Hz - 20 kHz, half power)
Damping Factor60 (Front, 1 kHz, 8 Ω)
Input Sensitivity and Impedance (Line)200 mV/47 kΩ (Line)
Input Sensitivity and Impedance (Phono MM)2.5 mV/47 kΩ
Rated Preout Level and Impedance1 V/470 Ω
Maximum Preout Level and Impedance5.5 V/470 Ω
Phono Overload70 mV (MM 1 kHz 0.5% Direct)
S/N Ratio (Line, IHF-A)110 dB
S/N Ratio (Phono MM, IHF-A)80 dB
Frequency Response (Analog In)5 Hz - 100 kHz/+1 dB, -3 dB (Direct Mode)
DSD Sampling Rates via HDMI2.8 MHz
DSD Sampling Rates via USB2.8 MHz
Video Input Sensitivity/Output Level and Impedance1 Vp-p/75 Ω (Component Y)
0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
1 Vp-p/75 Ω (Composite)
Video Frequency Response5 Hz - 100 MHz/+0 dB, -3 dB (Component)
Ethernet Standard100BASE-TX
FM Frequency87.5 MHz - 107.9 MHz
AM Frequency522/530 kHz - 1611/1710 kHz

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted

Amazon Affiliate Disclosure

ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
