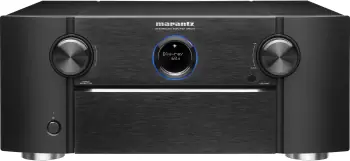

Marantz SR8012

    93
    Image cannot be found
    USA
    UK
    Image cannot be found
    Image cannot be found
    Image cannot be found

    Highlights

    • 11.2 Channels
    • 11.2 Channel Processing
    • 140 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
    • Dolby Atmos, DTS:X, Auro 3D
    • HDR10, Dolby Vision
    • 4K/60Hz Passthrough, 4K/60Hz Upscaling
    • Wi-Fi, Bluetooth, Ethernet
    • Phono Input

    Disclosure: We earn money from the affiliate links to products associated with content in this article.

    Table of Contents
    1. Overview
    2. Pros and Cons
    3. 2017 Lineup
    4. Amplifier
    5. Speaker Configurations
    6. Immersive Audio Formats
    7. HDMI
    8. Room Calibration
    9. Multi-zone Playback
    10. Inputs and Outputs
    11. Replaced by SR8015
    12. Evaluation
    13. Specifications

    1. Overview

    Marantz SR8012 was introduced in 2017 and represented a flagship model of a manufacturer. It is equipped with 11 channel amplifier with 140 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 11.2 maximum channel processing. It supports Dolby Atmos, DTS:X and Auro-3D, passes 4K/60Hz and upscales up to 4K 50/60Hz 4:4:4 video signal.

    We evaluated the a/v amplifier and gave 93 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

    Amplifier
    94
    Audio Features
    93
    Video Features
    95
    Connectivity
    92
    Zones
    93
    Radio
    82
    OVERALL
    93

    For more details about the ranking please go to    Evaluation section.


    Here is a history of the series, where you can view and compare the main specifications of the receivers.

    Evolution of the series
    Model Year Chann. Power Dolby Atmos DTS:X HDR10 HDR10+ Dolby Vision Pass. Price
    SR8015 Image cannot be found
    Compare
    		2020 11.2 140 W 8K
    SR8012 Image cannot be found 2017 11.2 140 W 4K

    You can view their side-by-side comparison here: Marantz SR8015 vs SR8012.

    2. Pros and Cons

    In this section we present pros and cons of Marantz SR8012.

    PROs

    •   Many Channels - 11.2
    •   High Power Output - 140 W
    •   11.2 Channel Processing
    •   Dolby Atmos
    •   DTS:X
    •   IMAX Enhanced
    •   Auro 3D with Auro-Matic Upmixer
    •   DSD via HDMI
    •   Auto Speaker Calibration System with Mic.
    •   HDR10
    •   Dolby Vision
    •   eARC
    •   New HDCP Version
    •   Analog To HDMI Upconversion
    •   Wi-Fi
    •   Bluetooth
    •   Works with Amazon Alexa
    •   HEOS
    •   8 HDMI Inputs
    •   4 HDMI Outputs
    •   USB Input
    •   Many RCA Line Inputs
    •   Phono Input
    •   Multi-Channel Input
    •   RCA Pre-Outs
    •   Composite Video Inputs
    •   Component Video Inputs
    •   Ethernet
    •   3 Zones
    •   Spotify
    •   Tidal
    •   Toroidal Transformer

    CONs

    •   No Front Wide Channel Support
    •   No Dolby Atmos Height Virtualization
    •   No HDR10+
    •   No 8K Passthrough
    •   0 8K Input
    •   No Analog Tuner
    •   No Digital Radio
    •   No Pandora
    •   Bluetooth 3․0 + EDR

    3. Marantz 2017 Lineup

    In 2017 Marantz released 6 new receivers. Here is the lineup:

    Marantz 2017 Lineup
    ModelChannelsPowerMax. Ch. Proc.Pre OutsImmersive AudioZones Price
    SR8012 Image cannot be found 11.2140 W11.211.2Dolby Atmos
    DTS:X
    Auro 3D    		3
    SR7012 Image cannot be found
    Compare
    		9.2125 W11.211.2Dolby Atmos
    DTS:X
    Auro 3D    		3
    SR6012 Image cannot be found
    Compare
    		9.2110 W11.211.2Dolby Atmos
    DTS:X    		2
    SR5012 Image cannot be found
    Compare
    		7.2100 W7.17.2Dolby Atmos
    DTS:X    		2
    NR1608 Image cannot be found
    Compare
    		7.250 W7.12.2Dolby Atmos
    DTS:X    		2
    NR1508 Image cannot be found
    Compare
    		5.250 W5.12.21

    You can view their side-by-side comparison here: Marantz SR8012 vs SR7012 vs SR6012 vs SR5012 vs NR1608 vs NR1508.

    4. Amplifier

    11 channel Amplifier

    Marantz SR8012 features 11 channel power amplifier. It is rated at 140 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.

    • Current Feedback Topology: Marantz SR8012 features Current Feedback Topology which is a well known, Marantz’ original circuit technology. The Current Feedback amplifier technology fits perfectly with the high requirements set for Super Audio software providing wide-bandwidth, high-speed reproduction. The impedance at the Current Feedback point is limited resulting in a very low phase shift. Marantz receivers and amplifiers equipped with Current Feedback can keep the phase compensation via Negative FeedBack (NFB) to a minimum, resulting in high through-rate, excellent transient response and superb sonic transparency for the full bandwidth. Unlike conventional Voltage Feedback amplification, the Current Feedback amplification makes the power amplifier in-sensitive to difficult loudspeaker loads.
    • HDAM (Hyper Dynamic Amplifier Module): Marantz SR8012 features exclusive Marantz HDAM (Hyper Dynamic Amplifier Module) technology found on their Reference Series components. Marantz developed its own discrete circuit boards to replace standard IC's. These HDAM's consist of discrete surface mount components with short mirror image L/R signal paths. Those devices are doing exactly the same thing as the Op-Amps, but outperform the regular IC Op-amps dramatically in terms of the Slew Rate and reduced noise level, resulting in a much more dynamic, accurate and detailed sound. Over the years Marantz developed different types of the HDAM to improve quality and to fit to the special requirements of a product category like CD or amplifier.
    • Toroidal Transformer: Marantz SR8012 has a toroidal transformer which in general costs several times more than a regular C-core transformer and radiates less electromagnetic noise outside its donut shaped core.
    AMPLIFIER
    Channels11.2
    Power Output140 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
    Front Wide Channel Support
    Current Feedback Topology
    Discrete Amplification
    HDAM
    THX™ Certification
    Continuous 6 Ω Rated
    Certified 4 Ω Performance
    Bi-amp Capability assignable

    5. Speaker Configurations

    Marantz SR8012's 11 channel amplifier can be assigned for different speaker configurations.

    • Dolby Atmos Configurations: The following speaker configurations are supported for Dolby Atmos:
    • 5.2.2, 5.2.4, 7.2.2, 7.2.4 with internal amplifier.
    • DTS:X Configurations: The speaker configurations for DTS:X are the same as for Dolby Atmos:
    • 5.2.2, 5.2.4, 7.2.2, 7.2.4 with internal amplifier.
    • Configurations without height channels: There are also other speaker configurations available which do not include height channels:
    • 5.2, 7.2 with internal amplifier.
    • 2-ch Bi-Amp: Marantz SR8012 allows you to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.

    6. Immersive Audio Formats

    Dolby Atmos

    Marantz SR8012 supports Dolby Atmos with Surround Upmixer.

    • Surround Upmixer: If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.

    DTS:X

    Marantz SR8012 supports DTS:X with Neural:X and Virtual:X.

    • Neural:X is an advanced upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.
    • Virtual:X bridges the gap between DTS:X codec and the reality of so many consumers' homes, allowing you to enjoy multi-dimensional sound regardless of room size, layout, or speaker configuration. If you have a limited speaker setup you will miss a full immersive potential of your entertainment system. DTS Virtual:X adds height and surround audio effect to your system without adding height speakers. It works with multiple configurations and delivers immersive sound experience out of 5.1 or even 2.1 speaker layouts.
    • DTS Dialog Control: This function adjusts the dialog levels during playback of the DTS:X stream. It allows you to separately increase the dialog levels in contrast with the background sound and hear dialog easily even under noisy circumstances.

    Auro-3D

    Marantz SR8012 supports Auro-3D. It is an immersive 3D audio format developed by the Belgium-based company Auro Technologies.

    • Auro-Matic upmixer takes non Auro-3D sound and upmixes to the current speaker configuration.

    IMAX Enhanced

    Marantz SR8012 is IMAX Enhanced certified. To qualify for IMAX Enhanced certification, 4K HDR televisions, projectors, sound bars, a/v receivers, loudspeakers, powered subwoofers and other premium home entertainment devices must meet carefully prescribed performance requirements established by IMAX, DTS and Hollywood's leading experts.

    • What makes an IMAX Enhanced A/V receiver different from an A/V receiver with DTS:X technology? DTS:X technology is commonly found in most multi-channel A/V receivers on the market today. All IMAX Enhanced A/V receivers include DTS:X technology and deliver additional features, such as auto-sensing of IMAX Enhanced content, via IMAX Mode. IMAX Mode indicates that your A/V receiver supports fully immersive IMAX signature sound.
    DECODING
    Dolby Atmos up to 7.1.4
    Dolby Atmos Height Virtualization
    Dolby Atmos Music
    Dolby TrueHD
    Dolby Digital Plus
    Dolby Surround Upmixer
    Dolby Pro Logic
    Dolby Digital EX
    Surround EX
    DTS:X up to 7.1.4
    DTS Neural:X
    DTS Virtual:X
    DTS Neo
    DTS-HD Master Audio
    DTS-HD High Resolution Audio
    DTS 96/24
    DTS Express
    DTS-ES Discrete 6.1, Matrix 6.1
    IMAX Enhanced
    Auro 3D with Auro-Matic Upmixer Built-In

    7. HDMI

    Marantz SR8012 features 8 HDMI inputs. It has 3 outputs: 2 for MAIN and 1 for ZONE2.

    • 4K/60Hz Passthrough: All inputs pass up to 4K 50/60Hz 4:4:4 video signal.
    • 4K Upscaling: Marantz SR8012 can upscale up to 4K 50/60Hz 4:4:4 from HDMI and analog sources.
    • Analog To HDMI Upconversion: The a/v amplifier supports video upconversion, so you can connect your analog Component and Composite video sources and Marantz SR8012 will output them via HDMI. This means that you will need only one HDMI cable to connect to your TV.
    • BT.2020 Color Space: BT.2020 or Rec. 2020 is a color standard which delivers a wider color gamut compared to Rec. 709. It covers approximately 75% of the total visual spectrum while the Rec. 709 covers only 35%.
    • HDCP 2.2 Copy Protection: All inputs and outputs are HDCP 2.2 compliant which is a requirement for 4K/HDR copy-protected content transmission.
    • 3D Ready: Marantz SR8012 is able to pass 3D video through HDMI.

    HDR (High Dynamic Range)

    Marantz SR8012 supports HDR (high dynamic range) video formats such as HDR10, Dolby Vision and Hybrid Log-Gamma via HDMI ports. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.


    Enhanced Audio Return Channel (eARC)

    Audio Return Channel (ARC) feature allows the compatible TV to send audio signal to the a/v amplifier through the same HDMI cable which is used to send audio and video signals to the TV. So one HDMI cable is used to transfer audio signal in both directions. New Enhanced ARC will support uncompressed audio formats such as Dolby Atmos, DTS:X, Dolby TrueHD and DTS HD Master Audio whereas the previous ARC could support only Dolby Digital, Dolby Digital Plus, DTS, DTS HD, and PCM.



    VIDEO FEATURES
    HDR10
    HDR10+
    Dynamic HDR
    BT.2020 color space
    Dolby Vision
    HLG (Hybrid Log Gamma)
    HDBaseT Compatible
    Enhanced Audio Return Channel (eARC)
    HDCP Version2.2
    QMS (Quick Media Switching)
    ALLM (Auto Low Latency Mode)
    VRR (Variable Refresh Rate)
    QFT (Quick Frame transport)
    3-D Ready
    Video Signal Passthroughup to 4K 50/60Hz 4:4:4
    Video Signal Upscaling up to 4K 50/60Hz 4:4:4

    8. Room Calibration

    Marantz SR8012 comes with Audyssey MultEQ XT32 room correction system and includes the calibration microphone. It also supports Audyssey App.

    • Audyssey Room Calibration: Audyssey is an acoustic measurement technology which automatically restores the acoustic distortion caused by the acoustic behaviour of a room with only a push on a button. Audyssey equalization provides an clear, accurate, natural sound with voices and dialog that become focused and intelligible, restoring the musical balance. Musical instruments and sound effects become precisely localized and the surround soundstage is made seamless and enveloping.

    9. Multi-zone Playback

    Marantz SR8012 offers multi-zone playback which allows you to play different input sources in 3 different rooms.


    Zone 2

    • Powered Zone 2: You can use the unit's 2 amplifier channels by connecting Zone 2 speakers directly to the speaker terminals. The remaining 9 channels will be left for main zone amplification.
    • HDMI Output: Marantz SR8012 offers HDMI output for Zone 2. This means that it can send two different HDMI signals to two displays.
    • Audio Pre Output: If you have a dedicated power amplifier for Zone 2 you can connect it to the a/v amplifier via pre outs and control volume from the a/v amplifier.
    • Composite Video Output: Marantz SR8012 has analog Composite Video output for Zone 2. This means that it can send a different video signal to the TV.
    • Component Video Output: Marantz SR8012 has analog Component Video output for Zone 2, so you can send a different video signal to the TV. Component video connection provides the higher image quality than the composite and S-Video connections.

    Zone 3

    • Powered Zone 3: You can use the unit's 2 amplifier channels by connecting Zone 3 speakers directly to the speaker terminals. The remaining 9 channels will be left for main zone amplification.
    • Audio Pre Output: If you have a dedicated power amplifier for Zone 3 you can connect it to the a/v amplifier via pre outs and control volume from the a/v amplifier.
    ZONES
    Number of Zones3
    Powered Zones 2 and 3
    Zone 2 OutsHDMI, Component, Composite, Pre Out
    Zone 3 OutsPre Out
    RS-232C Interface
    +12V Trigger Output2

    10. Inputs and Outputs

    Audio

    • Phono Input: There is an MM phono input with built-in phono stage for connecting the moving magnet cartridge output of the turntable directly to the a/v amplifier.
    • 7.1 Multichannel Input: In case you have a high quality Blu-Ray or a DVD player with multichannel analog outputs you may connect it to a 7.1 multichannel analog inputs of the a/v amplifier and use high quality DACs of the player instead of the ones in the a/v amplifier.
    • Analog Pre-Outs: Marantz SR8012 has 11.2 preamplifier outputs which allow you to connect the a/v amplifier to the external power amplifier. You may want to use a high quality external amplifier for certain channels, usually for front L/R and center, and use the a/v amplifier to power the rest.
    • Analog Line Inputs: There are 8 line inputs for analog audio connection.
    • Digital Inputs: 2 optical inputs and 2 coaxial inputs are available for digital audio connection.
    • Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.

    Video

    • HDMI:
    • Inputs: 8 (1 front)   Outputs: 3 (2 for MAIN, 1 for ZONE2)
      8K Inputs: 0
    • Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
    • Inputs: 5   Outputs: 1
    • Component Video: Component video connection gives you the higher quality video compared to the composite video connection. So in case your old DVD player and other equipment do not have an HDMI output but have Component video output use this connection over the composite one. Marantz SR8012 supports up to 1080p resolution on Component video connectors.
    • Inputs: 3   Outputs: 1

    Front A/V Inputs

    • HDMI, USB, Composite, L/R Audio
    Image cannot be found
    Image cannot be found
    TERMINALS
    HDMI Inputs8 (1 front)
    HDMI Outputs3 (2 for MAIN, 1 for ZONE2)
    8K Inputs
    USB Input1 (Front) for USB memory
    USB DC Out Port
    Optical Inputs2
    Optical Outputs
    Coaxial Inputs2
    RCA Line Inputs8 (1 front)
    RCA Line Outputs
    XLR Line Inputs
    Phono Input
    Multi-Channel Input 7.1
    RCA Pre-Outs11.2
    XLR Pre-outs
    Composite Video Inputs5 (1 front)
    Composite Video Outputs1
    S-Video Inputs
    S-Video Outputs
    Component Video Inputs3
    Component Video Outputs1

    11. Replaced by SR8015

    In 2020 Marantz SR8012 was replaced by Marantz SR8015. Let us now have a look at some important differences between Marantz SR8012 and its successor.

    UPGRADES Marantz SR8015 vs Marantz SR8012
    Front Wide Channel Support vs
    Bi-amp capability 5-ch (assignable) vs assignable
    More Channel Processing 13.2 vs 11.2
    Dolby Atmos Height Virtualization vs
    DTS:X Pro up to 7.1.6 or 9.1.4 with external amp vs up to 7.1.4
    HDR10+ vs
    Dynamic HDR vs
    Newer HDCP Version 2.3 vs 2.2
    Auto Low Latency Mode Pass-through vs
    VRR vs
    QFT vs
    Video Signal Passthrough up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 vs up to 4K 50/60Hz 4:4:4
    Video Signal Upscaling up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 vs up to 4K 50/60Hz 4:4:4
    Domotz Pro Compatible vs
    OvrC Compatible vs
    More 8K Inputs 1 vs
    More RCA Pre-Outs 13.2 vs 11.2
    Web Control vs
    More Speaker Terminals 13 vs 11
    More Large Speaker Terminals 13 vs 11
    Newer Bluetooth Version 4․2 vs 3․0 + EDR

    For more detailed comparison between the models please visit Marantz SR8012 vs SR8015.

    12. Evaluation

    We evaluate Marantz SR8012 and give score of 93 out of 100. We also give separate scores for 6 different categories according to the available features and specifications some of which are listed below. These evaluations are relative and may change each time a new receiver is added to the database.


    OVERALL
    93

    Amplifier

    EXCELLENT
    94

    We give Marantz SR8012 a score of 94 for Amplifier features.

    •   Many Channels - 11.2
    •   High Power Output - 140 W
    •   Toroidal Transformer

    Audio Features

    EXCELLENT
    93

    We give Marantz SR8012 a score of 93 for Audio Features features.

    •   Many Channels - 11.2
    •   No Front Wide Channel Support
    •   11.2 Channel Processing
    •   Dolby Atmos
    •   No Dolby Atmos Height Virtualization
    •   DTS:X
    •   IMAX Enhanced
    •   Auro 3D with Auro-Matic Upmixer
    •   DSD via HDMI

    Video Features

    EXCELLENT
    95

    We give Marantz SR8012 a score of 95 for Video Features features.

    •   HDR10
    •   No HDR10+
    •   Dolby Vision
    •   No 8K Passthrough
    •   Analog To HDMI Upconversion

    Connectivity

    EXCELLENT
    92

    We give Marantz SR8012 a score of 92 for Connectivity features.

    •   eARC
    •   New HDCP Version
    •   Wi-Fi
    •   Bluetooth
    •   Works with Amazon Alexa
    •   HEOS
    •   8 HDMI Inputs
    •   4 HDMI Outputs
    •   0 8K Input
    •   USB Input
    •   Many RCA Line Inputs
    •   Phono Input
    •   Multi-Channel Input
    •   RCA Pre-Outs
    •   Composite Video Inputs
    •   Component Video Inputs
    •   Ethernet
    •   Bluetooth 3․0 + EDR

    Zones

    EXCELLENT
    93

    We give Marantz SR8012 a score of 93 for Zones features.

    •   3 Zones

    Radio

    GOOD
    82

    We give Marantz SR8012 a score of 82 for Radio features.

    •   No Analog Tuner
    •   No Pandora
    •   Spotify
    •   Tidal

    13. Specifications

    GENERAL
    BrandMarantz
    ModelSR8012
    TypeA/V Amplifier
    CountryUK
    Release Year2017
    SuccessorMarantz SR8015
    AMPLIFIER
    Channels11.2
    Power Output140 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
    Front Wide Channel Support
    Current Feedback Topology
    Discrete Amplification
    HDAM
    THX™ Certification
    Continuous 6 Ω Rated
    Certified 4 Ω Performance
    Bi-amp Capability assignable
    AUDIO FEATURES
    DACAKM AK4458
    DAC Specs768 kHz/32 Bit
    Maximum Channel Processing11.2
    Air Studios Monitor Certification
    Dolby Atmos up to 7.1.4
    Dolby Atmos Height Virtualization
    Dolby Atmos Music
    Dolby TrueHD
    Dolby Digital Plus
    Dolby Surround Upmixer
    Dolby Pro Logic
    Dolby Digital EX
    Surround EX
    DTS:X up to 7.1.4
    DTS Neural:X
    DTS Virtual:X
    DTS Neo
    DTS-HD Master Audio
    DTS-HD High Resolution Audio
    DTS 96/24
    DTS Express
    DTS-ES Discrete 6.1, Matrix 6.1
    IMAX Enhanced
    Auro 3D with Auro-Matic Upmixer Built-In
    PCM 2-ch/Multi-ch Input
    Network Audio FormatsMP3, WMA, MPEG-4 AAC, Apple Lossless, WAV, FLAC, DSD
    Music Playback via USBMP3, WMA, AAC, Apple Lossless, WAV, FLAC, DSD
    High Resolution Music Playback via USB and/or Network up to 192 kHz
    High Resolution Audio Formats via USBApple Lossless, WAV, FLAC, DSD
    Gapless Playback
    DSD via HDMI 2-ch/Multi-ch Input
    DSD via USB 2-ch Input
    DSD to PCM Converter
    USB DAC
    Jitter Reduction
    DTS Dialogue Control
    Dialog Enhancement
    Dialog Level Adjustment
    Dialog normalization
    Dialogue Lift
    Compressed Music Enhancer MDAX2
    High-resolution Music Enhancer
    Audyssey Dynamic EQ
    Audyssey Dynamic Volume
    Audyssey LFC
    Audyssey Sub EQ HT
    Audyssey DSX
    Direct Mode
    Pure Direct Mode
    Independent Subwoofer Outputs
    CALIBRATION
    Auto Speaker Calibration System with Mic. Audyssey MultEQ XT32
    Audyssey App Support
    Optimized Bass Redirection
    Bass Sync
    VIDEO FEATURES
    HDR10
    HDR10+
    Dynamic HDR
    BT.2020 color space
    Dolby Vision
    HLG (Hybrid Log Gamma)
    HDBaseT Compatible
    Enhanced Audio Return Channel (eARC)
    HDCP Version2.2
    QMS (Quick Media Switching)
    ALLM (Auto Low Latency Mode)
    VRR (Variable Refresh Rate)
    QFT (Quick Frame transport)
    3-D Ready
    Video Signal Passthroughup to 4K 50/60Hz 4:4:4
    Video Signal Upscaling up to 4K 50/60Hz 4:4:4
    Analog To HDMI Upconversion Component, Composite
    Component Video Upscaling
    Analog to Analog Video conversion
    Component Video Maximum Resolution1080p
    isf Certified Calibration Control
    CONNECTIVITY
    Wi-Fi
    Bluetooth SBC
    Works with Amazon Alexa
    Chromecast Built-In
    Works with SonoS
    HEOS
    DTS Play-Fi
    MHL Input
    DLNA 1.5
    Domotz Pro Compatible
    Remote Monitoring with ihiji
    OvrC Compatible
    AirPlay AirPlay 2
    Apple Product Connection iPod, iPhone and iPad
    Remote App Marantz 2016 AVR Remote App for iOS and Android devices
    InstaPrevue Input Source Prevue
    TERMINALS
    HDMI Inputs8 (1 front)
    HDMI Outputs3 (2 for MAIN, 1 for ZONE2)
    8K Inputs
    USB Input1 (Front) for USB memory
    USB DC Out Port
    Optical Inputs2
    Optical Outputs
    Coaxial Inputs2
    RCA Line Inputs8 (1 front)
    RCA Line Outputs
    XLR Line Inputs
    Phono Input
    Multi-Channel Input 7.1
    RCA Pre-Outs11.2
    XLR Pre-outs
    Composite Video Inputs5 (1 front)
    Composite Video Outputs1
    S-Video Inputs
    S-Video Outputs
    Component Video Inputs3
    Component Video Outputs1
    Ethernet
    Ethernet Switch
    PC In
    Front A/V InputsHDMI, USB, Composite, L/R Audio
    Speaker A/B assignable
    Headphone Out6.3 mm (1/4")
    Detachable Power Cord
    Flasher In
    Remote Control In/Out1 / 1
    ZONES
    Number of Zones3
    Powered Zones 2 and 3
    Zone 2 OutsHDMI, Component, Composite, Pre Out
    Zone 3 OutsPre Out
    RS-232C Interface
    +12V Trigger Output2
    MISCELLANEOUS
    On-Screen Display Advanced Graphic User Interface
    GUI Languages9
    Web Control
    IP Control
    Display 2 lines + port hole
    Remote ControllerRC038SR
    Pre-programmed / Learnable / LCD Display / /
    Setup Assistant
    RADIO
    Analog Tuner
    Digital Radio
    Internet Radio TuneIn
    Pandora
    Spotify
    Tidal
    Deezer
    Napster
    SiriusXM
    CONSTRUCTION
    ChassisCopper Platted
    Front PanelMetal
    Speaker Terminals11
    Large Speaker Terminals11
    Color-Coded Speaker Terminals
    Transparent High-Grade Speaker Terminals
    High Grade Audio Components
    Gold plated RCA terminals
    POWER
    Power SupplyAC 230 V, 50/60 Hz
    Toroidal Transformer
    Power Consumption780 W
    No Sound PowerECO On/Off: 65 W/110 W
    Standby Power0.2 W
    ECO Mode / Hybrid Standby Function
    Auto Power off
    PHYSICAL
    Dimensions (W x H x D)440 mm x 185 mm x 460 mm (with antenna: 440 mm x 248 mm x 460 mm)
    17-3/8" x 7-3/8" x 18-1/8" (with antenna: 17-3/8" x 9-7/8" x 18-1/8")
    Dimensions of Package (W x H x D)21" x 12" x 21"
    Weight17.4 kg (38 lbs 6 oz)
    Weight of Package45.35 lbs
    SPECIFICATIONS
    Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)140 W (0.05% THD)
    Power Output (6 Ω, 1 kHz, 2 channel driven, FTC)175 W (0.7% THD)
    Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)205 W (1% THD)
    THD (Digital)0.008% (1 kHz, at 0 dB)
    Analog Distortion0.005% (20 Hz-20 kHz, Direct mode)
    Phono Distortion0.03% (1 kHz, 3 V)
    Input Sensitivity and Impedance (Line)200 mV/47 kΩ
    Input Sensitivity and Impedance (Phono MM)2.5 mV
    Rated Preout Level and Impedance1.2 V
    Rated Output digital2 V (at 0 dB playback)
    S/N Ratio (Line, IHF-A)102 dB
    S/N Ratio (Phono MM, IHF-A)74 dB
    S/N Ratio (digital)102 dB
    Dynamic Range (digital)100 dB
    Phono RIAA Deviation±1 dB (20 Hz to 20 kHz)
    Frequency Response (Analog In)+1/-3 dB (10 Hz to 100 kHz, Direct mode)
    DSD Sampling Rates via HDMI2.8 MHz
    DSD Sampling Rates via USB5.6 MHz, 2.8 MHz
    Video Input Sensitivity/Output Level and Impedance 1 Vp-p/75 Ω (Component Y)
    0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
    1 Vp-p/75 Ω (Composite)
    Video Frequency Response5 Hz - 60 MHz, 0, -3 dB (Component)
    5 Hz - 10 MHz, 0, -3 dB (Composite)
    Ethernet Standard100BASE-TX
    Wi-Fi StandardIEEE 802.11 a/b/g/n
    Wi-Fi Terminal Frequency5 GHz, 2.4 GHz
    Bluetooth Version3․0 + EDR
    Bluetooth Frequency2.4 GHz
    USB TerminalUSB2.0 5V, 1 A
    Warranty3 Years

    * - 480i/576i and 480p/576p only
    ** - 480i/576i only
    *** - no 1080p/24 upconversion
    **** - 1080p signal is not converted

    Amazon Affiliate Disclosure
    ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
