Marantz SR7009 Review and Specs
image not found

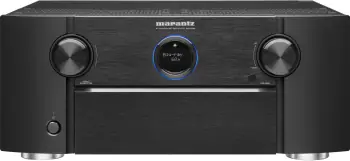

Marantz SR7009 (USA version)

SCORE:
88

Highlights

  • 9.2 channels
  • 125 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
  • Dolby Atmos, Auro 3D capable
  • 4K Upscaling, 4K Passthrough
  • AirPlay, DLNA
  • Ethernet, Wi-Fi, Bluetooth
  • USB and Phono inputs

Disclosure: We earn money from the affiliate links to products associated with content in this article.

Marantz SR7009 Overview

Marantz SR7009 was introduced in 2014 and represented a flagship model of the manufacturer. It is equipped with 9 channel amplifier and is capable of 11.2 maximum channel processing.

We evaluated the Receiver and gave 88 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

AMPLIFIER
92
VIDEO FEATURES
79
AUDIO FEATURES
89
CONNECTIVITY
90
MULTIZONE
92
MISCELLANEOUS
88
RADIO
91
OVERALL
88

Amplifier score is based on power ratings, minimum impedance load, power supply, transformer type, total harmonic distortion, damping factor, signal to noise ratio and other small details. Audio score depends on the number of channels, front wide channel support, maximum channel processing, support of audio formats, DAC specifications, room calibration algorithm... Video score is based on HDR, Dolby Vision and video signal passthrough and upscaling, analog to HDMI upconversion. Connectivity score is defined from all wired and wireless inputs and outputs, internet and bluetooth connections, HEOS, SONOS and others. Multizone score depends on the number of zones with their outputs. Radio score is evaluated form digital radio support and analog tuner with its frequency range, signal to noise ratio, harmonic distortion...

Pros and Cons

In this section we present pros and cons of Marantz SR7009.

PROS
Front Wide Channel Support πŸ‘
HDAM πŸ‘
Certified 4 Ω Performance πŸ‘
Bi-amp Capability πŸ‘
Many Channel Processing πŸ‘
Dolby Atmos πŸ‘
Dolby TrueHD πŸ‘
Dolby Digital Plus πŸ‘
Dolby Pro Logic πŸ‘
Dolby Digital EX πŸ‘
DTS Neo πŸ‘
DTS-HD Master Audio πŸ‘
DTS-HD High Resolution Audio πŸ‘
DTS 96/24 πŸ‘
DTS Express πŸ‘
DTS-ES πŸ‘
Auro 3D with Auro-Matic Upmixer πŸ‘
High Resolution Music Playback via USB and/or Network πŸ‘
Gapless Playback πŸ‘
DSD via HDMI πŸ‘
DSD via USB πŸ‘
Dialog Enhancement πŸ‘
Dialog Level Adjustment πŸ‘
Dialog Normalization πŸ‘
Compressed Music Enhancer πŸ‘
Audyssey Dynamic EQ πŸ‘
Audyssey Dynamic Volume πŸ‘
Audyssey LFC πŸ‘
Audyssey Sub EQ HT πŸ‘
Audyssey DSX πŸ‘
Auto Speaker Calibration System with Mic. πŸ‘
Optimized Bass Redirection πŸ‘
3-D Ready πŸ‘
4K or 8K Video Passthrough πŸ‘
4K or 8K Signal Upscaling πŸ‘
Analog To HDMI Upconversion πŸ‘
DLNA 1.5 πŸ‘
Ethernet πŸ‘
Wi-Fi πŸ‘
Bluetooth πŸ‘
New HDCP Version πŸ‘
Many HDMI Inputs πŸ‘
Many HDMI Outputs πŸ‘
USB Input πŸ‘
Many Analog Audio Line Inputs πŸ‘
Phono Input πŸ‘
Composite Video Inputs πŸ‘
Composite Video Outputs πŸ‘
Component Video Inputs πŸ‘
Component Video Outputs πŸ‘
Multi-Channel Input πŸ‘
Analog Pre-Outs πŸ‘
Zones πŸ‘
Detachable Power Cord πŸ‘
Analog Tuner πŸ‘
Digital Radio πŸ‘
Pandora πŸ‘
Spotify πŸ‘
SiriusXM Internet Radio πŸ‘
CONS
No Dolby Atmos Height Virtualization πŸ‘Ž
No Dolby Surround Upmixer πŸ‘Ž
No DTS:X πŸ‘Ž
No DTS Neural:X πŸ‘Ž
No DTS Virtual:X πŸ‘Ž
No IMAX Enhanced πŸ‘Ž
No DTS Dialog Control πŸ‘Ž
No High-resolution Music Enhancer πŸ‘Ž
No Audyssey App Support πŸ‘Ž
No HDR10 πŸ‘Ž
No HDR10+ πŸ‘Ž
No BT.2020 color space πŸ‘Ž
No Dolby Vision πŸ‘Ž
No Hybrid Log Gamma (HLG) πŸ‘Ž
No HEOS πŸ‘Ž
No Chromecast Built-In πŸ‘Ž
Does not Work with Amazon Alexa πŸ‘Ž
Does Not Work with SONOS πŸ‘Ž
No eARC πŸ‘Ž
No Tidal πŸ‘Ž
No Deezer πŸ‘Ž
No Napster πŸ‘Ž
Old Bluetooth Version πŸ‘Ž

Selected Features

Amplifier

Marantz SR7009 has 9 channel amplifier and delivers 125 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and also has a stable performance at 4 Ω load. This receiver even supports front wide channels which is found only in a very few high-end receivers these days.


Video Features

The Receiver has 4K passthrough up to 60p and 4K upscaling up to 60p.


Dolby Atmos and Dolby Surround upmixer

Marantz SR7009 supports Dolby Atmos. It can be configured upto 7.1.2 or 5.1.4 channels using internal amplifiers or upto 9.1.2 or 7.1.4 channels by adding 2 channel external amplifier.

Dolby Atmos is the first cinematic audio format in which sounds exist as individual entities, called audio objects. In Dolby Atmos, any sound - the helicopter, a car screeching around a corner, a melodic bird call - can exist as an independent audio object, free of channel restrictions. They can be precisely placed and moved anywhere in your room, including overhead, to flow above and around you in three-dimensional space. Through the use of audio objects, overhead sound, and all the richness, clarity, and power of Dolby sound, Dolby Atmos turns your room into an amazing place for entertainment. You'll feel like you're inside the action, in ways you've never experienced before.

Dolby Atmos for the home represents every sound in the original cinema mix as an audio object. Extensions to the Dolby Audioβ„’ codecs, along with an advanced scalable algorithm, allow Dolby Atmos to be delivered via Blu-ray Disc and streaming media. A spatially-coded substream is added to Dolby TrueHD or Dolby Digital Plus. A Dolby Atmos audio/video receiver (AVR) adapts the cinema experience to your home theater from seven speakers to as many as 34 in 24.1.10 configuration, recreating the original artistic concept. The format supports up to 128 simultaneous independent audio objects in a mix for rich, realistic, and breathtaking sound. It recreates the director's original concept through descriptive metadata to provide customized playback for home theater and delivers sounds above you through overhead speakers, special upward-firing Dolby Atmos speakers, or a Dolby Atmos enabled sound bar.

If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.


Auro-3D with its Auro-Matic upmixer

Marantz SR7009 supports Auro-3D and its Auro-Matic upmixer via charged firmware upgrade. Auro-3D is an immersive 3D audio format developed by the Belgium-based company Auro Technologies. It consists of three layers of sound - surround, height and overhead ceiling. The base horizontal layer uses 5.1 or 7.1 format, the height layer is on top of the base layer and its information is extracted from the standard 5.1 surround PCM carrier. The a/v receiver decoder then extracts this information during playback. In home cinema Auro-3D comes with different listening formats - Auro 9.1, Auro 10.1 with added Top Ceiling channel ("Voice of God"), Auro 11.1 with added Front Height Center channel, and Auro 13.1 with added Left Rear Surround & Right Rear Surround channel. Auro-Matic upmixer takes non Auro-3D sound and upmixes to the current speaker configuration.


Current Feedback Topology

Marantz SR7009 features Current Feedback Topology which is a well known, Marantz’ original circuit technology. The Current Feedback amplifier technology fits perfectly with the high requirements set for Super Audio software providing wide-bandwidth, high-speed reproduction. The impedance at the Current Feedback point is limited resulting in a very low phase shift. Marantz receivers and amplifiers equipped with Current Feedback can keep the phase compensation via Negative FeedBack (NFB) to a minimum, resulting in high through-rate, excellent transient response and superb sonic transparency for the full bandwidth. Unlike conventional Voltage Feedback amplification, the Current Feedback amplification makes the power amplifier in-sensitive to difficult loudspeaker loads.


HDAM

Marantz SR7009 features exclusive Marantz HDAM (Hyper Dynamic Amplifier Module) technology found on their Reference Series components. Marantz developed its own discrete circuit boards to replace standard IC's. These HDAM's consist of discrete surface mount components with short mirror image L/R signal paths. Those devices are doing exactly the same thing as the Op-Amps, but outperform the regular IC Op-amps dramatically in terms of the Slew Rate and reduced noise level, resulting in a much more dynamic, accurate and detailed sound. Over the years Marantz developed different types of the HDAM to improve quality and to fit to the special requirements of a product category like CD or amplifier.


MDAX2

Compressed music enhancement in Marantz SR7009 is done by Marantz’ MDAX2 technology. The use of compressed audio files like MP3, Windows Mediaβ„’ Audio or AAC is getting more and more popular. The audio quality of these compressed files however is less than the original lossless files that are on a CD, especially lacking the higher frequencies and affecting the lower frequencies which make the audio image less wide and deep. The Marantz Digital Audio Expander 2, also called M-DAX2, recalculates the outputted frequency range. This enables you to get a more detailed and clearer sound.


Audyssey

Marantz SR7009 comes with Audyssey Dynamic EQ, Audyssey Dynamic Volume, Audyssey LFC, Audyssey Sub EQ HT and Audyssey DSX.

Audyssey Dynamic EQ selects the best possible frequency response and surround volume levels moment-by-moment. This ensures that the bass response, tonal balance and surround impression remain constant despite changes in volume. This is the first technology that carefully combines information from incoming source levels with actual output sound levels in the room, a pre-requisite for delivering a dynamic volume solution.

Your Listening experience can be greatly diminished when there are significant shifts in volume between television programs, commercials and within the program material itself. When this happens you must constantly adjust the volume to maintain your desired listening level. Audyssey Dynamic Volume monitors the volume of program material moment-by-moment and automatically adjusts it, maintaining the desired listening level for all content while optimizing the dynamic range to preserve impact.

While high frequencies are easily stopped by walls low frequencies pass right through. After identifying the frequency range that most readily passes through walls Audyssey developed a technique, called Audyssey LFC (Low Frequency Containment) that reduses the volume at those frequencies and applies psychoacoustic processing to restore the perception of low bass for listeners in the room. The result is no more angry neighbors and no loss of enjoyment for listeners.

Placing two subwoofers in the room can cause problems, they can create standing waves or even cancel each other out resulting in even less bass than a single sub can produce. Audyssey Sub EQ HT allows two subwoofers to be properly used in a home theater system. The process is automated and takes only a few minutes. The result is rich, full bass for everyone in the room.

Audyssey DSX allows you to augment a standard five-channel home theater with either two Front Wide or two Front High speakers. The Wide channels create an expansive soundstage and bring out convincing directional effects. Alternatively, Height channels can add a vertical dimension to movie and game soundtracks.


Room Correction

Marantz SR7009 comes with[y] Audyssey MultEQ XT32 + PRO room correction system and includes the calibration microphone.

Audyssey is an acoustic measurement technology which automatically restores the acoustic distortion caused by the acoustic behaviour of a room with only a push on a button. Audyssey equalization provides an clear, accurate, natural sound with voices and dialog that become focused and intelligible, restoring the musical balance. Musical instruments and sound effects become precisely localized and the surround soundstage is made seamless and enveloping.


Connectivity

Marantz SR7009 can be connected to internet using ethernet cable or built-in wi-fi adapter. It can also connect to bluetooth devices via built-in bluetooth adapter. The Receiver supports[y] AirPlay. It has 8 HDMI inputs and HDCP 2.2 copy protection. There is a phono input with built-in phono stage for connecting the cartridge output of the turntable directly to the Receiver. There are 7.1 multi-channel analog inputs and 13.2 channel analog pre-outs for external amplification.

Front panel has HDMI, USB, Composite and L/R Audio inputs.

Image cannot be found Image cannot be found

Detailed Specifications

Here we list all the available features and specifications of Marantz SR7009.

BASICS
BrandMarantz
ModelSR7009
TypeA/V Receiver
CountryUSA
Release Year2014
AMPLIFIER
Channels9.2
Front Wide Channel Supportβœ”
Current Feedback Topologyβœ”
Discrete Amplificationβœ”
HDAMβœ”
THXβ„’ Certificationβœ–
Continuous 6 Ω Ratedβœ”
Certified 4 Ω Performanceβœ”
Bi-amp Capabilityβœ” assignable
AUDIO
Digital Signal Processing (DSP) Enginethree 32-bit and four 24-bit DSP
Maximum Channel Processing11.2
Air Studios Monitor Certificationβœ–
Dolby Atmosβœ” up to 7.1.4 or 9.1.2 with external amp
Dolby Atmos Height Virtualizationβœ–
Dolby TrueHDβœ”
Dolby Digital Plusβœ”
Dolby Surround Upmixerβœ–
Dolby Pro Logicβœ” PLIIz
Dolby Digital EXβœ”
Surround EXβœ–
DTS:Xβœ–
DTS Neural:Xβœ–
DTS Virtual:Xβœ–
DTS Neoβœ” Neo:X
DTS-HD Master Audioβœ”
DTS-HD High Resolution Audioβœ”
DTS 96/24βœ”
DTS Expressβœ”
DTS-ESβœ” Discrete 6.1, Matrix 6.1
IMAX Enhancedβœ–
Auro 3D with Auro-Matic Upmixerβœ”
PCMβœ” 2-ch/Multi-ch Input
Music Playback via USBMP3, WMA, AAC, Apple Lossless, WAV, FLAC, AIFF, DSD
High Resolution Music Playback via USB and/or Networkβœ” up to 192 kHz
High Resolution Audio Formats via USBApple Lossless, WAV, FLAC, AIFF, DSD
Multi-Channel Music File Playback via USBβœ–
Gapless Playbackβœ”
DSD via HDMIβœ” 2-ch/Multi-ch Input
DSD via USBβœ” 2-ch Input
DSD to PCM Converterβœ–
USB DACβœ–
Jitter Reductionβœ”
DTS Dialog Controlβœ–
Dialog Enhancementβœ”
Dialog Level Adjustmentβœ”
Dialog Normalizationβœ”
Dialogue Liftβœ–
Compressed Music Enhancerβœ” MDAX2
High-resolution Music Enhancerβœ–
Audyssey Dynamic EQβœ”
Audyssey Dynamic Volumeβœ”
Audyssey LFCβœ”
Audyssey Sub EQ HTβœ”
Audyssey DSXβœ”
Direct Modeβœ”
Pure Direct Modeβœ”
Independent Dual Subwoofer Outputβœ”
CALIBRATION
Auto Speaker Calibration System with Mic.βœ” Audyssey MultEQ XT32 + PRO
Audyssey App Supportβœ–
Optimized Bass Redirectionβœ”
Bass Syncβœ–
VIDEO
HDR10βœ–
HDR10+βœ–
Dynamic HDRβœ–
BT.2020 color spaceβœ–
Dolby Visionβœ–
Hybrid Log Gamma (HLG)βœ–
Quick Media Switching (QMS)βœ–
Auto Low Latency Mode Pass-throughβœ–
Variable Refresh Rate (VRR)βœ–
Quick Frame Transport (QFT)βœ–
3-D Readyβœ”
Video Signal Passthroughup to 4K 50/60Hz 4:4:4
Video Signal Upscalingβœ” up to 4K 50/60Hz 4:4:4
Analog To HDMI Upconversionβœ” Component, Composite
Component Video Upscalingβœ–
Analog to Analog Video conversionβœ–
Component Video Maximum Resolution1080p
isf Certified Calibration Controlβœ”
CONNECTIVITY
MHL Inputβœ–
DLNA 1.5βœ”
FireConnectβœ–
FlareConnectβœ–
Domotz Pro Compatibleβœ–
Remote Monitoring with ihijiβœ–
OvrC Compatibleβœ–
HEOSβœ–
Chromecast Built-Inβœ–
DTS Play-Fiβœ–
Works with Amazon Alexaβœ–
Works with SONOSβœ–
AirPlayβœ” AirPlay
Apple Product Connectionβœ” iPod, iPhone and iPad
Remote Appβœ” Marantz Remote App for iOS and Android devices
InstaPrevue Input Source Prevueβœ–
Ethernetβœ”
Ethernet Switchβœ–
Wi-Fiβœ”
Bluetoothβœ”
HDBaseT Compatibleβœ–
Enhanced ARCβœ–
HDCP Version2.2
HDMI Input8 (1 front)
HDMI Output3 (2 for MAIN, 1 for ZONE2)
USB Input1 (Front) for iPod/iPhone and USB memory
USB DC Out Portβœ–
Analog Audio Line Input6 (1 front)
Analog Audio Line Outputβœ–
Phono Inputβœ”
Optical In2
Optical Outβœ–
Coaxial In/Out2 / βœ–
Composite Video Input4 (1 front)
Composite Video Output1
S-Video Inputβœ–
S-Video Outputβœ–
Component Video Input3
Component Video Output1
PC Inβœ–
Multi-Channel Inputβœ” 7.1
Analog Pre-Outs13.2
XLR Inputsβœ–
XLR Pre-outsβœ–
Front A/V InputsHDMI, USB, Composite, L/R Audio
Speaker A/Bβœ” assignable
Headphone Outβœ” 6.3 mm
ZONES
Zones3
Powered Zonesβœ” 2 and 3
Zone 2HDMI, Component, Composite, Pre Out
Zone 3 OutsPre Out
RS-232βœ”
+12V Trigger Output2
MISC
On-Screen Displayβœ” Advanced Graphic User Interface
GUI Languages3
Web Browser Controlβœ”
IP Control for CIβœ”
FL Displayβœ” 2 lines + port hole
Remote ControllerRC026SR
Pre-programmed / Learnable / LCD Displayβœ” / βœ” / βœ”
Detachable Power Cordβœ”
Flasher Inβœ”
Remote Control In/Out1 / 1
Setup Assistantβœ”
RADIO
Analog Tunerβœ” FM/AM
Digital Radioβœ” HD Radio
Internet Radioβœ”
Pandoraβœ”
Spotifyβœ”
Tidalβœ–
Deezerβœ–
Napsterβœ–
SiriusXM Internet Radioβœ”
CONSTRUCTION
ChassisBig trapdoor design
Front PanelAluminum
Solid Aluminum Frontβœ”
Speaker Terminals11
Large Speaker Terminals11
Color-Coded Speaker Terminalsβœ”
Transparent High-Grade Speaker Terminalsβœ–
High Grade Audio Componentsβœ”
Gold plated RCA terminalsβœ”
POWER
Power SupplyAC 120 V, 60 Hz
Power Consumption710 W
No Sound PowerECO On/Off: 65 W/110 W
Standby Power0.2 W
GENERAL
ECO Mode / Hybrid Standby Functionβœ”
Auto Power offβœ”
Dimensions (W x H x D)440 mm x 185 mm x 411 mm (with antenna: 440 mm x 247 mm x 411 mm)
17-21/64" x 7-9/32" x 16-3/16" (with antenna up: 17-21/64" x 9-23/32" x 16-3/16")
Weight13.8 kg (30 lbs 7 oz)
Warranty3 Years
SPECS
Power Output (8 Ω, 20 Hz - 20 kHz, 2125 W (0.08% THD)
Power Output (6 Ω, 1 kHz, 2165 W (0.7% THD)
Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)200 W (1% THD)
THD digital0.008% (1 kHz, at 0 dB)
Analog Distortion0.005% (20 Hz-20 kHz, Direct mode)
Phono Distortion0.03% (1 kHz, 3 V)
Input Sensitivity and Impedance (Line)200 mV/47 kΩ
Input Sensitivity and Impedance (Phono MM)2.5 mV
Rated Output digital2 V (at 0 dB playback)
S/N Ratio (Line, IHF-A)100 dB
S/N Ratio (Phono MM, IHF-A)74 dB
S/N Ratio (digital)102 dB
Dynamic Range (digital)100 dB
Phono RIAA DeviationΒ±1 dB (20 Hz to 20 kHz)
Frequency Response (Analog In)+1/-3 dB (10 Hz to 100 kHz, Direct mode)
DSD Sampling Rates via HDMI2.8 MHz
DSD Sampling Rates via USB2.8 MHz
Video Input Sensitivity/Output Level and Impedance1 Vp-p/75 Ω (Component Y)
0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
1 Vp-p/75 Ω (Composite)
Video Frequency Response5 Hz to 60 MHz, 0 dB/-3 dB (Component)
5 Hz to 10 MHz, 0 dB/-3 dB (Composite)
Ethernet Standard100BASE-TX
Wi-Fi StandardIEEE 802.11 b/g/n
Wi-Fi Terminal Frequency2.4 GHz
Bluetooth Version2.1 + EDR
Bluetooth Frequency2.4 GHz
USB TerminalUSB2.0 5V, 1 A
FM Frequency87.5 MHz - 107.9 MHz
FM Effective Sensitivity1.5 Β΅V (14.8 dBf)
FM S/N RatioMono/Stereo/HD: 78 dB/68 dB/85 dB
FM Harmonic Distortion (IHF, 1 kHz)Mono/Stereo/HD: 0.1%/0.2%/0.02%
AM Frequency530 kHz - 1710 kHz
AM Effective Sensitivity20 Β΅V
AM S/N Ratio85 dB
AM Distortion (1 kHz)HD: 0.02%

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted

Successor

In 2015 Marantz SR7009 was replaced by SR7010. Let us now have a look at some important changes that the successor brought.


UPGRADES Marantz SR7010 Marantz SR7009
Dolby Surround Upmixer βœ” βœ–
DTS:X βœ” up to 7.1.4 or 9.1.2 with external amp βœ–
DTS Neural:X βœ” βœ–
HDR10 βœ” βœ–
BT.2020 color space βœ” βœ–
Dolby Vision βœ” βœ–
HLG βœ” βœ–

For more detailed comparison between the models please visit Marantz SR7010 vs Marantz SR7009.

Amazon Affiliate Disclosure

ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
