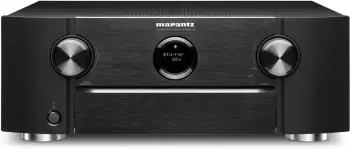

Marantz SR6015

    91
    Image cannot be found

    Highlights

    • 9.2 Channels
    • 11.2 Channel Processing
    • 110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
    • HDMI 2.1
    • Dolby Atmos, DTS:X
    • HDR10, HDR10+, Dolby Vision
    • 8K Passthrough, 8K Upscaling
    • Wi-Fi, Bluetooth, Ethernet
    • Phono Input

    Disclosure: We earn money from the affiliate links to products associated with content in this article.

    1. Overview

    Marantz SR6015 was introduced in 2020. It is equipped with 9 channel amplifier with 110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 11.2 maximum channel processing. It supports Dolby Atmos and DTS:X, passes 8K/60Hz and 4K/120Hz and upscales up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 video signal.

    We evaluated the a/v amplifier and gave 91 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

    Amplifier
    89
    Audio Features
    92
    Video Features
    99
    Connectivity
    92
    Zones
    84
    Radio
    82
    OVERALL
    91

    For more details about the ranking please go to    Evaluation section.


    Here is a history of the series, where you can view and compare the main specifications of the receivers.

    Evolution of the series
    Model Year Chann. Power Dolby Atmos DTS:X HDR10 HDR10+ Dolby Vision Pass. Price
    SR6015 Image cannot be found 2020 9.2 110 W 8K
    SR6014 Image cannot be found 2019 9.2 110 W 4K
    SR6013 Image cannot be found 2018 9.2 110 W 4K
    SR6012 Image cannot be found 2017 9.2 110 W 4K
    SR6011 Image cannot be found 2016 9.2 110 W 4K
    SR6010 Image cannot be found 2015 7.2 110 W 4K
    SR6009 Image cannot be found 2014 7.2 110 W 4K

    You can view their side-by-side comparison here: Marantz SR6015 vs SR6014 vs SR6013 vs SR6012 vs SR6011 vs SR6010.

    2. Pros and Cons

    In this section we present pros and cons of Marantz SR6015.

    PROs

    •   High Power Output - 110 W
    •   11.2 Channel Processing
    •   Dolby Atmos
    •   Dolby Atmos Height Virtualization
    •   DTS:X
    •   IMAX Enhanced
    •   DSD via HDMI
    •   Auto Speaker Calibration System with Mic.
    •   HDR10
    •   HDR10+
    •   Dolby Vision
    •   HDMI 2.1
    •   eARC
    •   New HDCP Version
    •   Auto Low Latency Mode Pass-through
    •   VRR
    •   QFT
    •   8K Passthrough
    •   8K Upscaling
    •   Analog To HDMI Upconversion
    •   Wi-Fi
    •   Bluetooth
    •   Works with Amazon Alexa
    •   Google Assistant
    •   HEOS
    •   7 HDMI Inputs
    •   4 HDMI Outputs
    •   USB Input
    •   Many RCA Line Inputs
    •   Phono Input
    •   Multi-Channel Input
    •   RCA Pre-Outs
    •   Composite Video Inputs
    •   Component Video Inputs
    •   Ethernet
    •   Spotify
    •   Tidal

    CONs

    •   No Front Wide Channel Support
    •   No Auro 3D with Auro-Matic Upmixer
    •   1 8K Input
    •   No Analog Tuner
    •   No Digital Radio
    •   No Pandora

    And here are some specifications which fall into average criteria and are neither in PROs nor in CONs category:

    AVERAGE

    •   9.2 Channels
    •   2 Zones
    •   Bluetooth 4․2

    3. Marantz 2020 Lineup

    In 2020 Marantz released 5 new receivers. Here is the lineup:

    Marantz 2020 Lineup
    ModelChannelsPowerMax. Ch. Proc.Pre OutsImmersive AudioZones Price
    SR8015 Image cannot be found 11.2140 W13.213.2Dolby Atmos
    DTS:X
    Auro 3D
    3
    SR7015 Image cannot be found 9.2125 W11.211.2Dolby Atmos
    DTS:X
    Auro 3D
    3
    SR6015 Image cannot be found 9.2110 W11.211.2Dolby Atmos
    DTS:X
    2
    SR5015 Image cannot be found 7.2100 W7.17.2Dolby Atmos
    DTS:X
    2
    NR1711 Image cannot be found 7.250 W7.12.2Dolby Atmos
    DTS:X
    2

    You can view their side-by-side comparison here: Marantz SR8015 vs SR7015 vs SR6015 vs SR5015 vs NR1711.

    4. Changes from the SR6014

    Marantz SR6015 has replaced SR6014. Here we present differences between these two models.

    UPGRADES Marantz SR6015 vs Marantz SR6014
    HDR10+ vs
    Dynamic HDR vs
    VRR vs
    QFT vs
    Video Signal Passthrough up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 vs up to 4K 50/60Hz 4:4:4
    Video Signal Upscaling up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 vs up to 4K 50/60Hz 4:4:4
    More 8K Inputs 1 vs
    Newer Bluetooth Version 4․2 vs 4․1
    DOWNGRADES Marantz SR6015 vs Marantz SR6014
    Less HDMI Inputs 7 vs 8 (1 front)
    Front A/V Inputs USB, Composite, L/R Audio vs HDMI, USB, Composite, L/R Audio
    Analog Tuner vs FM/AM with RDS

    For more detailed comparison between the models please visit Marantz SR6015 vs SR6014.

    5. Amplifier

    9 channel Amplifier

    Marantz SR6015 features 9 channel power amplifier. It is rated at 110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.

    • Current Feedback Topology: Marantz SR6015 features Current Feedback Topology which is a well known, Marantz’ original circuit technology. The Current Feedback amplifier technology fits perfectly with the high requirements set for Super Audio software providing wide-bandwidth, high-speed reproduction. The impedance at the Current Feedback point is limited resulting in a very low phase shift. Marantz receivers and amplifiers equipped with Current Feedback can keep the phase compensation via Negative FeedBack (NFB) to a minimum, resulting in high through-rate, excellent transient response and superb sonic transparency for the full bandwidth. Unlike conventional Voltage Feedback amplification, the Current Feedback amplification makes the power amplifier in-sensitive to difficult loudspeaker loads.
    • HDAM (Hyper Dynamic Amplifier Module): Marantz SR6015 features exclusive Marantz HDAM (Hyper Dynamic Amplifier Module) technology found on their Reference Series components. Marantz developed its own discrete circuit boards to replace standard IC's. These HDAM's consist of discrete surface mount components with short mirror image L/R signal paths. Those devices are doing exactly the same thing as the Op-Amps, but outperform the regular IC Op-amps dramatically in terms of the Slew Rate and reduced noise level, resulting in a much more dynamic, accurate and detailed sound. Over the years Marantz developed different types of the HDAM to improve quality and to fit to the special requirements of a product category like CD or amplifier.
    AMPLIFIER
    Channels9.2
    Power Output110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
    Front Wide Channel Support
    Current Feedback Topology
    Discrete Amplification
    HDAM
    THX™ Certification
    Continuous 6 Ω Rated
    Certified 4 Ω Performance
    Bi-amp Capability assignable

    6. Speaker Configurations

    Marantz SR6015's 9 channel amplifier can be assigned for different speaker configurations.

    • Dolby Atmos Configurations: The following speaker configurations are supported for Dolby Atmos:
    • 5.2.2, 5.2.4, 7.2.2 with internal amplifier.
    • 7.2.4 with addition of external 2 channel amplifier.
    • DTS:X Configurations: The speaker configurations for DTS:X are the same as for Dolby Atmos:
    • 5.2.2, 5.2.4, 7.2.2 with internal amplifier.
    • 7.2.4 with addition of external 2 channel amplifier.
    • Configurations without height channels: There are also other speaker configurations available which do not include height channels:
    • 5.2, 7.2 with internal amplifier.
    • 2-ch Bi-Amp: Marantz SR6015 allows you to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.

    7. Immersive Audio Formats

    Dolby Atmos

    Marantz SR6015 supports Dolby Atmos with Surround Upmixer and Atmos Height Virtualization.

    • Surround Upmixer: If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.
    • Atmos Height Virtualization is a digital signal processing solution that leverages Dolby's deep understanding of human audio perception to create the sensation of overhead sound from the listener-level speakers.

    DTS:X

    Marantz SR6015 supports DTS:X with Neural:X and Virtual:X.

    • Neural:X is an advanced upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.
    • Virtual:X bridges the gap between DTS:X codec and the reality of so many consumers' homes, allowing you to enjoy multi-dimensional sound regardless of room size, layout, or speaker configuration. If you have a limited speaker setup you will miss a full immersive potential of your entertainment system. DTS Virtual:X adds height and surround audio effect to your system without adding height speakers. It works with multiple configurations and delivers immersive sound experience out of 5.1 or even 2.1 speaker layouts.
    • DTS Dialog Control: This function adjusts the dialog levels during playback of the DTS:X stream. It allows you to separately increase the dialog levels in contrast with the background sound and hear dialog easily even under noisy circumstances.

    IMAX Enhanced

    Marantz SR6015 is IMAX Enhanced certified. To qualify for IMAX Enhanced certification, 4K HDR televisions, projectors, sound bars, a/v receivers, loudspeakers, powered subwoofers and other premium home entertainment devices must meet carefully prescribed performance requirements established by IMAX, DTS and Hollywood's leading experts.

    • What makes an IMAX Enhanced A/V receiver different from an A/V receiver with DTS:X technology? DTS:X technology is commonly found in most multi-channel A/V receivers on the market today. All IMAX Enhanced A/V receivers include DTS:X technology and deliver additional features, such as auto-sensing of IMAX Enhanced content, via IMAX Mode. IMAX Mode indicates that your A/V receiver supports fully immersive IMAX signature sound.
    DECODING
    Dolby Atmos up to 7.1.4 with external amp
    Dolby Atmos Height Virtualization
    Dolby Atmos Music
    Dolby TrueHD
    Dolby Digital Plus
    Dolby Surround Upmixer
    Dolby Pro Logic
    Dolby Digital EX
    Surround EX
    DTS:X up to 7.1.4 with external amp
    DTS Neural:X
    DTS Virtual:X
    DTS Neo
    DTS-HD Master Audio
    DTS-HD High Resolution Audio
    DTS 96/24
    DTS Express
    DTS-ES Discrete 6.1, Matrix 6.1
    IMAX Enhanced
    Auro 3D with Auro-Matic Upmixer

    8. HDMI 2.1

    Marantz SR6015 features 1 HDMI 2.1 input with 8K support and 6 inputs with 4K support. It has 3 outputs: 2 x 8K for MAIN and 1 x 4K for ZONE2.

    • 8K/60Hz and 4K/120Hz Passthrough: 1 out of 7 inputs passes up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 and the rest of the inputs pass up to 4K 50/60Hz 4:4:4 video signal.
    • 8K Upscaling: Marantz SR6015 can upscale up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 from HDMI and analog sources.
    • Analog To HDMI Upconversion: The a/v amplifier supports video upconversion, so you can connect your analog Component and Composite video sources and Marantz SR6015 will output them via HDMI. This means that you will need only one HDMI cable to connect to your TV.
    • BT.2020 Color Space: BT.2020 or Rec. 2020 is a color standard which delivers a wider color gamut compared to Rec. 709. It covers approximately 75% of the total visual spectrum while the Rec. 709 covers only 35%.
    • HDCP 2.3 Copy Protection: All inputs and outputs are HDCP 2.3 compliant which is a requirement for 4K/HDR copy-protected content transmission.
    • 3D Ready: Marantz SR6015 is able to pass 3D video through HDMI.

    HDR (High Dynamic Range)

    Marantz SR6015 supports HDR (high dynamic range) video formats such as HDR10, HDR10+, Dolby Vision, Dynamic HDR and Hybrid Log-Gamma via HDMI ports. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.


    Enhanced Audio Return Channel (eARC)

    Audio Return Channel (ARC) feature allows the compatible TV to send audio signal to the a/v amplifier through the same HDMI cable which is used to send audio and video signals to the TV. So one HDMI cable is used to transfer audio signal in both directions. New Enhanced ARC will support uncompressed audio formats such as Dolby Atmos, DTS:X, Dolby TrueHD and DTS HD Master Audio whereas the previous ARC could support only Dolby Digital, Dolby Digital Plus, DTS, DTS HD, and PCM.


    Gaming Features

    Marantz SR6015 supports Auto Low Latency Mode (ALLM), Variable Refresh Rate (VRR) and Quick Frame Transport (QFT) for lag-free and smooth gaming.



    VIDEO FEATURES
    HDR10
    HDR10+
    Dynamic HDR
    BT.2020 color space
    Dolby Vision
    HLG (Hybrid Log Gamma)
    HDMI Version2.1
    HDBaseT Compatible
    Enhanced Audio Return Channel (eARC)
    HDCP Version2.3
    QMS (Quick Media Switching)
    ALLM (Auto Low Latency Mode)
    VRR (Variable Refresh Rate)
    QFT (Quick Frame transport)
    3-D Ready
    Video Signal Passthroughup to 8K 50/60Hz and 4K 100/120Hz 4:4:4
    Video Signal Upscaling up to 8K 50/60Hz and 4K 100/120Hz 4:4:4

    9. Room Calibration

    Marantz SR6015 comes with Audyssey MultEQ XT32 room correction system and includes the calibration microphone. It also supports Audyssey App.

    • Audyssey Room Calibration: Audyssey is an acoustic measurement technology which automatically restores the acoustic distortion caused by the acoustic behaviour of a room with only a push on a button. Audyssey equalization provides an clear, accurate, natural sound with voices and dialog that become focused and intelligible, restoring the musical balance. Musical instruments and sound effects become precisely localized and the surround soundstage is made seamless and enveloping.

    10. Multi-zone Playback

    Marantz SR6015 offers multi-zone playback which allows you to play different input sources in 2 different rooms.


    Zone 2

    • Powered Zone 2: You can use the unit's 2 amplifier channels by connecting Zone 2 speakers directly to the speaker terminals. The remaining 7 channels will be left for main zone amplification.
    • HDMI Output: Marantz SR6015 offers HDMI output for Zone 2. This means that it can send two different HDMI signals to two displays.
    • Audio Pre Output: If you have a dedicated power amplifier for Zone 2 you can connect it to the a/v amplifier via pre outs and control volume from the a/v amplifier.
    ZONES
    Number of Zones2
    Powered Zones 2
    Zone 2 OutsHDMI, Pre Out
    RS-232C Interface
    +12V Trigger Output1
    Check out the receivers which are frequently compared to Marantz SR6015.

    11. Inputs and Outputs

    Audio

    • Phono Input: There is an MM phono input with built-in phono stage for connecting the moving magnet cartridge output of the turntable directly to the a/v amplifier.
    • 7.1 Multichannel Input: In case you have a high quality Blu-Ray or a DVD player with multichannel analog outputs you may connect it to a 7.1 multichannel analog inputs of the a/v amplifier and use high quality DACs of the player instead of the ones in the a/v amplifier.
    • Analog Pre-Outs: Marantz SR6015 has 11.2 preamplifier outputs which allow you to connect the a/v amplifier to the external power amplifier. You may want to use a high quality external amplifier for certain channels, usually for front L/R and center, and use the a/v amplifier to power the rest. Also, Marantz SR6015 has 11 channel processing but has only 9 channel amplifier, so it needs the external amplifier connected to the analog pre-outs in order to reach the maximum speaker configuration.
    • Analog Line Inputs: There are 6 line inputs for analog audio connection.
    • Digital Inputs: 2 optical inputs and 2 coaxial inputs are available for digital audio connection.
    • Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.

    Video

    • HDMI:
    • Inputs: 7   Outputs: 3 (2 x 8K for MAIN, 1 x 4K for ZONE2)
      8K Inputs: 1
    • Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
    • Inputs: 4   Outputs: 1
    • Component Video: Component video connection gives you the higher quality video compared to the composite video connection. So in case your old DVD player and other equipment do not have an HDMI output but have Component video output use this connection over the composite one.
    • Inputs: 2   Outputs: 1

    Front A/V Inputs

    • USB, Composite, L/R Audio
    Image cannot be found
    Image cannot be found
    TERMINALS
    HDMI Inputs7
    HDMI Outputs3 (2 x 8K for MAIN, 1 x 4K for ZONE2)
    8K Inputs1
    USB Input1 Front for USB memory
    USB DC Out Port
    Optical Inputs2
    Optical Outputs
    Coaxial Inputs2
    RCA Line Inputs6 (1 front)
    RCA Line Outputs
    XLR Line Inputs
    Phono Input
    Multi-Channel Input 7.1
    RCA Pre-Outs11.2
    XLR Pre-outs
    Composite Video Inputs4 (1 front)
    Composite Video Outputs1
    S-Video Inputs
    S-Video Outputs
    Component Video Inputs2
    Component Video Outputs1

    12. Replaced by Cinema 50

    In 2022 Marantz SR6015 was replaced by Marantz Cinema 50. Let us now have a look at some important differences between Marantz SR6015 and its successor.

    UPGRADES Marantz Cinema 50 vs Marantz SR6015
    More Channels 9.4 vs 9.2
    Dolby Atmos Music vs
    Auro 3D with Auro-Matic Upmixer 11.1-ch (Built-In) vs
    Dialog Enhancement vs
    More Advanced Auto Speaker Calibration System Audyssey MultEQ XT32 and Dirac Live (upgrade) vs Audyssey MultEQ XT32
    Bass Sync vs
    More 8K Inputs 6 vs 1
    Wi-Fi Standard IEEE 802.11 a/b/g/n/ac vs IEEE 802.11 a/b/g/n
    DOWNGRADES Marantz Cinema 50 vs Marantz SR6015
    Less HDMI Inputs 6 vs 7
    Multi-Channel Input vs 7.1
    Less Composite Video Inputs vs 4 (1 front)
    Less Composite Video Outputs vs 1
    Less Component Video Inputs vs 2
    Less Component Video Outputs vs 1
    Front A/V Inputs USB vs USB, Composite, L/R Audio

    For more detailed comparison between the models please visit Marantz SR6015 vs Cinema 50.

    13. Evaluation

    We evaluate Marantz SR6015 and give score of 91 out of 100. We also give separate scores for 6 different categories according to the available features and specifications some of which are listed below. These evaluations are relative and may change each time a new receiver is added to the database.


    OVERALL
    91

    Amplifier

    EXCELLENT
    89

    We give Marantz SR6015 a score of 89 for Amplifier features.

    •   9.2 Channels
    •   High Power Output - 110 W

    Audio Features

    EXCELLENT
    92

    We give Marantz SR6015 a score of 92 for Audio Features features.

    •   9.2 Channels
    •   No Front Wide Channel Support
    •   11.2 Channel Processing
    •   Dolby Atmos
    •   Dolby Atmos Height Virtualization
    •   DTS:X
    •   IMAX Enhanced
    •   No Auro 3D with Auro-Matic Upmixer
    •   DSD via HDMI

    Video Features

    EXCELLENT
    99

    We give Marantz SR6015 a score of 99 for Video Features features.

    •   HDR10
    •   HDR10+
    •   Dolby Vision
    •   HDMI 2.1
    •   Auto Low Latency Mode Pass-through
    •   VRR
    •   QFT
    •   8K Passthrough
    •   8K Upscaling
    •   Analog To HDMI Upconversion

    Connectivity

    EXCELLENT
    92

    We give Marantz SR6015 a score of 92 for Connectivity features.

    •   eARC
    •   New HDCP Version
    •   Wi-Fi
    •   Bluetooth
    •   Works with Amazon Alexa
    •   Google Assistant
    •   HEOS
    •   7 HDMI Inputs
    •   4 HDMI Outputs
    •   1 8K Input
    •   USB Input
    •   Many RCA Line Inputs
    •   Phono Input
    •   Multi-Channel Input
    •   RCA Pre-Outs
    •   Composite Video Inputs
    •   Component Video Inputs
    •   Ethernet
    •   Bluetooth 4․2

    Zones

    GOOD
    84

    We give Marantz SR6015 a score of 84 for Zones features.

    •   2 Zones

    Radio

    GOOD
    82

    We give Marantz SR6015 a score of 82 for Radio features.

    •   No Analog Tuner
    •   No Pandora
    •   Spotify
    •   Tidal

    14. Specifications

    GENERAL
    BrandMarantz
    ModelSR6015
    TypeA/V Amplifier
    CountryUK
    Release Year2020
    PredecessorMarantz SR6014
    SuccessorMarantz Cinema 50
    AMPLIFIER
    Channels9.2
    Power Output110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
    Front Wide Channel Support
    Current Feedback Topology
    Discrete Amplification
    HDAM
    THX™ Certification
    Continuous 6 Ω Rated
    Certified 4 Ω Performance
    Bi-amp Capability assignable
    AUDIO FEATURES
    Maximum Channel Processing11.2
    Air Studios Monitor Certification
    Dolby Atmos up to 7.1.4 with external amp
    Dolby Atmos Height Virtualization
    Dolby Atmos Music
    Dolby TrueHD
    Dolby Digital Plus
    Dolby Surround Upmixer
    Dolby Pro Logic
    Dolby Digital EX
    Surround EX
    DTS:X up to 7.1.4 with external amp
    DTS Neural:X
    DTS Virtual:X
    DTS Neo
    DTS-HD Master Audio
    DTS-HD High Resolution Audio
    DTS 96/24
    DTS Express
    DTS-ES Discrete 6.1, Matrix 6.1
    IMAX Enhanced
    Auro 3D with Auro-Matic Upmixer
    PCM 2-ch/Multi-ch Input
    Network Audio FormatsMP3, WMA, MPEG-4 AAC, Apple Lossless, WAV, FLAC, DSD
    Music Playback via USBMP3, WMA, MPEG-4 AAC, Apple Lossless, WAV, FLAC, DSD
    High Resolution Music Playback via USB and/or Network up to 192 kHz
    High Resolution Audio Formats via USBApple Lossless, WAV, FLAC, DSD
    Gapless Playback
    DSD via HDMI 2-ch/Multi-ch Input
    DSD via USB 2-ch Input
    DSD to PCM Converter
    USB DAC
    Jitter Reduction Hybrid PLL Clock Jitter Reducer
    DTS Dialogue Control
    Dialog Enhancement
    Dialog Level Adjustment
    Dialog normalization
    Dialogue Lift
    Compressed Music Enhancer MDAX2
    High-resolution Music Enhancer
    Audyssey Dynamic EQ
    Audyssey Dynamic Volume
    Audyssey LFC
    Audyssey Sub EQ HT
    Audyssey DSX
    Direct Mode
    Pure Direct Mode
    Independent Subwoofer Outputs
    CALIBRATION
    Auto Speaker Calibration System with Mic. Audyssey MultEQ XT32
    Audyssey App Support
    Optimized Bass Redirection
    Bass Sync
    VIDEO FEATURES
    HDR10
    HDR10+
    Dynamic HDR
    BT.2020 color space
    Dolby Vision
    HLG (Hybrid Log Gamma)
    HDMI Version2.1
    HDBaseT Compatible
    Enhanced Audio Return Channel (eARC)
    HDCP Version2.3
    QMS (Quick Media Switching)
    ALLM (Auto Low Latency Mode)
    VRR (Variable Refresh Rate)
    QFT (Quick Frame transport)
    3-D Ready
    Video Signal Passthroughup to 8K 50/60Hz and 4K 100/120Hz 4:4:4
    Video Signal Upscaling up to 8K 50/60Hz and 4K 100/120Hz 4:4:4
    Analog To HDMI Upconversion Component**, Composite
    Component Video Upscaling
    Analog to Analog Video conversion
    isf Certified Calibration Control
    CONNECTIVITY
    Wi-Fi
    Bluetooth SBC
    Bluetooth Headphone Transmission
    Works with Amazon Alexa
    Google Assistant
    Chromecast Built-In
    Apple Siri
    Works with SonoS
    HEOS
    DTS Play-Fi
    MHL Input
    DLNA 1.5
    Domotz Pro Compatible
    OvrC Compatible
    AirPlay AirPlay 2
    Apple Product Connection iPod, iPhone and iPad
    Remote App Marantz 2016 AVR Remote App for iOS and Android devices
    InstaPrevue Input Source Prevue
    TERMINALS
    HDMI Inputs7
    HDMI Outputs3 (2 x 8K for MAIN, 1 x 4K for ZONE2)
    8K Inputs1
    USB Input1 Front for USB memory
    USB DC Out Port
    Optical Inputs2
    Optical Outputs
    Coaxial Inputs2
    RCA Line Inputs6 (1 front)
    RCA Line Outputs
    XLR Line Inputs
    Phono Input
    Multi-Channel Input 7.1
    RCA Pre-Outs11.2
    XLR Pre-outs
    Composite Video Inputs4 (1 front)
    Composite Video Outputs1
    S-Video Inputs
    S-Video Outputs
    Component Video Inputs2
    Component Video Outputs1
    Ethernet
    Ethernet Switch
    PC In
    Front A/V InputsUSB, Composite, L/R Audio
    Speaker A/B assignable
    Headphone Out6.3 mm (1/4")
    Detachable Power Cord
    Flasher In
    Remote Control In/Out1 / 1
    ZONES
    Number of Zones2
    Powered Zones 2
    Zone 2 OutsHDMI, Pre Out
    RS-232C Interface
    +12V Trigger Output1
    MISCELLANEOUS
    On-Screen Display Advanced Graphic User Interface
    GUI Languages9
    Web Control
    IP Control
    Control4 SDDP
    Display port hole
    Remote ControllerRC042SR
    Pre-programmed / Learnable / LCD Display / /
    Setup Assistant
    RADIO
    Analog Tuner
    Digital Radio
    Internet Radio TuneIn
    Pandora
    Spotify
    Tidal
    Deezer
    Napster
    SiriusXM
    CONSTRUCTION
    Front PanelMetal
    Speaker Terminals11
    Large Speaker Terminals11
    Color-Coded Speaker Terminals
    Transparent High-Grade Speaker Terminals
    High Grade Audio Components
    Gold plated RCA terminals
    POWER
    Power SupplyAC 230 V, 50/60 Hz
    Toroidal Transformer (EI)
    Power Consumption680 W
    No Sound PowerECO On/Off: 60 W/100 W
    Standby Power0.2 W
    ECO Mode / Hybrid Standby Function
    Auto Power off
    PHYSICAL
    Dimensions (W x H x D)440 mm x 161 mm x 398 mm (with antenna: 440 mm x 229 mm x 398 mm)
    17-3/8" x 6-3/8" x 15-3/4" (with antenna: 17-3/8" x 9-1/8" x 15-3/4")
    Dimensions of Package (W x H x D)537 mm x 257 mm x 483 mm
    Weight12.8 kg (28 lbs 4 oz)
    Weight of Package15.4 kg
    SPECIFICATIONS
    Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)110 W (0.08% THD)
    Power Output (6 Ω, 1 kHz, 2 channel driven, FTC)150 W (0.7% THD)
    Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA or IEC)220 W (10% THD)
    Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)185 W (1% THD)
    THD (Digital)0.008% (1 kHz, at 0 dB)
    Analog Distortion0.005% (20 Hz-20 kHz, Direct mode)
    Phono Distortion0.03% (1 kHz, 3 V)
    Input Sensitivity and Impedance (Line)200 mV/47 kΩ
    Input Sensitivity and Impedance (Phono MM)2.5 mV
    Rated Preout Level and Impedance1.2 V
    Rated Output digital2 V (at 0 dB playback)
    S/N Ratio (Line, IHF-A)100 dB
    S/N Ratio (Phono MM, IHF-A)74 dB
    S/N Ratio (digital)102 dB
    Dynamic Range (digital)100 dB
    Phono RIAA Deviation±1 dB (20 Hz to 20 kHz)
    Frequency Response (Analog In)+1/-3 dB (10 Hz to 100 kHz, Direct mode)
    DSD Sampling Rates via HDMI2.8 MHz
    DSD Sampling Rates via USB5.6 MHz, 2.8 MHz
    Video Input Sensitivity/Output Level and Impedance 1 Vp-p/75 Ω (Component Y)
    0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
    1 Vp-p/75 Ω (Composite)
    Video Frequency Response5 Hz - 60 MHz, 0, -3 dB (Component)
    5 Hz - 10 MHz, 0, -3 dB (Composite)
    Ethernet Standard100BASE-TX
    Wi-Fi StandardIEEE 802.11 a/b/g/n
    Wi-Fi Terminal Frequency5 GHz, 2.4 GHz
    Bluetooth Version4․2
    Bluetooth Frequency2.4 GHz
    USB TerminalUSB2.0 5V, 1 A
    Warranty3 Years

    * - 480i/576i and 480p/576p only
    ** - 480i/576i only
    *** - no 1080p/24 upconversion
    **** - 1080p signal is not converted

    Discussion

    Amazon Affiliate Disclosure
    ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
