Marantz SR6014 Review and Specs

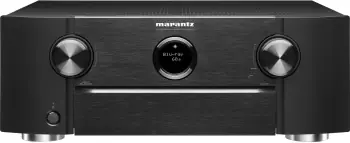

Marantz SR6014 (UK version)

SCORE:
70

Highlights

  • 110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
  • Dolby Atmos, DTS:X capable
  • HDR10, Dolby Vision, 4K Upscaling, 4K Passthrough
  • AirPlay 2, DLNA, HEOS
  • Ethernet, Wi-Fi, Bluetooth
  • USB and Phono inputs

Disclosure: We earn money from the affiliate links to products associated with content in this article.

Marantz SR6014 Overview

Marantz SR6014 was introduced in 2019. It is equipped with 9 channel amplifier and is capable of 11.2 maximum channel processing.

We evaluated the Receiver and gave 70 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

AMPLIFIER
66
VIDEO FEATURES
78
AUDIO FEATURES
71
CONNECTIVITY
73
MULTIZONE
54
MISCELLANEOUS
67
RADIO
73
OVERALL
70

Amplifier score is based on power ratings, minimum impedance load, power supply, transformer type, total harmonic distortion, damping factor, signal to noise ratio and other small details. Audio score depends on the number of channels, front wide channel support, maximum channel processing, support of audio formats, DAC specifications, room calibration algorithm... Video score is based on HDR, Dolby Vision and video signal passthrough and upscaling, analog to HDMI upconversion. Connectivity score is defined from all wired and wireless inputs and outputs, internet and bluetooth connections, HEOS, SONOS and others. Multizone score depends on the number of zones with their outputs. Radio score is evaluated form digital radio support and analog tuner with its frequency range, signal to noise ratio, harmonic distortion...

Pros and Cons

In this section we present pros and cons of Marantz SR6014.

PROS
Many Channel Processing 👍
Dolby Atmos 👍
Dolby Atmos Height Virtualization 👍
DTS:X 👍
DTS Neural:X 👍
DTS Virtual:X 👍
IMAX Enhanced 👍
DSD via HDMI 👍
DSD via USB 👍
DTS Dialog Control 👍
Audyssey Dynamic EQ 👍
Audyssey Dynamic Volume 👍
Audyssey LFC 👍
Audyssey Sub EQ HT 👍
HDR10 👍
Dolby Vision 👍
Auto Low Latency Mode Pass-through 👍
4K or 8K Video Passthrough 👍
4K or 8K Signal Upscaling 👍
DLNA 1.5 👍
HEOS 👍
Works with Amazon Alexa 👍
Google assistant 👍
Apple Siri 👍
Ethernet 👍
Wi-Fi 👍
Bluetooth 👍
eARC 👍
New HDCP Version 👍
Many HDMI Inputs 👍
Many HDMI Outputs 👍
USB Input 👍
Many Analog Audio Line Inputs 👍
Phono Input 👍
Composite Video Inputs 👍
Component Video Inputs 👍
Multi-Channel Input 👍
Analog Pre-Outs 👍
Zones 👍
Analog Tuner 👍
Internet Radio 👍
Spotify 👍
Tidal 👍
Deezer 👍
Napster 👍
New Bluetooth Version 👍
CONS
No Front Wide Channel Support 👎
No Auro 3D with Auro-Matic Upmixer 👎
No HDR10+ 👎
No Dynamic HDR 👎
No VRR 👎
No QFT 👎
No MHL Input 👎
No FireConnect 👎
No FlareConnect 👎
No Chromecast Built-In 👎
No DTS Play-Fi 👎
Does Not Work with SONOS 👎
No Pandora 👎
No SiriusXM Internet Radio 👎
No Toroidal Transformer 👎

Major Changes from its predecessor

Here we are comparing Marantz SR6014 to its predecessor SR6013 and displaying the major changes.

UPGRADES Marantz SR6014 Marantz SR6013
Dolby Atmos Height Virtualization
Auto Low Latency Mode Pass-through
Domotz Pro Compatible
Remote Monitoring with ihiji
OvrC Compatible
Newer HDCP Version 2.3 2.2
Newer Bluetooth Version 4.1 3.0 + EDR

For more detailed comparison between the models please visit Marantz SR6014 vs Marantz SR6013.

Selected Features

Amplifier

Marantz SR6014 has 9 channel amplifier and delivers 110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and also has a stable performance at 4 Ω load.


Video Features

The Receiver has 4K passthrough up to 60p and 4K upscaling up to 60p. It can bypass HDR10, Dolby Vision.


HDR10

High-dynamic-range (HDR) video has greater dynamic range than standard-dynamic-range (SDR) video with brigter whites and deeper blacks. HDR10 was announced on August 27, 2015, by the Consumer Technology Association and uses the wide-gamut Rec. 2020 color space. It sends static metadata via video stream to the TV which calibrates its screen brightness and color according to that. HDR10 supports up to 1000 nits of brightness and 10-bit color which corresponds to 1024 shades of the primary RGB colors.


Dolby Vision

Dolby Vision is an update to HDR10 by adding dynamic metadata that can be used to more accurately adjust brightness levels up to 10,000 nits maximum brightness on a scene-by-scene or frame-by-frame basis and supports up to 12-bit color depth (4096 shades of RGB) and 8K resolution.


Dolby Atmos and Dolby Surround upmixer

Marantz SR6014 supports Dolby Atmos with its Dolby Surround upmixer. It can be configured upto 7.1.2 or 5.1.4 channels using internal amplifiers or upto 7.1.4 channels by adding 2 channel external amplifier.

Dolby Atmos is the first cinematic audio format in which sounds exist as individual entities, called audio objects. In Dolby Atmos, any sound - the helicopter, a car screeching around a corner, a melodic bird call - can exist as an independent audio object, free of channel restrictions. They can be precisely placed and moved anywhere in your room, including overhead, to flow above and around you in three-dimensional space. Through the use of audio objects, overhead sound, and all the richness, clarity, and power of Dolby sound, Dolby Atmos turns your room into an amazing place for entertainment. You'll feel like you're inside the action, in ways you've never experienced before.

Dolby Atmos for the home represents every sound in the original cinema mix as an audio object. Extensions to the Dolby Audio™ codecs, along with an advanced scalable algorithm, allow Dolby Atmos to be delivered via Blu-ray Disc and streaming media. A spatially-coded substream is added to Dolby TrueHD or Dolby Digital Plus. A Dolby Atmos audio/video receiver (AVR) adapts the cinema experience to your home theater from seven speakers to as many as 34 in 24.1.10 configuration, recreating the original artistic concept. The format supports up to 128 simultaneous independent audio objects in a mix for rich, realistic, and breathtaking sound. It recreates the director's original concept through descriptive metadata to provide customized playback for home theater and delivers sounds above you through overhead speakers, special upward-firing Dolby Atmos speakers, or a Dolby Atmos enabled sound bar.

If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.


DTS:X and Neural:X upmixer

Marantz SR6014 supports DTS:X with its Neural:X upmixer. It can be configured upto 7.1.2 or 5.1.4 channels using internal amplifiers or upto 7.1.4 channels by adding 2 channel external amplifier.

A technique used in DTS:X is similar to the one used in Dolby Atmos. Instead of a fixed number of channels, DTS:X defines object locations from the listener in polar coordinates. An a/v receiver then dynamically renders sound according to the current speaker configuration. The speaker layout employed by DTS:X is the sum of Dolby Atmos and Auro-3D. It has standard 7.1 channel base layer, a 5 channel height layer above the base layer on the front and side walls, and 3 rows of speakers on the ceiling.

DTS Neural:X is a new upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.


Current Feedback Topology

Marantz SR6014 features Current Feedback Topology which is a well known, Marantz’ original circuit technology. The Current Feedback amplifier technology fits perfectly with the high requirements set for Super Audio software providing wide-bandwidth, high-speed reproduction. The impedance at the Current Feedback point is limited resulting in a very low phase shift. Marantz receivers and amplifiers equipped with Current Feedback can keep the phase compensation via Negative FeedBack (NFB) to a minimum, resulting in high through-rate, excellent transient response and superb sonic transparency for the full bandwidth. Unlike conventional Voltage Feedback amplification, the Current Feedback amplification makes the power amplifier in-sensitive to difficult loudspeaker loads.


HDAM

Marantz SR6014 features exclusive Marantz HDAM (Hyper Dynamic Amplifier Module) technology found on their Reference Series components. Marantz developed its own discrete circuit boards to replace standard IC's. These HDAM's consist of discrete surface mount components with short mirror image L/R signal paths. Those devices are doing exactly the same thing as the Op-Amps, but outperform the regular IC Op-amps dramatically in terms of the Slew Rate and reduced noise level, resulting in a much more dynamic, accurate and detailed sound. Over the years Marantz developed different types of the HDAM to improve quality and to fit to the special requirements of a product category like CD or amplifier.


MDAX2

Compressed music enhancement in Marantz SR6014 is done by Marantz’ MDAX2 technology. The use of compressed audio files like MP3, Windows Media™ Audio or AAC is getting more and more popular. The audio quality of these compressed files however is less than the original lossless files that are on a CD, especially lacking the higher frequencies and affecting the lower frequencies which make the audio image less wide and deep. The Marantz Digital Audio Expander 2, also called M-DAX2, recalculates the outputted frequency range. This enables you to get a more detailed and clearer sound.


Audyssey

Marantz SR6014 comes with Audyssey Dynamic EQ, Audyssey Dynamic Volume, Audyssey LFC and Audyssey Sub EQ HT.

Audyssey Dynamic EQ selects the best possible frequency response and surround volume levels moment-by-moment. This ensures that the bass response, tonal balance and surround impression remain constant despite changes in volume. This is the first technology that carefully combines information from incoming source levels with actual output sound levels in the room, a pre-requisite for delivering a dynamic volume solution.

Your Listening experience can be greatly diminished when there are significant shifts in volume between television programs, commercials and within the program material itself. When this happens you must constantly adjust the volume to maintain your desired listening level. Audyssey Dynamic Volume monitors the volume of program material moment-by-moment and automatically adjusts it, maintaining the desired listening level for all content while optimizing the dynamic range to preserve impact.

While high frequencies are easily stopped by walls low frequencies pass right through. After identifying the frequency range that most readily passes through walls Audyssey developed a technique, called Audyssey LFC (Low Frequency Containment) that reduses the volume at those frequencies and applies psychoacoustic processing to restore the perception of low bass for listeners in the room. The result is no more angry neighbors and no loss of enjoyment for listeners.

Placing two subwoofers in the room can cause problems, they can create standing waves or even cancel each other out resulting in even less bass than a single sub can produce. Audyssey Sub EQ HT allows two subwoofers to be properly used in a home theater system. The process is automated and takes only a few minutes. The result is rich, full bass for everyone in the room.


Room Correction

Marantz SR6014 comes with Audyssey MultEQ XT32 room correction system and includes the calibration microphone. It also supports Audyssey App.

Audyssey is an acoustic measurement technology which automatically restores the acoustic distortion caused by the acoustic behaviour of a room with only a push on a button. Audyssey equalization provides an clear, accurate, natural sound with voices and dialog that become focused and intelligible, restoring the musical balance. Musical instruments and sound effects become precisely localized and the surround soundstage is made seamless and enveloping.


Connectivity

Marantz SR6014 can be connected to internet using ethernet cable or built-in wi-fi adapter. It can also connect to bluetooth devices via built-in bluetooth adapter. The Receiver works with Amazon Alexa and supports AirPlay 2. It has 8 HDMI inputs and HDCP 2.3 copy protection. There is a phono input with built-in phono stage for connecting the cartridge output of the turntable directly to the Receiver. There are 7.1 multi-channel analog inputs and 11.2 channel analog pre-outs for external amplification.

Front panel has HDMI, USB, Composite and L/R Audio inputs.

Image cannot be found Image cannot be found

Detailed Specifications

Here we list all the available features and specifications of Marantz SR6014.

BASICS
BrandMarantz
ModelSR6014
TypeA/V Receiver
CountryUK
Release Year2019
AMPLIFIER
Channels9.2
Front Wide Channel Support
Current Feedback Topology
Discrete Amplification
HDAM
THX™ Certification
Continuous 6 Ω Rated
Certified 4 Ω Performance
Bi-amp Capability assignable
AUDIO
DACAKM AK4458
Maximum Channel Processing11.2
Air Studios Monitor Certification
Dolby Atmos up to 7.1.4 with external amp
Dolby Atmos Height Virtualization
Dolby TrueHD
Dolby Digital Plus
Dolby Surround Upmixer
Dolby Pro Logic
Dolby Digital EX
Surround EX
DTS:X up to 7.1.4 with external amp
DTS Neural:X
DTS Virtual:X
DTS Neo
DTS-HD Master Audio
DTS-HD High Resolution Audio
DTS 96/24
DTS Express
DTS-ES Discrete 6.1, Matrix 6.1
IMAX Enhanced
Auro 3D with Auro-Matic Upmixer
PCM 2-ch/Multi-ch Input
Music Playback via USBMP3, WMA, AAC, Apple Lossless, WAV, FLAC, DSD
High Resolution Music Playback via USB and/or Network up to 192 kHz
High Resolution Audio Formats via USBApple Lossless, WAV, FLAC, DSD
Multi-Channel Music File Playback via USB
Gapless Playback
DSD via HDMI 2-ch/Multi-ch Input
DSD via USB 2-ch Input
DSD to PCM Converter
USB DAC
Jitter Reduction Hybrid PLL Clock Jitter Reducer
DTS Dialogue Control
Dialog Enhancement
Dialog Level Adjustment
Dialog Normalization
Dialogue Lift
Compressed Music Enhancer MDAX2
High-resolution Music Enhancer
Audyssey Dynamic EQ
Audyssey Dynamic Volume
Audyssey LFC
Audyssey Sub EQ HT
Audyssey DSX
Direct Mode
Pure Direct Mode
Independent Dual Subwoofer Output
CALIBRATION
Auto Speaker Calibration System with Mic. Audyssey MultEQ XT32
Audyssey App Support
Optimized Bass Redirection
Bass Sync
VIDEO
HDR10
HDR10+
Dynamic HDR
BT.2020 color space
Dolby Vision
Hybrid Log Gamma (HLG)
Quick Media Switching (QMS)
Auto Low Latency Mode (ALLM)
Variable Refresh Rate (VRR)
Quick Frame Transport (QFT)
3-D Ready
Video Signal Passthroughup to 4K 50/60Hz 4:4:4
Video Signal Upscaling up to 4K 50/60Hz 4:4:4
Analog To HDMI Upconversion Component**, Composite
Component Video Upscaling
Analog to Analog Video conversion
isf Certified Calibration Control
CONNECTIVITY
MHL Input
DLNA 1.5
FireConnect
FlareConnect
Domotz Pro Compatible
Remote Monitoring with ihiji
OvrC Compatible
HEOS
Chromecast Built-In
DTS Play-Fi
Works with Amazon Alexa
Google assistant
Apple Siri
Works with SONOS
AirPlay AirPlay 2
Apple Product Connection iPod, iPhone and iPad
Remote App Marantz 2016 AVR Remote App for iOS and Android devices
InstaPrevue Input Source Prevue
Ethernet
Ethernet Switch
Wi-Fi
Bluetooth SBC
HDBaseT Compatible
Enhanced Audio Return Channel (eARC)
HDCP Version2.3
HDMI Inputs8 (1 front)
HDMI Outputs3 (2 for MAIN, 1 for ZONE2)
USB Input1 (Front) for USB memory
USB DC Out Port
Analog Audio Line Inputs6 (1 front)
Analog Audio Line Outputs
Phono Input
Optical Inputs2
Optical Outputs
Coaxial Inputs/Outputs2 / No
Composite Video Inputs4 (1 front)
Composite Video Outputs1
S-Video Inputs
S-Video Outputs
Component Video Inputs2
Component Video Outputs1
PC In
Multi-Channel Input 7.1
Analog Pre-Outs11.2
XLR Inputs
XLR Pre-outs
Front A/V InputsHDMI, USB, Composite, L/R Audio
Speaker A/B assignable
Headphone Out 6.3 mm
ZONES
Zones2
Powered Zones 2
Zone 2 OutsHDMI, Pre Out
RS-232 Interface
+12V Trigger Output1
MISC
On-Screen Display Advanced Graphic User Interface
GUI Languages9
Web Control
IP Control
FL Display port hole
Remote ControllerRC035SR
Pre-programmed / Learnable / LCD DisplayNo / No / No
Detachable Power Cord
Flasher In
Remote Control In/Out1 / 1
Setup Assistant
RADIO
Analog Tuner FM/AM with RDS
Digital Radio
Internet Radio TuneIn
Pandora
Spotify
Tidal
Deezer
Napster
SiriusXM Internet Radio
CONSTRUCTION
Front PanelMetal
Speaker Terminals11
Large Speaker Terminals11
Color-Coded Speaker Terminals
Transparent High-Grade Speaker Terminals
High Grade Audio Components
Gold plated RCA terminals
POWER
Power SupplyAC 230 V, 50/60 Hz
Toroidal TransformerNo (EI)
Power Consumption680 W
No Sound PowerECO On/Off: 50 W/80 W
Standby Power0.2 W
GENERAL
ECO Mode / Hybrid Standby Function
Auto Power off
Dimensions (W x H x D)440 mm x 161 mm x 398 mm (with antenna: 440 mm x 229 mm x 398 mm)
17-3/8" x 6-3/8" x 15-3/4" (with antenna: 17-3/8" x 9-1/8" x 15-3/4")
Dimensions of Package (W x H x D)537 mm x 257 mm x 483 mm
Weight12.8 kg (28 lbs 4 oz)
Weight of Package15.4 kg
Warranty3 Years
SPECS
Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)110 W (0.08% THD)
Power Output (6 Ω, 1 kHz, 2 channel driven, FTC)150 W (0.7% THD)
Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA or IEC)220 W (10% THD)
Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)185 W (1% THD)
THD digital0.008% (1 kHz, at 0 dB)
Analog Distortion0.005% (20 Hz-20 kHz, Direct mode)
Phono Distortion0.03% (1 kHz, 3 V)
Input Sensitivity and Impedance (Line)200 mV/47 kΩ
Input Sensitivity and Impedance (Phono MM)2.5 mV
Rated Preout Level and Impedance1.2 V
Rated Output digital2 V (at 0 dB playback)
S/N Ratio (Line, IHF-A)100 dB
S/N Ratio (Phono MM, IHF-A)74 dB
S/N Ratio (digital)102 dB
Dynamic Range (digital)100 dB
Phono RIAA Deviation±1 dB (20 Hz to 20 kHz)
Frequency Response (Analog In)+1/-3 dB (10 Hz to 100 kHz, Direct mode)
DSD Sampling Rates via HDMI2.8 MHz
DSD Sampling Rates via USB5.6 MHz, 2.8 MHz
Video Input Sensitivity/Output Level and Impedance 1 Vp-p/75 Ω (Component Y)
0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
1 Vp-p/75 Ω (Composite)
Video Frequency Response5 Hz - 60 MHz, 0, -3 dB (Component)
5 Hz - 10 MHz, 0, -3 dB (Composite)
Ethernet Standard100BASE-TX
Wi-Fi StandardIEEE 802.11 a/b/g/n
Wi-Fi Terminal Frequency5 GHz, 2.4 GHz
Bluetooth Version4.1
Bluetooth Frequency2.4 GHz
USB TerminalUSB2.0 5V, 1 A
FM Frequency87.5 MHz - 108.0 MHz
FM 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)Mono: 2.8 µV (20.2 dBf)
FM Effective Sensitivity1.2 µV (12.8 dBf)
FM S/N RatioMono/Stereo: 70 dB/67 dB
FM Harmonic Distortion (IHF, 1 kHz)Mono/Stereo: 0.7%/1.0%
AM Frequency522 kHz - 1611 kHz
AM Effective Sensitivity18 µV

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted

Successor

In 2020 Marantz SR6014 was replaced by SR6015. Let us now have a look at some important changes that the successor brought.


UPGRADES Marantz SR6015 Marantz SR6014
HDR10+
Dynamic HDR
QMS
VRR
QFT
Video Signal Passthrough up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 up to 4K 50/60Hz 4:4:4
Video Signal Upscaling up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 up to 4K 50/60Hz 4:4:4
Newer Bluetooth Version 4.2 4.1

DOWNGRADES Marantz SR6015 Marantz SR6014
Less HDMI Inputs 7 (one 8K input) 8 (1 front)
Analog Tuner FM/AM with RDS

For more detailed comparison between the models please visit Marantz SR6015 vs Marantz SR6014.

Amazon Affiliate Disclosure

ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
