Marantz SR6013 Review and Specs
image not found

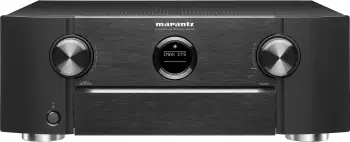

Marantz SR6013 (UK version)

SCORE:
91

Highlights

  • 9.2 channels
  • 110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
  • Dolby Atmos, DTS:X capable
  • HDR10, Dolby Vision, 4K Upscaling, 4K Passthrough
  • AirPlay 2, DLNA, HEOS
  • Ethernet, Wi-Fi, Bluetooth
  • USB and Phono inputs

Disclosure: We earn money from the affiliate links to products associated with content in this article.

Marantz SR6013 Overview

Marantz SR6013 was introduced in 2018. It is equipped with 9 channel amplifier and is capable of 11.2 maximum channel processing.

We evaluated the Receiver and gave 91 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

AMPLIFIER
89
VIDEO FEATURES
95
AUDIO FEATURES
92
CONNECTIVITY
92
MULTIZONE
84
MISCELLANEOUS
88
RADIO
92
OVERALL
91

Amplifier score is based on power ratings, minimum impedance load, power supply, transformer type, total harmonic distortion, damping factor, signal to noise ratio and other small details. Audio score depends on the number of channels, front wide channel support, maximum channel processing, support of audio formats, DAC specifications, room calibration algorithm... Video score is based on HDR, Dolby Vision and video signal passthrough and upscaling, analog to HDMI upconversion. Connectivity score is defined from all wired and wireless inputs and outputs, internet and bluetooth connections, HEOS, SONOS and others. Multizone score depends on the number of zones with their outputs. Radio score is evaluated form digital radio support and analog tuner with its frequency range, signal to noise ratio, harmonic distortion...

Pros and Cons

In this section we present pros and cons of Marantz SR6013.

PROS
HDAM πŸ‘
Certified 4 Ω Performance πŸ‘
Bi-amp Capability πŸ‘
Many Channel Processing πŸ‘
Dolby Atmos πŸ‘
Dolby TrueHD πŸ‘
Dolby Digital Plus πŸ‘
Dolby Surround Upmixer πŸ‘
Dolby Digital EX πŸ‘
DTS:X πŸ‘
DTS Neural:X πŸ‘
DTS Virtual:X πŸ‘
DTS-HD Master Audio πŸ‘
DTS-HD High Resolution Audio πŸ‘
DTS 96/24 πŸ‘
DTS Express πŸ‘
DTS-ES πŸ‘
IMAX Enhanced πŸ‘
High Resolution Music Playback via USB and/or Network πŸ‘
Gapless Playback πŸ‘
DSD via HDMI πŸ‘
DSD via USB πŸ‘
DTS Dialog Control πŸ‘
Dialog Level Adjustment πŸ‘
Dialog Normalization πŸ‘
Compressed Music Enhancer πŸ‘
Audyssey Dynamic EQ πŸ‘
Audyssey Dynamic Volume πŸ‘
Audyssey LFC πŸ‘
Audyssey Sub EQ HT πŸ‘
Auto Speaker Calibration System with Mic. πŸ‘
Audyssey App Support πŸ‘
Optimized Bass Redirection πŸ‘
HDR10 πŸ‘
BT.2020 color space πŸ‘
Dolby Vision πŸ‘
HLG πŸ‘
3-D Ready πŸ‘
4K or 8K Video Passthrough πŸ‘
4K or 8K Signal Upscaling πŸ‘
Analog To HDMI Upconversion πŸ‘
DLNA 1.5 πŸ‘
HEOS πŸ‘
Works with Amazon Alexa πŸ‘
Ethernet πŸ‘
Wi-Fi πŸ‘
Bluetooth πŸ‘
eARC πŸ‘
New HDCP Version πŸ‘
Many HDMI Inputs πŸ‘
Many HDMI Outputs πŸ‘
USB Input πŸ‘
Many Analog Audio Line Inputs πŸ‘
Phono Input πŸ‘
Composite Video Inputs πŸ‘
Composite Video Outputs πŸ‘
Component Video Inputs πŸ‘
Component Video Outputs πŸ‘
Multi-Channel Input πŸ‘
Analog Pre-Outs πŸ‘
Zones πŸ‘
Detachable Power Cord πŸ‘
Analog Tuner πŸ‘
Spotify πŸ‘
Tidal πŸ‘
Deezer πŸ‘
Napster πŸ‘
CONS
No Front Wide Channel Support πŸ‘Ž
No Dolby Atmos Height Virtualization πŸ‘Ž
No Auro 3D with Auro-Matic Upmixer πŸ‘Ž
No High-resolution Music Enhancer πŸ‘Ž
No HDR10+ πŸ‘Ž
No Chromecast Built-In πŸ‘Ž
Does Not Work with SONOS πŸ‘Ž
No Pandora πŸ‘Ž
No SiriusXM Internet Radio πŸ‘Ž
Old Bluetooth Version πŸ‘Ž

Major Changes from its predecessor

Here we are comparing Marantz SR6013 to its predecessor SR6012 and displaying the major changes.

UPGRADES Marantz SR6013 Marantz SR6012
IMAX Enhanced βœ” βœ–
Web Control βœ” βœ–

For more detailed comparison between the models please visit Marantz SR6013 vs Marantz SR6012.

Selected Features

Amplifier

Marantz SR6013 has 9 channel amplifier and delivers 110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and also has a stable performance at 4 Ω load.


Video Features

The Receiver has 4K passthrough up to 60p and 4K upscaling up to 60p. It can bypass HDR10, Dolby Vision.


HDR10

High-dynamic-range (HDR) video has greater dynamic range than standard-dynamic-range (SDR) video with brigter whites and deeper blacks. HDR10 was announced on August 27, 2015, by the Consumer Technology Association and uses the wide-gamut Rec. 2020 color space. It sends static metadata via video stream to the TV which calibrates its screen brightness and color according to that. HDR10 supports up to 1000 nits of brightness and 10-bit color which corresponds to 1024 shades of the primary RGB colors.


Dolby Vision

Dolby Vision is an update to HDR10 by adding dynamic metadata that can be used to more accurately adjust brightness levels up to 10,000 nits maximum brightness on a scene-by-scene or frame-by-frame basis and supports up to 12-bit color depth (4096 shades of RGB) and 8K resolution.


Dolby Atmos and Dolby Surround upmixer

Marantz SR6013 supports Dolby Atmos with its Dolby Surround upmixer. It can be configured upto 7.1.2 or 5.1.4 channels using internal amplifiers or upto 7.1.4 channels by adding 2 channel external amplifier.

Dolby Atmos is the first cinematic audio format in which sounds exist as individual entities, called audio objects. In Dolby Atmos, any sound - the helicopter, a car screeching around a corner, a melodic bird call - can exist as an independent audio object, free of channel restrictions. They can be precisely placed and moved anywhere in your room, including overhead, to flow above and around you in three-dimensional space. Through the use of audio objects, overhead sound, and all the richness, clarity, and power of Dolby sound, Dolby Atmos turns your room into an amazing place for entertainment. You'll feel like you're inside the action, in ways you've never experienced before.

Dolby Atmos for the home represents every sound in the original cinema mix as an audio object. Extensions to the Dolby Audioβ„’ codecs, along with an advanced scalable algorithm, allow Dolby Atmos to be delivered via Blu-ray Disc and streaming media. A spatially-coded substream is added to Dolby TrueHD or Dolby Digital Plus. A Dolby Atmos audio/video receiver (AVR) adapts the cinema experience to your home theater from seven speakers to as many as 34 in 24.1.10 configuration, recreating the original artistic concept. The format supports up to 128 simultaneous independent audio objects in a mix for rich, realistic, and breathtaking sound. It recreates the director's original concept through descriptive metadata to provide customized playback for home theater and delivers sounds above you through overhead speakers, special upward-firing Dolby Atmos speakers, or a Dolby Atmos enabled sound bar.

If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.


DTS:X and Neural:X upmixer

Marantz SR6013 supports DTS:X with its Neural:X upmixer. It can be configured upto 7.1.2 or 5.1.4 channels using internal amplifiers or upto 7.1.4 channels by adding 2 channel external amplifier.

A technique used in DTS:X is similar to the one used in Dolby Atmos. Instead of a fixed number of channels, DTS:X defines object locations from the listener in polar coordinates. An a/v receiver then dynamically renders sound according to the current speaker configuration. The speaker layout employed by DTS:X is the sum of Dolby Atmos and Auro-3D. It has standard 7.1 channel base layer, a 5 channel height layer above the base layer on the front and side walls, and 3 rows of speakers on the ceiling.

DTS Neural:X is a new upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.


Current Feedback Topology

Marantz SR6013 features Current Feedback Topology which is a well known, Marantz’ original circuit technology. The Current Feedback amplifier technology fits perfectly with the high requirements set for Super Audio software providing wide-bandwidth, high-speed reproduction. The impedance at the Current Feedback point is limited resulting in a very low phase shift. Marantz receivers and amplifiers equipped with Current Feedback can keep the phase compensation via Negative FeedBack (NFB) to a minimum, resulting in high through-rate, excellent transient response and superb sonic transparency for the full bandwidth. Unlike conventional Voltage Feedback amplification, the Current Feedback amplification makes the power amplifier in-sensitive to difficult loudspeaker loads.


HDAM

Marantz SR6013 features exclusive Marantz HDAM (Hyper Dynamic Amplifier Module) technology found on their Reference Series components. Marantz developed its own discrete circuit boards to replace standard IC's. These HDAM's consist of discrete surface mount components with short mirror image L/R signal paths. Those devices are doing exactly the same thing as the Op-Amps, but outperform the regular IC Op-amps dramatically in terms of the Slew Rate and reduced noise level, resulting in a much more dynamic, accurate and detailed sound. Over the years Marantz developed different types of the HDAM to improve quality and to fit to the special requirements of a product category like CD or amplifier.


MDAX2

Compressed music enhancement in Marantz SR6013 is done by Marantz’ MDAX2 technology. The use of compressed audio files like MP3, Windows Mediaβ„’ Audio or AAC is getting more and more popular. The audio quality of these compressed files however is less than the original lossless files that are on a CD, especially lacking the higher frequencies and affecting the lower frequencies which make the audio image less wide and deep. The Marantz Digital Audio Expander 2, also called M-DAX2, recalculates the outputted frequency range. This enables you to get a more detailed and clearer sound.


Audyssey

Marantz SR6013 comes with Audyssey Dynamic EQ, Audyssey Dynamic Volume, Audyssey LFC and Audyssey Sub EQ HT.

Audyssey Dynamic EQ selects the best possible frequency response and surround volume levels moment-by-moment. This ensures that the bass response, tonal balance and surround impression remain constant despite changes in volume. This is the first technology that carefully combines information from incoming source levels with actual output sound levels in the room, a pre-requisite for delivering a dynamic volume solution.

Your Listening experience can be greatly diminished when there are significant shifts in volume between television programs, commercials and within the program material itself. When this happens you must constantly adjust the volume to maintain your desired listening level. Audyssey Dynamic Volume monitors the volume of program material moment-by-moment and automatically adjusts it, maintaining the desired listening level for all content while optimizing the dynamic range to preserve impact.

While high frequencies are easily stopped by walls low frequencies pass right through. After identifying the frequency range that most readily passes through walls Audyssey developed a technique, called Audyssey LFC (Low Frequency Containment) that reduses the volume at those frequencies and applies psychoacoustic processing to restore the perception of low bass for listeners in the room. The result is no more angry neighbors and no loss of enjoyment for listeners.

Placing two subwoofers in the room can cause problems, they can create standing waves or even cancel each other out resulting in even less bass than a single sub can produce. Audyssey Sub EQ HT allows two subwoofers to be properly used in a home theater system. The process is automated and takes only a few minutes. The result is rich, full bass for everyone in the room.


Room Correction

Marantz SR6013 comes with[y] Audyssey MultEQ XT32 room correction system and includes the calibration microphone. It also supports Audyssey App.

Audyssey is an acoustic measurement technology which automatically restores the acoustic distortion caused by the acoustic behaviour of a room with only a push on a button. Audyssey equalization provides an clear, accurate, natural sound with voices and dialog that become focused and intelligible, restoring the musical balance. Musical instruments and sound effects become precisely localized and the surround soundstage is made seamless and enveloping.


Connectivity

Marantz SR6013 can be connected to internet using ethernet cable or built-in wi-fi adapter. It can also connect to bluetooth devices via built-in bluetooth adapter. The Receiver works with Amazon Alexa and supports[y] AirPlay 2. It has 8 HDMI inputs and HDCP 2.2 copy protection. There is a phono input with built-in phono stage for connecting the cartridge output of the turntable directly to the Receiver. There are 7.1 multi-channel analog inputs and 11.2 channel analog pre-outs for external amplification.

Front panel has HDMI, USB, Composite and L/R Audio inputs.

Image cannot be found Image cannot be found

Detailed Specifications

Here we list all the available features and specifications of Marantz SR6013.

BASICS
BrandMarantz
ModelSR6013
TypeA/V Receiver
CountryUK
Release Year2018
AMPLIFIER
Channels9.2
Front Wide Channel Supportβœ–
Current Feedback Topologyβœ”
Discrete Amplificationβœ”
HDAMβœ”
THXβ„’ Certificationβœ–
Continuous 6 Ω Ratedβœ”
Certified 4 Ω Performanceβœ”
Bi-amp Capabilityβœ” assignable
AUDIO
DACAKM AK4458
Maximum Channel Processing11.2
Air Studios Monitor Certificationβœ–
Dolby Atmosβœ” up to 7.1.4 with external amp
Dolby Atmos Height Virtualizationβœ–
Dolby TrueHDβœ”
Dolby Digital Plusβœ”
Dolby Surround Upmixerβœ”
Dolby Pro Logicβœ–
Dolby Digital EXβœ”
Surround EXβœ–
DTS:Xβœ” up to 7.1.4 with external amp
DTS Neural:Xβœ”
DTS Virtual:Xβœ”
DTS Neoβœ–
DTS-HD Master Audioβœ”
DTS-HD High Resolution Audioβœ”
DTS 96/24βœ”
DTS Expressβœ”
DTS-ESβœ” Discrete 6.1, Matrix 6.1
IMAX Enhancedβœ”
Auro 3D with Auro-Matic Upmixerβœ–
PCMβœ” 2-ch/Multi-ch Input
Music Playback via USBMP3, WMA, AAC, Apple Lossless, WAV, FLAC, DSD
High Resolution Music Playback via USB and/or Networkβœ” up to 192 kHz
High Resolution Audio Formats via USBApple Lossless, WAV, FLAC, DSD
Multi-Channel Music File Playback via USBβœ–
Gapless Playbackβœ”
DSD via HDMIβœ” 2-ch/Multi-ch Input
DSD via USBβœ” 2-ch Input
DSD to PCM Converterβœ–
USB DACβœ–
Jitter Reductionβœ” Hybrid PLL Clock Jitter Reducer
DTS Dialog Controlβœ”
Dialog Enhancementβœ–
Dialog Level Adjustmentβœ”
Dialog Normalizationβœ”
Dialogue Liftβœ–
Compressed Music Enhancerβœ” MDAX2
High-resolution Music Enhancerβœ–
Audyssey Dynamic EQβœ”
Audyssey Dynamic Volumeβœ”
Audyssey LFCβœ”
Audyssey Sub EQ HTβœ”
Audyssey DSXβœ–
Direct Modeβœ”
Pure Direct Modeβœ”
Independent Dual Subwoofer Outputβœ”
CALIBRATION
Auto Speaker Calibration System with Mic.βœ” Audyssey MultEQ XT32
Audyssey App Supportβœ”
Optimized Bass Redirectionβœ”
Bass Syncβœ–
VIDEO
HDR10βœ”
HDR10+βœ–
BT.2020 color spaceβœ”
Dolby Visionβœ”
Hybrid Log Gamma (HLG)βœ”
Quick Media Switching (QMS)βœ–
Auto Low Latency Mode Pass-throughβœ–
Variable Refresh Rate (VRR)βœ–
Quick Frame Transport (QFT)βœ–
3-D Readyβœ”
Video Signal Passthroughup to 4K 50/60Hz 4:4:4
Video Signal Upscalingβœ” up to 4K 50/60Hz 4:4:4
Analog To HDMI Upconversionβœ” Component**, Composite
Component Video Upscalingβœ–
Analog to Analog Video conversionβœ–
isf Certified Calibration Controlβœ”
CONNECTIVITY
MHL Inputβœ–
DLNA 1.5βœ”
FireConnectβœ–
FlareConnectβœ–
Domotz Pro Compatibleβœ–
Remote Monitoring with ihijiβœ–
OvrC Compatibleβœ–
HEOSβœ”
Chromecast Built-Inβœ–
DTS Play-Fiβœ–
Works with Amazon Alexaβœ”
Works with SONOSβœ–
AirPlayβœ” AirPlay 2
Apple Product Connectionβœ” iPod, iPhone and iPad
Remote Appβœ” Marantz 2016 AVR Remote App for iOS and Android devices
InstaPrevue Input Source Prevueβœ–
Ethernetβœ”
Ethernet Switchβœ–
Wi-Fiβœ”
Bluetoothβœ” SBC
HDBaseT Compatibleβœ–
Enhanced ARCβœ”
HDCP Version2.2
HDMI Input8 (1 front)
HDMI Output3 (2 for MAIN, 1 for ZONE2)
USB Input1 (Front) for USB memory
USB DC Out Portβœ–
Analog Audio Line Input6 (1 front)
Analog Audio Line Outputβœ–
Phono Inputβœ”
Optical In2
Optical Outβœ–
Coaxial In/Out2 / βœ–
Composite Video Input4 (1 front)
Composite Video Output1
S-Video Inputβœ–
S-Video Outputβœ–
Component Video Input2
Component Video Output1
PC Inβœ–
Multi-Channel Inputβœ” 7.1
Analog Pre-Outs11.2
XLR Inputsβœ–
XLR Pre-outsβœ–
Front A/V InputsHDMI, USB, Composite, L/R Audio
Speaker A/Bβœ” assignable
Headphone Outβœ” 6.3 mm
ZONES
Zones2
Powered Zonesβœ” 2
Zone 2HDMI, Pre Out
RS-232βœ”
+12V Trigger Output1
MISC
On-Screen Displayβœ” Advanced Graphic User Interface
GUI Languages9
Web Browser Controlβœ”
IP Control for CIβœ”
FL Displayβœ” port hole
Remote ControllerRC035SR
Pre-programmed / Learnable / LCD Displayβœ– / βœ– / βœ–
Detachable Power Cordβœ”
Flasher Inβœ”
Remote Control In/Out1 / 1
Setup Assistantβœ”
RADIO
Analog Tunerβœ” FM/AM with RDS
Digital Radioβœ–
Internet Radioβœ” TuneIn
Pandoraβœ–
Spotifyβœ”
Tidalβœ”
Deezerβœ”
Napsterβœ”
SiriusXM Internet Radioβœ–
CONSTRUCTION
Front PanelMetal
Speaker Terminals11
Large Speaker Terminals11
Color-Coded Speaker Terminalsβœ”
Transparent High-Grade Speaker Terminalsβœ–
High Grade Audio Componentsβœ”
Gold plated RCA terminalsβœ”
POWER
Power SupplyAC 230 V, 50/60 Hz
Toroidal Transformerβœ– (EI)
Power Consumption680 W
No Sound PowerECO On/Off: 60 W/100 W
Standby Power0.2 W
GENERAL
ECO Mode / Hybrid Standby Functionβœ”
Auto Power offβœ”
Dimensions (W x H x D)440 mm x 161 mm x 398 mm (with antenna: 440 mm x 229 mm x 398 mm)
17-3/8" x 6-3/8" x 15-3/4" (with antenna: 17-3/8" x 9-1/8" x 15-3/4")
Weight12.8 kg (28 lbs 4 oz)
Warranty3 Years
SPECS
Power Output (8 Ω, 20 Hz - 20 kHz, 2110 W (0.08% THD)
Power Output (6 Ω, 1 kHz, 2150 W (0.7% THD)
Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA)220 W (10% THD)
Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)185 W (1% THD)
THD digital0.008% (1 kHz, at 0 dB)
Analog Distortion0.005% (20 Hz-20 kHz, Direct mode)
Phono Distortion0.03% (1 kHz, 3 V)
Input Sensitivity and Impedance (Line)200 mV/47 kΩ
Input Sensitivity and Impedance (Phono MM)2.5 mV
Rated Output digital2 V (at 0 dB playback)
S/N Ratio (Line, IHF-A)100 dB
S/N Ratio (Phono MM, IHF-A)74 dB
S/N Ratio (digital)102 dB
Dynamic Range (digital)100 dB
Phono RIAA DeviationΒ±1 dB (20 Hz to 20 kHz)
Frequency Response (Analog In)+1/-3 dB (10 Hz to 100 kHz, Direct mode)
DSD Sampling Rates via HDMI2.8 MHz
DSD Sampling Rates via USB5.6 MHz, 2.8 MHz
Video Input Sensitivity/Output Level and Impedance1 Vp-p/75 Ω (Component Y)
0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
1 Vp-p/75 Ω (Composite)
Video Frequency Response5 Hz - 60 MHz, 0, -3 dB (Component)
5 Hz - 10 MHz, 0, -3 dB (Composite)
Ethernet Standard100BASE-TX
Wi-Fi StandardIEEE 802.11 a/b/g/n
Wi-Fi Terminal Frequency5 GHz, 2.4 GHz
Bluetooth Version3.0 + EDR
Bluetooth Frequency2.4 GHz
USB TerminalUSB2.0 5V, 1 A
FM Frequency87.5 MHz - 108.0 MHz
FM 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)Mono: 2.8 Β΅V (20.2 dBf)
FM Effective Sensitivity1.2 Β΅V (12.8 dBf)
FM S/N RatioMono/Stereo: 70 dB/67 dB
FM Harmonic Distortion (IHF, 1 kHz)Mono/Stereo: 0.7%/1.0%
AM Frequency522 kHz - 1611 kHz
AM Effective Sensitivity18 Β΅V

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted

Successor

In 2019 Marantz SR6013 was replaced by SR6014. Let us now have a look at some important changes that the successor brought.


UPGRADES Marantz SR6014 Marantz SR6013
Dolby Atmos Height Virtualization βœ” βœ–
Auto Low Latency Mode Pass-through βœ” βœ–
Domotz Pro Compatible βœ” βœ–
Remote Monitoring with ihiji βœ” βœ–
OvrC Compatible βœ” βœ–
Newer HDCP Version 2.3 2.2
Newer Bluetooth Version 4.1 3.0 + EDR

For more detailed comparison between the models please visit Marantz SR6014 vs Marantz SR6013.

Amazon Affiliate Disclosure

ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
