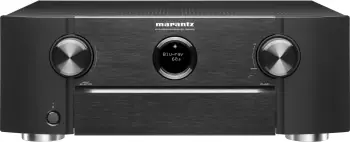

Marantz SR6009

    83
    Image cannot be found
    USA
    UK
    Image cannot be found
    Image cannot be found
    Image cannot be found

    Highlights

    • 7.2 Channels
    • 7.1 Channel Processing
    • 110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
    • 4K/60Hz Passthrough, 4K/60Hz Upscaling
    • Wi-Fi, Bluetooth, Ethernet
    • Phono Input

    Disclosure: We earn money from the affiliate links to products associated with content in this article.

    Table of Contents
    1. Overview
    2. Pros and Cons
    3. 2014 Lineup
    4. Amplifier
    5. Speaker Configurations
    6. Immersive Audio Formats
    7. HDMI
    8. Room Calibration
    9. Multi-zone Playback
    10. Inputs and Outputs
    11. Replaced by SR6010
    12. Evaluation
    13. Specifications

    1. Overview

    Marantz SR6009 was introduced in 2014. It is equipped with 7 channel amplifier with 110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 7.1 maximum channel processing. It passes 4K/60Hz and upscales up to 4K 50/60Hz 4:4:4 video signal.

    We evaluated the a/v receiver and gave 83 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

    Amplifier
    90
    Audio Features
    77
    Video Features
    73
    Connectivity
    88
    Zones
    84
    Radio
    89
    OVERALL
    83

    For more details about the ranking please go to    Evaluation section.


    Here is a history of the series, where you can view and compare the main specifications of the receivers.

    Evolution of the series
    Model Year Chann. Power Dolby Atmos DTS:X HDR10 HDR10+ Dolby Vision Pass. Price
    SR6015 Image cannot be found
    Compare
    		2020 9.2 110 W 8K
    SR6014 Image cannot be found
    Compare
    		2019 9.2 110 W 4K
    SR6013 Image cannot be found
    Compare
    		2018 9.2 110 W 4K
    SR6012 Image cannot be found
    Compare
    		2017 9.2 110 W 4K
    SR6011 Image cannot be found
    Compare
    		2016 9.2 110 W 4K
    SR6010 Image cannot be found
    Compare
    		2015 7.2 110 W 4K
    SR6009 Image cannot be found 2014 7.2 110 W 4K

    You can view their side-by-side comparison here: Marantz SR6015 vs SR6014 vs SR6013 vs SR6012 vs SR6011 vs SR6010.

    2. Pros and Cons

    In this section we present pros and cons of Marantz SR6009.

    PROs

    •   High Power Output - 110 W
    •   Front Wide Channel Support
    •   DSD via HDMI
    •   Auto Speaker Calibration System with Mic.
    •   New HDCP Version
    •   Analog To HDMI Upconversion
    •   Wi-Fi
    •   Bluetooth
    •   8 HDMI Inputs
    •   USB Input
    •   Many RCA Line Inputs
    •   Phono Input
    •   Multi-Channel Input
    •   RCA Pre-Outs
    •   Composite Video Inputs
    •   Component Video Inputs
    •   Ethernet
    •   Analog Tuner
    •   Pandora
    •   Spotify

    CONs

    •   No Dolby Atmos
    •   No Dolby Atmos Height Virtualization
    •   No DTS:X
    •   No IMAX Enhanced
    •   No Auro 3D with Auro-Matic Upmixer
    •   No HDR10
    •   No HDR10+
    •   No Dolby Vision
    •   No eARC
    •   No 8K Passthrough
    •   Does not Work with Amazon Alexa
    •   0 8K Input
    •   No Digital Radio
    •   No Tidal
    •   Bluetooth 2․1 + EDR

    And here are some specifications which fall into average criteria and are neither in PROs nor in CONs category:

    AVERAGE

    •   7.2 Channels
    •   7.1 Channel Processing
    •   3 HDMI Outputs
    •   2 Zones

    3. Marantz 2014 Lineup

    In 2014 Marantz released 4 new receivers. Here is the lineup:

    Marantz 2014 Lineup
    ModelChannelsPowerMax. Ch. Proc.Pre OutsImmersive AudioZones Price
    SR7009 Image cannot be found
    Compare
    		9.2125 W11.213.2Dolby Atmos
    Auro 3D    		3
    SR6009 Image cannot be found 7.2110 W7.17.22
    SR5009 Image cannot be found
    Compare
    		7.2100 W7.17.22
    NR1605 Image cannot be found
    Compare
    		7.150 W7.12.12

    You can view their side-by-side comparison here: Marantz SR7009 vs SR6009 vs SR5009 vs NR1605.

    4. Amplifier

    7 channel Amplifier

    Marantz SR6009 features 7 channel power amplifier. It is rated at 110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.

    • Current Feedback Topology: Marantz SR6009 features Current Feedback Topology which is a well known, Marantz’ original circuit technology. The Current Feedback amplifier technology fits perfectly with the high requirements set for Super Audio software providing wide-bandwidth, high-speed reproduction. The impedance at the Current Feedback point is limited resulting in a very low phase shift. Marantz receivers and amplifiers equipped with Current Feedback can keep the phase compensation via Negative FeedBack (NFB) to a minimum, resulting in high through-rate, excellent transient response and superb sonic transparency for the full bandwidth. Unlike conventional Voltage Feedback amplification, the Current Feedback amplification makes the power amplifier in-sensitive to difficult loudspeaker loads.
    • HDAM (Hyper Dynamic Amplifier Module): Marantz SR6009 features exclusive Marantz HDAM (Hyper Dynamic Amplifier Module) technology found on their Reference Series components. Marantz developed its own discrete circuit boards to replace standard IC's. These HDAM's consist of discrete surface mount components with short mirror image L/R signal paths. Those devices are doing exactly the same thing as the Op-Amps, but outperform the regular IC Op-amps dramatically in terms of the Slew Rate and reduced noise level, resulting in a much more dynamic, accurate and detailed sound. Over the years Marantz developed different types of the HDAM to improve quality and to fit to the special requirements of a product category like CD or amplifier.
    AMPLIFIER
    Channels7.2
    Power Output110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
    Front Wide Channel Support
    Current Feedback Topology
    Discrete Amplification
    HDAM
    THX™ Certification
    Continuous 6 Ω Rated
    Certified 4 Ω Performance
    Bi-amp Capability assignable

    5. Speaker Configurations

    Marantz SR6009's 7 channel amplifier can be assigned for different speaker configurations.

    • Configurations: Available configurations are:
    • 5.2, 7.2 with internal amplifier.
    • Front Wide Channel support: Marantz SR6009 supports front wide channels. With the presence of two front wide speakers you can enhance the front surround stage. The following speaker configurations are available for front wide channels - 7.2.
    • 2-ch Bi-Amp: Marantz SR6009 allows you to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.

    6. Immersive Audio Formats

    Audyssey DSX

    Audyssey DSX allows you to augment a standard five-channel home theater with either two Front Wide or two Front High speakers. The Wide channels create an expansive soundstage and bring out convincing directional effects. Alternatively, Height channels can add a vertical dimension to movie and game soundtracks.


    DECODING
    Dolby Atmos
    Dolby Atmos Height Virtualization
    Dolby Atmos Music
    Dolby TrueHD
    Dolby Digital Plus
    Dolby Surround Upmixer
    Dolby Pro Logic PLIIz
    Dolby Digital EX
    Surround EX
    DTS:X
    DTS Neural:X
    DTS Virtual:X
    DTS Neo Neo:X
    DTS-HD Master Audio
    DTS-HD High Resolution Audio
    DTS 96/24
    DTS Express
    DTS-ES Discrete 6.1, Matrix 6.1
    IMAX Enhanced
    Auro 3D with Auro-Matic Upmixer

    7. HDMI

    Marantz SR6009 features 8 HDMI inputs. It has 2 outputs: 1 for MAIN and 1 for ZONE2.

    • 4K/60Hz Passthrough: All inputs pass up to 4K 50/60Hz 4:4:4 video signal.
    • 4K Upscaling: Marantz SR6009 can upscale up to 4K 50/60Hz 4:4:4 from HDMI and analog sources.
    • Analog To HDMI Upconversion: The a/v receiver supports video upconversion, so you can connect your analog Component and Composite video sources and Marantz SR6009 will output them via HDMI. This means that you will need only one HDMI cable to connect to your TV.
    • HDCP 2.2 Copy Protection: All inputs and outputs are HDCP 2.2 compliant which is a requirement for 4K/HDR copy-protected content transmission.
    • 3D Ready: Marantz SR6009 is able to pass 3D video through HDMI.


    VIDEO FEATURES
    HDR10
    HDR10+
    Dynamic HDR
    BT.2020 color space
    Dolby Vision
    HLG (Hybrid Log Gamma)
    HDBaseT Compatible
    Enhanced Audio Return Channel (eARC)
    HDCP Version2.2
    QMS (Quick Media Switching)
    ALLM (Auto Low Latency Mode)
    VRR (Variable Refresh Rate)
    QFT (Quick Frame transport)
    3-D Ready
    Video Signal Passthroughup to 4K 50/60Hz 4:4:4
    Video Signal Upscaling up to 4K 50/60Hz 4:4:4

    8. Room Calibration

    Marantz SR6009 comes with Audyssey MultEQ XT + PRO room correction system and includes the calibration microphone.

    • Audyssey Room Calibration: Audyssey is an acoustic measurement technology which automatically restores the acoustic distortion caused by the acoustic behaviour of a room with only a push on a button. Audyssey equalization provides an clear, accurate, natural sound with voices and dialog that become focused and intelligible, restoring the musical balance. Musical instruments and sound effects become precisely localized and the surround soundstage is made seamless and enveloping.

    9. Multi-zone Playback

    Marantz SR6009 offers multi-zone playback which allows you to play different input sources in 2 different rooms.


    Zone 2

    • Powered Zone 2: You can use the unit's 2 amplifier channels by connecting Zone 2 speakers directly to the speaker terminals. The remaining 5 channels will be left for main zone amplification.
    • HDMI Output: Marantz SR6009 offers HDMI output for Zone 2. This means that it can send two different HDMI signals to two displays.
    • Audio Pre Output: If you have a dedicated power amplifier for Zone 2 you can connect it to the a/v receiver via pre outs and control volume from the a/v receiver.
    ZONES
    Number of Zones2
    Powered Zones 2
    Zone 2 OutsHDMI, Pre Out
    RS-232C Interface
    +12V Trigger Output1

    10. Inputs and Outputs

    Audio

    • Phono Input: There is an MM phono input with built-in phono stage for connecting the moving magnet cartridge output of the turntable directly to the a/v receiver.
    • 7.1 Multichannel Input: In case you have a high quality Blu-Ray or a DVD player with multichannel analog outputs you may connect it to a 7.1 multichannel analog inputs of the a/v receiver and use high quality DACs of the player instead of the ones in the a/v receiver.
    • Analog Pre-Outs: Marantz SR6009 has 7.2 preamplifier outputs which allow you to connect the a/v receiver to the external power amplifier. You may want to use a high quality external amplifier for certain channels, usually for front L/R and center, and use the a/v receiver to power the rest.
    • Analog Line Inputs: There are 6 line inputs for analog audio connection.
    • Digital Inputs: 2 optical inputs and 2 coaxial inputs are available for digital audio connection.
    • Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.

    Video

    • HDMI:
    • Inputs: 8 (1 front)   Outputs: 2 (1 for MAIN, 1 for ZONE2)
      8K Inputs: 0
    • Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
    • Inputs: 4   Outputs: 1
    • Component Video: Component video connection gives you the higher quality video compared to the composite video connection. So in case your old DVD player and other equipment do not have an HDMI output but have Component video output use this connection over the composite one. Marantz SR6009 supports up to 1080p resolution on Component video connectors.
    • Inputs: 2   Outputs: 1

    Front A/V Inputs

    • HDMI, USB, Composite, L/R Audio
    Image cannot be found
    Image cannot be found
    TERMINALS
    HDMI Inputs8 (1 front)
    HDMI Outputs2 (1 for MAIN, 1 for ZONE2)
    8K Inputs
    USB Input1 (Front) for iPod/iPhone and USB memory
    USB DC Out Port
    Optical Inputs2
    Optical Outputs
    Coaxial Inputs2
    RCA Line Inputs6 (1 front)
    RCA Line Outputs
    XLR Line Inputs
    Phono Input
    Multi-Channel Input 7.1
    RCA Pre-Outs7.2
    XLR Pre-outs
    Composite Video Inputs4 (1 front)
    Composite Video Outputs1
    S-Video Inputs
    S-Video Outputs
    Component Video Inputs2
    Component Video Outputs1

    11. Replaced by SR6010

    In 2015 Marantz SR6009 was replaced by Marantz SR6010. Let us now have a look at some important differences between Marantz SR6009 and its successor.

    UPGRADES Marantz SR6010 vs Marantz SR6009
    More Channel Processing 9.2 vs 7.1
    Dolby Atmos up to 5.1.4 or 7.1.2 with external amp vs
    Dolby Surround Upmixer vs
    DTS:X up to 5.1.4 or 7.1.2 with external amp vs
    DTS Neural:X vs
    Audyssey LFC vs
    Audyssey Sub EQ HT vs
    Independent Subwoofer Outputs vs
    More Advanced Auto Speaker Calibration System Audyssey MultEQ XT32 + PRO vs Audyssey MultEQ XT + PRO
    HDR10 vs
    BT.2020 color space vs
    Dolby Vision vs
    HLG vs
    More RCA Pre-Outs 13.2 vs 7.2
    More Speaker Terminals 11 vs 9
    More Large Speaker Terminals 11 vs 9
    DOWNGRADES Marantz SR6010 vs Marantz SR6009
    Dolby Pro Logic vs PLIIz
    DTS Neo vs Neo:X

    For more detailed comparison between the models please visit Marantz SR6009 vs SR6010.

    12. Evaluation

    We evaluate Marantz SR6009 and give score of 83 out of 100. We also give separate scores for 6 different categories according to the available features and specifications some of which are listed below. These evaluations are relative and may change each time a new receiver is added to the database.


    OVERALL
    83

    Amplifier

    EXCELLENT
    90

    We give Marantz SR6009 a score of 90 for Amplifier features.

    •   7.2 Channels
    •   High Power Output - 110 W

    Audio Features

    GOOD
    77

    We give Marantz SR6009 a score of 77 for Audio Features features.

    •   7.2 Channels
    •   Front Wide Channel Support
    •   7.1 Channel Processing
    •   No Dolby Atmos
    •   No Dolby Atmos Height Virtualization
    •   No DTS:X
    •   No IMAX Enhanced
    •   No Auro 3D with Auro-Matic Upmixer
    •   DSD via HDMI

    Video Features

    GOOD
    73

    We give Marantz SR6009 a score of 73 for Video Features features.

    •   No HDR10
    •   No HDR10+
    •   No Dolby Vision
    •   No 8K Passthrough
    •   Analog To HDMI Upconversion

    Connectivity

    EXCELLENT
    88

    We give Marantz SR6009 a score of 88 for Connectivity features.

    •   No eARC
    •   New HDCP Version
    •   Wi-Fi
    •   Bluetooth
    •   Does not Work with Amazon Alexa
    •   8 HDMI Inputs
    •   3 HDMI Outputs
    •   0 8K Input
    •   USB Input
    •   Many RCA Line Inputs
    •   Phono Input
    •   Multi-Channel Input
    •   RCA Pre-Outs
    •   Composite Video Inputs
    •   Component Video Inputs
    •   Ethernet
    •   Bluetooth 2․1 + EDR

    Zones

    GOOD
    84

    We give Marantz SR6009 a score of 84 for Zones features.

    •   2 Zones

    Radio

    EXCELLENT
    89

    We give Marantz SR6009 a score of 89 for Radio features.

    •   Analog Tuner
    •   Pandora
    •   Spotify
    •   No Tidal

    13. Specifications

    GENERAL
    BrandMarantz
    ModelSR6009
    TypeA/V Receiver
    CountryUSA
    Release Year2014
    SuccessorMarantz SR6010
    AMPLIFIER
    Channels7.2
    Power Output110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
    Front Wide Channel Support
    Current Feedback Topology
    Discrete Amplification
    HDAM
    THX™ Certification
    Continuous 6 Ω Rated
    Certified 4 Ω Performance
    Bi-amp Capability assignable
    AUDIO FEATURES
    Maximum Channel Processing7.1
    Air Studios Monitor Certification
    Dolby Atmos
    Dolby Atmos Height Virtualization
    Dolby Atmos Music
    Dolby TrueHD
    Dolby Digital Plus
    Dolby Surround Upmixer
    Dolby Pro Logic PLIIz
    Dolby Digital EX
    Surround EX
    DTS:X
    DTS Neural:X
    DTS Virtual:X
    DTS Neo Neo:X
    DTS-HD Master Audio
    DTS-HD High Resolution Audio
    DTS 96/24
    DTS Express
    DTS-ES Discrete 6.1, Matrix 6.1
    IMAX Enhanced
    Auro 3D with Auro-Matic Upmixer
    PCM 2-ch/Multi-ch Input
    Network Audio FormatsMP3, WMA, MPEG-4 AAC, Apple Lossless, WAV, FLAC, AIFF, DSD
    Music Playback via USBMP3, WMA, AAC, Apple Lossless, WAV, FLAC, AIFF, DSD
    High Resolution Music Playback via USB and/or Network up to 192 kHz
    High Resolution Audio Formats via USBApple Lossless, WAV, FLAC, AIFF, DSD
    Gapless Playback
    DSD via HDMI 2-ch/Multi-ch Input
    DSD via USB 2-ch Input
    DSD to PCM Converter
    USB DAC
    Jitter Reduction
    DTS Dialogue Control
    Dialog Enhancement
    Dialog Level Adjustment
    Dialog normalization
    Dialogue Lift
    Compressed Music Enhancer MDAX2
    High-resolution Music Enhancer
    Audyssey Dynamic EQ
    Audyssey Dynamic Volume
    Audyssey LFC
    Audyssey Sub EQ HT
    Audyssey DSX
    Direct Mode
    Pure Direct Mode
    Independent Subwoofer Outputs
    CALIBRATION
    Auto Speaker Calibration System with Mic. Audyssey MultEQ XT + PRO
    Audyssey App Support
    Optimized Bass Redirection
    Bass Sync
    VIDEO FEATURES
    HDR10
    HDR10+
    Dynamic HDR
    BT.2020 color space
    Dolby Vision
    HLG (Hybrid Log Gamma)
    HDBaseT Compatible
    Enhanced Audio Return Channel (eARC)
    HDCP Version2.2
    QMS (Quick Media Switching)
    ALLM (Auto Low Latency Mode)
    VRR (Variable Refresh Rate)
    QFT (Quick Frame transport)
    3-D Ready
    Video Signal Passthroughup to 4K 50/60Hz 4:4:4
    Video Signal Upscaling up to 4K 50/60Hz 4:4:4
    Analog To HDMI Upconversion Component, Composite
    Component Video Upscaling
    Analog to Analog Video conversion
    Component Video Maximum Resolution1080p
    isf Certified Calibration Control
    CONNECTIVITY
    Wi-Fi
    Bluetooth
    Works with Amazon Alexa
    Chromecast Built-In
    Works with SonoS
    HEOS
    DTS Play-Fi
    MHL Input
    DLNA 1.5
    Domotz Pro Compatible
    Remote Monitoring with ihiji
    OvrC Compatible
    AirPlay AirPlay
    Apple Product Connection iPod, iPhone and iPad
    Remote App Marantz Remote App for iOS and Android devices
    InstaPrevue Input Source Prevue
    TERMINALS
    HDMI Inputs8 (1 front)
    HDMI Outputs2 (1 for MAIN, 1 for ZONE2)
    8K Inputs
    USB Input1 (Front) for iPod/iPhone and USB memory
    USB DC Out Port
    Optical Inputs2
    Optical Outputs
    Coaxial Inputs2
    RCA Line Inputs6 (1 front)
    RCA Line Outputs
    XLR Line Inputs
    Phono Input
    Multi-Channel Input 7.1
    RCA Pre-Outs7.2
    XLR Pre-outs
    Composite Video Inputs4 (1 front)
    Composite Video Outputs1
    S-Video Inputs
    S-Video Outputs
    Component Video Inputs2
    Component Video Outputs1
    Ethernet
    Ethernet Switch
    PC In
    Front A/V InputsHDMI, USB, Composite, L/R Audio
    Speaker A/B assignable
    Headphone Out6.3 mm (1/4")
    Detachable Power Cord
    Flasher In
    Remote Control In/Out1 / 1
    ZONES
    Number of Zones2
    Powered Zones 2
    Zone 2 OutsHDMI, Pre Out
    RS-232C Interface
    +12V Trigger Output1
    MISCELLANEOUS
    On-Screen Display Advanced Graphic User Interface
    GUI Languages3
    Web Control
    IP Control
    Display port hole
    Remote ControllerRC025SR
    Pre-programmed / Learnable / LCD Display / /
    Setup Assistant
    RADIO
    Analog Tuner FM/AM
    Digital Radio
    Internet Radio
    Pandora
    Spotify
    Tidal
    Deezer
    Napster
    SiriusXM
    CONSTRUCTION
    ChassisTrapdoor design
    Front PanelAluminum
    Solid Aluminum Front
    Speaker Terminals9
    Large Speaker Terminals9
    Color-Coded Speaker Terminals
    Transparent High-Grade Speaker Terminals
    High Grade Audio Components
    Gold plated RCA terminals
    POWER
    Power SupplyAC 120 V, 60 Hz
    Power Consumption650 W
    No Sound PowerECO On/Off: 50 W/80 W
    Standby Power0.2 W
    ECO Mode / Hybrid Standby Function
    Auto Power off
    PHYSICAL
    Dimensions (W x H x D)440 mm x 161 mm x 398 mm (with antenna: 440 mm x 229 mm x 398 mm)
    17-3/8" x 6-3/8" x 15-3/4" (with antenna up: 17-3/8" x 9-1/8" x 15-3/4")
    Weight11.4 kg (25 lbs 2 oz)
    SPECIFICATIONS
    Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)110 W (0.08% THD)
    Power Output (6 Ω, 1 kHz, 2 channel driven, FTC)150 W (0.7% THD)
    Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)185 W (1% THD)
    THD (Digital)0.008% (1 kHz, at 0 dB)
    Analog Distortion0.005% (20 Hz-20 kHz, Direct mode)
    Phono Distortion0.03% (1 kHz, 3 V)
    Input Sensitivity and Impedance (Line)200 mV/47 kΩ
    Input Sensitivity and Impedance (Phono MM)2.5 mV
    Rated Output digital2 V (at 0 dB playback)
    S/N Ratio (Line, IHF-A)100 dB
    S/N Ratio (Phono MM, IHF-A)74 dB
    S/N Ratio (digital)102 dB
    Dynamic Range (digital)100 dB
    Phono RIAA Deviation±1 dB (20 Hz to 20 kHz)
    Frequency Response (Analog In)+1/-3 dB (10 Hz to 100 kHz, Direct mode)
    DSD Sampling Rates via HDMI2.8 MHz
    DSD Sampling Rates via USB2.8 MHz
    Video Input Sensitivity/Output Level and Impedance 1 Vp-p/75 Ω (Component Y)
    0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
    1 Vp-p/75 Ω (Composite)
    Video Frequency Response5 Hz to 60 MHz, 0 dB/-3 dB (Component)
    5 Hz to 10 MHz, 0 dB/-3 dB (Composite)
    Ethernet Standard100BASE-TX
    Wi-Fi StandardIEEE 802.11 b/g/n
    Wi-Fi Terminal Frequency2.4 GHz
    Bluetooth Version2․1 + EDR
    Bluetooth Frequency2.4 GHz
    USB TerminalUSB2.0 5V, 1 A
    FM Frequency87.5 MHz - 107.9 MHz
    FM 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)Mono: 2.8 µV (20.2 dBf)
    FM Effective Sensitivity1.2 µV (12.8 dBf)
    FM S/N RatioMono/Stereo: 70 dB/67 dB
    FM Harmonic Distortion (IHF, 1 kHz)Mono/Stereo: 0.7%/1.0%
    AM Frequency530 kHz - 1710 kHz
    AM Effective Sensitivity18 µV
    Warranty3 Years

    * - 480i/576i and 480p/576p only
    ** - 480i/576i only
    *** - no 1080p/24 upconversion
    **** - 1080p signal is not converted

    Amazon Affiliate Disclosure
    ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
