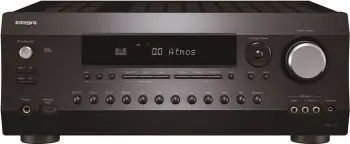

Integra DRX-3.3

    89
    Image cannot be found
    North America
    Australia and Asia
    Image cannot be found
    Image cannot be found

    Highlights

    • 9.2 Channels
    • 9.1 Channel Processing
    • 90 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
    • Dolby Atmos, DTS:X
    • HDR10, Dolby Vision
    • 4K/60Hz Passthrough, 4K/30Hz Upscaling
    • Wi-Fi, Bluetooth, Ethernet
    • Phono Input

    Disclosure: We earn money from the affiliate links to products associated with content in this article.

    Table of Contents
    1. Overview
    2. Pros and Cons
    3. 2019 Lineup
    4. Changes from the DRX-3.2
    5. Amplifier
    6. Speaker Configurations
    7. Immersive Audio Formats
    8. HDMI
    9. Room Calibration
    10. Multi-zone Playback
    11. Inputs and Outputs
    12. Replaced by DRX-3.4
    13. Evaluation
    14. Specifications

    1. Overview

    Integra DRX-3.3 was introduced in 2019. It is equipped with 9 channel amplifier with 90 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 9.1 maximum channel processing. It supports Dolby Atmos and DTS:X, passes 4K/60Hz and upscales 1080p to 4K video signal.

    We evaluated the a/v receiver and gave 89 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

    Amplifier
    87
    Audio Features
    90
    Video Features
    95
    Connectivity
    86
    Zones
    86
    Radio
    92
    OVERALL
    89

    For more details about the ranking please go to    Evaluation section.


    Here is a history of the series, where you can view and compare the main specifications of the receivers.

    Evolution of the series
    Model Year Chann. Power Dolby Atmos DTS:X HDR10 HDR10+ Dolby Vision Pass. Price
    DRX-3.4 Image cannot be found
    Compare
    		2021 9.2 100 W 8K
    DRX-3.3 Image cannot be found 2019 9.2 90 W 4K
    DRX-3.2 Image cannot be found
    Compare
    		2018 9.2 90 W 4K

    You can view their side-by-side comparison here: Integra DRX-3.4 vs DRX-3.3 vs DRX-3.2.

    2. Pros and Cons

    In this section we present pros and cons of Integra DRX-3.3.

    PROs

    •   9.1 Channel Processing
    •   Dolby Atmos
    •   Dolby Atmos Height Virtualization
    •   DTS:X
    •   IMAX Enhanced
    •   DSD via HDMI
    •   Auto Speaker Calibration System with Mic.
    •   HDR10
    •   Dolby Vision
    •   New HDCP Version
    •   Analog To HDMI Upconversion
    •   Wi-Fi
    •   Bluetooth
    •   Google Assistant
    •   Chromecast Built-In
    •   7 HDMI Inputs
    •   USB Input
    •   Many RCA Line Inputs
    •   Phono Input
    •   Composite Video Inputs
    •   Component Video Inputs
    •   Ethernet
    •   Analog Tuner
    •   Pandora
    •   Spotify
    •   Tidal
    •   Independent Power Supply

    CONs

    •   No Front Wide Channel Support
    •   No Auro 3D with Auro-Matic Upmixer
    •   No HDR10+
    •   No eARC
    •   No 8K Passthrough
    •   Does not Work with Amazon Alexa
    •   0 8K Input
    •   No RCA Pre-Outs
    •   No Digital Radio

    And here are some specifications which fall into average criteria and are neither in PROs nor in CONs category:

    AVERAGE

    •   9.2 Channels
    •   Power Output - 90 W
    •   3 HDMI Outputs
    •   2 Zones
    •   Bluetooth 4․2

    3. Integra 2019 Lineup

    In 2019 Integra released 5 new receivers. Here is the lineup:

    Integra 2019 Lineup
    ModelChannelsPowerMax. Ch. Proc.Pre OutsZones Price
    DRX-7.3 Image cannot be found
    Compare
    		9.2135 W11.211.23
    DRX-5.3 Image cannot be found
    Compare
    		9.2120 W11.211.23
    DRX-4.3 Image cannot be found
    Compare
    		9.2100 W11.211.23
    DRX-3.3 Image cannot be found 9.290 W9.12
    DRX-2.3 Image cannot be found
    Compare
    		7.280 W7.12

    You can view their side-by-side comparison here: Integra DRX-7.3 vs DRX-5.3 vs DRX-4.3 vs DRX-3.3 vs DRX-2.3.

    4. Changes from the DRX-3.2

    Integra DRX-3.3 has replaced DRX-3.2. Here we present differences between these two models.

    UPGRADES Integra DRX-3.3 vs Integra DRX-3.2
    Dolby Atmos Height Virtualization vs
    IMAX Enhanced vs
    Newer HDCP Version 2.3 vs 2.2
    Apple Siri vs
    AirPlay Airplay 2 vs Airplay
    Higher DSD Sampling Rate via USB 2.8 MHz, 5.6 MHz, 11.2 MHz vs 2.8 MHz, 5.6 MHz
    Wi-Fi Standard IEEE 802.11 a/b/g/n/ac vs IEEE 802.11 a/b/g/n
    Newer Bluetooth Version 4․2 vs 4․1 + LE
    DOWNGRADES Integra DRX-3.3 vs Integra DRX-3.2
    Network Audio Formats FLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, MPEG-4 AAC vs FLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, MPEG-4 AAC, LPCM
    Music Playback via USB FLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, AAC vs FLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, AAC, Dolby TrueHD
    High Resolution Audio Formats via USB FLAC, WAV, Apple Lossless, DSD, AIFF, AAC vs FLAC, WAV, Apple Lossless, DSD, AIFF, AAC, Dolby TrueHD
    Less Optical Inputs 1 vs 2
    Less Component Video Inputs 1 vs 2

    For more detailed comparison between the models please visit Integra DRX-3.3 vs DRX-3.2.

    5. Amplifier

    9 channel Amplifier

    Integra DRX-3.3 features 9 channel power amplifier. It is rated at 90 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.

      AMPLIFIER
      Channels9.2
      Power Output90 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      Front Wide Channel Support
      Non-Phase Shift Amplifier
      VLSC (Vector Linear Shaping Circuitry) Front L/R
      THX™ Certification
      Continuous 6 Ω Rated
      Certified 4 Ω Performance
      Discrete Output Stage Circuitry 2-Stage
      PUSH-PULL Design
      Bi-amp Capability Front L/R Channels

      6. Speaker Configurations

      Integra DRX-3.3's 9 channel amplifier can be assigned for different speaker configurations.

      • Dolby Atmos Configurations: The following speaker configurations are supported for Dolby Atmos:
      • 5.2.2, 5.2.4, 7.2.2 with internal amplifier.
      • DTS:X Configurations: The speaker configurations for DTS:X are the same as for Dolby Atmos:
      • 5.2.2, 5.2.4, 7.2.2 with internal amplifier.
      • Configurations without height channels: There are also other speaker configurations available which do not include height channels:
      • 5.2, 7.2 with internal amplifier.
      • 2-ch Bi-Amp: Integra DRX-3.3 allows you to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.

      7. Immersive Audio Formats

      Dolby Atmos

      Integra DRX-3.3 supports Dolby Atmos with Surround Upmixer and Atmos Height Virtualization.

      • Surround Upmixer: If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.
      • Atmos Height Virtualization is a digital signal processing solution that leverages Dolby's deep understanding of human audio perception to create the sensation of overhead sound from the listener-level speakers.

      DTS:X

      Integra DRX-3.3 supports DTS:X with Neural:X.

      • Neural:X is an advanced upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.
      • DTS Dialog Control: This function adjusts the dialog levels during playback of the DTS:X stream. It allows you to separately increase the dialog levels in contrast with the background sound and hear dialog easily even under noisy circumstances.

      IMAX Enhanced

      Integra DRX-3.3 is IMAX Enhanced certified. To qualify for IMAX Enhanced certification, 4K HDR televisions, projectors, sound bars, a/v receivers, loudspeakers, powered subwoofers and other premium home entertainment devices must meet carefully prescribed performance requirements established by IMAX, DTS and Hollywood's leading experts.

      • What makes an IMAX Enhanced A/V receiver different from an A/V receiver with DTS:X technology? DTS:X technology is commonly found in most multi-channel A/V receivers on the market today. All IMAX Enhanced A/V receivers include DTS:X technology and deliver additional features, such as auto-sensing of IMAX Enhanced content, via IMAX Mode. IMAX Mode indicates that your A/V receiver supports fully immersive IMAX signature sound.
      DECODING
      Dolby Atmos
      Dolby Atmos Height Virtualization
      Dolby Atmos Music
      Dolby TrueHD
      Dolby Digital Plus
      Dolby Surround Upmixer
      Dolby Pro Logic
      Dolby Digital EX
      THX Listening Modes
      DTS:X
      DTS Neural:X
      DTS Virtual:X
      DTS Neo
      DTS-HD Master Audio
      DTS-HD High Resolution Audio
      DTS 96/24
      DTS Express
      DTS-ES
      IMAX Enhanced
      Auro 3D with Auro-Matic Upmixer

      8. HDMI

      Integra DRX-3.3 features 7 HDMI inputs. It has 2 outputs: 1 Main and 1 Sub/Zone2.

      • 4K/60Hz Passthrough: All inputs pass up to 4K 50/60Hz 4:4:4 video signal.
      • 4K Upscaling: Integra DRX-3.3 can upscale 1080p to 4K from HDMI and analog sources.
      • Analog To HDMI Upconversion: The a/v receiver supports video upconversion, so you can connect your analog Component and Composite video sources and Integra DRX-3.3 will output them via HDMI. This means that you will need only one HDMI cable to connect to your TV.
      • BT.2020 Color Space: BT.2020 or Rec. 2020 is a color standard which delivers a wider color gamut compared to Rec. 709. It covers approximately 75% of the total visual spectrum while the Rec. 709 covers only 35%.
      • HDCP 2.3 Copy Protection: All inputs and outputs are HDCP 2.3 compliant which is a requirement for 4K/HDR copy-protected content transmission.
      • 3D Ready: Integra DRX-3.3 is able to pass 3D video through HDMI.

      HDR (High Dynamic Range)

      Integra DRX-3.3 supports HDR (high dynamic range) video formats such as HDR10, Dolby Vision and Hybrid Log-Gamma via HDMI ports. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.



      VIDEO FEATURES
      HDR10
      HDR10+
      Dynamic HDR
      BT.2020 color space
      Dolby Vision
      HLG (Hybrid Log Gamma)
      HDBaseT Compatible
      Enhanced Audio Return Channel (eARC)
      HDCP Version2.3
      QMS (Quick Media Switching)
      ALLM (Auto Low Latency Mode)
      VRR (Variable Refresh Rate)
      QFT (Quick Frame transport)
      3-D Ready
      Video Signal Passthroughup to 4K 50/60Hz 4:4:4
      Video Signal Upscaling 1080p to 4K

      9. Room Calibration

      Integra DRX-3.3 comes with AccuEQ Advance 9-point calibration with subwoofer EQ and AccuReflex™ room correction system and includes the calibration microphone.

      • AccuEQ: First, AccuEQ detects the presence of speakers and evaluates the impedance of each. Next, it pinpoints their distance relative to the main listening position using the mic and sets suitable sound-pressure levels. Then it selects the optimal crossover frequency so that deeper bass rolls smoothly off to the subwoofer. Finally, AccuEQ performs frequency response equalization based on room-acoustic and speaker data collected via microphone. The sound-field is now tailored around the listening position, resulting in a more immersive and realistic in-film experience.

      10. Multi-zone Playback

      Integra DRX-3.3 offers multi-zone playback which allows you to play different input sources in 2 different rooms.


      Zone 2

      • Powered Zone 2: You can use the unit's 2 amplifier channels by connecting Zone 2 speakers directly to the speaker terminals. The remaining 7 channels will be left for main zone amplification.
      • HDMI Output: Integra DRX-3.3 offers HDMI output for Zone 2. This means that it can send two different HDMI signals to two displays.
      • Audio Pre/Line Output: If you have a dedicated amplifier for Zone 2 you can connect it to the a/v receiver via pre/line outs and use "pre out" option to control volume from the a/v receiver or use "line out" option - send fixed signal and then control volume on the Zone 2 amplifier.
      ZONES
      Number of Zones2
      Powered Zones 2
      Zone 2 OutsHDMI, RCA Pre/Line Out (shared with Zone B Line Out)
      Whole House Mode
      RS-232C Interface
      +12V Trigger Output3 (A:100 mA, B:25 mA, C:25 mA)
      Remote (IR) Input/Output2 / 1

      11. Inputs and Outputs

      Audio

      • Phono Input: There is an MM phono input with built-in phono stage for connecting the moving magnet cartridge output of the turntable directly to the a/v receiver.
      • Analog Line Inputs: There are 7 line inputs for analog audio connection.
      • Digital Inputs: 1 optical input and 1 coaxial input are available for digital audio connection.
      • Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.

      Video

      • HDMI:
      • Inputs: 7 (1 front)   Outputs: 2 (1 Main, 1 Sub/Zone2)
        8K Inputs: 0
      • Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
      • Inputs: 3   Outputs: 0
      • Component Video: Component video connection gives you the higher quality video compared to the composite video connection. So in case your old DVD player and other equipment do not have an HDMI output but have Component video output use this connection over the composite one. Integra DRX-3.3 supports up to 480i/576i resolution on Component video connectors.
      • Inputs: 1   Outputs: 0

      Front A/V Inputs

      • HDMI, Composite, L/R Audio
      Image cannot be found
      Image cannot be found
      TERMINALS
      HDMI Inputs7 (1 front)
      HDMI Outputs2 (1 Main, 1 Sub/Zone2)
      8K Inputs
      USB Input1 (Rear)
      USB DC Out Port
      Optical Inputs1
      Optical Outputs
      Coaxial Inputs1
      RCA Line Inputs7 (1 front)
      RCA Line Outputs
      XLR Line Inputs
      Phono Input
      Multi-Channel Input
      RCA Pre-Outs0.2
      XLR Pre-outs
      Composite Video Inputs3 (1 front)
      Composite Video Outputs
      S-Video Inputs
      S-Video Outputs
      Component Video Inputs1
      Component Video Outputs

      12. Replaced by DRX-3.4

      In 2021 Integra DRX-3.3 was replaced by Integra DRX-3.4. Let us now have a look at some important differences between Integra DRX-3.3 and its successor.

      UPGRADES Integra DRX-3.4 vs Integra DRX-3.3
      Higher Power Output 100 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) vs 90 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      Network Audio Formats FLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, MPEG-4 AAC, LPCM vs FLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, MPEG-4 AAC
      Music Playback via USB FLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, AAC, LPCM vs FLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, AAC
      More Advanced Auto Speaker Calibration System Dirac Live™ and AccuEQ Advance Room Corrections vs AccuEQ Advance 9-point calibration with subwoofer EQ and AccuReflex™
      HDR10+ vs
      Enhanced Audio Return Channel (eARC) vs
      QMS vs
      Auto Low Latency Mode Pass-through vs
      VRR vs
      QFT vs
      Video Signal Passthrough up to 8K 48/50/60Hz RGB/YCbCr 4:4:4 12-bit and 4K 100/120Hz RGB/YCbCr 4:4:4 12-bit vs up to 4K 50/60Hz 4:4:4
      Video Signal Upscaling from 1080p and 4K up to 8K 50/60Hz and 4K 50/60Hz vs 1080p to 4K
      Works with Amazon Alexa vs
      More 8K Inputs 7 vs
      More RCA Pre-Outs 9.2 (barter to Zone 3 Pre/Line Out) vs 0.2
      More Zones 3 vs 2
      More Powered Zones 2 and 3 vs 2
      Bigger Power Supply 750 W vs 740 W
      Higher Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC) 100 W (0.08% THD) vs 90 W (0.08% THD)
      Higher Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA) 225 W (10% THD) vs 215 W (10% THD)
      Higher Dynamic Power per Channel, 3 Ω, Front) 250 W vs 240 W
      Higher Dynamic Power per Channel, 4 Ω, Front) 220 W vs 210 W
      Higher Dynamic Power per Channel, 8 Ω, Front) 130 W vs 120 W
      Higher Rated Headphone Power Output 85 mW (32 Ω, 1 kHz, 10% THD) vs 80 mW (32 Ω, 1 kHz, 10% THD)
      DOWNGRADES Integra DRX-3.4 vs Integra DRX-3.3
      Lower DAC Specs 192 kHz/24 Bit vs 384 kHz/32 Bit

      For more detailed comparison between the models please visit Integra DRX-3.3 vs DRX-3.4.

      13. Evaluation

      We evaluate Integra DRX-3.3 and give score of 89 out of 100. We also give separate scores for 6 different categories according to the available features and specifications some of which are listed below. These evaluations are relative and may change each time a new receiver is added to the database.


      OVERALL
      89

      Amplifier

      EXCELLENT
      87

      We give Integra DRX-3.3 a score of 87 for Amplifier features.

      •   9.2 Channels
      •   Power Output - 90 W
      •   Independent Power Supply

      Audio Features

      EXCELLENT
      90

      We give Integra DRX-3.3 a score of 90 for Audio Features features.

      •   9.2 Channels
      •   No Front Wide Channel Support
      •   9.1 Channel Processing
      •   Dolby Atmos
      •   Dolby Atmos Height Virtualization
      •   DTS:X
      •   IMAX Enhanced
      •   No Auro 3D with Auro-Matic Upmixer
      •   DSD via HDMI

      Video Features

      EXCELLENT
      95

      We give Integra DRX-3.3 a score of 95 for Video Features features.

      •   HDR10
      •   No HDR10+
      •   Dolby Vision
      •   No 8K Passthrough
      •   Analog To HDMI Upconversion

      Connectivity

      EXCELLENT
      86

      We give Integra DRX-3.3 a score of 86 for Connectivity features.

      •   No eARC
      •   New HDCP Version
      •   Wi-Fi
      •   Bluetooth
      •   Does not Work with Amazon Alexa
      •   Google Assistant
      •   Chromecast Built-In
      •   7 HDMI Inputs
      •   3 HDMI Outputs
      •   0 8K Input
      •   USB Input
      •   Many RCA Line Inputs
      •   Phono Input
      •   No RCA Pre-Outs
      •   Composite Video Inputs
      •   Component Video Inputs
      •   Ethernet
      •   Bluetooth 4․2

      Zones

      EXCELLENT
      86

      We give Integra DRX-3.3 a score of 86 for Zones features.

      •   2 Zones

      Radio

      EXCELLENT
      92

      We give Integra DRX-3.3 a score of 92 for Radio features.

      •   Analog Tuner
      •   Pandora
      •   Spotify
      •   Tidal

      14. Specifications

      GENERAL
      BrandIntegra
      ModelDRX-3.3
      TypeA/V Receiver
      CountryNorth America
      Release Year2019
      PredecessorIntegra DRX-3.2
      SuccessorIntegra DRX-3.4
      AMPLIFIER
      Channels9.2
      Power Output90 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      Front Wide Channel Support
      Non-Phase Shift Amplifier
      VLSC (Vector Linear Shaping Circuitry) Front L/R
      THX™ Certification
      Continuous 6 Ω Rated
      Certified 4 Ω Performance
      Discrete Output Stage Circuitry 2-Stage
      PUSH-PULL Design
      Bi-amp Capability Front L/R Channels
      AUDIO FEATURES
      Digital Signal Processing (DSP) Engine32-Bit DSP Chip for Advanced Processing
      DACAKM AK4458
      DAC Specs384 kHz/32 Bit
      Maximum Channel Processing9.1
      Air Studios Monitor Certification
      Dolby Atmos
      Dolby Atmos Height Virtualization
      Dolby Atmos Music
      Dolby TrueHD
      Dolby Digital Plus
      Dolby Surround Upmixer
      Dolby Pro Logic
      Dolby Digital EX
      THX Listening Modes
      DTS:X
      DTS Neural:X
      DTS Virtual:X
      DTS Neo
      DTS-HD Master Audio
      DTS-HD High Resolution Audio
      DTS 96/24
      DTS Express
      DTS-ES
      IMAX Enhanced
      Auro 3D with Auro-Matic Upmixer
      PCM 2-ch/Multi-ch Input
      Network Audio FormatsFLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, MPEG-4 AAC
      Music Playback via USBFLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, AAC
      High Resolution Music Playback via USB and/or Network up to 192 kHz
      High Resolution Audio Formats via USBFLAC, WAV, Apple Lossless, DSD, AIFF, AAC
      Gapless Playback
      DSD via HDMI 2-ch/Multi-ch Input
      DSD via USB 2-ch Input
      DSD to PCM Converter
      USB DAC
      Jitter Reduction PLL (Phase-Locked Loop) jitter-cleaning circuitry for SPDIF digital audio
      DTS Dialogue Control
      Dialog Enhancement
      Dialog normalization
      Dialogue Lift
      Tone Control All Channels
      Compressed Music Enhancer Advanced Music Optimizer
      High-resolution Music Enhancer
      THX Processing Mode
      Audyssey Dynamic EQ
      Audyssey Dynamic Volume
      Audyssey LFC
      Audyssey Sub EQ HT
      Audyssey DSX
      Direct Mode
      Pure Audio Mode
      Virtual Speakers T-D (Theater-Dimensional)
      Independent Subwoofer Outputs
      CALIBRATION
      Auto Speaker Calibration System with Mic. AccuEQ Advance 9-point calibration with subwoofer EQ and AccuReflex™
      Standing Wave Control Standing Wave EQ
      Distance Adjustment0.1 - foot
      VIDEO FEATURES
      HDR10
      HDR10+
      Dynamic HDR
      BT.2020 color space
      Dolby Vision
      HLG (Hybrid Log Gamma)
      HDBaseT Compatible
      Enhanced Audio Return Channel (eARC)
      HDCP Version2.3
      QMS (Quick Media Switching)
      ALLM (Auto Low Latency Mode)
      VRR (Variable Refresh Rate)
      QFT (Quick Frame transport)
      3-D Ready
      Video Signal Passthroughup to 4K 50/60Hz 4:4:4
      Video Signal Upscaling 1080p to 4K
      Analog To HDMI Upconversion Component**, Composite
      Component Video Upscaling
      Analog to Analog Video conversion
      Component Video Maximum Resolution480i/576i
      isf Certified Calibration Control
      CONNECTIVITY
      Wi-Fi
      Bluetooth SBC, AAC
      Works with Amazon Alexa
      Google Assistant
      Chromecast Built-In
      Apple Siri
      Works with SonoS
      DTS Play-Fi
      Remote Monitoring with ihiji
      AirPlay Airplay 2
      Apple Product Connection iPod, iPhone and iPad
      Remote App Integra Control Pro
      InstaPrevue Input Source Prevue
      TERMINALS
      HDMI Inputs7 (1 front)
      HDMI Outputs2 (1 Main, 1 Sub/Zone2)
      8K Inputs
      USB Input1 (Rear)
      USB DC Out Port
      Optical Inputs1
      Optical Outputs
      Coaxial Inputs1
      RCA Line Inputs7 (1 front)
      RCA Line Outputs
      XLR Line Inputs
      Phono Input
      Multi-Channel Input
      RCA Pre-Outs0.2
      XLR Pre-outs
      Composite Video Inputs3 (1 front)
      Composite Video Outputs
      S-Video Inputs
      S-Video Outputs
      Component Video Inputs1
      Component Video Outputs
      Ethernet
      Ethernet Switch
      PC In
      Front A/V InputsHDMI, Composite, L/R Audio
      Headphone Out6.3 mm (1/4")
      Detachable Power Cord Oversized AC Cord
      ZONES
      Number of Zones2
      Powered Zones 2
      Zone 2 OutsHDMI, RCA Pre/Line Out (shared with Zone B Line Out)
      Whole House Mode
      RS-232C Interface
      +12V Trigger Output3 (A:100 mA, B:25 mA, C:25 mA)
      Remote (IR) Input/Output2 / 1
      MISCELLANEOUS
      On-Screen Display
      GUI Languages9
      IP Control
      Control4 SDDP
      RIHD (Remote Interactive Over HDMI)
      Smart Grid-Ready
      RADIO
      Analog Tuner FM/AM
      Presets40
      Digital Radio
      Internet Radio TuneIn
      Pandora
      Spotify
      Tidal
      Deezer
      Napster
      SiriusXM
      CONSTRUCTION
      Front PanelAnti-Resonant Aluminum Front Panel
      Solid Aluminum Front
      Speaker Terminals9
      Large Speaker Terminals9
      Color-Coded Speaker Terminals
      Gold plated RCA terminals
      Rack Mount Kit AvailableIRK-155-3D
      POWER
      Power SupplyAC 120 V, 60 Hz
      Independent Power Supply2
      H.C.P.S. (High Current Power Supply) Massive High Power Transformer
      Toroidal Transformer
      Power Consumption740 W
      Standby Power0.15 W
      ECO Mode / Hybrid Standby Function
      PHYSICAL
      Dimensions (W x H x D)435 mm x 174 mm x 376.5 mm
      17-1/8" x 6-7/8" x 14-13/16"
      Dimensions of Package (W x H x D)560 mm x 305 mm x 467 mm
      22-1/16" x 12" x 18-3/8"
      Weight10.6 kg (23.4 lbs)
      Weight of Package13.5 kg (29.8 lbs)
      SPECIFICATIONS
      Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)90 W (0.08% THD)
      Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA or IEC)215 W (10% THD)
      Dynamic Power per Channel (3 Ω, Front)240 W
      Dynamic Power per Channel (4 Ω, Front)210 W
      Dynamic Power per Channel (8 Ω, Front)120 W
      THD0.08% (20 Hz - 20 kHz, half power)
      Input Sensitivity and Impedance (Line)200 mV/47 kΩ (Line)
      Input Sensitivity and Impedance (Phono MM)3.5 mV/47 kΩ
      Rated Headphone Power Output80 mW (32 Ω, 1 kHz, 10% THD)
      Phono Overload70 mV (MM, 1 kHz 0.5%)
      S/N Ratio (Line, IHF-A)106 dB
      S/N Ratio (Phono MM, IHF-A)80 dB
      Frequency Response (Analog In)10 Hz - 100 kHz/+1 dB, -3 dB (Direct)
      DSD Sampling Rates via HDMI2.8 MHz
      DSD Sampling Rates via USB2.8 MHz, 5.6 MHz, 11.2 MHz
      Video Input Sensitivity/Output Level and Impedance 1 Vp-p/75 Ω (Component Y)
      0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
      1 Vp-p/75 Ω (Composite)
      Ethernet Standard10BASE-T/100BASE-TX
      Wi-Fi StandardIEEE 802.11 a/b/g/n/ac
      Wi-Fi Terminal Frequency5 GHz, 2.4 GHz
      Bluetooth Version4․2
      Bluetooth Frequency2.4 GHz
      USB TerminalVer. 2.0, 5 V, 1 A
      FM Frequency87.5 MHz - 107.9 MHz
      FM 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)Mono: 1.0 µV (11.2 dBf)
      AM Frequency530 kHz - 1710 kHz
      Warranty3 Years

      * - 480i/576i and 480p/576p only
      ** - 480i/576i only
      *** - no 1080p/24 upconversion
      **** - 1080p signal is not converted

      Amazon Affiliate Disclosure
      ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
