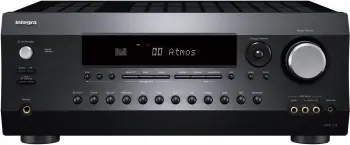

Integra DRX-2.3 was introduced in 2019. It is equipped with 7 channel amplifier with 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 7.1 maximum channel processing. It supports Dolby Atmos and DTS:X, passes 4K/60Hz and upscales 1080p to 4K video signal.

We evaluated the a/v receiver and gave 87 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

In this section we present pros and cons of Integra DRX-2.3.

7 channel Amplifier

Integra DRX-2.3 features 7 channel power amplifier. It is rated at 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.

Speaker Configurations

Integra DRX-2.3's 7 channel amplifier can be assigned for different speaker configurations.

• Dolby Atmos Configurations: The following speaker configurations are supported for Dolby Atmos:
5.2.2 with internal amplifier.
• DTS:X Configurations: The speaker configurations for DTS:X are the same as for Dolby Atmos:
5.2.2 with internal amplifier.
• Configurations without height channels: There are also other speaker configurations available which do not include height channels:
5.2, 7.2 with internal amplifier.
• 2-ch Bi-Amp: Integra DRX-2.3 allows you to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.

Dolby Atmos

Integra DRX-2.3 supports Dolby Atmos. It is a cinematic audio format in which sounds exist as individual entities, called audio objects. In Dolby Atmos, any sound can exist as an independent audio object, free of channel restrictions. They can be precisely placed and moved anywhere in your room, including overhead, to flow above and around you in three-dimensional space. Through the use of audio objects, overhead sound, and all the richness, clarity, and power of Dolby sound, Dolby Atmos turns your room into an amazing place for entertainment. The format supports up to 128 simultaneous independent audio objects in a mix for rich, realistic, and breathtaking sound. It recreates the director's original concept through descriptive metadata to provide customized playback for home theater and delivers sounds above you through overhead speakers, special upward-firing Dolby Atmos speakers, or a Dolby Atmos enabled sound bar.

• Dolby Surround Upmixer: If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.
• Dolby Atmos Height Virtualization: Dolby Atmos height virtualization is a digital signal processing solution that leverages Dolby's deep understanding of human audio perception to create the sensation of overhead sound from the listener-level speakers.

DTS:X

Integra DRX-2.3 supports DTS:X. A technique used in DTS:X is similar to the one used in Dolby Atmos. Instead of a fixed number of channels, DTS:X defines object locations from the listener in polar coordinates. An a/v receiver then dynamically renders sound according to the current speaker configuration. The speaker layout employed by DTS:X is the sum of Dolby Atmos and Auro-3D. It has standard 7.1 channel base layer, a 5 channel height layer above the base layer on the front and side walls, and 3 rows of speakers on the ceiling.

• DTS Neural:X: DTS Neural:X is an advanced upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.
• DTS Virtual:X: DTS Virtual:X bridges the gap between DTS:X codec and the reality of so many consumers' homes, allowing you to enjoy multi-dimensional sound regardless of room size, layout, or speaker configuration. If you have a limited speaker setup you will miss a full immersive potential of your entertainment system. DTS Virtual:X adds height and surround audio effect to your system without adding height speakers. It works with multiple configurations and delivers immersive sound experience out of 5.1 or even 2.1 speaker layouts.
• DTS Dialog Control: This function adjusts the dialog levels during playback of the DTS:X stream. It allows you to separately increase the dialog levels in contrast with the background sound and hear dialog easily even under noisy circumstances.

Sound Processing

• Advanced Music Optimizer: Compressed music enhancement in Integra DRX-2.3 is done by Onkyo’s Advanced Music Optimizer. While MP3 or AAC files may sound fine through the headphones of your portable digital player, the limitations of these files can be exposed when played back through a quality home entertainment system. This is because a significant amount of high-frequency bit information is lost during the file-compression process. To counter this, Onkyo has designed the Advanced Music Optimizer to compensate for lost bit information and improve the quality of compressed audio signals. This results in a clearer and more expansive sound. Also included in this technology is a loudness correction feature that further improves the audio character of compressed files.

Room Calibration

Integra DRX-2.3 comes with AccuEQ Room calibration with subwoofer EQ and AccuReflex™ room correction system and includes the calibration microphone.

• AccuEQ: First, AccuEQ detects the presence of speakers and evaluates the impedance of each. Next, it pinpoints their distance relative to the main listening position using the mic and sets suitable sound-pressure levels. Then it selects the optimal crossover frequency so that deeper bass rolls smoothly off to the subwoofer. Finally, AccuEQ performs frequency response equalization based on room-acoustic and speaker data collected via microphone. The sound-field is now tailored around the listening position, resulting in a more immersive and realistic in-film experience.

HDMI

Integra DRX-2.3 features 6 HDMI inputs. It has 2 outputs: 1 Main and 1 Sub/Zone2.

• 4K/60Hz Passthrough: All inputs pass up to 4K 50/60Hz 4:4:4 video signal.
• 4K Upscaling: Integra DRX-2.3 can upscale 1080p to 4K from HDMI and analog sources.
• Analog To HDMI Upconversion: The a/v receiver supports video upconversion, so you can connect your analog Component and Composite video sources and Integra DRX-2.3 will output them via HDMI. This means that you will need only one HDMI cable to connect to your TV.
• BT.2020 Color Space: BT.2020 or Rec. 2020 is a color standard which delivers a wider color gamut compared to Rec. 709. It covers approximately 75% of the total visual spectrum while the Rec. 709 covers only 35%.
• HDCP 2.3 Copy Protection: All inputs and outputs are HDCP 2.3 compliant which is a requirement for 4K/HDR copy-protected content transmission.
• 3D Ready: Integra DRX-2.3 is able to pass 3D video through HDMI.

HDR (High Dynamic Range)

Integra DRX-2.3 supports HDR (high dynamic range) video formats such as HDR10, Dolby Vision and Hybrid Log-Gamma. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.

• HDR10: HDR10 uses the wide-gamut Rec. 2020 color space. It sends static metadata via video stream to the TV which calibrates its screen brightness and color according to that. HDR10 supports 10-bit color which corresponds to 1024 shades of the primary RGB colors. It is technically limited to a maximum of 10,000 nits peak brightness, however common HDR10 contents are mastered with peak brightness from 1,000 to 4,000 nits.
• Dolby Vision: Dolby Vision is a set of technologies developed by Dolby Laboratories for high dynamic range (HDR) video. It covers content creation, distribution, and playback. Like HDR10+, it includes dynamic metadata that are used to adjust and optimize each frame of the HDR video to the consumer display's capabilities in a way specified by the content creator. Dolby Vision allows for a maximum resolution of 8K up to 12-bit color depth, maximum peak brightness of 10,000 nits and a color gamut up to Rec. 2020. It uses Dolby's proprietary dynamic metadata defined in SMPTE ST 2094-10.
• Hybrid Log-Gamma (HLG): The Hybrid Log-Gamma (HLG) is a transfer function developed mainly for HDR live video feed and over-the-air broadcasts. It is an HDR format that uses BT.2020 color primaries and a bitdepth of 10-bit. It is backward compatible with the transfer function of SDR and is designed to be better-suited for television broadcasting, where the metadata required for other HDR formats is not backward compatible with non-HDR displays. HLG defines a non-linear optical-electro transfer function, in which the lower half of the signal values use a gamma curve and the upper half of the signal values use a logarithmic curve.

Integra DRX-2.3 offers multi-zone playback which allows you to play different input sources in 2 different rooms.

Zone 2

• Powered Zone 2: You can use the unit's 2 amplifier channels by connecting Zone 2 speakers directly to the speaker terminals. The remaining 5 channels will be left for main zone amplification.
• HDMI Output: Integra DRX-2.3 offers HDMI output for Zone 2. This means that it can send two different HDMI signals to two displays.

Audio

• Analog Line Inputs: There are 5 line inputs for analog audio connection.
• Digital Inputs and Outputs: 1 optical input, 1 optical output and 1 coaxial input are available for digital audio connection.
• Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.

Video

• HDMI:
Inputs: 6   Outputs: 2 (1 Main, 1 Sub/Zone2)
8K Inputs: 0
• Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
Inputs: 3   Outputs: 0
• Component Video: Component video connection gives you the higher quality video compared to the composite video connection. So in case your old DVD player and other equipment do not have an HDMI output but have Component video output use this connection over the composite one. Integra DRX-2.3 supports up to 480i/576i resolution on Component video connectors.
Inputs: 1   Outputs: 0

Here we list all the available features and specifications of Integra DRX-2.3.

BASICS
Brand	Integra
Model	DRX-2.3
Type	A/V Receiver
Country	North America
Release Year	2019

AMPLIFIER
Channels	7.2
Front Wide Channel Support
Non-Phase Shift Amplifier
VLSC (Vector Linear Shaping Circuitry)	Front L/R
THX™ Certification
Continuous 6 Ω Rated
Certified 4 Ω Performance
Discrete Output Stage Circuitry	for All Channels
PUSH-PULL Design
Bi-amp Capability	Front L/R Channels

AUDIO
Digital Signal Processing (DSP) Engine	32-Bit DSP Chip for Advanced Processing
DAC	AKM AK4458
DAC Specs	384 kHz/32 Bit
Maximum Channel Processing	7.1
Air Studios Monitor Certification
Dolby Atmos
Dolby Atmos Height Virtualization
Dolby Atmos Music
Dolby TrueHD
Dolby Digital Plus
Dolby Surround Upmixer
Dolby Pro Logic
Dolby Digital EX
THX Listening Modes
DTS:X
DTS Neural:X
DTS Virtual:X
DTS Neo
DTS-HD Master Audio
DTS-HD High Resolution Audio
DTS 96/24
DTS Express
DTS-ES
IMAX Enhanced
Auro 3D with Auro-Matic Upmixer
PCM	2-ch/Multi-ch Input
Music Playback via USB	FLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, AAC
High Resolution Music Playback via USB and/or Network	up to 192 kHz
High Resolution Audio Formats via USB	FLAC, WAV, Apple Lossless, DSD, AIFF, AAC
Gapless Playback
DSD via HDMI	2-ch/Multi-ch Input
DSD via USB	2-ch Input
DSD to PCM Converter
USB DAC
Jitter Reduction
DTS Dialog Control
Dialog Enhancement
Dialog Normalization
Dialogue Lift
Tone Control	Front L/R Channels
Compressed Music Enhancer	Advanced Music Optimizer
High-resolution Music Enhancer
THX Processing Mode
Audyssey Dynamic EQ
Audyssey Dynamic Volume
Audyssey LFC
Audyssey Sub EQ HT
Audyssey DSX
Direct Mode
Pure Audio Mode
Virtual Speakers	T-D (Theater-Dimensional)
Independent Subwoofer Outputs

CALIBRATION
Auto Speaker Calibration System with Mic.	AccuEQ Room calibration with subwoofer EQ and AccuReflex™
Standing Wave Control
Distance Adjustment	0.1 - foot

VIDEO
Enhanced ARC
HDCP Version	2.3
HDR10
HDR10+
Dynamic HDR
Dolby Vision
HLG (Hybrid Log Gamma)
BT.2020 color space
QMS (Quick Media Switching)
ALLM (Auto Low Latency Mode)
VRR (Variable Refresh Rate)
QFT (Quick Frame transport)
3-D Ready
Video Signal Passthrough	up to 4K 50/60Hz 4:4:4
Video Signal Upscaling	1080p to 4K
Analog To HDMI Upconversion	Component**, Composite
Component Video Upscaling
Analog to Analog Video conversion
Component Video Maximum Resolution	480i/576i
isf Certified Calibration Control

CONNECTIVITY
FlareConnect
Remote Monitoring with ihiji
Chromecast Built-In
DTS Play-Fi
Works with Amazon Alexa
Google assistant
Apple Siri
Works with SONOS
AirPlay	Airplay 2
Apple Product Connection	iPod, iPhone and iPad
Remote App	Integra Control Pro
InstaPrevue Input Source Prevue
Ethernet
Ethernet Switch
Wi-Fi
Bluetooth	SBC, AAC
HDBaseT Compatible
HDMI Inputs	6
HDMI Outputs	2 (1 Main, 1 Sub/Zone2)
8K Inputs
USB Input	1 (Rear)
USB DC Out Port
RCA Line Input	5 (1 front)
RCA Line Output
XLR Line Inputs
Phono Input
Optical Inputs	1
Optical Outputs
Coaxial Inputs	1
Composite Video Input	3 (1 front)
Composite Video Output
S-Video Input
S-Video Output
Component Video Input	1
Component Video Output
PC In
Multi-Channel Input
RCA Pre-Outs	0.2
XLR Pre-outs
Front A/V Inputs	Composite, L/R Audio
Headphone Out	6.3 mm (1/4")

ZONES
Zones	2
Powered Zones	2
Zone 2 Outs	HDMI
Whole House Mode
RS-232C Interface
+12V Trigger Output	3 (A:100 mA, B:25 mA, C:25 mA)
Remote (IR) Input/Output	2 / 1

MISC
On-Screen Display
GUI Languages	9
IP Control for CI
Control4 SDDP
Detachable Power Cord	Oversized AC Cord
RIHD (Remote Interactive Over HDMI)
Smart Grid-Ready

RADIO
Analog Tuner	FM/AM
Presets	40
Digital Radio
Internet Radio	TuneIn
Pandora
Spotify
Tidal
Deezer
Napster
SiriusXM Internet Radio

CONSTRUCTION
Front Panel	Anti-Resonant Aluminum Front Panel
Solid Aluminum Front
Speaker Terminals	9
Large Speaker Terminals	9
Color-Coded Speaker Terminals
Gold plated RCA terminals

POWER
Power Supply	AC 120 V, 60 Hz
Independent Power Supply	2
H.C.P.S. (High Current Power Supply)	Massive High Power Transformer
Toroidal Transformer
Power Consumption	460 W
Standby Power	0.15 W

GENERAL
ECO Mode / Hybrid Standby Function
Dimensions (W x H x D)	435 mm x 174 mm x 376.5 mm 17-1/8" x 6-7/8" x 14-13/16"
Dimensions of Package (W x H x D)	560 mm x 305 mm x 467 mm 22-1/16" x 12" x 18-3/8"
Weight	9.6 kg (21.2 lbs)
Weight of Package	12.5 kg (27.6 lbs)
Rack Mount Kit Available	IRK-155-3D
Warranty	3 Years

SPECS
Power Output (8 Ω, 20 Hz - 20 kHz, 2	80 W (0.08% THD)
Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA)	170 W (10% THD)
Dynamic Power per Channel (3 Ω, Front)	160 W
Dynamic Power per Channel (4 Ω, Front)	125 W
Dynamic Power per Channel (8 Ω, Front)	85 W
THD	0.08% (20 Hz - 20 kHz, half power)
Input Sensitivity and Impedance (Line)	200 mV/47 kΩ (Line)
Input Sensitivity and Impedance (Phono MM)	3.5 mV/47 kΩ
Rated Headphone Power Output	80 mW (32 Ω, 1 kHz, 10% THD)
Phono Overload	70 mV (MM, 1 kHz 0.5%)
S/N Ratio (Line, IHF-A)	106 dB
S/N Ratio (Phono MM, IHF-A)	80 dB
Frequency Response (Analog In)	5 Hz - 100 kHz/+1 dB, -3 dB (Direct)
DSD Sampling Rates via HDMI	2.8 MHz
DSD Sampling Rates via USB	2.8 MHz, 5.6 MHz
Video Input Sensitivity/Output Level and Impedance	1 Vp-p/75 Ω (Component Y) 0.7 Vp-p/75 Ω (Component PB/CB, PR/CR) 1 Vp-p/75 Ω (Composite)
Ethernet Standard	10BASE-T/100BASE-TX
Wi-Fi Standard	IEEE 802.11 a/b/g/n
Wi-Fi Terminal Frequency	5 GHz, 2.4 GHz
Bluetooth Version	4․1 + LE
Bluetooth Frequency	2.4 GHz
USB Terminal	Ver. 2.0, 5 V, 1 A
FM Frequency	87.5 MHz - 107.9 MHz
FM 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)	Mono: 1.0 µV (11.2 dBf)
AM Frequency	530 kHz - 1710 kHz

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted

In 2021 Integra DRX-2.3 was replaced by DRX-2.4. Let us now have a look at some important changes that the successor brought.

UPGRADES	Integra DRX-2.4	vs	Integra DRX-2.3
Music Playback via USB	FLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, AAC, LPCM	vs	FLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, AAC
Jitter Reduction	PLL (Phase-Locked Loop) jitter-cleaning circuitry for SPDIF digital audio	vs
More Tone Control Channels	All Channels	vs	Front L/R Channels
Enhanced Audio Return Channel (eARC)		vs
HDR10+		vs
QMS		vs
Auto Low Latency Mode Pass-through		vs
VRR		vs
QFT		vs
Video Signal Passthrough	up to 8K 48/50/60Hz YCbCr 4:2:0 8/10-bit and 4K 100/120Hz RGB/YCbCr 4:4:4 8/10-bit	vs	up to 4K 50/60Hz 4:4:4
Chromecast Built-In		vs
Works with Amazon Alexa		vs
Google assistant		vs
More 8K Inputs	6	vs
More RCA Pre-Outs	2.2 (shared with Zone 2 and Zone B)	vs	0.2
Zone 2 Outs	HDMI, RCA Pre/Line Out (shared with Zone B Line Out and Front Pre/Line Out)	vs	HDMI
Higher DSD Sampling Rate via USB	2.8 MHz, 5.6 MHz, 11.2 MHz	vs	2.8 MHz, 5.6 MHz
Wi-Fi Standard	IEEE 802.11 a/b/g/n/ac	vs	IEEE 802.11 a/b/g/n
Newer Bluetooth Version	4․2	vs	4․1 + LE

DOWNGRADES	Integra DRX-2.4	vs	Integra DRX-2.3
Lower DAC Specs	192 kHz/24 Bit	vs	384 kHz/32 Bit
Analog To HDMI Upconversion		vs	Component**, Composite
Less RCA Line Inputs	4	vs	5 (1 front)
Less Composite Video Inputs		vs	3 (1 front)
Less Component Video Inputs		vs	1
Front A/V Inputs		vs	Composite, L/R Audio

For more detailed comparison between the models please visit Integra DRX-2.3 vs Integra DRX-2.4.
