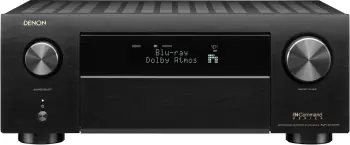

Denon AVR-X4700H

    94
    Image cannot be found

    Highlights

    • 9.2 Channels
    • 11.2 Channel Processing
    • 125 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
    • HDMI 2.1
    • Dolby Atmos, DTS:X, Auro 3D
    • HDR10, HDR10+, Dolby Vision
    • 8K Passthrough, 8K Upscaling
    • Wi-Fi, Bluetooth, Ethernet
    • Phono Input

    Disclosure: We earn money from the affiliate links to products associated with content in this article.

    1. Overview

    Denon AVR-X4700H was introduced in 2020. It is equipped with 9 channel amplifier with 125 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 11.2 maximum channel processing. It supports Dolby Atmos, DTS:X and Auro-3D, passes 8K/60Hz and 4K/120Hz and upscales up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 video signal.

    We evaluated the a/v receiver and gave 94 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

    Amplifier
    92
    Audio Features
    93
    Video Features
    99
    Connectivity
    91
    Zones
    92
    Radio
    96
    OVERALL
    94

    For more details about the ranking please go to    Evaluation section.


    Here is a history of the series, where you can view and compare the main specifications of the receivers.

    Evolution of the series
    Model Year Chann. Power Dolby Atmos DTS:X HDR10 HDR10+ Dolby Vision Pass. Price
    AVR-X4800H Image cannot be found 2022 9.4 125 W 8K
    AVR-X4700H Image cannot be found 2020 9.2 125 W 8K
    AVR-X4500H Image cannot be found 2018 9.2 125 W 4K
    AVR-X4400H Image cannot be found 2017 9.2 125 W 4K
    AVR-X4300H Image cannot be found 2016 9.2 125 W 4K
    AVR-X4200W Image cannot be found 2015 7.2 125 W 4K
    AVR-X4100W Image cannot be found 2014 7.2 125 W 4K

    You can view their side-by-side comparison here: Denon AVR-X4800H vs AVR-X4700H vs AVR-X4500H vs AVR-X4400H vs AVR-X4300H vs AVR-X4200W.

    Check the Price

    2. Pros and Cons

    In this section we present pros and cons of Denon AVR-X4700H.

    PROs

    •   High Power Output - 125 W
    •   11.2 Channel Processing
    •   Dolby Atmos
    •   Dolby Atmos Height Virtualization
    •   DTS:X
    •   IMAX Enhanced
    •   Auro 3D with Auro-Matic Upmixer
    •   DSD via HDMI
    •   Auto Speaker Calibration System with Mic.
    •   HDR10
    •   HDR10+
    •   Dolby Vision
    •   HDMI 2.1
    •   eARC
    •   New HDCP Version
    •   Auto Low Latency Mode Pass-through
    •   VRR
    •   QFT
    •   8K Passthrough
    •   8K Upscaling
    •   Analog To HDMI Upconversion
    •   Wi-Fi
    •   Bluetooth
    •   Works with Amazon Alexa
    •   Google Assistant
    •   HEOS
    •   8 HDMI Inputs
    •   4 HDMI Outputs
    •   USB Input
    •   Phono Input
    •   RCA Pre-Outs
    •   Composite Video Inputs
    •   Component Video Inputs
    •   Ethernet
    •   3 Zones
    •   Analog Tuner
    •   Pandora
    •   Spotify
    •   Tidal

    CONs

    •   No Front Wide Channel Support
    •   1 8K Input
    •   No Digital Radio

    And here are some specifications which fall into average criteria and are neither in PROs nor in CONs category:

    AVERAGE

    •   9.2 Channels
    •   RCA Line Inputs
    •   Bluetooth 4․2

    3. Denon 2020 Lineup

    In 2020 Denon released 7 new receivers. Here is the lineup:

    Denon 2020 Lineup
    ModelChannelsPowerMax. Ch. Proc.Pre OutsImmersive AudioZones Price
    AVR-A110 Image cannot be found 13.2150 W13.215.2Dolby Atmos
    DTS:X
    Auro 3D
    3
    AVR-X6700H Image cannot be found 11.2140 W13.213.2Dolby Atmos
    DTS:X
    Auro 3D
    3
    AVR-X4700H Image cannot be found 9.2125 W11.211.2Dolby Atmos
    DTS:X
    Auro 3D
    3
    AVR-X3700H Image cannot be found 9.2105 W11.211.2Dolby Atmos
    DTS:X
    2
    AVR-X2700H Image cannot be found 7.295 W7.1Dolby Atmos
    DTS:X
    2
    AVR-X2700H DAB Image cannot be found 7.295 W7.1Dolby Atmos
    DTS:X
    2
    AVR-S960H Image cannot be found 7.290 W7.1Dolby Atmos
    DTS:X
    2

    You can view their side-by-side comparison here: Denon AVR-A110 vs AVR-X6700H vs AVR-X4700H vs AVR-X3700H vs AVR-X2700H vs AVR-X2700H DAB.

    Check the Price

    4. Changes from the AVR-X4500H

    Denon AVR-X4700H has replaced AVR-X4500H. Here we present differences between these two models.

    UPGRADES Denon AVR-X4700H vs Denon AVR-X4500H
    Dolby Atmos Height Virtualization vs
    HDR10+ vs
    Dynamic HDR vs
    Newer HDCP Version 2.3 vs 2.2
    VRR vs
    QFT vs
    Video Signal Passthrough up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 vs up to 4K 50/60Hz 4:4:4
    Video Signal Upscaling up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 vs up to 4K 50/60Hz 4:4:4
    Bluetooth Headphone Transmission vs
    More 8K Inputs 1 vs
    Newer Bluetooth Version 4․2 vs 3․0 + EDR
    DOWNGRADES Denon AVR-X4700H vs Denon AVR-X4500H
    Denon Link HD vs

    For more detailed comparison between the models please visit Denon AVR-X4700H vs AVR-X4500H.

    5. Amplifier

    9 channel Amplifier

    Denon AVR-X4700H features 9 channel power amplifier. It is rated at 125 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.

      AMPLIFIER
      Channels9.2
      Power Output125 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      Front Wide Channel Support
      Discrete Amplification
      THX™ Certification
      Continuous 6 Ω Rated
      Certified 4 Ω Performance
      Mono Block Power Amplifier Construction
      Bi-amp Capability assignable

      6. Speaker Configurations

      Denon AVR-X4700H's 9 channel amplifier can be assigned for different speaker configurations.

      • Dolby Atmos Configurations: The following speaker configurations are supported for Dolby Atmos:
      • 5.2.2, 5.2.4, 7.2.2 with internal amplifier.
      • 7.2.4 with addition of external 2 channel amplifier.
      • DTS:X Configurations: The speaker configurations for DTS:X are the same as for Dolby Atmos:
      • 5.2.2, 5.2.4, 7.2.2 with internal amplifier.
      • 7.2.4 with addition of external 2 channel amplifier.
      • Configurations without height channels: There are also other speaker configurations available which do not include height channels:
      • 5.2, 7.2 with internal amplifier.
      • 2-ch Bi-Amp: Denon AVR-X4700H allows you to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.

      Check the Price

      7. Immersive Audio Formats

      Dolby Atmos

      Denon AVR-X4700H supports Dolby Atmos with Surround Upmixer and Atmos Height Virtualization.

      • Surround Upmixer: If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.
      • Atmos Height Virtualization is a digital signal processing solution that leverages Dolby's deep understanding of human audio perception to create the sensation of overhead sound from the listener-level speakers.

      DTS:X

      Denon AVR-X4700H supports DTS:X with Neural:X and Virtual:X.

      • Neural:X is an advanced upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.
      • Virtual:X bridges the gap between DTS:X codec and the reality of so many consumers' homes, allowing you to enjoy multi-dimensional sound regardless of room size, layout, or speaker configuration. If you have a limited speaker setup you will miss a full immersive potential of your entertainment system. DTS Virtual:X adds height and surround audio effect to your system without adding height speakers. It works with multiple configurations and delivers immersive sound experience out of 5.1 or even 2.1 speaker layouts.
      • DTS Dialog Control: This function adjusts the dialog levels during playback of the DTS:X stream. It allows you to separately increase the dialog levels in contrast with the background sound and hear dialog easily even under noisy circumstances.

      Auro-3D

      Denon AVR-X4700H supports Auro-3D. It is an immersive 3D audio format developed by the Belgium-based company Auro Technologies.

      • Auro-Matic upmixer takes non Auro-3D sound and upmixes to the current speaker configuration.

      IMAX Enhanced

      Denon AVR-X4700H is IMAX Enhanced certified. To qualify for IMAX Enhanced certification, 4K HDR televisions, projectors, sound bars, a/v receivers, loudspeakers, powered subwoofers and other premium home entertainment devices must meet carefully prescribed performance requirements established by IMAX, DTS and Hollywood's leading experts.

      • What makes an IMAX Enhanced A/V receiver different from an A/V receiver with DTS:X technology? DTS:X technology is commonly found in most multi-channel A/V receivers on the market today. All IMAX Enhanced A/V receivers include DTS:X technology and deliver additional features, such as auto-sensing of IMAX Enhanced content, via IMAX Mode. IMAX Mode indicates that your A/V receiver supports fully immersive IMAX signature sound.
      DECODING
      Dolby Atmos up to 7.1.4
      Dolby Atmos Height Virtualization
      Dolby Atmos Music
      Dolby TrueHD
      Dolby Digital Plus
      Dolby Surround Upmixer
      Dolby Pro Logic
      Dolby Digital EX
      Surround EX
      DTS:X up to 7.1.4
      DTS Neural:X
      DTS Virtual:X
      DTS Neo
      DTS-HD Master Audio
      DTS-HD High Resolution Audio
      DTS 96/24
      DTS Express
      DTS-ES Discrete 6.1, Matrix 6.1
      IMAX Enhanced
      Auro 3D with Auro-Matic Upmixer Built-In

      8. HDMI 2.1

      Denon AVR-X4700H features 1 HDMI 2.1 input with 8K support and 7 inputs with 4K support. It has 3 outputs: 2 x 8K for MAIN and 1 x 4K for ZONE2.

      • 8K/60Hz and 4K/120Hz Passthrough: 1 out of 8 inputs passes up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 and the rest of the inputs pass up to 4K 50/60Hz 4:4:4 video signal.
      • 8K Upscaling: Denon AVR-X4700H can upscale up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 from HDMI and analog sources.
      • Analog To HDMI Upconversion: The a/v receiver supports video upconversion, so you can connect your analog Component and Composite video sources and Denon AVR-X4700H will output them via HDMI. This means that you will need only one HDMI cable to connect to your TV.
      • BT.2020 Color Space: BT.2020 or Rec. 2020 is a color standard which delivers a wider color gamut compared to Rec. 709. It covers approximately 75% of the total visual spectrum while the Rec. 709 covers only 35%.
      • HDCP 2.3 Copy Protection: All inputs and outputs are HDCP 2.3 compliant which is a requirement for 4K/HDR copy-protected content transmission.
      • 3D Ready: Denon AVR-X4700H is able to pass 3D video through HDMI.

      HDR (High Dynamic Range)

      Denon AVR-X4700H supports HDR (high dynamic range) video formats such as HDR10, HDR10+, Dolby Vision, Dynamic HDR and Hybrid Log-Gamma via HDMI ports. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.


      Enhanced Audio Return Channel (eARC)

      Audio Return Channel (ARC) feature allows the compatible TV to send audio signal to the a/v receiver through the same HDMI cable which is used to send audio and video signals to the TV. So one HDMI cable is used to transfer audio signal in both directions. New Enhanced ARC will support uncompressed audio formats such as Dolby Atmos, DTS:X, Dolby TrueHD and DTS HD Master Audio whereas the previous ARC could support only Dolby Digital, Dolby Digital Plus, DTS, DTS HD, and PCM.


      Gaming Features

      Denon AVR-X4700H supports Auto Low Latency Mode (ALLM), Variable Refresh Rate (VRR) and Quick Frame Transport (QFT) for lag-free and smooth gaming.



      VIDEO FEATURES
      HDR10
      HDR10+
      Dynamic HDR
      BT.2020 color space
      Dolby Vision
      HLG (Hybrid Log Gamma)
      HDMI Version2.1
      HDBaseT Compatible
      Enhanced Audio Return Channel (eARC)
      HDCP Version2.3
      QMS (Quick Media Switching)
      ALLM (Auto Low Latency Mode)
      VRR (Variable Refresh Rate)
      QFT (Quick Frame transport)
      3-D Ready
      Video Signal Passthroughup to 8K 50/60Hz and 4K 100/120Hz 4:4:4
      Video Signal Upscaling up to 8K 50/60Hz and 4K 100/120Hz 4:4:4

      Check the Price

      9. Room Calibration

      Denon AVR-X4700H comes with Audyssey MultEQ XT32 room correction system and includes the calibration microphone. It also supports Audyssey App.

      • Audyssey Room Calibration: Audyssey is an acoustic measurement technology which automatically restores the acoustic distortion caused by the acoustic behaviour of a room with only a push on a button. Audyssey equalization provides an clear, accurate, natural sound with voices and dialog that become focused and intelligible, restoring the musical balance. Musical instruments and sound effects become precisely localized and the surround soundstage is made seamless and enveloping.

      10. Multi-zone Playback

      Denon AVR-X4700H offers multi-zone playback which allows you to play different input sources in 3 different rooms.


      Zone 2

      • Powered Zone 2: You can use the unit's 2 amplifier channels by connecting Zone 2 speakers directly to the speaker terminals. The remaining 7 channels will be left for main zone amplification.
      • HDMI Output: Denon AVR-X4700H offers HDMI output for Zone 2. This means that it can send two different HDMI signals to two displays.
      • Audio Pre Output: If you have a dedicated power amplifier for Zone 2 you can connect it to the a/v receiver via pre outs and control volume from the a/v receiver.
      • Composite Video Output: Denon AVR-X4700H has analog Composite Video output for Zone 2. This means that it can send a different video signal to the TV.
      • Component Video Output: Denon AVR-X4700H has analog Component Video output for Zone 2, so you can send a different video signal to the TV. Component video connection provides the higher image quality than the composite and S-Video connections.

      Zone 3

      • Powered Zone 3: You can use the unit's 2 amplifier channels by connecting Zone 3 speakers directly to the speaker terminals. The remaining 7 channels will be left for main zone amplification.
      • Audio Pre Output: If you have a dedicated power amplifier for Zone 3 you can connect it to the a/v receiver via pre outs and control volume from the a/v receiver.
      ZONES
      Number of Zones3
      Powered Zones 2 and 3
      Zone 2 OutsHDMI, Component, Composite, Pre Out
      Zone 3 OutsPre Out
      RS-232C Interface
      +12V Trigger Output2
      Remote (IR) Input/Output1 / 1
      Check out the receivers which are frequently compared to Denon AVR-X4700H.

      11. Inputs and Outputs

      Audio

      • Phono Input: There is an MM phono input with built-in phono stage for connecting the moving magnet cartridge output of the turntable directly to the a/v receiver.
      • Analog Pre-Outs: Denon AVR-X4700H has 11.2 preamplifier outputs which allow you to connect the a/v receiver to the external power amplifier. You may want to use a high quality external amplifier for certain channels, usually for front L/R and center, and use the a/v receiver to power the rest. Also, Denon AVR-X4700H has 11 channel processing but has only 9 channel amplifier, so it needs the external amplifier connected to the analog pre-outs in order to reach the maximum speaker configuration.
      • Analog Line Inputs: There are 5 line inputs for analog audio connection.
      • Digital Inputs: 2 optical inputs and 2 coaxial inputs are available for digital audio connection.
      • Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.

      Video

      • HDMI:
      • Inputs: 8   Outputs: 3 (2 x 8K for MAIN, 1 x 4K for ZONE2)
        8K Inputs: 1
      • Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
      • Inputs: 3   Outputs: 1
      • Component Video: Component video connection gives you the higher quality video compared to the composite video connection. So in case your old DVD player and other equipment do not have an HDMI output but have Component video output use this connection over the composite one.
      • Inputs: 2   Outputs: 1

      Front A/V Inputs

      • HDMI, USB
      Image cannot be found
      Image cannot be found
      TERMINALS
      HDMI Inputs8
      HDMI Outputs3 (2 x 8K for MAIN, 1 x 4K for ZONE2)
      8K Inputs1
      USB Input1 Front for USB memory
      USB DC Out Port
      Optical Inputs2
      Optical Outputs
      Coaxial Inputs2
      RCA Line Inputs5
      RCA Line Outputs
      XLR Line Inputs
      Phono Input
      Multi-Channel Input
      RCA Pre-Outs11.2
      XLR Pre-outs
      Composite Video Inputs3
      Composite Video Outputs1
      S-Video Inputs
      S-Video Outputs
      Component Video Inputs2
      Component Video Outputs1

      Check the Price

      12. Evaluation

      We evaluate Denon AVR-X4700H and give score of 94 out of 100. We also give separate scores for 6 different categories according to the available features and specifications some of which are listed below. These evaluations are relative and may change each time a new receiver is added to the database.


      OVERALL
      94

      Amplifier

      EXCELLENT
      92

      We give Denon AVR-X4700H a score of 92 for Amplifier features.

      •   9.2 Channels
      •   High Power Output - 125 W

      Audio Features

      EXCELLENT
      93

      We give Denon AVR-X4700H a score of 93 for Audio Features features.

      •   9.2 Channels
      •   No Front Wide Channel Support
      •   11.2 Channel Processing
      •   Dolby Atmos
      •   Dolby Atmos Height Virtualization
      •   DTS:X
      •   IMAX Enhanced
      •   Auro 3D with Auro-Matic Upmixer
      •   DSD via HDMI

      Video Features

      EXCELLENT
      99

      We give Denon AVR-X4700H a score of 99 for Video Features features.

      •   HDR10
      •   HDR10+
      •   Dolby Vision
      •   HDMI 2.1
      •   Auto Low Latency Mode Pass-through
      •   VRR
      •   QFT
      •   8K Passthrough
      •   8K Upscaling
      •   Analog To HDMI Upconversion

      Connectivity

      EXCELLENT
      91

      We give Denon AVR-X4700H a score of 91 for Connectivity features.

      •   eARC
      •   New HDCP Version
      •   Wi-Fi
      •   Bluetooth
      •   Works with Amazon Alexa
      •   Google Assistant
      •   HEOS
      •   8 HDMI Inputs
      •   4 HDMI Outputs
      •   1 8K Input
      •   USB Input
      •   RCA Line Inputs
      •   Phono Input
      •   RCA Pre-Outs
      •   Composite Video Inputs
      •   Component Video Inputs
      •   Ethernet
      •   Bluetooth 4․2

      Zones

      EXCELLENT
      92

      We give Denon AVR-X4700H a score of 92 for Zones features.

      •   3 Zones

      Radio

      EXCELLENT
      96

      We give Denon AVR-X4700H a score of 96 for Radio features.

      •   Analog Tuner
      •   Pandora
      •   Spotify
      •   Tidal

      13. Replaced by AVR-X4800H

      In 2022 Denon AVR-X4700H was replaced by Denon AVR-X4800H. Let us now have a look at some important differences between Denon AVR-X4700H and its successor.

      UPGRADES Denon AVR-X4800H vs Denon AVR-X4700H
      More Channels 9.4 vs 9.2
      Dolby Atmos Music vs
      More Advanced Auto Speaker Calibration System Audyssey MultEQ XT32 and Dirac Live (upgrade) vs Audyssey MultEQ XT32
      More 8K Inputs 7 vs 1
      +12V Trigger Output 3 vs 2
      Wi-Fi Standard IEEE 802.11 a/b/g/n/ac vs IEEE 802.11 a/b/g/n
      Lower FM Harmonic Distortion (IHF, 1 kHz) Mono/Stereo: 0.7%/1.0% vs Mono/Stereo: 0.7%/1.0%
      DOWNGRADES Denon AVR-X4800H vs Denon AVR-X4700H
      Less HDMI Inputs 7 vs 8
      Less Composite Video Inputs 2 vs 3
      Less Composite Video Outputs vs 1
      Less Component Video Inputs 1 vs 2
      Less Component Video Outputs vs 1
      Front A/V Inputs USB vs HDMI, USB
      Zone 2 Outs HDMI, Pre Out vs HDMI, Component, Composite, Pre Out

      For more detailed comparison between the models please visit Denon AVR-X4700H vs AVR-X4800H.

      Check the Price

      For the complete list of specifications please go to the next page:

      Discussion

      Amazon Affiliate Disclosure
      ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
