1-on-1 Comparison

Side-by-Side Comparison

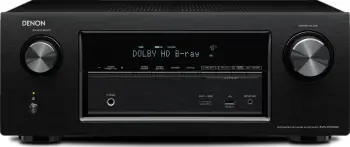

Denon AVR-X3100W (UK version)

SCORE:
80

Highlights

  • 7.2 channels
  • 7.1 channel processing
  • 105 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
  • 4K Upscaling, 4K Passthrough
  • AirPlay, DLNA
  • Ethernet, Wi-Fi, Bluetooth
  • USB input

Disclosure: We earn money from the affiliate links to products associated with content in this article.

Content

Overview

Denon AVR-X3100W was introduced in 2014. It is equipped with 7 channel amplifier with 105 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 7.1 maximum channel processing. It passes 4K/60Hz and upscales up to 4K 50/60Hz 4:4:4 video signal.

We evaluated the a/v receiver and gave 80 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

AMPLIFIER
88
VIDEO FEATURES
75
AUDIO FEATURES
73
CONNECTIVITY
83
MULTIZONE
84
MISCELLANEOUS
65
RADIO
82
OVERALL
80

Pros and Cons

In this section we present pros and cons of Denon AVR-X3100W.

PROS
  DSD via HDMI
  Auto Speaker Calibration System with Mic.
  New HDCP Version
  Auto Low Latency Mode Pass-through
  4K or 8K Video Passthrough
  4K or 8K Signal Upscaling
  Analog To HDMI Upconversion
  Ethernet
  Wi-Fi
  Bluetooth
  Many HDMI Inputs
  USB Input
  Composite Video Inputs
  Component Video Inputs
  RCA Pre-Outs
  Zones
  Analog Tuner
  Spotify
CONS
  No Front Wide Channel Support
  No Dolby Atmos
  No Dolby Atmos Height Virtualization
  No DTS:X
  No IMAX Enhanced
  No Auro 3D with Auro-Matic Upmixer
  No eARC
  No HDR10
  No HDR10+
  No Dolby Vision
  No HEOS
  No Chromecast Built-In
  Does not Work with Amazon Alexa
  Few 8K Inputs
  Few Optical Inputs
  No Pandora
  No Tidal
  Old Bluetooth Version

Audio Section

7 channel Amplifier

Denon AVR-X3100W features 7 channel power amplifier. It is rated at 105 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.

    Speaker Configurations

    Denon AVR-X3100W's 7 channel amplifier can be assigned for different speaker configurations.

    • Configurations: Available configurations are:
    • 5.2, 7.2 with internal amplifier.
    • 2-ch Bi-Amp: Denon AVR-X3100W allows you to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.

    Audyssey DSX

    Audyssey DSX allows you to augment a standard five-channel home theater with either two Front Wide or two Front High speakers. The Wide channels create an expansive soundstage and bring out convincing directional effects. Alternatively, Height channels can add a vertical dimension to movie and game soundtracks.



    Sound Processing

    • Audyssey: Denon AVR-X3100W comes with Audyssey Dynamic EQ and Dynamic Volume.
    • Dynamic EQ: selects the best possible frequency response and surround volume levels moment-by-moment. This ensures that the bass response, tonal balance and surround impression remain constant despite changes in volume. This is the first technology that carefully combines information from incoming source levels with actual output sound levels in the room, a pre-requisite for delivering a dynamic volume solution.
    • Dynamic Volume: Your Listening experience can be greatly diminished when there are significant shifts in volume between television programs, commercials and within the program material itself. When this happens you must constantly adjust the volume to maintain your desired listening level. Audyssey Dynamic Volume monitors the volume of program material moment-by-moment and automatically adjusts it, maintaining the desired listening level for all content while optimizing the dynamic range to preserve impact.

    Room Calibration

    Denon AVR-X3100W comes with Audyssey MultEQ XT + PRO room correction system and includes the calibration microphone.

    • Audyssey Room Calibration: Audyssey is an acoustic measurement technology which automatically restores the acoustic distortion caused by the acoustic behaviour of a room with only a push on a button. Audyssey equalization provides an clear, accurate, natural sound with voices and dialog that become focused and intelligible, restoring the musical balance. Musical instruments and sound effects become precisely localized and the surround soundstage is made seamless and enveloping.

    Video Section

    HDMI

    Denon AVR-X3100W features 8 HDMI inputs. It has 2 outputs: 1 for MAIN and 1 for ZONE2.

    • 4K/60Hz Passthrough: All inputs pass up to 4K 50/60Hz 4:4:4 video signal.
    • 4K Upscaling: Denon AVR-X3100W can upscale up to 4K 50/60Hz 4:4:4 from HDMI and analog sources.
    • Analog To HDMI Upconversion: The a/v receiver supports video upconversion, so you can connect your analog Component and Composite video sources and Denon AVR-X3100W will output them via HDMI. This means that you will need only one HDMI cable to connect to your TV.
    • HDCP 2.2 Copy Protection: All inputs and outputs are HDCP 2.2 compliant which is a requirement for 4K/HDR copy-protected content transmission.
    • 3D Ready: Denon AVR-X3100W is able to pass 3D video through HDMI.

    andh3>Gaming Features

    Denon AVR-X3100W supports Auto Low Latency Mode (ALLM) for lag-free and smooth gaming.

    • Auto Low Latency Mode (ALLM): Auto Low Latency Mode enables the ideal latency setting to automatically be set allowing for smooth, lag-free and uninterrupted viewing and interactivity. When the receiver detects a gaming signal it will enter ALLM. The signal will also be sent to the TV causing it to automatically switch to a low-latency, low-lag mode for gaming. Some functions will not be available on the receiver and TV during ALLM.

    Multi-zone Playback

    Denon AVR-X3100W offers multi-zone playback which allows you to play different input sources in 2 different rooms.


    Zone 2

    • Powered Zone 2: You can use the unit's 2 amplifier channels by connecting Zone 2 speakers directly to the speaker terminals. The remaining 5 channels will be left for main zone amplification.
    • HDMI Output: Denon AVR-X3100W offers HDMI output for Zone 2. This means that it can send two different HDMI signals to two displays.
    • Audio Pre Output: If you have a dedicated power amplifier for Zone 2 you can connect it to the a/v receiver via pre outs and control volume from the a/v receiver.

    Inputs and Outputs

    Audio

    • Analog Pre-Outs: Denon AVR-X3100W has 7.2 preamplifier outputs which allow you to connect the a/v receiver to the external power amplifier. You may want to use a high quality external amplifier for certain channels, usually for front L/R and center, and use the a/v receiver to power the rest.
    • Analog Line Inputs: There are 5 line inputs for analog audio connection.
    • Digital Inputs and Outputs: 0 optical input, 2 optical outputs and 2 coaxial inputs are available for digital audio connection.
    • Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.

    Video

    • HDMI:
    • Inputs: 8 (1 front)   Outputs: 2 (1 for MAIN, 1 for ZONE2)
      8K Inputs: 0
    • Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
    • Inputs: 3   Outputs: 0
    • Component Video: Component video connection gives you the higher quality video compared to the composite video connection. So in case your old DVD player and other equipment do not have an HDMI output but have Component video output use this connection over the composite one. Denon AVR-X3100W supports up to 1080p resolution on Component video connectors.
    • Inputs: 2   Outputs: 0
    Image cannot be found
    Image cannot be found

    Specifications

    Here we list all the available features and specifications of Denon AVR-X3100W.

    BASICS
    BrandDenon
    ModelAVR-X3100W
    TypeA/V Receiver
    CountryUK
    Release Year2014
    AMPLIFIER
    Channels7.2
    Front Wide Channel Support
    Discrete Amplification
    THX™ Certification
    Continuous 6 Ω Rated
    Certified 4 Ω Performance
    Mono Block Power Amplifier Construction
    Bi-amp Capability assignable
    AUDIO
    Digital Signal Processing (DSP) Enginemultiple Texas Instruments/ Aureus DSP processors
    DAC Specs192 kHz/24 Bit
    Maximum Channel Processing7.1
    D.D.S.C. HD Digital
    Alpha Processing
    Air Studios Monitor Certification
    Dolby Atmos
    Dolby Atmos Height Virtualization
    Dolby Atmos Music
    Dolby TrueHD
    Dolby Digital Plus
    Dolby Surround Upmixer
    Dolby Pro Logic PLIIz
    Dolby Digital EX
    Surround EX
    DTS:X
    DTS Neural:X
    DTS Virtual:X
    DTS Neo Neo:X
    DTS-HD Master Audio
    DTS-HD High Resolution Audio
    DTS 96/24
    DTS Express
    DTS-ES Discrete 6.1, Matrix 6.1
    IMAX Enhanced
    Auro 3D with Auro-Matic Upmixer
    PCM 2-ch/Multi-ch Input
    Music Playback via USBMP3, WMA, AAC, Apple Lossless, WAV, FLAC, AIFF, DSD
    High Resolution Music Playback via USB and/or Network up to 192 kHz
    High Resolution Audio Formats via USBApple Lossless, WAV, FLAC, AIFF, DSD
    Gapless Playback
    DSD via HDMI 2-ch/Multi-ch Input
    DSD via USB 2-ch Input
    DSD to PCM Converter
    USB DAC
    Jitter Reduction
    DTS Dialog Control
    Dialog Enhancement
    Dialog Level Adjustment
    Dialog Normalization
    Dialogue Lift
    Compressed Music Enhancer
    High-resolution Music Enhancer
    Audyssey Dynamic EQ
    Audyssey Dynamic Volume
    Audyssey LFC
    Audyssey Sub EQ HT
    Audyssey DSX
    Direct Mode
    Pure Direct Mode
    Independent Subwoofer Outputs
    CALIBRATION
    Auto Speaker Calibration System with Mic. Audyssey MultEQ XT + PRO
    Audyssey App Support
    Optimized Bass Redirection
    Bass Sync
    VIDEO
    Enhanced ARC
    HDCP Version2.2
    HDR10
    HDR10+
    Dynamic HDR
    Dolby Vision
    HLG (Hybrid Log Gamma)
    BT.2020 color space
    QMS (Quick Media Switching)
    ALLM (Auto Low Latency Mode)
    VRR (Variable Refresh Rate)
    QFT (Quick Frame transport)
    3-D Ready
    Video Signal Passthroughup to 4K 50/60Hz 4:4:4
    Video Signal Upscaling up to 4K 50/60Hz 4:4:4
    Analog To HDMI Upconversion Component, Composite
    Component Video Upscaling
    Analog to Analog Video conversion
    Component Video Maximum Resolution1080p
    isf Certified Calibration Control
    CONNECTIVITY
    MHL Input
    DLNA 1.5
    FireConnect
    FlareConnect
    HEOS
    Chromecast Built-In
    DTS Play-Fi
    Works with Amazon Alexa
    Works with SONOS
    AirPlay AirPlay
    Apple Product Connection iPod, iPhone and iPad
    Remote App Denon Remote App for iOS and Android devices
    InstaPrevue Input Source Prevue
    Ethernet
    Ethernet Switch
    Wi-Fi
    Bluetooth
    Bluetooth Headphone Transmission
    HDBaseT Compatible
    HDMI Inputs8 (1 front)
    HDMI Outputs2 (1 for MAIN, 1 for ZONE2)
    8K Inputs
    USB Input1 (Front) for iPod/iPhone and USB memory
    USB DC Out Port
    RCA Line Input5
    RCA Line Output
    XLR Line Inputs
    Phono Input
    Optical Inputs2
    Optical Outputs
    Coaxial Inputs2
    Composite Video Input3
    Composite Video Output
    S-Video Input
    S-Video Output
    Component Video Input2
    Component Video Output
    PC In
    Multi-Channel Input
    RCA Pre-Outs7.2
    XLR Pre-outs
    Front A/V InputsHDMI, USB
    Speaker A/B assignable
    Headphone Out6.3 mm (1/4")
    ZONES
    Zones2
    Powered Zones 2
    Zone 2 OutsHDMI, Pre Out
    RS-232C Interface
    +12V Trigger Output1
    Remote (IR) Input/Output1 / 1
    MISC
    On-Screen Display Advanced Graphic User Interface
    GUI Languages9
    Control4 SDDP
    Display 1 line
    Remote ControllerRC-1192
    Pre-programmed / Learnable / LCD Display / /
    Detachable Power Cord
    Denon Link HD
    Setup Assistant
    Quick Select plus / Quick Select /
    RADIO
    Analog Tuner FM/AM with RDS
    Digital Radio
    Internet Radio vTuner
    Pandora
    Spotify
    Tidal
    Deezer
    Napster
    SiriusXM Internet Radio
    CONSTRUCTION
    Front PanelBrushed hairline metalized finish
    Speaker Terminals7
    Large Speaker Terminals7
    Color-Coded Speaker Terminals
    Transparent High-Grade Speaker Terminals
    High Grade Audio Components
    Gold plated RCA terminals
    POWER
    Power SupplyAC 230 V, 50/60 Hz
    Power Consumption600 W
    No Sound PowerECO On/Off: 45 W/80 W
    Standby Power0.1 W
    GENERAL
    ECO Mode / Hybrid Standby Function
    Auto Power off
    Dimensions (W x H x D)434 mm x 167 mm x 388 mm (with antenna: 434 mm x 237 mm x 388 mm)
    17-3/32" x 6-37/64" x 15-9/32" (with antenna up: 17-3/32" x 9-21/64" x 15-9/32)
    Weight11.1 kg (26 lbs 4 oz)
    Warranty3 Years
    SPECS
    Power Output (8 Ω, 20 Hz - 20 kHz, 2105 W (0.08% THD)
    Power Output (6 Ω, 1 kHz, 2135 W (0.7% THD)
    Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA)215 W (10% THD)
    Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)180 W (1% THD)
    THD digital0.008% (1 kHz, at 0 dB)
    Analog Distortion0.008% (20 Hz-20 kHz, Direct mode)
    Input Sensitivity and Impedance (Line)200 mV/47 kΩ
    Rated Output digital2 V (at 0 dB playback)
    S/N Ratio (Line, IHF-A)100 dB
    S/N Ratio (digital)102 dB
    Dynamic Range (digital)100 dB
    Frequency Response (Analog In)+1/-3 dB (10 Hz to 100 kHz, Direct mode)
    DSD Sampling Rates via HDMI2.8 MHz
    DSD Sampling Rates via USB2.8 MHz
    Video Input Sensitivity/Output Level and Impedance1 Vp-p/75 Ω (Component Y)
    0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
    Video Frequency Response5 Hz to 60 MHz, 0 dB/-3 dB (Component)
    Ethernet Standard100BASE-TX
    Wi-Fi Terminal Frequency2.4 GHz
    Bluetooth Version2․1 + EDR
    Bluetooth Frequency2.4 GHz
    USB TerminalUSB2.0 5V, 1 A
    FM Frequency87.5 MHz - 108.0 MHz
    FM 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)Mono: 2.8 µV (20.2 dBf)
    FM Effective Sensitivity1.2 µV (12.8 dBf)
    FM S/N RatioMono/Stereo: 70 dB/67 dB
    FM Harmonic Distortion (IHF, 1 kHz)Mono/Stereo: 0.7%/1.0%
    AM Frequency522 kHz - 1611 kHz
    AM Effective Sensitivity18 µV

    * - 480i/576i and 480p/576p only
    ** - 480i/576i only
    *** - no 1080p/24 upconversion
    **** - 1080p signal is not converted

    Successor

    In 2015 Denon AVR-X3100W was replaced by AVR-X3200W. Let us now have a look at some important changes that the successor brought.


    UPGRADES Denon AVR-X3200W vs Denon AVR-X3100W
    Dolby Atmos vs
    Dolby Surround Upmixer vs
    DTS:X vs
    DTS Neural:X vs
    DTS Dialog Control vs
    HDR10 vs
    Dolby Vision vs
    HLG vs
    BT.2020 color space vs
    Higher S/N Ratio (Line, IHF-A) 102 dB vs 100 dB

    DOWNGRADES Denon AVR-X3200W vs Denon AVR-X3100W
    Dolby Pro Logic vs PLIIz
    DTS Neo vs Neo:X
    Audyssey DSX vs
    Less Advanced Auto Speaker Calibration System Audyssey MultEQ XT vs Audyssey MultEQ XT + PRO

    For more detailed comparison between the models please visit Denon AVR-X3100W vs Denon AVR-X3200W.
