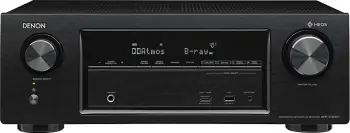

Denon AVR-X1400H

    86
    Image cannot be found

    Highlights

    • 7.2 Channels
    • 7.1 Channel Processing
    • 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
    • Dolby Atmos, DTS:X
    • HDR10, Dolby Vision
    • 4K/60Hz Passthrough
    • Wi-Fi, Bluetooth, Ethernet

    Disclosure: We earn money from the affiliate links to products associated with content in this article.

    1. Overview

    Denon AVR-X1400H was introduced in 2017. It is equipped with 7 channel amplifier with 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 7.1 maximum channel processing. It supports Dolby Atmos and DTS:X, passes 4K/60Hz video signal.

    We evaluated the a/v receiver and gave 86 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

    Amplifier
    85
    Audio Features
    84
    Video Features
    94
    Connectivity
    81
    Zones
    77
    Radio
    92
    OVERALL
    86

    For more details about the ranking please go to    Evaluation section.


    Here is a history of the series, where you can view and compare the main specifications of the receivers.

    Evolution of the series
    Model Year Chann. Power Dolby Atmos DTS:X HDR10 HDR10+ Dolby Vision Pass. Price
    AVR-X1800H Image cannot be found 2024 7.2 80 W 8K
    AVR-X1700H Image cannot be found 2021 7.2 80 W 8K
    AVR-X1600H Image cannot be found 2019 7.2 80 W 4K
    AVR-X1500H Image cannot be found 2018 7.2 80 W 4K
    AVR-X1400H Image cannot be found 2017 7.2 80 W 4K
    AVR-X1300W Image cannot be found 2016 7.2 80 W 4K
    AVR-X1200W Image cannot be found 2015 7.2 80 W 4K
    AVR-X1100W Image cannot be found 2014 7.2 80 W 4K

    You can view their side-by-side comparison here: Denon AVR-X1800H vs AVR-X1700H vs AVR-X1600H vs AVR-X1500H vs AVR-X1400H vs AVR-X1300W.

    2. Pros and Cons

    In this section we present pros and cons of Denon AVR-X1400H.

    PROs

    •   Dolby Atmos
    •   DTS:X
    •   Auto Speaker Calibration System with Mic.
    •   HDR10
    •   Dolby Vision
    •   New HDCP Version
    •   Auto Low Latency Mode Pass-through
    •   Wi-Fi
    •   Bluetooth
    •   Works with Amazon Alexa
    •   HEOS
    •   USB Input
    •   Composite Video Inputs
    •   Ethernet
    •   Analog Tuner
    •   Spotify
    •   Tidal

    CONs

    •   Low Power Output - 80 W
    •   No Front Wide Channel Support
    •   No Dolby Atmos Height Virtualization
    •   No IMAX Enhanced
    •   No Auro 3D with Auro-Matic Upmixer
    •   No DSD via HDMI
    •   No HDR10+
    •   No eARC
    •   No 8K Passthrough
    •   1 HDMI Outputs
    •   0 8K Input
    •   Few RCA Line Inputs
    •   No Phono Input
    •   No RCA Pre-Outs
    •   No Digital Radio
    •   No Pandora
    •   Bluetooth 3․0 + EDR

    And here are some specifications which fall into average criteria and are neither in PROs nor in CONs category:

    AVERAGE

    •   7.2 Channels
    •   7.1 Channel Processing
    •   6 HDMI Inputs
    •   2 Zones

    3. Denon 2017 Lineup

    In 2017 Denon released 5 new receivers. Here is the lineup:

    Denon 2017 Lineup
    ModelChannelsPowerMax. Ch. Proc.Pre OutsImmersive AudioZones Price
    AVR-X6400H Image cannot be found 11.2140 W11.211.2Dolby Atmos
    DTS:X
    Auro 3D
    3
    AVR-X4400H Image cannot be found 9.2125 W11.211.2Dolby Atmos
    DTS:X
    Auro 3D
    3
    AVR-X3400H Image cannot be found 7.2105 W7.27.2Dolby Atmos
    DTS:X
    2
    AVR-X2400H Image cannot be found 7.295 W7.1Dolby Atmos
    DTS:X
    2
    AVR-X1400H Image cannot be found 7.280 W7.1Dolby Atmos
    DTS:X
    2

    You can view their side-by-side comparison here: Denon AVR-X6400H vs AVR-X4400H vs AVR-X3400H vs AVR-X2400H vs AVR-X1400H.

    4. Changes from the AVR-X1300W

    Denon AVR-X1400H has replaced AVR-X1300W. Here we present differences between these two models.

    UPGRADES Denon AVR-X1400H vs Denon AVR-X1300W
    DTS Virtual:X via firmware update vs
    Works with Amazon Alexa vs
    HEOS vs
    AirPlay AirPlay 2 vs AirPlay
    Tidal vs
    Deezer vs
    Napster vs
    Wi-Fi Standard IEEE 802.11 a/b/g/n vs IEEE 802.11 b/g/n
    Newer Bluetooth Version 3․0 + EDR vs 2․1 + EDR
    DOWNGRADES Denon AVR-X1400H vs Denon AVR-X1300W
    Network Audio Formats MP3, WMA, MPEG-4 AAC, Apple Lossless, WAV, FLAC, DSD vs MP3, WMA, MPEG-4 AAC, Apple Lossless, WAV, FLAC, AIFF, DSD
    Music Playback via USB MP3, WMA, AAC, Apple Lossless, WAV, FLAC, DSD vs MP3, WMA, AAC, Apple Lossless, WAV, FLAC, AIFF, DSD
    High Resolution Audio Formats via USB Apple Lossless, WAV, FLAC, DSD vs Apple Lossless, WAV, FLAC, AIFF, DSD
    SiriusXM vs

    For more detailed comparison between the models please visit Denon AVR-X1400H vs AVR-X1300W.

    5. Amplifier

    7 channel Amplifier

    Denon AVR-X1400H features 7 channel power amplifier. It is rated at 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.

      AMPLIFIER
      Channels7.2
      Power Output80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      Front Wide Channel Support
      Discrete Amplification
      THX™ Certification
      Continuous 6 Ω Rated
      Certified 4 Ω Performance
      Mono Block Power Amplifier Construction
      Bi-amp Capability assignable

      6. Speaker Configurations

      Denon AVR-X1400H's 7 channel amplifier can be assigned for different speaker configurations.

      • Dolby Atmos Configurations: The following speaker configurations are supported for Dolby Atmos:
      • 5.2.2 with internal amplifier.
      • DTS:X Configurations: The speaker configurations for DTS:X are the same as for Dolby Atmos:
      • 5.2.2 with internal amplifier.
      • Configurations without height channels: There are also other speaker configurations available which do not include height channels:
      • 5.2, 7.2 with internal amplifier.
      • 2-ch Bi-Amp: Denon AVR-X1400H allows you to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.

      7. Immersive Audio Formats

      Dolby Atmos

      Denon AVR-X1400H supports Dolby Atmos with Surround Upmixer.

      • Surround Upmixer: If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.

      DTS:X

      Denon AVR-X1400H supports DTS:X with Neural:X and Virtual:X.

      • Neural:X is an advanced upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.
      • Virtual:X bridges the gap between DTS:X codec and the reality of so many consumers' homes, allowing you to enjoy multi-dimensional sound regardless of room size, layout, or speaker configuration. If you have a limited speaker setup you will miss a full immersive potential of your entertainment system. DTS Virtual:X adds height and surround audio effect to your system without adding height speakers. It works with multiple configurations and delivers immersive sound experience out of 5.1 or even 2.1 speaker layouts.
      • DTS Dialog Control: This function adjusts the dialog levels during playback of the DTS:X stream. It allows you to separately increase the dialog levels in contrast with the background sound and hear dialog easily even under noisy circumstances.
      DECODING
      Dolby Atmos up to 5.1.2
      Dolby Atmos Height Virtualization
      Dolby Atmos Music
      Dolby TrueHD
      Dolby Digital Plus
      Dolby Surround Upmixer
      Dolby Pro Logic
      Dolby Digital EX
      Surround EX
      DTS:X up to 5.1.2
      DTS Neural:X
      DTS Virtual:X via firmware update
      DTS Neo
      DTS-HD Master Audio
      DTS-HD High Resolution Audio
      DTS 96/24
      DTS Express
      DTS-ES Discrete 6.1, Matrix 6.1
      IMAX Enhanced
      Auro 3D with Auro-Matic Upmixer

      8. HDMI

      Denon AVR-X1400H features 6 HDMI inputs. It has 1 output.

      • 4K/60Hz Passthrough: All inputs pass up to 4K 50/60Hz 4:4:4 video signal.
      • BT.2020 Color Space: BT.2020 or Rec. 2020 is a color standard which delivers a wider color gamut compared to Rec. 709. It covers approximately 75% of the total visual spectrum while the Rec. 709 covers only 35%.
      • HDCP 2.2 Copy Protection: All inputs and outputs are HDCP 2.2 compliant which is a requirement for 4K/HDR copy-protected content transmission.
      • 3D Ready: Denon AVR-X1400H is able to pass 3D video through HDMI.

      HDR (High Dynamic Range)

      Denon AVR-X1400H supports HDR (high dynamic range) video formats such as HDR10, Dolby Vision and Hybrid Log-Gamma via HDMI ports. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.


      Gaming Features

      Denon AVR-X1400H supports Auto Low Latency Mode (ALLM) for lag-free and smooth gaming.



      VIDEO FEATURES
      HDR10
      HDR10+
      Dynamic HDR
      BT.2020 color space
      Dolby Vision
      HLG (Hybrid Log Gamma)
      HDBaseT Compatible
      Enhanced Audio Return Channel (eARC)
      HDCP Version2.2
      QMS (Quick Media Switching)
      ALLM (Auto Low Latency Mode)
      VRR (Variable Refresh Rate)
      QFT (Quick Frame transport)
      3-D Ready
      Video Signal Passthroughup to 4K 50/60Hz 4:4:4
      Video Signal Upscaling

      9. Room Calibration

      Denon AVR-X1400H comes with Audyssey MultEQ XT room correction system and includes the calibration microphone. It also supports Audyssey App.

      • Audyssey Room Calibration: Audyssey is an acoustic measurement technology which automatically restores the acoustic distortion caused by the acoustic behaviour of a room with only a push on a button. Audyssey equalization provides an clear, accurate, natural sound with voices and dialog that become focused and intelligible, restoring the musical balance. Musical instruments and sound effects become precisely localized and the surround soundstage is made seamless and enveloping.

      10. Multi-zone Playback

      Denon AVR-X1400H offers multi-zone playback which allows you to play different input sources in 2 different rooms.


      Zone 2

      • Powered Zone 2: You can use the unit's 2 amplifier channels by connecting Zone 2 speakers directly to the speaker terminals. The remaining 5 channels will be left for main zone amplification.
      ZONES
      Number of Zones2
      Powered Zones 2
      Zone 2 Outs
      RS-232C Interface
      +12V Trigger Output
      Remote (IR) Input/Output0 / 0

      11. Inputs and Outputs

      Audio

      • Analog Line Inputs: There are 2 line inputs for analog audio connection.
      • Digital Inputs: 2 optical inputs are available for digital audio connection.
      • Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.

      Video

      • HDMI:
      • Inputs: 6 (1 front)   Outputs: 1
        8K Inputs: 0
      • Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
      • Inputs: 2   Outputs: 1

      Front A/V Inputs

      • HDMI, USB
      Image cannot be found
      Image cannot be found
      TERMINALS
      HDMI Inputs6 (1 front)
      HDMI Outputs1
      8K Inputs
      USB Input1 (Front) for iPod/iPhone and USB memory
      USB DC Out Port
      Optical Inputs2
      Optical Outputs
      Coaxial Inputs
      RCA Line Inputs2
      RCA Line Outputs
      XLR Line Inputs
      Phono Input
      Multi-Channel Input
      RCA Pre-Outs0.2
      XLR Pre-outs
      Composite Video Inputs2
      Composite Video Outputs1
      S-Video Inputs
      S-Video Outputs
      Component Video Inputs
      Component Video Outputs

      12. Replaced by AVR-X1500H

      In 2018 Denon AVR-X1400H was replaced by Denon AVR-X1500H. Let us now have a look at some important differences between Denon AVR-X1400H and its successor.

      UPGRADES Denon AVR-X1500H vs Denon AVR-X1400H
      Phono Input vs
      Wider AM Frequency Range 522 kHz - 1611 kHz vs 522 kHz - 1611 kHz

      For more detailed comparison between the models please visit Denon AVR-X1400H vs AVR-X1500H.

      13. Evaluation

      We evaluate Denon AVR-X1400H and give score of 86 out of 100. We also give separate scores for 6 different categories according to the available features and specifications some of which are listed below. These evaluations are relative and may change each time a new receiver is added to the database.


      OVERALL
      86

      Amplifier

      EXCELLENT
      85

      We give Denon AVR-X1400H a score of 85 for Amplifier features.

      •   7.2 Channels
      •   Low Power Output - 80 W

      Audio Features

      GOOD
      84

      We give Denon AVR-X1400H a score of 84 for Audio Features features.

      •   7.2 Channels
      •   No Front Wide Channel Support
      •   7.1 Channel Processing
      •   Dolby Atmos
      •   No Dolby Atmos Height Virtualization
      •   DTS:X
      •   No IMAX Enhanced
      •   No Auro 3D with Auro-Matic Upmixer
      •   No DSD via HDMI

      Video Features

      EXCELLENT
      94

      We give Denon AVR-X1400H a score of 94 for Video Features features.

      •   HDR10
      •   No HDR10+
      •   Dolby Vision
      •   Auto Low Latency Mode Pass-through
      •   No 8K Passthrough

      Connectivity

      GOOD
      81

      We give Denon AVR-X1400H a score of 81 for Connectivity features.

      •   No eARC
      •   New HDCP Version
      •   Wi-Fi
      •   Bluetooth
      •   Works with Amazon Alexa
      •   HEOS
      •   6 HDMI Inputs
      •   1 HDMI Outputs
      •   0 8K Input
      •   USB Input
      •   Few RCA Line Inputs
      •   No Phono Input
      •   No RCA Pre-Outs
      •   Composite Video Inputs
      •   Ethernet
      •   Bluetooth 3․0 + EDR

      Zones

      GOOD
      77

      We give Denon AVR-X1400H a score of 77 for Zones features.

      •   2 Zones

      Radio

      EXCELLENT
      92

      We give Denon AVR-X1400H a score of 92 for Radio features.

      •   Analog Tuner
      •   No Pandora
      •   Spotify
      •   Tidal

      14. Specifications

      GENERAL
      BrandDenon
      ModelAVR-X1400H
      TypeA/V Receiver
      CountryUK
      Release Year2017
      PredecessorDenon AVR-X1300W
      SuccessorDenon AVR-X1500H
      AMPLIFIER
      Channels7.2
      Power Output80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      Front Wide Channel Support
      Discrete Amplification
      THX™ Certification
      Continuous 6 Ω Rated
      Certified 4 Ω Performance
      Mono Block Power Amplifier Construction
      Bi-amp Capability assignable
      AUDIO FEATURES
      Digital Signal Processing (DSP) EngineFour 300 MHz DSP cores
      DAC Specs192 kHz/24 Bit
      Maximum Channel Processing7.1
      D.D.S.C. HD Digital
      Alpha Processing
      Air Studios Monitor Certification
      Dolby Atmos up to 5.1.2
      Dolby Atmos Height Virtualization
      Dolby Atmos Music
      Dolby TrueHD
      Dolby Digital Plus
      Dolby Surround Upmixer
      Dolby Pro Logic
      Dolby Digital EX
      Surround EX
      DTS:X up to 5.1.2
      DTS Neural:X
      DTS Virtual:X via firmware update
      DTS Neo
      DTS-HD Master Audio
      DTS-HD High Resolution Audio
      DTS 96/24
      DTS Express
      DTS-ES Discrete 6.1, Matrix 6.1
      IMAX Enhanced
      Auro 3D with Auro-Matic Upmixer
      PCM 2-ch/Multi-ch Input
      Network Audio FormatsMP3, WMA, MPEG-4 AAC, Apple Lossless, WAV, FLAC, DSD
      Music Playback via USBMP3, WMA, AAC, Apple Lossless, WAV, FLAC, DSD
      High Resolution Music Playback via USB and/or Network up to 192 kHz
      High Resolution Audio Formats via USBApple Lossless, WAV, FLAC, DSD
      Gapless Playback
      DSD via HDMI
      DSD via USB 2-ch Input
      DSD to PCM Converter
      USB DAC
      Jitter Reduction
      DTS Dialogue Control
      Dialog Enhancement
      Dialog Level Adjustment
      Dialog normalization
      Dialogue Lift
      Compressed Music Enhancer
      High-resolution Music Enhancer
      Audyssey Dynamic EQ
      Audyssey Dynamic Volume
      Audyssey LFC
      Audyssey Sub EQ HT
      Audyssey DSX
      Direct Mode
      Pure Direct Mode
      Independent Subwoofer Outputs
      CALIBRATION
      Auto Speaker Calibration System with Mic. Audyssey MultEQ XT
      Audyssey App Support
      Optimized Bass Redirection
      Bass Sync
      VIDEO FEATURES
      HDR10
      HDR10+
      Dynamic HDR
      BT.2020 color space
      Dolby Vision
      HLG (Hybrid Log Gamma)
      HDBaseT Compatible
      Enhanced Audio Return Channel (eARC)
      HDCP Version2.2
      QMS (Quick Media Switching)
      ALLM (Auto Low Latency Mode)
      VRR (Variable Refresh Rate)
      QFT (Quick Frame transport)
      3-D Ready
      Video Signal Passthroughup to 4K 50/60Hz 4:4:4
      Video Signal Upscaling
      Analog To HDMI Upconversion
      Component Video Upscaling
      Analog to Analog Video conversion
      isf Certified Calibration Control
      CONNECTIVITY
      Wi-Fi
      Bluetooth SBC
      Bluetooth Headphone Transmission
      Works with Amazon Alexa
      Chromecast Built-In
      Works with SonoS
      HEOS
      DTS Play-Fi
      MHL Input
      DLNA 1.5
      AirPlay AirPlay 2
      Apple Product Connection iPod, iPhone and iPad
      Remote App Denon 2016 AVR Remote App for iOS and Android devices and Kindle Fire
      InstaPrevue Input Source Prevue
      TERMINALS
      HDMI Inputs6 (1 front)
      HDMI Outputs1
      8K Inputs
      USB Input1 (Front) for iPod/iPhone and USB memory
      USB DC Out Port
      Optical Inputs2
      Optical Outputs
      Coaxial Inputs
      RCA Line Inputs2
      RCA Line Outputs
      XLR Line Inputs
      Phono Input
      Multi-Channel Input
      RCA Pre-Outs0.2
      XLR Pre-outs
      Composite Video Inputs2
      Composite Video Outputs1
      S-Video Inputs
      S-Video Outputs
      Component Video Inputs
      Component Video Outputs
      Ethernet
      Ethernet Switch
      PC In
      Front A/V InputsHDMI, USB
      Speaker A/B assignable
      Headphone Out6.3 mm (1/4")
      Detachable Power Cord
      ZONES
      Number of Zones2
      Powered Zones 2
      Zone 2 Outs
      RS-232C Interface
      +12V Trigger Output
      Remote (IR) Input/Output0 / 0
      MISCELLANEOUS
      On-Screen Display Hybrid Graphic User Interface
      GUI Languages9
      Control4 SDDP
      Display 1 line
      Remote ControllerRC-1217
      Pre-programmed / Learnable / LCD Display / /
      Denon Link HD
      Setup Assistant
      Quick Select plus / Quick Select /
      RADIO
      Analog Tuner FM/AM with RDS
      Digital Radio
      Internet Radio TuneIn
      Pandora
      Spotify
      Tidal
      Deezer
      Napster
      SiriusXM
      CONSTRUCTION
      Front Panelnot Metal
      Speaker Terminals7
      Large Speaker Terminals7
      Color-Coded Speaker Terminals
      Transparent High-Grade Speaker Terminals
      High Grade Audio Components
      Gold plated RCA terminals
      POWER
      Power SupplyAC 230 V, 50/60 Hz
      Power Consumption430 W
      No Sound PowerECO On/Off: 29 W/39 W
      Standby Power0.1 W
      ECO Mode / Hybrid Standby Function
      Auto Power off
      PHYSICAL
      Dimensions (W x H x D)434 mm x 151 mm x 339 mm (with antenna: 434 mm x 215 mm x 339 mm)
      17 1/8" x 6" x 13 3/8" (with antenna: 17 1/8" x 8 1/2" x 13 3/8")
      Weight8.5 kg (18 lbs 12 oz)
      SPECIFICATIONS
      Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)80 W (0.08% THD)
      Power Output (6 Ω, 1 kHz, 2 channel driven, FTC)120 W (0.7% THD)
      Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA or IEC)175 W (10% THD)
      Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)145 W (1% THD)
      Input Sensitivity and Impedance (Line)200 mV/47 kΩ
      S/N Ratio (Line, IHF-A)98 dB
      Frequency Response (Analog In)+1/-3 dB (10 Hz to 100 kHz, Direct mode)
      DSD Sampling Rates via USB5.6 MHz, 2.8 MHz
      Video Input Sensitivity/Output Level and Impedance 1 Vp-p/75 Ω (Composite)
      Video Frequency Response5 Hz to 10 MHz, 0 dB/-3 dB (Composite)
      Ethernet Standard100BASE-TX
      Wi-Fi StandardIEEE 802.11 a/b/g/n
      Wi-Fi Terminal Frequency5 GHz, 2.4 GHz
      Bluetooth Version3․0 + EDR
      Bluetooth Frequency2.4 GHz
      USB TerminalUSB2.0 5V, 1 A
      FM Frequency87.5 MHz - 108.0 MHz
      FM 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)Mono: 2.8 µV (20.2 dBf)
      FM Effective Sensitivity1.2 µV (12.8 dBf)
      FM S/N RatioMono/Stereo: 70 dB/67 dB
      FM Harmonic Distortion (IHF, 1 kHz)Mono/Stereo: 0.7%/1.0%
      AM Frequency522 kHz - 1611 kHz
      AM Effective Sensitivity18 µV
      Warranty3 Years

      * - 480i/576i and 480p/576p only
      ** - 480i/576i only
      *** - no 1080p/24 upconversion
      **** - 1080p signal is not converted

      Discussion

      Amazon Affiliate Disclosure
      ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
