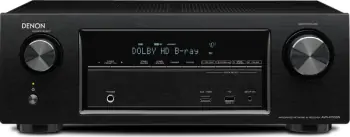

Denon AVR-X1100W

Denon AVR-X1100W was introduced in 2014. It is equipped with 7 channel amplifier with 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 7.1 maximum channel processing. It passes 4K/60Hz video signal.

We evaluated the a/v receiver and gave 76 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

For more details about the ranking please go to    Evaluation section.

Here is a history of the series, where you can view and compare the main specifications of the receivers.

You can view their side-by-side comparison here: Denon AVR-X1800H vs AVR-X1700H vs AVR-X1600H vs AVR-X1500H vs AVR-X1400H vs AVR-X1300W.

In this section we present pros and cons of Denon AVR-X1100W.

In 2014 Denon released 5 new receivers. Here is the lineup:

You can view their side-by-side comparison here: Denon AVR-X5200W vs AVR-X4100W vs AVR-X3100W vs AVR-X2100W vs AVR-X1100W.

Denon AVR-X1100W's 7 channel amplifier can be assigned for different speaker configurations.

• Configurations: Available configurations are:
5.2, 7.2 with internal amplifier.
• 2-ch Bi-Amp: Denon AVR-X1100W allows you to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.

Denon AVR-X1100W features 6 HDMI inputs. It has 1 output.

• 4K/60Hz Passthrough: All inputs pass up to 4K 50/60Hz 4:4:4 video signal.
• HDCP 2.2 Copy Protection: All inputs and outputs are HDCP 2.2 compliant which is a requirement for 4K/HDR copy-protected content transmission.
• 3D Ready: Denon AVR-X1100W is able to pass 3D video through HDMI.

Gaming Features

Denon AVR-X1100W supports Auto Low Latency Mode (ALLM) for lag-free and smooth gaming.

VIDEO FEATURES
HDR10
HDR10+
Dynamic HDR
BT.2020 color space
Dolby Vision
HLG (Hybrid Log Gamma)
HDBaseT Compatible
Enhanced Audio Return Channel (eARC)
HDCP Version	2.2
QMS (Quick Media Switching)
ALLM (Auto Low Latency Mode)
VRR (Variable Refresh Rate)
QFT (Quick Frame transport)
3-D Ready
Video Signal Passthrough	up to 4K 50/60Hz 4:4:4
Video Signal Upscaling

Denon AVR-X1100W comes with Audyssey MultEQ XT room correction system and includes the calibration microphone.

• Audyssey Room Calibration: Audyssey is an acoustic measurement technology which automatically restores the acoustic distortion caused by the acoustic behaviour of a room with only a push on a button. Audyssey equalization provides an clear, accurate, natural sound with voices and dialog that become focused and intelligible, restoring the musical balance. Musical instruments and sound effects become precisely localized and the surround soundstage is made seamless and enveloping.

Denon AVR-X1100W offers multi-zone playback which allows you to play different input sources in 2 different rooms.

Zone 2

• Powered Zone 2: You can use the unit's 2 amplifier channels by connecting Zone 2 speakers directly to the speaker terminals. The remaining 5 channels will be left for main zone amplification.

Audio

• Analog Line Inputs: There are 2 line inputs for analog audio connection.
• Digital Inputs: 2 optical inputs are available for digital audio connection.
• Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.

Video

• HDMI:
Inputs: 6 (1 front)   Outputs: 1
8K Inputs: 0
• Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
Inputs: 2   Outputs: 1

Front A/V Inputs

• HDMI, USB

In 2015 Denon AVR-X1100W was replaced by Denon AVR-X1200W. Let us now have a look at some important differences between Denon AVR-X1100W and its successor.

UPGRADES	Denon AVR-X1200W	vs	Denon AVR-X1100W
Dolby Atmos		vs
Dolby Surround Upmixer		vs
DTS:X		vs
DTS Neural:X		vs
DTS Dialog Control		vs
HDR10		vs
BT.2020 color space		vs
Dolby Vision		vs
HLG		vs

DOWNGRADES	Denon AVR-X1200W	vs	Denon AVR-X1100W
Dolby Pro Logic		vs	PLIIz
DTS Neo		vs	Neo:6
On-Screen Display	Hybrid Graphic User Interface	vs	Advanced Graphic User Interface

For more detailed comparison between the models please visit Denon AVR-X1100W vs AVR-X1200W.

GENERAL
Brand	Denon
Model	AVR-X1100W
Type	A/V Receiver
Country	UK
Release Year	2014
Successor	Denon AVR-X1200W

AMPLIFIER
Channels	7.2
Power Output	80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
Front Wide Channel Support
Discrete Amplification
THX™ Certification
Continuous 6 Ω Rated
Certified 4 Ω Performance
Mono Block Power Amplifier Construction
Bi-amp Capability	assignable

AUDIO FEATURES
Digital Signal Processing (DSP) Engine	Advanced quad-core 32-bit DSP processors
DAC Specs	192 kHz/24 Bit
Maximum Channel Processing	7.1
D.D.S.C. HD Digital
Alpha Processing
Air Studios Monitor Certification
Dolby Atmos
Dolby Atmos Height Virtualization
Dolby Atmos Music
Dolby TrueHD
Dolby Digital Plus
Dolby Surround Upmixer
Dolby Pro Logic	PLIIz
Dolby Digital EX
Surround EX
DTS:X
DTS Neural:X
DTS Virtual:X
DTS Neo	Neo:6
DTS-HD Master Audio
DTS-HD High Resolution Audio
DTS 96/24
DTS Express
DTS-ES	Discrete 6.1, Matrix 6.1
IMAX Enhanced
Auro 3D with Auro-Matic Upmixer
PCM	2-ch/Multi-ch Input
Network Audio Formats	MP3, WMA, MPEG-4 AAC, Apple Lossless, WAV, FLAC, AIFF, DSD
Music Playback via USB	MP3, WMA, AAC, Apple Lossless, WAV, FLAC, AIFF, DSD
High Resolution Music Playback via USB and/or Network	up to 192 kHz
High Resolution Audio Formats via USB	Apple Lossless, WAV, FLAC, AIFF, DSD
Gapless Playback
DSD via HDMI
DSD via USB	2-ch Input
DSD to PCM Converter
USB DAC
Jitter Reduction
DTS Dialogue Control
Dialog Enhancement
Dialog Level Adjustment
Dialog normalization
Dialogue Lift
Compressed Music Enhancer
High-resolution Music Enhancer
Audyssey Dynamic EQ
Audyssey Dynamic Volume
Audyssey LFC
Audyssey Sub EQ HT
Audyssey DSX
Direct Mode
Pure Direct Mode
Independent Subwoofer Outputs

CALIBRATION
Auto Speaker Calibration System with Mic.	Audyssey MultEQ XT
Audyssey App Support
Optimized Bass Redirection
Bass Sync

VIDEO FEATURES
HDR10
HDR10+
Dynamic HDR
BT.2020 color space
Dolby Vision
HLG (Hybrid Log Gamma)
HDBaseT Compatible
Enhanced Audio Return Channel (eARC)
HDCP Version	2.2
QMS (Quick Media Switching)
ALLM (Auto Low Latency Mode)
VRR (Variable Refresh Rate)
QFT (Quick Frame transport)
3-D Ready
Video Signal Passthrough	up to 4K 50/60Hz 4:4:4
Video Signal Upscaling
Analog To HDMI Upconversion
Component Video Upscaling
Analog to Analog Video conversion
isf Certified Calibration Control

CONNECTIVITY
Wi-Fi
Bluetooth
Bluetooth Headphone Transmission
Works with Amazon Alexa
Chromecast Built-In
Works with SonoS
HEOS
DTS Play-Fi
MHL Input
DLNA 1.5
AirPlay	AirPlay
Apple Product Connection	iPod, iPhone and iPad
Remote App	Denon Remote App for iOS and Android devices
InstaPrevue Input Source Prevue

TERMINALS
HDMI Inputs	6 (1 front)
HDMI Outputs	1
8K Inputs
USB Input	1 (Front) for iPod/iPhone and USB memory
USB DC Out Port
Optical Inputs	2
Optical Outputs
Coaxial Inputs
RCA Line Inputs	2
RCA Line Outputs
XLR Line Inputs
Phono Input
Multi-Channel Input
RCA Pre-Outs	0.2
XLR Pre-outs
Composite Video Inputs	2
Composite Video Outputs	1
S-Video Inputs
S-Video Outputs
Component Video Inputs
Component Video Outputs	/
Ethernet
Ethernet Switch
PC In
Front A/V Inputs	HDMI, USB
Speaker A/B	assignable
Headphone Out	6.3 mm (1/4")
Detachable Power Cord

ZONES
Number of Zones	2
Powered Zones	2
Zone 2 Outs
RS-232C Interface
+12V Trigger Output
Remote (IR) Input/Output	0 / 0

MISCELLANEOUS
On-Screen Display	Advanced Graphic User Interface
GUI Languages	9
Control4 SDDP
Display	1 line
Remote Controller	RC-1189
Pre-programmed / Learnable / LCD Display	/ /
Denon Link HD
Setup Assistant
Quick Select plus / Quick Select	/

RADIO
Analog Tuner	FM/AM with RDS
Digital Radio
Internet Radio	vTuner
Pandora
Spotify
Tidal
Deezer
Napster
SiriusXM

CONSTRUCTION
Front Panel	Brushed hairline metalized finish
Speaker Terminals	7
Large Speaker Terminals	7
Color-Coded Speaker Terminals
Transparent High-Grade Speaker Terminals
High Grade Audio Components
Gold plated RCA terminals

POWER
Power Supply	AC 230 V, 50/60 Hz
Power Consumption	430 W
No Sound Power	ECO On/Off: 30 W/45 W
Standby Power	0.1 W
ECO Mode / Hybrid Standby Function
Auto Power off

PHYSICAL
Dimensions (W x H x D)	434 mm x 151 mm x 339 mm (with antenna: 434 mm x 215 mm x 339 mm) 17-3/32" x 5-15/16" x 13-11/32" (with antenna up: 17-3/32" x 8-15/32" x 13-11/32")
Weight	8.6 kg (18 lbs 15 oz)

SPECIFICATIONS
Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)	80 W (0.08% THD)
Power Output (6 Ω, 1 kHz, 2 channel driven, FTC)	120 W (0.7% THD)
Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA or IEC)	175 W (10% THD)
Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)	145 W (1% THD)
Input Sensitivity and Impedance (Line)	200 mV/47 kΩ
S/N Ratio (Line, IHF-A)	98 dB
Frequency Response (Analog In)	+1/-3 dB (10 Hz to 100 kHz, Direct mode)
DSD Sampling Rates via USB	2.8 MHz
Video Input Sensitivity/Output Level and Impedance	1 Vp-p/75 Ω (Composite)
Video Frequency Response	5 Hz to 10 MHz, 0 dB/-3 dB (Composite)
Ethernet Standard	100BASE-TX
Wi-Fi Terminal Frequency	2.4 GHz
Bluetooth Version	2․1 + EDR
Bluetooth Frequency	2.4 GHz
USB Terminal	USB2.0 5V, 1 A
FM Frequency	87.5 MHz - 108.0 MHz
FM 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)	Mono: 2.8 µV (20.2 dBf)
FM Effective Sensitivity	1.2 µV (12.8 dBf)
FM S/N Ratio	Mono/Stereo: 70 dB/67 dB
FM Harmonic Distortion (IHF, 1 kHz)	Mono/Stereo: 0.7%/1.0%
AM Frequency	522 kHz - 1611 kHz
AM Effective Sensitivity	18 µV
Warranty	3 Years

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted
