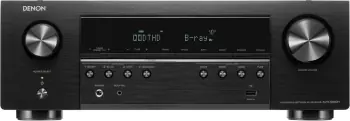

Denon AVR-S660H was introduced in 2021. It is equipped with 5 channel amplifier with 75 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 5.1 maximum channel processing. It passes 8K/60Hz and 4K/120Hz and upscales from 1080p and 4K up to 8K 50/60Hz and 4K 50/60Hz video signal.

We evaluated the a/v receiver and gave 80 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

In this section we present pros and cons of Denon AVR-S660H.

Here we are comparing Denon AVR-S660H to its predecessor AVR-S650H and displaying the major changes.

UPGRADES	Denon AVR-S660H	vs	Denon AVR-S650H
HDR10+		vs
Dynamic HDR		vs
QMS		vs
VRR		vs
QFT		vs
Video Signal Passthrough	up to 8K 50/60Hz (YCbCr 4:2:0/8-bit) and 4K 100/120Hz (RGB/YCbCr 4:4:4/8, 10-bit and YCbCr 4:2:2/12-bit)	vs	up to 4K 50/60Hz 4:4:4
Video Signal Upscaling	from 1080p and 4K up to 8K 50/60Hz and 4K 50/60Hz	vs
More HDMI Inputs	6	vs	5
More 8K Inputs	3	vs
Wi-Fi Standard	IEEE 802.11 a/b/g/n/ac	vs	IEEE 802.11 a/b/g/n
Newer Bluetooth Version	4․2	vs	3․0 + EDR

For more detailed comparison between the models please visit Denon AVR-S660H vs Denon AVR-S650H.

5 channel Amplifier

Denon AVR-S660H features 5 channel power amplifier. It is rated at 75 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.

Speaker Configurations

Denon AVR-S660H's 5 channel amplifier can be assigned for different speaker configurations.

• Configurations: Available configurations are:
5.2 with internal amplifier.

Enhanced Audio Return Channel (eARC)

Audio Return Channel (ARC) feature allows the compatible TV to send audio signal to the a/v receiver through the same HDMI cable which is used to send audio and video signals to the TV. So one HDMI cable is used to transfer audio signal in both directions. New Enhanced ARC will support uncompressed audio formats such as Dolby Atmos, DTS:X, Dolby TrueHD and DTS HD Master Audio whereas the previous ARC could support only Dolby Digital, Dolby Digital Plus, DTS, DTS HD, and PCM.

Sound Processing

• Audyssey: Denon AVR-S660H comes with Audyssey Dynamic EQ and Dynamic Volume.
Dynamic EQ: selects the best possible frequency response and surround volume levels moment-by-moment. This ensures that the bass response, tonal balance and surround impression remain constant despite changes in volume. This is the first technology that carefully combines information from incoming source levels with actual output sound levels in the room, a pre-requisite for delivering a dynamic volume solution.
Dynamic Volume: Your Listening experience can be greatly diminished when there are significant shifts in volume between television programs, commercials and within the program material itself. When this happens you must constantly adjust the volume to maintain your desired listening level. Audyssey Dynamic Volume monitors the volume of program material moment-by-moment and automatically adjusts it, maintaining the desired listening level for all content while optimizing the dynamic range to preserve impact.

Room Calibration

Denon AVR-S660H comes with Audyssey MultEQ room correction system and includes the calibration microphone.

• Audyssey Room Calibration: Audyssey is an acoustic measurement technology which automatically restores the acoustic distortion caused by the acoustic behaviour of a room with only a push on a button. Audyssey equalization provides an clear, accurate, natural sound with voices and dialog that become focused and intelligible, restoring the musical balance. Musical instruments and sound effects become precisely localized and the surround soundstage is made seamless and enveloping.

HDMI 2.1

Denon AVR-S660H features 3 HDMI 2.1 inputs with 8K support and 3 inputs with 4K support. It has 1 output.

• 8K/60Hz and 4K/120Hz Passthrough: 3 out of 6 inputs pass up to 8K 50/60Hz (YCbCr 4:2:0/8-bit) and 4K 100/120Hz (RGB/YCbCr 4:4:4/8, 10-bit and YCbCr 4:2:2/12-bit) and the rest of the inputs pass up to 4K 50/60Hz 4:4:4 video signal.
• 8K Upscaling: Denon AVR-S660H can upscale from 1080p and 4K up to 8K 50/60Hz and 4K 50/60Hz from HDMI sources.
• BT.2020 Color Space: BT.2020 or Rec. 2020 is a color standard which delivers a wider color gamut compared to Rec. 709. It covers approximately 75% of the total visual spectrum while the Rec. 709 covers only 35%.
• HDCP 2.3 Copy Protection: All inputs and outputs are HDCP 2.3 compliant which is a requirement for 4K/HDR copy-protected content transmission.
• Quick Media Switching (QMS): With HDMI 2.1a, Quick Media Switching for movies and video uses the HDMI VRR mechanism to eliminate the blackout period when an HDMI Source device switches its video mode. As long as the resolution remains the same and only the frame rate changes, QMS will instantly switch between frame rates. QMS eliminates A/V blackouts by using VRR technology to change frame rates, allowing instant changes from 24Hz to 60Hz frame rate, and anywhere in-between. The viewer never sees blank screens and gets a seamless experience.
• 3D Ready: Denon AVR-S660H is able to pass 3D video through HDMI.

HDR (High Dynamic Range)

Denon AVR-S660H supports HDR (high dynamic range) video formats such as HDR10, HDR10+, Dolby Vision, Dynamic HDR and Hybrid Log-Gamma. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.

• HDR10: HDR10 uses the wide-gamut Rec. 2020 color space. It sends static metadata via video stream to the TV which calibrates its screen brightness and color according to that. HDR10 supports 10-bit color which corresponds to 1024 shades of the primary RGB colors. It is technically limited to a maximum of 10,000 nits peak brightness, however common HDR10 contents are mastered with peak brightness from 1,000 to 4,000 nits.
• HDR10+: HDR10+ is an HDR video technology that adds dynamic metadata to HDR10 source files. The dynamic metadata are used to adjust brightness levels on a scene-by-scene or even frame-by-frame basis. HDR10+ supports maximum of 10,000 nits peak brightness and 10-bit or more (up to 16-bit) color bit depth. It uses Samsung's dynamic metadata defined in SMPTE ST 2094-40.
• Dolby Vision: Dolby Vision is a set of technologies developed by Dolby Laboratories for high dynamic range (HDR) video. It covers content creation, distribution, and playback. Like HDR10+, it includes dynamic metadata that are used to adjust and optimize each frame of the HDR video to the consumer display's capabilities in a way specified by the content creator. Dolby Vision allows for a maximum resolution of 8K up to 12-bit color depth, maximum peak brightness of 10,000 nits and a color gamut up to Rec. 2020. It uses Dolby's proprietary dynamic metadata defined in SMPTE ST 2094-10.
• Dynamic HDR: Dynamic HDR enables a noticeable progression in overall video image quality from SDR to static HDR, and now static HDR to dynamic HDR. Dynamic HDR support ensures every moment of a video is displayed at its ideal values for depth, detail, brightness, contrast, and wider color gamuts - on a scene-by-scene or even a frame-by-frame basis. HDR-enhanced content is available for movies, videos, TV shows, video and PC games and VR.
• Hybrid Log-Gamma (HLG): The Hybrid Log-Gamma (HLG) is a transfer function developed mainly for HDR live video feed and over-the-air broadcasts. It is an HDR format that uses BT.2020 color primaries and a bitdepth of 10-bit. It is backward compatible with the transfer function of SDR and is designed to be better-suited for television broadcasting, where the metadata required for other HDR formats is not backward compatible with non-HDR displays. HLG defines a non-linear optical-electro transfer function, in which the lower half of the signal values use a gamma curve and the upper half of the signal values use a logarithmic curve.

Gaming Features

Denon AVR-S660H supports Auto Low Latency Mode (ALLM), Variable Refresh Rate (VRR) and Quick Frame Transport (QFT) for lag-free and smooth gaming.

• Auto Low Latency Mode (ALLM): Auto Low Latency Mode enables the ideal latency setting to automatically be set allowing for smooth, lag-free and uninterrupted viewing and interactivity. When the receiver detects a gaming signal it will enter ALLM. The signal will also be sent to the TV causing it to automatically switch to a low-latency, low-lag mode for gaming. Some functions will not be available on the receiver and TV during ALLM.
• Variable Refresh Rate (VRR): VRR enables a gaming source such as a console or computer to deliver video frames as fast as it can, which in many cases is slower than the normal static refresh rate. It allows the TV to adapt to certain frame rate which reduces or eliminates lag, judder and frame tearing for more fluid and better detailed gameplay.
• Quick Frame Transport (QFT): QFT reduces latency for smoother no-lag gaming, and real-time interactive virtual reality. It transports each frame at a higher rate to decrease display latency, which is the amount of time between a frame being ready for transport in the GPU and that frame being completely displayed.

Audio

• Phono Input: There is an MM phono input with built-in phono stage for connecting the moving magnet cartridge output of the turntable directly to the a/v receiver.
• Analog Line Inputs: There are 2 line inputs for analog audio connection.
• Digital Inputs: 2 optical inputs are available for digital audio connection.
• Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.

Video

• HDMI:
Inputs: 6   Outputs: 1
8K Inputs: 3
• Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
Inputs: 2   Outputs: 1

Here we list all the available features and specifications of Denon AVR-S660H.

BASICS
Brand	Denon
Model	AVR-S660H
Type	A/V Receiver
Country	UK
Release Year	2021

AMPLIFIER
Channels	5.2
Front Wide Channel Support
Discrete Amplification
THX™ Certification
Continuous 6 Ω Rated
Certified 4 Ω Performance
Mono Block Power Amplifier Construction
Bi-amp Capability

AUDIO
Maximum Channel Processing	5.1
D.D.S.C. HD Digital
Alpha Processing
Air Studios Monitor Certification
Dolby Atmos
Dolby Atmos Height Virtualization
Dolby Atmos Music
Dolby TrueHD
Dolby Digital Plus
Dolby Surround Upmixer
Dolby Pro Logic	PLII
Dolby Digital EX
Surround EX
DTS:X
DTS Neural:X
DTS Virtual:X
DTS Neo	Neo:6
DTS-HD Master Audio
DTS-HD High Resolution Audio
DTS 96/24
DTS Express
DTS-ES
IMAX Enhanced
Auro 3D with Auro-Matic Upmixer
PCM	2-ch/Multi-ch Input
Music Playback via USB	MP3, WMA, AAC, Apple Lossless, WAV, FLAC, DSD
High Resolution Music Playback via USB and/or Network	up to 192 kHz
High Resolution Audio Formats via USB	Apple Lossless, WAV, FLAC, DSD
Multi-Channel Music File Playback via USB
Gapless Playback
DSD via HDMI
DSD via USB	2-ch Input
DSD to PCM Converter
USB DAC
Jitter Reduction
DTS Dialog Control
Dialog Enhancement
Dialog Level Adjustment
Dialog Normalization
Dialogue Lift
Compressed Music Enhancer
High-resolution Music Enhancer
Audyssey Dynamic EQ
Audyssey Dynamic Volume
Audyssey LFC
Audyssey Sub EQ HT
Audyssey DSX
Direct Mode
Pure Direct Mode
Independent Subwoofer Outputs

CALIBRATION
Auto Speaker Calibration System with Mic.	Audyssey MultEQ
Optimized Bass Redirection
Bass Sync

VIDEO
HDMI Version	2.1
Enhanced ARC
HDCP Version	2.3
HDR10
HDR10+
Dynamic HDR
Dolby Vision
HLG (Hybrid Log Gamma)
BT.2020 color space
QMS (Quick Media Switching)
ALLM (Auto Low Latency Mode)
VRR (Variable Refresh Rate)
QFT (Quick Frame transport)
DSC (Display Stream Compression)
3-D Ready
Video Signal Passthrough	up to 8K 50/60Hz (YCbCr 4:2:0/8-bit) and 4K 100/120Hz (RGB/YCbCr 4:4:4/8, 10-bit and YCbCr 4:2:2/12-bit)
Video Signal Upscaling	from 1080p and 4K up to 8K 50/60Hz and 4K 50/60Hz
Analog To HDMI Upconversion
Component Video Upscaling
Analog to Analog Video conversion
isf Certified Calibration Control

CONNECTIVITY
MHL Input
DLNA 1.5
FireConnect
FlareConnect
HEOS
Chromecast Built-In
DTS Play-Fi
Works with Amazon Alexa
Google assistant
Apple Siri
Works with SONOS
AirPlay	AirPlay 2
Apple Product Connection	iPod, iPhone and iPad
Remote App	Denon 2016 AVR Remote App for iOS and Android devices and Kindle Fire
InstaPrevue Input Source Prevue
Ethernet
Ethernet Switch
Wi-Fi
Bluetooth	SBC
Bluetooth Headphone Transmission
HDBaseT Compatible
HDMI Inputs	6
HDMI Outputs	1
8K Inputs	3
USB Input	1 Front for USB memory
USB DC Out Port
Analog Audio Line Input	2
Analog Audio Line Output
Phono Input
Optical Inputs	2
Optical Outputs
Coaxial Inputs
Composite Video Input	2
Composite Video Output	1
S-Video Input
S-Video Output
Component Video Input
Component Video Output
PC In
Multi-Channel Input
Analog Pre-Outs	0.2
XLR Inputs
XLR Pre-outs
Front A/V Inputs	USB
Speaker A/B
Headphone Out	6.3 mm (1/4")

ZONES
Zones	1
RS-232C Interface
+12V Trigger Output
Remote (IR) Input/Output	0 / 0

MISC
On-Screen Display	Hybrid Graphic User Interface
GUI Languages	9
Web Browser Control
IP Control for CI
Control4 SDDP
Display	1 line
Remote Controller	RC-1243
Pre-programmed / Learnable / LCD Display	/ /
Detachable Power Cord
Denon Link HD
Setup Assistant
Quick Select plus / Quick Select	/

RADIO
Analog Tuner	FM/AM with RDS
Digital Radio
Internet Radio	TuneIn
Pandora
Spotify
Tidal
Deezer
Napster
SiriusXM Internet Radio

CONSTRUCTION
Front Panel	not Metal
Speaker Terminals	5
Large Speaker Terminals	5
Color-Coded Speaker Terminals
Transparent High-Grade Speaker Terminals
High Grade Audio Components
Gold plated RCA terminals

POWER
Power Supply	AC 230 V, 50/60 Hz
Power Consumption	340 W
No Sound Power	ECO On/Off: 29 W/39 W
Standby Power	0.1 W

GENERAL
ECO Mode / Hybrid Standby Function
Auto Power off
Dimensions (W x H x D)	434 mm x 151 mm x 339 mm (with antenna: 434 mm x 215 mm x 339 mm) 17 1/8" x 6" x 13 3/8" (with antenna: 17 1/8" x 8 1/2" x 13 3/8")
Dimensions of Package (W x H x D)	523 mm x 232 mm x 435 mm 20.6"e; x 9.1"e; x 17.1"e;
Weight	7.8 kg (17 lbs 3 oz)
Weight of Package	9.7 kg (21.4 lbs)
Warranty	3 Years

SPECS
Power Output (8 Ω, 20 Hz - 20 kHz, 2	75 W (0.08% THD)
Power Output (6 Ω, 1 kHz, 2	100 W (0.7% THD)
Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA)	150 W (10% THD)
Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)	135 W (1% THD)
Phono Distortion	0.03% (1 kHz, 3 V)
Input Sensitivity and Impedance (Line)	200 mV/47 kΩ
Input Sensitivity and Impedance (Phono MM)	2.5 mV
S/N Ratio (Line, IHF-A)	98 dB
S/N Ratio (Phono MM, IHF-A)	74 dB
Phono RIAA Deviation	±1 dB (20-20 kHz)
Frequency Response (Analog In)	+1/-3 dB (10 Hz to 100 kHz, Direct mode)
DSD Sampling Rates via USB	5.6 MHz, 2.8 MHz
Video Input Sensitivity/Output Level and Impedance	1 Vp-p/75 Ω (Composite)
Video Frequency Response	5 Hz to 10 MHz, 0 dB/-3 dB (Composite)
Ethernet Standard	100BASE-TX
Wi-Fi Standard	IEEE 802.11 a/b/g/n/ac
Wi-Fi Terminal Frequency	5 GHz, 2.4 GHz
Bluetooth Version	4․2
Bluetooth Frequency	2.4 GHz
USB Terminal	USB2.0 5V, 1 A
FM Frequency	87.5 MHz - 108.0 MHz
FM 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)	Mono: 2.8 µV (20.2 dBf)
FM Effective Sensitivity	1.2 µV (12.8 dBf)
FM S/N Ratio	Mono/Stereo: 70 dB/67 dB
FM Harmonic Distortion (IHF, 1 kHz)	Mono/Stereo: 0.7%/1.0%
AM Frequency	522 kHz - 1611 kHz
AM Effective Sensitivity	18 µV

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted
