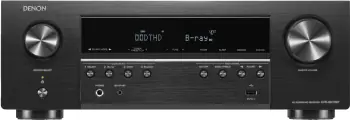

Denon AVR-S570BT (USA version)
- 5.2 channels
- 5.1 channel processing
- 70 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
- HDMI 2.1
- HDR10, Dolby Vision, 8K Upscaling, 8K Passthrough
- USB input
Disclosure: We earn money from the affiliate links to products associated with content in this article.
Denon AVR-S570BT was introduced in 2022. It is equipped with 5 channel amplifier with 70 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 5.1 maximum channel processing. It passes 8K/60Hz and 4K/120Hz and upscales up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 video signal.
We evaluated the a/v receiver and gave 70 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.
Pros and Cons
In this section we present pros and cons of Denon AVR-S570BT.
|Auto Speaker Calibration System with Mic.|
|New HDCP Version|
|Auto Low Latency Mode Pass-through|
|4K or 8K Video Passthrough|
|4K or 8K Signal Upscaling|
|Many 8K Inputs|
|New Bluetooth Version|
|5.1 Channel Processing|
|No Dolby Atmos|
|No Dolby Atmos Height Virtualization|
|No IMAX Enhanced|
|No Auro 3D with Auro-Matic Upmixer|
|No DSD via HDMI|
|No Chromecast Built-In|
|Does not Work with Amazon Alexa|
|Few HDMI Inputs|
|Few HDMI Outputs|
|Few Analog Audio Line Inputs|
|No Phono Input|
|No Composite Video Inputs|
|No Analog Pre-Outs|
Here we are comparing Denon AVR-S570BT to its predecessor AVR-S540BT and displaying the major changes.
|UPGRADES||Denon AVR-S570BT||vs||Denon AVR-S540BT|
|Higher Resolution Music Playback via USB||up to 192 kHz||vs||up to 96 kHz|
|High Resolution Audio Formats via USB||Apple Lossless, WAV, FLAC, AIFF||vs||FLAC|
|Newer HDCP Version||2.3||vs||2.2|
|Auto Low Latency Mode Pass-through||vs|
|Video Signal Passthrough||up to 8K 50/60Hz and 4K 100/120Hz 4:4:4||vs||up to 4K 50/60Hz 4:4:4|
|Video Signal Upscaling||up to 8K 50/60Hz and 4K 100/120Hz 4:4:4||vs|
|More 8K Inputs||4||vs|
|More Large Speaker Terminals||5||vs|
|Higher Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)||70 W (0.08% THD)||vs||70 W (0.08% THD)|
|Newer Bluetooth Version||4․2||vs||3․0 + EDR|
|Lower FM Harmonic Distortion (IHF, 1 kHz)||Mono/Stereo: 0.7%/1.0%||vs||Mono/Stereo: 0.7%/1.0%|
|DOWNGRADES||Denon AVR-S570BT||vs||Denon AVR-S540BT|
|Less HDMI Inputs||4||vs||5|
|Less Composite Video Inputs||vs||2|
|Less Composite Video Outputs||vs||1|
For more detailed comparison between the models please visit Denon AVR-S570BT vs Denon AVR-S540BT.
5 channel Amplifier
Denon AVR-S570BT features 5 channel power amplifier. It is rated at 70 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven).
Denon AVR-S570BT's 5 channel amplifier can be assigned for different speaker configurations.
- Configurations: Available configurations are:
- 5.2 with internal amplifier.
Denon AVR-S570BT comes with room correction system and includes the calibration microphone.
Denon AVR-S570BT features 4 HDMI 2.1 inputs with 8K support. It has 1 output.
- 8K/60Hz and 4K/120Hz Passthrough: All inputs pass up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 video signal.
- 8K Upscaling: Denon AVR-S570BT can upscale up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 from HDMI sources.
- BT.2020 Color Space: BT.2020 or Rec. 2020 is a color standard which delivers a wider color gamut compared to Rec. 709. It covers approximately 75% of the total visual spectrum while the Rec. 709 covers only 35%.
- HDCP 2.3 Copy Protection: All inputs and outputs are HDCP 2.3 compliant which is a requirement for 4K/HDR copy-protected content transmission.
- 3D Ready: Denon AVR-S570BT is able to pass 3D video through HDMI.
HDR (High Dynamic Range)
Denon AVR-S570BT supports HDR (high dynamic range) video formats such as HDR10, Dolby Vision, Dynamic HDR and Hybrid Log-Gamma. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.
- HDR10: HDR10 uses the wide-gamut Rec. 2020 color space. It sends static metadata via video stream to the TV which calibrates its screen brightness and color according to that. HDR10 supports 10-bit color which corresponds to 1024 shades of the primary RGB colors. It is technically limited to a maximum of 10,000 nits peak brightness, however common HDR10 contents are mastered with peak brightness from 1,000 to 4,000 nits.
- Dolby Vision: Dolby Vision is a set of technologies developed by Dolby Laboratories for high dynamic range (HDR) video. It covers content creation, distribution, and playback. Like HDR10+, it includes dynamic metadata that are used to adjust and optimize each frame of the HDR video to the consumer display's capabilities in a way specified by the content creator. Dolby Vision allows for a maximum resolution of 8K up to 12-bit color depth, maximum peak brightness of 10,000 nits and a color gamut up to Rec. 2020. It uses Dolby's proprietary dynamic metadata defined in SMPTE ST 2094-10.
- Dynamic HDR: Dynamic HDR enables a noticeable progression in overall video image quality from SDR to static HDR, and now static HDR to dynamic HDR. Dynamic HDR support ensures every moment of a video is displayed at its ideal values for depth, detail, brightness, contrast, and wider color gamuts - on a scene-by-scene or even a frame-by-frame basis. HDR-enhanced content is available for movies, videos, TV shows, video and PC games and VR.
- Hybrid Log-Gamma (HLG): The Hybrid Log-Gamma (HLG) is a transfer function developed mainly for HDR live video feed and over-the-air broadcasts. It is an HDR format that uses BT.2020 color primaries and a bitdepth of 10-bit. It is backward compatible with the transfer function of SDR and is designed to be better-suited for television broadcasting, where the metadata required for other HDR formats is not backward compatible with non-HDR displays. HLG defines a non-linear optical-electro transfer function, in which the lower half of the signal values use a gamma curve and the upper half of the signal values use a logarithmic curve.
Denon AVR-S570BT supports Auto Low Latency Mode (ALLM), Variable Refresh Rate (VRR) and Quick Frame Transport (QFT) for lag-free and smooth gaming.
- Auto Low Latency Mode (ALLM): Auto Low Latency Mode enables the ideal latency setting to automatically be set allowing for smooth, lag-free and uninterrupted viewing and interactivity. When the receiver detects a gaming signal it will enter ALLM. The signal will also be sent to the TV causing it to automatically switch to a low-latency, low-lag mode for gaming. Some functions will not be available on the receiver and TV during ALLM.
- Variable Refresh Rate (VRR): VRR enables a gaming source such as a console or computer to deliver video frames as fast as it can, which in many cases is slower than the normal static refresh rate. It allows the TV to adapt to certain frame rate which reduces or eliminates lag, judder and frame tearing for more fluid and better detailed gameplay.
- Quick Frame Transport (QFT): QFT reduces latency for smoother no-lag gaming, and real-time interactive virtual reality. It transports each frame at a higher rate to decrease display latency, which is the amount of time between a frame being ready for transport in the GPU and that frame being completely displayed.
Inputs and Outputs
- Analog Line Inputs: There are 2 line inputs for analog audio connection.
- Digital Inputs: 2 optical inputs and 1 coaxial input are available for digital audio connection.
- Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.
- Inputs: 4 Outputs: 1 x 8K
8K Inputs: 4
Here we list all the available features and specifications of Denon AVR-S570BT.
|Continuous 6 Ω Rated|
|Certified 4 Ω Performance|
|Mono Block Power Amplifier Construction|
|Maximum Channel Processing||5.1|
|D.D.S.C. HD Digital|
|Air Studios Monitor Certification|
|Dolby Atmos Height Virtualization|
|Dolby Atmos Music|
|Dolby Digital Plus|
|Dolby Surround Upmixer|
|Dolby Pro Logic||PLII|
|Dolby Digital EX|
|DTS-HD Master Audio|
|DTS-HD High Resolution Audio|
|Auro 3D with Auro-Matic Upmixer|
|Music Playback via USB||MP3, WMA, MPEG-4 AAC, Apple Lossless, WAV, FLAC, AIFF|
|High Resolution Music Playback via USB and/or Network||up to 192 kHz|
|High Resolution Audio Formats via USB||Apple Lossless, WAV, FLAC, AIFF|
|Multi-Channel Music File Playback via USB|
|DSD via HDMI|
|DSD via USB|
|DSD to PCM Converter|
|DTS Dialog Control|
|Dialog Level Adjustment|
|Compressed Music Enhancer|
|High-resolution Music Enhancer|
|Audyssey Dynamic EQ|
|Audyssey Dynamic Volume|
|Audyssey Sub EQ HT|
|Pure Direct Mode|
|Independent Subwoofer Outputs|
|Auto Speaker Calibration System with Mic.|
|Audyssey App Support|
|Optimized Bass Redirection|
|HLG (Hybrid Log Gamma)|
|BT.2020 color space|
|QMS (Quick Media Switching)|
|ALLM (Auto Low Latency Mode)|
|VRR (Variable Refresh Rate)|
|QFT (Quick Frame transport)|
|Video Signal Passthrough||up to 8K 50/60Hz and 4K 100/120Hz 4:4:4|
|Video Signal Upscaling||up to 8K 50/60Hz and 4K 100/120Hz 4:4:4|
|isf Certified Calibration Control|
|Works with Amazon Alexa|
|Works with SONOS|
|Apple Product Connection||iPod, iPhone and iPad|
|Remote App||Denon 2016 AVR Remote App for iOS and Android devices and Kindle Fire|
|InstaPrevue Input Source Prevue|
|Bluetooth Headphone Transmission|
|HDMI Outputs||1 x 8K|
|USB Input||1 (Front) for USB memory|
|USB DC Out Port|
|Analog Audio Line Input||2|
|Analog Audio Line Output|
|Composite Video Input|
|Composite Video Output|
|Component Video Input|
|Component Video Output|
|Front A/V Inputs||USB|
|Headphone Out||6.3 mm (1/4")|
|+12V Trigger Output|
|Remote (IR) Input/Output||0 / 0|
|Pre-programmed / Learnable / LCD Display||/ /|
|Detachable Power Cord|
|Denon Link HD|
|Quick Select plus / Quick Select||/|
|SiriusXM Internet Radio|
|Front Panel||not Metal|
|Large Speaker Terminals||5|
|Color-Coded Speaker Terminals|
|Transparent High-Grade Speaker Terminals|
|High Grade Audio Components|
|Gold plated RCA terminals|
|Power Supply||AC 120 V, 60 Hz|
|Power Consumption||310 W|
|No Sound Power||ECO On/Off: 26 W/35 W|
|Standby Power||0.1 W|
|ECO Mode / Hybrid Standby Function|
|Auto Power off|
|Dimensions (W x H x D)||434 mm x 151 mm x 330mm|
17 1/8" x 6" x 13"
|Dimensions of Package (W x H x D)||20.6" x 9.1" x 17.1"|
|Weight||7.6 kg (16 lbs 12 oz)|
|Weight of Package||16.8 lbs|
|Power Output (8 Ω, 20 Hz - 20 kHz, 2||70 W (0.08% THD)|
|Power Output (6 Ω, 1 kHz, 2||90 W (0.7% THD)|
|Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA)||140 W (10% THD)|
|Input Sensitivity and Impedance (Line)||200 mV/47 kΩ|
|S/N Ratio (Line, IHF-A)||98 dB|
|Frequency Response (Analog In)||+1/-3 dB (10 Hz to 100 kHz, Direct mode)|
|Bluetooth Frequency||2.4 GHz|
|USB Terminal||USB2.0 5V, 1 A|
|FM Frequency||87.5 MHz - 107.9 MHz|
|FM 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)||Mono: 2.8 µV (20.2 dBf)|
|FM Effective Sensitivity||1.2 µV (12.8 dBf)|
|FM S/N Ratio||Mono/Stereo: 70 dB/67 dB|
|FM Harmonic Distortion (IHF, 1 kHz)||Mono/Stereo: 0.7%/1.0%|
|AM Frequency||520 kHz - 1710 kHz|
|AM Effective Sensitivity||18 µV|
* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted
