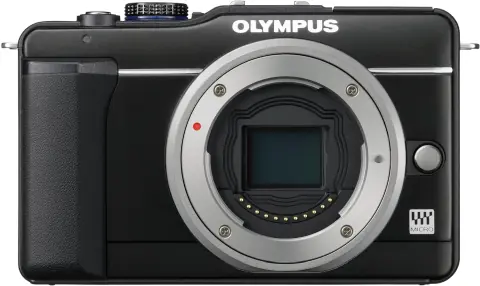

Olympus PEN E-PL1s vs Olympus PEN E-PL8

In this comparison, we will evaluate the Olympus PEN E-PL1s and the Olympus PEN E-PL8, highlighting the advantages of each over the other, discussing their pros and cons, shared strengths and weaknesses, and providing a rating based on their available features and specifications to assist you in choosing the one that best suits your needs.

Olympus PEN E-PL1s was introduced in November 2010 and Olympus PEN E-PL8 was introduced in September 2016. Let us first list highlights of the models.

Now that we've looked at the most essential specifications and gained a basic understanding of these cameras, we can delve into more details and see the differences between them.

This section shows those features and specifications which are the reason to choose Olympus PEN E-PL1s over Olympus PEN E-PL8.

This section shows those features and specifications which are the reason to choose Olympus PEN E-PL8 over Olympus PEN E-PL1s.

We already listed pros and cons of each model. However, you may also find useful to look at their common strengths and weaknesses shown side-by-side.

Screen

Olympus PEN E-PL1s has a 2.7" Fixed screen with 230k dot resolution and Olympus PEN E-PL8 has a 3.0" Tilting screen with 1,037k dot resolution. Tilting screen makes Olympus PEN E-PL8 very useful for photography purposes but not so useful for video shooting. Olympus PEN E-PL8 also features touchscreen which has advantages such as easy menu navigation, intuitive controls, quick setting adjustment and most importantly a Touch-to-Focus functionality (available only on Olympus PEN E-PL8) allowing users to select a specific point on the screen where they want the camera to focus. This feature can be helpful for achieving precise focus in both photo and video recording.

Cameras does not have built-in viewfinders but optional viewfinder can be attached.

Olympus PEN E-PL1s features a 12 megapixel Micro Four Thirds CMOS sensor with dimensions of 17.3 x 13 mm and a total area of 224.9 mm². Its native ISO range is 100 - 6,400. Olympus PEN E-PL8 features a 16.1 megapixel Micro Four Thirds CMOS sensor with dimensions of 17.3 x 13 mm and a total area of 169 mm². Its native ISO range is 200 - 25,600 and expands to 100 - 25,600 in boosted mode.

Here is a sensor size comparison chart where you can see how different sensors compare with each other:

Sensor size chart

	Sensor	Dimensions	Area	Aspect Ratio	Crop Factor
	Medium Format	44 x 33 mm	1452 mm2	4:3	0.79x
	Full Frame	36 x 24 mm	864 mm2	3:2	1x
	APS-H	27 x 18 mm	486 mm2	3:2	1.3x
	APS-C	23.6 x 15.6 mm	368.2 mm2	3:2	1.5x
	APS-C (Canon)	22.3 x 14.9 mm	332.3 mm2	3:2	1.6x
	Micro Four Thirds	17.4 x 13 mm	226.2 mm2	4:3	2x
	1-inch	13.2 x 8.8 mm	116.2 mm2	3:2	2.7x
	1/1.7-inch	7.44 x 5.58 mm	41.5 mm2	4:3	4.7x
	1/2.3-inch	6.17 x 4.55 mm	28.1 mm2	4:3	5.6x

Olympus PEN E-PL1s is equipped with Truepic V processor and can take pictures up to 4032 x 3024 resolution. It can also take pictures with lower resolution like 3200 x 2400, 2560 x 1920, 1600 x 1200, 1280 x 960, 1024 x 768, 640 x 480 with 4:3, 3:2, 16:9 aspect ratios. Olympus PEN E-PL8 is equipped with TruePic VII processor and can take pictures up to 4608 x 3456 resolution. It can also take pictures with lower resolution like 3200 x 2400, 1280 x 960 with 1:1, 4:3, 3:2, 16:9 aspect ratios.

Lens Mount

Cameras have Micro Four Thirds lens mount. Due to their Micro Four Thirds sensor their crop factor (also called lens multiplier) is equal to 2x. This means that a 35mm equivalent focal length of the mounted lens will be equal to its actual focal length times 2.

In-Body Image Stabilization

The cameras have a built-in in-body image stabilization (IBIS) (3.5 stops of compensation in Olympus PEN E-PL8). This means that you are still getting vibration reduction when cameras are paired with non-image stabilizied lenses. It also works with lenses with optical image stabilization and in combination can achieve even better compensation.

Built-in Wi-Fi on Olympus PEN E-PL8

Olympus PEN E-PL8 has a built-in Wi-Fi (802.11b/g/n, 2.4 GHz) which allows to easily transfer photos and videos from the camera to other Wi-Fi-enabled devices, such as smartphones, tablets, printers, or computers. This eliminates the need for cables and allows for quick and convenient media sharing and social media integration. It gives you the ability to control your camera remotely using a smartphone or tablet. This is particularly useful for taking self-portraits, group shots, or capturing images in challenging conditions without having to touch the camera. Firmware updates can also be downloaded and installed wirelessly.
  Check out the cameras in our database that have built-in WiFi.

USB Inputs and HDMI Outputs

Both models have USB 2.0 (480 Mbit/sec) inputs for data transfer. Olympus PEN E-PL1s has a Mini type C HDMI and Olympus PEN E-PL8 has a Micro HDMI connector for video signal output.

Battery

Olympus PEN E-PL1s comes with BLS-1 battery pack with battery life of 290 shots.

External Storage Slots

Olympus PEN E-PL1s has a single SD/SDHC card slot. Olympus PEN E-PL8 has a single SD/SDHC/SDXC card slot.

Shutter

Olympus PEN E-PL8 has Computerized focal-plane high-speed mechanical shutter. Shutter speed can go up to 1/2000 sec on Olympus PEN E-PL1s, and up to 1/4000 sec on Olympus PEN E-PL8. Olympus PEN E-PL1s can shoot continuously up to 3.0 fps. Olympus PEN E-PL8 can shoot continuously up to 8.0 fps.

Exposure

Exposure meterings of Olympus PEN E-PL8 ranges from -2 to +20 EV and you can set the exposure compensation within the ±3 EV range on Olympus PEN E-PL1s and ±5 EV range on Olympus PEN E-PL8. You can also do exposure bracketing and manual exposure adjustment on Olympus PEN E-PL1s and exposure lock, exposure bracketing and manual exposure adjustment on Olympus PEN E-PL8.

Flash

Olympus PEN E-PL1s has a built-in flash with maximum range of 10.00 m and also accepts external flash. Olympus PEN E-PL8 has no built-in flash but an external flash may be connected via Hot Shoe or Wireless connection. The fastest flash synchronization speed is 1/160 sec on Olympus PEN E-PL1s.

Olympus PEN E-PL1s body has dimensions of 115 x 72 x 42 mm (4.53 x 2.83 x 1.65") and Olympus PEN E-PL8 body has dimensions of 115 x 67 x 38 mm (4.53 x 2.64 x 1.5"). Olympus PEN E-PL1s weighs 334 g (0.74 lb / 11.78 oz) and Olympus PEN E-PL8 weighs 357 g (0.79 lb / 12.59 oz).

Olympus PEN E-PL1s

Olympus PEN E-PL8

115 mm

72 mm

115 mm

67 mm

72 mm

67 mm
