Pioneer VSX-1122-K vs Pioneer VSX-60

      Pioneer VSX-1122-K

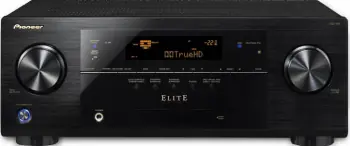

      Pioneer VSX-60
      72
      Image cannot be found
      71
      Image cannot be found
      USA
      USA
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Image cannot be found



      Highlights

      • 7.2 Channels
      • 7.1 Channel Processing
      • 90 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      • Bluetooth, Ethernet

      Highlights

      • 7.2 Channels
      • 7.1 Channel Processing
      • 90 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      • Bluetooth, Ethernet

      Disclosure: We earn money from the affiliate links to products associated with content in this article.

      Table of Contents
      1. Overview
      2. Pros and Cons
      3. Advantage of Pioneer VSX-1122-K
      4. Advantage of Pioneer VSX-60
      5. Common Strengths and Weaknesses
      6. Amplifier
      7. Speaker Configurations
      8. Immersive Audio Formats
      9. HDMI
      10. Inputs and Outputs
      11. Evaluations
      12. Specifications

      1. Overview

      Here we are comparing Pioneer VSX-1122-K to Pioneer VSX-60 to reveal their common strengths and weaknesses as well as the differences between them which will help you in making a correct decision before the purchase. Both receivers have 7 channel and equally powerful amplifiers.


      Pioneer VSX-1122-K Pioneer VSX-60

      Pioneer VSX-1122-K was introduced in 2012. It is equipped with 7 channel amplifier with 90 W (8 Ω, 20 Hz - 20 kHz and 2 channel driven) power per channel and is capable of 7.1 maximum channel processing. It , passes 1080/60p and upscales up to 1080/24p (Marvell Qdeo) video signal.

      Pioneer VSX-60 was introduced in 2012. It is equipped with 7 channel amplifier with 90 W (8 Ω, 20 Hz - 20 kHz and 2 channel driven) power per channel and is capable of 7.1 maximum channel processing. It , passes 1080/60p and upscales up to 1080/24p (Marvell Qdeo) video signal.

      We evaluated Pioneer VSX-1122-K and Pioneer VSX-60 and gave them scores of 72 and 71 out of 100 recpectively. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

      Pioneer VSX-1122-K

      Pioneer VSX-60

      Amplifier
      75
      Amplifier
      72
      Audio Features
      73
      Audio Features
      73
      Video Features
      54
      Video Features
      54
      Connectivity
      77
      Connectivity
      78
      Zones
      84
      Zones
      82
      Radio
      85
      Radio
      85
      OVERALL
      72
      OVERALL
      71

      For more details about the ranking please go to    Evaluations section.

      2. Pros and Cons

      In this section we present pros and cons of Pioneer VSX-1122-K and Pioneer VSX-60.

      PROS

      Pioneer VSX-1122-K

      Pioneer VSX-60

      •   Front Wide Channel Support
      •   DSD via HDMI
      •   Auto Speaker Calibration System with Mic.
      •   New HDCP Version
      •   Analog To HDMI Upconversion
      •   Bluetooth
      •   7 HDMI Inputs
      •   USB Input
      •   Composite Video Inputs
      •   Component Video Inputs
      •   Ethernet
      •   3 Zones
      •   Analog Tuner
      •   Pandora
      •   Front Wide Channel Support
      •   DSD via HDMI
      •   Auto Speaker Calibration System with Mic.
      •   New HDCP Version
      •   Analog To HDMI Upconversion
      •   Bluetooth
      •   7 HDMI Inputs
      •   USB Input
      •   Composite Video Inputs
      •   Component Video Inputs
      •   Ethernet
      •   Analog Tuner
      •   Pandora

      CONS

      Pioneer VSX-1122-K

      Pioneer VSX-60

      •   No Dolby Atmos
      •   No Dolby Atmos Height Virtualization
      •   No DTS:X
      •   No IMAX Enhanced
      •   No Auro 3D with Auro-Matic Upmixer
      •   No HDR10
      •   No HDR10+
      •   No Dolby Vision
      •   No eARC
      •   No 8K Passthrough
      •   Does not Work with Amazon Alexa
      •   1 HDMI Outputs
      •   0 8K Input
      •   No Phono Input
      •   No RCA Pre-Outs
      •   No Digital Radio
      •   No Spotify
      •   No Tidal
      •   No Dolby Atmos
      •   No Dolby Atmos Height Virtualization
      •   No DTS:X
      •   No IMAX Enhanced
      •   No Auro 3D with Auro-Matic Upmixer
      •   No HDR10
      •   No HDR10+
      •   No Dolby Vision
      •   No eARC
      •   No 8K Passthrough
      •   Does not Work with Amazon Alexa
      •   1 HDMI Outputs
      •   0 8K Input
      •   No Phono Input
      •   No RCA Pre-Outs
      •   No Digital Radio
      •   No Spotify
      •   No Tidal


      And here are some specifications which fall into average criteria and are neither in PROs nor in CONs category:

      AVERAGE

      Pioneer VSX-1122-K

      Pioneer VSX-60

      •   7.2 Channels
      •   Power Output - 90 W
      •   7.1 Channel Processing
      •   Wi-Fi
      •   RCA Line Inputs
      •   7.2 Channels
      •   Power Output - 90 W
      •   7.1 Channel Processing
      •   Wi-Fi
      •   RCA Line Inputs
      •   2 Zones

      3. Advantage of Pioneer VSX-1122-K

      This section shows those features and specifications which are the reason to choose Pioneer VSX-1122-K over Pioneer VSX-60.

      Check the Price

      Pioneer VSX-1122-K
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Pioneer VSX-1122-K vs Pioneer VSX-60
      More Zones 3 vs 2

      4. Advantage of Pioneer VSX-60

      This section shows those features and specifications which are the reason to choose Pioneer VSX-60 over Pioneer VSX-1122-K.

      Check the Price

      Pioneer VSX-60
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Pioneer VSX-1122-K vs Pioneer VSX-60
      Network Audio Formats WAV, MP3, WMA, MPEG-4 AAC, FLAC vs LPCM, WAV 192kHz, MP3, ACC, WMA, FLAC 192kHz
      Stream Smoother vs
      More RCA Line Outputs vs 1
      More Composite Video Outputs 1 vs 2
      More Component Video Inputs 1 vs 2
      More Component Video Outputs vs 1
      Detachable Power Cord vs
      RS-232C Interface vs
      +12V Trigger Output vs 1 (Main, Zone2, HDZone)
      On-Screen Display GUI vs GUI with Album Art
      Multi-Zone On-Screen Display vs
      IP Control for CI vs
      Longer Warranty 1 Year vs 2 Years

      5. Common Strengths and Weaknesses

      We already listed pros and cons of each model. However, you may also find useful to look at their common strengths and weaknesses shown side-by-side.

      STRENGTHS Pioneer VSX-1122-K Pioneer VSX-60
        Front Wide Channel Support
        DSD via HDMI 2-ch/Multi-ch Input 2-ch/Multi-ch Input
        Auto Speaker Calibration System with Mic. Advanced MCACC Advanced MCACC
        New HDCP Version2.22.2
        Analog To HDMI Upconversion Component****, Composite Component****, Composite
        Bluetooth via optional AS-BT100 or AS-BT200 adapters (sold separately) via optional AS-BT100 or AS-BT200 adapters (sold separately)
        Many HDMI Inputs7 (1 front)7 (1 front)
        USB Input1 Front1 Front
        Composite Video Inputs4 (1 front)4 (1 front)
        Component Video Inputs12
        Ethernet
        Analog Tuner FM/AM FM/AM
        Pandora
      WEAKNESSES Pioneer VSX-1122-K Pioneer VSX-60
        No Dolby Atmos
        No Dolby Atmos Height Virtualization
        No DTS:X
        No IMAX Enhanced
        No Auro 3D with Auro-Matic Upmixer
        No HDR10
        No HDR10+
        No Dolby Vision
        No eARC
        No 8K Passthroughup to 1080pup to 1080p
        Does not Work with Amazon Alexa
        Few HDMI Outputs11
        Few 8K Inputs
        No Phono Input
        No RCA Pre-Outs0.20.2
        No Digital Radio
        No Spotify
        No Tidal

      6. Amplifier

      Pioneer VSX-1122-K Pioneer VSX-60

      7 channel Direct Energy Amplifier: Pioneer VSX-1122-K features 7 channel power amplifier with Direct Energy design. It is rated at 90 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven).

      7 channel Direct Energy Amplifier: Pioneer VSX-60 features 7 channel power amplifier with Direct Energy design. It is rated at 90 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven).


        AMPLIFIER Pioneer VSX-1122-K Pioneer VSX-60
        Channels7.27.2
        Power Output90 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)90 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
        Front Wide Channel Support
        Amplifier DesignDirect EnergyDirect Energy
        THX™ Certification
        Continuous 6 Ω Rated
        Certified 4 Ω Performance
        Bi-amp Capability Front ChannelFront Channel

        Check the Price

        Pioneer VSX-1122-K
        Image cannot be found
        Image cannot be found
        Image cannot be found

        7. Speaker Configurations

        Pioneer VSX-1122-K's and Pioneer VSX-60's amplifiers can be assigned for different speaker configurations.

        • Configurations: Available configurations are:
        • Pioneer VSX-1122-K: 5.2, 7.2 with internal amplifier.
        • Pioneer VSX-60: 5.2, 7.2 with internal amplifier.
        • Front Wide Channel support: With the presence of two front wide speakers you can enhance the front surround stage. The following speaker configurations are available for front wide channels:
        • Pioneer VSX-1122-K: 7.2.
        • Pioneer VSX-60: 7.2.
        • 2-ch Bi-Amp: Both models are able to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.

        Check the Price

        Pioneer VSX-60
        Image cannot be found
        Image cannot be found
        Image cannot be found

        8. HDMI

        Pioneer VSX-1122-K and Pioneer VSX-60 come with 7 HDMI inputs. It has 1 output.

        • 1080/60p Passthrough: On both receivers all inputs pass up to 1080p video signal.
        • 1080p Upscaling: Both receivers can upscale up to 1080/24p (Marvell Qdeo) from HDMI and analog sources.
        • Analog To HDMI Upconversion: Both receivers support analog to HDMI Upconversion, so you can input your analog video sources and output them digitally via HDMI. This means that you will need only one HDMI cable to connect to your TV.
        • HDCP 2.2 Copy Protection: Both receivers are HDCP 2.2 compliant which is a requirement for 4K/HDR copy-protected content transmission.
        • 3D Ready: Both receivers are able to pass 3D video through HDMI.


        VIDEO FEATURES Pioneer VSX-1122-K Pioneer VSX-60
        HDR10
        HDR10+
        Dynamic HDR
        BT.2020 color space
        Dolby Vision
        HLG (Hybrid Log Gamma)
        HDBaseT Compatible
        Enhanced Audio Return Channel (eARC)
        HDCP Version2.22.2
        QMS (Quick Media Switching)
        ALLM (Auto Low Latency Mode)
        VRR (Variable Refresh Rate)
        QFT (Quick Frame transport)
        3-D Ready
        Video Signal Passthroughup to 1080pup to 1080p
        Video Signal Upscaling up to 1080/24p (Marvell Qdeo) up to 1080/24p (Marvell Qdeo)

        Check the Price

        Pioneer VSX-1122-K
        Image cannot be found
        Image cannot be found
        Image cannot be found

        9. Inputs and Outputs

        Audio

        • Analog Line Inputs and Outputs: There are 4 pair of line inputs on both receivers for connecting sources with analog outputs. There is also 1 pair of line outputs on Pioneer VSX-60.
        • Digital Inputs: 2 optical inputs and 2 coaxial inputs are available for digital audio connections on both receivers.
        • Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel of each receiver.

        Video

        • HDMI:
        • Pioneer VSX-1122-K
          Inputs:           7 (1 front)   Outputs: 1
          8K Inputs: 0.
        • Pioneer VSX-60
          Inputs:           7 (1 front)   Outputs: 1
          8K Inputs: 0.
        • Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
        • Pioneer VSX-1122-K
          Inputs:           4   Outputs: 1.
        • Pioneer VSX-60
          Inputs:           4   Outputs: 2.
        • Component Video: Component video connection gives you the higher quality video compared to the composite video connection. So in case your old DVD player and other equipment do not have an HDMI output but have Component video output use this connection over the composite one. Both receivers support up to 1080p (1125p) resolution on Component video connectors.
        • Pioneer VSX-1122-K
          Inputs:           1   Outputs: 0.
        • Pioneer VSX-60
          Inputs:           2   Outputs: 1.

        Front A/V Inputs

        • Pioneer VSX-1122-K: HDMI, USB, Composite Video
        • Pioneer VSX-60: HDMI, USB, Composite Video

        Pioneer VSX-1122-K

        Image cannot be found Image cannot be found

        Pioneer VSX-60

        Image cannot be found Image cannot be found
        TERMINALS Pioneer VSX-1122-K Pioneer VSX-60
        HDMI Inputs7 (1 front)7 (1 front)
        HDMI Outputs11
        8K Inputs
        USB Input1 Front1 Front
        USB DC Out Port1 Rear for AS-WL300 (5 V, 0.6 A)1 Rear for AS-WL300 (5 V, 0.6 A)
        Optical Inputs22
        Optical Outputs
        Coaxial Inputs22
        RCA Line Inputs44
        RCA Line Outputs1
        XLR Line Inputs
        Phono Input
        Multi-Channel Input
        RCA Pre-Outs0.20.2
        XLR Pre-outs
        Composite Video Inputs4 (1 front)4 (1 front)
        Composite Video Outputs12
        S-Video Inputs
        S-Video Outputs
        Component Video Inputs12
        Component Video Outputs1

        Check the Price

        Pioneer VSX-60
        Image cannot be found
        Image cannot be found
        Image cannot be found

        10. Evaluations

        We evaluated Pioneer VSX-1122-K and Pioneer VSX-60 and gave them scores of 72 and 71 out of 100 recpectively. We also gave separate scores for 7 different categories according to the available features and specifications some of which are listed below. These evaluations are relative and may change each time a new receiver is added to the database.


        Pioneer VSX-1122-K

        Pioneer VSX-60

        OVERALL
        72
        OVERALL
        71

        Amplifier

        GOOD
        75
        •   7.2 Channels
        •   Power Output - 90 W
        GOOD
        72
        •   7.2 Channels
        •   Power Output - 90 W

        Audio Features

        GOOD
        73
        •   7.2 Channels
        •   Front Wide Channel Support
        •   7.1 Channel Processing
        •   No Dolby Atmos
        •   No Dolby Atmos Height Virtualization
        •   No DTS:X
        •   No IMAX Enhanced
        •   No Auro 3D with Auro-Matic Upmixer
        •   DSD via HDMI
        GOOD
        73
        •   7.2 Channels
        •   Front Wide Channel Support
        •   7.1 Channel Processing
        •   No Dolby Atmos
        •   No Dolby Atmos Height Virtualization
        •   No DTS:X
        •   No IMAX Enhanced
        •   No Auro 3D with Auro-Matic Upmixer
        •   DSD via HDMI

        Video Features

        POOR
        54
        •   No HDR10
        •   No HDR10+
        •   No Dolby Vision
        •   No 8K Passthrough
        •   Analog To HDMI Upconversion
        POOR
        54
        •   No HDR10
        •   No HDR10+
        •   No Dolby Vision
        •   No 8K Passthrough
        •   Analog To HDMI Upconversion

        Connectivity

        GOOD
        77
        •   No eARC
        •   New HDCP Version
        •   Wi-Fi
        •   Bluetooth
        •   Does not Work with Amazon Alexa
        •   7 HDMI Inputs
        •   1 HDMI Outputs
        •   0 8K Input
        •   USB Input
        •   RCA Line Inputs
        •   No Phono Input
        •   No RCA Pre-Outs
        •   Composite Video Inputs
        •   Component Video Inputs
        •   Ethernet
        GOOD
        78
        •   No eARC
        •   New HDCP Version
        •   Wi-Fi
        •   Bluetooth
        •   Does not Work with Amazon Alexa
        •   7 HDMI Inputs
        •   1 HDMI Outputs
        •   0 8K Input
        •   USB Input
        •   RCA Line Inputs
        •   No Phono Input
        •   No RCA Pre-Outs
        •   Composite Video Inputs
        •   Component Video Inputs
        •   Ethernet

        Zones

        GOOD
        84
        •   3 Zones
        GOOD
        82
        •   2 Zones

        Radio

        EXCELLENT
        85
        •   Analog Tuner
        •   Pandora
        •   No Spotify
        •   No Tidal
        EXCELLENT
        85
        •   Analog Tuner
        •   Pandora
        •   No Spotify
        •   No Tidal

        11. Specifications

        GENERAL Pioneer VSX-1122-K Pioneer VSX-60
        BrandPioneerPioneer
        SeriesElite
        ModelVSX-1122-KVSX-60
        TypeA/V ReceiverA/V Receiver
        CountryUSAUSA
        Release Year20122012
        SuccessorPioneer VSX-1123-K Pioneer VSX-70
        AMPLIFIER Pioneer VSX-1122-K Pioneer VSX-60
        Channels7.27.2
        Power Output90 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)90 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
        Front Wide Channel Support
        Amplifier DesignDirect EnergyDirect Energy
        THX™ Certification
        Continuous 6 Ω Rated
        Certified 4 Ω Performance
        Bi-amp Capability Front ChannelFront Channel
        AUDIO FEATURES Pioneer VSX-1122-K Pioneer VSX-60
        Digital Signal Processing (DSP) EngineTexas Instruments AureusTI Aureus
        DAC Specs192 kHz/24 Bit192 kHz/24 Bit
        Maximum Channel Processing7.17.1
        Air Studios Monitor Certification
        Dolby Atmos
        Dolby Atmos Height Virtualization
        Dolby Atmos Music
        Dolby TrueHD with Loudness Management
        Dolby Digital Plus
        Dolby Surround Upmixer
        Dolby Pro Logic PLIIz PLIIz
        Dolby Digital EX
        Surround EX
        DTS:X
        DTS Neural:X
        DTS Virtual:X
        DTS Neo Neo:6 Neo:6
        DTS-HD Master Audio
        DTS-HD High Resolution Audio
        DTS 96/24
        DTS Express
        DTS-ES Discrete 6.1, Matrix 6.1 Discrete 6.1, Matrix 6.1
        IMAX Enhanced
        Auro 3D with Auro-Matic Upmixer
        PCM 2-ch/Multi-ch Input 2-ch/Multi-ch Input
        Network Audio FormatsWAV, MP3, WMA, MPEG-4 AAC, FLACLPCM, WAV 192kHz, MP3, ACC, WMA, FLAC 192kHz
        Music Playback via USBWAV, MP3, WMA, AAC, FLACWAV, MP3, WMA, AAC, FLAC,
        High Resolution Music Playback via USB and/or Network 88.2, 96, 176.4, 192 kHz/24 bit 88.2, 96, 176.4, 192 kHz/24 bit
        High Resolution Audio Formats via USBWAV/FLACWAV/FLAC
        Gapless Playback
        DSD via HDMI 2-ch/Multi-ch Input 2-ch/Multi-ch Input
        DSD to PCM Converter
        USB DAC
        Jitter Reduction plus PQLS (Bitstream) plus PQLS (HDMI Bitstream/ Multi)
        Auto Level ControlMulti-ChannelMulti-Channel
        Dialog Enhancement
        Dialogue Lift via Dialog Enhancement via Dialog Enhancement
        Sound Retriever Advanced (Multi-Channel / Auto with ARC) Advanced (Multi-Channel / Auto with ARC)
        Sound Retriever AIR
        Digital noise Reduction
        Tone Control Front L/R Channels Front L/R Channels
        Compressed Music Enhancer Advanced Sound Retriever Advanced Sound Retriever
        High-resolution Music Enhancer Hi-bit24 Audio Processing Hi-bit24 Audio Processing
        Digital Filter Slow Mode
        Audyssey Dynamic EQ
        Audyssey Dynamic Volume
        Audyssey LFC
        Audyssey Sub EQ HT
        Audyssey DSX
        Direct Mode
        Pure Direct Mode
        Auto Surround
        Optimum Surround
        Advanced Surround15+1 Mode DSP15 + Headphone Surround
        Wide Surround
        Front Stage Surround Advance (Focus, Wide) (Focus/Wide)
        Headphone Surround
        Virtual SpeakersSurround Back / Height / Depth / WideSurround Back / Height / Depth / Wide
        Virtual Depth
        Independent Subwoofer Outputs
        CALIBRATION Pioneer VSX-1122-K Pioneer VSX-60
        Auto Speaker Calibration System with Mic. Advanced MCACC Advanced MCACC
        Manual MCACC
        MCACC Memory66
        Auto Phase Control Plus
        Full Band Phase Control
        Standing Wave Control
        EQ Bands9-Band9
        Symmetric EQ
        X-Curve
        Distance Adjustment1/2 inch1/2 Inch
        Precision Distance
        Polarity Check
        Auto Subwoofer Crossover
        PC Display
        VIDEO FEATURES Pioneer VSX-1122-K Pioneer VSX-60
        HDR10
        HDR10+
        Dynamic HDR
        BT.2020 color space
        Dolby Vision
        HLG (Hybrid Log Gamma)
        HDBaseT Compatible
        Enhanced Audio Return Channel (eARC)
        HDCP Version2.22.2
        QMS (Quick Media Switching)
        ALLM (Auto Low Latency Mode)
        VRR (Variable Refresh Rate)
        QFT (Quick Frame transport)
        3-D Ready
        Video Signal Passthroughup to 1080pup to 1080p
        Video Signal Upscaling up to 1080/24p (Marvell Qdeo) up to 1080/24p (Marvell Qdeo)
        Analog To HDMI Upconversion Component****, Composite Component****, Composite
        Component Video Upscaling
        Analog to Analog Video conversion
        Component Video Maximum Resolution1080p (1125p)1080p (1125p)
        Stream Smoother
        Pure Cinema
        Video Parameter AdjustmentsStandard Definition Sources Detail, Sharpness, Brightness, Contrast, Hue, Chroma, YNR, Black LevelAdvanced Video Adjust - HD Sources Progressive Motion - YNR, CNR, BNR, MNR, Detail, Brightness, Contrast, Hue, Chroma, Black level
        Triple HD noise Reduction
        Super Resolution
        isf Certified Calibration Control
        CONNECTIVITY Pioneer VSX-1122-K Pioneer VSX-60
        Wi-Fi via optional AS-WL300 adapter (sold separately) via optional AS-WL300 adapter (sold separately)
        Bluetooth via optional AS-BT100 or AS-BT200 adapters (sold separately) via optional AS-BT100 or AS-BT200 adapters (sold separately)
        Works with Amazon Alexa
        Chromecast Built-In
        Works with SonoS
        DTS Play-Fi
        MHL Input
        DLNA 1.5
        AirPlay AirPlay AirPlay
        Apple Product Connection iPod, iPhone and iPad via front USBiPod/iPhone/iPad
        Remote AppiControlAV2012iControlAV2012 (iPad, iPhone, Android)
        InstaPrevue Input Source Prevue
        TERMINALS Pioneer VSX-1122-K Pioneer VSX-60
        HDMI Inputs7 (1 front)7 (1 front)
        HDMI Outputs11
        8K Inputs
        USB Input1 Front1 Front
        USB DC Out Port1 Rear for AS-WL300 (5 V, 0.6 A)1 Rear for AS-WL300 (5 V, 0.6 A)
        Optical Inputs22
        Optical Outputs
        Coaxial Inputs22
        RCA Line Inputs44
        RCA Line Outputs1
        XLR Line Inputs
        Phono Input
        Multi-Channel Input
        RCA Pre-Outs0.20.2
        XLR Pre-outs
        Composite Video Inputs4 (1 front)4 (1 front)
        Composite Video Outputs12
        S-Video Inputs
        S-Video Outputs
        Component Video Inputs12
        Component Video Outputs1
        Ethernet
        Ethernet Switch
        PC In
        Front A/V InputsHDMI, USB, Composite VideoHDMI, USB, Composite Video
        Speaker A/B
        Headphone Out6.3 mm (1/4")6.3 mm (1/4")
        Detachable Power Cord
        adapterport
        ZONES Pioneer VSX-1122-K Pioneer VSX-60
        Number of Zones32
        Powered Zones 2 2
        Zone 2 OutsRCA Pre/Line OutRCA Pre/Line Out
        RS-232C Interface
        +12V Trigger Output1 (Main, Zone2, HDZone)
        Remote (IR) Input/Output1 / 11 / 1
        MISCELLANEOUS Pioneer VSX-1122-K Pioneer VSX-60
        On-Screen DisplayGUIGUI with Album Art
        Multi-Zone On-Screen Display
        HDMI Speaker B Link
        AV Navigator
        PC Set-Up
        IP Control
        PreAmp Mode
        Versatile Speaker ConfigurationSurround Back/ Front Height/ Front Wide/ Front Bi-Amp/ Zone 2/ B-SpeakerBi-Amp / Zone 2 / B-Speaker / Surround Back / Front Height / Front Width
        FL Dimmer
        Function Rename
        Remote ControllerLearning Remote ControlLearning
        RADIO Pioneer VSX-1122-K Pioneer VSX-60
        Analog Tuner FM/AM FM/AM
        Presets6363
        Digital Radio
        Internet Radio vTuner vTuner
        Pandora
        Spotify
        Tidal
        Deezer
        Napster
        SiriusXM
        CONSTRUCTION Pioneer VSX-1122-K Pioneer VSX-60
        Chassis
        Front PanelBrushedHairline
        Solid Aluminum Front
        Speaker Terminals99
        Large Speaker Terminals99
        Color-Coded Speaker Terminals
        3D Space Frame Construction
        Gold plated RCA terminals
        POWER Pioneer VSX-1122-K Pioneer VSX-60
        Power SupplyAC 120 V, 60 HzAC 120 V, 60 Hz
        Low Leakage Flux Power Transformer
        Transformer Stabilizer
        Power Consumption550 W550 W
        Standby Power0.2 W0.2 W
        Auto Power Standby
        PHYSICAL Pioneer VSX-1122-K Pioneer VSX-60
        Dimensions (W x H x D)435 mm x 168 mm x 362.5 mm
        17-3/16" x 6-5/8" x 14-5/16"        		435 mm x 168 mm x 362.5 mm
        17-3/16" x 6-5/8" x 14-5/16"
        Weight9.9 kg (22 lbs)9.9 kg (22 lbs)
        SPECIFICATIONS Pioneer VSX-1122-K Pioneer VSX-60
        Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)90 W (0.08% THD)90 W (0.08% THD)
        Power Output (6 Ω, 1 kHz, 1 channel driven, FTC)165 W (1% THD)
        Input Sensitivity and Impedance (Line)315 mV/47 kΩ (Line)315 mV/47 kΩ (Line)
        Rated Lineout Level and Impedance315 mV/2.2 kΩ (REC OUT)
        S/N Ratio (Line, IHF-A)100 dB100 dB
        S/N Ratio (Line, EIA, at 1 W (1 kHz))81 dB81 dB
        DSD Sampling Rates via HDMI2.8 MHz2.8 MHz
        Video Input Sensitivity/Output Level and Impedance 1 Vp-p/75 Ω (Component Y)
        0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
        1 Vp-p/75 Ω (Composite)        		1 Vp-p/75 Ω (Component Y)
        0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
        1 Vp-p/75 Ω (Composite)
        Ethernet Standard10BASE-T/100BASE-TX10BASE-T/100BASE-TX
        HDMI Terminal19-pin (not DVI)19-pin (not DVI)
        HDMI Output Type5 V, 100 mA5 V, 100 Ma
        USB TerminalUSB2.0 (Type A) 5 V, 2.1 AUSB2.0 (Type A) 5 V, 2.1 A
        FM Frequency87.5 MHz - 108 MHz87.5 MHz - 108 MHz
        AM Frequency530 kHz - 1700 kHz530 kHz - 1700 kHz
        Warranty1 Year2 Years

        * - 480i/576i and 480p/576p only
        ** - 480i/576i only
        *** - no 1080p/24 upconversion
        **** - 1080p signal is not converted

        Amazon Affiliate Disclosure
        ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
