Marantz SR7012 vs Marantz SR7009

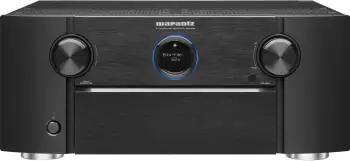

      Marantz SR7012

      Marantz SR7009
      92
      Image cannot be found
      86
      Image cannot be found
      USA
      UK
      USA
      UK
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Image cannot be found



      Highlights

      • 9.2 Channels
      • 11.2 Channel Processing
      • 125 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      • Dolby Atmos, DTS:X, Auro 3D
      • HDR10, Dolby Vision
      • 4K/60Hz Passthrough, 4K/60Hz Upscaling
      • Wi-Fi, Bluetooth, Ethernet
      • Phono Input

      Highlights

      • 9.2 Channels
      • 11.2 Channel Processing
      • 125 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      • Dolby Atmos, Auro 3D
      • 4K/60Hz Passthrough, 4K/60Hz Upscaling
      • Wi-Fi, Bluetooth, Ethernet
      • Phono Input

      Disclosure: We earn money from the affiliate links to products associated with content in this article.

      Table of Contents
      1. Overview
      2. Pros and Cons
      3. Advantage of Marantz SR7012
      4. Advantage of Marantz SR7009
      5. Common Strengths and Weaknesses
      6. Amplifier
      7. Speaker Configurations
      8. Immersive Audio Formats
      9. HDMI
      10. Inputs and Outputs
      11. Evaluations
      12. Specifications

      1. Overview

      Here we are comparing Marantz SR7012 to Marantz SR7009 to reveal their common strengths and weaknesses as well as the differences between them which will help you in making a correct decision before the purchase. Both receivers have 9 channel and equally powerful amplifiers.


      Marantz SR7012 Marantz SR7009

      Marantz SR7012 was introduced in 2017. It is equipped with 9 channel amplifier with 125 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 11.2 maximum channel processing. It supports Dolby Atmos, DTS:X and Auro-3D, passes 4K/60Hz and upscales up to 4K 50/60Hz 4:4:4 video signal.

      Marantz SR7009 was introduced in 2014 and represented a flagship model of a manufacturer. It is equipped with 9 channel amplifier with 125 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 11.2 maximum channel processing. It supports Dolby Atmos and Auro-3D, passes 4K/60Hz and upscales up to 4K 50/60Hz 4:4:4 video signal.

      We evaluated Marantz SR7012 and Marantz SR7009 and gave them scores of 92 and 86 out of 100 recpectively. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

      Marantz SR7012

      Marantz SR7009

      Amplifier
      90
      Amplifier
      92
      Audio Features
      91
      Audio Features
      88
      Video Features
      95
      Video Features
      73
      Connectivity
      92
      Connectivity
      90
      Zones
      93
      Zones
      92
      Radio
      93
      Radio
      82
      OVERALL
      92
      OVERALL
      86

      For more details about the ranking please go to    Evaluations section.

      2. Pros and Cons

      In this section we present pros and cons of Marantz SR7012 and Marantz SR7009.

      PROS

      Marantz SR7012

      Marantz SR7009

      •   High Power Output - 125 W
      •   11.2 Channel Processing
      •   Dolby Atmos
      •   DTS:X
      •   Auro 3D with Auro-Matic Upmixer
      •   DSD via HDMI
      •   Auto Speaker Calibration System with Mic.
      •   HDR10
      •   Dolby Vision
      •   eARC
      •   New HDCP Version
      •   Analog To HDMI Upconversion
      •   Wi-Fi
      •   Bluetooth
      •   Works with Amazon Alexa
      •   HEOS
      •   8 HDMI Inputs
      •   4 HDMI Outputs
      •   USB Input
      •   Many RCA Line Inputs
      •   Phono Input
      •   Multi-Channel Input
      •   RCA Pre-Outs
      •   Composite Video Inputs
      •   Component Video Inputs
      •   Ethernet
      •   3 Zones
      •   Analog Tuner
      •   Spotify
      •   Tidal
      •   High Power Output - 125 W
      •   Front Wide Channel Support
      •   11.2 Channel Processing
      •   Dolby Atmos
      •   Auro 3D with Auro-Matic Upmixer
      •   DSD via HDMI
      •   Auto Speaker Calibration System with Mic.
      •   New HDCP Version
      •   Analog To HDMI Upconversion
      •   Wi-Fi
      •   Bluetooth
      •   8 HDMI Inputs
      •   4 HDMI Outputs
      •   USB Input
      •   Many RCA Line Inputs
      •   Phono Input
      •   Multi-Channel Input
      •   RCA Pre-Outs
      •   Composite Video Inputs
      •   Component Video Inputs
      •   Ethernet
      •   3 Zones
      •   Analog Tuner
      •   Spotify

      CONS

      Marantz SR7012

      Marantz SR7009

      •   No Front Wide Channel Support
      •   No Dolby Atmos Height Virtualization
      •   No IMAX Enhanced
      •   No HDR10+
      •   No 8K Passthrough
      •   0 8K Input
      •   No Digital Radio
      •   No Pandora
      •   Bluetooth 3․0 + EDR
      •   No Dolby Atmos Height Virtualization
      •   No DTS:X
      •   No IMAX Enhanced
      •   No HDR10
      •   No HDR10+
      •   No Dolby Vision
      •   No eARC
      •   No 8K Passthrough
      •   Does not Work with Amazon Alexa
      •   0 8K Input
      •   No Digital Radio
      •   No Pandora
      •   No Tidal
      •   Bluetooth 2․1 + EDR


      And here are some specifications which fall into average criteria and are neither in PROs nor in CONs category:

      AVERAGE

      Marantz SR7012

      Marantz SR7009

      •   9.2 Channels
      •   9.2 Channels

      3. Advantage of Marantz SR7012

      This section shows those features and specifications which are the reason to choose Marantz SR7012 over Marantz SR7009.

      Check the Price

      Marantz SR7012
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Marantz SR7012 vs Marantz SR7009
      Higher DAC Specs 768 kHz/32 Bit vs []
      Dolby Surround Upmixer vs
      DTS:X up to 7.1.4 with external amp vs
      DTS Neural:X vs
      DTS Virtual:X vs
      Auro 3D with Auro-Matic Upmixer Built-In vs
      DTS Dialog Control vs
      Audyssey App Support vs
      Bass Sync vs
      HDR10 vs
      BT.2020 color space vs
      Dolby Vision vs
      HLG vs
      Enhanced Audio Return Channel (eARC) vs
      Works with Amazon Alexa vs
      HEOS vs
      AirPlay AirPlay 2 vs AirPlay
      Tidal vs
      Deezer vs
      Napster vs
      Higher DSD Sampling Rate via USB 5.6 MHz, 2.8 MHz vs 2.8 MHz
      Wi-Fi Standard IEEE 802.11 a/b/g/n vs IEEE 802.11 b/g/n
      Wi-Fi Terminal Frequency 5 GHz, 2.4 GHz vs 2.4 GHz
      Newer Bluetooth Version 3․0 + EDR vs 2․1 + EDR
      Wider AM Frequency Range 522 kHz - 1611 kHz vs 522 kHz - 1611 kHz

      4. Advantage of Marantz SR7009

      This section shows those features and specifications which are the reason to choose Marantz SR7009 over Marantz SR7012.

      Check the Price

      Marantz SR7009
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Marantz SR7012 vs Marantz SR7009
      Front Wide Channel Support vs
      Dolby Pro Logic vs PLIIz
      DTS Neo vs Neo:X
      Network Audio Formats MP3, WMA, MPEG-4 AAC, Apple Lossless, WAV, FLAC, DSD vs MP3, WMA, MPEG-4 AAC, Apple Lossless, WAV, FLAC, AIFF, DSD
      Music Playback via USB MP3, WMA, AAC, Apple Lossless, WAV, FLAC, DSD vs MP3, WMA, AAC, Apple Lossless, WAV, FLAC, AIFF, DSD
      High Resolution Audio Formats via USB Apple Lossless, WAV, FLAC, DSD vs Apple Lossless, WAV, FLAC, AIFF, DSD
      Dialog Enhancement vs
      Audyssey DSX vs
      More Advanced Auto Speaker Calibration System Audyssey MultEQ XT32 vs Audyssey MultEQ XT32 + PRO
      More RCA Pre-Outs 11.2 vs 13.2
      Web Control vs
      Pre-programmed / Learnable / LCD Display / / vs / /

      5. Common Strengths and Weaknesses

      We already listed pros and cons of each model. However, you may also find useful to look at their common strengths and weaknesses shown side-by-side.

      STRENGTHS Marantz SR7012 Marantz SR7009
        High Power Output125 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)125 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
        Channel Processing11.211.2
        Dolby Atmos up to 7.1.4 with external amp up to 7.1.4 or 9.1.2 with external amp
        Auro 3D with Auro-Matic Upmixer Built-In
        DSD via HDMI 2-ch/Multi-ch Input 2-ch/Multi-ch Input
        Auto Speaker Calibration System with Mic. Audyssey MultEQ XT32 Audyssey MultEQ XT32 + PRO
        New HDCP Version2.22.2
        Analog To HDMI Upconversion Component**, Composite Component, Composite
        Wi-Fi
        Bluetooth SBC
        Many HDMI Inputs8 (1 front)8 (1 front)
        Many HDMI Outputs3 (2 for MAIN, 1 for ZONE2)3 (2 for MAIN, 1 for ZONE2)
        USB Input1 (Front) for USB memory1 (Front) for iPod/iPhone and USB memory
        Many RCA Line Inputs6 (1 front)6 (1 front)
        Phono Input
        Multi-Channel Input 7.1 7.1
        RCA Pre-Outs11.213.2
        Composite Video Inputs4 (1 front)4 (1 front)
        Component Video Inputs33
        Ethernet
        Zones33
        Analog Tuner FM/AM with RDS FM/AM with RDS
        Spotify
      WEAKNESSES Marantz SR7012 Marantz SR7009
        No Dolby Atmos Height Virtualization
        No IMAX Enhanced
        No HDR10+
        No 8K Passthroughup to 4K 50/60Hz 4:4:4up to 4K 50/60Hz 4:4:4
        Few 8K Inputs
        No Digital Radio
        No Pandora
        Old Bluetooth Version3․0 + EDR2․1 + EDR

      6. Amplifier

      Marantz SR7012 Marantz SR7009

      9 channel Amplifier: Marantz SR7012 features 9 channel power amplifier. It is rated at 125 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.

      9 channel Amplifier: Marantz SR7009 features 9 channel power amplifier. It is rated at 125 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.
      • Current Feedback Topology: Marantz SR7012 and Marantz SR7009 feature Current Feedback Topology which is a well known, Marantz’ original circuit technology. The Current Feedback amplifier technology fits perfectly with the high requirements set for Super Audio software providing wide-bandwidth, high-speed reproduction. The impedance at the Current Feedback point is limited resulting in a very low phase shift. Marantz receivers and amplifiers equipped with Current Feedback can keep the phase compensation via Negative FeedBack (NFB) to a minimum, resulting in high through-rate, excellent transient response and superb sonic transparency for the full bandwidth. Unlike conventional Voltage Feedback amplification, the Current Feedback amplification makes the power amplifier in-sensitive to difficult loudspeaker loads.
      • HDAM (Hyper Dynamic Amplifier Module): Marantz SR7012 and Marantz SR7009 feature exclusive Marantz HDAM (Hyper Dynamic Amplifier Module) technology found on their Reference Series components. Marantz developed its own discrete circuit boards to replace standard IC's. These HDAM's consist of discrete surface mount components with short mirror image L/R signal paths. Those devices are doing exactly the same thing as the Op-Amps, but outperform the regular IC Op-amps dramatically in terms of the Slew Rate and reduced noise level, resulting in a much more dynamic, accurate and detailed sound. Over the years Marantz developed different types of the HDAM to improve quality and to fit to the special requirements of a product category like CD or amplifier.


      AMPLIFIER Marantz SR7012 Marantz SR7009
      Channels9.29.2
      Power Output125 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)125 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      Front Wide Channel Support
      Current Feedback Topology
      Discrete Amplification
      HDAM
      THX™ Certification
      Continuous 6 Ω Rated
      Certified 4 Ω Performance
      Bi-amp Capability assignable assignable

      Check the Price

      Marantz SR7012
      Image cannot be found
      Image cannot be found
      Image cannot be found

      7. Speaker Configurations

      Marantz SR7012's and Marantz SR7009's amplifiers can be assigned for different speaker configurations.

      • Dolby Atmos Configurations: The following speaker configurations are supported for Dolby Atmos:
      • Marantz SR7012: 5.2.2, 5.2.4, 7.2.2 with internal amplifier and 7.2.4 with addition of external 2 channel amplifier.
      • Marantz SR7009: 5.2.2, 5.2.4, 7.2.2 with internal amplifier and 7.2.4, 9.2.2 with addition of external 2 channel amplifier.
      • DTS:X Configurations: The following speaker configurations are supported for DTS:X:
      • Marantz SR7012: The speaker configurations for DTS:X are the same as for Dolby Atmos - 5.2.2, 5.2.4, 7.2.2 with internal amplifier and 7.2.4 with addition of external 2 channel amplifier.
      • Marantz SR7009: Not supported.
      • Configurations without height channels: There are also other speaker configurations available which do not include height channels:
      • Marantz SR7012: 5.2, 7.2 with internal amplifier.
      • Marantz SR7009: 5.2, 7.2, 9.2 with internal amplifier.
      • Front Wide Channel support: With the presence of two front wide speakers you can enhance the front surround stage. The following speaker configurations are available for front wide channels:
      • Marantz SR7012: Does not support.
      • Marantz SR7009: 9.2, 9.2.2.
      • 2-ch Bi-Amp: Both models are able to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.

      8. Immersive Audio Formats

      Dolby Atmos

      Marantz SR7012 and Marantz SR7009 support Dolby Atmos.

      • Dolby Surround Upmixer: Marantz SR7012 supports Dolby Surround Upmixer. If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.

      DTS:X

      Marantz SR7012 supports DTS:X.

      • DTS Neural:X: Marantz SR7012 supports DTS Neural:X which is an advanced upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.
      • DTS Virtual:X: Marantz SR7012 supports DTS Virtual:X which bridges the gap between DTS:X codec and the reality of so many consumers' homes, allowing you to enjoy multi-dimensional sound regardless of room size, layout, or speaker configuration. If you have a limited speaker setup you will miss a full immersive potential of your entertainment system. DTS Virtual:X adds height and surround audio effect to your system without adding height speakers. It works with multiple configurations and delivers immersive sound experience out of 5.1 or even 2.1 speaker layouts.
      • DTS Dialog Control: Marantz SR7012 supports DTS Dialog Control. This function adjusts the dialog levels during playback of the DTS:X stream. It allows you to separately increase the dialog levels in contrast with the background sound and hear dialog easily even under noisy circumstances.

      Auro-3D

      Marantz SR7012 and Marantz SR7009 support Auro-3D.

      • Auro-Matic upmixer: Auro-Matic upmixer takes non Auro-3D sound and upmixes to the current speaker configuration.

      Audyssey DSX

      Marantz SR7009 supports Audyssey DSX which allows you to augment a standard five-channel home theater with either two Front Wide or two Front High speakers. The Wide channels create an expansive soundstage and bring out convincing directional effects. Alternatively, Height channels can add a vertical dimension to movie and game soundtracks.


      AUDIO DECODING Marantz SR7012 Marantz SR7009
      Dolby Atmos up to 7.1.4 with external amp up to 7.1.4 or 9.1.2 with external amp
      Dolby Atmos Height Virtualization
      Dolby Atmos Music
      Dolby TrueHD
      Dolby Digital Plus
      Dolby Surround Upmixer
      Dolby Pro Logic PLIIz
      Dolby Digital EX
      Surround EX
      DTS:X up to 7.1.4 with external amp
      DTS Neural:X
      DTS Virtual:X
      DTS Neo Neo:X
      DTS-HD Master Audio
      DTS-HD High Resolution Audio
      DTS 96/24
      DTS Express
      DTS-ES Discrete 6.1, Matrix 6.1 Discrete 6.1, Matrix 6.1
      IMAX Enhanced
      Auro 3D with Auro-Matic Upmixer Built-In

      Check the Price

      Marantz SR7009
      Image cannot be found
      Image cannot be found
      Image cannot be found

      9. HDMI

      Marantz SR7012 and Marantz SR7009 come with 8 HDMI inputs. It has 3 outputs - 2 for MAIN and 1 for ZONE2.

      • 4K/60Hz Passthrough: On both receivers all inputs pass up to 4K 50/60Hz 4:4:4 video signal.
      • 4K Upscaling: Both receivers can upscale up to 4K 50/60Hz 4:4:4 from HDMI and analog sources.
      • Analog To HDMI Upconversion: Both receivers support analog to HDMI Upconversion, so you can input your analog video sources and output them digitally via HDMI. This means that you will need only one HDMI cable to connect to your TV.
      • BT.2020 Color Space: BT.2020 or Rec. 2020 is a color standard which delivers a wider color gamut compared to Rec. 709. It covers approximately 75% of the total visual spectrum while the Rec. 709 covers only 35% (available on Marantz SR7012 only).
      • HDCP 2.2 Copy Protection: Both receivers are HDCP 2.2 compliant which is a requirement for 4K/HDR copy-protected content transmission.
      • 3D Ready: Both receivers are able to pass 3D video through HDMI.

      HDR (High Dynamic Range)

      Marantz SR7012 supports HDR10, Dolby Vision and Hybrid Log-Gamma.

      Marantz SR7009 does not support HDR. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.


      Enhanced Audio Return Channel (eARC)

      Marantz SR7012 supports Audio Return Channel (ARC) which allows the compatible TV to send audio signal to the a/v receiver through the same HDMI cable which is used to send audio and video signals to the TV. So one HDMI cable is used to transfer audio signal in both directions. New Enhanced ARC will support uncompressed audio formats such as Dolby Atmos, DTS:X, Dolby TrueHD and DTS HD Master Audio whereas the previous ARC could support only Dolby Digital, Dolby Digital Plus, DTS, DTS HD, and PCM.



      VIDEO FEATURES Marantz SR7012 Marantz SR7009
      HDR10
      HDR10+
      Dynamic HDR
      BT.2020 color space
      Dolby Vision
      HLG (Hybrid Log Gamma)
      HDBaseT Compatible
      Enhanced Audio Return Channel (eARC)
      HDCP Version2.22.2
      QMS (Quick Media Switching)
      ALLM (Auto Low Latency Mode)
      VRR (Variable Refresh Rate)
      QFT (Quick Frame transport)
      3-D Ready
      Video Signal Passthroughup to 4K 50/60Hz 4:4:4up to 4K 50/60Hz 4:4:4
      Video Signal Upscaling up to 4K 50/60Hz 4:4:4 up to 4K 50/60Hz 4:4:4

      Check the Price

      Marantz SR7012
      Image cannot be found
      Image cannot be found
      Image cannot be found

      10. Inputs and Outputs

      Audio

      • Phono Input: There is an MM phono input on Marantz SR7012 and Marantz SR7009 with built-in phono stage for connecting the moving magnet cartridge output of the turntable directly to the receiver.
      • 7.1 Multichannel Input: In case you have a high quality Blu-Ray or a DVD player with multichannel analog outputs you may connect it to a 7.1 multichannel analog inputs of Marantz SR7012 and Marantz SR7009 and use high quality DACs of the player instead of the ones in the receiver.
      • Analog Pre-Outs: Marantz SR7012 has 11.2 and Marantz SR7009 has 13.2 preamplifier outputs which allow you to connect the receivers to the external power amplifiers. You may want to use a high quality external amplifier for certain channels, usually for front L/R and center, and use the receiver to power the rest. Also, both receivers have 11 channel processing but have only 9 channel amplifiers, so they need external amplifiers connected to the analog pre-outs in order to reach their maximum speaker configurations.
      • Analog Line Inputs: There are 6 pair of line inputs on both receivers for connecting sources with analog outputs.
      • Digital Inputs: 2 optical inputs and 2 coaxial inputs are available for digital audio connections on both receivers.
      • Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel of each receiver.

      Video

      • HDMI:
      • Marantz SR7012
        Inputs:         8 (1 front)   Outputs: 3 (2 for MAIN, 1 for ZONE2)
        8K Inputs: 0.
      • Marantz SR7009
        Inputs:         8 (1 front)   Outputs: 3 (2 for MAIN, 1 for ZONE2)
        8K Inputs: 0.
      • Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
      • Marantz SR7012
        Inputs:         4   Outputs: 1.
      • Marantz SR7009
        Inputs:         4   Outputs: 1.
      • Component Video: Component video connection gives you the higher quality video compared to the composite video connection. So in case your old DVD player and other equipment do not have an HDMI output but have Component video output use this connection over the composite one. resolution on Component video connectors.
      • Marantz SR7009 supports up to 1080p resolution on Component video connectors.
      • Marantz SR7012
        Inputs:         3   Outputs: 1.
      • Marantz SR7009
        Inputs:         3   Outputs: 1.

      Front A/V Inputs

      • Marantz SR7012: HDMI, USB, Composite, L/R Audio
      • Marantz SR7009: HDMI, USB, Composite, L/R Audio

      Marantz SR7012

      Image cannot be found Image cannot be found

      Marantz SR7009

      Image cannot be found Image cannot be found
      TERMINALS Marantz SR7012 Marantz SR7009
      HDMI Inputs8 (1 front)8 (1 front)
      HDMI Outputs3 (2 for MAIN, 1 for ZONE2)3 (2 for MAIN, 1 for ZONE2)
      8K Inputs
      USB Input1 (Front) for USB memory1 (Front) for iPod/iPhone and USB memory
      USB DC Out Port
      Optical Inputs22
      Optical Outputs
      Coaxial Inputs22
      RCA Line Inputs6 (1 front)6 (1 front)
      RCA Line Outputs
      XLR Line Inputs
      Phono Input
      Multi-Channel Input 7.1 7.1
      RCA Pre-Outs11.213.2
      XLR Pre-outs
      Composite Video Inputs4 (1 front)4 (1 front)
      Composite Video Outputs11
      S-Video Inputs
      S-Video Outputs
      Component Video Inputs33
      Component Video Outputs11

      Check the Price

      Marantz SR7009
      Image cannot be found
      Image cannot be found
      Image cannot be found

      11. Evaluations

      We evaluated Marantz SR7012 and Marantz SR7009 and gave them scores of 92 and 86 out of 100 recpectively. We also gave separate scores for 7 different categories according to the available features and specifications some of which are listed below. These evaluations are relative and may change each time a new receiver is added to the database.


      Marantz SR7012

      Marantz SR7009

      OVERALL
      92
      OVERALL
      86

      Amplifier

      EXCELLENT
      90
      •   9.2 Channels
      •   High Power Output - 125 W
      EXCELLENT
      92
      •   9.2 Channels
      •   High Power Output - 125 W

      Audio Features

      EXCELLENT
      91
      •   9.2 Channels
      •   No Front Wide Channel Support
      •   11.2 Channel Processing
      •   Dolby Atmos
      •   No Dolby Atmos Height Virtualization
      •   DTS:X
      •   No IMAX Enhanced
      •   Auro 3D with Auro-Matic Upmixer
      •   DSD via HDMI
      EXCELLENT
      88
      •   9.2 Channels
      •   Front Wide Channel Support
      •   11.2 Channel Processing
      •   Dolby Atmos
      •   No Dolby Atmos Height Virtualization
      •   No DTS:X
      •   No IMAX Enhanced
      •   Auro 3D with Auro-Matic Upmixer
      •   DSD via HDMI

      Video Features

      EXCELLENT
      95
      •   HDR10
      •   No HDR10+
      •   Dolby Vision
      •   No 8K Passthrough
      •   Analog To HDMI Upconversion
      GOOD
      73
      •   No HDR10
      •   No HDR10+
      •   No Dolby Vision
      •   No 8K Passthrough
      •   Analog To HDMI Upconversion

      Connectivity

      EXCELLENT
      92
      •   eARC
      •   New HDCP Version
      •   Wi-Fi
      •   Bluetooth
      •   Works with Amazon Alexa
      •   HEOS
      •   8 HDMI Inputs
      •   4 HDMI Outputs
      •   0 8K Input
      •   USB Input
      •   Many RCA Line Inputs
      •   Phono Input
      •   Multi-Channel Input
      •   RCA Pre-Outs
      •   Composite Video Inputs
      •   Component Video Inputs
      •   Ethernet
      •   Bluetooth 3․0 + EDR
      EXCELLENT
      90
      •   No eARC
      •   New HDCP Version
      •   Wi-Fi
      •   Bluetooth
      •   Does not Work with Amazon Alexa
      •   8 HDMI Inputs
      •   4 HDMI Outputs
      •   0 8K Input
      •   USB Input
      •   Many RCA Line Inputs
      •   Phono Input
      •   Multi-Channel Input
      •   RCA Pre-Outs
      •   Composite Video Inputs
      •   Component Video Inputs
      •   Ethernet
      •   Bluetooth 2․1 + EDR

      Zones

      EXCELLENT
      93
      •   3 Zones
      EXCELLENT
      92
      •   3 Zones

      Radio

      EXCELLENT
      93
      •   Analog Tuner
      •   No Pandora
      •   Spotify
      •   Tidal
      GOOD
      82
      •   Analog Tuner
      •   No Pandora
      •   Spotify
      •   No Tidal

      12. Specifications

      GENERAL Marantz SR7012 Marantz SR7009
      BrandMarantzMarantz
      ModelSR7012SR7009
      TypeA/V ReceiverA/V Receiver
      CountryUKUK
      Release Year20172014
      PredecessorMarantz SR7011
      SuccessorMarantz SR7013 Marantz SR7010
      AMPLIFIER Marantz SR7012 Marantz SR7009
      Channels9.29.2
      Power Output125 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)125 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      Front Wide Channel Support
      Current Feedback Topology
      Discrete Amplification
      HDAM
      THX™ Certification
      Continuous 6 Ω Rated
      Certified 4 Ω Performance
      Bi-amp Capability assignable assignable
      AUDIO FEATURES Marantz SR7012 Marantz SR7009
      Digital Signal Processing (DSP) Enginethree 32-bit and four 24-bit DSP
      DACAKM AK4458
      DAC Specs768 kHz/32 Bit
      Maximum Channel Processing11.211.2
      Air Studios Monitor Certification
      Dolby Atmos up to 7.1.4 with external amp up to 7.1.4 or 9.1.2 with external amp
      Dolby Atmos Height Virtualization
      Dolby Atmos Music
      Dolby TrueHD
      Dolby Digital Plus
      Dolby Surround Upmixer
      Dolby Pro Logic PLIIz
      Dolby Digital EX
      Surround EX
      DTS:X up to 7.1.4 with external amp
      DTS Neural:X
      DTS Virtual:X
      DTS Neo Neo:X
      DTS-HD Master Audio
      DTS-HD High Resolution Audio
      DTS 96/24
      DTS Express
      DTS-ES Discrete 6.1, Matrix 6.1 Discrete 6.1, Matrix 6.1
      IMAX Enhanced
      Auro 3D with Auro-Matic Upmixer Built-In
      PCM 2-ch/Multi-ch Input 2-ch/Multi-ch Input
      Network Audio FormatsMP3, WMA, MPEG-4 AAC, Apple Lossless, WAV, FLAC, DSDMP3, WMA, MPEG-4 AAC, Apple Lossless, WAV, FLAC, AIFF, DSD
      Music Playback via USBMP3, WMA, AAC, Apple Lossless, WAV, FLAC, DSDMP3, WMA, AAC, Apple Lossless, WAV, FLAC, AIFF, DSD
      High Resolution Music Playback via USB and/or Network up to 192 kHz up to 192 kHz
      High Resolution Audio Formats via USBApple Lossless, WAV, FLAC, DSDApple Lossless, WAV, FLAC, AIFF, DSD
      Gapless Playback
      DSD via HDMI 2-ch/Multi-ch Input 2-ch/Multi-ch Input
      DSD via USB 2-ch Input 2-ch Input
      DSD to PCM Converter
      USB DAC
      Jitter Reduction
      DTS Dialogue Control
      Dialog Enhancement
      Dialog Level Adjustment
      Dialog normalization
      Dialogue Lift
      Compressed Music Enhancer MDAX2 MDAX2
      High-resolution Music Enhancer
      Audyssey Dynamic EQ
      Audyssey Dynamic Volume
      Audyssey LFC
      Audyssey Sub EQ HT
      Audyssey DSX
      Direct Mode
      Pure Direct Mode
      Independent Subwoofer Outputs
      CALIBRATION Marantz SR7012 Marantz SR7009
      Auto Speaker Calibration System with Mic. Audyssey MultEQ XT32 Audyssey MultEQ XT32 + PRO
      Audyssey App Support
      Optimized Bass Redirection
      Bass Sync
      VIDEO FEATURES Marantz SR7012 Marantz SR7009
      HDR10
      HDR10+
      Dynamic HDR
      BT.2020 color space
      Dolby Vision
      HLG (Hybrid Log Gamma)
      HDBaseT Compatible
      Enhanced Audio Return Channel (eARC)
      HDCP Version2.22.2
      QMS (Quick Media Switching)
      ALLM (Auto Low Latency Mode)
      VRR (Variable Refresh Rate)
      QFT (Quick Frame transport)
      3-D Ready
      Video Signal Passthroughup to 4K 50/60Hz 4:4:4up to 4K 50/60Hz 4:4:4
      Video Signal Upscaling up to 4K 50/60Hz 4:4:4 up to 4K 50/60Hz 4:4:4
      Analog To HDMI Upconversion Component**, Composite Component, Composite
      Component Video Upscaling
      Analog to Analog Video conversion
      Component Video Maximum Resolution1080p
      isf Certified Calibration Control
      CONNECTIVITY Marantz SR7012 Marantz SR7009
      Wi-Fi
      Bluetooth SBC
      Works with Amazon Alexa
      Chromecast Built-In
      Works with SonoS
      HEOS
      DTS Play-Fi
      MHL Input
      DLNA 1.5
      Domotz Pro Compatible
      Remote Monitoring with ihiji
      OvrC Compatible
      AirPlay AirPlay 2 AirPlay
      Apple Product Connection iPod, iPhone and iPad iPod, iPhone and iPad
      Remote App Marantz 2016 AVR Remote App for iOS and Android devices Marantz Remote App for iOS and Android devices
      InstaPrevue Input Source Prevue
      TERMINALS Marantz SR7012 Marantz SR7009
      HDMI Inputs8 (1 front)8 (1 front)
      HDMI Outputs3 (2 for MAIN, 1 for ZONE2)3 (2 for MAIN, 1 for ZONE2)
      8K Inputs
      USB Input1 (Front) for USB memory1 (Front) for iPod/iPhone and USB memory
      USB DC Out Port
      Optical Inputs22
      Optical Outputs
      Coaxial Inputs22
      RCA Line Inputs6 (1 front)6 (1 front)
      RCA Line Outputs
      XLR Line Inputs
      Phono Input
      Multi-Channel Input 7.1 7.1
      RCA Pre-Outs11.213.2
      XLR Pre-outs
      Composite Video Inputs4 (1 front)4 (1 front)
      Composite Video Outputs11
      S-Video Inputs
      S-Video Outputs
      Component Video Inputs33
      Component Video Outputs11
      Ethernet
      Ethernet Switch
      PC In
      Front A/V InputsHDMI, USB, Composite, L/R AudioHDMI, USB, Composite, L/R Audio
      Speaker A/B assignable assignable
      Headphone Out6.3 mm (1/4")6.3 mm (1/4")
      Detachable Power Cord
      Flasher In
      Remote Control In/Out1 / 11 / 1
      ZONES Marantz SR7012 Marantz SR7009
      Number of Zones33
      Powered Zones 2 and 3 2 and 3
      Zone 2 OutsHDMI, Component, Composite, Pre OutHDMI, Component, Composite, Pre Out
      Zone 3 OutsPre OutPre Out
      RS-232C Interface
      +12V Trigger Output22
      MISCELLANEOUS Marantz SR7012 Marantz SR7009
      On-Screen Display Advanced Graphic User Interface Advanced Graphic User Interface
      GUI Languages99
      Web Control
      IP Control
      Display 2 lines + port hole 2 lines + port hole
      Remote ControllerRC035SRRC026SR
      Pre-programmed / Learnable / LCD Display / / / /
      Setup Assistant
      RADIO Marantz SR7012 Marantz SR7009
      Analog Tuner FM/AM with RDS FM/AM with RDS
      Digital Radio
      Internet Radio TuneIn
      Pandora
      Spotify
      Tidal
      Deezer
      Napster
      SiriusXM
      CONSTRUCTION Marantz SR7012 Marantz SR7009
      ChassisBig trapdoor design
      Front PanelMetalAluminum
      Solid Aluminum Front
      Speaker Terminals1111
      Large Speaker Terminals1111
      Color-Coded Speaker Terminals
      Transparent High-Grade Speaker Terminals
      High Grade Audio Components
      Gold plated RCA terminals
      POWER Marantz SR7012 Marantz SR7009
      Power SupplyAC 230 V, 50/60 HzAC 230 V, 50/60 Hz
      Toroidal Transformer (EI)
      Power Consumption710 W710 W
      No Sound PowerECO On/Off: 65 W/110 WECO On/Off: 65 W/110 W
      Standby Power0.2 W0.2 W
      ECO Mode / Hybrid Standby Function
      Auto Power off
      PHYSICAL Marantz SR7012 Marantz SR7009
      Dimensions (W x H x D)440 mm x 185 mm x 411 mm (with antenna: 440 mm x 247 mm x 411 mm)
      17-3/8" x 7-3/8" x 16-1/4" (with antenna: 17-3/8" x 9-3/4" x 16-1/4"      		440 mm x 185 mm x 411 mm (with antenna: 440 mm x 247 mm x 411 mm)
      17-21/64" x 7-9/32" x 16-3/16" (with antenna up: 17-21/64" x 9-23/32" x 16-3/16")
      Weight14.2 kg (31 lbs 5 oz)13.8 kg (30 lbs 7 oz)
      SPECIFICATIONS Marantz SR7012 Marantz SR7009
      Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)125 W (0.05% THD)125 W (0.08% THD)
      Power Output (6 Ω, 1 kHz, 2 channel driven, FTC)165 W (0.7% THD)165 W (0.7% THD)
      Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA or IEC)235 W (10% THD)
      Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)200 W (1% THD)200 W (1% THD)
      THD (Digital)0.008% (1 kHz, at 0 dB)0.008% (1 kHz, at 0 dB)
      Analog Distortion0.005% (20 Hz-20 kHz, Direct mode)0.005% (20 Hz-20 kHz, Direct mode)
      Phono Distortion0.03% (1 kHz, 3 V)0.03% (1 kHz, 3 V)
      Input Sensitivity and Impedance (Line)200 mV/47 kΩ200 mV/47 kΩ
      Input Sensitivity and Impedance (Phono MM)2.5 mV2.5 mV
      Rated Output digital2 V (at 0 dB playback)2 V (at 0 dB playback)
      S/N Ratio (Line, IHF-A)100 dB100 dB
      S/N Ratio (Phono MM, IHF-A)74 dB74 dB
      S/N Ratio (digital)102 dB102 dB
      Dynamic Range (digital)100 dB100 dB
      Phono RIAA Deviation±1 dB (20 Hz to 20 kHz)±1 dB (20 Hz to 20 kHz)
      Frequency Response (Analog In)+1/-3 dB (10 Hz to 100 kHz, Direct mode)+1/-3 dB (10 Hz to 100 kHz, Direct mode)
      DSD Sampling Rates via HDMI2.8 MHz2.8 MHz
      DSD Sampling Rates via USB5.6 MHz, 2.8 MHz2.8 MHz
      Video Input Sensitivity/Output Level and Impedance 1 Vp-p/75 Ω (Component Y)
      0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
      1 Vp-p/75 Ω (Composite)      		1 Vp-p/75 Ω (Component Y)
      0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
      1 Vp-p/75 Ω (Composite)
      Video Frequency Response5 Hz - 60 MHz, 0, -3 dB (Component)
      5 Hz - 10 MHz, 0, -3 dB (Composite)      		5 Hz to 60 MHz, 0 dB/-3 dB (Component)
      5 Hz to 10 MHz, 0 dB/-3 dB (Composite)
      Ethernet Standard100BASE-TX100BASE-TX
      Wi-Fi StandardIEEE 802.11 a/b/g/nIEEE 802.11 b/g/n
      Wi-Fi Terminal Frequency5 GHz, 2.4 GHz2.4 GHz
      Bluetooth Version3․0 + EDR2․1 + EDR
      Bluetooth Frequency2.4 GHz2.4 GHz
      USB TerminalUSB2.0 5V, 1 AUSB2.0 5V, 1 A
      FM Frequency87.5 MHz - 108.0 MHz87.5 MHz - 108.0 MHz
      FM Effective Sensitivity1.2 µV (12.8 dBf)
      FM S/N RatioMono/Stereo: 70 dB/67 dB
      FM Harmonic Distortion (IHF, 1 kHz)Mono/Stereo: 0.7%/1.0%
      AM Frequency522 kHz - 1611 kHz522 kHz - 1611 kHz
      AM Effective Sensitivity18 µV18 µV
      Warranty3 Years3 Years

      * - 480i/576i and 480p/576p only
      ** - 480i/576i only
      *** - no 1080p/24 upconversion
      **** - 1080p signal is not converted

      Amazon Affiliate Disclosure
      ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
