Denon AVR-X3200W vs Denon AVR-S510BT

      Denon AVR-X3200W

      Denon AVR-S510BT
      88
      Image cannot be found
      64
      Image cannot be found
      USA
      UK
      USA
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Image cannot be found



      Highlights

      • 7.2 Channels
      • 7.1 Channel Processing
      • 105 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      • Dolby Atmos, DTS:X
      • HDR10, Dolby Vision
      • 4K/60Hz Passthrough, 4K/60Hz Upscaling
      • Wi-Fi, Bluetooth, Ethernet

      Highlights

      • 5.2 Channels
      • 5.1 Channel Processing
      • 70 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      • 4K/60Hz Passthrough
      • Bluetooth

      Disclosure: We earn money from the affiliate links to products associated with content in this article.

      Table of Contents
      1. Overview
      2. Pros and Cons
      3. Advantage of Denon AVR-X3200W
      4. Advantage of Denon AVR-S510BT
      5. Common Strengths and Weaknesses
      6. Amplifier
      7. Speaker Configurations
      8. Immersive Audio Formats
      9. HDMI
      10. Inputs and Outputs
      11. Evaluations
      12. Specifications

      1. Overview

      Here we are comparing Denon AVR-X3200W to Denon AVR-S510BT to reveal their common strengths and weaknesses as well as the differences between them which will help you in making a correct decision before the purchase. The Denon AVR-X3200W has 7 channel and the Denon AVR-S510BT has 5 channel amplifiers with Denon AVR-X3200W's being more powerful.


      Denon AVR-X3200W Denon AVR-S510BT

      Denon AVR-X3200W was introduced in 2015. It is equipped with 7 channel amplifier with 105 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 7.1 maximum channel processing. It supports Dolby Atmos and DTS:X, passes 4K/60Hz and upscales up to 4K 50/60Hz 4:4:4 video signal.

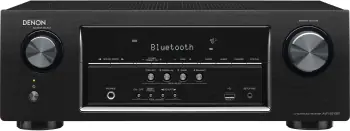

      Denon AVR-S510BT was introduced in 2015. It is equipped with 5 channel amplifier with 70 W (8 Ω, 20 Hz - 20 kHz and 2 channel driven) power per channel and is capable of 5.1 maximum channel processing. It , passes 4K/60Hz video signal.

      We evaluated Denon AVR-X3200W and Denon AVR-S510BT and gave them scores of 88 and 64 out of 100 recpectively. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

      Denon AVR-X3200W

      Denon AVR-S510BT

      Amplifier
      88
      Amplifier
      69
      Audio Features
      85
      Audio Features
      58
      Video Features
      96
      Video Features
      66
      Connectivity
      83
      Connectivity
      67
      Zones
      84
      Zones
      55
      Radio
      82
      Radio
      61
      OVERALL
      88
      OVERALL
      64

      For more details about the ranking please go to    Evaluations section.

      2. Pros and Cons

      In this section we present pros and cons of Denon AVR-X3200W and Denon AVR-S510BT.

      PROS

      Denon AVR-X3200W

      Denon AVR-S510BT

      •   Dolby Atmos
      •   DTS:X
      •   DSD via HDMI
      •   Auto Speaker Calibration System with Mic.
      •   HDR10
      •   Dolby Vision
      •   New HDCP Version
      •   Auto Low Latency Mode Pass-through
      •   Analog To HDMI Upconversion
      •   Wi-Fi
      •   Bluetooth
      •   8 HDMI Inputs
      •   USB Input
      •   RCA Pre-Outs
      •   Composite Video Inputs
      •   Component Video Inputs
      •   Ethernet
      •   Analog Tuner
      •   Spotify
      •   Auto Speaker Calibration System with Mic.
      •   New HDCP Version
      •   Bluetooth
      •   USB Input
      •   Composite Video Inputs
      •   Analog Tuner

      CONS

      Denon AVR-X3200W

      Denon AVR-S510BT

      •   No Front Wide Channel Support
      •   No Dolby Atmos Height Virtualization
      •   No IMAX Enhanced
      •   No Auro 3D with Auro-Matic Upmixer
      •   No HDR10+
      •   No eARC
      •   No 8K Passthrough
      •   Does not Work with Amazon Alexa
      •   0 8K Input
      •   No Phono Input
      •   No Digital Radio
      •   No Pandora
      •   No Tidal
      •   Bluetooth 2․1 + EDR
      •   Few Channels - 5.2
      •   Low Power Output - 70 W
      •   5.1 Channel Processing
      •   No Dolby Atmos
      •   No Dolby Atmos Height Virtualization
      •   No DTS:X
      •   No IMAX Enhanced
      •   No Auro 3D with Auro-Matic Upmixer
      •   No DSD via HDMI
      •   No HDR10
      •   No HDR10+
      •   No Dolby Vision
      •   No eARC
      •   No 8K Passthrough
      •   No Wi-Fi
      •   Does not Work with Amazon Alexa
      •   1 HDMI Outputs
      •   0 8K Input
      •   Few RCA Line Inputs
      •   No Phono Input
      •   No RCA Pre-Outs
      •   No Ethernet
      •   No Zones
      •   No Digital Radio
      •   No Pandora
      •   No Spotify
      •   No Tidal
      •   Bluetooth 2․1 + EDR


      And here are some specifications which fall into average criteria and are neither in PROs nor in CONs category:

      AVERAGE

      Denon AVR-X3200W

      Denon AVR-S510BT

      •   7.2 Channels
      •   Power Output - 105 W
      •   7.1 Channel Processing
      •   3 HDMI Outputs
      •   RCA Line Inputs
      •   2 Zones
      •   5 HDMI Inputs

      3. Advantage of Denon AVR-X3200W

      This section shows those features and specifications which are the reason to choose Denon AVR-X3200W over Denon AVR-S510BT.

      Check the Price

      Denon AVR-X3200W
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Denon AVR-X3200W vs Denon AVR-S510BT
      More Channels 7.2 vs 5.2
      Higher Power Output 105 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) vs 70 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      Discrete Amplification vs
      Certified 4 Ω Performance vs
      Bi-amp capability assignable vs
      More Channel Processing 7.1 vs 5.1
      Dolby Atmos vs
      Dolby Surround Upmixer vs
      Dolby Digital EX vs
      DTS:X vs
      DTS Neural:X vs
      DTS-ES Discrete 6.1, Matrix 6.1 vs
      Network Audio Formats MP3, WMA, MPEG-4 AAC, Apple Lossless, WAV, FLAC, AIFF, DSD vs
      Music Playback via USB MP3, WMA, AAC, Apple Lossless, WAV, FLAC, AIFF, DSD vs MP3, WMA, AAC, WAV, FLAC
      Higher Resolution Music Playback via USB up to 192 kHz vs up to 96 kHz
      High Resolution Audio Formats via USB Apple Lossless, WAV, FLAC, AIFF, DSD vs FLAC
      Gapless Playback vs
      DSD via HDMI 2-ch/Multi-ch Input vs
      DSD via USB 2-ch Input vs
      DTS Dialog Control vs
      Dialog Level Adjustment vs
      Audyssey Dynamic EQ vs
      Audyssey Dynamic Volume vs
      Pure Direct Mode vs
      More Advanced Auto Speaker Calibration System Audyssey MultEQ XT vs
      Optimized Bass Redirection vs
      HDR10 vs
      BT.2020 color space vs
      Dolby Vision vs
      HLG vs
      Auto Low Latency Mode Pass-through vs
      Video Signal Upscaling up to 4K 50/60Hz 4:4:4 vs
      Analog To HDMI Upconversion Component, Composite vs
      isf Certified Calibration Control vs
      Wi-Fi vs
      DLNA 1.5 vs
      More HDMI Inputs 8 (1 front) vs 5
      More HDMI Outputs 2 (1 for MAIN, 1 for ZONE2) vs 1
      More Coaxial Inputs/Outputs 2 vs 1
      More RCA Line Inputs 5 vs 2
      More RCA Pre-Outs 7.2 vs 0.2
      More Composite Video Inputs 3 vs 2
      More Component Video Inputs 2 vs
      Ethernet vs
      Front A/V Inputs HDMI, USB vs USB
      Speaker A/B assignable vs
      Detachable Power Cord vs
      More Zones 2 vs 1
      RS-232C Interface vs
      +12V Trigger Output 1 vs
      Remote (IR) Input/Output 1 / 1 vs []
      On-Screen Display Advanced Graphic User Interface vs
      More GUI Languages 9 vs 1
      Control4 SDDP vs
      Quick Select plus / Quick Select / vs /
      Analog Tuner FM/AM with RDS vs FM/AM
      Internet Radio vTuner vs
      Spotify vs
      More Speaker Terminals 7 vs 5
      More Large Speaker Terminals 7 vs
      High Grade Audio Components vs
      Bigger Power Supply 600 W vs 310 W
      Higher Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC) 105 W (0.08% THD) vs 70 W (0.08% THD)
      Higher Power Output (6 Ω, 1 kHz, 2 channel driven, FTC) 135 W (0.7% THD) vs 90 W (0.7% THD)
      Higher Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA) 215 W (10% THD) vs 140 W (10% THD)
      Higher S/N Ratio (Line, IHF-A) 102 dB vs 98 dB

      4. Advantage of Denon AVR-S510BT

      This section shows those features and specifications which are the reason to choose Denon AVR-S510BT over Denon AVR-X3200W.

      Check the Price

      Denon AVR-S510BT
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Denon AVR-X3200W vs Denon AVR-S510BT
      Dolby Pro Logic vs PLII
      DTS Neo vs Neo:6
      More Composite Video Outputs vs 1
      Wider AM Frequency Range 522 kHz - 1611 kHz vs 520 kHz - 1710 kHz

      5. Common Strengths and Weaknesses

      We already listed pros and cons of each model. However, you may also find useful to look at their common strengths and weaknesses shown side-by-side.

      STRENGTHS Denon AVR-X3200W Denon AVR-S510BT
        Auto Speaker Calibration System with Mic. Audyssey MultEQ XT
        New HDCP Version2.22.2
        Bluetooth
        USB Input1 (Front) for iPod/iPhone and USB memory1 (Front) for USB memory
        Composite Video Inputs32
        Analog Tuner FM/AM with RDS FM/AM
      WEAKNESSES Denon AVR-X3200W Denon AVR-S510BT
        No Dolby Atmos Height Virtualization
        No IMAX Enhanced
        No Auro 3D with Auro-Matic Upmixer
        No HDR10+
        No eARC
        No 8K Passthroughup to 4K 50/60Hz 4:4:4up to 4K 50/60Hz 4:4:4
        Does not Work with Amazon Alexa
        Few 8K Inputs
        No Phono Input
        No Digital Radio
        No Pandora
        No Tidal
        Old Bluetooth Version2․1 + EDR2․1 + EDR

      6. Amplifier

      Denon AVR-X3200W Denon AVR-S510BT

      7 channel Amplifier: Denon AVR-X3200W features 7 channel power amplifier. It is rated at 105 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.

      5 channel Amplifier: Denon AVR-S510BT features 5 channel power amplifier. It is rated at 70 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven).


        AMPLIFIER Denon AVR-X3200W Denon AVR-S510BT
        Channels7.25.2
        Power Output105 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)70 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
        Discrete Amplification
        THX™ Certification
        Continuous 6 Ω Rated
        Certified 4 Ω Performance
        Mono Block Power Amplifier Construction
        Bi-amp Capability assignable

        Check the Price

        Denon AVR-X3200W
        Image cannot be found
        Image cannot be found
        Image cannot be found

        7. Speaker Configurations

        Denon AVR-X3200W's and Denon AVR-S510BT's amplifiers can be assigned for different speaker configurations.

        • Dolby Atmos Configurations: The following speaker configurations are supported for Dolby Atmos:
        • Denon AVR-X3200W: 5.2.2 with internal amplifier.
        • Denon AVR-S510BT: Not supported.
        • DTS:X Configurations: The following speaker configurations are supported for DTS:X:
        • Denon AVR-X3200W: The speaker configurations for DTS:X are the same as for Dolby Atmos - 5.2.2 with internal amplifier.
        • Denon AVR-S510BT: Not supported.
        • Configurations without height channels: There are also other speaker configurations available which do not include height channels:
        • Denon AVR-X3200W: 5.2, 7.2 with internal amplifier.
        • Denon AVR-S510BT: 5.2 with internal amplifier.
        • Bi-Amp: Denon AVR-X3200W is able to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.

        8. Immersive Audio Formats

        Dolby Atmos

        Denon AVR-X3200W supports Dolby Atmos.

        • Dolby Surround Upmixer: Denon AVR-X3200W supports Dolby Surround Upmixer. If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.

        DTS:X

        Denon AVR-X3200W supports DTS:X.

        • DTS Neural:X: Denon AVR-X3200W supports DTS Neural:X which is an advanced upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.
        • DTS Dialog Control: Denon AVR-X3200W supports DTS Dialog Control. This function adjusts the dialog levels during playback of the DTS:X stream. It allows you to separately increase the dialog levels in contrast with the background sound and hear dialog easily even under noisy circumstances.
        AUDIO DECODING Denon AVR-X3200W Denon AVR-S510BT
        Dolby Atmos
        Dolby Atmos Height Virtualization
        Dolby Atmos Music
        Dolby TrueHD
        Dolby Digital Plus
        Dolby Surround Upmixer
        Dolby Pro Logic PLII
        Dolby Digital EX
        Surround EX
        DTS:X
        DTS Neural:X
        DTS Virtual:X
        DTS Neo Neo:6
        DTS-HD Master Audio
        DTS-HD High Resolution Audio
        DTS 96/24
        DTS Express
        DTS-ES Discrete 6.1, Matrix 6.1
        IMAX Enhanced
        Auro 3D with Auro-Matic Upmixer

        Check the Price

        Denon AVR-S510BT
        Image cannot be found
        Image cannot be found
        Image cannot be found

        9. HDMI

        Denon AVR-X3200W comes with 8 HDMI inputs. It has 2 outputs - 1 for MAIN and 1 for ZONE2.

        Denon AVR-S510BT comes with 5 HDMI inputs. It has 1 output.

        • 4K/60Hz Passthrough: On both receivers all inputs pass up to 4K 50/60Hz 4:4:4 video signal.
        • 4K Upscaling on Denon AVR-X3200W: It can upscale up to 4K 50/60Hz 4:4:4 from HDMI and analog sources.
        • Analog To HDMI Upconversion: Denon AVR-X3200W supports analog to HDMI Upconversion, so you can input your analog video sources and output them digitally via HDMI. This means that you will need only one HDMI cable to connect to your TV.
        • BT.2020 Color Space: BT.2020 or Rec. 2020 is a color standard which delivers a wider color gamut compared to Rec. 709. It covers approximately 75% of the total visual spectrum while the Rec. 709 covers only 35% (available on Denon AVR-X3200W only).
        • HDCP 2.2 Copy Protection: Both receivers are HDCP 2.2 compliant which is a requirement for 4K/HDR copy-protected content transmission.
        • 3D Ready: Both receivers are able to pass 3D video through HDMI.

        HDR (High Dynamic Range)

        Denon AVR-X3200W supports HDR10, Dolby Vision and Hybrid Log-Gamma.

        Denon AVR-S510BT does not support HDR. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.


        Gaming Features

        Denon AVR-X3200W supports Auto Low Latency Mode (ALLM) for lag-free and smooth gaming.



        VIDEO FEATURES Denon AVR-X3200W Denon AVR-S510BT
        HDR10
        HDR10+
        Dynamic HDR
        BT.2020 color space
        Dolby Vision
        HLG (Hybrid Log Gamma)
        HDBaseT Compatible
        Enhanced Audio Return Channel (eARC)
        HDCP Version2.22.2
        QMS (Quick Media Switching)
        ALLM (Auto Low Latency Mode)
        VRR (Variable Refresh Rate)
        QFT (Quick Frame transport)
        3-D Ready
        Video Signal Passthroughup to 4K 50/60Hz 4:4:4up to 4K 50/60Hz 4:4:4
        Video Signal Upscaling up to 4K 50/60Hz 4:4:4

        Check the Price

        Denon AVR-X3200W
        Image cannot be found
        Image cannot be found
        Image cannot be found

        10. Inputs and Outputs

        Audio

        • Analog Pre-Outs: Denon AVR-X3200W has 7.2 preamplifier outputs which allows you to connect the receiver to the external power amplifier. You may want to use a high quality external amplifier for certain channels, usually for front L/R and center, and use the receiver to power the rest.
        • Analog Line Inputs: There are 5 pair of line inputs on Denon AVR-X3200W and 2 pair of line inputs on Denon AVR-S510BT for connecting sources with analog outputs.
        • Digital Inputs: 2 optical inputs and 2 coaxial inputs are available on Denon AVR-X3200W and 2 optical inputs and 1 coaxial input are available on Denon AVR-S510BT for digital audio connections.
        • Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel of each receiver.

        Video

        • HDMI:
        • Denon AVR-X3200W
          Inputs:           8 (1 front)   Outputs: 2 (1 for MAIN, 1 for ZONE2)
          8K Inputs: 0.
        • Denon AVR-S510BT
          Inputs:           5   Outputs: 1
          8K Inputs: 0.
        • Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
        • Denon AVR-X3200W
          Inputs:           3   Outputs: 0.
        • Denon AVR-S510BT
          Inputs:           2   Outputs: 1.
        • Component Video: Component video connection gives you the higher quality video compared to the composite video connection. So in case your old DVD player and other equipment do not have an HDMI output but have Component video output use this connection over the composite one.
        • Denon AVR-X3200W supports up to 1080p resolution on Component video connectors. resolution on Component video connectors.
        • Denon AVR-X3200W
          Inputs:           2   Outputs: 0.
        • Denon AVR-S510BT
          Inputs:           0   Outputs: 0.

        Front A/V Inputs

        • Denon AVR-X3200W: HDMI, USB
        • Denon AVR-S510BT: USB

        Denon AVR-X3200W

        Image cannot be found Image cannot be found

        Denon AVR-S510BT

        Image cannot be found Image cannot be found
        TERMINALS Denon AVR-X3200W Denon AVR-S510BT
        HDMI Inputs8 (1 front)5
        HDMI Outputs2 (1 for MAIN, 1 for ZONE2)1
        8K Inputs
        USB Input1 (Front) for iPod/iPhone and USB memory1 (Front) for USB memory
        USB DC Out Port
        Optical Inputs22
        Optical Outputs
        Coaxial Inputs21
        RCA Line Inputs52
        RCA Line Outputs
        XLR Line Inputs
        Phono Input
        Multi-Channel Input
        RCA Pre-Outs7.20.2
        XLR Pre-outs
        Composite Video Inputs32
        Composite Video Outputs1
        S-Video Inputs
        S-Video Outputs
        Component Video Inputs2
        Component Video Outputs

        Check the Price

        Denon AVR-S510BT
        Image cannot be found
        Image cannot be found
        Image cannot be found

        11. Evaluations

        We evaluated Denon AVR-X3200W and Denon AVR-S510BT and gave them scores of 88 and 64 out of 100 recpectively. We also gave separate scores for 7 different categories according to the available features and specifications some of which are listed below. These evaluations are relative and may change each time a new receiver is added to the database.


        Denon AVR-X3200W

        Denon AVR-S510BT

        OVERALL
        88
        OVERALL
        64

        Amplifier

        EXCELLENT
        88
        •   7.2 Channels
        •   Power Output - 105 W
        AVERAGE
        69
        •   Few Channels - 5.2
        •   Low Power Output - 70 W

        Audio Features

        EXCELLENT
        85
        •   7.2 Channels
        •   No Front Wide Channel Support
        •   7.1 Channel Processing
        •   Dolby Atmos
        •   No Dolby Atmos Height Virtualization
        •   DTS:X
        •   No IMAX Enhanced
        •   No Auro 3D with Auro-Matic Upmixer
        •   DSD via HDMI
        AVERAGE
        58
        •   Few Channels - 5.2
        •   5.1 Channel Processing
        •   No Dolby Atmos
        •   No Dolby Atmos Height Virtualization
        •   No DTS:X
        •   No IMAX Enhanced
        •   No Auro 3D with Auro-Matic Upmixer
        •   No DSD via HDMI

        Video Features

        EXCELLENT
        96
        •   HDR10
        •   No HDR10+
        •   Dolby Vision
        •   Auto Low Latency Mode Pass-through
        •   No 8K Passthrough
        •   Analog To HDMI Upconversion
        AVERAGE
        66
        •   No HDR10
        •   No HDR10+
        •   No Dolby Vision
        •   No 8K Passthrough

        Connectivity

        GOOD
        83
        •   No eARC
        •   New HDCP Version
        •   Wi-Fi
        •   Bluetooth
        •   Does not Work with Amazon Alexa
        •   8 HDMI Inputs
        •   3 HDMI Outputs
        •   0 8K Input
        •   USB Input
        •   RCA Line Inputs
        •   No Phono Input
        •   RCA Pre-Outs
        •   Composite Video Inputs
        •   Component Video Inputs
        •   Ethernet
        •   Bluetooth 2․1 + EDR
        AVERAGE
        67
        •   No eARC
        •   New HDCP Version
        •   No Wi-Fi
        •   Bluetooth
        •   Does not Work with Amazon Alexa
        •   5 HDMI Inputs
        •   1 HDMI Outputs
        •   0 8K Input
        •   USB Input
        •   Few RCA Line Inputs
        •   No Phono Input
        •   No RCA Pre-Outs
        •   Composite Video Inputs
        •   No Ethernet
        •   Bluetooth 2․1 + EDR

        Zones

        GOOD
        84
        •   2 Zones
        AVERAGE
        55
        •   No Zones

        Radio

        GOOD
        82
        •   Analog Tuner
        •   No Pandora
        •   Spotify
        •   No Tidal
        AVERAGE
        61
        •   Analog Tuner
        •   No Pandora
        •   No Spotify
        •   No Tidal

        12. Specifications

        GENERAL Denon AVR-X3200W Denon AVR-S510BT
        BrandDenonDenon
        ModelAVR-X3200WAVR-S510BT
        TypeA/V ReceiverA/V Receiver
        CountryUKUSA
        Release Year20152015
        PredecessorDenon AVR-X3100W
        SuccessorDenon AVR-X3300W
        AMPLIFIER Denon AVR-X3200W Denon AVR-S510BT
        Channels7.25.2
        Power Output105 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)70 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
        Front Wide Channel Support
        Discrete Amplification
        THX™ Certification
        Continuous 6 Ω Rated
        Certified 4 Ω Performance
        Mono Block Power Amplifier Construction
        Bi-amp Capability assignable
        AUDIO FEATURES Denon AVR-X3200W Denon AVR-S510BT
        Digital Signal Processing (DSP) EngineAdvanced quad-core 32-bit DSP processors
        DAC Specs192 kHz/24 Bit192 kHz/24 Bit
        Maximum Channel Processing7.15.1
        D.D.S.C. HD Digital
        Alpha Processing
        Air Studios Monitor Certification
        Dolby Atmos
        Dolby Atmos Height Virtualization
        Dolby Atmos Music
        Dolby TrueHD
        Dolby Digital Plus
        Dolby Surround Upmixer
        Dolby Pro Logic PLII
        Dolby Digital EX
        Surround EX
        DTS:X
        DTS Neural:X
        DTS Virtual:X
        DTS Neo Neo:6
        DTS-HD Master Audio
        DTS-HD High Resolution Audio
        DTS 96/24
        DTS Express
        DTS-ES Discrete 6.1, Matrix 6.1
        IMAX Enhanced
        Auro 3D with Auro-Matic Upmixer
        PCM 2-ch/Multi-ch Input
        Network Audio FormatsMP3, WMA, MPEG-4 AAC, Apple Lossless, WAV, FLAC, AIFF, DSD
        Music Playback via USBMP3, WMA, AAC, Apple Lossless, WAV, FLAC, AIFF, DSDMP3, WMA, AAC, WAV, FLAC
        High Resolution Music Playback via USB and/or Network up to 192 kHz up to 96 kHz
        High Resolution Audio Formats via USBApple Lossless, WAV, FLAC, AIFF, DSDFLAC
        Gapless Playback
        DSD via HDMI 2-ch/Multi-ch Input
        DSD via USB 2-ch Input
        DSD to PCM Converter
        USB DAC
        Jitter Reduction
        DTS Dialogue Control
        Dialog Enhancement
        Dialog Level Adjustment
        Dialog normalization
        Dialogue Lift
        Compressed Music Enhancer
        High-resolution Music Enhancer
        Audyssey Dynamic EQ
        Audyssey Dynamic Volume
        Audyssey LFC
        Audyssey Sub EQ HT
        Audyssey DSX
        Direct Mode
        Pure Direct Mode
        Independent Subwoofer Outputs
        CALIBRATION Denon AVR-X3200W Denon AVR-S510BT
        Auto Speaker Calibration System with Mic. Audyssey MultEQ XT
        Audyssey App Support
        Optimized Bass Redirection
        Bass Sync
        VIDEO FEATURES Denon AVR-X3200W Denon AVR-S510BT
        HDR10
        HDR10+
        Dynamic HDR
        BT.2020 color space
        Dolby Vision
        HLG (Hybrid Log Gamma)
        HDBaseT Compatible
        Enhanced Audio Return Channel (eARC)
        HDCP Version2.22.2
        QMS (Quick Media Switching)
        ALLM (Auto Low Latency Mode)
        VRR (Variable Refresh Rate)
        QFT (Quick Frame transport)
        3-D Ready
        Video Signal Passthroughup to 4K 50/60Hz 4:4:4up to 4K 50/60Hz 4:4:4
        Video Signal Upscaling up to 4K 50/60Hz 4:4:4
        Analog To HDMI Upconversion Component, Composite
        Component Video Upscaling
        Analog to Analog Video conversion
        Component Video Maximum Resolution1080p
        isf Certified Calibration Control
        CONNECTIVITY Denon AVR-X3200W Denon AVR-S510BT
        Wi-Fi
        Bluetooth
        Bluetooth Headphone Transmission
        Works with Amazon Alexa
        Chromecast Built-In
        Works with SonoS
        HEOS
        DTS Play-Fi
        MHL Input
        DLNA 1.5
        AirPlay AirPlay AirPlay
        Apple Product Connection iPod, iPhone and iPad iPod, iPhone and iPad
        Remote App Denon Remote App for iOS and Android devices Denon Remote App for iOS and Android devices
        InstaPrevue Input Source Prevue
        TERMINALS Denon AVR-X3200W Denon AVR-S510BT
        HDMI Inputs8 (1 front)5
        HDMI Outputs2 (1 for MAIN, 1 for ZONE2)1
        8K Inputs
        USB Input1 (Front) for iPod/iPhone and USB memory1 (Front) for USB memory
        USB DC Out Port
        Optical Inputs22
        Optical Outputs
        Coaxial Inputs21
        RCA Line Inputs52
        RCA Line Outputs
        XLR Line Inputs
        Phono Input
        Multi-Channel Input
        RCA Pre-Outs7.20.2
        XLR Pre-outs
        Composite Video Inputs32
        Composite Video Outputs1
        S-Video Inputs
        S-Video Outputs
        Component Video Inputs2
        Component Video Outputs
        Ethernet
        Ethernet Switch
        PC In
        Front A/V InputsHDMI, USBUSB
        Speaker A/B assignable
        Headphone Out6.3 mm (1/4")6.3 mm (1/4")
        Detachable Power Cord
        ZONES Denon AVR-X3200W Denon AVR-S510BT
        Number of Zones21
        Powered Zones 2
        Zone 2 OutsHDMI, Pre Out
        RS-232C Interface
        +12V Trigger Output1
        Remote (IR) Input/Output1 / 1
        MISCELLANEOUS Denon AVR-X3200W Denon AVR-S510BT
        On-Screen Display Advanced Graphic User Interface
        GUI Languages91
        Control4 SDDP
        Display 1 line 1 line
        Remote ControllerRC-1192RC-1180
        Pre-programmed / Learnable / LCD Display / / / /
        Denon Link HD
        Setup Assistant
        Quick Select plus / Quick Select / /
        RADIO Denon AVR-X3200W Denon AVR-S510BT
        Analog Tuner FM/AM with RDS FM/AM
        Digital Radio
        Internet Radio vTuner
        Pandora
        Spotify
        Tidal
        Deezer
        Napster
        SiriusXM
        CONSTRUCTION Denon AVR-X3200W Denon AVR-S510BT
        Front PanelBrushed hairline metalized finishnot metal
        Speaker Terminals75
        Large Speaker Terminals7
        Color-Coded Speaker Terminals
        Transparent High-Grade Speaker Terminals
        High Grade Audio Components
        Gold plated RCA terminals
        POWER Denon AVR-X3200W Denon AVR-S510BT
        Power SupplyAC 230 V, 50/60 HzAC 120 V, 60 Hz
        Power Consumption600 W310 W
        No Sound PowerECO On/Off: 45 W/80 W
        Standby Power0.1 W0.1 W
        ECO Mode / Hybrid Standby Function
        Auto Power off
        PHYSICAL Denon AVR-X3200W Denon AVR-S510BT
        Dimensions (W x H x D)434 mm x 167 mm x 388 mm (with antenna: 434 mm x 237 mm x 388 mm)
        17-1/8" x 6-5/8" x 15-3/8" (with antenna up: 17-1/8" x 9-3/8" x 15-3/8")        		434 mm x 151 mm x 319 mm
        17-1/16" x 5-15/16" x 12-9/16"
        Weight11.3 kg (24 lbs 15 oz)7.5 kg (16 lbs 9 oz)
        SPECIFICATIONS Denon AVR-X3200W Denon AVR-S510BT
        Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)105 W (0.08% THD)70 W (0.08% THD)
        Power Output (6 Ω, 1 kHz, 2 channel driven, FTC)135 W (0.7% THD)90 W (0.7% THD)
        Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA or IEC)215 W (10% THD)140 W (10% THD)
        Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)180 W (1% THD)
        THD (Digital)0.008% (1 kHz, at 0 dB)
        Analog Distortion0.008% (20 Hz-20 kHz, Direct mode)
        Input Sensitivity and Impedance (Line)200 mV/47 kΩ200 mV/47 kΩ
        Rated Output digital2 V (at 0 dB playback)
        S/N Ratio (Line, IHF-A)102 dB98 dB
        S/N Ratio (digital)102 dB
        Dynamic Range (digital)100 dB
        Frequency Response (Analog In)+1/-3 dB (10 Hz to 100 kHz, Direct mode)+1/-3 dB (10 Hz to 100 kHz, Direct mode)
        DSD Sampling Rates via HDMI2.8 MHz
        DSD Sampling Rates via USB2.8 MHz
        Video Input Sensitivity/Output Level and Impedance 1 Vp-p/75 Ω (Component Y)
        0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
        Video Frequency Response5 Hz to 60 MHz, 0 dB/-3 dB (Component)
        Ethernet Standard100BASE-TX
        Wi-Fi StandardIEEE 802.11 b/g/n
        Wi-Fi Terminal Frequency2.4 GHz
        Bluetooth Version2․1 + EDR2․1 + EDR
        Bluetooth Frequency2.4 GHz2.4 GHz
        USB TerminalUSB2.0 5V, 1 AUSB2.0 5V, 1 A
        FM Frequency87.5 MHz - 108.0 MHz87.5 MHz - 107.9 MHz
        FM 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)Mono: 2.8 µV (20.2 dBf)Mono: 2.8 µV (20.2 dBf)
        FM Effective Sensitivity1.2 µV (12.8 dBf)1.2 µV (12.8 dBf)
        FM S/N RatioMono/Stereo: 70 dB/67 dBMono/Stereo: 70 dB/67 dB
        FM Harmonic Distortion (IHF, 1 kHz)Mono/Stereo: 0.7%/1.0%Mono/Stereo: 0.7%/1.0%
        AM Frequency522 kHz - 1611 kHz520 kHz - 1710 kHz
        AM Effective Sensitivity18 µV18 µV
        Warranty3 Years3 Years

        * - 480i/576i and 480p/576p only
        ** - 480i/576i only
        *** - no 1080p/24 upconversion
        **** - 1080p signal is not converted

        Amazon Affiliate Disclosure
        ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
