Pentax 645Z

Pentax 645Z was announced in 2014 and is a Medium format (44 x 33 mm) DSLR camera with 51.4 Megapixel CMOS sensor. Its native ISO ranges from 100 to 204,800. The camera has a Tilting 3.2" screen with 1,037k dot resolution and built-in Optical (pentaprism) viewfinder.

Pentax 645Z can capture video up to 1920 x 1080 resolution.

In this section we present pros and cons of Pentax 645Z.

Here we are comparing Pentax 645Z to its predecessor 645D and displaying the major changes.

For more detailed comparison between the models please visit Pentax 645Z vs 645D.

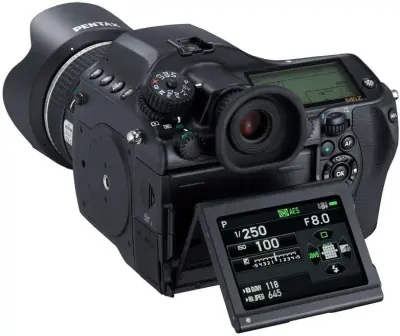

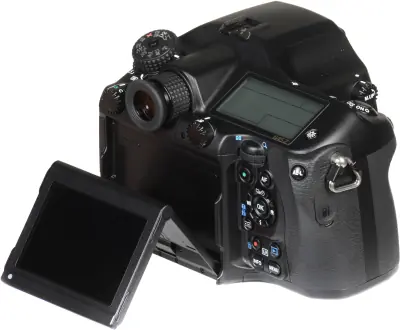

Tilting screen

Pentax 645Z has a 3.2" Tilting screen with 1,037k dot resolution. Tilting screen makes this camera very useful for photography purposes but not so useful for video shooting.

Optical (pentaprism) Viewfinder

Camera has a built-in Optical (pentaprism) viewfinder. It has a 98% coverage and 0.56x (0.71x 35mm equivalent) magnification.

Pentax 645Z features a 51.4 megapixel Medium format CMOS sensor with dimensions of 44 x 33 mm and a total area of 1452 mm². Its native ISO range is 100 - 204,800.

Here is a sensor size comparison chart where you can see how Pentax 645Z's Medium format sensor compares with other types of sensors:

Sensor size chart

	Sensor	Dimensions	Area	Aspect Ratio	Crop Factor
	Medium Format	44 x 33 mm	1452 mm2	4:3	0.79x
	Full Frame	36 x 24 mm	864 mm2	3:2	1x
	APS-H	27 x 18 mm	486 mm2	3:2	1.3x
	APS-C	23.6 x 15.6 mm	368.2 mm2	3:2	1.5x
	APS-C (Canon)	22.3 x 14.9 mm	332.3 mm2	3:2	1.6x
	Micro Four Thirds	17.4 x 13 mm	226.2 mm2	4:3	2x
	1-inch	13.2 x 8.8 mm	116.2 mm2	3:2	2.7x
	1/1.7-inch	7.44 x 5.58 mm	41.5 mm2	4:3	4.7x
	1/2.3-inch	6.17 x 4.55 mm	28.1 mm2	4:3	5.6x

Camera is equipped with PRIME III processor and can take pictures up to 8256 x 6192 resolution. It can also take pictures with lower resolutions like 6912 x 5184, 5376 x4032, 1920 x 1080 with 4:3 aspect ratios.

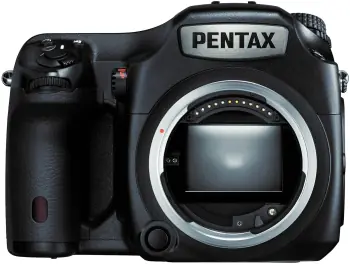

Lens Mount

Pentax 645Z has Pentax 645_AF2 lens mount. Due to Medium format sensor its crop factor (also called lens multiplier) is 0.79x. This means that a 35mm equivalent focal length of the mounted lens will be equal to its actual focal length times 0.79.

No Low-Pass Filter

There is no optical low-pass filter (OLPF), also known as an anti-aliasing filter, in front of the sensor. This results in a slightly sharper image but may also introduce moiré patterns and aliasing artifacts when photographing subjects with fine, repetitive patterns or details.

No In-Body Image Stabilization

The camera does not have in-body image stabilization (IBIS) so it needs lenses with optical image stabilization for vibration reduction.

USB Input and HDMI Output

Pentax 645Z has a USB 3.2 Gen 1x1 (5 GBit/sec) input for data transfer. There is a Micro Type D HDMI connector for video signal output.

Battery

Pentax 645Z comes with D-LI90 battery pack with battery life of 650 shots.

External Storage Slots

The camera has Dual SD/SDHC/SDXC (UHS-I) card slots.

Shutter

Pentax 645Z has Mechanical Focal Plane shutter. Shutter speed can go up to 1/4000 sec. Camera can shoot continuously up to 3.0 fps.

Focusing

Pentax 645Z has 27 focusing points and from -3 to +18 EV detection range There is also face detection feature which automatically finds and focuses on faces.

Exposure

Camera's exposure metering ranges from -1 to +21 EV and you can set the exposure compensation within the ±5 EV range. You can also do exposure bracketing and manual exposure adjustment.

Flash

Pentax 645Z has no built-in flash but an external flash may be connected via Hot Shoe or X-Sync Terminal. The fastest flash synchronization speed is 1/125 sec. Flash compensation can be set from -2 to +1 EV with 1/2 EV step increments.

Pentax 645Z has dimensions of 156 x 117 x 123 mm (6.14 x 4.61 x 4.84"). It weighs 1550 g (3.42 lb / 54.67 oz), so it is a heavy camera.

156 mm (6.14")

117 mm (4.61")

117 mm (4.61")

123 mm (4.84")
