Olympus PEN-F

Olympus PEN-F was announced in 2016 and is a Micro Four Thirds (17.3 x 13 mm) Mirrorless camera with 20 Megapixel CMOS sensor. Its native ISO ranges from 200 to 25,600 and expands to 80 - 25,600 in boosted mode. The camera has a Fully Articulated 3.0" screen with 1,037k dot resolution and built-in Electronic viewfinder with 2,360k dot resolution. It has a built-in 5-Axis Sensor Shift in body image stabilization.

Olympus PEN-F can capture video up to 1920 x 1080 resolution.

Here is the Olympus PEN series lineup, where you can view and compare the main specifications of the cameras within the same series.

Olympus PEN series lineup

	Model	Date	Sensor	Native ISO	Screen	Price
	Olympus PEN E-P7 Compare	June 2021	20 MP Micro Four Thirds	200 - 25,600	Tilting 3.0" 1,040k dot Touchscreen	amazon B&H
	Olympus PEN E-PL9 Compare	February 2018	16.1 MP Micro Four Thirds	200 - 6,400	Tilting 3.0" 1,040k dot Touchscreen	amazon B&H
	Olympus PEN E-PL8 Compare	September 2016	16.1 MP Micro Four Thirds	200 - 25,600	Tilting 3.0" 1,037k dot Touchscreen	amazon B&H
	Olympus PEN-F	January 2016	20 MP Micro Four Thirds	200 - 25,600	Articulated 3.0" 1,037k dot Touchscreen	amazon B&H
	Olympus PEN E-PL7 Compare	September 2014	16.1 MP Micro Four Thirds	100 - 25,600	Tilting 3.0" 1,037k dot Touchscreen	amazon B&H
	Olympus PEN E-PL6 Compare	August 2014	16 MP Micro Four Thirds	100 - 25,600	Tilting 3.0" 460k dot Touchscreen	amazon B&H
	Olympus PEN E-P5 Compare	October 2013	16.1 MP Micro Four Thirds	100 - 25,600	Tilting 3.0" 1,037k dot Touchscreen	amazon B&H
	Olympus PEN E-PM2 Compare	May 2013	16.1 MP Micro Four Thirds	200 - 25,600	Fixed 3.0" 460k dot Touchscreen	amazon B&H
	Olympus PEN E-PL5 Compare	September 2012	16.1 MP Micro Four Thirds	200 - 25,600	Tilting 3.0" 460k dot Touchscreen	amazon B&H
	Olympus PEN E-PM1 Compare	November 2011	12.3 MP Micro Four Thirds	100 - 12,800	Fixed 3.0" 460k dot	amazon B&H
	Olympus PEN E-PL3 Compare	September 2011	12.3 MP Micro Four Thirds	200 - 12,800	Tilting 3.0" 460k dot	amazon B&H
	Olympus PEN E-P3 Compare	August 2011	12.3 MP Micro Four Thirds	100 - 12,800	Fixed 3.0" 614k dot Touchscreen	amazon B&H
	Olympus PEN E-PL2 Compare	February 2011	12 MP Micro Four Thirds	100 - 6,400	Fixed 3.0" 460k dot	amazon B&H
	Olympus PEN E-PL1s Compare	November 2010	12 MP Micro Four Thirds	100 - 6,400	Fixed 2.7" 230k dot	amazon B&H
	Olympus PEN E-PL1 Compare	May 2010	12 MP Micro Four Thirds	100 - 3,200	Fixed 2.7" 230k dot	amazon B&H
	Olympus PEN E-P2 Compare	April 2010	12 MP Micro Four Thirds	100 - 6,400	Fixed 3.0" 230k dot	amazon B&H
	Olympus PEN E-P1 Compare	July 2009	12 MP Micro Four Thirds	100 - 6,400	Fixed 3.0" 230k dot	amazon B&H

You can view their side-by-side comparison here: Olympus PEN E-P7 vs PEN E-PL9 vs PEN E-PL8 vs PEN-F vs PEN E-PL7 vs PEN E-PL6.

In this section we present pros and cons of Olympus PEN-F.

Fully Articulated Touchscreen

Olympus PEN-F has a 3.0" Fully Articulated touchscreen with 1,037k dot resolution. Fully articulated screen makes this camera selfie and vlogger friendly and generally very useful for video shooting.

Electronic Viewfinder

Camera has a built-in Electronic viewfinder with 2,360k dot resolution. It has a 100% coverage and 1.23x (0.62x 35mm equivalent) magnification.

Olympus PEN-F features a 20 megapixel Micro Four Thirds CMOS sensor with dimensions of 17.3 x 13 mm and a total area of 224.9 mm². Its native ISO range is 200 - 25,600 and expands to 80 - 25,600 in boosted mode.

Here is a sensor size comparison chart where you can see how Olympus PEN-F's Micro Four Thirds sensor compares with other types of sensors:

Sensor size chart

	Sensor	Dimensions	Area	Aspect Ratio	Crop Factor
	Medium Format	44 x 33 mm	1452 mm2	4:3	0.79x
	Full Frame	36 x 24 mm	864 mm2	3:2	1x
	APS-H	27 x 18 mm	486 mm2	3:2	1.3x
	APS-C	23.6 x 15.6 mm	368.2 mm2	3:2	1.5x
	APS-C (Canon)	22.3 x 14.9 mm	332.3 mm2	3:2	1.6x
	Micro Four Thirds	17.3 x 13 mm	224.9 mm2	4:3	2x
	1-inch	13.2 x 8.8 mm	116.2 mm2	3:2	2.7x
	1/1.7-inch	7.44 x 5.58 mm	41.5 mm2	4:3	4.7x
	1/2.3-inch	6.17 x 4.55 mm	28.1 mm2	4:3	5.6x

Camera is equipped with TruePic VII processor and can take pictures up to 5184 x 3888 resolution.

Lens Mount

Olympus PEN-F has Micro Four Thirds lens mount. Due to Micro Four Thirds sensor its crop factor (also called lens multiplier) is 2x. This means that a 35mm equivalent focal length of the mounted lens will be equal to its actual focal length times 2.

In-Body Image Stabilization

The camera has a built-in 5-Axis Sensor Shift in-body image stabilization (IBIS). This means that you are still getting vibration reduction when camera is paired with non-image stabilizied lenses. It also works with lenses with optical image stabilization and in combination can achieve even better compensation.

Built-in Wi-Fi

Camera has a built-in Wi-Fi (802.11b/g/n, 2.4 GHz) which allows to easily transfer photos and videos from the camera to other Wi-Fi-enabled devices, such as smartphones, tablets, printers, or computers. This eliminates the need for cables and allows for quick and convenient media sharing and social media integration. It gives you the ability to control your camera remotely using a smartphone or tablet. This is particularly useful for taking self-portraits, group shots, or capturing images in challenging conditions without having to touch the camera. Firmware updates can also be downloaded and installed wirelessly.
  Check out the cameras in our database that have built-in WiFi.

USB Input and HDMI Output

Olympus PEN-F has a USB 2.0 (480 Mbit/sec) input for data transfer. There is a Micro HDMI connector for video signal output.

Battery

Olympus PEN-F comes with BLN-1 battery pack with battery life of 330 shots.

External Storage Slots

The camera has a single SD/SDHC/SDXC card slot.

Shutter

Olympus PEN-F's shutter speed can go up to 1/16000 sec with electronic shutter and up to 1/8000 sec with mechanical shutter. Camera can shoot continuously up to 10.0 fps.

Flash

Olympus PEN-F has no built-in flash but an external flash may be connected.

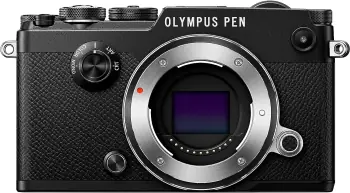

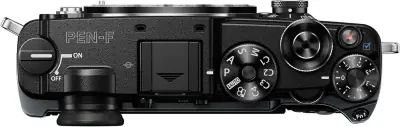

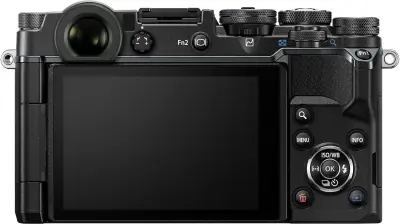

Olympus PEN-F has dimensions of 125 x 72 x 37 mm (4.92 x 2.83 x 1.46"). It weighs 427 g (0.94 lb / 15.06 oz), so it is a lightweight camera.

125 mm (4.92")

72 mm (2.83")

72 mm (2.83")

37 mm (1.46")
