Konica Minolta Maxxum 5D

    55
    Image cannot be found

    Highlights

    • 6 MP APS-C CCD Sensor
    • 100 - 3,200 Native ISO
    • 9 Focus Points
    • Image Stabilization
    • 2.5" 115k dot Fixed Screen
    • Optical (pentamirror) Viewfinder
    • 3.0 fps Continuous Shooting
    • Built-in Flash
    Image cannot be found
    Image cannot be found

    Disclosure: We earn money from the affiliate links to products associated with content in this article.

    Overview

    Konica Minolta Maxxum 5D was announced in 2005 and is an APS-C (23.5 x 15.7 mm) DSLR camera with 6 Megapixel CCD sensor. Its native ISO ranges from 100 to 3,200. The camera has a Fixed 2.5" screen with 115k dot resolution and built-in Optical (pentamirror) viewfinder. It has a built-in Sensor Shift in body image stabilization.

    Table of Contents
    1. Overview
    2. Pros and Cons
    3. Successor
    4. Screen and Viewfinder
    5. Sensor
    6. Photography Features
    7. Connectivity, Battery and Storage
    8. Other Features
    9. Physical Parameters
    10. For Different Types of Photography
    11. Evaluation
    12. Specifications

    Pros and Cons

    In this section we present pros and cons of Konica Minolta Maxxum 5D.

    PROS

    •   Image Stabilization
    •   Built-in Flash
    •   Orientation Sensor

    CONS

    •   No Video Capture
    •   Low Resolution Sensor - 6 Megapixel
    •   3,200 Highest Native ISO
    •   Timelapse Recording
    •   9 Focus Points
    •   No Face Detection
    •   Fixed Screen
    •   Low Resolution Screen - 115k dot
    •   No Live View
    •   Low Max Continuous Shooting - 3.0 fps
    •   Low DxO Overall Score - 58
    •   Low USB Speed
    •   No HDMI Output
    •   No Microphone Input
    •   No Headphone Output
    •   No Built-in GPS
    •   No Built-In Wi-Fi
    •   No Built-In Bluetooth
    •   No Environmental Sealing

    And here are some specifications which fall into average criteria and are neither in PROs nor in CONs category:

    AVERAGE

    •   100 Lowest Native ISO
    •   Screen Size - 2.5"
    •   Max Shutter Speed (Mechanical or 1st Curtain) - 1/4000 sec
    •   Max Flash Sync Speed - 1/160 sec
    •   Weight - 670 g (1.48 lb / 23.63 oz)

    Successor

    In 2006 Konica Minolta Maxxum 5D was replaced by Sony Alpha DSLR-A100. Let us now have a look at some important differences between Konica Minolta Maxxum 5D and its successor.

    UPGRADES Sony Alpha DSLR-A100 vs Konica Minolta Maxxum 5D
    Higher Sensor Resolution 10.2 Megapixel vs 6 Megapixel
    Max Image Resolution 3872 x 2592 vs 3008 x 2000
    Higher Resolution Screen 230k dot vs 115k dot
    Higher DxO Color Depth 22.0 vs 21.3
    Higher DxO Dynamic Range 11.2 vs 11.1
    Higher DxO Overall Score 61 vs 58
    Higher USB Speed USB 2.0 (480 Mbit/sec) vs USB 1.0 (1.5 Mbit/sec)
    Lighter 638 g (1.41 lb / 22.50 oz) vs 670 g (1.48 lb / 23.63 oz)
    DOWNGRADES Sony Alpha DSLR-A100 vs Konica Minolta Maxxum 5D
    Lower Native ISO 1,600 vs 3,200
    Lower DxO Low Light ISO 476 vs 605

    For more detailed comparison between the models please visit Konica Minolta Maxxum 5D vs Alpha DSLR-A100.

    Screen and Viewfinder

    Fixed screen

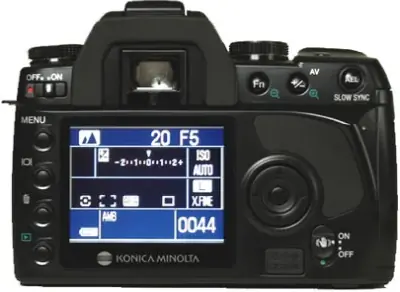

    Konica Minolta Maxxum 5D has a 2.5" Fixed screen with 115k dot resolution which is quite low by today's standards.


    Optical (pentamirror) Viewfinder

    Camera has a built-in Optical (pentamirror) viewfinder. It has a 95% coverage and 0.83x (0.55x 35mm equivalent) magnification.

    Sensor

    Konica Minolta Maxxum 5D features a 6 megapixel APS-C CCD sensor with dimensions of 23.5 x 15.7 mm and a total area of 369 mm2. Its native ISO range is 100 - 3,200.


    Here is a sensor size comparison chart where you can see how Konica Minolta Maxxum 5D's APS-C sensor compares with other types of sensors:

    Sensor size chart
    Sensor Dimensions Area Aspect Ratio Crop Factor
    Image cannot be displayedMedium Format44 x 33 mm1452 mm24:30.79x
    Image cannot be displayedFull Frame36 x 24 mm864 mm23:21x
    Image cannot be displayedAPS-H27 x 18 mm486 mm23:21.3x
    Image cannot be displayedAPS-C23.5 x 15.7 mm369 mm23:21.5x
    Image cannot be displayedAPS-C (Canon)22.3 x 14.9 mm332.3 mm23:21.6x
    Image cannot be displayedMicro Four Thirds17.4 x 13 mm226.2 mm24:32x
    Image cannot be displayed1-inch13.2 x 8.8 mm116.2 mm23:22.7x
    Image cannot be displayed1/1.7-inch7.44 x 5.58 mm41.5 mm24:34.7x
    Image cannot be displayed1/2.3-inch6.17 x 4.55 mm28.1 mm24:35.6x

    Photography Features

    Camera can take pictures up to 3008 x 2000 resolution. It can also take pictures with lower resolutions like 2256 x 1496, 1504 x 1000 with 3:2 aspect ratios.


    Lens Mount

    Konica Minolta Maxxum 5D has Sony A lens mount. Due to APS-C sensor its crop factor (also called lens multiplier) is 1.5x. This means that a 35mm equivalent focal length of the mounted lens will be equal to its actual focal length times 1.5.


    In-Body Image Stabilization

    The camera has a built-in Sensor Shift in-body image stabilization (IBIS). This means that you are still getting vibration reduction when camera is paired with non-image stabilizied lenses. It also works with lenses with optical image stabilization and in combination can achieve even better compensation.

    Check out the cameras which are frequently compared to Konica Minolta Maxxum 5D.

    Sony DSLR-A100
    Image cannot be found

    APS-C

    10.2 MP

    Leica SL2
    Image cannot be found

    Full Frame

    47.3 MP

    Sigma SD9
    Image cannot be found

    APS-C

    3 MP

    Samsung NX mini
    Image cannot be found

    1-inch

    20.5 MP

    Leica TL
    Image cannot be found

    APS-C

    16.3 MP

    Fujifilm X-T100
    Image cannot be found

    APS-C

    24.2 MP

    Canon 5DS
    Image cannot be found

    Full Frame

    50.6 MP

    Fujifilm GFX 50S II
    Image cannot be found

    Medium format

    51.4 MP

    Canon Rebel SL2
    Image cannot be found

    APS-C

    24.2 MP

    Canon 5DS R
    Image cannot be found

    Full Frame

    50.6 MP

    Panasonic G2
    Image cannot be found

    Micro Four Thirds

    12 MP

    Samsung GX-20
    Image cannot be found

    APS-C

    15.1 MP

    Connectivity, Battery and Storage

    USB Input

    Konica Minolta Maxxum 5D has a USB 1.0 (1.5 Mbit/sec) input for data transfer.


    Battery

    Konica Minolta Maxxum 5D comes with NP-400 battery pack.


    External Storage Slots

    The camera has a single Compact Flash (Type I/II) card slot.

    Other Features

    Shutter

    Konica Minolta Maxxum 5D's shutter speed can go up to 1/4000 sec. Camera can shoot continuously up to 3.0 fps.


    Flash

    Konica Minolta Maxxum 5D has a built-in flash and also accepts external flash. The fastest flash synchronization speed is 1/160 sec.

    Physical Parameters

    Konica Minolta Maxxum 5D has dimensions of 131 x 93 x 67 mm (5.16 x 3.66 x 2.64"). It weighs 670 g (1.48 lb / 23.63 oz) which is neither heavy nor lightweight.

    131 mm (5.16")

    93 mm (3.66")

    Image cannot be displayed


    93 mm (3.66")

    Image cannot be displayed


    67 mm (2.64")

    Image cannot be displayed

    Konica Minolta Maxxum 5D dimensions

    Konica Minolta Maxxum 5D for Different Types of Photography

    We give scores to the camera for different type of photography based on its features and specifications. Let us see how Konica Minolta Maxxum 5D is suitable for six different types of photography.


    Landscape Photography

    AVERAGE
    63

    Konica Minolta Maxxum 5D gets a score of 63 and is AVERAGE choice for Landscape photography.

    •   Low Resolution Screen - 115k dot
    •   No Live View
    •   No Built-in GPS
    •   No Environmental Sealing

    Sports Photography

    AVERAGE
    60

    Konica Minolta Maxxum 5D gets a score of 60 and is AVERAGE choice for Sports photography.

    •   3,200 Highest Native ISO
    •   9 Focus Points
    •   No Face Detection
    •   Image Stabilization
    •   Low Resolution Screen - 115k dot
    •   No Live View
    •   Low Max Continuous Shooting - 3.0 fps
    •   Orientation Sensor

    Wildlife Photography

    AVERAGE
    58

    Konica Minolta Maxxum 5D gets a score of 58 and is AVERAGE choice for Wildlife photography.

    •   3,200 Highest Native ISO
    •   9 Focus Points
    •   Image Stabilization
    •   Low Resolution Screen - 115k dot
    •   No Live View
    •   Low Max Continuous Shooting - 3.0 fps
    •   No Environmental Sealing
    •   Orientation Sensor

    Portrait Photography

    GOOD
    74

    Konica Minolta Maxxum 5D gets a score of 74 and is GOOD choice for Portrait photography.

    •   9 Focus Points
    •   No Face Detection
    •   Image Stabilization
    •   Screen Size - 2.5"
    •   Low Resolution Screen - 115k dot
    •   No Live View
    •   Max Flash Sync Speed - 1/160 sec
    •   Orientation Sensor

    Street Photography

    GOOD
    78

    Konica Minolta Maxxum 5D gets a score of 78 and is GOOD choice for Street photography.

    •   9 Focus Points
    •   Image Stabilization
    •   Fixed Screen
    •   Low Resolution Screen - 115k dot
    •   No Live View
    •   No Built-in GPS
    •   No Environmental Sealing
    •   Weight - 670 g (1.48 lb / 23.63 oz)

    Travel Photography

    GOOD
    79

    Konica Minolta Maxxum 5D gets a score of 79 and is GOOD choice for Travel photography.

    •   Image Stabilization
    •   Fixed Screen
    •   Low Resolution Screen - 115k dot
    •   No Built-in GPS
    •   No Environmental Sealing
    •   Weight - 670 g (1.48 lb / 23.63 oz)

    Konica Minolta Maxxum 5D Evaluation

    We evaluate Konica Minolta Maxxum 5D and give score of 55 out of 100. We also give separate scores for 7 different categories according to the available features and specifications some of which are listed below. These evaluations are relative and may change each time a new camera is added to the database.


    OVERALL
    55

    Sensor

    AVERAGE
    69

    We give Konica Minolta Maxxum 5D a score of 69 for Sensor parameters.

    •   Low Resolution Sensor - 6 Megapixel
    •   100 Lowest Native ISO
    •   3,200 Highest Native ISO
    •   Low DxO Overall Score - 58


    AVERAGE
    69

    We give Konica Minolta Maxxum 5D a score of 69 for Photo parameters.

    •   Timelapse Recording
    •   Image Stabilization
    •   Max Shutter Speed (Mechanical or 1st Curtain) - 1/4000 sec
    •   Low Max Continuous Shooting - 3.0 fps
    •   Max Flash Sync Speed - 1/160 sec

    Video

    BAD
    0

    We give Konica Minolta Maxxum 5D a score of 0 for Video parameters.

    •   Image Stabilization

    Focusing

    AVERAGE
    69

    We give Konica Minolta Maxxum 5D a score of 69 for Focusing parameters.

    •   9 Focus Points
    •   No Face Detection

    Screen and Viewfinder

    AVERAGE
    63

    We give Konica Minolta Maxxum 5D a score of 63 for Screen and Viewfinder parameters.

    •   Fixed Screen
    •   Screen Size - 2.5"
    •   Low Resolution Screen - 115k dot

    Connectivity

    BAD
    34

    We give Konica Minolta Maxxum 5D a score of 34 for Connectivity parameters.

    •   Low USB Speed
    •   No HDMI Output
    •   No Microphone Input
    •   No Headphone Output
    •   No Built-in GPS
    •   No Built-In Wi-Fi
    •   No Built-In Bluetooth

    Battery, Storage and Physical

    POOR
    41

    We give Konica Minolta Maxxum 5D a score of 41 for Battery, Storage and Physical parameters.

    •   No Environmental Sealing
    •   Weight - 670 g (1.48 lb / 23.63 oz)


    For a full specification list please go to the specifications page:
