Fujifilm X-S20

Fujifilm X-S20 was announced in 2023 and is an APS-C (23.5 x 15.6 mm) Mirrorless camera with 26.1 Megapixel BSI-CMOS sensor. Its native ISO ranges from 160 to 12,800 and expands to 80 - 51,200 in boosted mode. The camera has a Fully Articulated 3.0" screen with 1,840k dot resolution and built-in 0.39" Electronic (OLED) viewfinder with 2,360k dot resolution. It has a built-in 5-Axis Sensor Shift in body image stabilization.

Fujifilm X-S20 can capture video up to 6240 x 4160 resolution with no recording time limit.

In this section we present pros and cons of Fujifilm X-S20.

Here we are comparing Fujifilm X-S20 to its predecessor X-S10 and displaying the major changes.

For more detailed comparison between the models please visit Fujifilm X-S20 vs X-S10.

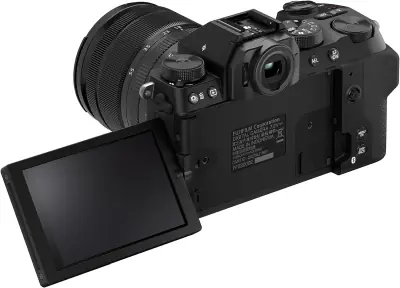

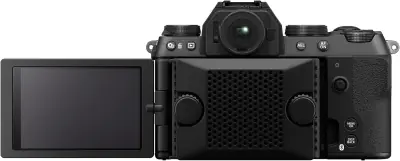

Fully Articulated Touchscreen

Fujifilm X-S20 has a 3.0" Fully Articulated touchscreen with 1,840k dot resolution. Fully articulated screen makes this camera selfie and vlogger friendly and generally very useful for video shooting.

Electronic (OLED) Viewfinder

Camera has a built-in 0.39" Electronic (OLED) viewfinder with 2,360k dot resolution. It has a 100% coverage and 0.93x (0.62x 35mm equivalent) magnification.

BSI-CMOS Sensor

Fujifilm X-S20 features a 26.1 megapixel APS-C BSI-CMOS sensor with dimensions of 23.5 x 15.6 mm and a total area of 366.6 mm². Its native ISO range is 160 - 12,800 and expands to 80 - 51,200 in boosted mode.

The camera has BSI-CMOS sensor, short for Backside Illuminated Complementary Metal-Oxide-Semiconductor sensor. In traditional CMOS sensors, the wiring and circuitry are located on the front side of the sensor, which can block some of the incoming light. BSI technology flips this design by placing the photosensitive elements (pixels) on the backside of the sensor, allowing more light to reach the pixels. This significantly enhances light sensitivity and improves low-light performance. BSI-CMOS sensors are particularly effective in low-light conditions, as they can capture more light, resulting in brighter and less noisy images. This makes them well-suited for indoor and night photography. BSI-CMOS sensors deliver a higher SNR and reduced cross-talk.

Here is a sensor size comparison chart where you can see how Fujifilm X-S20's APS-C sensor compares with other types of sensors:

Sensor size chart

	Sensor	Dimensions	Area	Aspect Ratio	Crop Factor
	Medium Format	44 x 33 mm	1452 mm2	4:3	0.79x
	Full Frame	36 x 24 mm	864 mm2	3:2	1x
	APS-H	27 x 18 mm	486 mm2	3:2	1.3x
	APS-C	23.5 x 15.6 mm	366.6 mm2	3:2	1.5x
	APS-C (Canon)	22.3 x 14.9 mm	332.3 mm2	3:2	1.6x
	Micro Four Thirds	17.4 x 13 mm	226.2 mm2	4:3	2x
	1-inch	13.2 x 8.8 mm	116.2 mm2	3:2	2.7x
	1/1.7-inch	7.44 x 5.58 mm	41.5 mm2	4:3	4.7x
	1/2.3-inch	6.17 x 4.55 mm	28.1 mm2	4:3	5.6x

Camera is equipped with X-Processor 5 processor and can take pictures up to 6240 x 4160 resolution.

Lens Mount

Fujifilm X-S20 has Fujifilm X lens mount. Due to APS-C sensor its crop factor (also called lens multiplier) is 1.5x. This means that a 35mm equivalent focal length of the mounted lens will be equal to its actual focal length times 1.5.

No Low-Pass Filter

There is no optical low-pass filter (OLPF), also known as an anti-aliasing filter, in front of the sensor. This results in a slightly sharper image but may also introduce moiré patterns and aliasing artifacts when photographing subjects with fine, repetitive patterns or details.

In-Body Image Stabilization

The camera has a built-in 5-Axis Sensor Shift in-body image stabilization (IBIS) with 7 stops of compensation. This means that you are still getting vibration reduction when camera is paired with non-image stabilizied lenses. It also works with lenses with optical image stabilization and in combination can achieve even better compensation.

Built-in Wi-Fi

Camera has a built-in Wi-Fi (Wi-Fi 5, 802.11ac/b/g/n, 2.4/5 GHz) which allows to easily transfer photos and videos from the camera to other Wi-Fi-enabled devices, such as smartphones, tablets, printers, or computers. This eliminates the need for cables and allows for quick and convenient media sharing and social media integration. It gives you the ability to control your camera remotely using a smartphone or tablet. This is particularly useful for taking self-portraits, group shots, or capturing images in challenging conditions without having to touch the camera. Firmware updates can also be downloaded and installed wirelessly.
  Check out the cameras in our database that have built-in WiFi.

Bluetooth

Camera has a built-in Bluetooth (version 4.2 LE) which lets you to connect the camera to a smartphone or a dedicated remote control device. This allows you to remotely trigger the camera, adjust settings and controls remotely through a paired mobile app. While Wi-Fi is generally faster for transferring larger files, Bluetooth can be used for small, selective transfers, it can provide real-time information about your camera's battery status, memory card capacity, and other key settings directly on your paired smartphone or smartwatch.
  Check out the cameras in our database that have built-in Bluetooth.

USB Input and HDMI Output

Fujifilm X-S20 has a USB 3.2 Gen 1x1 (5 GBit/sec) Type-C input for data transfer and battery charging. There is a Micro HDMI connector for video signal output.

Battery

Fujifilm X-S20 comes with NP-W235 battery pack with battery life of 750 shots.

External Storage Slots

The camera has a single SD/SDHC/SDXC (UHS-I) [2 TB Maximum] card slot.

Shutter

Fujifilm X-S20 has Electronic shutter and Mechanical Focal Plane shutter. Shutter speed can go up to 1/32000 sec with electronic shutter and up to 1/4000 sec with mechanical shutter. Camera can shoot continuously up to 20.0 fps with electronic shutter and up to 8.0 fps with mechanical shutter.

Focusing

Fujifilm X-S20 has Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF) system with 425 focusing points. Touch-to-Focus allows users to select a specific point on the screen where they want the camera to focus. This feature can be helpful for achieving precise focus in both photo and video recording. There is also face detection feature which automatically finds and focuses on faces and additional eye detection further locks the focus on one of the eyes and tracks it down during the motion.

Flash

Fujifilm X-S20 has a built-in flash with maximum range of 7.00 m at ISO 200 and also accepts external flash which can be connected via Hot Shoe or Proprietary. The fastest flash synchronization speed is 1/180 sec.

Fujifilm X-S20 has dimensions of 127 x 85 x 65 mm (5 x 3.35 x 2.56"). It weighs 491 g (1.08 lb / 17.32 oz), so it is a lightweight camera.

127 mm (5")

85 mm (3.35")

85 mm (3.35")

65 mm (2.56")
