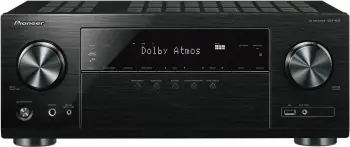

Pioneer VSX-832

Pioneer VSX-832 was introduced in 2017. It is equipped with 5 channel amplifier with 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 5.1 maximum channel processing. It supports Dolby Atmos and DTS:X, passes 4K/60Hz and upscales 1080p to 4K video signal.

We evaluated the a/v receiver and gave 83 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

For more details about the ranking please go to    Evaluation section.

In this section we present pros and cons of Pioneer VSX-832.

In 2017 Pioneer released 14 new receivers. Here is the lineup:

You can view their side-by-side comparison here: Pioneer SC-LX502 vs VSX-LX302 vs VSX-LX102 vs VSX-932 vs VSX-832 vs VSX-532.

Pioneer VSX-832 has replaced VSX-831. Here we present differences between these two models.

UPGRADES	Pioneer VSX-832	vs	Pioneer VSX-831
Certified 4 Ω Performance		vs
Dolby Atmos		vs
Dolby Surround Upmixer		vs
DTS:X		vs
DTS Neural:X		vs
Music Playback via USB	MP3, WMA, AAC, Apple Lossless, WAV, FLAC, AIFF, DSD, Dolby TrueHD	vs	MP3, WMA, AAC, Apple Lossless, WAV, FLAC, AIFF, DSD
High Resolution Audio Formats via USB	Apple Lossless, WAV, FLAC, AIFF, AAC, DSD, Dolby TrueHD	vs	Apple Lossless, WAV, FLAC, AIFF, DSD
HLG		vs
DTS Play-Fi		vs
USB Input	2 (1 Front)	vs	1 Front
Versatile Speaker Configuration	FRONT, CENTER, SURROUND	vs
Analog Tuner	FM/AM with RDS	vs	FM/AM
Tidal		vs
Deezer		vs
Bigger Power Supply	400 W	vs	380 W
Wider AM Frequency Range	522/530 kHz - 1611/1710 kHz	vs	530 kHz - 1710 kHz

DOWNGRADES	Pioneer VSX-832	vs	Pioneer VSX-831
Less Channels	5.1	vs	5.2
Bi-amp capability		vs
Dolby Pro Logic		vs	PLII
DTS Neo		vs	Neo:6
More Tone Control Channels	2 Channel	vs	All Channels
Less HDMI Inputs	4	vs	6
Phono Input		vs
Pandora		vs
Lower Rated Headphone Power Output	80 mW (32 Ω, 1 kHz, 10% THD)	vs	85 mW (32 Ω, 1 kHz, 10% THD)

For more detailed comparison between the models please visit Pioneer VSX-832 vs VSX-831.

Pioneer VSX-832's 5 channel amplifier can be assigned for different speaker configurations.

• Dolby Atmos Configurations: The following speaker configurations are supported for Dolby Atmos:
3.1.2 with internal amplifier.
• DTS:X Configurations: The speaker configurations for DTS:X are the same as for Dolby Atmos:
3.1.2 with internal amplifier.
• Configurations without height channels: There are also other speaker configurations available which do not include height channels:
5.1 with internal amplifier.

Dolby Atmos

Pioneer VSX-832 supports Dolby Atmos with Surround Upmixer.

• Surround Upmixer: If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.

DTS:X

Pioneer VSX-832 supports DTS:X with Neural:X.

• Neural:X is an advanced upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.

DECODING
Dolby Atmos
Dolby Atmos Height Virtualization
Dolby Atmos Music
Dolby TrueHD
Dolby Digital Plus
Dolby Surround Upmixer
Dolby Pro Logic
Dolby Digital EX
Surround EX
DTS:X
DTS Neural:X
DTS Virtual:X
DTS Neo
DTS-HD Master Audio
DTS-HD High Resolution Audio
DTS 96/24
DTS Express
DTS-ES
IMAX Enhanced
Auro 3D with Auro-Matic Upmixer

Pioneer VSX-832 features 4 HDMI inputs. It has 1 output.

• 4K/60Hz Passthrough: All inputs pass up to 4K/60p (YCbCr 4:4:4) video signal.
• 4K Upscaling: Pioneer VSX-832 can upscale 1080p to 4K from HDMI and analog sources.
• Analog To HDMI Upconversion: The a/v receiver supports video upconversion, so you can connect your analog Composite video sources and Pioneer VSX-832 will output them via HDMI. This means that you will need only one HDMI cable to connect to your TV.
• BT.2020 Color Space: BT.2020 or Rec. 2020 is a color standard which delivers a wider color gamut compared to Rec. 709. It covers approximately 75% of the total visual spectrum while the Rec. 709 covers only 35%.
• HDCP 2.2 Copy Protection: All inputs and outputs are HDCP 2.2 compliant which is a requirement for 4K/HDR copy-protected content transmission.
• 3D Ready: Pioneer VSX-832 is able to pass 3D video through HDMI.

HDR (High Dynamic Range)

Pioneer VSX-832 supports HDR (high dynamic range) video formats such as HDR10, Dolby Vision and Hybrid Log-Gamma via HDMI ports. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.

VIDEO FEATURES
HDR10
HDR10+
Dynamic HDR
BT.2020 color space
Dolby Vision
HLG (Hybrid Log Gamma)
HDBaseT Compatible
Enhanced Audio Return Channel (eARC)
HDCP Version	2.2
QMS (Quick Media Switching)
ALLM (Auto Low Latency Mode)
VRR (Variable Refresh Rate)
QFT (Quick Frame transport)
3-D Ready
Video Signal Passthrough	up to 4K/60p (YCbCr 4:4:4)
Video Signal Upscaling	1080p to 4K

Pioneer VSX-832 comes with MCACC room correction system and includes the calibration microphone.

• MCACC: Pioneer’s exclusive Multi-Channel Acoustic Calibration System (MCACC) delivers an easy-to-use, automatic sound adjustment system to precision-tune your Pioneer and Pioneer Elite receivers with minimal effort. Every MCACC system comes with a microphone to measure and analyze reverb characteristics. The equalizer optimally adjusts sound parameters to fit the size and shape of your home environment while maintaining the integrity of high-resolution playback without any degradation to the quality of your music.

Audio

• Analog Line Inputs: There are 3 line inputs for analog audio connection.
• Digital Inputs: 1 optical input and 1 coaxial input are available for digital audio connection.
• Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.

Video

• HDMI:
Inputs: 4   Outputs: 1
8K Inputs: 0
• Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
Inputs: 2   Outputs: 0

Front A/V Inputs

• USB, Mini-Jack

In 2019 Pioneer VSX-832 was replaced by Pioneer VSX-834. Let us now have a look at some important differences between Pioneer VSX-832 and its successor.

UPGRADES	Pioneer VSX-834	vs	Pioneer VSX-832
More Channels	7.2	vs	5.1
Bi-amp capability		vs
More Channel Processing	7.1	vs	5.1
Dolby Atmos Height Virtualization		vs
DTS Virtual:X		vs
DTS-ES	Discrete 6.1, Matrix 6.1	vs
Dialog Enhancement		vs
More Tone Control Channels	All Channels	vs	2 Channel
USB DC Out Port		vs
More Speaker Terminals	7	vs	5
Bigger Power Supply	480 W	vs	400 W
Higher S/N Ratio (Line, IHF-A)	109 dB	vs	106 dB
Newer Bluetooth Version	4․2	vs	4․1 + LE

DOWNGRADES	Pioneer VSX-834	vs	Pioneer VSX-832
Analog To HDMI Upconversion		vs	Composite
Wi-Fi		vs
Chromecast Built-In		vs
DTS Play-Fi		vs
AirPlay		vs	AirPlay
USB Input		vs	2 (1 Front)
Less Composite Video Inputs		vs	2
Ethernet		vs
Front A/V Inputs		vs	USB, Mini-Jack
Internet Radio		vs	TuneIn
Spotify		vs
Tidal		vs
Deezer		vs
Less Large Speaker Terminals	2	vs	5

For more detailed comparison between the models please visit Pioneer VSX-832 vs VSX-834.

GENERAL
Brand	Pioneer
Model	VSX-832
Type	A/V Receiver
Country	Europe
Release Year	2017
Predecessor	Pioneer VSX-831
Successor	Pioneer VSX-834

AMPLIFIER
Channels	5.1
Power Output	80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
Amplifier Design	Discrete Direct Energy
THX™ Certification
Continuous 6 Ω Rated
Certified 4 Ω Performance
Bi-amp Capability

AUDIO FEATURES
Digital Signal Processing (DSP) Engine	Digital Core Engine with Cirrus Logic (Quad Core) x1
DAC	AKM AK4438
DAC Specs	384 kHz/32 Bit
Maximum Channel Processing	5.1
Air Studios Monitor Certification
Dolby Atmos
Dolby Atmos Height Virtualization
Dolby Atmos Music
Dolby TrueHD
Dolby Digital Plus
Dolby Surround Upmixer
Dolby Pro Logic
Dolby Digital EX
Surround EX
DTS:X
DTS Neural:X
DTS Virtual:X
DTS Neo
DTS-HD Master Audio
DTS-HD High Resolution Audio
DTS 96/24
DTS Express
DTS-ES
IMAX Enhanced
Auro 3D with Auro-Matic Upmixer
PCM	2-ch/Multi-ch Input
Music Playback via USB	MP3, WMA, AAC, Apple Lossless, WAV, FLAC, AIFF, DSD, Dolby TrueHD
High Resolution Music Playback via USB and/or Network	64, 88.2, 96, 176.4, 192 kHz/24 bit
High Resolution Audio Formats via USB	Apple Lossless, WAV, FLAC, AIFF, AAC, DSD, Dolby TrueHD
Gapless Playback
DSD via HDMI	2-ch/Multi-ch Input
DSD via USB	2-ch Input
DSD to PCM Converter
USB DAC
Jitter Reduction
Dialog Enhancement
Dialog normalization
Dialogue Lift
Sound Retriever	Advanced (2-Channel)
Sound Retriever AIR
Digital noise Reduction
Tone Control	2 Channel
Compressed Music Enhancer	Advanced Sound Retriever
High-resolution Music Enhancer
Audyssey Dynamic EQ
Audyssey Dynamic Volume
Audyssey LFC
Audyssey Sub EQ HT
Audyssey DSX
Direct Mode
Pure Direct Mode
Auto Surround
Optimum Surround
Advanced Surround	10 + 1
Wide Surround
Front Stage Surround Advance
Headphone Surround
Virtual Speakers
Virtual Depth

CALIBRATION
Auto Speaker Calibration System with Mic.	MCACC
Manual MCACC
MCACC Memory	1
Reflex Optimizer
Phase Control
Auto Phase Control Plus
Full Band Phase Control
Standing Wave Control
Symmetric EQ
Precision Distance
Polarity Check
Auto Subwoofer Crossover

VIDEO FEATURES
HDR10
HDR10+
Dynamic HDR
BT.2020 color space
Dolby Vision
HLG (Hybrid Log Gamma)
HDBaseT Compatible
Enhanced Audio Return Channel (eARC)
HDCP Version	2.2
QMS (Quick Media Switching)
ALLM (Auto Low Latency Mode)
VRR (Variable Refresh Rate)
QFT (Quick Frame transport)
3-D Ready
Video Signal Passthrough	up to 4K/60p (YCbCr 4:4:4)
Video Signal Upscaling	1080p to 4K
Analog To HDMI Upconversion	Composite
Analog to Analog Video conversion
Stream Smoother
Pure Cinema
Video Parameter Adjustments
Super Resolution
isf Certified Calibration Control

CONNECTIVITY
Wi-Fi
Bluetooth	SBC, AAC
Works with Amazon Alexa
Chromecast Built-In
Works with SonoS
DTS Play-Fi
MHL Input
DLNA 1.5
AirPlay	AirPlay
Apple Product Connection	Made for iPhone, iPod and iPad (Airplay only)
Remote App	Pioneer Remote App
InstaPrevue Input Source Prevue

TERMINALS
HDMI Inputs	4
HDMI Outputs	1
8K Inputs
USB Input	2 (1 Front)
USB DC Out Port
Optical Inputs	1
Optical Outputs
Coaxial Inputs	1
RCA Line Inputs	3 (1 front)
RCA Line Outputs
XLR Line Inputs
Phono Input
Multi-Channel Input
RCA Pre-Outs	0.1
XLR Pre-outs
Composite Video Inputs	2
Composite Video Outputs
S-Video Inputs
S-Video Outputs
Component Video Inputs
Component Video Outputs
Ethernet
Ethernet Switch
PC In
Front A/V Inputs	USB, Mini-Jack
Speaker A/B
Headphone Out	6.3 mm (1/4")
Detachable Power Cord
adapterport

ZONES
Number of Zones	1
RS-232C Interface
+12V Trigger Output
Remote (IR) Input/Output	0 / 0

MISCELLANEOUS
On-Screen Display	GUI with System/Network Setup Menu
GUI Languages	9
AV Navigator
IP Control
PreAmp Mode
Versatile Speaker Configuration	FRONT, CENTER, SURROUND
FL Dimmer

RADIO
Analog Tuner	FM/AM with RDS
Presets	40
Digital Radio
Internet Radio	TuneIn
Pandora
Spotify
Tidal
Deezer
Napster
SiriusXM

CONSTRUCTION
Front Panel	Brushed
Solid Aluminum Front
Speaker Terminals	5
Large Speaker Terminals	5
Color-Coded Speaker Terminals
Transparent High-Grade Speaker Terminals
3D Space Frame Construction
Gold plated RCA terminals

POWER
Power Supply	AC 220-240 V, 50/60 Hz
Low Leakage Flux Power Transformer
Transformer Stabilizer
Power Consumption	400 W
No Sound Power	40 W
Standby Power	0.15 W
Auto Power off

PHYSICAL
Dimensions (W x H x D)	435 mm x 173 mm x 320.5 mm 17-1/8" x 6-13/16" x 12-5/8"
Weight	8.6 kg (19 lbs)

SPECIFICATIONS
Dynamic Power per Channel (3 Ω, Front)	160 W
Dynamic Power per Channel (4 Ω, Front)	125 W
Dynamic Power per Channel (8 Ω, Front)	85 W
THD	0.08% (20 Hz - 20 kHz, half power)
Input Sensitivity and Impedance (Line)	200 mV/47 kΩ
Rated Headphone Jack Output Level and Impedance	330 Ω
Rated Headphone Power Output	80 mW (32 Ω, 1 kHz, 10% THD)
S/N Ratio (Line, IHF-A)	106 dB
Frequency Response (Analog In)	10 Hz - 100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
DSD Sampling Rates via HDMI	2.8 MHz
DSD Sampling Rates via USB	5.6 MHz, 2.8 MHz
Video Input Sensitivity/Output Level and Impedance	1 Vp-p/75 Ω (Composite)
Ethernet Standard	10BASE-T/100BASE-TX
Wi-Fi Standard	IEEE 802.11 a/b/g/n
Wi-Fi Terminal Frequency	5 GHz, 2.4 GHz
Bluetooth Version	4․1 + LE
Bluetooth Frequency	2.4 GHz
USB Terminal	Ver. 2.0, 5 V, 500 mA
FM Frequency	87.5 MHz - 108.0 MHz
AM Frequency	522/530 kHz - 1611/1710 kHz
Warranty	1 Year Parts & Labor

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted
