Onkyo TX-SR373 (North American version)

•   Overview
•   Pros and Cons
•   Predecessor
•   Audio Section
•   Video Section
•   Multi-zone Playback
•   Inputs and Outputs
•   Specifications
•   Successor

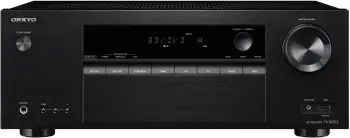

Onkyo TX-SR373 was introduced in 2017. It is equipped with 5 channel amplifier with 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 5.1 maximum channel processing. It passes 4K/60Hz video signal.

We evaluated the a/v receiver and gave 68 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

In this section we present pros and cons of Onkyo TX-SR373.

Here we are comparing Onkyo TX-SR373 to its predecessor TX-SR353 and displaying the major changes.

UPGRADES	Onkyo TX-SR373	vs	Onkyo TX-SR353
More Channels	5.2	vs	5.1
Dolby Vision		vs
Higher S/N Ratio (Line, IHF-A)	106 dB	vs	98 dB

For more detailed comparison between the models please visit Onkyo TX-SR373 vs Onkyo TX-SR353.

5 channel Amplifier

Onkyo TX-SR373 features 5 channel power amplifier. It is rated at 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven).

Speaker Configurations

Onkyo TX-SR373's 5 channel amplifier can be assigned for different speaker configurations.

• Configurations: Available configurations are:
5.2 with internal amplifier.

Sound Processing

• Advanced Music Optimizer: Compressed music enhancement in Onkyo TX-SR373 is done by Onkyo’s Advanced Music Optimizer. While MP3 or AAC files may sound fine through the headphones of your portable digital player, the limitations of these files can be exposed when played back through a quality home entertainment system. This is because a significant amount of high-frequency bit information is lost during the file-compression process. To counter this, Onkyo has designed the Advanced Music Optimizer to compensate for lost bit information and improve the quality of compressed audio signals. This results in a clearer and more expansive sound. Also included in this technology is a loudness correction feature that further improves the audio character of compressed files.

Room Calibration

Onkyo TX-SR373 comes with AccuEQ room correction system and includes the calibration microphone.

• AccuEQ: First, AccuEQ detects the presence of speakers and evaluates the impedance of each. Next, it pinpoints their distance relative to the main listening position using the mic and sets suitable sound-pressure levels. Then it selects the optimal crossover frequency so that deeper bass rolls smoothly off to the subwoofer. Finally, AccuEQ performs frequency response equalization based on room-acoustic and speaker data collected via microphone. The sound-field is now tailored around the listening position, resulting in a more immersive and realistic in-film experience.

HDMI

Onkyo TX-SR373 features 4 HDMI inputs. It has 1 output.

• 4K/60Hz Passthrough: All inputs pass up to 4K/60p (4:4:4) video signal.
• BT.2020 Color Space: BT.2020 or Rec. 2020 is a color standard which delivers a wider color gamut compared to Rec. 709. It covers approximately 75% of the total visual spectrum while the Rec. 709 covers only 35%.
• HDCP 2.2 Copy Protection: All inputs and outputs are HDCP 2.2 compliant which is a requirement for 4K/HDR copy-protected content transmission.
• 3D Ready: Onkyo TX-SR373 is able to pass 3D video through HDMI.

HDR (High Dynamic Range)

Onkyo TX-SR373 supports HDR (high dynamic range) video formats such as HDR10 and Dolby Vision. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.

• HDR10: HDR10 uses the wide-gamut Rec. 2020 color space. It sends static metadata via video stream to the TV which calibrates its screen brightness and color according to that. HDR10 supports 10-bit color which corresponds to 1024 shades of the primary RGB colors. It is technically limited to a maximum of 10,000 nits peak brightness, however common HDR10 contents are mastered with peak brightness from 1,000 to 4,000 nits.
• Dolby Vision: Dolby Vision is a set of technologies developed by Dolby Laboratories for high dynamic range (HDR) video. It covers content creation, distribution, and playback. Like HDR10+, it includes dynamic metadata that are used to adjust and optimize each frame of the HDR video to the consumer display's capabilities in a way specified by the content creator. Dolby Vision allows for a maximum resolution of 8K up to 12-bit color depth, maximum peak brightness of 10,000 nits and a color gamut up to Rec. 2020. It uses Dolby's proprietary dynamic metadata defined in SMPTE ST 2094-10.

Audio

• Analog Line Inputs: There are 3 line inputs for analog audio connection.
• Digital Inputs: 1 optical input and 1 coaxial input are available for digital audio connection.
• Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.

Video

• HDMI:
Inputs: 4   Outputs: 1
8K Inputs: 0
• Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
Inputs: 2   Outputs: 1

Here we list all the available features and specifications of Onkyo TX-SR373.

BASICS
Brand	Onkyo
Model	TX-SR373
Type	A/V Receiver
Country	North America
Release Year	2017

AMPLIFIER
Channels	5.2
Front Wide Channel Support
Dynamic Audio Amplification
Non-Phase Shift Amplifier
VLSC (Vector Linear Shaping Circuitry)
Optimum Gain Volume Circuitry
THX™ Certification
Continuous 6 Ω Rated
Certified 4 Ω Performance
Discrete Output Stage Circuitry
Independent Block Construction (Amp/Preprocessor)
Bi-amp Capability
BTL (Bridged Transless or Bridging)

AUDIO
DAC Specs	192 kHz/24 Bit
Maximum Channel Processing	5.1
Air Studios Monitor Certification
Dolby Atmos
Dolby Atmos Height Virtualization
Dolby Atmos Music
Dolby TrueHD
Dolby Digital Plus
Dolby Surround Upmixer
Dolby Pro Logic	PLII
Dolby Digital EX
THX Listening Modes
DTS:X
DTS Neural:X
DTS Virtual:X
DTS Neo	Neo:6
DTS-HD Master Audio
DTS-HD High Resolution Audio
DTS 96/24
DTS Express
DTS-ES
IMAX Enhanced
Auro 3D with Auro-Matic Upmixer
PCM	2-ch/Multi-ch Input
Music Playback via USB	WMA, MP3, AAC
High Resolution Music Playback via USB and/or Network
Multi-Channel Music File Playback via USB
DSD via HDMI	2-ch
DSD via USB
DSD to PCM Converter
USB DAC
Jitter Reduction
DTS Dialog Control
Dialog Enhancement
Dialog Normalization
Dialogue Lift
Tone Control	Front L/R Channels
Compressed Music Enhancer	Advanced Music Optimizer
High-resolution Music Enhancer
THX Processing Mode
Audyssey Dynamic EQ
Audyssey Dynamic Volume
Audyssey LFC
Audyssey Sub EQ HT
Audyssey DSX
Phase-Matching Bass Boost
Direct Mode
Pure Audio Mode
Pure Direct Analog Path Mode
Virtual Speakers

CALIBRATION
Auto Speaker Calibration System with Mic.	AccuEQ

VIDEO
Enhanced ARC
HDCP Version	2.2
HDR10
HDR10+
Dynamic HDR
Dolby Vision
HLG (Hybrid Log Gamma)
BT.2020 color space
QMS (Quick Media Switching)
ALLM (Auto Low Latency Mode)
VRR (Variable Refresh Rate)
QFT (Quick Frame transport)
3-D Ready
Video Signal Passthrough	up to 4K/60p (4:4:4)
Video Signal Upscaling
Analog To HDMI Upconversion
isf Certified Calibration Control

CONNECTIVITY
MHL Input
DLNA 1.5
FireConnect
FlareConnect
Chromecast Built-In
DTS Play-Fi
Works with Amazon Alexa
Works with SONOS
AirPlay
Apple Product Connection
Remote App
InstaPrevue Input Source Prevue
Ethernet
Ethernet Switch
Wi-Fi
Bluetooth	SBC, AAC
HDBaseT Compatible
HDMI Inputs	4
HDMI Outputs	1
8K Inputs
USB Input	1 (Front)
USB DC Out Port
Analog Audio Line Input	3
Analog Audio Line Output
Phono Input
Optical Inputs	1
Optical Outputs
Coaxial Inputs	1
Composite Video Input	2
Composite Video Output	1
S-Video Input
S-Video Output
Component Video Input
Component Video Output
PC In
Multi-Channel Input
Analog Pre-Outs	0.2
XLR Inputs
XLR Pre-outs
Front A/V Inputs	USB
Speaker A/B
Headphone Out	6.3 mm (1/4")

ZONES
Zones	1
Whole House Mode
RS-232C Interface
+12V Trigger Output	0
Remote (IR) Input/Output	0 / 0

MISC
On-Screen Display	via HDMI
Detachable Power Cord
uport
ONKYO-RI System Control
RIHD (Remote Interactive Over HDMI)
Pre-Pro/Learning Remote	/
On Screen Remote Programming
Bi-directional Remote Setup via GUI

RADIO
Analog Tuner	FM/AM
Presets	30
Digital Radio
Internet Radio
Pandora
Spotify
Tidal
Deezer
Napster
SiriusXM Internet Radio

CONSTRUCTION
Solid Aluminum Front
Speaker Terminals	5
Large Speaker Terminals	2
Color-Coded Speaker Terminals
Transparent High-Grade Speaker Terminals
18mm Pitch High Grade Pre-outs
19mm-Pitch Audio Inputs
Gold plated RCA terminals

POWER
Power Supply	AC 120 V, 60 Hz
Independent Power Supply
H.C.P.S. (High Current Power Supply)
Toroidal Transformer
Power Consumption	210 W
Standby Power	0.35 W

GENERAL
Dimensions (W x H x D)	435 mm x 168 mm x 326.5 mm 17-1/8" x 6-5/8" x 12-13/16"
Weight	8.0 kg (17 lb 10 oz)
Warranty	2 Years

SPECS
Power Output (8 Ω, 20 Hz - 20 kHz, 2	80 W (0.08% THD)
Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA)	155 W (10% THD)
Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)	140 W (1% THD)
THD	0.06% (20 Hz - 20 kHz, 1 Channel Driven, 50 W)
Input Sensitivity and Impedance (Line)	200 mV/47 kΩ
S/N Ratio (Line, IHF-A)	106 dB
Frequency Response (Analog In)	5 Hz - 100 kHz/0 dB, -3 dB (Direct)
DSD Sampling Rates via HDMI	2.8 MHz
Video Input Sensitivity/Output Level and Impedance	1 Vp-p/75 Ω (Composite)
Bluetooth Version	3.0
Bluetooth Frequency	2.4 GHz
HDMI Terminal	Type A (19-pin)
HDMI Output Type	5 V, 55 mA
USB Terminal	5 V, 0.5 A
FM Frequency	87.5 MHz - 107.9 MHz
AM Frequency	530 kHz - 1700 kHz

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted

In 2018 Onkyo TX-SR373 was replaced by TX-SR383. Let us now have a look at some important changes that the successor brought.

UPGRADES	Onkyo TX-SR383	vs	Onkyo TX-SR373
More Channels	7.2	vs	5.2
More Channel Processing	7.1	vs	5.1
Dolby Atmos		vs
Dolby Surround Upmixer		vs
DTS:X		vs
DTS Neural:X		vs
DTS Express		vs
DTS-ES		vs
More Zones	2	vs	1
More Speaker Terminals	7	vs	5
Bigger Power Supply	270 W	vs	210 W
Wider AM Frequency Range	530 kHz - 1710 kHz	vs	530 kHz - 1700 kHz

DOWNGRADES	Onkyo TX-SR383	vs	Onkyo TX-SR373
Dolby Pro Logic		vs	PLII
DTS Neo		vs	Neo:6

For more detailed comparison between the models please visit Onkyo TX-SR373 vs Onkyo TX-SR383.
