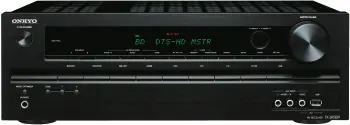

Onkyo TX-SR309 (USA version)

Onkyo TX-SR309 was introduced in 2011. It is equipped with 5 channel amplifier and is capable of 5.1 maximum channel processing.

We evaluated the Receiver and gave 19 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

Amplifier score is based on power ratings, minimum impedance load, power supply, transformer type, total harmonic distortion, damping factor, signal to noise ratio and other small details. Audio score depends on the number of channels, front wide channel support, maximum channel processing, support of audio formats, DAC specifications, room calibration algorithm... Video score is based on HDR, Dolby Vision and video signal passthrough and upscaling, analog to HDMI upconversion. Connectivity score is defined from all wired and wireless inputs and outputs, internet and bluetooth connections, HEOS, SONOS and others. Multizone score depends on the number of zones with their outputs. Radio score is evaluated form digital radio support and analog tuner with its frequency range, signal to noise ratio, harmonic distortion...

In this section we present pros and cons of Onkyo TX-SR309.

Amplifier

Onkyo TX-SR309 has 5 channel amplifier and delivers 65 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven).

Video Features

The Receiver has 1080p passthrough.

Advanced Music Optimizer

Compressed music enhancement in Onkyo TX-SR309 is done by Onkyo’s Advanced Music Optimizer. While MP3 or AAC files may sound fine through the headphones of your portable digital player, the limitations of these files can be exposed when played back through a quality home entertainment system. This is because a significant amount of high-frequency bit information is lost during the file-compression process. To counter this, Onkyo has designed the Advanced Music Optimizer to compensate for lost bit information and improve the quality of compressed audio signals. This results in a clearer and more expansive sound. Also included in this technology is a loudness correction feature that further improves the audio character of compressed files.

Room Correction

Onkyo TX-SR309 does not come with room correction system.

Connectivity

Onkyo TX-SR309 has 3 HDMI inputs.

Front panel has USB, Composite Video and RCA Audio inputs.

Here we list all the available features and specifications of Onkyo TX-SR309.

BASICS
Brand	Onkyo
Model	TX-SR309
Type	A/V Receiver
Country	USA
Release Year	2011

AMPLIFIER
Channels	5.1
WRAT (Wide Range Amplifier Technology)	✖
VLSC (Vector Linear Shaping Circuitry)	✖
Optimum Gain Volume Circuitry	✔
THX™ Certification	✖
Continuous 6 Ω Rated	✔
Certified 4 Ω Performance	✖
Discrete Output Stage Circuitry	✖
3-Stage Inverted Darlington Circuitry	✖
PUSH-PULL Design	✖
Independent Block Construction (Amp/Preprocessor)	✖
Bi-amp Capability	✖
BTL (Bridged Transless or Bridging)	✖

AUDIO
Digital Processing Crossover Network	✖
Digital Signal Processing (DSP) Engine	Advanced 32-Bit Processing DSP Chip
DAC	Burr-Brown
Maximum Channel Processing	5.1
Air Studios Monitor Certification	✖
Dolby Atmos	✖
Dolby Atmos Height Virtualization	✖
Dolby TrueHD	✔
Dolby Digital Plus	✔
Dolby Surround Upmixer	✖
Dolby Pro Logic	✔ PLII
Dolby Digital EX	✖
Surround EX	✖
DTS:X	✖
DTS Neural:X	✖
DTS Virtual:X	✖
DTS Neo	✔ Neo:6
DTS-HD Master Audio	✔
DTS-HD High Resolution Audio	✔
DTS 96/24	✔
DTS Express	✔
DTS-ES	✖
IMAX Enhanced	✖
Auro 3D with Auro-Matic Upmixer	✖
PCM	✔ 2-ch/Multi-ch Input
Music Playback via USB	FLAC, WMA, MP3, AAC
High Resolution Music Playback via USB and/or Network	✖
High Resolution Audio Formats via USB	✖
Multi-Channel Music File Playback via USB	✖
Gapless Playback	✖
DSD via HDMI	✔ 2-ch/Multi-ch Input
DSD via USB	✖
DSD to PCM Converter	✖
USB DAC	✖
Jitter Reduction	✔ PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio
DTS Dialogue Control	✖
Dialog Enhancement	✖
Dialog Level Adjustment	✖
Dialog Normalization	✖
Dialogue Lift	✖
Tone Control	✔ Front L/R Channels
Compressed Music Enhancer	✔ Advanced Music Optimizer
High-resolution Music Enhancer	✖
THX Processing Mode	✖
Audyssey Dynamic EQ	✖
Audyssey Dynamic Volume	✖
Audyssey LFC	✖
Audyssey Sub EQ HT	✖
Audyssey DSX	✖
Phase-Matching Bass Boost	✖
Direct Mode	✔
Pure Audio Mode	✖
Pure Direct Analog Path Mode	✖
Virtual Speakers	✔ T-D (Theater-Dimensional)
Independent Dual Subwoofer Output	✖

CALIBRATION
Auto Speaker Calibration System with Mic.	✖

VIDEO
HDR10	✖
HDR10+	✖
Dynamic HDR	✖
BT.2020 color space	✖
Dolby Vision	✖
Hybrid Log Gamma (HLG)	✖
Quick Media Switching (QMS)	✖
Auto Low Latency Mode (ALLM)	✖
Variable Refresh Rate (VRR)	✖
Quick Frame Transport (QFT)	✖
3-D Ready	✔
Video Signal Passthrough	up to 1080p
Video Signal Upscaling	✖
Analog To HDMI Upconversion	✖
Component Video Upscaling	✖
Analog to Analog Video conversion	✖
isf Certified Calibration Control	✖

CONNECTIVITY
MHL Input	✖
DLNA 1.5	✖
FireConnect	✖
FlareConnect	✖
Chromecast Built-In	✖
DTS Play-Fi	✖
Works with Amazon Alexa	✖
Works with SONOS	✖
AirPlay	✖
Apple Product Connection	✔ iPod and iPhone via USB or optional DS-A4 Dock (sold separately)
Remote App	✖
InstaPrevue Input Source Prevue	✖
Ethernet	✖
Ethernet Switch	✖
Wi-Fi	✖
Bluetooth	✖
HDBaseT Compatible	✖
Enhanced Audio Return Channel (eARC)	✖
HDMI Inputs	3
HDMI Outputs	1
USB Input	1 Front
USB DC Out Port	✖
Analog Audio Line Inputs	6 (1 front)
Analog Audio Line Outputs	1
Phono Input	✖
Optical Inputs	2
Optical Outputs	✖
Coaxial Inputs/Outputs	1 / No
Composite Video Inputs	5 (1 front)
Composite Video Outputs	2
S-Video Inputs	✖
S-Video Outputs	✖
Component Video Inputs	2
Component Video Outputs	1
PC In	✖
Multi-Channel Input	✖
Analog Pre-Outs	0.1
XLR Inputs	✖
XLR Pre-outs	✖
Front A/V Inputs	USB, Composite Video, RCA Audio
Speaker A/B	✔
Headphone Out	✔ 6.3 mm

ZONES
Zones	1
Whole House Mode	✖
RS-232 Interface	✖
+12V Trigger Output	✖
Remote (IR) Input/Output	✖

MISC
On-Screen Display	✔ Basic Overlay
Detachable Power Cord	✖
uport	✖
ONKYO-RI System Control	✔
RIHD (Remote Interactive Over HDMI)	✔
Pre-Pro/Learning Remote	No / No
On Screen Remote Programming	✖
Bi-directional Remote Setup via GUI	✖
Activity Based Remote	✖
Smart Grid-Ready	✖

RADIO
Analog Tuner	✔ FM/AM
Presets	40
Digital Radio	✖
Internet Radio	✖
Pandora	✖
Spotify	✖
Tidal	✖
Deezer	✖
Napster	✖
SiriusXM Internet Radio	✖

CONSTRUCTION
Solid Aluminum Front	✖
Speaker Terminals	7
Large Speaker Terminals	0
Color-Coded Speaker Terminals	✔
Transparent High-Grade Speaker Terminals	✖
18mm Pitch High Grade Pre-outs	✖
19mm-Pitch Audio Inputs	✖
Gold plated RCA terminals	✖

POWER
Power Supply	AC 120 V, 60 Hz
Independent Power Supply	✖
H.C.P.S. (High Current Power Supply)	✔ Massive High Power Transformer
Toroidal Transformer	✖
Power Consumption	3.3 A
No Sound Power	40 W
Standby Power	0.2 W

GENERAL
Dimensions (W x H x D)	435 mm x 150 mm x 328 mm 17-1/8" x 5-7/8" x 12-15/16"
Weight	7.5 kg (16.5 lbs)
Warranty	2 Years

SPECS
Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)	65 W (0.7% THD)
Power Output (6 Ω, 1 kHz, 2 channel driven, FTC)	90 W (0.9% THD)
Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA or IEC)	120 W
Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)	100 W (1% THD)
Dynamic Power per Channel (3 Ω, Front)	160 W
Dynamic Power per Channel (4 Ω, Front)	125 W
Dynamic Power per Channel (8 Ω, Front)	85 W
THD	0.08% (20 Hz - 20 kHz, Half power)
Damping Factor	60 (Front, 1 kHz, 8 Ω)
Input Sensitivity and Impedance (Line)	200 mV/47 kΩ (Line)
Rated Lineout Level and Impedance	200 mV/2.2 kΩ (REC OUT)
Maximum Lineout Level and Impedance	2 V/2.2 kΩ (REC OUT)
S/N Ratio (Line, IHF-A)	100 dB
Frequency Response (Analog In)	20 Hz - 50 kHz/+1 dB, -3 dB (DSP bypass)
DSD Sampling Rates via HDMI	2.8 MHz
Video Input Sensitivity/Output Level and Impedance	1 Vp-p/75 Ω (Component Y) 0.7 Vp-p/75 Ω (Component PB/CB, PR/CR) 1 Vp-p/75 Ω (Composite)
Video Frequency Response	5 Hz - 100 MHz/+0 dB, -3 dB (Component)
Ethernet Standard	✖
FM Frequency	87.5 MHz - 107.9 MHz
AM Frequency	522/530 kHz - 1611/1710 kHz

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted

In 2012 Onkyo TX-SR309 was replaced by TX-SR313. Let us now have a look at some important changes that the successor brought.

UPGRADES	Onkyo TX-SR313	Onkyo TX-SR309
More HDMI Inputs	4	3
Bigger Power Supply	3.4 A	3.3 A

For more detailed comparison between the models please visit Onkyo TX-SR313 vs Onkyo TX-SR309.
