Onkyo TX-NR474 Review and Specs

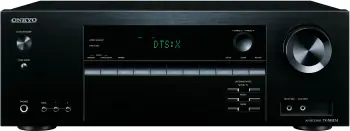

Onkyo TX-NR474 (Australian version)

SCORE:
79
Image cannot be found

Highlights

  • 5.1 channels
  • 135 W (6 Ω, 1 kHz, 1 channel driven)
  • Dolby Atmos, DTS:X capable
  • HDR10, Dolby Vision, 4K Passthrough
  • AirPlay, DLNA, Chromecast, DTS Play-Fi
  • Ethernet, Wi-Fi, Bluetooth
  • USB input
amazon
B&H

Disclosure: We earn money from the affiliate links to products associated with content in this article.

Overview

Onkyo TX-NR474 was introduced in 2017. It is equipped with 5 channel amplifier and is capable of 5.1 maximum channel processing.

We evaluated the Receiver and gave 79 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

AMPLIFIER
80
VIDEO FEATURES
87
AUDIO FEATURES
86
CONNECTIVITY
79
MULTIZONE
55
MISCELLANEOUS
48
RADIO
90
OVERALL
79

Amplifier score is based on power ratings, minimum impedance load, power supply, transformer type, total harmonic distortion, damping factor, signal to noise ratio and other small details. Audio score depends on the number of channels, front wide channel support, maximum channel processing, support of audio formats, DAC specifications, room calibration algorithm... Video score is based on HDR, Dolby Vision and video signal passthrough and upscaling, analog to HDMI upconversion. Connectivity score is defined from all wired and wireless inputs and outputs, internet and bluetooth connections, HEOS, SONOS and others. Multizone score depends on the number of zones with their outputs. Radio score is evaluated form digital radio support and analog tuner with its frequency range, signal to noise ratio, harmonic distortion...

Pros and Cons

In this section we present pros and cons of Onkyo TX-NR474.

PROS
👍   Certified 4 Ω Performance
👍   Dolby Atmos
👍   Dolby TrueHD
👍   Dolby Digital Plus
👍   Dolby Surround Upmixer
👍   DTS:X
👍   DTS Neural:X
👍   DTS-HD Master Audio
👍   DTS-HD High Resolution Audio
👍   DTS 96/24
👍   DTS Express
👍   High Resolution Music Playback via USB and/or Network
👍   Gapless Playback
👍   DSD via HDMI
👍   DSD via USB
👍   DTS Dialog Control
👍   Dialog Normalization
👍   Compressed Music Enhancer
👍   Auto Speaker Calibration System with Mic.
👍   HDR10
👍   BT.2020 color space
👍   Dolby Vision
👍   3-D Ready
👍   4K or 8K Video Passthrough
👍   Analog To HDMI Upconversion
👍   DLNA 1.5
👍   FlareConnect
👍   Chromecast Built-In
👍   DTS Play-Fi
👍   Ethernet
👍   Wi-Fi
👍   Bluetooth
👍   New HDCP Version
👍   USB Input
👍   Composite Video Inputs
👍   Zones
👍   Analog Tuner
👍   Spotify
👍   Tidal
👍   Deezer
👍   H.C.P.S. (High Current Power Supply)
👍   New Bluetooth Version
CONS
👎   No Front Wide Channel Support
👎   No Bi-amp Capability
👎   Few Channel Processing
👎   No Dolby Atmos Height Virtualization
👎   No DTS Virtual:X
👎   No IMAX Enhanced
👎   No Auro 3D with Auro-Matic Upmixer
👎   No High-resolution Music Enhancer
👎   No HDR10+
👎   No Hybrid Log Gamma (HLG)
👎   No 4K or 8K Video Upscaling
👎   Does not Work with Amazon Alexa
👎   Does Not Work with SONOS
👎   No eARC
👎   Few HDMI Inputs
👎   Few HDMI Outputs
👎   No Phono Input
👎   No Component Video Inputs
👎   No Multi-Channel Input
👎   No Analog Pre-Outs
👎   No Pandora
👎   No Napster
👎   No SiriusXM Internet Radio

Amplifier

Onkyo TX-NR474 has 5 channel amplifier and delivers 135 W (6 Ω, 1 kHz, 1 channel driven) and also has a stable performance at 4 Ω load.


Video Features

The Receiver has 4K passthrough up to 60p. It can bypass HDR10, Dolby Vision.


HDR10

High-dynamic-range (HDR) video has greater dynamic range than standard-dynamic-range (SDR) video with brigter whites and deeper blacks. HDR10 was announced on August 27, 2015, by the Consumer Technology Association and uses the wide-gamut Rec. 2020 color space. It sends static metadata via video stream to the TV which calibrates its screen brightness and color according to that. HDR10 supports up to 1000 nits of brightness and 10-bit color which corresponds to 1024 shades of the primary RGB colors.


Dolby Vision

Dolby Vision is an update to HDR10 by adding dynamic metadata that can be used to more accurately adjust brightness levels up to 10,000 nits maximum brightness on a scene-by-scene or frame-by-frame basis and supports up to 12-bit color depth (4096 shades of RGB) and 8K resolution.


Dolby Atmos and Dolby Surround upmixer

Onkyo TX-NR474 supports Dolby Atmos with its Dolby Surround upmixer. It can be configured upto 3.1.2 channels.

Dolby Atmos is the first cinematic audio format in which sounds exist as individual entities, called audio objects. In Dolby Atmos, any sound - the helicopter, a car screeching around a corner, a melodic bird call - can exist as an independent audio object, free of channel restrictions. They can be precisely placed and moved anywhere in your room, including overhead, to flow above and around you in three-dimensional space. Through the use of audio objects, overhead sound, and all the richness, clarity, and power of Dolby sound, Dolby Atmos turns your room into an amazing place for entertainment. You'll feel like you're inside the action, in ways you've never experienced before.

Dolby Atmos for the home represents every sound in the original cinema mix as an audio object. Extensions to the Dolby Audio™ codecs, along with an advanced scalable algorithm, allow Dolby Atmos to be delivered via Blu-ray Disc and streaming media. A spatially-coded substream is added to Dolby TrueHD or Dolby Digital Plus. A Dolby Atmos audio/video receiver (AVR) adapts the cinema experience to your home theater from seven speakers to as many as 34 in 24.1.10 configuration, recreating the original artistic concept. The format supports up to 128 simultaneous independent audio objects in a mix for rich, realistic, and breathtaking sound. It recreates the director's original concept through descriptive metadata to provide customized playback for home theater and delivers sounds above you through overhead speakers, special upward-firing Dolby Atmos speakers, or a Dolby Atmos enabled sound bar.

If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.


DTS:X and Neural:X upmixer

Onkyo TX-NR474 supports DTS:X with its Neural:X upmixer. It can be configured upto 3.1.2 channels.

A technique used in DTS:X is similar to the one used in Dolby Atmos. Instead of a fixed number of channels, DTS:X defines object locations from the listener in polar coordinates. An a/v receiver then dynamically renders sound according to the current speaker configuration. The speaker layout employed by DTS:X is the sum of Dolby Atmos and Auro-3D. It has standard 7.1 channel base layer, a 5 channel height layer above the base layer on the front and side walls, and 3 rows of speakers on the ceiling.

DTS Neural:X is a new upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.


Advanced Music Optimizer

Compressed music enhancement in Onkyo TX-NR474 is done by Onkyo’s Advanced Music Optimizer. While MP3 or AAC files may sound fine through the headphones of your portable digital player, the limitations of these files can be exposed when played back through a quality home entertainment system. This is because a significant amount of high-frequency bit information is lost during the file-compression process. To counter this, Onkyo has designed the Advanced Music Optimizer to compensate for lost bit information and improve the quality of compressed audio signals. This results in a clearer and more expansive sound. Also included in this technology is a loudness correction feature that further improves the audio character of compressed files.


Room Correction

Onkyo TX-NR474 comes with AccuEQ with AccuReflex™ room correction system and includes the calibration microphone.


Connectivity

Onkyo TX-NR474 can be connected to internet using ethernet cable or built-in wi-fi adapter. It can also connect to bluetooth devices via built-in bluetooth adapter. The Receiver supports AirPlay. It has 4 HDMI inputs and HDCP 2.2 (4 in / 1 out) copy protection.

Front panel has Mini-Jack input.

Image cannot be found
Image cannot be found

Specifications

Here we list all the available features and specifications of Onkyo TX-NR474.

BASICS
BrandOnkyo
ModelTX-NR474
TypeA/V Receiver
CountryAustralia
Release Year2017
AMPLIFIER
Channels5.1
Front Wide Channel Support
Non-Phase Shift Amplifier
VLSC (Vector Linear Shaping Circuitry)
Optimum Gain Volume Circuitry
THX™ Certification
Continuous 6 Ω Rated
Certified 4 Ω Performance
Discrete Output Stage Circuitry
Independent Block Construction (Amp/Preprocessor)
Bi-amp Capability
BTL (Bridged Transless or Bridging)
AUDIO
Digital Signal Processing (DSP) Engine32-bit Digital Signal Processing Engines
DACAKM AK4438
Maximum Channel Processing5.1
Air Studios Monitor Certification
Dolby Atmos
Dolby Atmos Height Virtualization
Dolby TrueHD
Dolby Digital Plus
Dolby Surround Upmixer
Dolby Pro Logic
Dolby Digital EX
THX Listening Modes
DTS:X
DTS Neural:X
DTS Virtual:X
DTS Neo
DTS-HD Master Audio
DTS-HD High Resolution Audio
DTS 96/24
DTS Express
DTS-ES
IMAX Enhanced
Auro 3D with Auro-Matic Upmixer
PCM 2-ch/Multi-ch Input
Music Playback via USBFLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, AAC, Dolby TrueHD
High Resolution Music Playback via USB and/or Network up to 192 kHz
High Resolution Audio Formats via USBFLAC, WAV, Apple Lossless, DSD, AIFF, AAC, Dolby TrueHD
Multi-Channel Music File Playback via USB
Gapless Playback
DSD via HDMI 2-ch/Multi-ch Input
DSD via USB 2-ch Input
DSD to PCM Converter
USB DAC
Jitter Reduction PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio
DTS Dialog Control
Dialog Enhancement
Dialog Normalization
Dialogue Lift
Tone Control Front L/R Channels
Compressed Music Enhancer Advanced Music Optimizer (bluetooth included)
High-resolution Music Enhancer
THX Processing Mode
Audyssey Dynamic EQ
Audyssey Dynamic Volume
Audyssey LFC
Audyssey Sub EQ HT
Audyssey DSX
Phase-Matching Bass Boost
Direct Mode
Pure Audio Mode
Pure Direct Analog Path Mode
Virtual Speakers T-D (Theater-Dimensional)
CALIBRATION
Auto Speaker Calibration System with Mic. AccuEQ with AccuReflex™
VIDEO
HDR10
HDR10+
BT.2020 color space
Dolby Vision
HLG (Hybrid Log Gamma)
QMS (Quick Media Switching)
ALLM (Auto Low Latency Mode)
VRR (Variable Refresh Rate)
QFT (Quick Frame transport)
3-D Ready
Video Signal Passthroughup to 4K/60p (RGB/YCbCr4:4:4)
Video Signal Upscaling
Analog To HDMI Upconversion Composite
isf Certified Calibration Control
CONNECTIVITY
MHL Input
DLNA 1.5
FireConnect
FlareConnect
Chromecast Built-In
DTS Play-Fi
Works with Amazon Alexa
Works with SONOS
AirPlay AirPlay
Apple Product Connection iPod, iPhone and iPad
Remote AppOnkyo Remote App for iPod touch/iPhone and Android-Powered Devices
InstaPrevue Input Source Prevue
Ethernet
Ethernet Switch
Wi-Fi
Bluetooth SBC, AAC
HDBaseT Compatible
Enhanced ARC
HDCP Version2.2 (4 in / 1 out)
HDMI Input4
HDMI Output1
USB Input1 (Rear)
USB DC Out Port
Analog Audio Line Input4 (1 Front)
Analog Audio Line Output
Phono Input
Optical In2
Optical Out
Coaxial In/Out1 /
Composite Video Input2
Composite Video Output
S-Video Input
S-Video Output
Component Video Input
Component Video Output
PC In
Multi-Channel Input
Analog Pre-Outs0.1
XLR Inputs
XLR Pre-outs
Front A/V InputsMini-Jack
Speaker A/B
Headphone Out 6.3 mm
ZONES
Zones1
Whole House Mode
RS-232
+12V Trigger Output0
Remote (IR) Input/Output0 / 0
MISC
On-Screen Display Graphical Overlaid On-Screen Display (OSD) via HDMI with Quick Set-Up
GUI Languages9
Detachable Power Cord
uport
ONKYO-RI System Control
RIHD (Remote Interactive Over HDMI)
Pre-Pro/Learning Remote /
On Screen Remote Programming
Bi-directional Remote Setup via GUI
RADIO
Analog Tuner FM/AM with RDS
Presets40
Digital Radio
Internet Radio TuneIn
Pandora
Spotify
Tidal
Deezer
Napster
SiriusXM Internet Radio
CONSTRUCTION
Solid Aluminum Front
Speaker Terminals5
Large Speaker Terminals5
Color-Coded Speaker Terminals
Transparent High-Grade Speaker Terminals
18mm Pitch High Grade Pre-outs
19mm-Pitch Audio Inputs
Gold plated RCA terminals
POWER
Power SupplyAC 220-240 V, 50/60 Hz
Independent Power Supply
H.C.P.S. (High Current Power Supply)
Toroidal Transformer
Power Consumption400 W
No Sound Power40 W
Standby Power0.15 W
GENERAL
Dimensions (W x H x D)435 mm x 160 mm x 328 mm
Weight8.6 kg
Warranty2 Years
SPECS
Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA)160 W (10% THD)
Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)135 W (1% THD)
Dynamic Power per Channel (3 Ω, Front)160 W
Dynamic Power per Channel (4 Ω, Front)125 W
Dynamic Power per Channel (8 Ω, Front)85 W
THD0.08% (20 Hz - 20 kHz, Half power)
Input Sensitivity and Impedance (Line)200 mV/47 kΩ (1 kHz, 100 W/8 Ω)
Rated Headphone Jack Output Level and Impedance330 Ω
Rated Headphone Power Output80 mW (32 Ω, 1 kHz, 10% THD)
S/N Ratio (Line, IHF-A)106 dB
Frequency Response (Analog In)10 Hz - 100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
DSD Sampling Rates via HDMI2.8 MHz
DSD Sampling Rates via USB2.8 MHz, 5.6 MHz
Video Input Sensitivity/Output Level and Impedance1 Vp-p/75 Ω (Composite)
Ethernet Standard10BASE-T/100BASE-TX
Wi-Fi StandardIEEE 802.11 a/b/g/n
Wi-Fi Terminal Frequency5 GHz, 2.4 GHz
Bluetooth Version4.1 + LE
Bluetooth Frequency2.4 GHz
USB Terminal5 V, 1 A
FM Frequency87.5 MHz - 108.0 MHz
AM Frequency522/530 kHz - 1611/1710 kHz

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted
