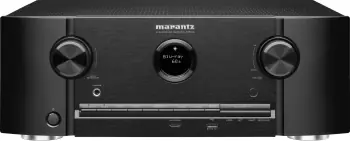

Marantz SR5010 (UK version)
- 7.2 channels
- 7.1 channel processing
- 100 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
- Dolby Atmos, DTS:X capable
- HDR10, Dolby Vision, 4K Upscaling, 4K Passthrough
- AirPlay, DLNA
- Ethernet, Wi-Fi, Bluetooth
- USB input
Disclosure: We earn money from the affiliate links to products associated with content in this article.
Marantz SR5010 was introduced in 2015. It is equipped with 7 channel amplifier with 100 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 7.1 maximum channel processing. It supports Dolby Atmos and DTS:X, passes 4K/60Hz and upscales up to 4K 30/25/24p 4:4:4 video signal.
We evaluated the a/v receiver and gave 86 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.
Pros and Cons
In this section we present pros and cons of Marantz SR5010.
|Auto Speaker Calibration System with Mic.|
|New HDCP Version|
|4K or 8K Video Passthrough|
|4K or 8K Signal Upscaling|
|Analog To HDMI Upconversion|
|Many HDMI Inputs|
|Composite Video Inputs|
|Component Video Inputs|
|No Front Wide Channel Support|
|No Dolby Atmos Height Virtualization|
|No IMAX Enhanced|
|No Auro 3D with Auro-Matic Upmixer|
|No DSD via HDMI|
|No Chromecast Built-In|
|Does not Work with Amazon Alexa|
|Few 8K Inputs|
|No Phono Input|
|Old Bluetooth Version|
Here we are comparing Marantz SR5010 to its predecessor SR5009 and displaying the major changes.
|UPGRADES||Marantz SR5010||vs||Marantz SR5009|
|Dolby Surround Upmixer||vs|
|BT.2020 color space||vs|
|DOWNGRADES||Marantz SR5010||vs||Marantz SR5009|
|Dolby Pro Logic||vs||PLIIz|
For more detailed comparison between the models please visit Marantz SR5010 vs Marantz SR5009.
7 channel Amplifier
Marantz SR5010 features 7 channel power amplifier. It is rated at 100 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.
- Current Feedback Topology: Marantz SR5010 features Current Feedback Topology which is a well known, Marantz’ original circuit technology. The Current Feedback amplifier technology fits perfectly with the high requirements set for Super Audio software providing wide-bandwidth, high-speed reproduction. The impedance at the Current Feedback point is limited resulting in a very low phase shift. Marantz receivers and amplifiers equipped with Current Feedback can keep the phase compensation via Negative FeedBack (NFB) to a minimum, resulting in high through-rate, excellent transient response and superb sonic transparency for the full bandwidth. Unlike conventional Voltage Feedback amplification, the Current Feedback amplification makes the power amplifier in-sensitive to difficult loudspeaker loads.
- HDAM (Hyper Dynamic Amplifier Module): Marantz SR5010 features exclusive Marantz HDAM (Hyper Dynamic Amplifier Module) technology found on their Reference Series components. Marantz developed its own discrete circuit boards to replace standard IC's. These HDAM's consist of discrete surface mount components with short mirror image L/R signal paths. Those devices are doing exactly the same thing as the Op-Amps, but outperform the regular IC Op-amps dramatically in terms of the Slew Rate and reduced noise level, resulting in a much more dynamic, accurate and detailed sound. Over the years Marantz developed different types of the HDAM to improve quality and to fit to the special requirements of a product category like CD or amplifier.
Marantz SR5010's 7 channel amplifier can be assigned for different speaker configurations.
- Dolby Atmos Configurations: The following speaker configurations are supported for Dolby Atmos:
- 5.2.2 with internal amplifier.
- DTS:X Configurations: The speaker configurations for DTS:X are the same as for Dolby Atmos:
- 5.2.2 with internal amplifier.
- Configurations without height channels: There are also other speaker configurations available which do not include height channels:
- 5.2, 7.2 with internal amplifier.
- Bi-Amp: You can bi-amp front left and right speakers. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.
Marantz SR5010 supports Dolby Atmos. It is a cinematic audio format in which sounds exist as individual entities, called audio objects. In Dolby Atmos, any sound can exist as an independent audio object, free of channel restrictions. They can be precisely placed and moved anywhere in your room, including overhead, to flow above and around you in three-dimensional space. Through the use of audio objects, overhead sound, and all the richness, clarity, and power of Dolby sound, Dolby Atmos turns your room into an amazing place for entertainment. The format supports up to 128 simultaneous independent audio objects in a mix for rich, realistic, and breathtaking sound. It recreates the director's original concept through descriptive metadata to provide customized playback for home theater and delivers sounds above you through overhead speakers, special upward-firing Dolby Atmos speakers, or a Dolby Atmos enabled sound bar.
- Dolby Surround Upmixer: If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.
Marantz SR5010 supports DTS:X. A technique used in DTS:X is similar to the one used in Dolby Atmos. Instead of a fixed number of channels, DTS:X defines object locations from the listener in polar coordinates. An a/v receiver then dynamically renders sound according to the current speaker configuration. The speaker layout employed by DTS:X is the sum of Dolby Atmos and Auro-3D. It has standard 7.1 channel base layer, a 5 channel height layer above the base layer on the front and side walls, and 3 rows of speakers on the ceiling.
- DTS Neural:X: DTS Neural:X is an advanced upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.
- Audyssey: Marantz SR5010 comes with Audyssey Dynamic EQ and Dynamic Volume.
- Dynamic EQ: selects the best possible frequency response and surround volume levels moment-by-moment. This ensures that the bass response, tonal balance and surround impression remain constant despite changes in volume. This is the first technology that carefully combines information from incoming source levels with actual output sound levels in the room, a pre-requisite for delivering a dynamic volume solution.
- Dynamic Volume: Your Listening experience can be greatly diminished when there are significant shifts in volume between television programs, commercials and within the program material itself. When this happens you must constantly adjust the volume to maintain your desired listening level. Audyssey Dynamic Volume monitors the volume of program material moment-by-moment and automatically adjusts it, maintaining the desired listening level for all content while optimizing the dynamic range to preserve impact.
- MDAX2: Compressed music enhancement in Marantz SR5010 is done by Marantz’ MDAX2 technology. The use of compressed audio files like MP3, Windows Media™ Audio or AAC is getting more and more popular. The audio quality of these compressed files however is less than the original lossless files that are on a CD, especially lacking the higher frequencies and affecting the lower frequencies which make the audio image less wide and deep. The Marantz Digital Audio Expander 2, also called M-DAX2, recalculates the outputted frequency range. This enables you to get a more detailed and clearer sound.
Marantz SR5010 comes with Audyssey MultEQ XT room correction system and includes the calibration microphone.
- Audyssey Room Calibration: Audyssey is an acoustic measurement technology which automatically restores the acoustic distortion caused by the acoustic behaviour of a room with only a push on a button. Audyssey equalization provides an clear, accurate, natural sound with voices and dialog that become focused and intelligible, restoring the musical balance. Musical instruments and sound effects become precisely localized and the surround soundstage is made seamless and enveloping.
Marantz SR5010 features 8 HDMI inputs. It has 2 outputs: 1 for MAIN and 1 for ZONE2.
- 4K/60Hz Passthrough: All inputs pass up to 4K 50/60Hz 4:4:4 video signal.
- 4K Upscaling: Marantz SR5010 can upscale up to 4K 30/25/24p 4:4:4 from HDMI and analog sources.
- Analog To HDMI Upconversion: The a/v receiver supports video upconversion, so you can connect your analog Component and Composite video sources and Marantz SR5010 will output them via HDMI. This means that you will need only one HDMI cable to connect to your TV.
- BT.2020 Color Space: BT.2020 or Rec. 2020 is a color standard which delivers a wider color gamut compared to Rec. 709. It covers approximately 75% of the total visual spectrum while the Rec. 709 covers only 35%.
- HDCP 2.2 Copy Protection: All inputs and outputs are HDCP 2.2 compliant which is a requirement for 4K/HDR copy-protected content transmission.
- 3D Ready: Marantz SR5010 is able to pass 3D video through HDMI.
HDR (High Dynamic Range)
Marantz SR5010 supports HDR (high dynamic range) video formats such as HDR10, Dolby Vision and Hybrid Log-Gamma. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.
- HDR10: HDR10 uses the wide-gamut Rec. 2020 color space. It sends static metadata via video stream to the TV which calibrates its screen brightness and color according to that. HDR10 supports 10-bit color which corresponds to 1024 shades of the primary RGB colors. It is technically limited to a maximum of 10,000 nits peak brightness, however common HDR10 contents are mastered with peak brightness from 1,000 to 4,000 nits.
- Dolby Vision: Dolby Vision is a set of technologies developed by Dolby Laboratories for high dynamic range (HDR) video. It covers content creation, distribution, and playback. Like HDR10+, it includes dynamic metadata that are used to adjust and optimize each frame of the HDR video to the consumer display's capabilities in a way specified by the content creator. Dolby Vision allows for a maximum resolution of 8K up to 12-bit color depth, maximum peak brightness of 10,000 nits and a color gamut up to Rec. 2020. It uses Dolby's proprietary dynamic metadata defined in SMPTE ST 2094-10.
- Hybrid Log-Gamma (HLG): The Hybrid Log-Gamma (HLG) is a transfer function developed mainly for HDR live video feed and over-the-air broadcasts. It is an HDR format that uses BT.2020 color primaries and a bitdepth of 10-bit. It is backward compatible with the transfer function of SDR and is designed to be better-suited for television broadcasting, where the metadata required for other HDR formats is not backward compatible with non-HDR displays. HLG defines a non-linear optical-electro transfer function, in which the lower half of the signal values use a gamma curve and the upper half of the signal values use a logarithmic curve.
Marantz SR5010 offers multi-zone playback which allows you to play different input sources in 2 different rooms.
- Powered Zone 2: You can use the unit's 2 amplifier channels by connecting Zone 2 speakers directly to the speaker terminals. The remaining 5 channels will be left for main zone amplification.
- Audio Pre Output: If you have a dedicated power amplifier for Zone 2 you can connect it to the a/v receiver via pre outs and control volume from the a/v receiver.
Inputs and Outputs
- 7.1 Multichannel Input: In case you have a high quality Blu-Ray or a DVD player with multichannel analog outputs you may connect it to a 7.1 multichannel analog inputs of the a/v receiver and use high quality DACs of the player instead of the ones in the a/v receiver.
- Analog Pre-Outs: Marantz SR5010 has 7.2 preamplifier outputs which allow you to connect the a/v receiver to the external power amplifier. You may want to use a high quality external amplifier for certain channels, usually for front L/R and center, and use the a/v receiver to power the rest.
- Analog Line Inputs: There are 4 line inputs for analog audio connection.
- Digital Inputs: 2 optical inputs and 2 coaxial inputs are available for digital audio connection.
- Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.
- Inputs: 8 (1 front) Outputs: 2 (1 for MAIN, 1 for ZONE2)
8K Inputs: 0
- Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
- Inputs: 2 Outputs: 1
- Component Video: Component video connection gives you the higher quality video compared to the composite video connection. So in case your old DVD player and other equipment do not have an HDMI output but have Component video output use this connection over the composite one. Marantz SR5010 supports up to 1080p resolution on Component video connectors.
- Inputs: 2 Outputs: 1
Here we list all the available features and specifications of Marantz SR5010.
|Front Wide Channel Support|
|Current Feedback Topology|
|Continuous 6 Ω Rated|
|Certified 4 Ω Performance|
|Maximum Channel Processing||7.1|
|Air Studios Monitor Certification|
|Dolby Atmos Height Virtualization|
|Dolby Atmos Music|
|Dolby Digital Plus|
|Dolby Surround Upmixer|
|Dolby Pro Logic|
|Dolby Digital EX|
|DTS-HD Master Audio|
|DTS-HD High Resolution Audio|
|DTS-ES||Discrete 6.1, Matrix 6.1|
|Auro 3D with Auro-Matic Upmixer|
|Music Playback via USB||MP3, WMA, AAC, Apple Lossless, WAV, FLAC, AIFF, DSD|
|High Resolution Music Playback via USB and/or Network||up to 192 kHz|
|High Resolution Audio Formats via USB||Apple Lossless, WAV, FLAC, AIFF, DSD|
|Multi-Channel Music File Playback via USB|
|DSD via HDMI|
|DSD via USB||2-ch Input|
|DSD to PCM Converter|
|DTS Dialog Control|
|Dialog Level Adjustment|
|Compressed Music Enhancer||MDAX2|
|High-resolution Music Enhancer|
|Audyssey Dynamic EQ|
|Audyssey Dynamic Volume|
|Audyssey Sub EQ HT|
|Pure Direct Mode|
|Independent Subwoofer Outputs|
|Auto Speaker Calibration System with Mic.||Audyssey MultEQ XT|
|Audyssey App Support|
|Optimized Bass Redirection|
|HLG (Hybrid Log Gamma)|
|BT.2020 color space|
|QMS (Quick Media Switching)|
|ALLM (Auto Low Latency Mode)|
|VRR (Variable Refresh Rate)|
|QFT (Quick Frame transport)|
|Video Signal Passthrough||up to 4K 50/60Hz 4:4:4|
|Video Signal Upscaling||up to 4K 30/25/24p 4:4:4|
|Analog To HDMI Upconversion||Component, Composite|
|Component Video Upscaling|
|Analog to Analog Video conversion|
|Component Video Maximum Resolution||1080p|
|isf Certified Calibration Control|
|Domotz Pro Compatible|
|Remote Monitoring with ihiji|
|Works with Amazon Alexa|
|Works with SONOS|
|Apple Product Connection||iPod, iPhone and iPad|
|Remote App||Marantz Remote App for iOS and Android devices|
|InstaPrevue Input Source Prevue|
|HDMI Inputs||8 (1 front)|
|HDMI Outputs||2 (1 for MAIN, 1 for ZONE2)|
|USB Input||1 (Front) for USB memory|
|USB DC Out Port|
|Analog Audio Line Input||4|
|Analog Audio Line Output|
|Composite Video Input||2|
|Composite Video Output||1|
|Component Video Input||2|
|Component Video Output||1|
|Front A/V Inputs||HDMI, USB|
|Headphone Out||6.3 mm (1/4")|
|Zone 2 Outs||Pre Out|
|+12V Trigger Output||1|
|On-Screen Display||Advanced Graphic User Interface|
|Web Browser Control|
|IP Control for CI|
|Pre-programmed / Learnable / LCD Display||/ /|
|Detachable Power Cord|
|Remote Control In/Out||1 / 1|
|Analog Tuner||FM/AM with RDS|
|SiriusXM Internet Radio|
|Solid Aluminum Front|
|Large Speaker Terminals||7|
|Color-Coded Speaker Terminals|
|Transparent High-Grade Speaker Terminals|
|High Grade Audio Components|
|Gold plated RCA terminals|
|Power Supply||AC 230 V, 50/60 Hz|
|Power Consumption||650 W|
|No Sound Power||ECO On/Off: 45 W/75 W|
|Standby Power||0.2 W|
|ECO Mode / Hybrid Standby Function|
|Auto Power off|
|Dimensions (W x H x D)||440 mm x 161 mm x 346 mm (with antenna: 440 mm x 230 mm x 346 mm)|
17-5/16" x 6-5/16" x 13-5/8" (with antenna up: 17-5/16" x 9-1/16" x 13-5/8")
|Weight||10.0 kg (22 lbs 1 oz)|
|Power Output (8 Ω, 20 Hz - 20 kHz, 2||100 W (0.08% THD)|
|Power Output (6 Ω, 1 kHz, 2||140 W (0.7% THD)|
|Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA)||200 W (10% THD)|
|Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)||180 W (1% THD)|
|Input Sensitivity and Impedance (Line)||200 mV/47 kΩ|
|S/N Ratio (Line, IHF-A)||100 dB|
|Frequency Response (Analog In)||+1/-3 dB (10 Hz to 100 kHz, Direct mode)|
|DSD Sampling Rates via USB||2.8 MHz|
|Video Input Sensitivity/Output Level and Impedance||1 Vp-p/75 Ω (Component Y)|
0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
1 Vp-p/75 Ω (Composite)
|Video Frequency Response||5 Hz to 60 MHz, 0 dB/-3 dB (Component)|
5 Hz to 10 MHz, 0 dB/-3 dB (Composite)
|Wi-Fi Standard||IEEE 802.11 b/g/n|
|Wi-Fi Terminal Frequency||2.4 GHz|
|Bluetooth Version||2․1 + EDR|
|Bluetooth Frequency||2.4 GHz|
|USB Terminal||USB2.0 5V, 1 A|
|FM Frequency||87.5 MHz - 108.0 MHz|
|FM 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)||Mono: 2.8 µV (20.2 dBf)|
|FM Effective Sensitivity||1.2 µV (12.8 dBf)|
|FM S/N Ratio||Mono/Stereo: 70 dB/67 dB|
|FM Harmonic Distortion (IHF, 1 kHz)||Mono/Stereo: 0.7%/1.0%|
|AM Frequency||522 kHz - 1611 kHz|
|AM Effective Sensitivity||18 µV|
* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted
In 2016 Marantz SR5010 was replaced by SR5011. Let us now have a look at some important changes that the successor brought.
|UPGRADES||Marantz SR5011||vs||Marantz SR5010|
|DTS Dialog Control||vs|
|Audyssey App Support||vs|
|Higher DSD Sampling Rate via USB||5.6 MHz, 2.8 MHz||vs||2.8 MHz|
|Wi-Fi Standard||IEEE 802.11 a/b/g/n||vs||IEEE 802.11 b/g/n|
|Wi-Fi Terminal Frequency||5 GHz, 2.4 GHz||vs||2.4 GHz|
|Wider AM Frequency Range||522 kHz - 1611 kHz||vs||522 kHz - 1611 kHz|
|DOWNGRADES||Marantz SR5011||vs||Marantz SR5010|
|Less HDMI Outputs||2 (simultaneous)||vs||2 (1 for MAIN, 1 for ZONE2)|
For more detailed comparison between the models please visit Marantz SR5010 vs Marantz SR5011.
