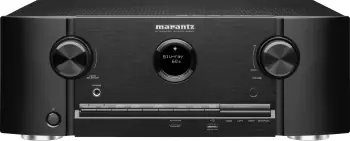

Marantz SR5009

    79
    Image cannot be found
    USA
    UK

    Highlights

    • 7.2 Channels
    • 7.1 Channel Processing
    • 100 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
    • 4K/60Hz Passthrough, 4K/30Hz Upscaling
    • Wi-Fi, Bluetooth, Ethernet
    Image cannot be found
    Image cannot be found

    Disclosure: We earn money from the affiliate links to products associated with content in this article.

    Overview

    Marantz SR5009 was introduced in 2014. It is equipped with 7 channel amplifier with 100 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 7.1 maximum channel processing. It passes 4K/60Hz and upscales up to 4K 30/25/24p 4:4:4 video signal.

    We evaluated the a/v receiver and gave 79 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

    Table of Contents
    1. Overview
    2. Pros and Cons
    3. 2014 Lineup
    4. Successor
    5. Audio Section
    6. Video Section
    7. Multi-zone Playback
    8. Inputs and Outputs
    9. Evaluation
    10. Specifications

    Here is a history of the series, where you can view and compare the main specifications of the receivers.

    Evolution of the series
    Model Year Chann. Power Dolby Atmos DTS:X HDR10 HDR10+ Dolby Vision Pass. Price
    SR5015 Image cannot be found
    Compare
    		2020 7.2 100 W 8K
    SR5014 Image cannot be found
    Compare
    		2019 7.2 100 W 4K
    SR5013 Image cannot be found
    Compare
    		2018 7.2 100 W 4K
    SR5012 Image cannot be found
    Compare
    		2017 7.2 100 W 4K
    SR5011 Image cannot be found
    Compare
    		2016 7.2 100 W 4K
    SR5010 Image cannot be found
    Compare
    		2015 7.2 100 W 4K
    SR5009 Image cannot be found 2014 7.2 100 W 4K

    You can view their side-by-side comparison here: Marantz SR5015 vs SR5014 vs SR5013 vs SR5012 vs SR5011 vs SR5010.

    Pros and Cons

    In this section we present pros and cons of Marantz SR5009.

    PROs

    •   Auto Speaker Calibration System with Mic.
    •   New HDCP Version
    •   Analog To HDMI Upconversion
    •   Wi-Fi
    •   Bluetooth
    •   8 HDMI Inputs
    •   USB Input
    •   Multi-Channel Input
    •   RCA Pre-Outs
    •   Composite Video Inputs
    •   Component Video Inputs
    •   Ethernet
    •   Analog Tuner
    •   Pandora
    •   Spotify

    CONs

    •   No Front Wide Channel Support
    •   No Dolby Atmos
    •   No Dolby Atmos Height Virtualization
    •   No DTS:X
    •   No IMAX Enhanced
    •   No Auro 3D with Auro-Matic Upmixer
    •   No DSD via HDMI
    •   No HDR10
    •   No HDR10+
    •   No Dolby Vision
    •   No eARC
    •   No 8K Passthrough
    •   Does not Work with Amazon Alexa
    •   0 8K Input
    •   No Phono Input
    •   No Digital Radio
    •   No Tidal
    •   Bluetooth 2․1 + EDR

    And here are some specifications which fall into average criteria and are neither in PROs nor in CONs category:

    AVERAGE

    •   7.2 Channels
    •   Power Output - 100 W
    •   7.1 Channel Processing
    •   3 HDMI Outputs
    •   RCA Line Inputs
    •   2 Zones

    Marantz 2014 Lineup

    In 2014 Marantz released 4 new receivers. Here is the lineup:

    Marantz 2014 Lineup
    ModelChannelsPowerMax. Ch. Proc.Pre OutsRoom Corr.Immersive AudioZones Price
    SR7009 Image cannot be found
    Compare
    		9.2125 W11.213.2 Audyssey MultEQ XT32 + PRODolby Atmos
    Auro 3D    		3
    SR6009 Image cannot be found
    Compare
    		7.2110 W7.17.2 Audyssey MultEQ XT + PRO2
    SR5009 Image cannot be found 7.2100 W7.17.2 Audyssey MultEQ XT2
    NR1605 Image cannot be found
    Compare
    		7.150 W7.12.1 Audyssey MultEQ2

    You can view their side-by-side comparison here: Marantz SR7009 vs SR6009 vs SR5009 vs NR1605.

    Successor

    In 2015 Marantz SR5009 was replaced by Marantz SR5010. Let us now have a look at some important differences between Marantz SR5009 and its successor.

    UPGRADES Marantz SR5010 vs Marantz SR5009
    Dolby Atmos vs
    Dolby Surround Upmixer vs
    DTS:X vs
    DTS Neural:X vs
    HDR10 vs
    BT.2020 color space vs
    Dolby Vision vs
    HLG vs
    DOWNGRADES Marantz SR5010 vs Marantz SR5009
    Dolby Pro Logic vs PLIIz
    DTS Neo vs Neo:6

    For more detailed comparison between the models please visit Marantz SR5009 vs SR5010.

    Audio Section

    7 channel Amplifier

    Marantz SR5009 features 7 channel power amplifier. It is rated at 100 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.

    • Current Feedback Topology: Marantz SR5009 features Current Feedback Topology which is a well known, Marantz’ original circuit technology. The Current Feedback amplifier technology fits perfectly with the high requirements set for Super Audio software providing wide-bandwidth, high-speed reproduction. The impedance at the Current Feedback point is limited resulting in a very low phase shift. Marantz receivers and amplifiers equipped with Current Feedback can keep the phase compensation via Negative FeedBack (NFB) to a minimum, resulting in high through-rate, excellent transient response and superb sonic transparency for the full bandwidth. Unlike conventional Voltage Feedback amplification, the Current Feedback amplification makes the power amplifier in-sensitive to difficult loudspeaker loads.
    • HDAM (Hyper Dynamic Amplifier Module): Marantz SR5009 features exclusive Marantz HDAM (Hyper Dynamic Amplifier Module) technology found on their Reference Series components. Marantz developed its own discrete circuit boards to replace standard IC's. These HDAM's consist of discrete surface mount components with short mirror image L/R signal paths. Those devices are doing exactly the same thing as the Op-Amps, but outperform the regular IC Op-amps dramatically in terms of the Slew Rate and reduced noise level, resulting in a much more dynamic, accurate and detailed sound. Over the years Marantz developed different types of the HDAM to improve quality and to fit to the special requirements of a product category like CD or amplifier.
    AMPLIFIER
    Channels7.2
    Power Output100 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
    Front Wide Channel Support
    Current Feedback Topology
    Discrete Amplification
    HDAM
    THX™ Certification
    Continuous 6 Ω Rated
    Certified 4 Ω Performance
    Bi-amp Capability assignable

    Speaker Configurations

    Marantz SR5009's 7 channel amplifier can be assigned for different speaker configurations.

    • Configurations: Available configurations are:
    • 5.2, 7.2 with internal amplifier.
    • 2-ch Bi-Amp: Marantz SR5009 allows you to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.
    Marantz SR5009
    Image cannot be found
    Image cannot be found
    Image cannot be found
    DECODING
    Dolby Atmos
    Dolby Atmos Height Virtualization
    Dolby Atmos Music
    Dolby TrueHD
    Dolby Digital Plus
    Dolby Surround Upmixer
    Dolby Pro Logic PLIIz
    Dolby Digital EX
    Surround EX
    DTS:X
    DTS Neural:X
    DTS Virtual:X
    DTS Neo Neo:6
    DTS-HD Master Audio
    DTS-HD High Resolution Audio
    DTS 96/24
    DTS Express
    DTS-ES Discrete 6.1, Matrix 6.1
    IMAX Enhanced
    Auro 3D with Auro-Matic Upmixer

    Sound Processing

    • Audyssey: Marantz SR5009 comes with Audyssey Dynamic EQ and Dynamic Volume.
    • Dynamic EQ: selects the best possible frequency response and surround volume levels moment-by-moment. This ensures that the bass response, tonal balance and surround impression remain constant despite changes in volume. This is the first technology that carefully combines information from incoming source levels with actual output sound levels in the room, a pre-requisite for delivering a dynamic volume solution.
    • Dynamic Volume: Your Listening experience can be greatly diminished when there are significant shifts in volume between television programs, commercials and within the program material itself. When this happens you must constantly adjust the volume to maintain your desired listening level. Audyssey Dynamic Volume monitors the volume of program material moment-by-moment and automatically adjusts it, maintaining the desired listening level for all content while optimizing the dynamic range to preserve impact.
    • MDAX2: Compressed music enhancement in Marantz SR5009 is done by Marantz’ MDAX2 technology. The use of compressed audio files like MP3, Windows Media™ Audio or AAC is getting more and more popular. The audio quality of these compressed files however is less than the original lossless files that are on a CD, especially lacking the higher frequencies and affecting the lower frequencies which make the audio image less wide and deep. The Marantz Digital Audio Expander 2, also called M-DAX2, recalculates the outputted frequency range. This enables you to get a more detailed and clearer sound.

    Room Calibration

    Marantz SR5009 comes with Audyssey MultEQ XT room correction system and includes the calibration microphone.

    • Audyssey Room Calibration: Audyssey is an acoustic measurement technology which automatically restores the acoustic distortion caused by the acoustic behaviour of a room with only a push on a button. Audyssey equalization provides an clear, accurate, natural sound with voices and dialog that become focused and intelligible, restoring the musical balance. Musical instruments and sound effects become precisely localized and the surround soundstage is made seamless and enveloping.

    Video Section

    HDMI

    Marantz SR5009 features 8 HDMI inputs. It has 2 outputs: 1 for MAIN and 1 for ZONE2.

    • 4K/60Hz Passthrough: All inputs pass up to 4K 50/60Hz 4:4:4 video signal.
    • 4K Upscaling: Marantz SR5009 can upscale up to 4K 30/25/24p 4:4:4 from HDMI and analog sources.
    • Analog To HDMI Upconversion: The a/v receiver supports video upconversion, so you can connect your analog Component and Composite video sources and Marantz SR5009 will output them via HDMI. This means that you will need only one HDMI cable to connect to your TV.
    • HDCP 2.2 Copy Protection: All inputs and outputs are HDCP 2.2 compliant which is a requirement for 4K/HDR copy-protected content transmission.
    • 3D Ready: Marantz SR5009 is able to pass 3D video through HDMI.
    Marantz SR5009
    Image cannot be found
    Image cannot be found
    Image cannot be found
    VIDEO FEATURES
    HDR10
    HDR10+
    Dynamic HDR
    BT.2020 color space
    Dolby Vision
    HLG (Hybrid Log Gamma)
    HDBaseT Compatible
    Enhanced Audio Return Channel (eARC)
    HDCP Version2.2
    QMS (Quick Media Switching)
    ALLM (Auto Low Latency Mode)
    VRR (Variable Refresh Rate)
    QFT (Quick Frame transport)
    3-D Ready
    Video Signal Passthroughup to 4K 50/60Hz 4:4:4
    Video Signal Upscaling up to 4K 30/25/24p 4:4:4

    Multi-zone Playback

    Marantz SR5009 offers multi-zone playback which allows you to play different input sources in 2 different rooms.


    Zone 2

    • Powered Zone 2: You can use the unit's 2 amplifier channels by connecting Zone 2 speakers directly to the speaker terminals. The remaining 5 channels will be left for main zone amplification.
    • Audio Pre Output: If you have a dedicated power amplifier for Zone 2 you can connect it to the a/v receiver via pre outs and control volume from the a/v receiver.
    ZONES
    Number of Zones2
    Powered Zones 2
    Zone 2 OutsPre Out
    RS-232C Interface
    +12V Trigger Output1

    Check out the receivers which are frequently compared to Marantz SR5009.

    Yamaha RX-A820
    Image cannot be found

    7.2 Channels

    Yamaha RX-A3010
    Image cannot be found

    9.2 Channels

    Yamaha RX-V4A
    Image cannot be found

    5.2 Channels

    Marantz SR6012
    Image cannot be found

    9.2 Channels

    Marantz SR5015
    Image cannot be found

    7.2 Channels

    Marantz SR6009
    Image cannot be found

    7.2 Channels

    Marantz SR5010
    Image cannot be found

    7.2 Channels

    Marantz SR5012
    Image cannot be found

    7.2 Channels

    Marantz SR5011
    Image cannot be found

    7.2 Channels

    Pioneer SC-1223-K
    Image cannot be found

    7.2 Channels

    Onkyo TX-NR6100
    Image cannot be found

    7.2 Channels

    Marantz SR7011
    Image cannot be found

    9.2 Channels

    >

    Inputs and Outputs

    Audio

    • 7.1 Multichannel Input: In case you have a high quality Blu-Ray or a DVD player with multichannel analog outputs you may connect it to a 7.1 multichannel analog inputs of the a/v receiver and use high quality DACs of the player instead of the ones in the a/v receiver.
    • Analog Pre-Outs: Marantz SR5009 has 7.2 preamplifier outputs which allow you to connect the a/v receiver to the external power amplifier. You may want to use a high quality external amplifier for certain channels, usually for front L/R and center, and use the a/v receiver to power the rest.
    • Analog Line Inputs: There are 4 line inputs for analog audio connection.
    • Digital Inputs: 2 optical inputs and 2 coaxial inputs are available for digital audio connection.
    • Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.

    Video

    • HDMI:
    • Inputs: 8 (1 front)   Outputs: 2 (1 for MAIN, 1 for ZONE2)
      8K Inputs: 0
    • Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
    • Inputs: 2   Outputs: 1
    • Component Video: Component video connection gives you the higher quality video compared to the composite video connection. So in case your old DVD player and other equipment do not have an HDMI output but have Component video output use this connection over the composite one. Marantz SR5009 supports up to 1080p resolution on Component video connectors.
    • Inputs: 2   Outputs: 1

    Front A/V Inputs

    • HDMI, USB
    Image cannot be found
    Image cannot be found
    TERMINALS
    HDMI Inputs8 (1 front)
    HDMI Outputs2 (1 for MAIN, 1 for ZONE2)
    8K Inputs
    USB Input1 (Front) for iPod/iPhone and USB memory
    USB DC Out Port
    Optical Inputs2
    Optical Outputs
    Coaxial Inputs2
    RCA Line Inputs4
    RCA Line Outputs
    XLR Line Inputs
    Phono Input
    Multi-Channel Input 7.1
    RCA Pre-Outs7.2
    XLR Pre-outs
    Composite Video Inputs2
    Composite Video Outputs1
    S-Video Inputs
    S-Video Outputs
    Component Video Inputs2
    Component Video Outputs1

    Marantz SR5009 Evaluation

    We evaluate Marantz SR5009 and give score of 79 out of 100. We also give separate scores for 6 different categories according to the available features and specifications some of which are listed below. These evaluations are relative and may change each time a new receiver is added to the database.


    OVERALL
    79

    Amplifier

    EXCELLENT
    88

    We give Marantz SR5009 a score of 88 for Amplifier features.

    •   7.2 Channels
    •   Power Output - 100 W

    Audio Features

    AVERAGE
    68

    We give Marantz SR5009 a score of 68 for Audio Features features.

    •   7.2 Channels
    •   No Front Wide Channel Support
    •   7.1 Channel Processing
    •   No Dolby Atmos
    •   No Dolby Atmos Height Virtualization
    •   No DTS:X
    •   No IMAX Enhanced
    •   No Auro 3D with Auro-Matic Upmixer
    •   No DSD via HDMI

    Video Features

    GOOD
    71

    We give Marantz SR5009 a score of 71 for Video Features features.

    •   No HDR10
    •   No HDR10+
    •   No Dolby Vision
    •   No 8K Passthrough
    •   Analog To HDMI Upconversion

    Connectivity

    EXCELLENT
    85

    We give Marantz SR5009 a score of 85 for Connectivity features.

    •   No eARC
    •   New HDCP Version
    •   Wi-Fi
    •   Bluetooth
    •   Does not Work with Amazon Alexa
    •   8 HDMI Inputs
    •   3 HDMI Outputs
    •   0 8K Input
    •   USB Input
    •   RCA Line Inputs
    •   No Phono Input
    •   Multi-Channel Input
    •   RCA Pre-Outs
    •   Composite Video Inputs
    •   Component Video Inputs
    •   Ethernet
    •   Bluetooth 2․1 + EDR

    Zones

    GOOD
    81

    We give Marantz SR5009 a score of 81 for Zones features.

    •   2 Zones

    Radio

    EXCELLENT
    89

    We give Marantz SR5009 a score of 89 for Radio features.

    •   Analog Tuner
    •   Pandora
    •   Spotify
    •   No Tidal


    For a full specification list please go to the specifications page:
