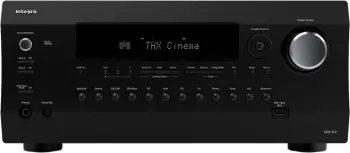

Integra DRX-8.4

Integra DRX-8.4 was introduced in 2023 and represents a current flagship model of a manufacturer. It is equipped with 11 channel amplifier with 150 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 11.2 maximum channel processing. It supports Dolby Atmos, DTS:X and Auro-3D, passes 8K/60Hz and 4K/120Hz and upscales from 1080p and 4K up to 8K 50/60Hz and 4K 50/60Hz video signal.

We evaluated the a/v receiver and gave 95 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

For more details about the ranking please go to    Evaluation section.

In this section we present pros and cons of Integra DRX-8.4.

Integra DRX-8.4 has replaced DRX-7.3. Here we present differences between these two models.

UPGRADES	Integra DRX-8.4	vs	Integra DRX-7.3
More Channels	11.4	vs	9.2
Higher Power Output	150 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)	vs	135 W (8 Ω, 1 kHz, 2 channel driven)
Bi-amp capability	Front L/R and Center Channels	vs
Higher DAC Specs	768 kHz/32 Bit	vs	384 kHz/32 Bit for Front L/R 768 kHz/32 Bit for Other Channels 192kHz/24 Bit for Zone 2 and Zone 3
Auro 3D with Auro-Matic Upmixer		vs
Music Playback via USB	FLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, AAC, LPCM	vs	FLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, MPEG-4 AAC
Dialog Enhancement		vs
More Advanced Auto Speaker Calibration System	Dirac Live™ Premium Licence	vs	AccuEQ Advance Plus 9-point calibration with subwoofer EQ and AccuReflex™
HDR10+		vs
QMS		vs
Auto Low Latency Mode Pass-through		vs
VRR		vs
QFT		vs
DSC		vs
Video Signal Passthrough	up to 8K 48/50/60Hz RGB/YCbCr 4:4:4 12-bit and 4K 100/120Hz RGB/YCbCr 4:4:4 12-bit	vs	up to 4K 50/60Hz 4:4:4
Video Signal Upscaling	from 1080p and 4K up to 8K 50/60Hz and 4K 50/60Hz	vs	1080p to 4K
AirPlay	AirPlay 2	vs	AirPlay 2
More 8K Inputs	6	vs
XLR Line Inputs	1	vs
XLR Pre-outs	Front L/R, Center and 2 subwoofers	vs
+12V Trigger Output	3 (A:100 mA, B:25 mA, C:25 mA)	vs	2 (A:100 mA, B:25 mA)
More Speaker Terminals	15	vs	11
More Large Speaker Terminals	15	vs	11
Bigger Power Supply	1095 W	vs	310 W
Higher Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA)	260 W (10% THD)	vs	255 W (10% THD)
Higher Rated Headphone Power Output	75 mW (32 Ω, 1 kHz, 10% THD)	vs	57 mW (32 Ω, 1 kHz, 10% THD)

DOWNGRADES	Integra DRX-8.4	vs	Integra DRX-7.3
HDBaseT Compatible		vs	In: 1 Out: 1 RS-232: 1 (Pasth through) IR In: 1 (Path through) IR Out: 1 (Path through) Maximum Video Resolution: 4K 60 Hz (YCbCr 4:4:4)
Less RCA Line Inputs	4	vs	6
Less Component Video Inputs	1	vs	2
Remote (IR) Input/Output	2 / 1	vs	3 / 2
Higher THD	0.08% (20 Hz - 20 kHz, half power)	vs	0.05% (1 kHz, 100 W, 8 Ω)
Lower S/N Ratio (Phono MM, IHF-A)	78 dB	vs	90 dB

For more detailed comparison between the models please visit Integra DRX-8.4 vs DRX-7.3.

Integra DRX-8.4's 11 channel amplifier can be assigned for different speaker configurations.

• Dolby Atmos Configurations: The following speaker configurations are supported for Dolby Atmos:
5.4.2, 5.4.4, 7.4.2, 7.4.4 with internal amplifier.
• DTS:X Configurations: The speaker configurations for DTS:X are the same as for Dolby Atmos:
5.4.2, 5.4.4, 7.4.2, 7.4.4 with internal amplifier.
• Configurations without height channels: There are also other speaker configurations available which do not include height channels:
5.4, 7.4 with internal amplifier.
• 3-ch Bi-Amp: Integra DRX-8.4 allows you to bi-amp up to 3 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.

Dolby Atmos

Integra DRX-8.4 supports Dolby Atmos with Surround Upmixer and Atmos Height Virtualization.

• Surround Upmixer: If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.
• Atmos Height Virtualization is a digital signal processing solution that leverages Dolby's deep understanding of human audio perception to create the sensation of overhead sound from the listener-level speakers.

DTS:X

Integra DRX-8.4 supports DTS:X with Neural:X.

• Neural:X is an advanced upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.
• DTS Dialog Control: This function adjusts the dialog levels during playback of the DTS:X stream. It allows you to separately increase the dialog levels in contrast with the background sound and hear dialog easily even under noisy circumstances.

Auro-3D

Integra DRX-8.4 supports Auro-3D after paid upgrade after paid upgrade after paid upgrade after paid upgrade. It is an immersive 3D audio format developed by the Belgium-based company Auro Technologies.

• Auro-Matic upmixer takes non Auro-3D sound and upmixes to the current speaker configuration.

IMAX Enhanced

Integra DRX-8.4 is IMAX Enhanced certified. To qualify for IMAX Enhanced certification, 4K HDR televisions, projectors, sound bars, a/v receivers, loudspeakers, powered subwoofers and other premium home entertainment devices must meet carefully prescribed performance requirements established by IMAX, DTS and Hollywood's leading experts.

• What makes an IMAX Enhanced A/V receiver different from an A/V receiver with DTS:X technology? DTS:X technology is commonly found in most multi-channel A/V receivers on the market today. All IMAX Enhanced A/V receivers include DTS:X technology and deliver additional features, such as auto-sensing of IMAX Enhanced content, via IMAX Mode. IMAX Mode indicates that your A/V receiver supports fully immersive IMAX signature sound.

DECODING
Dolby Atmos
Dolby Atmos Height Virtualization
Dolby Atmos Music
Dolby TrueHD
Dolby Digital Plus
Dolby Surround Upmixer
Dolby Pro Logic
Dolby Digital EX
THX Listening Modes
DTS:X
DTS Neural:X
DTS Virtual:X
DTS Neo
DTS-HD Master Audio
DTS-HD High Resolution Audio
DTS 96/24
DTS Express
DTS-ES	Discrete 6.1, Matrix 6.1
IMAX Enhanced
Auro 3D with Auro-Matic Upmixer

Integra DRX-8.4 features 6 HDMI 2.1 inputs with 8K support and 1 inputs with 4K support. It has 3 outputs: 1 MAIN and 1 SUB and 1 ZONE 2.

• 8K/60Hz and 4K/120Hz Passthrough: 6 out of 7 inputs pass up to 8K 48/50/60Hz RGB/YCbCr 4:4:4 12-bit and 4K 100/120Hz RGB/YCbCr 4:4:4 12-bit and the rest of the inputs pass up to 4K 50/60Hz 4:4:4 video signal.
• 8K Upscaling: Integra DRX-8.4 can upscale from 1080p and 4K up to 8K 50/60Hz and 4K 50/60Hz from HDMI and analog sources.
• Analog To HDMI Upconversion: The a/v receiver supports video upconversion, so you can connect your analog Component and Composite video sources and Integra DRX-8.4 will output them via HDMI. This means that you will need only one HDMI cable to connect to your TV.
• BT.2020 Color Space: BT.2020 or Rec. 2020 is a color standard which delivers a wider color gamut compared to Rec. 709. It covers approximately 75% of the total visual spectrum while the Rec. 709 covers only 35%.
• HDCP 2.3 Copy Protection: All inputs and outputs are HDCP 2.3 compliant which is a requirement for 4K/HDR copy-protected content transmission.
• Quick Media Switching (QMS): With HDMI 2.1a, Quick Media Switching for movies and video uses the HDMI VRR mechanism to eliminate the blackout period when an HDMI Source device switches its video mode. As long as the resolution remains the same and only the frame rate changes, QMS will instantly switch between frame rates. QMS eliminates A/V blackouts by using VRR technology to change frame rates, allowing instant changes from 24Hz to 60Hz frame rate, and anywhere in-between. The viewer never sees blank screens and gets a seamless experience.
• 3D Ready: Integra DRX-8.4 is able to pass 3D video through HDMI.

HDR (High Dynamic Range)

Integra DRX-8.4 supports HDR (high dynamic range) video formats such as HDR10, HDR10+, Dolby Vision and Hybrid Log-Gamma via HDMI ports. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.

Enhanced Audio Return Channel (eARC)

Audio Return Channel (ARC) feature allows the compatible TV to send audio signal to the a/v receiver through the same HDMI cable which is used to send audio and video signals to the TV. So one HDMI cable is used to transfer audio signal in both directions. New Enhanced ARC will support uncompressed audio formats such as Dolby Atmos, DTS:X, Dolby TrueHD and DTS HD Master Audio whereas the previous ARC could support only Dolby Digital, Dolby Digital Plus, DTS, DTS HD, and PCM.

Gaming Features

Integra DRX-8.4 supports Auto Low Latency Mode (ALLM), Variable Refresh Rate (VRR) and Quick Frame Transport (QFT) for lag-free and smooth gaming.

VIDEO FEATURES
HDR10
HDR10+
Dynamic HDR
BT.2020 color space
Dolby Vision
HLG (Hybrid Log Gamma)
HDMI Version	2.1
HDBaseT Compatible
Enhanced Audio Return Channel (eARC)
HDCP Version	2.3
QMS (Quick Media Switching)
ALLM (Auto Low Latency Mode)
VRR (Variable Refresh Rate)
QFT (Quick Frame transport)
DSC (Display Stream Compression)
3-D Ready
Video Signal Passthrough	up to 8K 48/50/60Hz RGB/YCbCr 4:4:4 12-bit and 4K 100/120Hz RGB/YCbCr 4:4:4 12-bit
Video Signal Upscaling	from 1080p and 4K up to 8K 50/60Hz and 4K 50/60Hz

Integra DRX-8.4 comes with Dirac Live™ Premium Licence room correction system and includes the calibration microphone.

• Dirac Live: The interaction between your sound system and the physical layout of your room has a huge impact on sound quality. Dirac Live™ Room Correction applies state-of-the-art, patented algorithms to analyze and digitally reduce room impact and enhance speaker performance. Dirac Live delivers a larger sweet spot, accurate staging, clarity, voice intelligibility, and a deeper, tighter bass not otherwise possible. Fully tunable to your preference.

Integra DRX-8.4 offers multi-zone playback which allows you to play different input sources in 3 different rooms.

Zone 2

• Powered Zone 2: You can use the unit's 2 amplifier channels by connecting Zone 2 speakers directly to the speaker terminals. The remaining 9 channels will be left for main zone amplification.
• HDMI Output: Integra DRX-8.4 offers HDMI output for Zone 2. This means that it can send two different HDMI signals to two displays.
• Audio Pre/Line Output: If you have a dedicated amplifier for Zone 2 you can connect it to the a/v receiver via pre/line outs and use "pre out" option to control volume from the a/v receiver or use "line out" option - send fixed signal and then control volume on the Zone 2 amplifier.

Zone 3

• Powered Zone 3: You can use the unit's 2 amplifier channels by connecting Zone 3 speakers directly to the speaker terminals. The remaining 9 channels will be left for main zone amplification.
• Audio Pre/Line Output: If you have a dedicated amplifier for Zone 2 you can connect it to the a/v receiver via pre/line outs and use "pre out" option to control volume from the a/v receiver or use "line out" option - send fixed signal and then control volume on the Zone 3 amplifier.

Audio

• Phono Input: There is an MM phono input with built-in phono stage for connecting the moving magnet cartridge output of the turntable directly to the a/v receiver.
• Analog Pre-Outs: Integra DRX-8.4 has 11.4 preamplifier outputs which allow you to connect the a/v receiver to the external power amplifier. You may want to use a high quality external amplifier for certain channels, usually for front L/R and center, and use the a/v receiver to power the rest.
• XLR Inputs and Outputs: There is one pair of XLR inputs on this a/v receiver. If your CD player, Blu-Ray player or other source have XLR outputs you can connect them to the Integra DRX-8.4's XLR Inputs for higher quality balanced connection. Besides 11 unbalanced RCA pre-outs there are 5 XLR outputs for Front L/R, Center and 2 subwoofers. In case your external power amplifier has XLR inputs you can use this balanced connection for higher audio quality.
• Analog Line Inputs: There are 4 line inputs for analog audio connection.
• Digital Inputs: 3 optical inputs and 2 coaxial inputs are available for digital audio connection.
• Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.

Video

• HDMI:
Inputs: 7 (1 front)   Outputs: 3 (1 MAIN, 1 SUB, 1 ZONE 2)
8K Inputs: 6
• Composite Video: Connect you VCR, Laserdisc player and other old video equipment with composite video cables.
Inputs: 2   Outputs: 0
• Component Video: Component video connection gives you the higher quality video compared to the composite video connection. So in case your old DVD player and other equipment do not have an HDMI output but have Component video output use this connection over the composite one. Integra DRX-8.4 supports up to 480i/576i resolution on Component video connectors.
Inputs: 1   Outputs: 0

Front A/V Inputs

• HDMI

GENERAL
Brand	Integra
Model	DRX-8.4
Type	A/V Receiver
Country	North America
Release Year	2023
Predecessor	Integra DRX-7.3

AMPLIFIER
Channels	11.4
Power Output	150 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
Front Wide Channel Support
Amplifier Design	All new symmetric Class AB
THX™ Certification	Select™ (previously known as Select2)
Continuous 6 Ω Rated
Certified 4 Ω Performance
Bi-amp Capability	Front L/R and Center Channels

AUDIO FEATURES
DAC	Two precision 32-bit ESS ES9026PRO Hyperstream II
DAC Specs	768 kHz/32 Bit
Maximum Channel Processing	11.2
Air Studios Monitor Certification
Dolby Atmos
Dolby Atmos Height Virtualization
Dolby Atmos Music
Dolby TrueHD
Dolby Digital Plus
Dolby Surround Upmixer
Dolby Pro Logic
Dolby Digital EX
THX Listening Modes
DTS:X
DTS Neural:X
DTS Virtual:X
DTS Neo
DTS-HD Master Audio
DTS-HD High Resolution Audio
DTS 96/24
DTS Express
DTS-ES	Discrete 6.1, Matrix 6.1
IMAX Enhanced
Auro 3D with Auro-Matic Upmixer
PCM	2-ch/Multi-ch Input
Network Audio Formats	FLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, MPEG-4 AAC, LPCM
Music Playback via USB	FLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, AAC, LPCM
High Resolution Music Playback via USB and/or Network	up to 192 kHz
High Resolution Audio Formats via USB	FLAC, WAV, Apple Lossless, DSD, AIFF, AAC
Gapless Playback
DSD via HDMI	2-ch/Multi-ch Input
DSD via USB	2-ch Input
DSD to PCM Converter
USB DAC
DTS Dialogue Control
Dialog Enhancement
Dialog normalization
Dialogue Lift
Tone Control	All Channels
Compressed Music Enhancer	Advanced Music Optimizer
High-resolution Music Enhancer
THX Processing Mode
Audyssey Dynamic EQ
Audyssey Dynamic Volume
Audyssey LFC
Audyssey Sub EQ HT
Audyssey DSX
Direct Mode
Virtual Speakers	T-D (Theater-Dimensional)
Independent Subwoofer Outputs	2 independent + 2 parallel

CALIBRATION
Auto Speaker Calibration System with Mic.	Dirac Live™ Premium Licence
Calibration Microphone	Setup via Dirac PC/MAC app and optional USB mic (Advanced), OR free Integra mobile app and included wired mic (Basic)

VIDEO FEATURES
HDR10
HDR10+
Dynamic HDR
BT.2020 color space
Dolby Vision
HLG (Hybrid Log Gamma)
HDMI Version	2.1
HDBaseT Compatible
Enhanced Audio Return Channel (eARC)
HDCP Version	2.3
QMS (Quick Media Switching)
ALLM (Auto Low Latency Mode)
VRR (Variable Refresh Rate)
QFT (Quick Frame transport)
DSC (Display Stream Compression)
3-D Ready
Video Signal Passthrough	up to 8K 48/50/60Hz RGB/YCbCr 4:4:4 12-bit and 4K 100/120Hz RGB/YCbCr 4:4:4 12-bit
Video Signal Upscaling	from 1080p and 4K up to 8K 50/60Hz and 4K 50/60Hz
Analog To HDMI Upconversion	Component**, Composite
Component Video Upscaling
Analog to Analog Video conversion
Component Video Maximum Resolution	480i/576i
isf Certified Calibration Control

CONNECTIVITY
Wi-Fi
Bluetooth	SBC, AAC, aptX, aptX HD
Works with Amazon Alexa
Google Assistant
Chromecast Built-In
Apple Siri
Works with SonoS
DTS Play-Fi	via Integra Music Control App
Domotz Pro Compatible
OvrC Compatible
AirPlay	AirPlay 2
Apple Product Connection	iPod, iPhone and iPad
Remote App	Integra Remote Control App
InstaPrevue Input Source Prevue

TERMINALS
HDMI Inputs	7 (1 front)
HDMI Outputs	3 (1 MAIN, 1 SUB, 1 ZONE 2)
8K Inputs	6
USB Input	1
USB DC Out Port
Optical Inputs	3
Optical Outputs
Coaxial Inputs	2
RCA Line Inputs	4
RCA Line Outputs
XLR Line Inputs	1
Phono Input
Multi-Channel Input
RCA Pre-Outs	11.4
XLR Pre-outs	Front L/R, Center and 2 subwoofers
Composite Video Inputs	2
Composite Video Outputs
S-Video Inputs
S-Video Outputs
Component Video Inputs	1
Component Video Outputs
Ethernet
Ethernet Switch
PC In
Front A/V Inputs	HDMI
Headphone Out	6.3 mm (1/4")
Detachable Power Cord

ZONES
Number of Zones	3
Powered Zones	2 and 3
Zone 2 Outs	HDMI, RCA Pre/Line Out (shared with Zone B Line out)
Zone 3 Outs	RCA Pre/Line Out
Whole House Mode
RS-232C Interface
+12V Trigger Output	3 (A:100 mA, B:25 mA, C:25 mA)
Remote (IR) Input/Output	2 / 1

MISCELLANEOUS
On-Screen Display	High-definition GUI over HDMI
GUI Languages	9
IP Control
Control4 SDDP

RADIO
Analog Tuner	FM/AM
Presets	40
Digital Radio
Internet Radio	TuneIn
Pandora
Spotify
Tidal
Deezer
Napster
SiriusXM

CONSTRUCTION
Front Panel	Audiophile Grade Anti-Resonant Aluminum Front Panel
Solid Aluminum Front
Speaker Terminals	15
Large Speaker Terminals	15
Color-Coded Speaker Terminals
Gold plated RCA terminals
Rack Mount Kit Available	IRK-180-4C

POWER
Power Supply	AC 120 V, 60 Hz
H.C.P.S. (High Current Power Supply)	Massive Custom Transformer
Toroidal Transformer
Power Consumption	1095 W
Standby Power	0.1 W

PHYSICAL
Dimensions (W x H x D)	435 mm x 198 mm x 470 mm 17-1/8" x 7-13/16" x 18-1/2"
Weight	22.5 kg (49.6 lbs)

SPECIFICATIONS
Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)	150 W (0.08% THD)
Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA or IEC)	260 W (10% THD)
THD	0.08% (20 Hz - 20 kHz, half power)
Input Sensitivity and Impedance (Line)	200 mV/47 kΩ
Input Sensitivity and Impedance (Phono MM)	3.5 mV/47 kΩ
Rated Preout Level and Impedance	1 V/470 Ω
Rated XLR Output Level and Impedance	2 V/220 Ω
Rated Headphone Jack Output Level and Impedance	8 Ω - 600 Ω
Rated Headphone Power Output	75 mW (32 Ω, 1 kHz, 10% THD)
Phono Overload	70 mV (MM, 1 kHz 0.5%)
S/N Ratio (Line, IHF-A)	107 dB
S/N Ratio (Phono MM, IHF-A)	78 dB
Frequency Response (Analog In)	10 Hz - 100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
DSD Sampling Rates via HDMI	2.8 MHz
DSD Sampling Rates via USB	11.2 MHz, 5.6 MHz, 2.8 MHz
Video Input Sensitivity/Output Level and Impedance	1 Vp-p/75 Ω (Component Y) 0.7 Vp-p/75 Ω (Component PB/CB, PR/CR) 1 Vp-p/75 Ω (Composite)
Ethernet Standard	10BASE-T/100BASE-TX
Wi-Fi Standard	IEEE 802.11 a/b/g/n/ac
Wi-Fi Terminal Frequency	5 GHz, 2.4 GHz
Bluetooth Version	4․2
Bluetooth Frequency	2.4 GHz
USB Terminal	Ver. 2.0, 5 V, 1 A
FM Frequency	87.5 MHz - 107.9 MHz
FM 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)	Mono: 1.0 µV (11.2 dBf)
AM Frequency	530 kHz - 1710 kHz
Warranty	3 Years

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted
