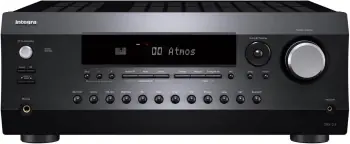

Integra DRX-2.4 (North American version)
- 7.2 channels
- 7.1 channel processing
- 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
- HDMI 2.1
- Dolby Atmos, DTS:X capable
- HDR10, HDR10+, Dolby Vision, 4K Upscaling, 8K Passthrough
- AirPlay 2, Chromecast
- Ethernet, Wi-Fi, Bluetooth
- USB and Phono inputs
Disclosure: We earn money from the affiliate links to products associated with content in this article.
Integra DRX-2.4 was introduced in 2021. It is equipped with 7 channel amplifier with 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 7.1 maximum channel processing. It supports Dolby Atmos and DTS:X, passes 8K/60Hz and 4K/120Hz and upscales 1080p to 4K video signal.
We evaluated the a/v receiver and gave 89 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.
Pros and Cons
In this section we present pros and cons of Integra DRX-2.4.
|Dolby Atmos Height Virtualization|
|DSD via HDMI|
|Auto Speaker Calibration System with Mic.|
|New HDCP Version|
|Auto Low Latency Mode Pass-through|
|4K or 8K Video Passthrough|
|4K or 8K Signal Upscaling|
|Works with Amazon Alexa|
|Many 8K Inputs|
|Many Optical Inputs|
|New Bluetooth Version|
|No Front Wide Channel Support|
|No IMAX Enhanced|
|No Auro 3D with Auro-Matic Upmixer|
|No Composite Video Inputs|
Here we are comparing Integra DRX-2.4 to its predecessor DRX-2.3 and displaying the major changes.
|UPGRADES||Integra DRX-2.4||vs||Integra DRX-2.3|
|Music Playback via USB||FLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, AAC, LPCM||vs||FLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, AAC|
|Jitter Reduction||PLL (Phase-Locked Loop) jitter-cleaning circuitry for SPDIF digital audio||vs|
|More Tone Control Channels||All Channels||vs||Front L/R Channels|
|Enhanced Audio Return Channel (eARC)||vs|
|Auto Low Latency Mode Pass-through||vs|
|Video Signal Passthrough||up to 8K 48/50/60Hz YCbCr 4:2:0 8/10-bit and 4K 100/120Hz RGB/YCbCr 4:4:4 8/10-bit||vs||up to 4K 50/60Hz 4:4:4|
|Works with Amazon Alexa||vs|
|More 8K Inputs||6||vs|
|More RCA Pre-Outs||2.2 (shared with Zone 2 and Zone B)||vs||0.2|
|Zone 2 Outs||HDMI, RCA Pre/Line Out (shared with Zone B Line Out and Front Pre/Line Out)||vs||HDMI|
|Higher DSD Sampling Rate via USB||2.8 MHz, 5.6 MHz, 11.2 MHz||vs||2.8 MHz, 5.6 MHz|
|Wi-Fi Standard||IEEE 802.11 a/b/g/n/ac||vs||IEEE 802.11 a/b/g/n|
|Newer Bluetooth Version||4․2||vs||4․1 + LE|
|DOWNGRADES||Integra DRX-2.4||vs||Integra DRX-2.3|
|Lower DAC Specs||192 kHz/24 Bit||vs||384 kHz/32 Bit|
|Analog To HDMI Upconversion||vs||Component**, Composite|
|Less RCA Line Inputs||4||vs||5 (1 front)|
|Less Composite Video Inputs||vs||3 (1 front)|
|Less Component Video Inputs||vs||1|
|Front A/V Inputs||vs||Composite, L/R Audio|
For more detailed comparison between the models please visit Integra DRX-2.4 vs Integra DRX-2.3.
7 channel Amplifier
Integra DRX-2.4 features 7 channel power amplifier. It is rated at 80 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.
Integra DRX-2.4's 7 channel amplifier can be assigned for different speaker configurations.
- Dolby Atmos Configurations: The following speaker configurations are supported for Dolby Atmos:
- 5.2.2 with internal amplifier.
- DTS:X Configurations: The speaker configurations for DTS:X are the same as for Dolby Atmos:
- 5.2.2 with internal amplifier.
- Configurations without height channels: There are also other speaker configurations available which do not include height channels:
- 5.2, 7.2 with internal amplifier.
- 2-ch Bi-Amp: Integra DRX-2.4 allows you to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.
Integra DRX-2.4 supports Dolby Atmos. It is a cinematic audio format in which sounds exist as individual entities, called audio objects. In Dolby Atmos, any sound can exist as an independent audio object, free of channel restrictions. They can be precisely placed and moved anywhere in your room, including overhead, to flow above and around you in three-dimensional space. Through the use of audio objects, overhead sound, and all the richness, clarity, and power of Dolby sound, Dolby Atmos turns your room into an amazing place for entertainment. The format supports up to 128 simultaneous independent audio objects in a mix for rich, realistic, and breathtaking sound. It recreates the director's original concept through descriptive metadata to provide customized playback for home theater and delivers sounds above you through overhead speakers, special upward-firing Dolby Atmos speakers, or a Dolby Atmos enabled sound bar.
- Dolby Surround Upmixer: If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.
- Dolby Atmos Height Virtualization: Dolby Atmos height virtualization is a digital signal processing solution that leverages Dolby's deep understanding of human audio perception to create the sensation of overhead sound from the listener-level speakers.
Integra DRX-2.4 supports DTS:X. A technique used in DTS:X is similar to the one used in Dolby Atmos. Instead of a fixed number of channels, DTS:X defines object locations from the listener in polar coordinates. An a/v receiver then dynamically renders sound according to the current speaker configuration. The speaker layout employed by DTS:X is the sum of Dolby Atmos and Auro-3D. It has standard 7.1 channel base layer, a 5 channel height layer above the base layer on the front and side walls, and 3 rows of speakers on the ceiling.
- DTS Neural:X: DTS Neural:X is an advanced upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.
- DTS Virtual:X: DTS Virtual:X bridges the gap between DTS:X codec and the reality of so many consumers' homes, allowing you to enjoy multi-dimensional sound regardless of room size, layout, or speaker configuration. If you have a limited speaker setup you will miss a full immersive potential of your entertainment system. DTS Virtual:X adds height and surround audio effect to your system without adding height speakers. It works with multiple configurations and delivers immersive sound experience out of 5.1 or even 2.1 speaker layouts.
- DTS Dialog Control: This function adjusts the dialog levels during playback of the DTS:X stream. It allows you to separately increase the dialog levels in contrast with the background sound and hear dialog easily even under noisy circumstances.
Enhanced Audio Return Channel (eARC)
Audio Return Channel (ARC) feature allows the compatible TV to send audio signal to the a/v receiver through the same HDMI cable which is used to send audio and video signals to the TV. So one HDMI cable is used to transfer audio signal in both directions. New Enhanced ARC will support uncompressed audio formats such as Dolby Atmos, DTS:X, Dolby TrueHD and DTS HD Master Audio whereas the previous ARC could support only Dolby Digital, Dolby Digital Plus, DTS, DTS HD, and PCM.
- Advanced Music Optimizer: Compressed music enhancement in Integra DRX-2.4 is done by Onkyo’s Advanced Music Optimizer. While MP3 or AAC files may sound fine through the headphones of your portable digital player, the limitations of these files can be exposed when played back through a quality home entertainment system. This is because a significant amount of high-frequency bit information is lost during the file-compression process. To counter this, Onkyo has designed the Advanced Music Optimizer to compensate for lost bit information and improve the quality of compressed audio signals. This results in a clearer and more expansive sound. Also included in this technology is a loudness correction feature that further improves the audio character of compressed files.
Integra DRX-2.4 comes with AccuEQ Room calibration with subwoofer EQ and AccuReflex™ room correction system and includes the calibration microphone.
- AccuEQ: First, AccuEQ detects the presence of speakers and evaluates the impedance of each. Next, it pinpoints their distance relative to the main listening position using the mic and sets suitable sound-pressure levels. Then it selects the optimal crossover frequency so that deeper bass rolls smoothly off to the subwoofer. Finally, AccuEQ performs frequency response equalization based on room-acoustic and speaker data collected via microphone. The sound-field is now tailored around the listening position, resulting in a more immersive and realistic in-film experience.
Integra DRX-2.4 features 6 HDMI 2.1 inputs with 8K support. It has 2 outputs: 1 Main and 1 Sub/Zone2.
- 8K/60Hz and 4K/120Hz Passthrough: All inputs pass up to 8K 48/50/60Hz YCbCr 4:2:0 8/10-bit and 4K 100/120Hz RGB/YCbCr 4:4:4 8/10-bit video signal.
- 4K Upscaling: Integra DRX-2.4 can upscale 1080p to 4K from HDMI sources.
- BT.2020 Color Space: BT.2020 or Rec. 2020 is a color standard which delivers a wider color gamut compared to Rec. 709. It covers approximately 75% of the total visual spectrum while the Rec. 709 covers only 35%.
- HDCP 2.3 Copy Protection: All inputs and outputs are HDCP 2.3 compliant which is a requirement for 4K/HDR copy-protected content transmission.
- Quick Media Switching (QMS): With HDMI 2.1a, Quick Media Switching for movies and video uses the HDMI VRR mechanism to eliminate the blackout period when an HDMI Source device switches its video mode. As long as the resolution remains the same and only the frame rate changes, QMS will instantly switch between frame rates. QMS eliminates A/V blackouts by using VRR technology to change frame rates, allowing instant changes from 24Hz to 60Hz frame rate, and anywhere in-between. The viewer never sees blank screens and gets a seamless experience.
- 3D Ready: Integra DRX-2.4 is able to pass 3D video through HDMI.
HDR (High Dynamic Range)
Integra DRX-2.4 supports HDR (high dynamic range) video formats such as HDR10, HDR10+, Dolby Vision and Hybrid Log-Gamma. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.
- HDR10: HDR10 uses the wide-gamut Rec. 2020 color space. It sends static metadata via video stream to the TV which calibrates its screen brightness and color according to that. HDR10 supports 10-bit color which corresponds to 1024 shades of the primary RGB colors. It is technically limited to a maximum of 10,000 nits peak brightness, however common HDR10 contents are mastered with peak brightness from 1,000 to 4,000 nits.
- HDR10+: HDR10+ is an HDR video technology that adds dynamic metadata to HDR10 source files. The dynamic metadata are used to adjust brightness levels on a scene-by-scene or even frame-by-frame basis. HDR10+ supports maximum of 10,000 nits peak brightness and 10-bit or more (up to 16-bit) color bit depth. It uses Samsung's dynamic metadata defined in SMPTE ST 2094-40.
- Dolby Vision: Dolby Vision is a set of technologies developed by Dolby Laboratories for high dynamic range (HDR) video. It covers content creation, distribution, and playback. Like HDR10+, it includes dynamic metadata that are used to adjust and optimize each frame of the HDR video to the consumer display's capabilities in a way specified by the content creator. Dolby Vision allows for a maximum resolution of 8K up to 12-bit color depth, maximum peak brightness of 10,000 nits and a color gamut up to Rec. 2020. It uses Dolby's proprietary dynamic metadata defined in SMPTE ST 2094-10.
- Hybrid Log-Gamma (HLG): The Hybrid Log-Gamma (HLG) is a transfer function developed mainly for HDR live video feed and over-the-air broadcasts. It is an HDR format that uses BT.2020 color primaries and a bitdepth of 10-bit. It is backward compatible with the transfer function of SDR and is designed to be better-suited for television broadcasting, where the metadata required for other HDR formats is not backward compatible with non-HDR displays. HLG defines a non-linear optical-electro transfer function, in which the lower half of the signal values use a gamma curve and the upper half of the signal values use a logarithmic curve.
Integra DRX-2.4 supports Auto Low Latency Mode (ALLM), Variable Refresh Rate (VRR) and Quick Frame Transport (QFT) for lag-free and smooth gaming.
- Auto Low Latency Mode (ALLM): Auto Low Latency Mode enables the ideal latency setting to automatically be set allowing for smooth, lag-free and uninterrupted viewing and interactivity. When the receiver detects a gaming signal it will enter ALLM. The signal will also be sent to the TV causing it to automatically switch to a low-latency, low-lag mode for gaming. Some functions will not be available on the receiver and TV during ALLM.
- Variable Refresh Rate (VRR): VRR enables a gaming source such as a console or computer to deliver video frames as fast as it can, which in many cases is slower than the normal static refresh rate. It allows the TV to adapt to certain frame rate which reduces or eliminates lag, judder and frame tearing for more fluid and better detailed gameplay.
- Quick Frame Transport (QFT): QFT reduces latency for smoother no-lag gaming, and real-time interactive virtual reality. It transports each frame at a higher rate to decrease display latency, which is the amount of time between a frame being ready for transport in the GPU and that frame being completely displayed.
Integra DRX-2.4 offers multi-zone playback which allows you to play different input sources in 2 different rooms.
- Powered Zone 2: You can use the unit's 2 amplifier channels by connecting Zone 2 speakers directly to the speaker terminals. The remaining 5 channels will be left for main zone amplification.
- HDMI Output: Integra DRX-2.4 offers HDMI output for Zone 2. This means that it can send two different HDMI signals to two displays.
- Audio Pre/Line Output: If you have a dedicated amplifier for Zone 2 you can connect it to the a/v receiver via pre/line outs and use "pre out" option to control volume from the a/v receiver or use "line out" option - send fixed signal and then control volume on the Zone 2 amplifier.
Inputs and Outputs
- Analog Pre-Outs: Integra DRX-2.4 has 2.2 preamplifier outputs which allow you to connect the a/v receiver to the external power amplifier. You may want to use a high quality external amplifier for certain channels, usually for front L/R and center, and use the a/v receiver to power the rest.
- Analog Line Inputs: There are 4 line inputs for analog audio connection.
- Digital Inputs and Outputs: 1 optical input, 1 optical output and 1 coaxial input are available for digital audio connection.
- Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.
- Inputs: 6 Outputs: 2 (1 Main, 1 Sub/Zone2)
8K Inputs: 6
Here we list all the available features and specifications of Integra DRX-2.4.
|Front Wide Channel Support|
|Non-Phase Shift Amplifier|
|VLSC (Vector Linear Shaping Circuitry)||Front L/R|
|Optimum Gain Volume Circuitry|
|Continuous 6 Ω Rated|
|Certified 4 Ω Performance|
|Bi-amp Capability||Front L/R Channels|
|Digital Signal Processing (DSP) Engine||32-Bit DSP Chip for Advanced Processing|
|DAC Specs||192 kHz/24 Bit|
|Maximum Channel Processing||7.1|
|Air Studios Monitor Certification|
|Dolby Atmos Height Virtualization|
|Dolby Atmos Music|
|Dolby Digital Plus|
|Dolby Surround Upmixer|
|Dolby Pro Logic|
|Dolby Digital EX|
|THX Listening Modes|
|DTS-HD Master Audio|
|DTS-HD High Resolution Audio|
|Auro 3D with Auro-Matic Upmixer|
|Music Playback via USB||FLAC, WAV, Apple Lossless, WMA, MP3, DSD, AIFF, AAC, LPCM|
|High Resolution Music Playback via USB and/or Network||up to 192 kHz|
|High Resolution Audio Formats via USB||FLAC, WAV, Apple Lossless, DSD, AIFF, AAC|
|DSD via HDMI||2-ch/Multi-ch Input|
|DSD via USB||2-ch Input|
|DSD to PCM Converter|
|Jitter Reduction||PLL (Phase-Locked Loop) jitter-cleaning circuitry for SPDIF digital audio|
|DTS Dialog Control|
|Tone Control||All Channels|
|Compressed Music Enhancer||Advanced Music Optimizer|
|High-resolution Music Enhancer|
|THX Processing Mode|
|Audyssey Dynamic EQ|
|Audyssey Dynamic Volume|
|Audyssey Sub EQ HT|
|Pure Audio Mode|
|Virtual Speakers||T-D (Theater-Dimensional)|
|Independent Subwoofer Outputs|
|Auto Speaker Calibration System with Mic.||AccuEQ Room calibration with subwoofer EQ and AccuReflex™|
|Standing Wave Control|
|HLG (Hybrid Log Gamma)|
|BT.2020 color space|
|QMS (Quick Media Switching)|
|ALLM (Auto Low Latency Mode)|
|VRR (Variable Refresh Rate)|
|QFT (Quick Frame transport)|
|DSC (Display Stream Compression)|
|Video Signal Passthrough||up to 8K 48/50/60Hz YCbCr 4:2:0 8/10-bit and 4K 100/120Hz RGB/YCbCr 4:4:4 8/10-bit|
|Video Signal Upscaling||1080p to 4K|
|Analog To HDMI Upconversion|
|Component Video Upscaling|
|Analog to Analog Video conversion|
|isf Certified Calibration Control|
|Domotz Pro Compatible|
|DTS Play-Fi||via Integra Music Control App|
|Works with Amazon Alexa|
|Works with SONOS|
|Apple Product Connection||iPod, iPhone and iPad|
|Remote App||Integra Remote Control App|
|InstaPrevue Input Source Prevue|
|Bluetooth||SBC, AAC, aptX, aptX HD|
|HDMI Outputs||2 (1 Main, 1 Sub/Zone2)|
|USB Input||1 (Rear)|
|USB DC Out Port|
|RCA Line Input||4|
|RCA Line Output|
|XLR Line Inputs|
|Composite Video Input|
|Composite Video Output|
|Component Video Input|
|Component Video Output|
|RCA Pre-Outs||2.2 (shared with Zone 2 and Zone B)|
|Front A/V Inputs|
|Headphone Out||6.3 mm (1/4")|
|Zone 2 Outs||HDMI, RCA Pre/Line Out (shared with Zone B Line Out and Front Pre/Line Out)|
|+12V Trigger Output||3 (A:100 mA, B:25 mA, C:25 mA)|
|Remote (IR) Input/Output||2 / 1|
|On-Screen Display||High-definition GUI over HDMI|
|IP Control for CI|
|Detachable Power Cord|
|SiriusXM Internet Radio|
|Front Panel||Anti-Resonant Aluminum Front Panel|
|Solid Aluminum Front|
|Large Speaker Terminals||9|
|Color-Coded Speaker Terminals|
|Gold plated RCA terminals|
|Power Supply||AC 120 V, 60 Hz|
|H.C.P.S. (High Current Power Supply)||Massive custom transformer and hand-selected audio parts|
|Power Consumption||460 W|
|Standby Power||0.1 W|
|ECO Mode / Hybrid Standby Function|
|Dimensions (W x H x D)||435 mm x 174 mm x 376.5 mm|
17-1/8" x 6-7/8" x 14-13/16"
|Dimensions of Package (W x H x D)||560 mm x 305 mm x 467 mm|
22-1/16" x 12" x 18-3/8"
|Weight||9.6 kg (21.2 lbs)|
|Weight of Package||12.5 kg (27.6 lbs)|
|Rack Mount Kit Available||IRK-155-3D|
|Power Output (8 Ω, 20 Hz - 20 kHz, 2||80 W (0.08% THD)|
|Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA)||170 W (10% THD)|
|Dynamic Power per Channel (3 Ω, Front)||160 W|
|Dynamic Power per Channel (4 Ω, Front)||125 W|
|Dynamic Power per Channel (8 Ω, Front)||85 W|
|THD||0.08% (20 Hz - 20 kHz, half power)|
|Input Sensitivity and Impedance (Line)||200 mV/47 kΩ (Line)|
|Input Sensitivity and Impedance (Phono MM)||3.5 mV/47 kΩ|
|Rated Headphone Power Output||80 mW (32 Ω, 1 kHz, 10% THD)|
|Phono Overload||70 mV (MM, 1 kHz 0.5%)|
|S/N Ratio (Line, IHF-A)||106 dB|
|S/N Ratio (Phono MM, IHF-A)||80 dB|
|Frequency Response (Analog In)||10 Hz - 100 kHz/+1 dB, -3 dB (Direct)|
|DSD Sampling Rates via HDMI||2.8 MHz|
|DSD Sampling Rates via USB||2.8 MHz, 5.6 MHz, 11.2 MHz|
|Wi-Fi Standard||IEEE 802.11 a/b/g/n/ac|
|Wi-Fi Terminal Frequency||5 GHz, 2.4 GHz|
|Bluetooth Frequency||2.4 GHz|
|USB Terminal||Ver. 2.0, 5 V, 1 A|
|FM Frequency||87.5 MHz - 107.9 MHz|
|FM 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)||Mono: 1.0 µV (11.2 dBf)|
|AM Frequency||530 kHz - 1710 kHz|
* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted
