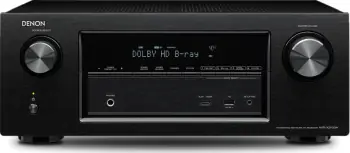

Denon AVR-X2100W (UK version)

Overview

Denon AVR-X2100W was introduced in 2014. It is equipped with 7 channel amplifier and is capable of 7.1 maximum channel processing.

We evaluated the Receiver and gave 79 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

Amplifier score is based on power ratings, minimum impedance load, power supply, transformer type, total harmonic distortion, damping factor, signal to noise ratio and other small details. Audio score depends on the number of channels, front wide channel support, maximum channel processing, support of audio formats, DAC specifications, room calibration algorithm... Video score is based on HDR, Dolby Vision and video signal passthrough and upscaling, analog to HDMI upconversion. Connectivity score is defined from all wired and wireless inputs and outputs, internet and bluetooth connections, HEOS, SONOS and others. Multizone score depends on the number of zones with their outputs. Radio score is evaluated form digital radio support and analog tuner with its frequency range, signal to noise ratio, harmonic distortion...

Pros and Cons

In this section we present pros and cons of Denon AVR-X2100W.

Amplifier

Denon AVR-X2100W has 7 channel amplifier and delivers 95 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and also has a stable performance at 4 Ω load.

Video Features

The Receiver has 4K passthrough up to 60p and 4K upscaling up to 30p.

Audyssey

Denon AVR-X2100W comes with Audyssey Dynamic EQ and Audyssey Dynamic Volume.

Audyssey Dynamic EQ selects the best possible frequency response and surround volume levels moment-by-moment. This ensures that the bass response, tonal balance and surround impression remain constant despite changes in volume. This is the first technology that carefully combines information from incoming source levels with actual output sound levels in the room, a pre-requisite for delivering a dynamic volume solution.

Your Listening experience can be greatly diminished when there are significant shifts in volume between television programs, commercials and within the program material itself. When this happens you must constantly adjust the volume to maintain your desired listening level. Audyssey Dynamic Volume monitors the volume of program material moment-by-moment and automatically adjusts it, maintaining the desired listening level for all content while optimizing the dynamic range to preserve impact.

Room Correction

Denon AVR-X2100W comes with Audyssey MultEQ XT room correction system and includes the calibration microphone.

Audyssey is an acoustic measurement technology which automatically restores the acoustic distortion caused by the acoustic behaviour of a room with only a push on a button. Audyssey equalization provides an clear, accurate, natural sound with voices and dialog that become focused and intelligible, restoring the musical balance. Musical instruments and sound effects become precisely localized and the surround soundstage is made seamless and enveloping.

Connectivity

Denon AVR-X2100W can be connected to internet using ethernet cable or built-in wi-fi adapter. It can also connect to bluetooth devices via built-in bluetooth adapter. The Receiver supports AirPlay. It has 8 HDMI inputs and HDCP 2.2 copy protection.

Front panel has HDMI and USB inputs.

Specifications

Here we list all the available features and specifications of Denon AVR-X2100W.

BASICS
Brand	Denon
Model	AVR-X2100W
Type	A/V Receiver
Country	UK
Release Year	2014

AMPLIFIER
Channels	7.2
Front Wide Channel Support
Discrete Amplification
THX™ Certification
Continuous 6 Ω Rated
Certified 4 Ω Performance
Mono Block Power Amplifier Construction
Bi-amp Capability	assignable

AUDIO
Digital Signal Processing (DSP) Engine	multiple Texas Instruments/ Aureus DSP processors
Maximum Channel Processing	7.1
D.D.S.C. HD Digital
Alpha Processing
Air Studios Monitor Certification
Dolby Atmos
Dolby Atmos Height Virtualization
Dolby TrueHD
Dolby Digital Plus
Dolby Surround Upmixer
Dolby Pro Logic	PLIIz
Dolby Digital EX
Surround EX
DTS:X
DTS Neural:X
DTS Virtual:X
DTS Neo	Neo:6
DTS-HD Master Audio
DTS-HD High Resolution Audio
DTS 96/24
DTS Express
DTS-ES	Discrete 6.1, Matrix 6.1
IMAX Enhanced
Auro 3D with Auro-Matic Upmixer
PCM	2-ch/Multi-ch Input
Music Playback via USB	MP3, WMA, AAC, Apple Lossless, WAV, FLAC, AIFF, DSD
High Resolution Music Playback via USB and/or Network	up to 192 kHz
High Resolution Audio Formats via USB	Apple Lossless, WAV, FLAC, AIFF, DSD
Multi-Channel Music File Playback via USB
Gapless Playback
DSD via HDMI
DSD via USB	2-ch Input
DSD to PCM Converter
USB DAC
Jitter Reduction
DTS Dialog Control
Dialog Enhancement
Dialog Level Adjustment
Dialog Normalization
Dialogue Lift
Compressed Music Enhancer
High-resolution Music Enhancer
Audyssey Dynamic EQ
Audyssey Dynamic Volume
Audyssey LFC
Audyssey Sub EQ HT
Audyssey DSX
Direct Mode
Pure Direct Mode
Independent Dual Subwoofer Output

CALIBRATION
Auto Speaker Calibration System with Mic.	Audyssey MultEQ XT
Audyssey App Support
Optimized Bass Redirection
Bass Sync

VIDEO
HDR10
HDR10+
BT.2020 color space
Dolby Vision
HLG (Hybrid Log Gamma)
QMS (Quick Media Switching)
ALLM (Auto Low Latency Mode)
VRR (Variable Refresh Rate)
QFT (Quick Frame transport)
3-D Ready
Video Signal Passthrough	up to 4K 50/60Hz 4:4:4
Video Signal Upscaling	up to 4K 24/25/30p 4:4:4
Analog To HDMI Upconversion	Component, Composite
Component Video Upscaling
Analog to Analog Video conversion
Component Video Maximum Resolution	1080p
isf Certified Calibration Control

CONNECTIVITY
MHL Input
DLNA 1.5
FireConnect
FlareConnect
HEOS
Chromecast Built-In
DTS Play-Fi
Works with Amazon Alexa
Works with SONOS
AirPlay	AirPlay
Apple Product Connection	iPod, iPhone and iPad
Remote App	Denon Remote App for iOS and Android devices
InstaPrevue Input Source Prevue
Ethernet
Ethernet Switch
Wi-Fi
Bluetooth
Bluetooth Headphone Transmission
HDBaseT Compatible
Enhanced ARC
HDCP Version	2.2
HDMI Input	8 (1 front)
HDMI Output	2 (simultaneous)
USB Input	1 (Front) for iPod/iPhone and USB memory
USB DC Out Port
Analog Audio Line Input	4
Analog Audio Line Output
Phono Input
Optical In	2
Optical Out
Coaxial In/Out	/
Composite Video Input	2
Composite Video Output
S-Video Input
S-Video Output
Component Video Input	1
Component Video Output
PC In
Multi-Channel Input
Analog Pre-Outs	0.2
XLR Inputs
XLR Pre-outs
Front A/V Inputs	HDMI, USB
Speaker A/B	assignable
Headphone Out	6.3 mm

ZONES
Zones	2
Powered Zones	2
Zone 2	Pre Out
RS-232
+12V Trigger Output
Remote (IR) Input/Output	0 / 0

MISC
On-Screen Display	Advanced Graphic User Interface
GUI Languages	9
Control4 SDDP
FL Display	1 line
Remote Controller	RC-1192
Pre-programmed / Learnable / LCD Display	/ /
Detachable Power Cord
Denon Link HD
Setup Assistant
Quick Select plus / Quick Select	/

RADIO
Analog Tuner	FM/AM with RDS
Digital Radio
Internet Radio	vTuner
Pandora
Spotify
Tidal
Deezer
Napster
SiriusXM Internet Radio

CONSTRUCTION
Front Panel	Brushed hairline metalized finish
Speaker Terminals	7
Large Speaker Terminals	7
Color-Coded Speaker Terminals
Transparent High-Grade Speaker Terminals
High Grade Audio Components
Gold plated RCA terminals

POWER
Power Supply	AC 230 V, 50/60 Hz
Power Consumption	500 W
No Sound Power	ECO On/Off: 35 W/75 W
Standby Power	0.1 W

GENERAL
ECO Mode / Hybrid Standby Function
Auto Power off
Dimensions (W x H x D)	434 mm x 167 mm x 339 mm (with antenna: 434 mm x 235 mm x 339 mm) 17-3/32" x 6-37/64" x 13-11/32" (with antenna up: 17-3/32" x 9-1/4" x 13-11/32")
Weight	9.7 kg (21 lbs 6 oz)
Warranty	3 Years

SPECS
Power Output (8 Ω, 20 Hz - 20 kHz, 2	95 W (0.08% THD)
Power Output (6 Ω, 1 kHz, 2	125 W (0.7% THD)
Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA)	185 W (10% THD)
Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)	150 W (1% THD)
Input Sensitivity and Impedance (Line)	200 mV/47 kΩ
S/N Ratio (Line, IHF-A)	100 dB
Frequency Response (Analog In)	+1/-3 dB (10 Hz to 100 kHz, Direct mode)
DSD Sampling Rates via USB	2.8 MHz
Video Input Sensitivity/Output Level and Impedance	1 Vp-p/75 Ω (Component Y) 0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)
Video Frequency Response	5 Hz to 60 MHz, 0 dB/-3 dB (Component)
Ethernet Standard	100BASE-TX
Wi-Fi Terminal Frequency	2.4 GHz
Bluetooth Version	2.1 + EDR
Bluetooth Frequency	2.4 GHz
USB Terminal	USB2.0 5V, 1 A
FM Frequency	87.5 MHz - 108.0 MHz
FM 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)	Mono: 2.8 µV (20.2 dBf)
FM Effective Sensitivity	1.2 µV (12.8 dBf)
FM S/N Ratio	Mono/Stereo: 70 dB/67 dB
FM Harmonic Distortion (IHF, 1 kHz)	Mono/Stereo: 0.7%/1.0%
AM Frequency	522 kHz - 1611 kHz
AM Effective Sensitivity	18 µV

* - 480i/576i and 480p/576p only
** - 480i/576i only
*** - no 1080p/24 upconversion
**** - 1080p signal is not converted

Successor

In 2015 Denon AVR-X2100W was replaced by AVR-X2200W. Let us now have a look at some important changes that the successor brought.

UPGRADES	Denon AVR-X2200W	vs	Denon AVR-X2100W
Dolby Atmos		vs
Dolby Surround Upmixer		vs
DTS:X		vs
DTS Neural:X		vs
DTS Dialog Control		vs
HDR10		vs
BT.2020 color space		vs
Dolby Vision		vs
HLG		vs
More Component Video Inputs	2	vs	1

For more detailed comparison between the models please visit Denon AVR-X2200W vs Denon AVR-X2100W.
